6 8 10 12 14 inch Large Diameter Water Pump Inlet PVC Suction Hose
6 8 10 12 14 inch Large Diameter Water Pump Inlet PVC Suction Hose
6 8 10 12 14 inch Large Diameter Water Pump Inlet PVC Suction Hose
6 8 10 12 14 inch Large Diameter Water Pump Inlet PVC Suction Hose
6 8 10 12 14 inch Large Diameter Water Pump Inlet PVC Suction Hose
6 8 10 12 14 inch Large Diameter Water Pump Inlet PVC Suction Hose
6 8 10 12 14 inch Large Diameter Water Pump Inlet PVC Suction Hose

6 8 10 12 14 inch Large Diameter Water Pump Inlet PVC Suction Hose

Share on (1601192822702):


Price:$1.70 - $2.10

Quantity:


Product Overview

Description









Products Description
Rigid PVC Spiral Cheaper Industrial Corrugated Heavy Grit Suction Sand Sewer/Screw Pump Grit Hose Pipe


General Information
∎ Our Industrial PVC hose includes a wide range of high-quality hose with different diameters for processing and conveyance as well as the suction of multiple substances.
∎ Based on hoses qualified material, cover, and reinforcement they are all flexible, strong, highly durable, and capable of working with high, and low pressure & heat.
∎ They are resistant to abrasion as well as to chemical substances, and kink.
∎ Moreover, all hoses are resistant to environmental conditions, so they can function through extreme environmental situations.



Key features
• Tough, flexible and extremely durable • Outstanding resistance to the effects of weather • Minimum frictional loss
is achieved by the smooth bore • Excellent chemical resistance
Applications
Water, slurries, granules, foodstuffs and dilute chemicals. Ideally suited to applications in the agricultural, food
processing, plastics handling, marine & construction industries.
Construction
Crush resistant anti-shock PVC spiral helix encapsulated in a clear flexible PVC cover, with a smooth inside wall












Flat Type PVC Suction Hose


model
ID
mm
OD
mm
Pitch
mm
W.P.
Mpa
B.P.
MPa
W/A
kg/m
Legnth
m/roll
SJSC19
19
24
5.5
0.6
2.1
0.22
30,50
SJSC25
25
30
6
0.6
1.8
0.28
30,50
SJSC32
32
37.2
6.5
0.5
1.5
0.36
30,50
SJSC38
38
43.8
7.5
0.4
1.4
0.47
30,50
SJSC50
50.8
57.8
8.5
0.4
1.4
0.76
30,50
SJSC65
63.5
72.5
9.5
0.4
1.4
1.23
30,50
SJSC75
76.2
85
10
0.4
1.4
1.43
30,50
SJSC100
101.6
113.4
11
0.4
1.4
2.55
30,50
SJSC125
127
141
11.5
0.3
1
3.73
10,20
SJSC150
152.4
166
13.5
0.25
0.9
4.34
10,21
SJSC200
203.2
220.4
17.5
0.2
0.8
7.29
10,22


CorrugatedType PVC Suction Hose


model
ID
mm
OD
mm
Pitch
mm
W.P.
Mpa
B.P.
MPa
W/A
kg/m
Legnth
m/roll
SJCSC19
19
25
6.5
0.3
1.2
0.17
30,50
SJCSC25
25
31.6
7.5
0.25
1
0.24
30,50
SJCSC32
31
38
8.5
0.25
1
0.31
30,50
SJCSC38
38
46.2
9
0.25
1
0.45
30,50
SJCSC50
50.6
59.8
10
0.2
0.8
0.66
30,50
SJCSC65
63.5
74.1
14
0.2
0.8
0.91
30,50
SJCSC75
76.4
88.8
15
0.2
0.8
1.33
30,50
SJCSC100
101.6
117.2
16.5
0.2
0.8
2.31
30,50
SJCSC125
125.9
144.9
22
0.15
0.6
3.18
10,20
SJCSC150
152.4
173.6
22
0.15
0.6
4.6
10,20
SJCSC200
203.7
229.7
23
0.15
0.6
8.14
10,20



Rigid PVC Spiral Cheaper Industrial Corrugated Heavy Grit Suction Sand Sewer/Screw Pump Grit Hose Pipe





Rigid PVC Spiral Cheaper Industrial Corrugated Heavy Grit Suction Sand Sewer/Screw Pump Grit Hose Pipe







Rigid PVC Spiral Cheaper Industrial Corrugated Heavy Grit Suction Sand Sewer/Screw Pump Grit Hose Pipe



Rigid PVC Spiral Cheaper Industrial Corrugated Heavy Grit Suction Sand Sewer/Screw Pump Grit Hose Pipe





Rigid PVC Spiral Cheaper Industrial Corrugated Heavy Grit Suction Sand Sewer/Screw Pump Grit Hose Pipe


1. Are you factory or trading company?
We are manufacturer. We have been engaged in the production and sales of pvc hoses for more than 20 years.

2. OEM and ODM?
Yes.

3. When can I get the quotation?
Within 24 hours after we get your inquiry.

4. Could I get a sample for checking quality?
Yes, the sample is free, customers only need to pay the courier fee.

5. What’s your payment term?
Usually 30%T/T advanced, 70% T/T with BL copy.
The other payments please contact me directly if you want in-depth cooperation.

6. What about the lead time for mass production?
Within 14-20 days after advanced payment.
MOQ is about 10 to 15 days.

7. What is the shipping port?
Qingdao port. Our factory takes 2 to 3 hours from Qingdao Port

8. Whers is the location of your company?

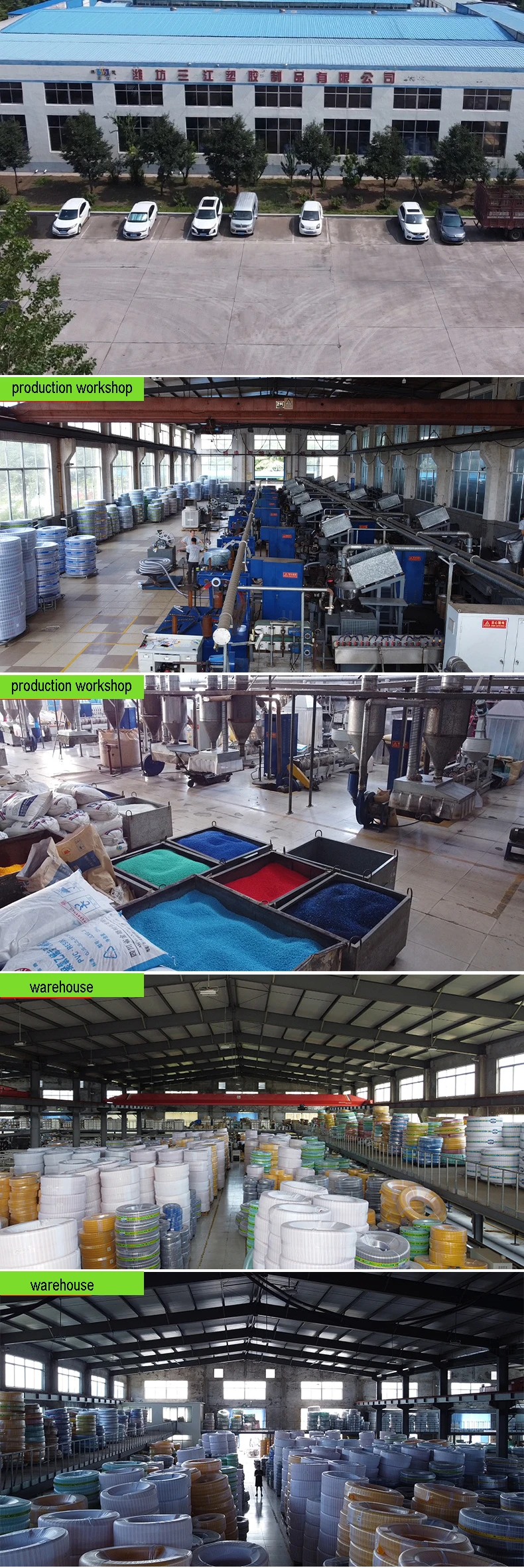

Sanjiang Plastic is located in Weifang City, Shandong Province,China.
Welcome to visit our factory and checking our quality.
