Tungsten Carbide Seal Ring &Bushing &Sleeves for Oil Field Application
- Category: >>>
- Supplier: Zhuzhou Hongtong Tungsten Carbide Co. Ltd.Zhuzhou Ltd.
Share on (1601192828720):
Product Overview
Description

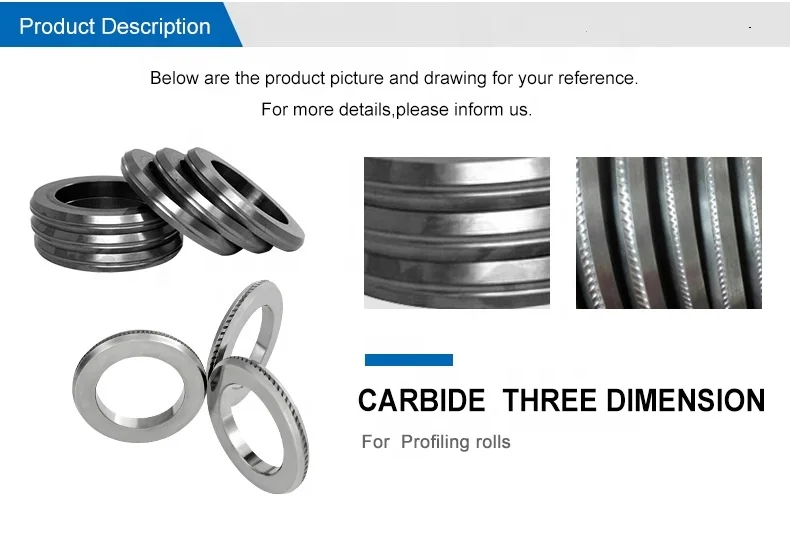

Products Description
Detail Information:
Grade: YG6/YG8/YT5/YW1...
Size: Customizable
Standard: GB(Chinese industrial standard )
Certification: ISO9001:2015
Grade: YG6/YG8/YT5/YW1...
Size: Customizable
Standard: GB(Chinese industrial standard )
Certification: ISO9001:2015
Product Name | Customized tungsten carbide rings |
Material | 100% virgin tungsten carbide material |
Grade | YG8/YG6/YT5/YT15/YW1/YW2/YG6X... |
Application | paper and plastic cutting |
Property | High quality and stability High performance. dimensionally accurate,good wear resistance |
Grain size | 0.6-1.2um |
Powder compaction | Extrusion/Press |
Sintering | HIP sintering |
Some type list of A type brazed tips(various type for choose or customized based on drawingWe have standard A type , B type, Ctype, D type, E type....We also can accept Customized.
Types:
Main Types: A&B5 / A&B6 / A&B8 / A&B10 / A&B12 / A&B16 / A&B50 / etc.
C5 / C6 / C8 / C10 / C12 / C16 / C20 / C25 / C32 / C40 / C50.
D3 / D4 / D5 / D6 / D8 / D10 / D12.
E4 / E5 / E6 / E8 / E10 /E12 / E16 / E20 / E25 / E32 / etc.
F10 / F13 / F 16 / F20 / F25 / F60 / etc.
G8 / G10 / G12 / G16 / G20 / G25 / G30.
K110 / K112 / K114 / K116 / K118 / K120 / K122 / K124 / K126.
K030B/D, K032B/D, K034B/D, K036B/D, K038B/D, K040B/D, K044B, K046B, etc.
Types:
Main Types: A&B5 / A&B6 / A&B8 / A&B10 / A&B12 / A&B16 / A&B50 / etc.
C5 / C6 / C8 / C10 / C12 / C16 / C20 / C25 / C32 / C40 / C50.
D3 / D4 / D5 / D6 / D8 / D10 / D12.
E4 / E5 / E6 / E8 / E10 /E12 / E16 / E20 / E25 / E32 / etc.
F10 / F13 / F 16 / F20 / F25 / F60 / etc.
G8 / G10 / G12 / G16 / G20 / G25 / G30.
K110 / K112 / K114 / K116 / K118 / K120 / K122 / K124 / K126.
K030B/D, K032B/D, K034B/D, K036B/D, K038B/D, K040B/D, K044B, K046B, etc.
A1 Type: | A106 A108 A110 A112 A114 A116 A118 A118A A120 A122 A125 A125A A130 A136 A140 A150 A160 A170 |
A2 Type: | A208 A210 A212 A216 A220 A225 |
A3 Type: | A310 A312 A315 A320 A325 A330 A340 |
A4 Type: | A406 A408 A410 A412 A416 A420 A425 A430 A430A A440 A440A A450 A450A |
A5 Type: | A515 A518 |
A6 Type | A612 A615 A618 |
Our advantage:
1. We are real factory in Zhuzhou: competitive price
2. we adopt advance production and testing equipment : good quality
3. We have professional technicians: providing professional solution and suggestion
4.100% virgin material
5.100%inspection before shipment
6. Fast response and delivery
2. we adopt advance production and testing equipment : good quality
3. We have professional technicians: providing professional solution and suggestion
4.100% virgin material
5.100%inspection before shipment
6. Fast response and delivery

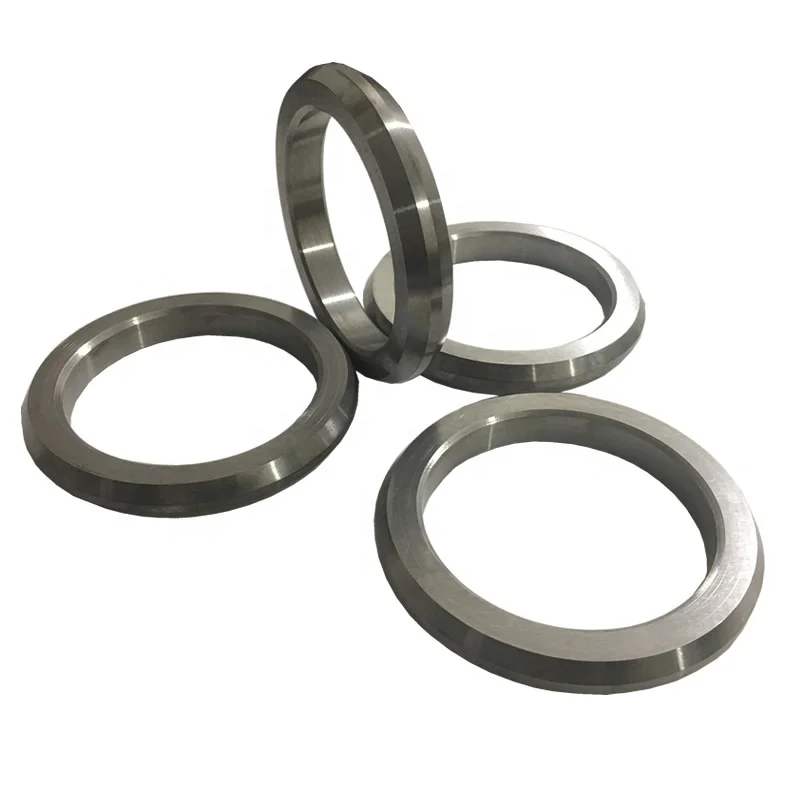

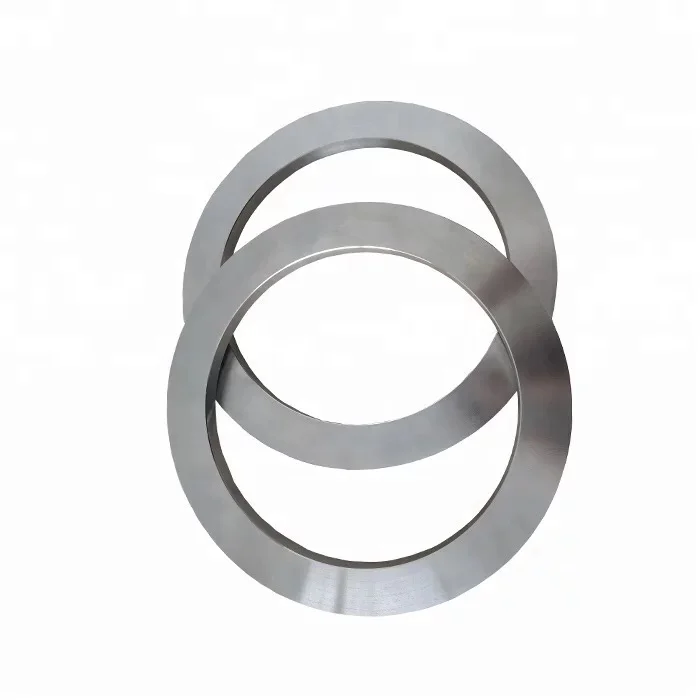

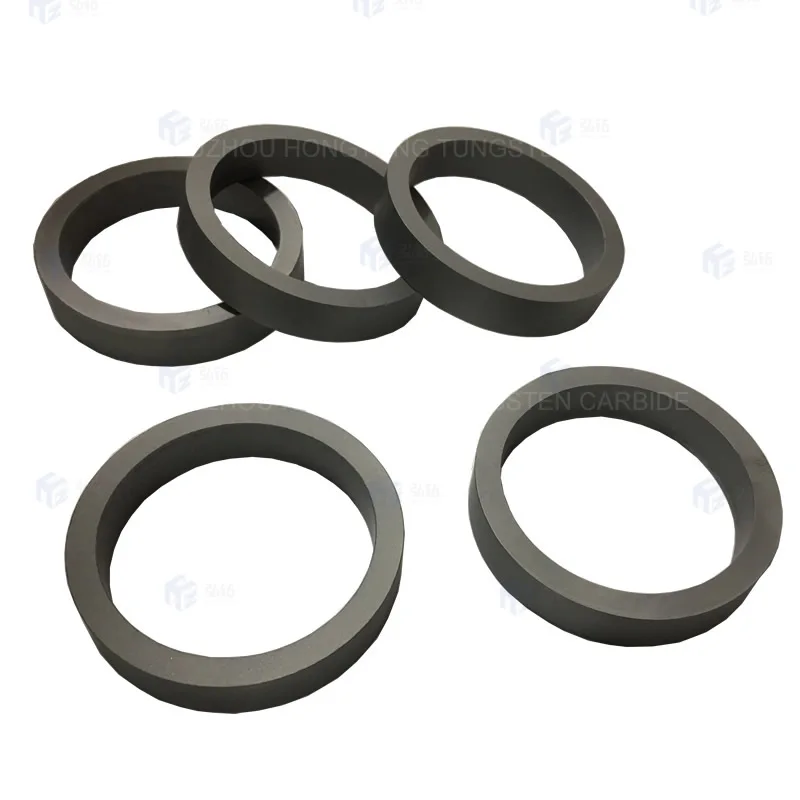

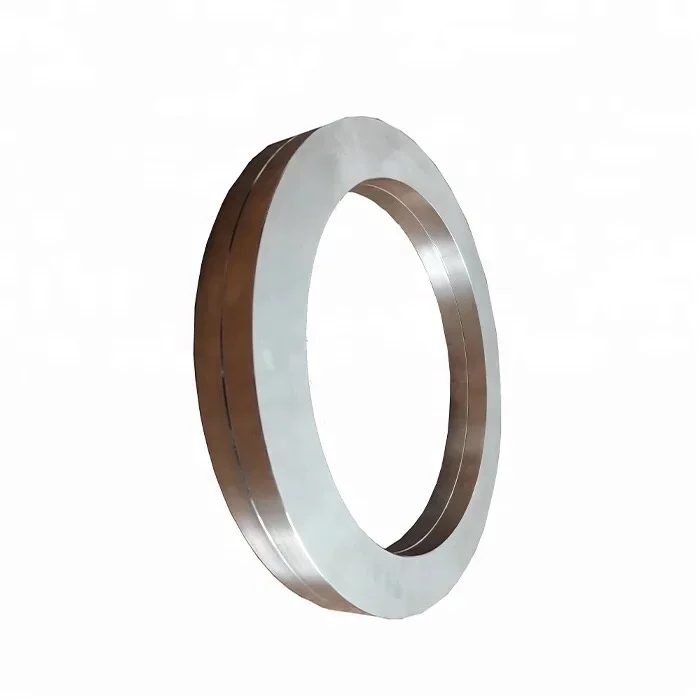

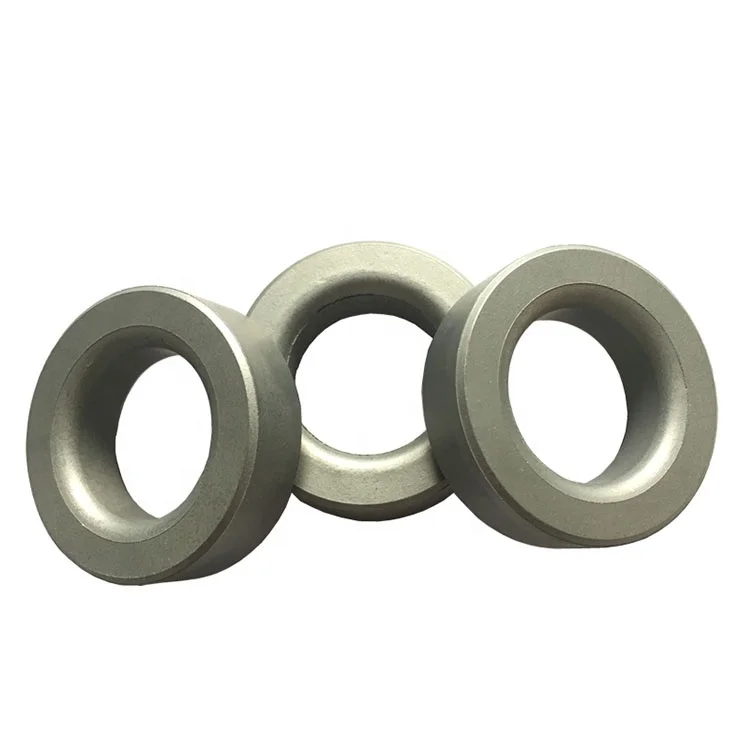

Details Images
Product Paramenters
Grade | ISO | Density (g/cm3) | Hardness(HRA) | T.R.S.(N/mm2) | Application |
YT5 | P30 | 12.9 | 90.5 | 2200 | Best strength, high impact and shock resistance among W-Co-Ti alloys, but comparatively lower wear resistance. Suitable for rough turning, rough planning, and semi-finish planning of carbon steel, and alloy steel including forgings, stamped parts, and cast iron surfaces during intermittent cutting. |
YW1 | M10 | 13 | 92.5 | 1710 | Better hardness, resistant to impact load. A good grade for general purposes. Suitable for machining of ordinary steel, cast irons as well as steels hard to be machined such as refractory steel, high manganese steel, and stainless steel, etc |
YW2 | M20 | 12.9 | 91 | 1880 | Higher wear resistance and strength, resistant to high impact load. Suitable for roughing and semi-finishing of ordinary steel, and cast irons as well as refractory steel, high manganese steel, and high-grade alloy steel, etc |
YG6X | K10 | 14.8 | 91.5 | 1890 | Fine grain WC alloy, wear resistance higher than YG6, strength close to YG6. Suitable for machining chilled alloy cast irons, and refractory alloy steel, as well as finishing of ordinary cast irons |
YG6 | K20 | 14.8 | 89.5 | 2050 | High wear resistance, better impact and shock resistance. Suitable for semi-finishing, and finishing of cast irons, non-ferrous metal, alloys, and non-metallic materials at moderate cutting speed |
YG8 | K30 | 14.6 | 89 | 2520 | High strength, better impact and shock resistance, but lower wear resistance and cutting speed. Suitable for roughing of cast irons, non-ferrous metal, alloys, and non-metallic materials at low speed. |
YT15 | P10 | 11.3 | 92 | 1650 | Higher wear resistance with a certain impact toughness, Suitable for semi-finishing of medium chip sections, or finishing of small chip sections of steel, cast steel, alloy steel. |
Company Profile
ZhuZhou HongTong Tungsten Carbide Co., Ltd.,specialized in production carbide products more than 20 years and located in the hometown of tungsten carbide in China. We can manufacture all kind of tungsten carbide products. Our products are utilized in industrial, Military, aerospace, machining, metallurgy, oil drilling, mining tools, electronic communications, construction applications. Now we are exporting to 46 countries. including USA, Russian , India , Italy, Poland ,France,Brazil etc .
We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
We have a professional QC team follow to the System of ISO9001:2015, Covering the Raw Materials Incoming, Production Processes, Finished Products and Packaging to ensure high quality products output.
Our Main products include : Carbide dies, Carbide teeth,Carbide ball and seat, Carbide plates for agriculture wear parts, Carbide gripper,Strips, Bushings, Seals ring, Brazed tips, Nozzles, End Mills & Drill Bits, CNC inserts, Rotary Burrs, Grits, Customized carbide cutter: Woodworking tool cutter, V-cutter, mining tool, Any customized carbide products are acceptable.
Product packaging
About packing:
Inner packing : plastic box, paper box or plastic bag
Outer packing: paper carton, wood carton, metal pail
Also can according to customer demand
Outer packing: paper carton, wood carton, metal pail
Also can according to customer demand
Shipping:
We support: shipping,air fright, road transport, and UPS, DHL, FEDEX,TNT, EMS and other commonly used some of the logistics.
FAQ
Q1 : Are you Factory or trading company ?
We are Factory with 20 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality?
We are Factory with 20 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning,
stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.
Q7: What’s your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy? 1. Fill your Order List in our online
Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App) 2. We will make a feedback to you ASAP after receive your order list.
Q7: What’s your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
Contact information
Please feel free to contact me for any inquiry or question. We'll reply you initially within 24 hours
Quinby Mo
Mail:quinby@zzhthj.com
Mobile :+86 17373343515
Web:www.zzhthj.com
