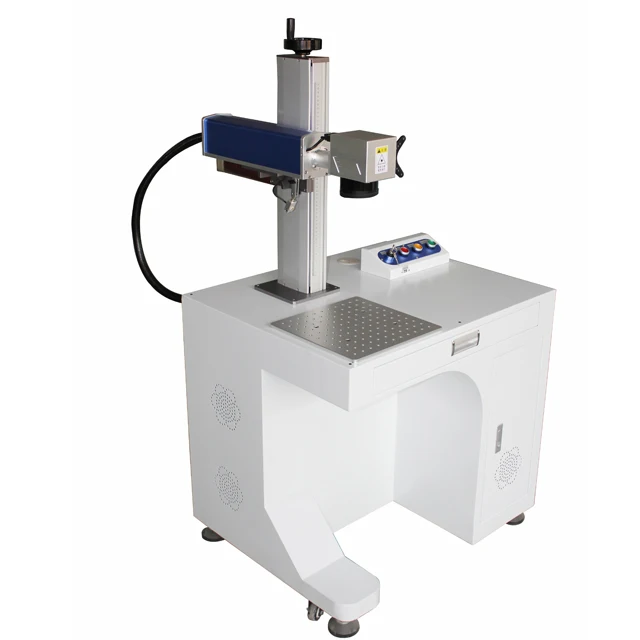

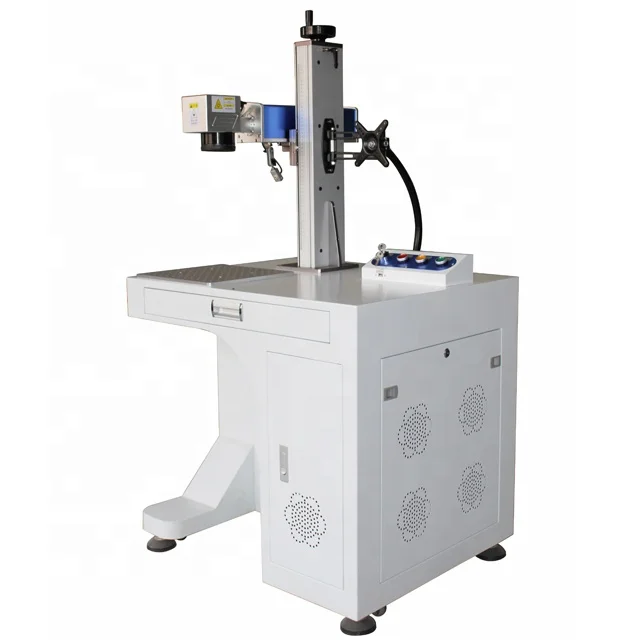

Portable small fiber laser 20w 30w 50w 100w Max Raycus JPT cnc fiber laser marking ring engraving machine price for metal sale
- Category: >>>
- Supplier: Pcs Equip Co. Ltd.Pcs Ltd.
Share on (1601192910995):
Product Overview
Description
Portable small fiber laser 20w 30w 50w 100w Max Raycus JPT cnc fiber laser marking ring engraving machine price for metal sale
Feature
1.Easy Operate without route maintenance
2.Higher precision, faster speed
3.Air cooling: Small size, low power consumption
4.Red light preview: show the marking position before marking

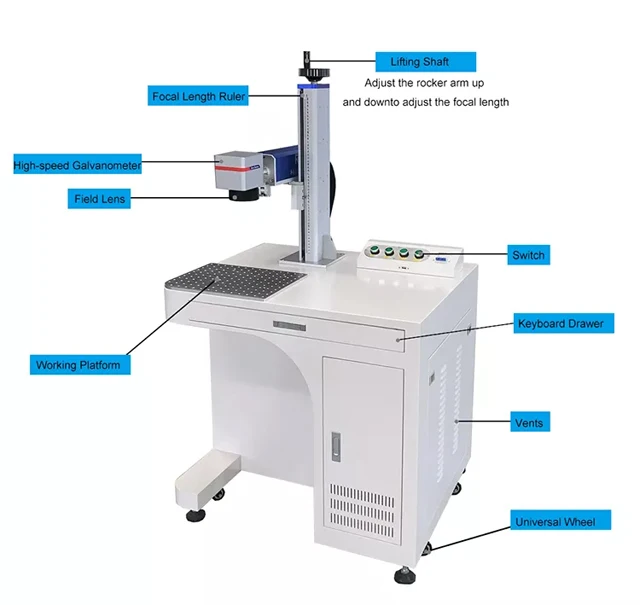

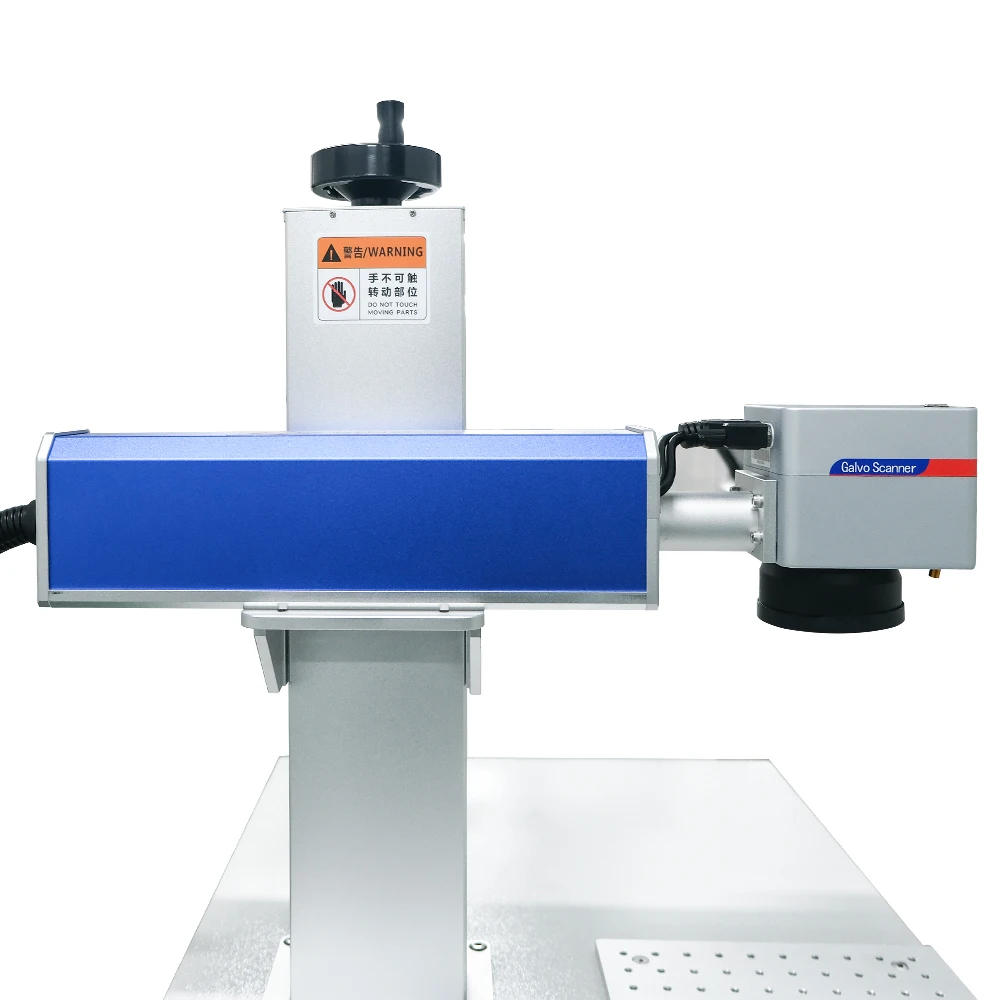

5.Up and Down Lifter laser head(desktop) and up and down worktable easy to marking engraving different workpiece
6.Rotary attachment optional: Engrave and mark inside and outside ring, Jewelry
7. The durability & Finer Marking quality: optimizes it for use in jewelry, mobile phones, and other items of value.
8.User friendly interface, easy operation set and deal different layers graphic in separate.
Support PLT,PCX, AL, DXF, BMP,JPG formats file compatible AutoCAD, CorelDraw, Photoshop, etc.
Laser power | 30,50W |
Laser Wavelength | 1064nm |
Light beam quality | <2 |
Marking range | 110x110,150x150 ,200x200 |
Marking depth | 0.01~2mm(Depends on the material) |
Marking speed | 7000mm/s |
Minimum character | 0.15mm |
Minimum line width | 0.01mm |
Repeating frequency | 20KHz~30KHz |
Marking content | Graphics, text, bar codes, two-dimensional code, |
Graphic format supported | bmp,png,ai,dxf,dst,plt |
working voltage | AC100-240V 50-60HZ |
Working environment | Clean and dust free or dust less |
Rated Power | ≥600W |
Laser module life | 100000~200000 hours |

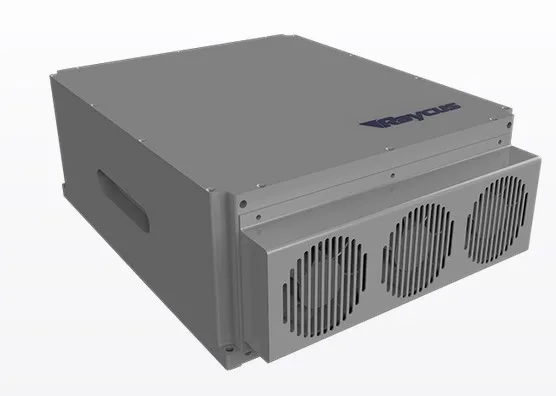

1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable. be able to mark on most high reflective materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.

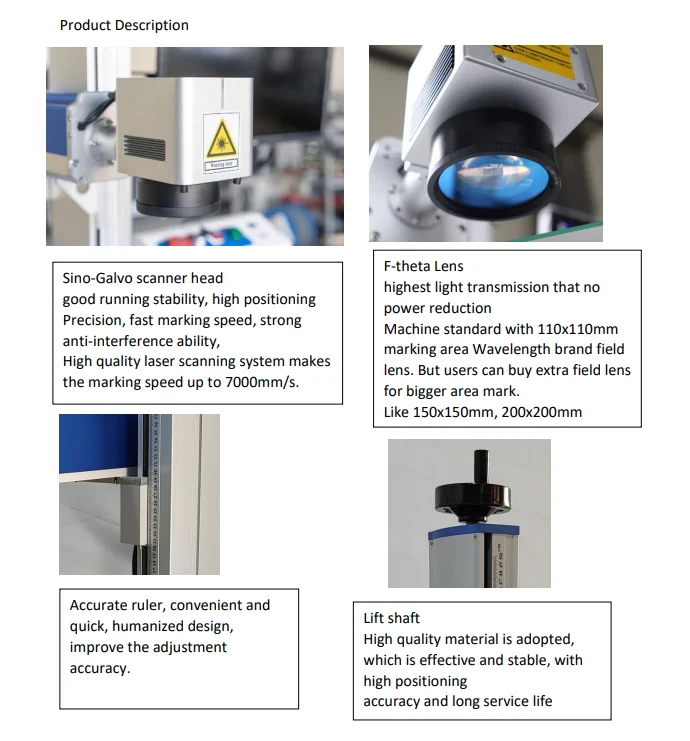

2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled inside, small occupation, easy to install.
4. High efficiency for photoelectric conversion, simple operation, Compact structure, support harsh working environment, no consumables.
5. This fiber laser marking machine is easy to take and easy to operate.

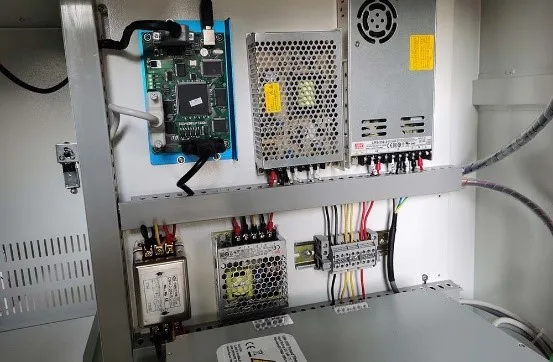

Machine internal display
The control board and laser power supply are produced by high-quality manufacturers
Power supply for galvo head and control board. High efficiency, low working temperature.

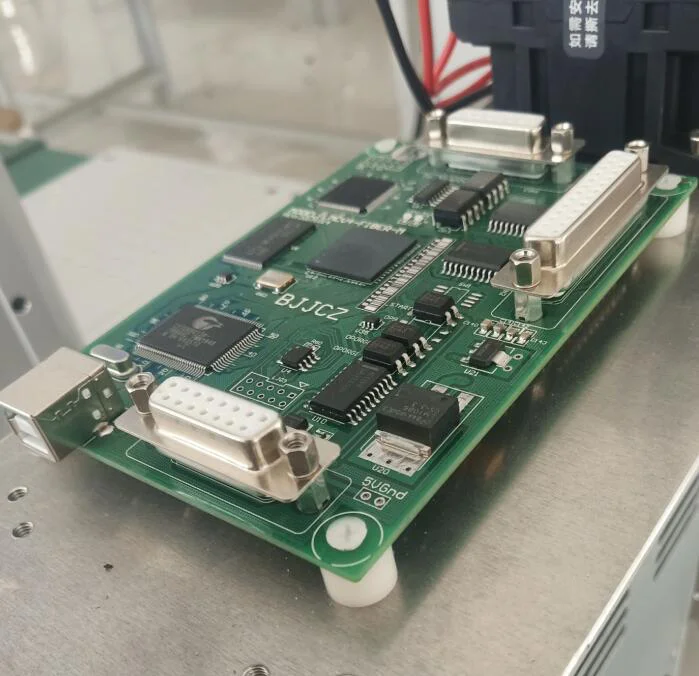

Genuine EZCAD control card
The control board of laser machine.
Clean and tidy control panel to help you operate the machine better

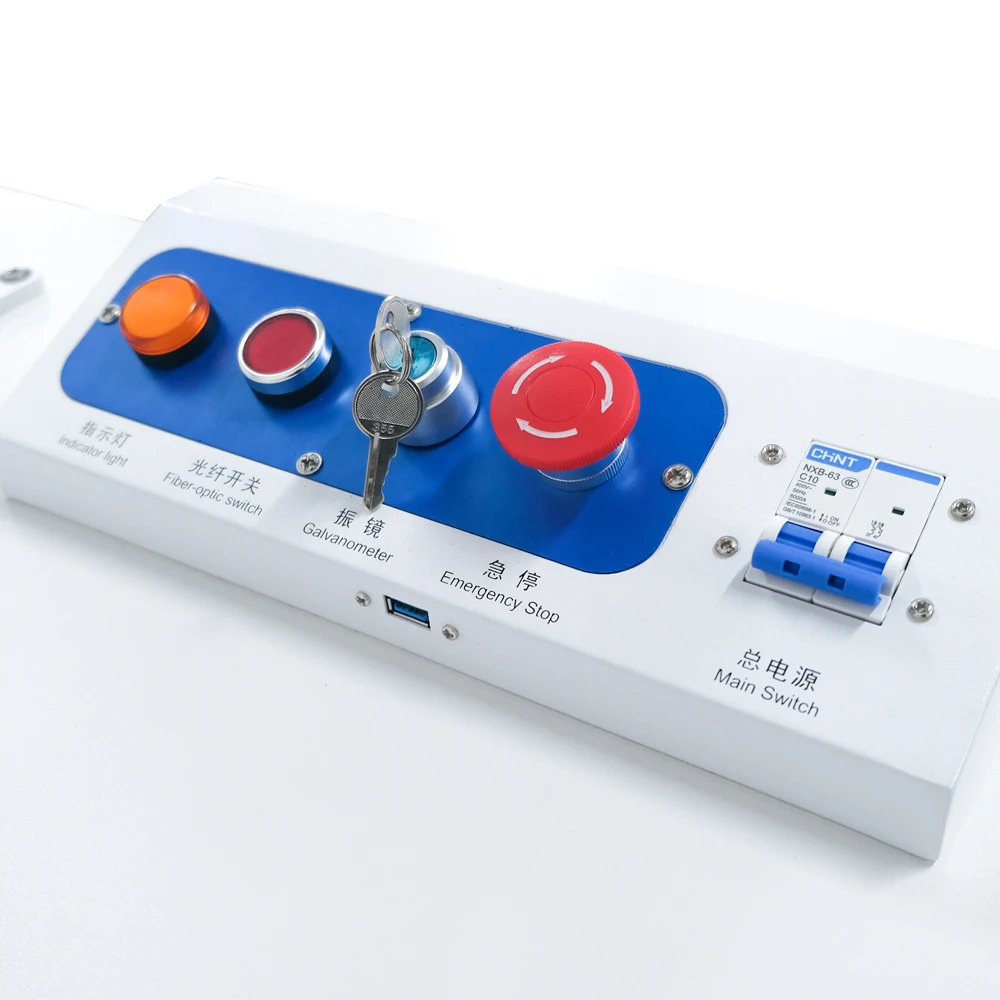

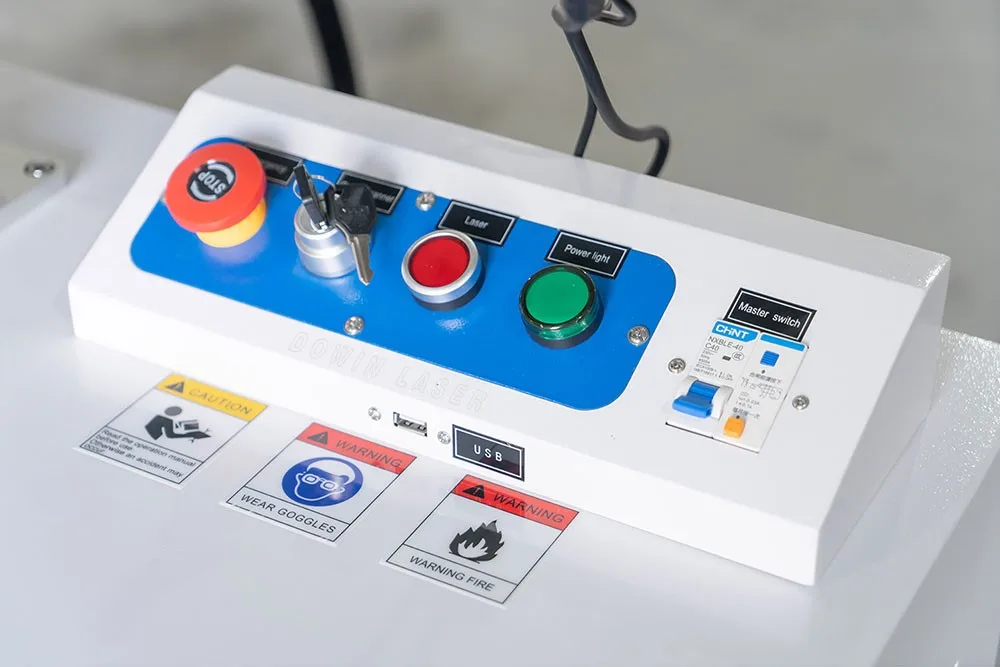

Machine Buttons
Machine standard with air switch, emergency button, key switch, Laser button, Galvo button, USB 2.0 interface. Support online work, and support insert USB memory card offline work.

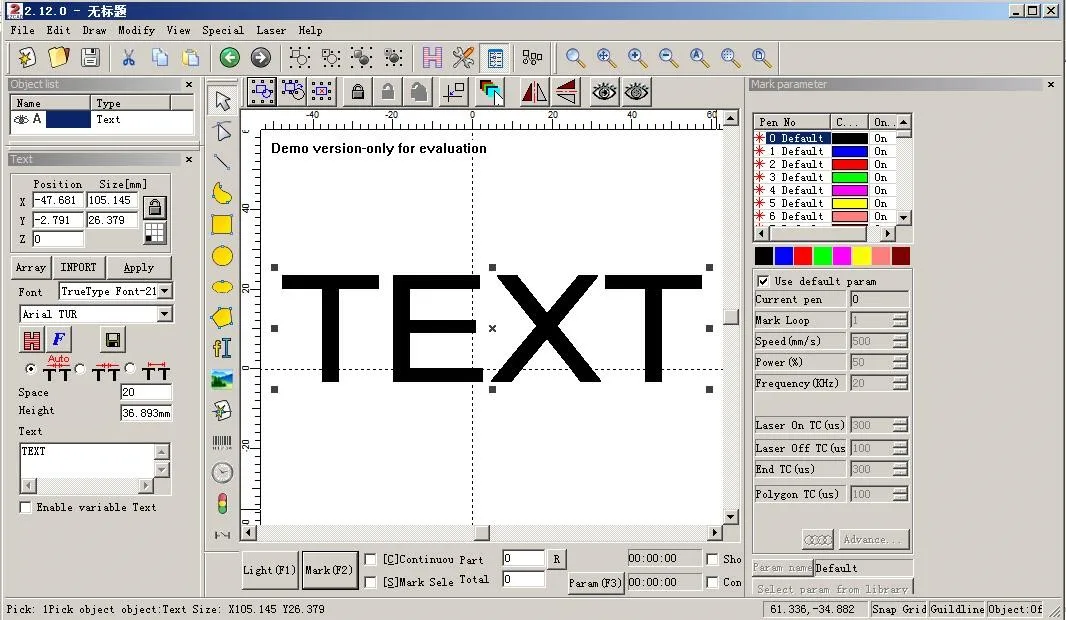

EZCAD V2.14.10 professional laser marking software features:
1.Powerful editing function.
2.Friendly interface.
3.Easy to use.
4.Support Microsoft Windows XP, VISTA, Win7, Win10 system.
5.Support ai, dxf, dst, plt bmp, jpg, gif, tga, png, tif and other file formats.
6.Support for TrueType fonts, single line fonts (JSF), SHX fonts, dot matrix fonts (DMF),1D bar codes and 2D bar codes. Flexible variable text processing, changing text in real time during processing, can directly read and write text files, SQL databases and Excel file.
Note: If your computer memory is less than 2G,We suggest that choose EZCAD2.14.7 software version.

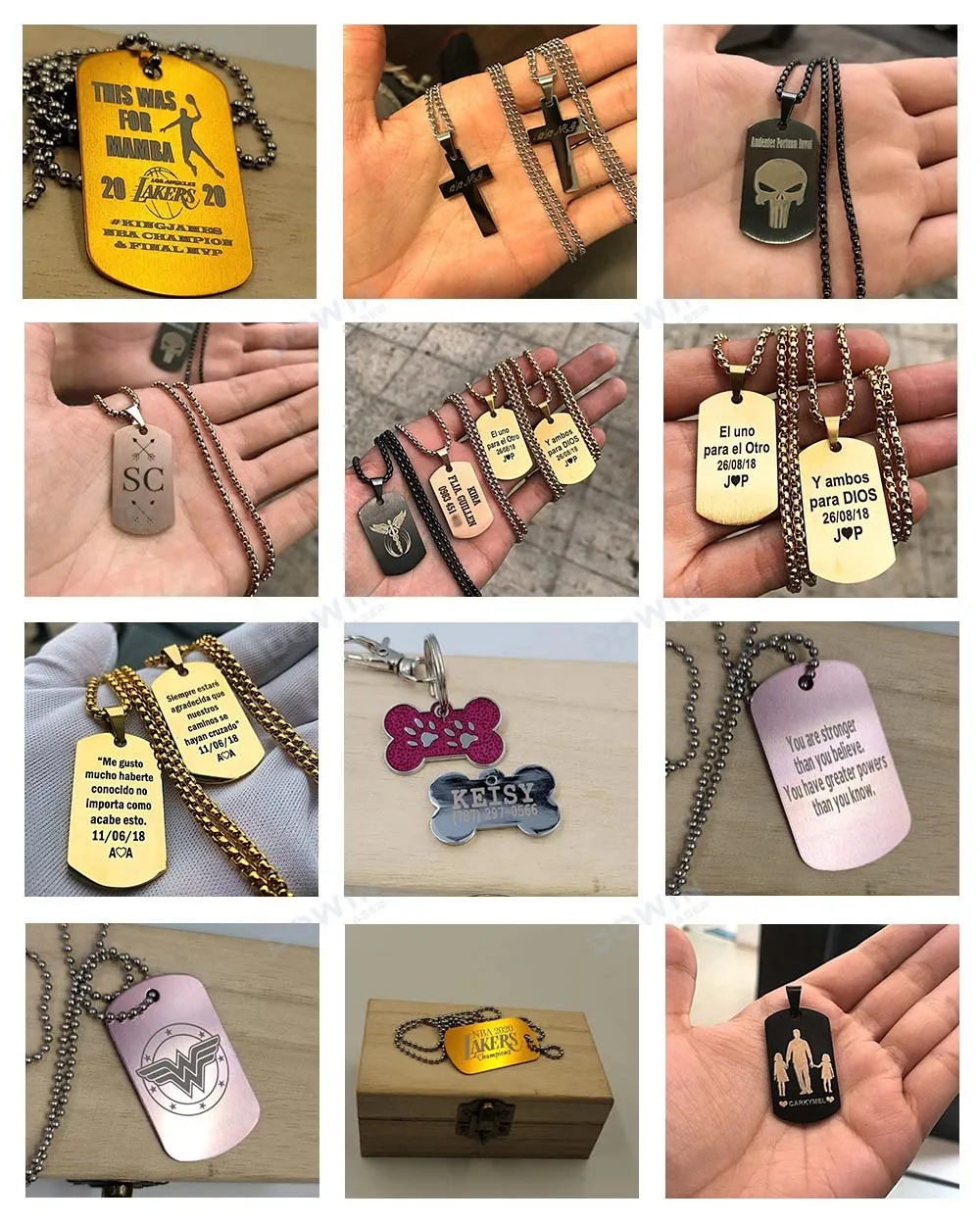

Application & Sample
EZCAD Software
Machine with EZCAD software, it compatible with other software like Photoshop, AUTOCAD, Coreldraw,
users can use these softwares to make design then import the file to EZCAD to mark.
The files EZCAD support: AI, PLT, DXF, DST, SVG, JPC, NC, G, BOT, GBR, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF.

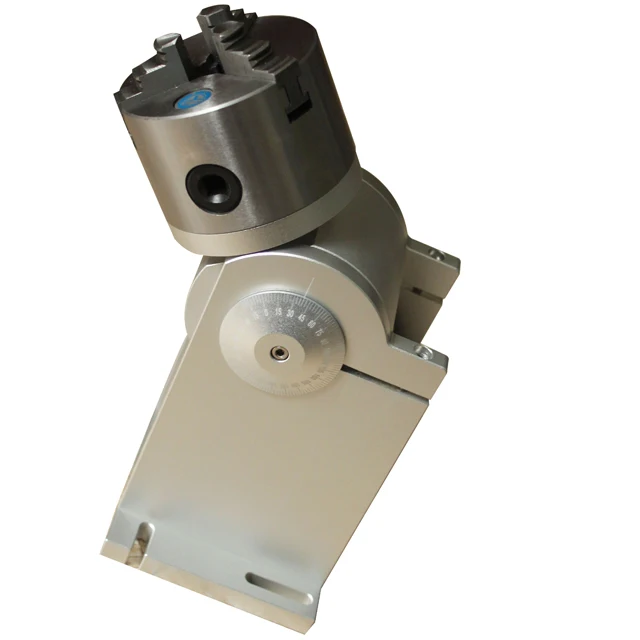

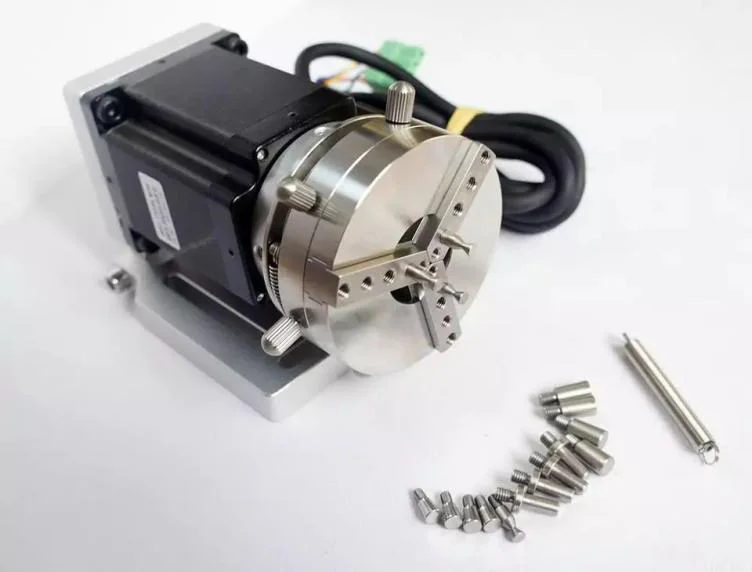

Ring rotary
Optional rotary axis.
Can be used for different cylindrical, spherical objects to rotate the marker axis. The stepping motor is used for digital control, and the speed can be automatically controlled by computer, which is more convenient, simple, safe and stable.
Applied Materials:
Fiber laser marking machine capable to mark logo, serial number, bar code, text, picture, especially suitable for metal and partial non-metal materials:
1. metallic materials: Gold, Silver, Titanium, Copper, Brass, Alloy, Aluminum, Steel, Manganese steel, Magnesium, zinc, Stainless steel, Carbon steel, Mild steel, all kinds of alloy steel, Electrolytic plate, Galvanized sheet, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, electroplating materials, industrial plastics, Hard plastic, rubber, ceramics, marble, granite, ABS, resins, cartons, leather,
clothes, wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material etc.
Applicable Industry: some fields required more precision and higher smoothness. The machine is widely used in the electronic components, integrated circuits, mobile communications, medical apparatus, hardware, tools, kitchen wares, tool fittings, precise apparatus, eyeglasses and clock, computer keyboard, jewelry accessories, plastic buttons, water heating fittings, sanitary ware, PVC pipelines, and packing container, etc.

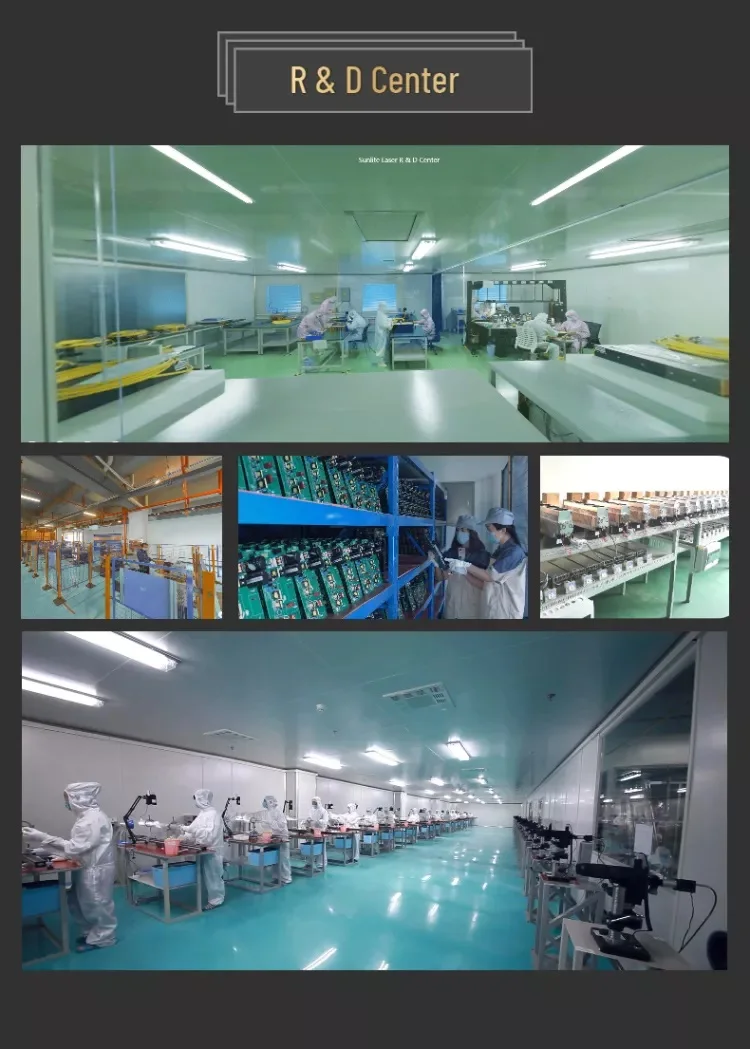

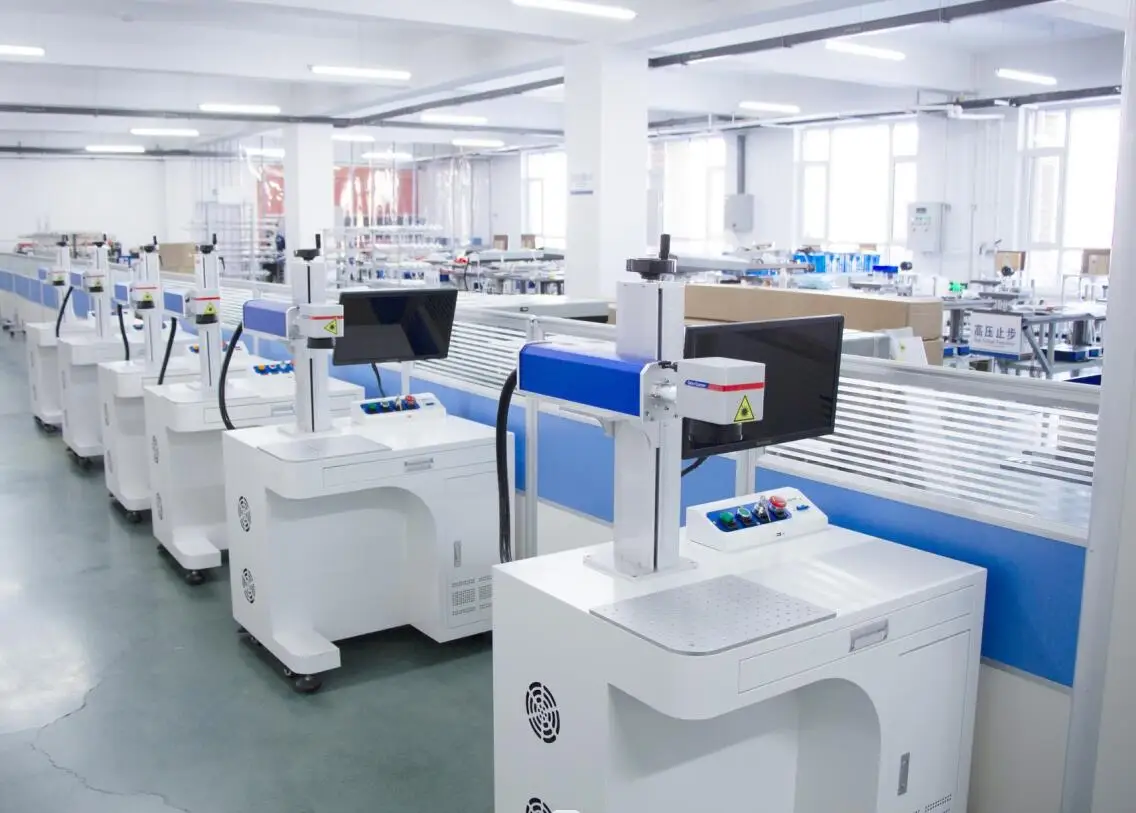

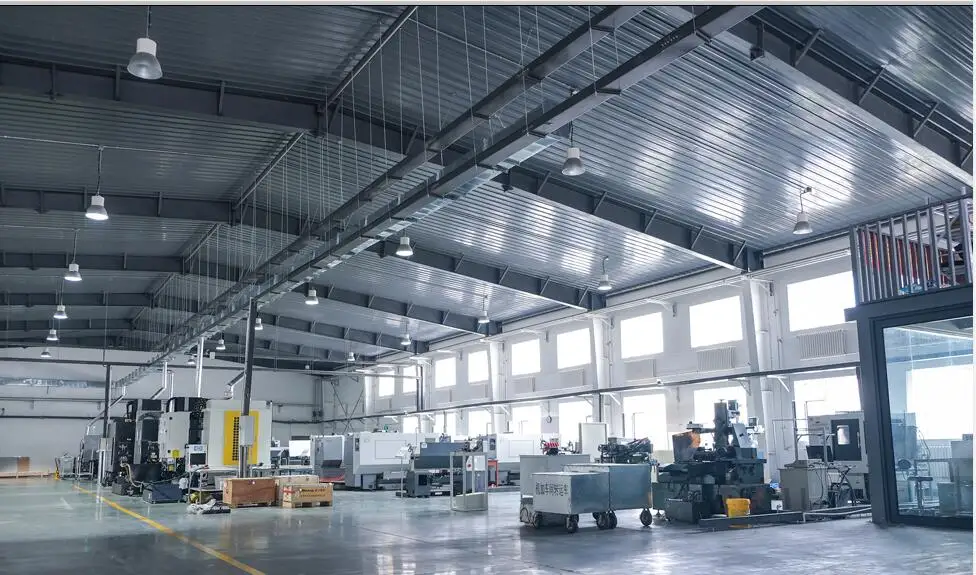

Company Information
PCS Equip Co., Ltd. specialized in producing and exporting different kinds of Laser marking machine, Fiber welding machine; Sewing textile machinery and Laser machine spare parts, such as: Co2 Laser Tube, Laser Power Supply, Power Meter, Chiller, Laser mirror, Focus lens and so on.
Products are widely applied in many kinds of fields such as Apparel, Textiles, Auto part & accessories, Hardware, Advertising industry, medical industry etc.
Currently, we have exported over 63 countries and regions, we have passed the CE, ROHS, REACH, FCC, FAD certification, at the meantime, have continuously improved after-sales service system and a good quality control team.
We are adhering to timely response, superior service and premier quality.
The aim is willing to provide the highest integrity customer service and the best after sales support in these industries.
We sincerely wish to have you join us in providing the ultimate user with the best available for mutual development and benefits.
Our Services
PERFECT REPLACEMENT LASER TUBE FOR ALL CUTTING ENGRAVING MACHINE
This laser tube is made of the boron silicate glass that is also applied on the solar tubes. It is resistant to high temperature and high pressure. We packed and ship with a great amount of care and effort to ensure tubes arrive on time and in one piece!
We offer both before and after sale product services and technical support to our OEM and system integration partners worldwide.
Pre-sale service Material testing for free
Provide material testing with our laser tubes in different laser powers and configurations for specific industry. Upon returning your processed samples, we also will provide a detailed report that is for your specific industry and application.
Technical Consultation
Provide customers with professional technical, application and price consultation (via Email, Phone, WhatsApp, WeChat, Skype, etc.). Quickly respond to any questions that customers concern about, such as: laser processing in differences on the application of different materials, laser processing speed, etc.

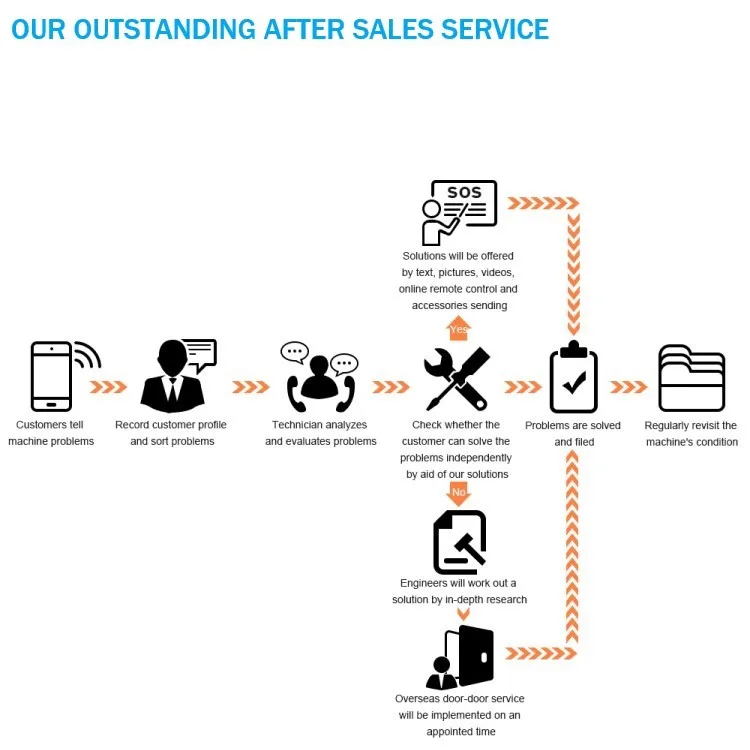

After Sales Service
* Customers need to provide feedback and relevant photos and videos if the issue has arisen during their use of the CO2 laser tube and related products.
* The issue information will be conveyed to our technicians within 24 hours, and they will then work quickly to determine the cause of the problem.
* Customers will be informed of problem causes, and a solution, within 48 hours. If the Laser tube needs to be replaced within the period of warranty, no charge will be taken
We are adhering to timely response, superior service and premier quality.
The aim is willing to provide the highest integrity customer service and the best after sales support in these industries.
Have any quality problem, we could judge by a video and photo, donot need return the laser tube and power supply to factory more. We will arrange new shipment free. Save your expense and time.
FAQ
Q: How would I know this tube compatible with my machine?
A: We suggest to refer the Accessories List of your machine first, to confirm the DIAMETER, LENGTH and POWER of the tube. Size fits, compatible. Our Professional technicians are waiting to answer all your questions! Just talk to us!!
Q: How does the product come packaged?
A: Tightly embrace the laser tube with high-density sponge. Double foam rubber, Double boxed. We keep improving our packaging, listening patiently to the feedback form our customers. If there is any problem caused by transport, we will be responsible for it.
Q: Storage?
A: Laser tube is consumable, which means that a long-time storage may lead to power attenuation. Thus, we recommend to buy it when need it. After receive the tube, test it first. If there any problem, let us know in time, we will provide 3 months after-sales services for free.
Q: How to insulate the high-voltage end?
A: After putting on the silicone tube, pour some glues inside. Wrap a few more turns with electrical tape.
