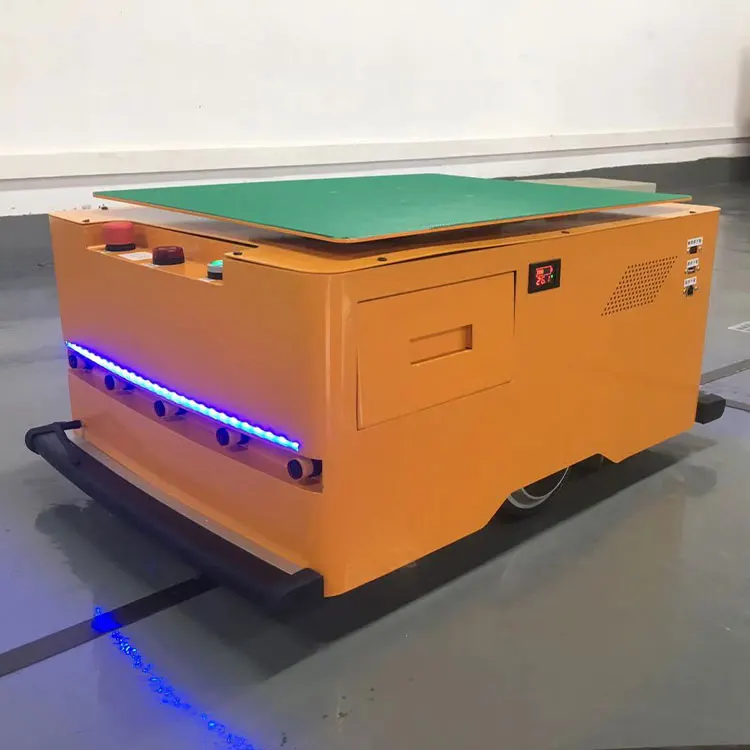

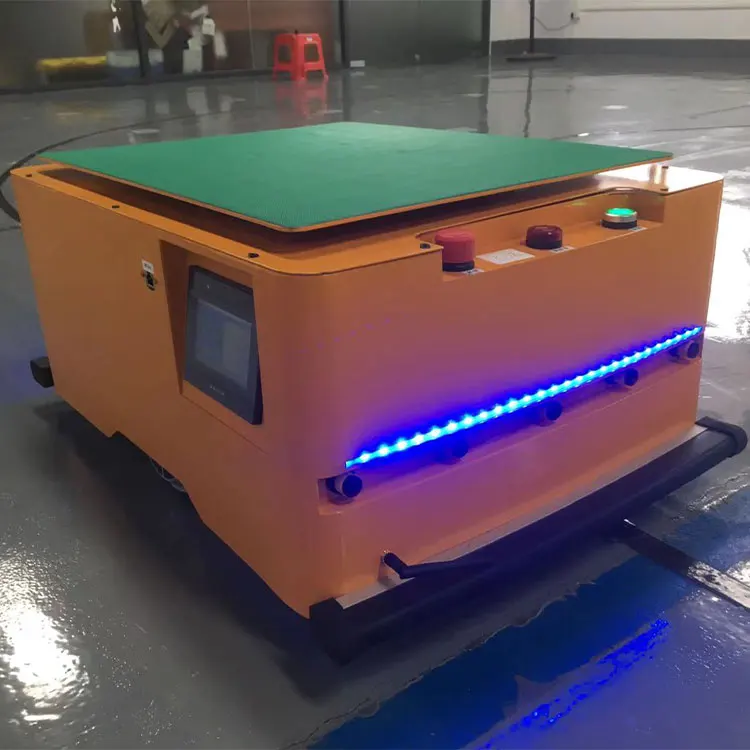

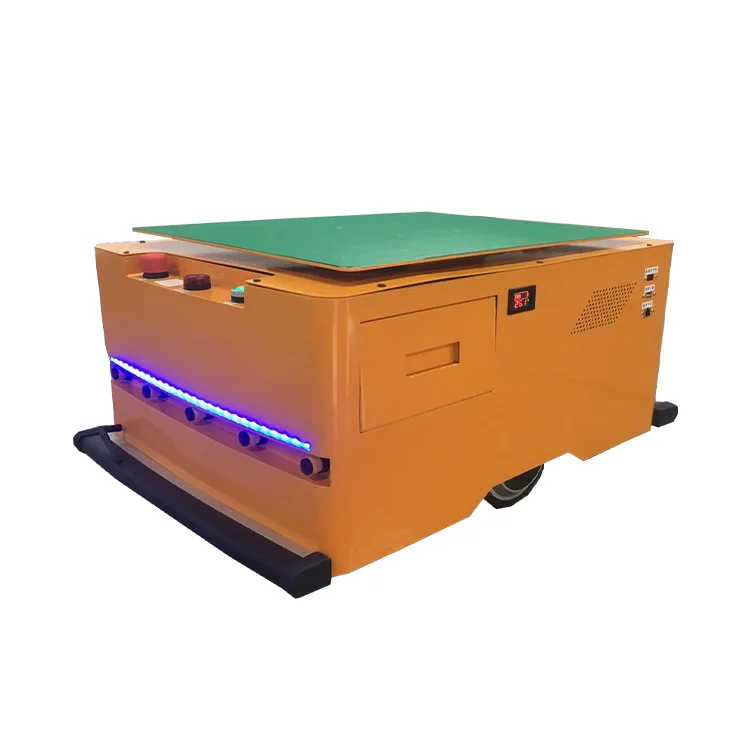

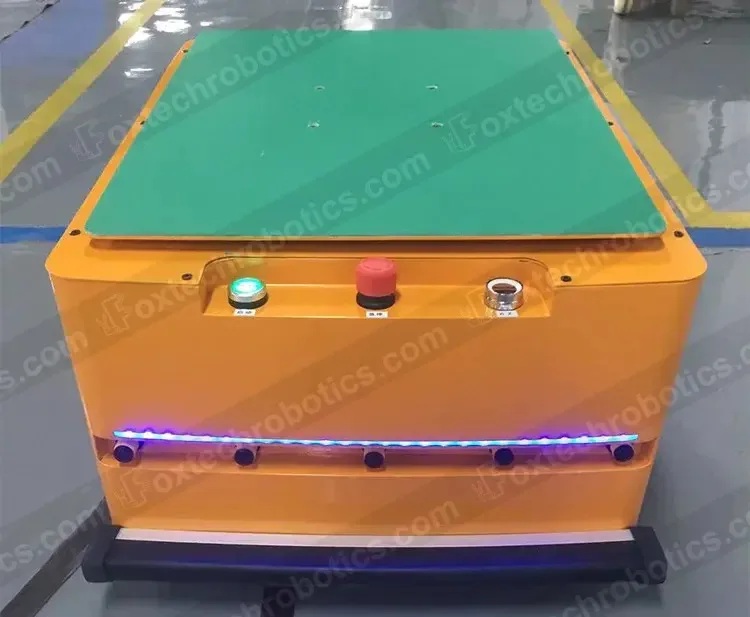

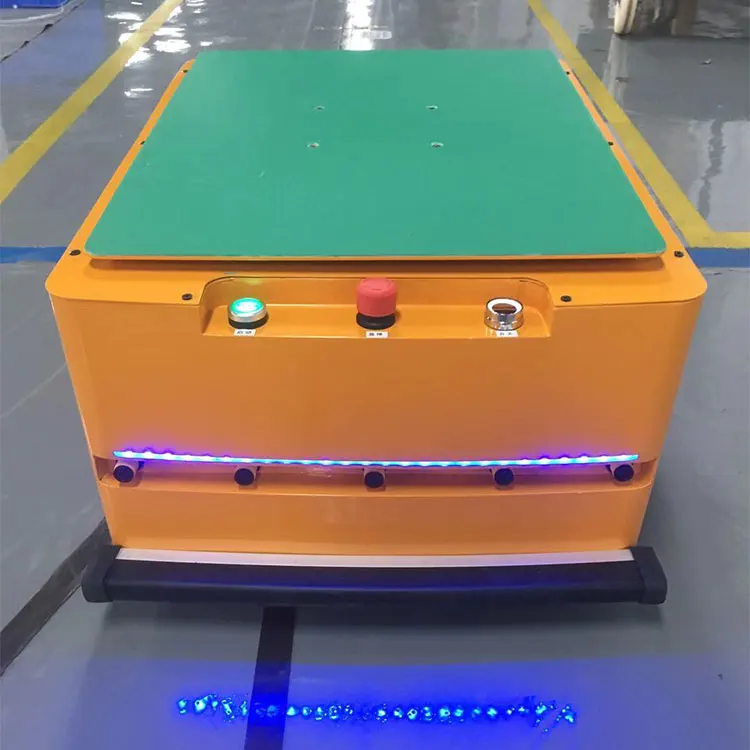

JS10 10kg 80kg 100kg Warehouse Robot Logistics Platform Automated Guided Pallet Mover

Share on (1601192925958):


Price:$5,539.00 - $7,389.00

Quantity:


Product Overview

Description

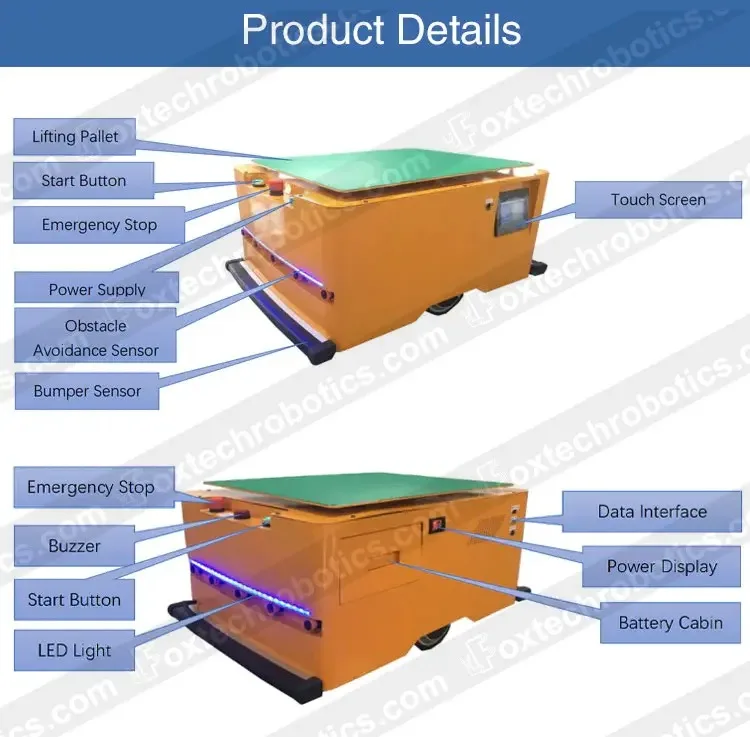

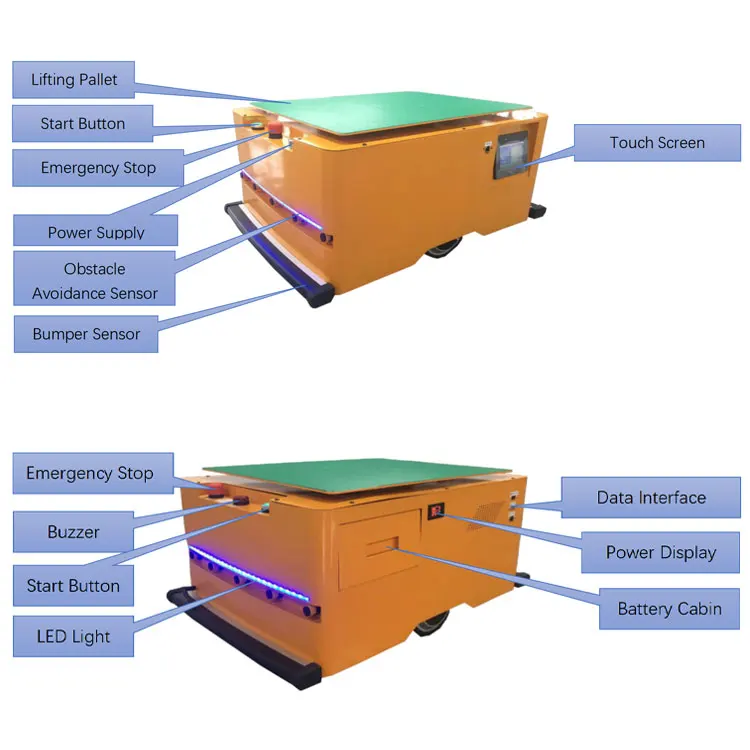

Details Images


Welcome to contact us
Customize your own AGV solutions

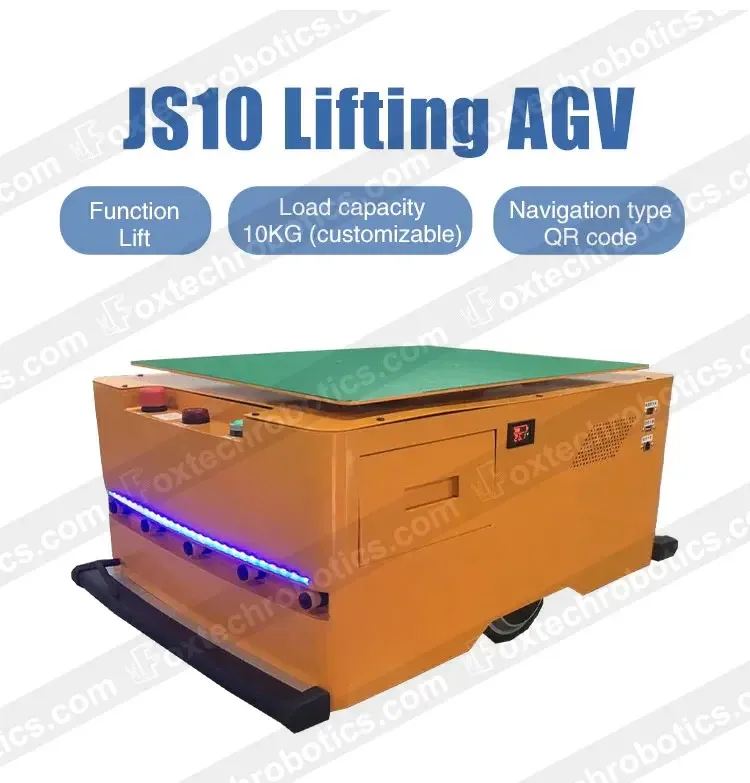

JS10 10kg 80kg 100kg Warehouse Robot Logistics Platform Automated Guided Pallet Mover

Features:

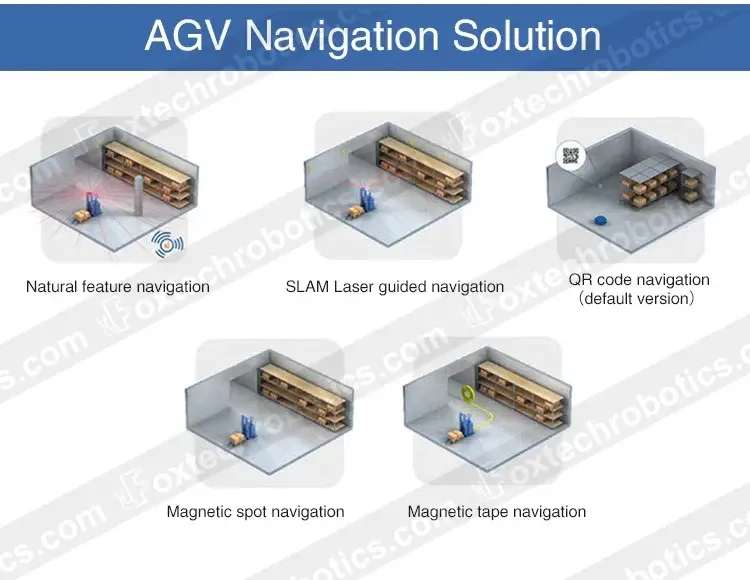

- Support multiple navigation solution: laser guidance, magnetic tape, QR code (optional), cost effective and accurate
localization.
- Transport 10kg of material.The load capacity can be customized.
- The lifting height is 50mm.
- Minimum turning radius is R860, flexible turning and easy operation, suitable for various work environments.
- Safety protection: obstacle detection, safety edge, overload protection, sound and light alarm, abnormal alarm, emergency stop switch.


Product Name
10kg 100kg Warehouse Robot Logistics Automated Guided Pallet Mover
Dimensions
L680*W500*H350(customizable)
Function
Lifting
Running direction
Forward, rotate in situ, stop
Driving mode
Differential drive
Load capacity
10KG, 80KG, 100KG
Linear guide accuracy
± 30mm
Overload protection
Support
Abnormal alarm
Support
Weight
65KG
Operating temperature
Indoor 0~40°
Running speed
25m/min
Navigation type
Laser guidance, magnetic tape, QR code (optional)
Address reading method
RFID/QR code/laser contour
Obstacle detection
The farthest 3 meters warning sensing distance
Safety edge
Support
Indicator Light
Blue, green and red
Loudspeaker
Customize
Power Display
Display the current battery level
Specify destination
Backstage
Abnormal alarm
Support
(loudspeaker and indicator light)
Emergency stop switch
Support
Operation button
Start, stop
HMI
Touch Screen
