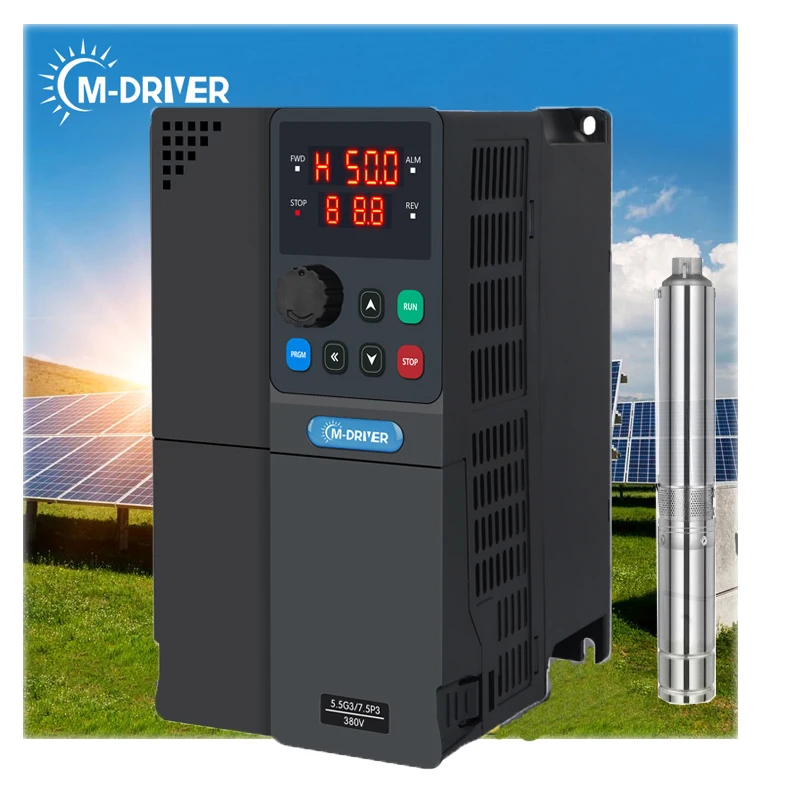

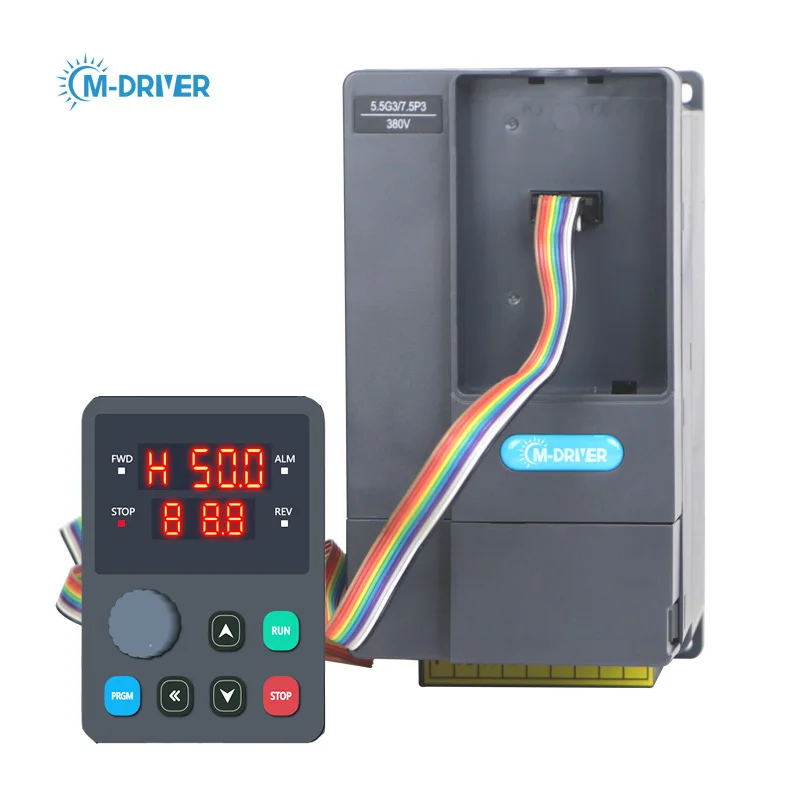

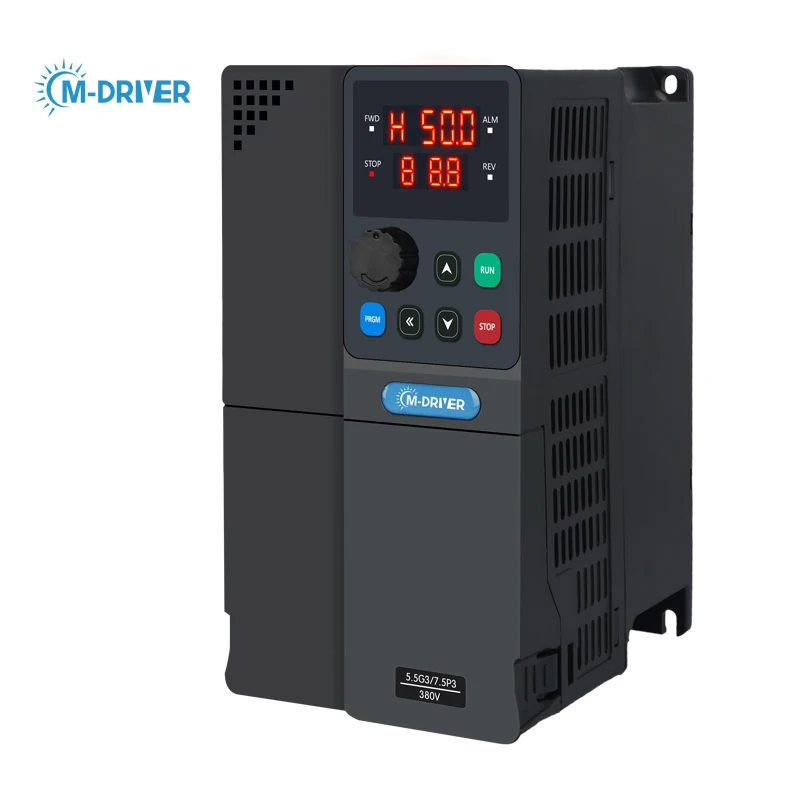

M driver Single Phase 3 phase 220v AC VFD MPPT Solar Pump Inverter 5.5kw 7.5hp Variable Frequency Drive
- Category: >>>
- Supplier: Shenzhen M-Driver Technology Co. Ltd.Shenzhen Ltd.
Share on (1601192974525):
Product Overview
Description
M-driver Single Phase 3 phase 220v AC VFD MPPT Solar Pump Inverter 5.5kw 7.5hp Variable Frequency Drive
solar pump inverter freqency inverter ac driver
Product Description
Specifics
_______________________________________
| 220V Solar Pumping Inverter | |
| Input Specification | |
| PV input | |
| Maxiumum input DC voltage | 400V DC |
| Recommended MPPT voltage range | 250~350V DC |
| Recommended input Operation Voltage | 310V DC |
| Grid or backup generator input | |
| Input voltage | Single phase 220V(-15%~30%) |
| Output Specification | |
| Rated output voltage | 3PH 220V |
| Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
| 380V Solar Pumping Inverter | |
| Input Specification | |
| PV input | |
| Maxiumum input DC voltage | 800V DC |
| Recommended MPPT voltage range | 450~600V DC |
| Recommended input Operation voltage | 540V DC |
| Grid or backup generator input | |
| Input voltage | Three phase 380V(-15%~30%) |
| Output specification | |
| Rated ouput voltage | 3PH 380V |
| Output frequency | 0~500.00Hz (default: 0~50.00Hz) |
| Protection | |
| Built-in Protection | Lighting Protection ,over-current, overvoltage, ouput phase lose, under-load, under-voltage, short circuit , overheating, water pump run dry etc. |
| General Parameters | |
| Application site | No direct sunshine, no dust,corrosive gas,combustible gas, oil mist, steam,dripping or salinity etc. |
| Altitude | 0~2000m |
| Derated use above 1000m, per 100m, the rated output current decrease 1% | |
| Environment Temperature | -10°C~40°C (Environment Temperature be 40°C~50°C, please keep derated use) |
| Humidity | 5~95%, non-condensation |
| Vibration | less than 5.9 m/s²(0.6G) |
| Storage Temperature | -20°C~+70°C |
| Efficiency | Rated Power Run≥93% |
| Installation | Wall or rail mounting |
| Protectiion Grade | IP20 |
| Cooling | Forced Air Cooling |
| Type | Drive motor | Power capacity | Input current | Output current | Shape case |
| KW | KVA | A | A | ||
| Single phase power supply: 220V, 50/60A | |||||
| PV500-0007G1 | 0.75 | 1 | 4.2 | 4 | 001 |
| PV500-0015G1 | 1.5 | 2 | 14 | 7 | 001 |
| PV500-0022G1 | 2.2 | 3 | 23 | 10 | 001 |
| Three phase power supply; 220V ,50/60hz | |||||
| PV500-0040G2 | 4 | 5 | 18.1 | 16 | 002 |
| PV500-0055G2 | 5.5 | 7.5 | 28 | 25 | 003 |
| PV500-0075G2 | 7.5 | 10 | 37.1 | 32 | 003 |
| PV500-0110G2 | 11 | 15 | 49.8 | 45 | 004 |
| PV500-0150G2 | 15 | 20 | 65.4 | 60 | 004 |
| PV500-0185G2 | 18.5 | 25 | 81.6 | 75 | 004 |
| PV500-0220G2 | 22 | 30 | 97.7 | 90 | 005 |
| PV500-0300G2 | 30 | 40 | 122.1 | 110 | 005 |
| PV500-0370G2 | 37 | 50 | 157 | 150 | 006 |
| PV500-0450G2 | 45 | 60 | 185 | 170 | 006 |
| PV500-0550G2 | 55 | 70 | 215 | 210 | 007 |
| PV500-0750G2 | 75 | 100 | 320 | 300 | 007 |
| Three phase power supply: 380V ,50/60hz | |||||
| PV500-0007G3 | 0.75 | 1 | 3.4 | 2.1 | 001 |
| PV500-0015G3 | 1.5 | 2 | 5 | 3.8 | 001 |
| PV500-0022G3 | 2.2 | 3 | 5.8 | 5 | 001 |
| PV500-0040G3 | 4 | 5 | 10.5 | 9 | 002 |
| PV500-0055G3 | 5.5 | 7.5 | 14.6 | 13 | 002 |
| PV500-0075G3 | 7.5 | 10 | 20.5 | 17 | 002 |
| PV500-0110G3 | 11 | 15 | 26 | 25 | 003 |
| PV500-0150G3 | 15 | 20 | 35 | 32 | 003 |
| PV500-0185G3 | 18.5 | 25 | 38.5 | 38 | 003 |
| PV500-0220G3 | 22 | 30 | 46.5 | 45 | 004 |
| PV500-0300G3 | 30 | 40 | 62 | 60 | 004 |
| PV500-0370G3 | 37 | 50 | 76 | 75 | 004 |
| PV500-0450G3 | 45 | 60 | 92 | 90 | 005 |
| PV500-0550G3 | 55 | 70 | 113 | 110 | 005 |
| PV500-0750G3 | 75 | 100 | 157 | 150 | 006 |
| PV500-0930G3 | 93 | 125 | 180 | 170 | 006 |
| PV500-1100G3 | 110 | 150 | 214 | 210 | 007 |
| PV500-1320G3 | 132 | 175 | 256 | 250 | 007 |
| PV500-1600G3 | 160 | 210 | 307 | 300 | 007 |
| PV500-1850G3 | 185 | 250 | 385 | 340 | 008 |
| PV500-2000G3 | 200 | 260 | 385 | 380 | 008 |
| PV500-2200G3 | 220 | 300 | 430 | 415 | 008 |
| PV500-2500G3 | 250 | 350 | 468 | 470 | 008 |
| PV500-2800G3 | 280 | 370 | 525 | 520 | 008 |
| PV500-3150G3 | 315 | 400 | 590 | 585 | 009 |
Product details
_______________________________________
_______________________________________
Packaging & Shipping
Company Information
Our exhibition
FAQ
Q 1: Are you trading company or manufacturer ?
A: We are factory.
Q 2: How long is your lead time?
A: Generally it is 3-7 days if the goods are in stock. or it is 5-12 days if the goods are not in stock, it is according to quantity.
Q 3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample,but we will charge the sample fee and the cost of freight.
Q 4. What is your supply capacity?
A. The daily output of the factory exceeds 2000 PCS.
Q 5.Could M-driver provide technical support?
A.We' have more than 15 years experience in this field. If there's any problem, please feel free to contact us, we'll provide suggestion from our engineer to help you solve the problem.
