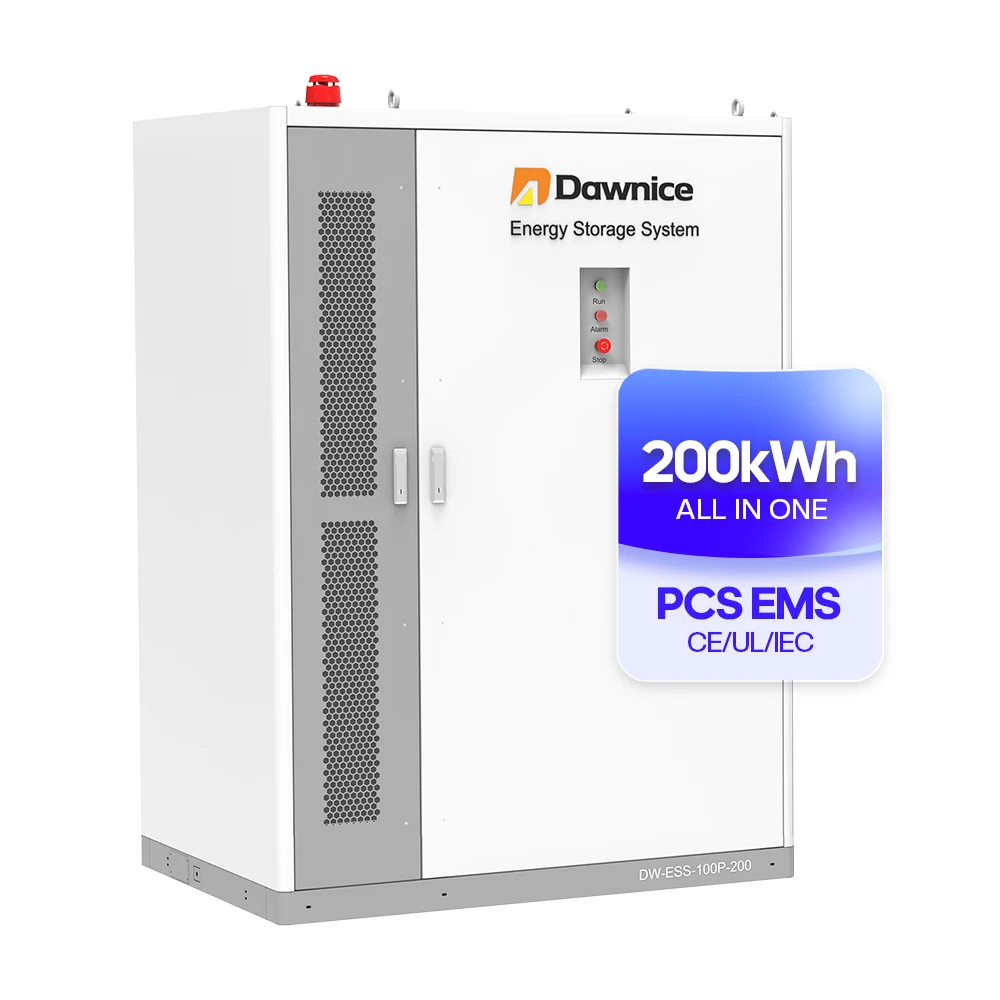

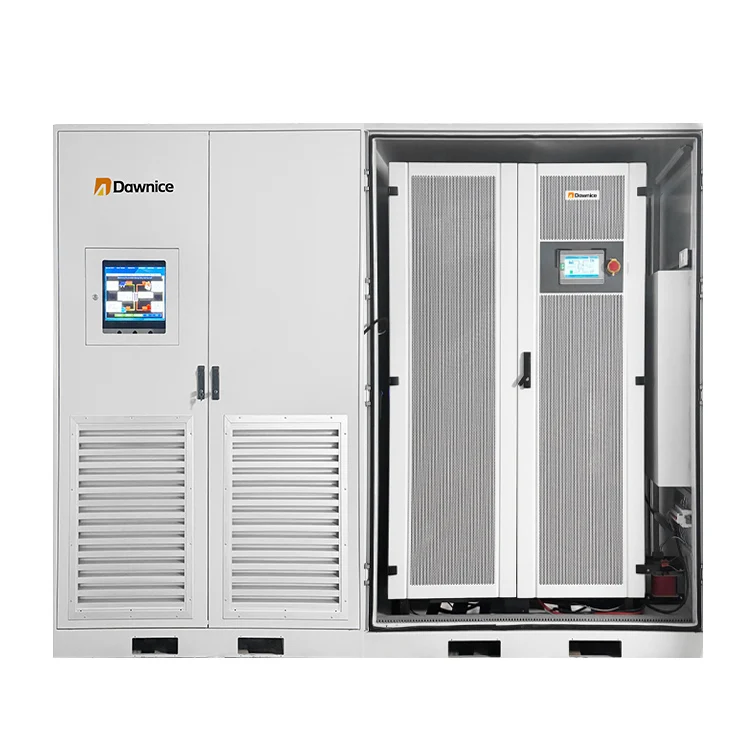

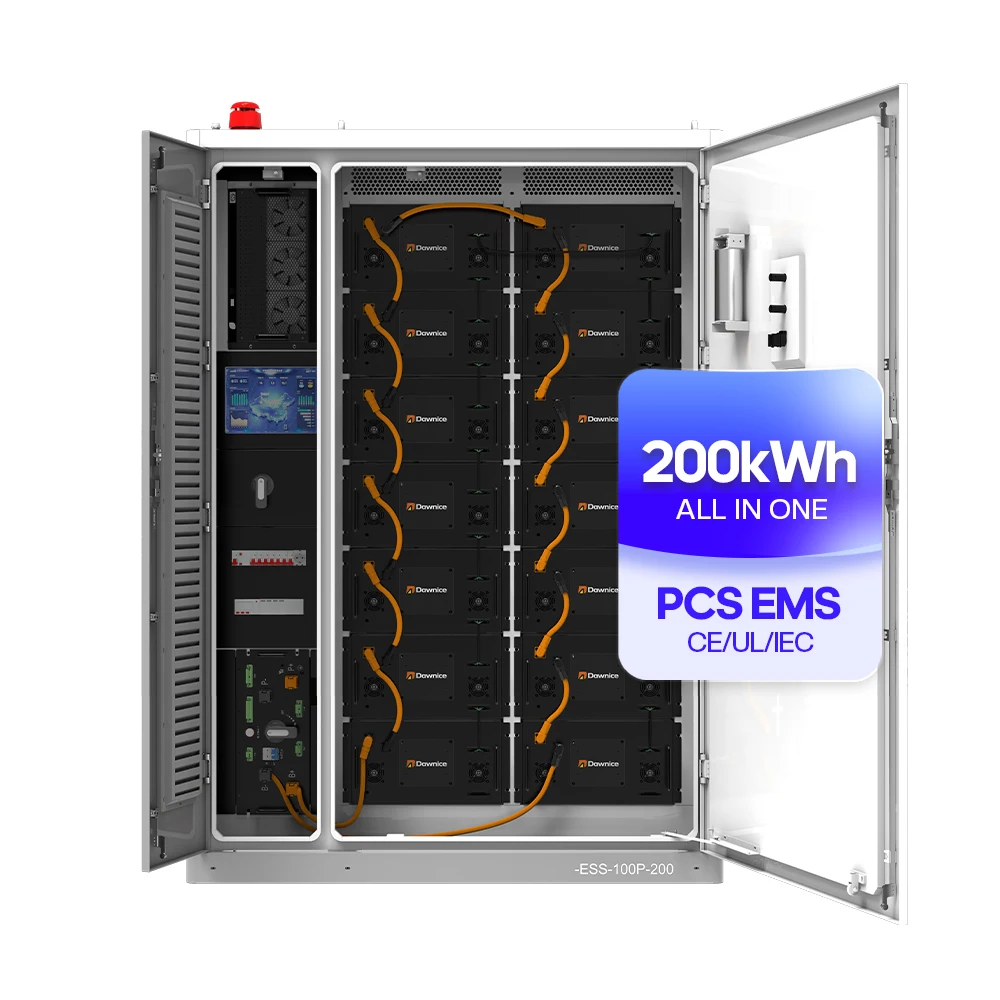

Dawnice Enterprises Achieve Energy Saving High Voltage 100 kwh 200 kwh 300 kwh Commercial Solar System Storage Battery
- Category: >>>
- Supplier: Yichun Dawnice Manufacture & Trade Co. Ltd.Yichun Ltd.
Share on (1601193000946):
Product Overview
Description
Products Description
Model | DW-ESS-100 | DW-ESS-200 | ||
Parameter-BATTERY(DC) | ||||
Combination method | 1P112S | 1P224S | ||
Rated Voltage | 358.4V | 716.8V | ||
Voltage range(V) | 313.6-403.2 | 627.2-806.4 | ||
Rated Capacity(Ah) | 280Ah | |||
Rated Energy[kWh] | 100.3kWh | 200.7kWh | ||
Cycle Life | ≥6000 | |||
AC(on -grid) | ||||
Recommend input power | 50kW | 100kW | ||
Rated Voltage | 400V | |||
Output | 3W+N+PE | |||
Voltage range | -15%-+10% | |||
Rated frequency | 50/60Hz | |||
AC(off -grid) | ||||
Rated power | 20 kW | 100kW | ||
Rated Current | 43A | 144A | ||
Rated Voltage | 380V / 400V/ 440V | |||
Rated frequency | 50/60Hz | |||
SIZE&INSTALLMENT | ||||
Dimension(WXDXH) mm | 1680*1500*1700 | 1680*2270*1700 | ||
Weight 1100kg 2300kg | ||||
Environmental temperature | -20℃~+55℃(> 45°C power reduction) | |||
Relative humidity 0-95%non-condensing | ||||
Protection degree | IP54 | |||
Noise emission | 60dB(A)@1m | |||
Max. conversionefficiency | 95% | |||
Max.imum altitude | 4000m(derate over 2000m) | |||
Cooling Forced-air, | Intelligent fan adjustment | |||
Commun i ca t ion | Modbus-RTUCAN2.0B | |||
Display Touch screen | LCD(Optional) | |||
Communication interface | RS485/CAN | |||
Click Here Send An Inquiry To Contact Us For Catalog | ||||

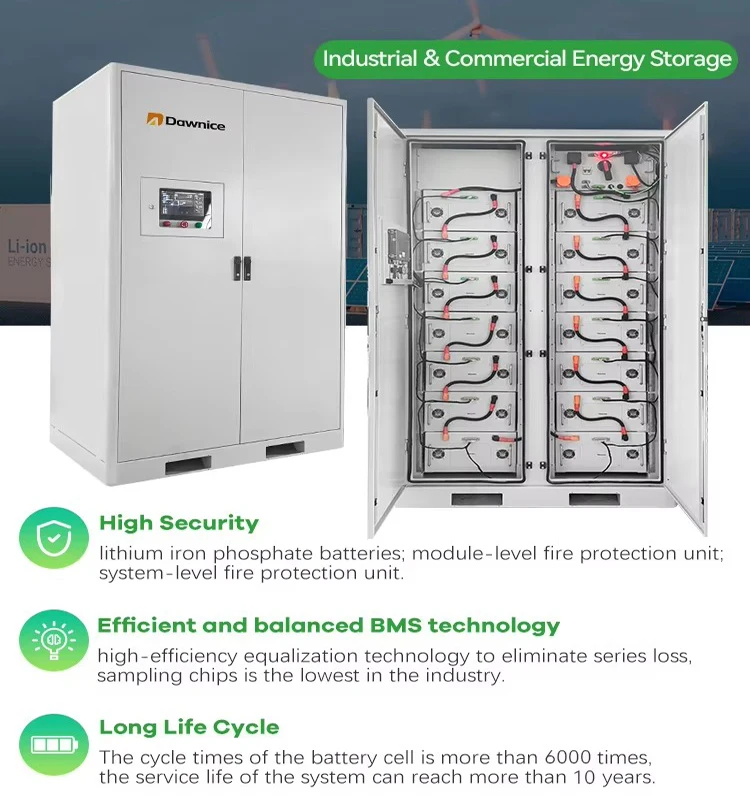

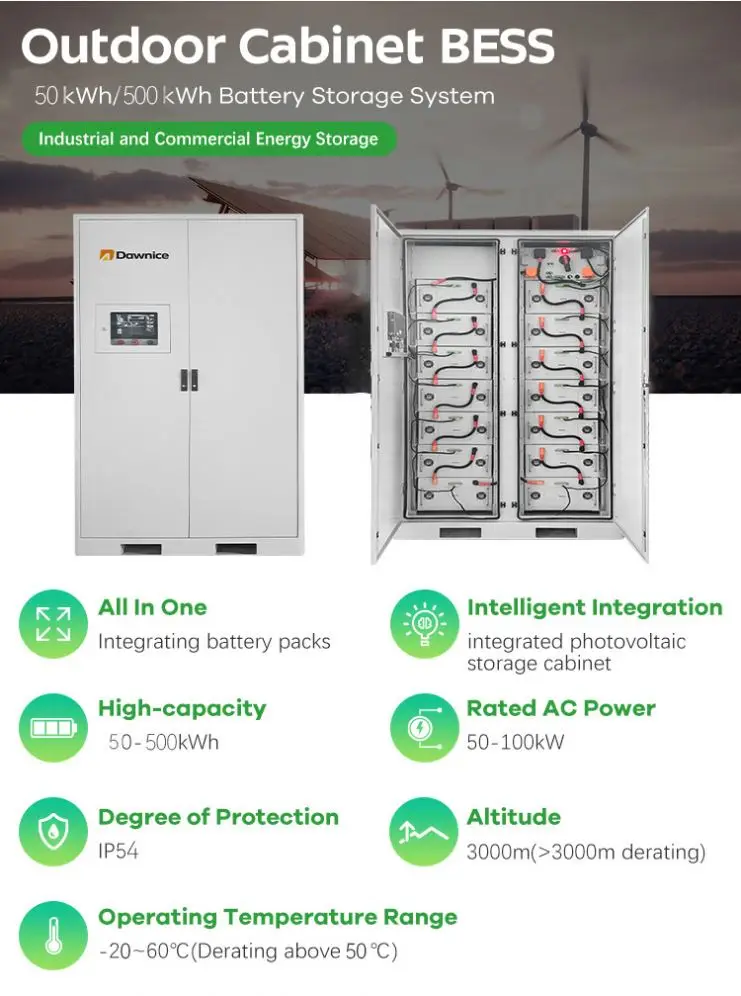

Commercial and Industrial Energy Storage
Schools, factories, gas stations and other commercial buildings with high energy demands can maximize energy use

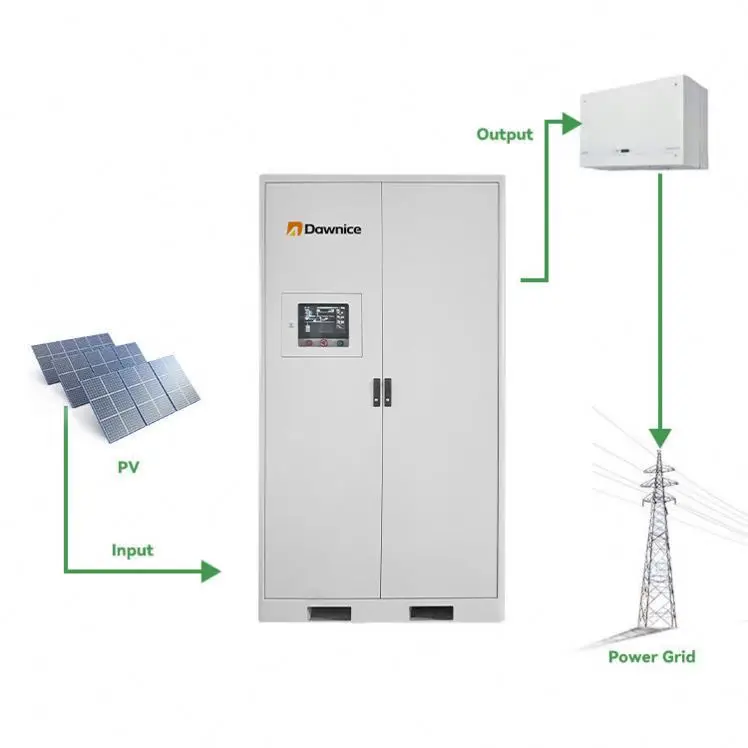

Energy independence and reduced grid power demand through solar PV and battery storage. iPotisEdge provides one-stop
Find solutions for commercial and industrial facilities to save on electricity bills, reduce the risk of rising energy prices, generate additional revenue from renewable energy and reduce their environmental impact.
Schools, factories, gas stations and other commercial buildings with high energy demands can maximize energy use
Energy independence and reduced grid power demand through solar PV and battery storage. iPotisEdge provides one-stop
Find solutions for commercial and industrial facilities to save on electricity bills, reduce the risk of rising energy prices, generate additional revenue from renewable energy and reduce their environmental impact.
Specification

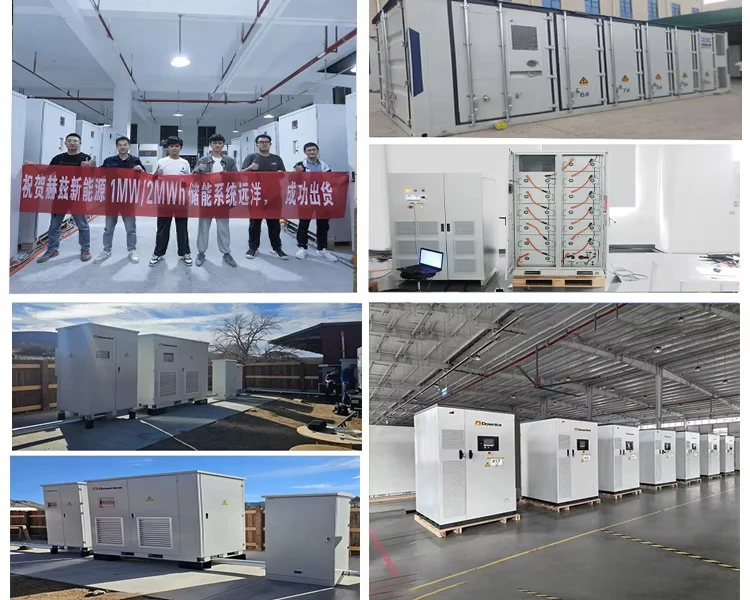

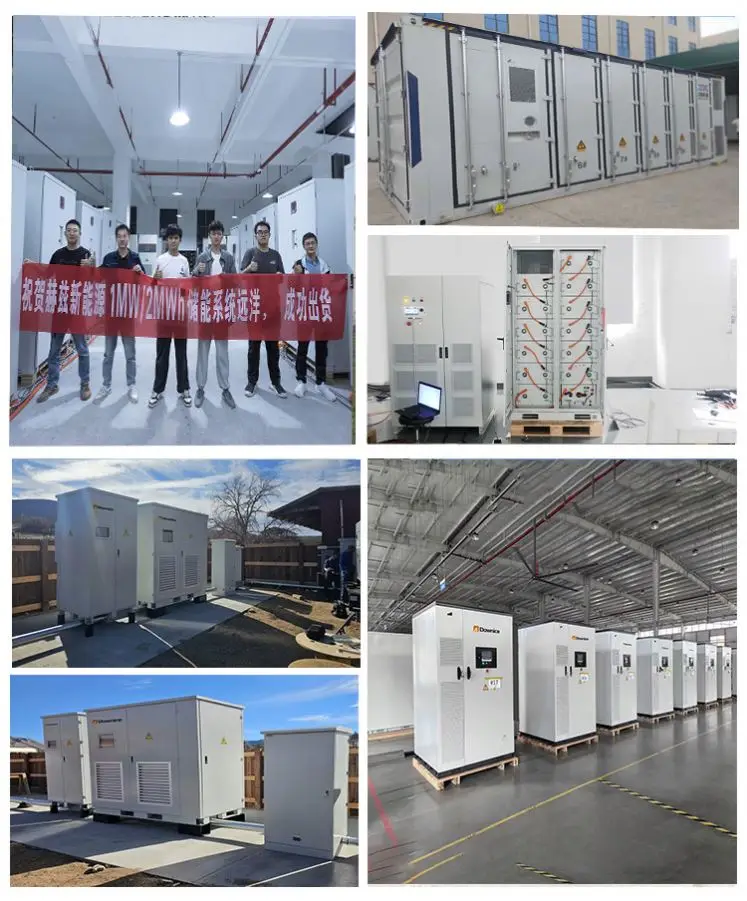

Projects
200kw solar panel installation solar system for farmland
energy storage cabinet solar power container
200KWH lifepo4 battery Installed in Germany
Company Profile
Dawnice Battery Factory was founded in 2002 in Jiangxi, China. It is a leading manufacturer of home energy storage batteries,commercial energy storage systems, and battery energy storage systems with integrated solar inverters.
Dawnice's core products are residential storage batteries and commercial solar storage solutions.
They have provided energy solutions to 70 countries, serving around 80,000 households. The lithium battery factory holds recognized certificates such as CE, UL, UN38.3, RoHS, IEC62619, ISO14001, and ISO9001.
