AFKLOK WR31 High Pressure High Flow High Temperature Pressure Reducing Regulator for Hydrogen Energy O2
- Category: >>>
- Supplier: Shenzhen Wofly Technology Co. Ltd.Shenzhen Ltd.
Share on (1601193100834):
Product Overview
Description
Product Description
Specification
item | value |
Application | General |
Port Size | 1/2,3/4 |
Warranty | 1 year |
Place of Origin | China |
Hunan | |
Model Number | WR31 |
Power | Hydraulic |
Temperature of Media | High Temperature |
Brand Name | AFKLOK |
Structure | Pressure Reducing |
Media | O2 ,CO2,Hydrogen |
Customized support | OEM, ODM |
Max.inlet pressure | 4500psi,6000psi |
Outlet Pressure range | 0~300,0~600,0~1000,0~1500,0~2500psi |
Certificate | ISO 9001 CE |
MOQ | 5 Pieces |
Body material | 316 Stainless Steel |
Standard or Nonstandard | Standard Valve |
Work Temperature | -40~+74℃(-40℉~+165℉) |
Cv | 2.0 |
Connection | NPT Female,Ferrules |
Valve seat | PCTFE |
Packing & Delivery
Technical services are available 24H/D.Our technical team can provide technical services for pre-sale, after-sale, installation and research and development of new products.
The products are packed in double plastic bags with internal vacuum and external plastic sealing. Packaging products into cartons, then into cardboard boxes, and then hit the wooden pallet. The product packaging meets the export transport requirements.
Company Profile
WOFLY is a leading Manufacturer, Supplier and Exporter of a wide range of gas equipements, available under the brand name AFK. Wofly's success yields from high-quality, innovative products, exceptional customer service, and unequaled technical expertise in the gas& oil industry.
WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
WOFLY offers an extensive line of components including tube fittings, control valves, shut-off and solenoid valves, pressure relief and regulators.Through the years we have learned how to properly match the gas regulation equipment with the application. Using the proper equipment for the job eliminates problems such as contamination, pressure variances, safety issues, and equipment mismatch.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(50.00%),Southeast Asia(14.00%),North America(8.00%),Northern Europe(8.00%),Eastern Europe(5.00%),South Asia(2.00%),South America(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Central America(2.00%),Mid East(2.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pressure Regulator, Instrumentation Valve, Gas Cabinet, Tube Fitting, Tubing
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
We are based in Guangdong, China, start from 2011,sell to Domestic Market(50.00%),Southeast Asia(14.00%),North America(8.00%),Northern Europe(8.00%),Eastern Europe(5.00%),South Asia(2.00%),South America(2.00%),Western Europe(2.00%),Southern Europe(2.00%),Central America(2.00%),Mid East(2.00%),Eastern Asia(1.00%),Oceania(1.00%),Africa(1.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Pressure Regulator, Instrumentation Valve, Gas Cabinet, Tube Fitting, Tubing
4. why should you buy from us not from other suppliers?
We have a couple of years with professional engineers and dedicated technicians.can provide security products for you
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union;
Language Spoken:English,Chinese
Product Features
Piston sensing design with greater outlet pressure adjustment range
Suitable for hydrogen energy high pressure and high flow applications
Oxygen environment application options are available
Suitable for standard gas and Non-corrosive gas

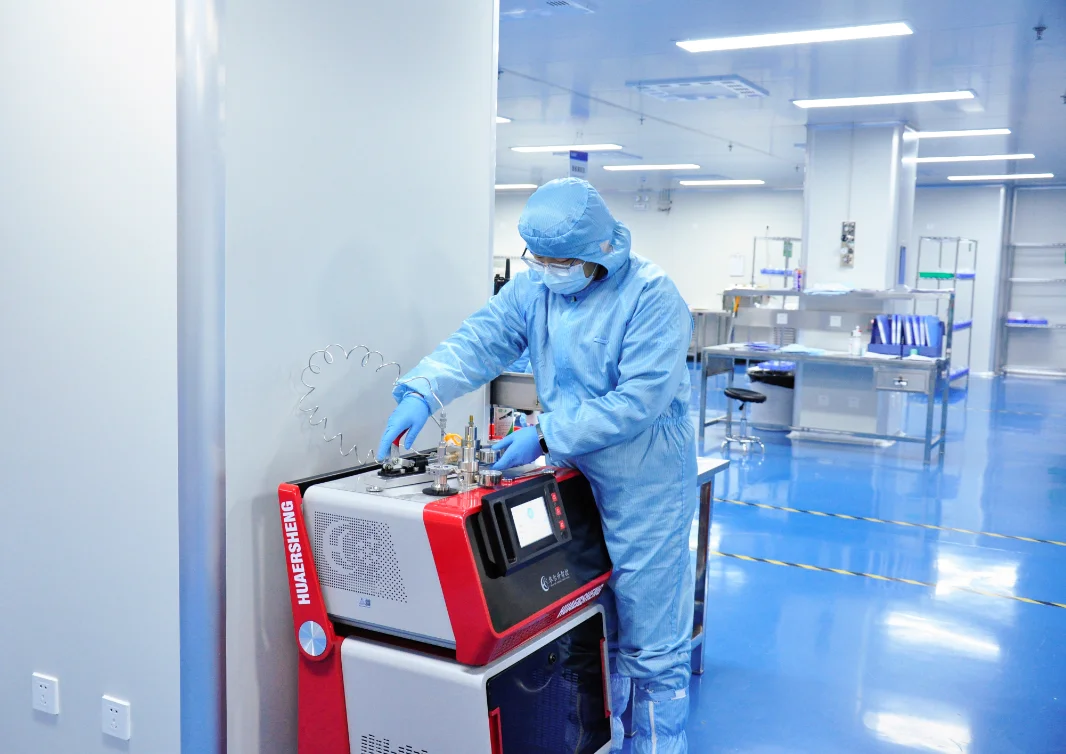

Clean Workshop
1. All products are completed in grade 100 and grade 1000 clean workshops, and 100% pass helium inspection seal test and functional test before leaving the factory.
2. At present, Wofly has built a dust-free workshop with 100 levels (more than 100 ㎡) and 1,000 levels (more than 500 ㎡). 3. The production team is composed of a young automated production team of 30 people. With the help of customized automated tooling and test equipment, the average output of valves can reach 4000 pieces per month.
2. At present, Wofly has built a dust-free workshop with 100 levels (more than 100 ㎡) and 1,000 levels (more than 500 ㎡). 3. The production team is composed of a young automated production team of 30 people. With the help of customized automated tooling and test equipment, the average output of valves can reach 4000 pieces per month.
4. Wofly's EP-grade product Surface roughness reached Ra 0.13 um ,BA-grade product Surface roughness reached Ra 0.25 um.BA-grade products can be applied to gases below 6N purity,EP-grade products can be applied to 9N purity gases.
Advantages of production technology
1.Innovative Welding Techniques: We employ orbital welding, a method known for producing minimal smoke and a cleaner environment compared to conventional welding techniques. This results in a brighter surface finish and superior weld quality, meeting the stringent requirements of precision instrument valves. The consistency and excellence of our welds are unmatched, ensuring your systems perform optimally under various conditions.2. EP-Process: Electrolytic polishing (EP) can change the surface state, including reducing roughness and improving corrosion resistance. In electrolyte, by energizing the workpiece, electrodes are formed to dissolve ions on the metal surface, remove peaks and change the surface Cr/Fe ratio. You may encounter "pseudo-EP" in the market, and the surface like a mirror is likely to be polished mechanically instead of EP. It looks bright, but in fact, particulate impurities are hidden in the valleys.
3. Surface roughness:Wofly's EP- grade product Surface roughness reached Ra 0.13 um ,BA-grade product Surface roughness reached Ra 0.25 um.
BA-grade products can be applied to gases below 6N purity,EP-grade products can be applied to 9N purity gases.
VR
Product advantages
1. Compared with other low quality products, our valves and fittings are durable, most of the main body of the product is made of stainless steel 316 or 316L, the appearance is Smooth surface, and the picture matches the real thing.
2. Adopt orbital welding, the smoke produced when welding is small, environmental protection, surface finish is brighter than ordinary manual welding. Provide consistent welding quality, excellent quality of welds, meet the requirements of precision instrument valves.
3. Unlike other bulky, oversized valves that take up too much space, our valves and fittings are compact in design and simple to operate.
4. What you see in our product images is exactly what you receive—a true representation of quality craftsmanship.
