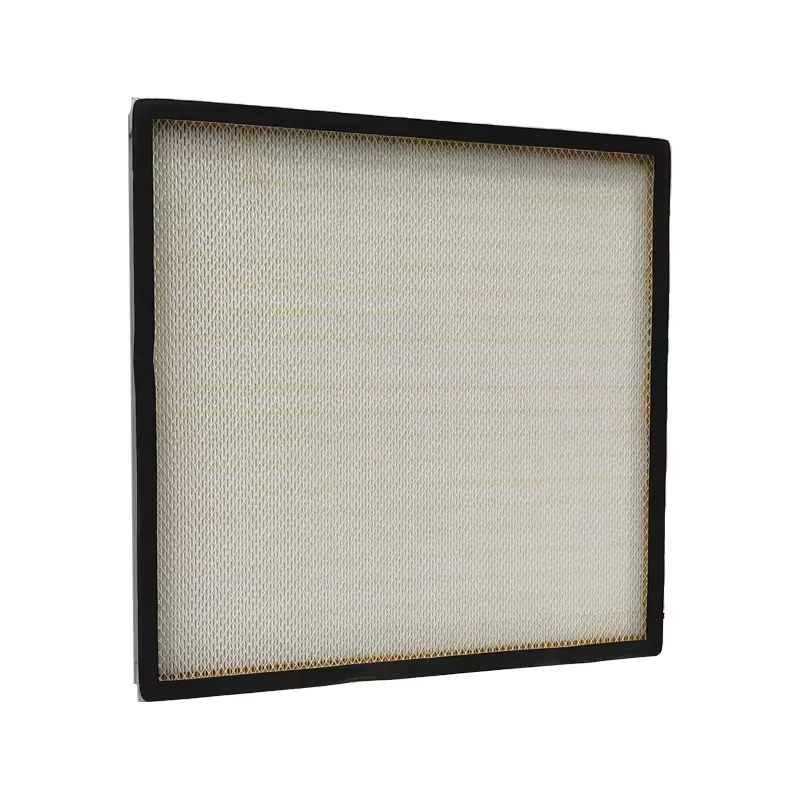

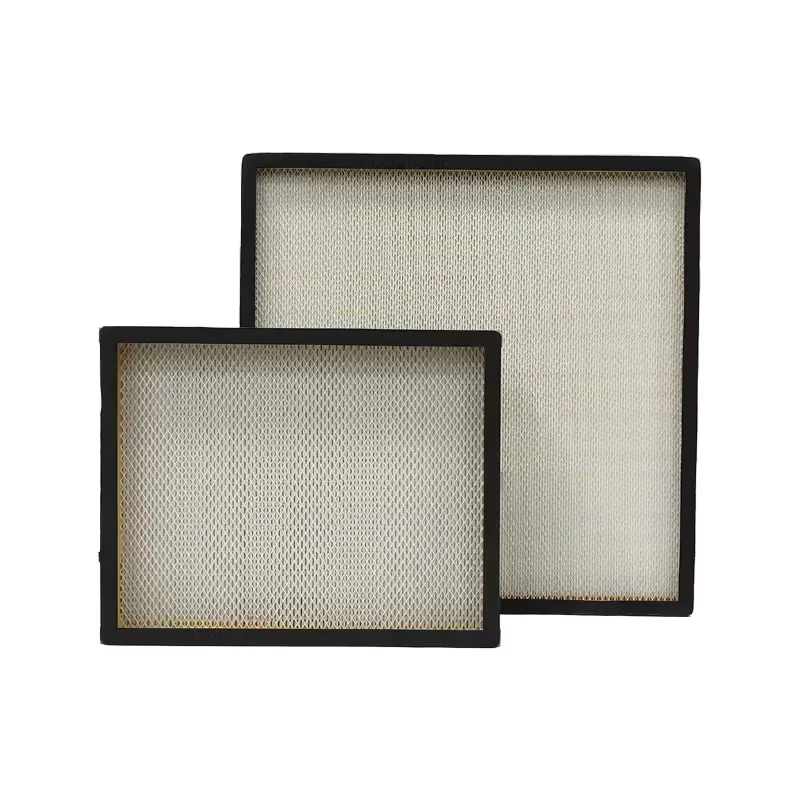

No partition high efficiency air filter plate frame air purification filter HVAC air conditioning ventilation duct filtration
No partition high efficiency air filter plate frame air purification filter HVAC air conditioning ventilation duct filtration
No partition high efficiency air filter plate frame air purification filter HVAC air conditioning ventilation duct filtration
No partition high efficiency air filter plate frame air purification filter HVAC air conditioning ventilation duct filtration
No partition high efficiency air filter plate frame air purification filter HVAC air conditioning ventilation duct filtration
No partition high efficiency air filter plate frame air purification filter HVAC air conditioning ventilation duct filtration
No partition high efficiency air filter plate frame air purification filter HVAC air conditioning ventilation duct filtration

No partition high efficiency air filter plate frame air purification filter HVAC air conditioning ventilation duct filtration

Share on (1601193110108):


Price:$30.00-50.00

Quantity:


Product Overview

Description

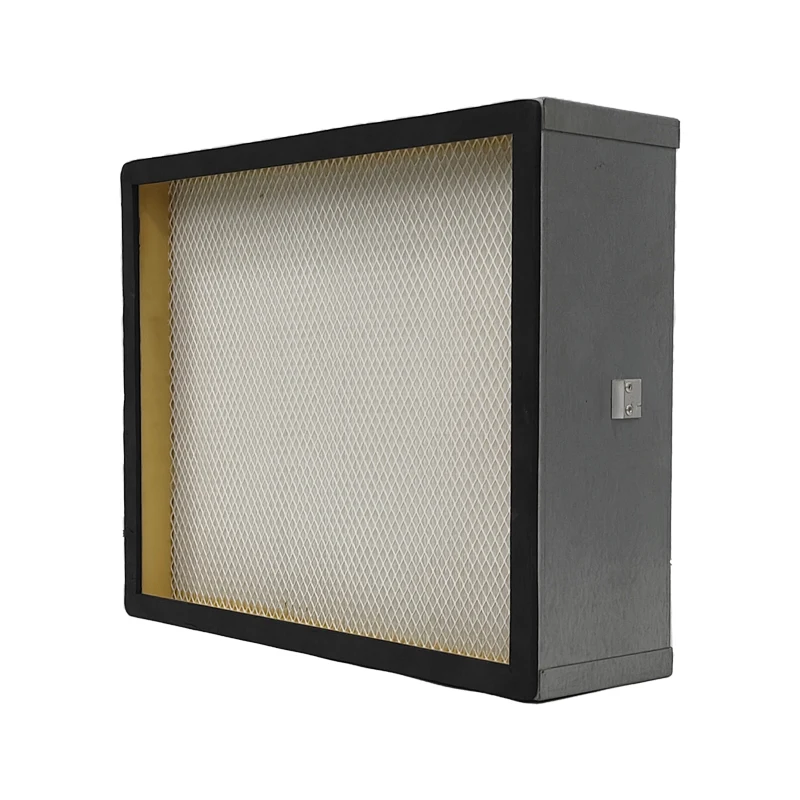

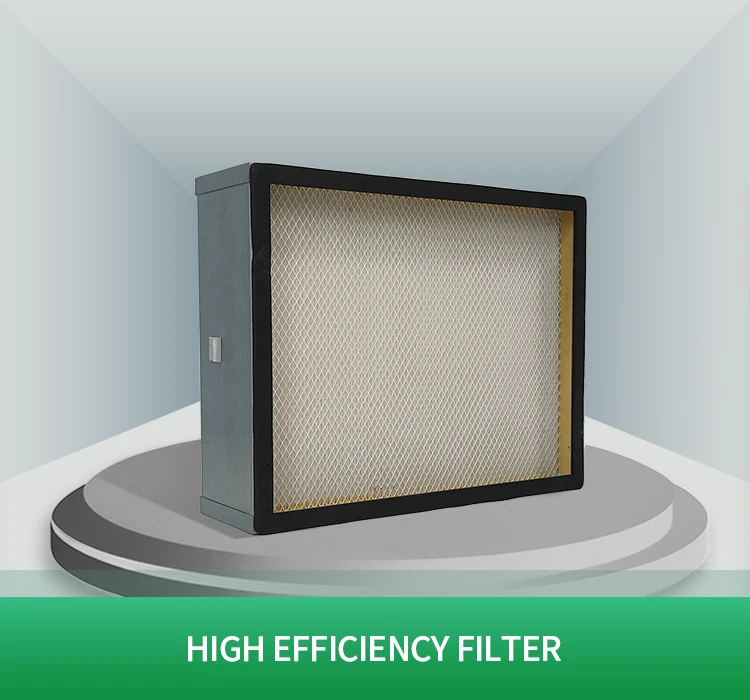

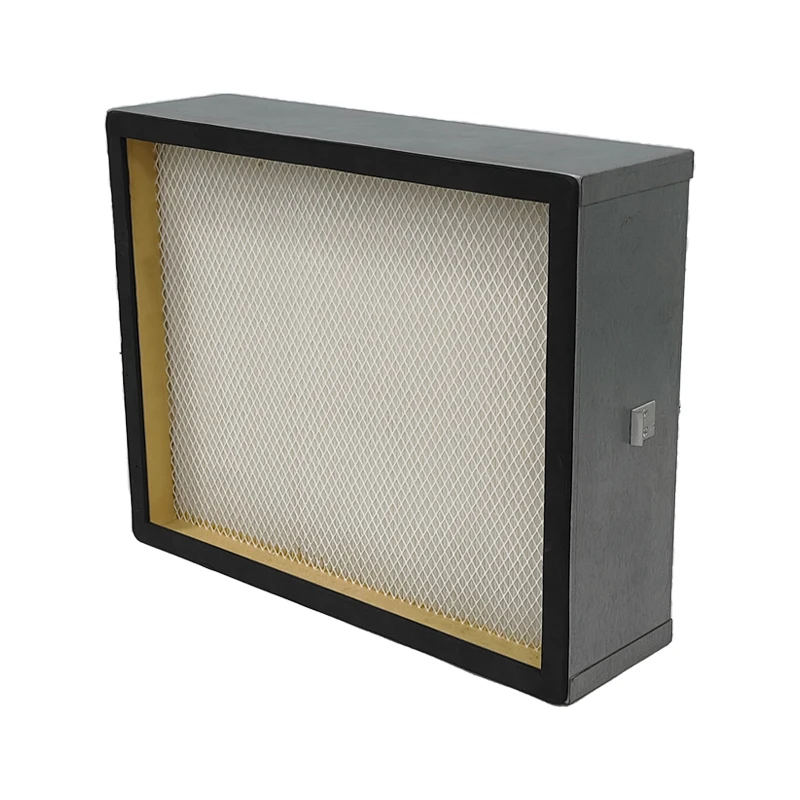

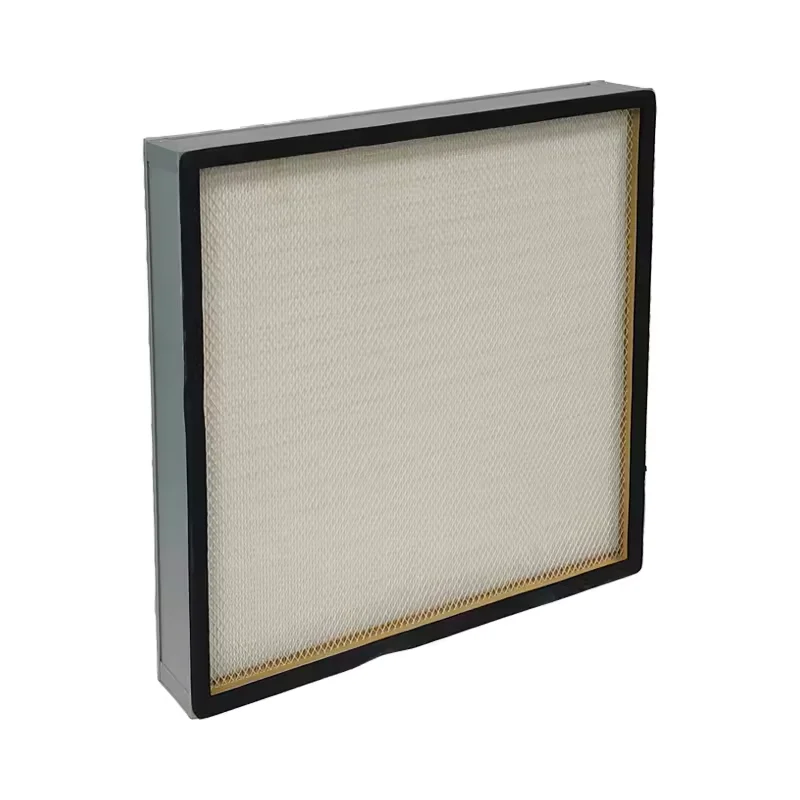

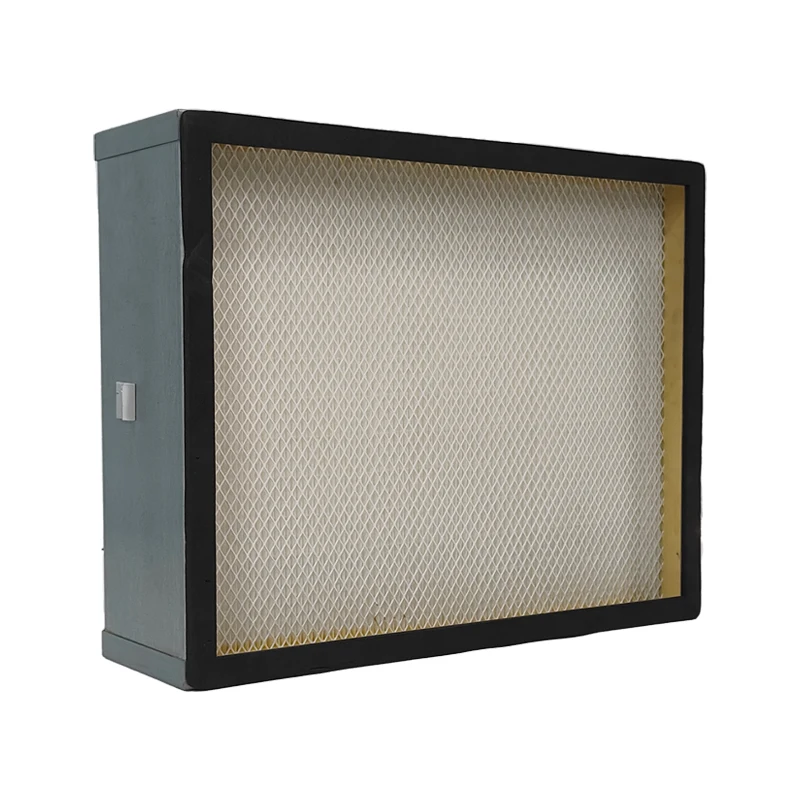

Minimum order quantity hot selling batch galvanized frame HEPA filter air conditioning system HVAC HEPA filter






Material and condition selection

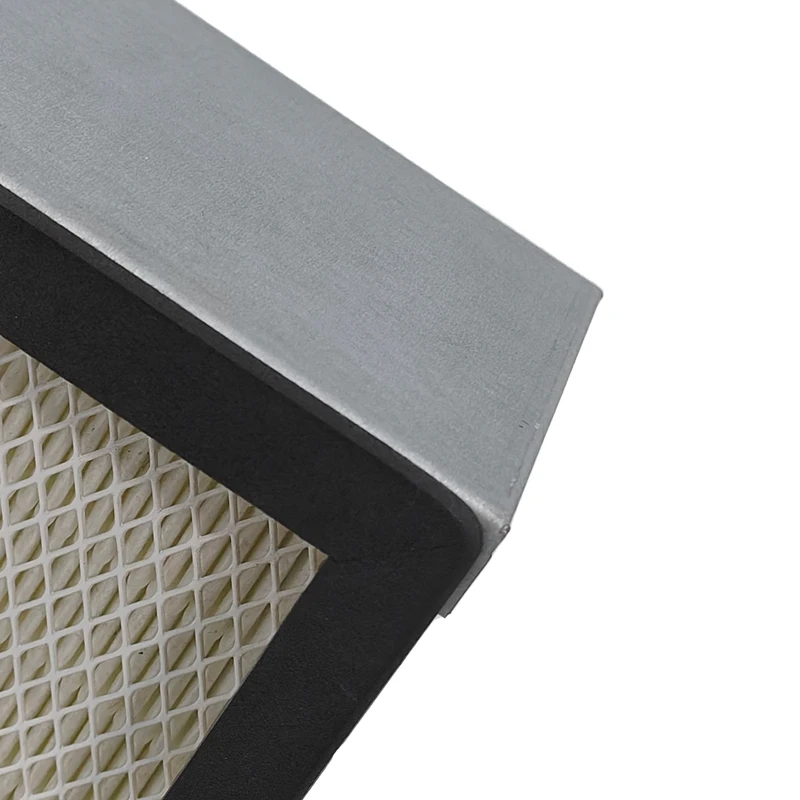

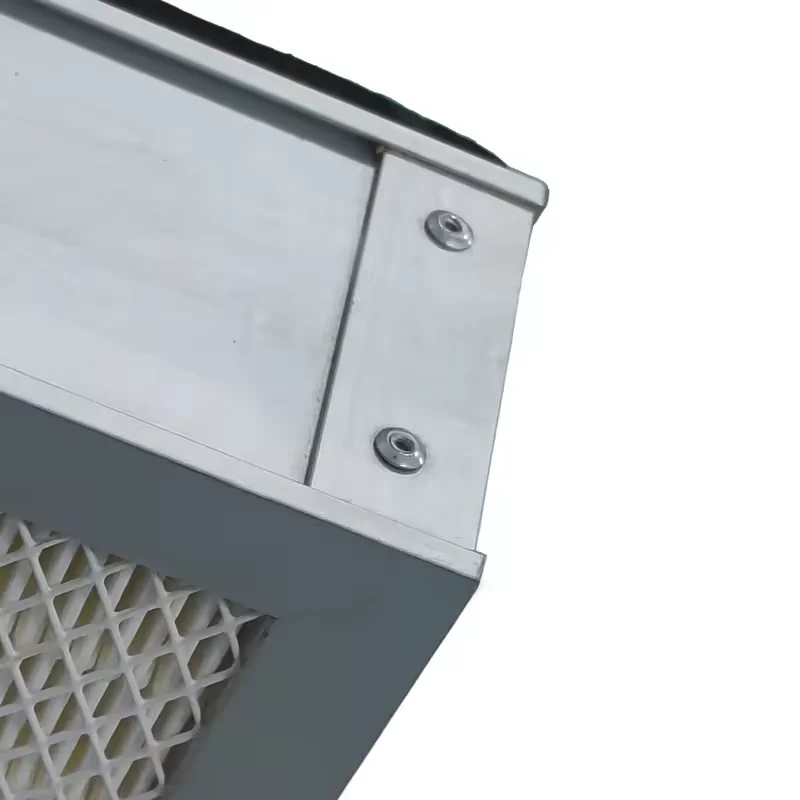

Outer frame: aluminum frame/galvanized frame/stainless steel frame

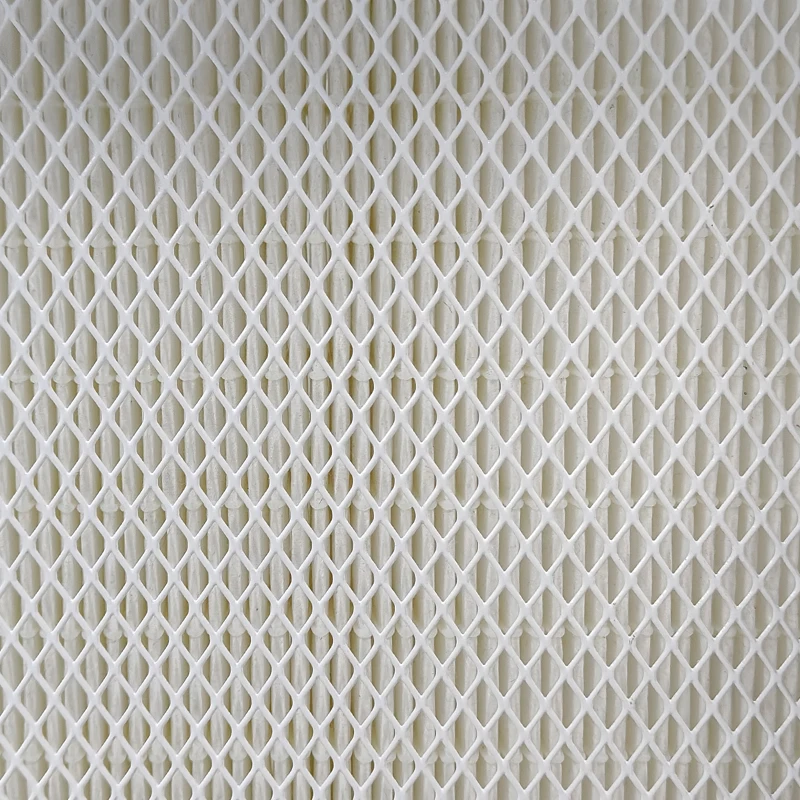

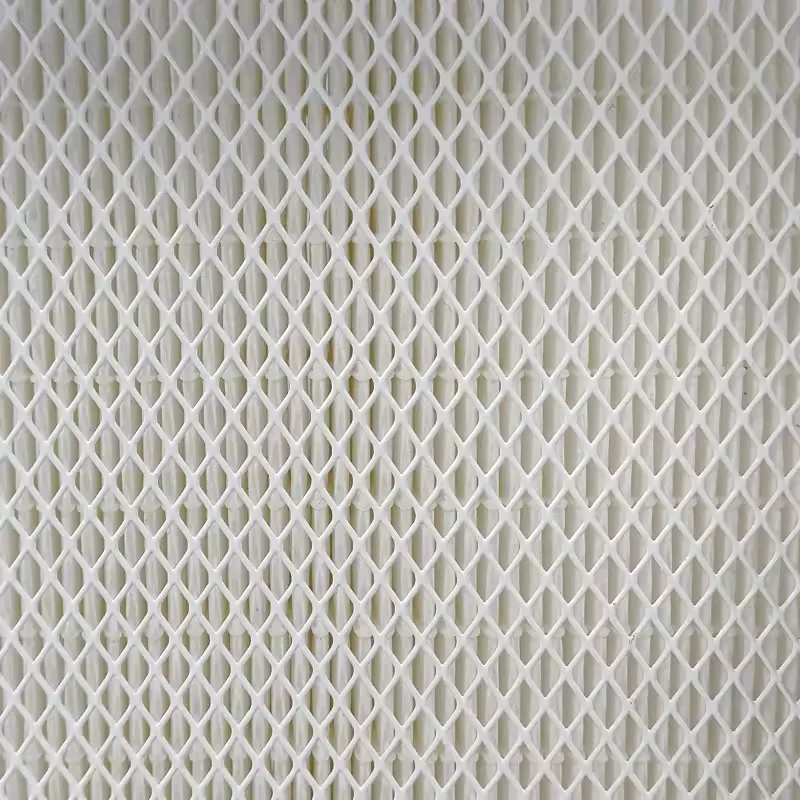

Filter material: Microglass fiber
Optional thickness: 38mm-120mm
Efficiency: ≥ 99.99%
Sealant: Pu two-component polyurethane adhesive
Gaskets: Polyurethane ring gasket/EVA/EPDM rubber
Separators: Hot melt beads
Humidity resistance: ≤ 100% RH
Temperature resistance: 70 ° C




Product features:
1. High efficiency, mainly capturing fine dust particles above 0.3um
2. Before leaving the factory, perform leak testing on each unit;
3. High temperature resistance up to 70 ° C
4. Large air volume, low resistance, thin thickness, convenient installation, and long service life;




Type
Size （WxHxD）
Rated Airflow(m3/h)
Filter Class（m²）
Dust Holding Capacity（g/m²）
Initial Pressure Drop(Pa)
FinalPressure Drop(Pa)
Average Arrestance
DH-WGX
484*484*50
500
4.6
300
≤220
400
H13-H15,U15
610*610*50
800
7.5
450
≤220
400
H13-H15,U15
305*305*69
260
2.5
150
≤220
400
H13-H15,U15
484*484*69
700
6.6
400
≤220
400
H13-H15,U15
610*610*69
1100
10.7
650
≤220
400
H13-H15,U15
915*610*69
1600
16
950
≤220
400
H13-H15,U15
1220*610*69
2200
21.3
1000
≤220
400
H13-H15,U15
610*610*90
1500
14.9
900
≤220
400
H13-H15,U15
915*610*90
2000
22.3
1200
≤220
400
H13-H15,U15
1220*610*90
2800
29.8
1800
≤220
400
H13-H15,U15


Main use:
HEPA filter: widely used for terminal filtration in cleanrooms.
ULPA filters: Work areas that require strict cleanliness levels, such as hospital operating rooms, laboratories, pharmaceutical rooms, electronic and fiber optic equipment, and food processing plants.








































1. Question: Are you a manufacturer or a trader? Where is your factory located?

We are a manufacturer of professional designers and engineers. Our factory is located in Guangzhou city.

2. Question: How long is your warranty period? Can we expand?

Answer: 12 months after installation and debugging. The warranty can be extended at an additional charge.

3. Question: Do you have a professional team of engineers to design and install?

Answer: Yes, we have an engineering team for ODM and OEM services

4. Question: What documents will you provide?

Answer: Usually, we provide DQ, IQ, PQ, OQ, FAT, SAT, operation manual, maintenance instructions, layout drawings, etc.
