NBR Wide Arch Type Rubber Expansion Joints flanged Vibration Isolation Equipment
NBR Wide Arch Type Rubber Expansion Joints flanged Vibration Isolation Equipment
NBR Wide Arch Type Rubber Expansion Joints flanged Vibration Isolation Equipment
NBR Wide Arch Type Rubber Expansion Joints flanged Vibration Isolation Equipment
NBR Wide Arch Type Rubber Expansion Joints flanged Vibration Isolation Equipment
NBR Wide Arch Type Rubber Expansion Joints flanged Vibration Isolation Equipment
NBR Wide Arch Type Rubber Expansion Joints flanged Vibration Isolation Equipment

NBR Wide Arch Type Rubber Expansion Joints flanged Vibration Isolation Equipment

Share on (1601193347713):


Price:$18.50 - $20.80

Quantity:


Product Overview

Description



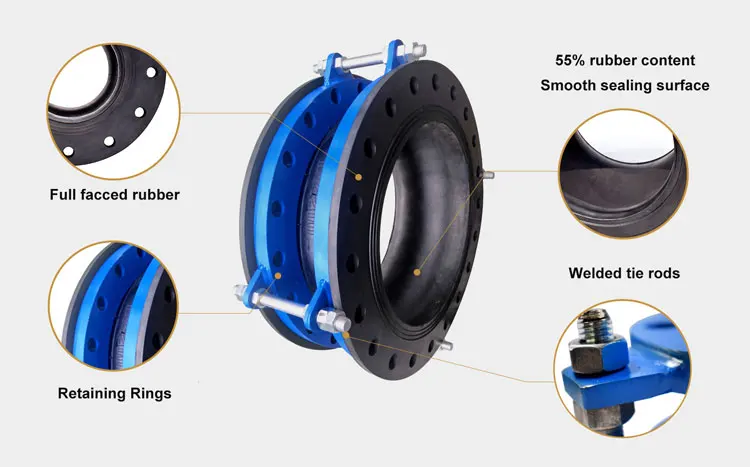

1_01





1_03





1_05


 .jpg








































































































































































Main data of bellows flange joint
Nominal diameter(DN)LengthAxial displacement(mm)Horizontal displacementDeflexion angle
inchmmmmExtensionCompressionmm(a1+a2)°
1 1/4329569915°
1 1/2 4095610915°
2501057101015°
2 1/2651157131115°
3801358151215°
410015010191315°
512516512191315°
615018012201415°
820021016252215°
1025023016252215°
1230024516252215°
1435025516252215°
1640025516252215°
1845025516252215°
2050025516252215°
2460026016252215°









Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A  variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO, etc.) can be selected for production. Rubber  spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When  the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product  should be installed with anti pull off device.

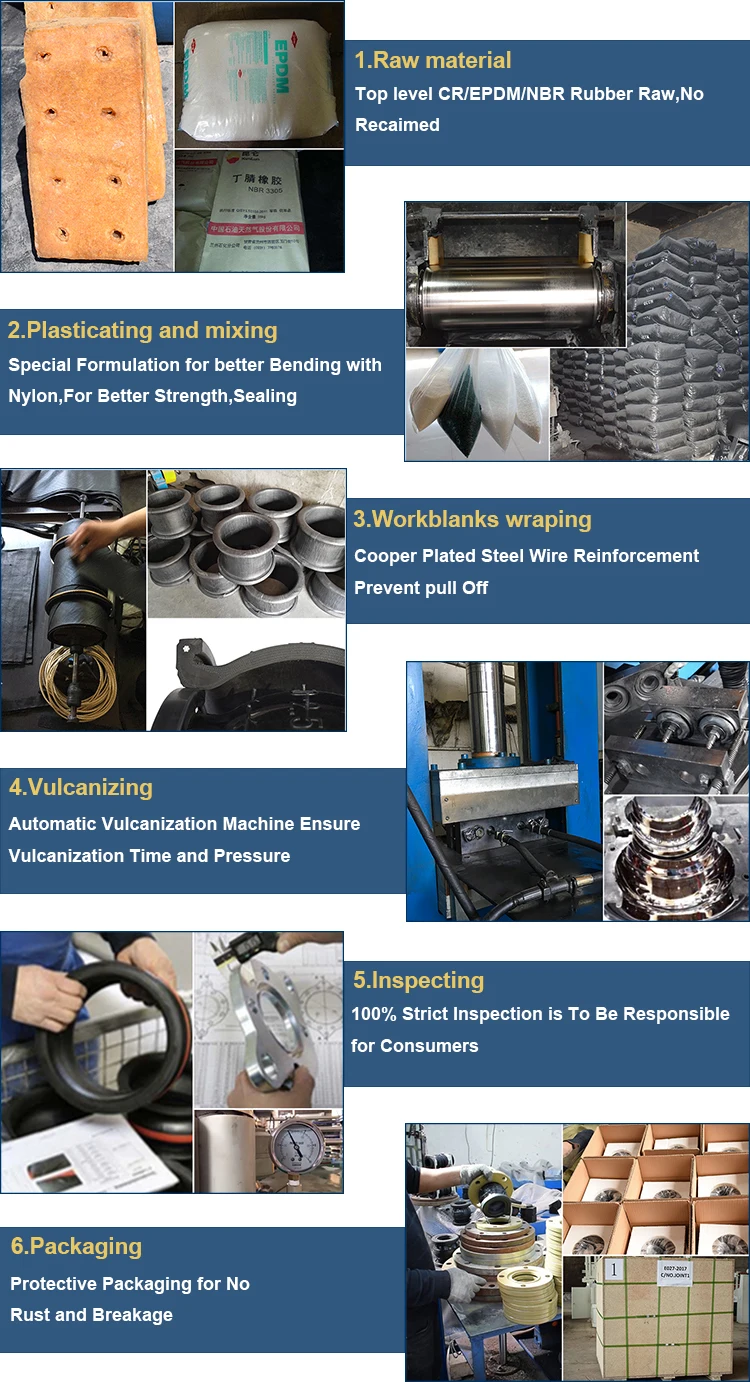

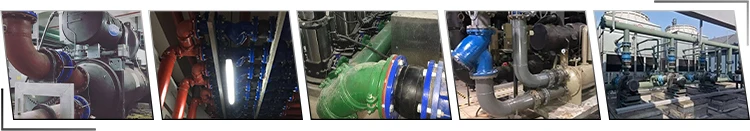

1_11





















































Q1:What’s the face to face length?


A1:The face to face length can be L130, L152,L203... We also could accept customized length according to your requirements.





Q2:Can you provide drawings?


A2:Yes,we could provide drawings for you.Please contact us to get the drawings.





Q3:What certificates can you provide?


A3:We could provide CE,ISO certificate.





Q4:Can we get a sample?


A4:Yes,we could provide samples for you to test the quality.
