Chinese Suppliers Yhzs40 Mobile Concrete Plant Portable Concrete Mixing Plant Controlled By Industrial Control Computer For Sale
- Category: >>>
- Supplier: Zhengzhou Xinyu Machinery Manufacturing Co. Ltd.
Share on (1601193360100):
Product Overview
Description

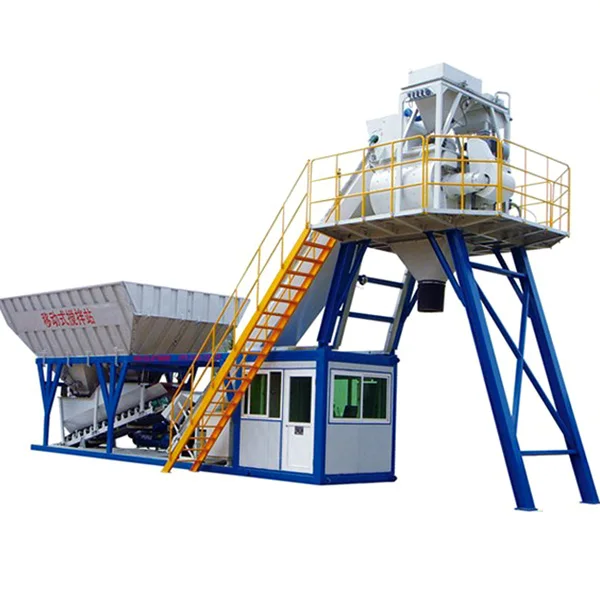

YHZS Mobile concrete batching plant is a station of material storage material, weighing, conveying, stirring, unloading and automatic control ; The process, operation and maintenance are exactly the same with fixed automatic batching plant; It is a combination of mobile and flexible, easy disassembling fast, simple storage management and other unique characteristics; Suitable for railways, Bridges, ports, water and electricity engineering construction .
Product Overview
Information

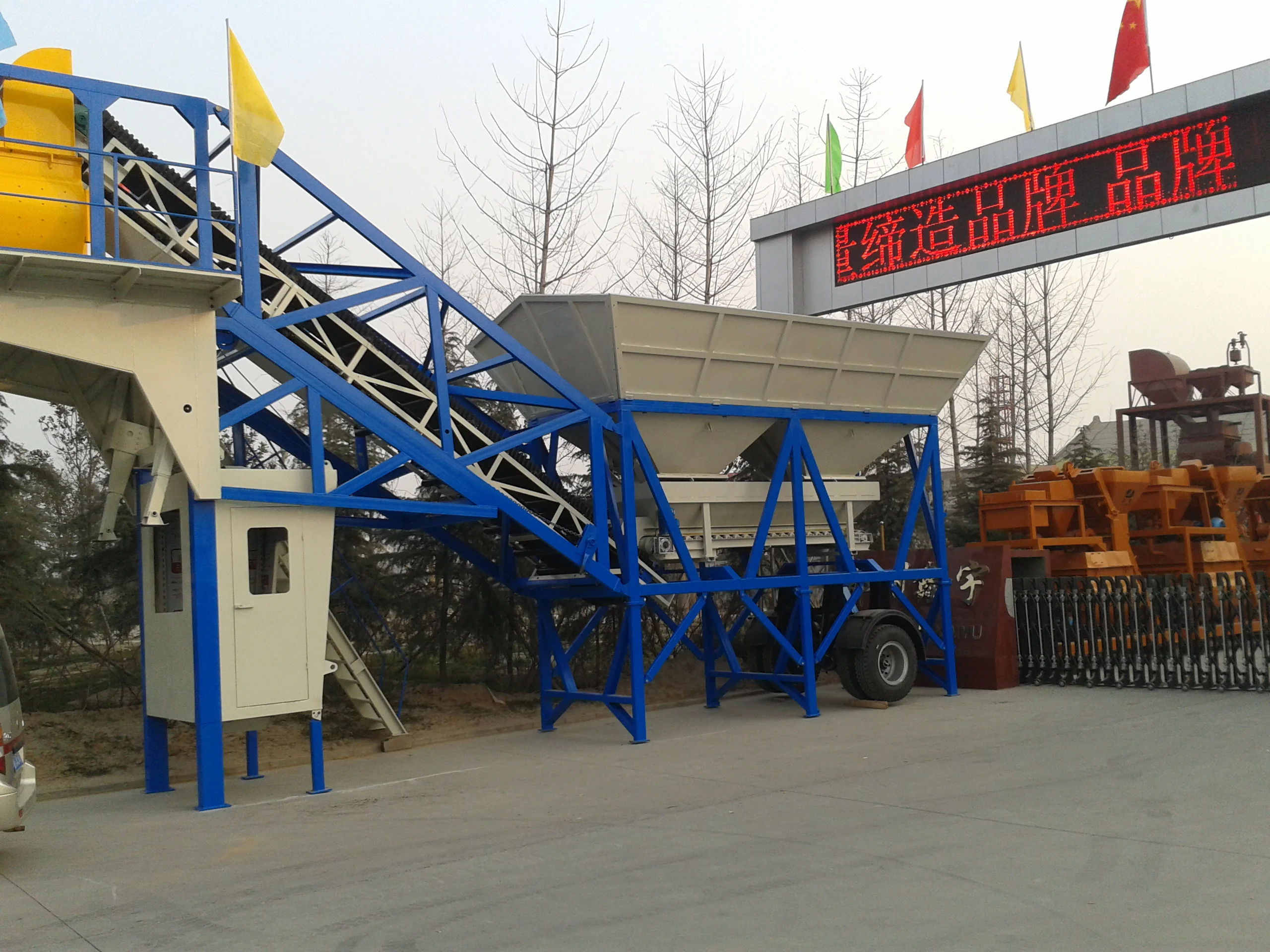

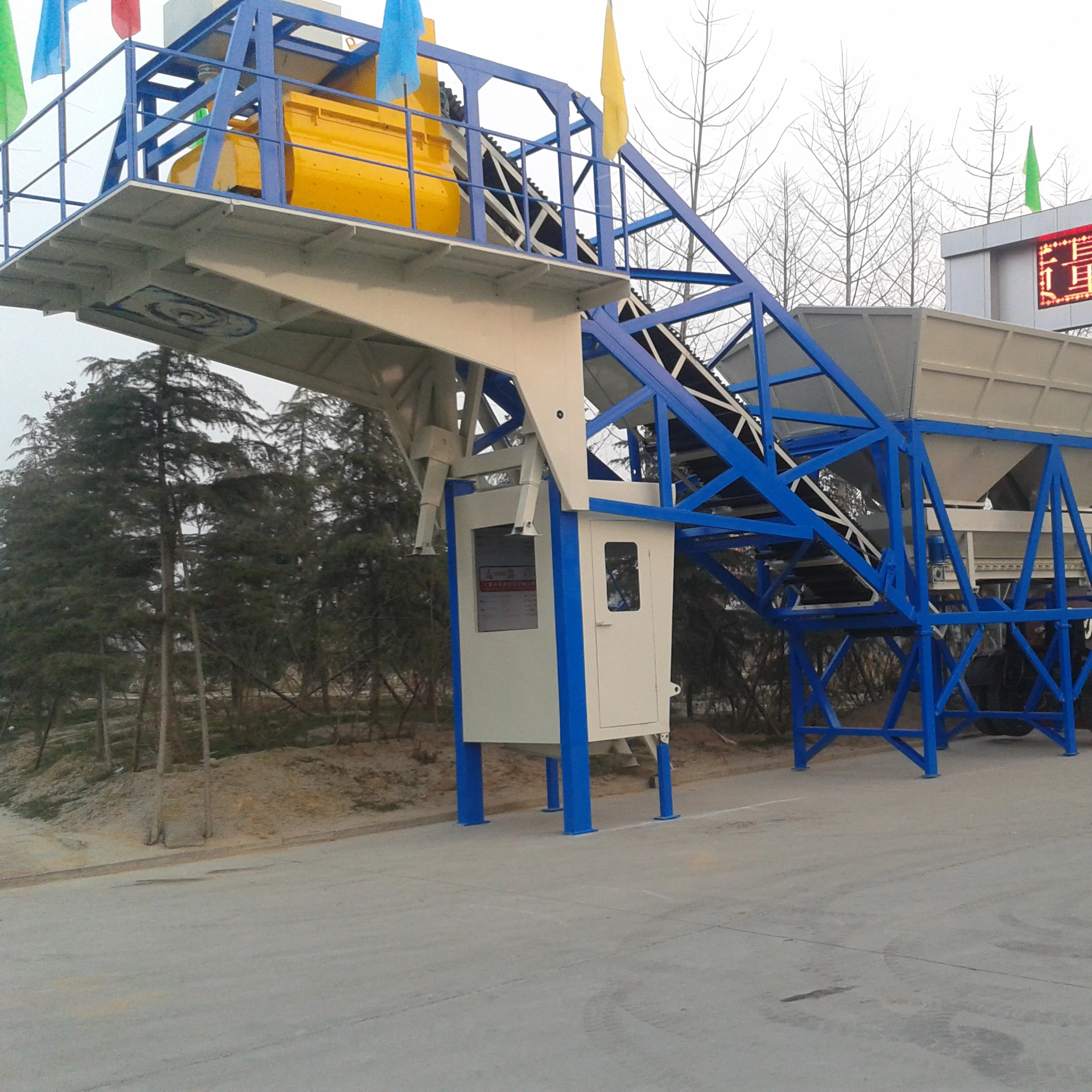

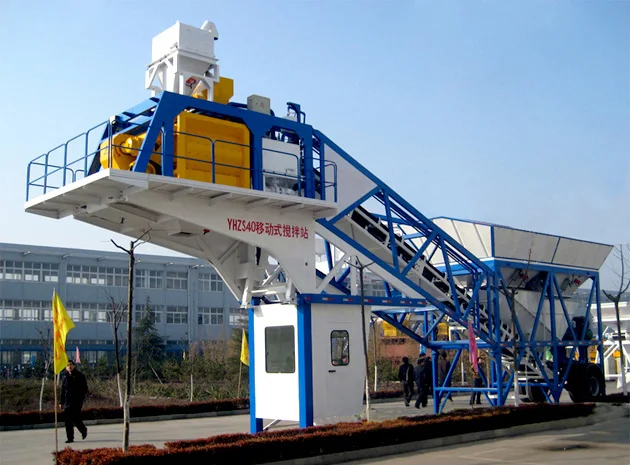

Mobile concrete batch plant YHZS40 adopt semi-pulling structure with running system and standard coupling pin included. It can be dragged by trailer. Without foundation and commissioning enables convenient transportation, the mixing plant can be divided into several standard modular and packed into containers.
Advantage:
· Completely mobile solution with whole unit in one trailer
· Less installation area requirement with compact design
· Short and easy installation-uninstallation and operating
· Less foundation costs (80% less than stationary concrete batching plants)
· No requirements for local authorizations for the installation
· Less maintenance, operating and transportation costs
· Minimized concrete transportation costs
· Less installation area requirement with compact design
· Short and easy installation-uninstallation and operating
· Less foundation costs (80% less than stationary concrete batching plants)
· No requirements for local authorizations for the installation
· Less maintenance, operating and transportation costs
· Minimized concrete transportation costs
FEATURES AT A GLANCE
MIXING SYSTEM
Horizontal twin-shaft compulsory mixer has strong mixing ability, it can mix the materials evenly and effectivefy. It can mix concrete with different slumps and raw materials ratio. Its mixing blade and lining board are made of high chromium wear-resistant alloy. External shaft end support and special shaft seal ensure the long service life of the mixer.
Volume of concrete mixer is varying according to actual working capacity of concrete batching plant. The pictures are for reference only.
Volume of concrete mixer is varying according to actual working capacity of concrete batching plant. The pictures are for reference only.
AGGREGATE BATCHING SYSTEM
The automatic aggregate batching system can be equipped with 2-6 aggregate storage bins according to customers' need. The steel-structure store-bunker adopt the fonn of warehouse or half-warehouse and it can also be equipped with sand-moisture
measuring instrument. Domestic well-known brand or originally imported parts,microcomputer control, independent weigh-ing(accumulative weighing) completely guarantee high-accuracy weighing.high efficiency and excellent perfonnance.
measuring instrument. Domestic well-known brand or originally imported parts,microcomputer control, independent weigh-ing(accumulative weighing) completely guarantee high-accuracy weighing.high efficiency and excellent perfonnance.

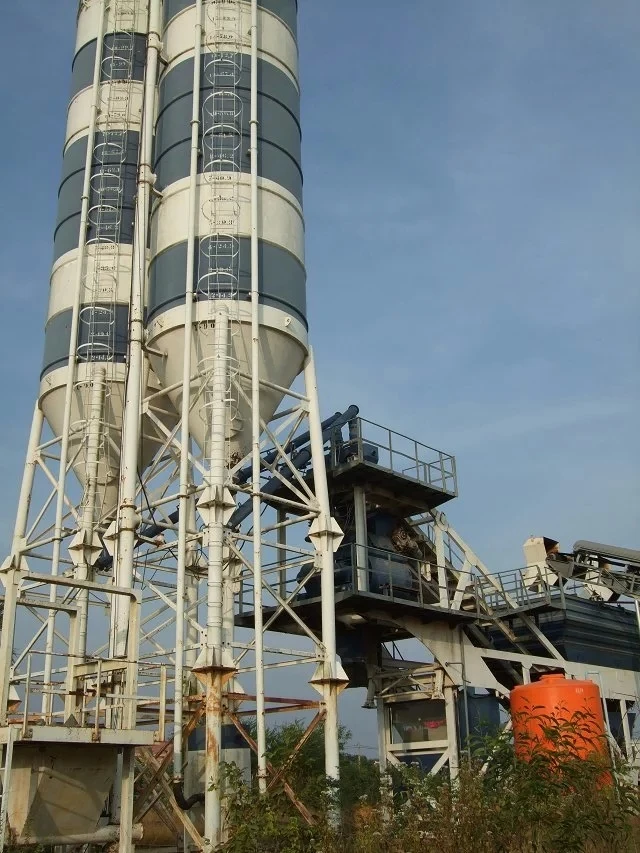

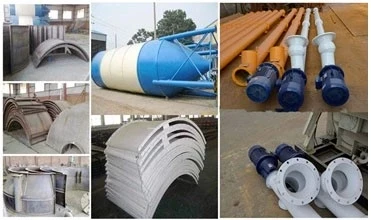

CEMENT SILO
We adopt very strong and thick cement silo which is split type, thus can largely save sea freight and it is easy to assembly at installation site abroad. There is level meter in the cement silo,indicating the cement level; the arc-breaking system guarantee the discharging fluently.

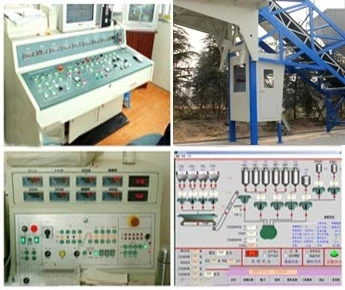

AUTOMATIC CONTROL SYSTEM
The controlling is independently completed by PLC with high reliability. It has various controlling modes like automatic mode,semi-automatic mode and manual mode. Adopted high accuracy load indicator which is specialty designed for industrial control,
it has the advantages of high reliability, high precision^ high efficiency and anti-jamming. The operation is very easy,only one person can complete.
it has the advantages of high reliability, high precision^ high efficiency and anti-jamming. The operation is very easy,only one person can complete.
Recommend Products
PRODUCT SPECIFICATIONS
Model | YHZS25 | YHZS40 | YHZS50 | YHZS75 | ||
Capacity | 25m3/h | 40 | 50 | 75 | ||
Mixer | Type | JS500 | JS750 | JS1000 | JS1500 | |
Power | 18.5kw | 30 kw | 37 kw | 2*30 kw | ||
Discharging capacity | 0.5 m³ | 0.75 | 1 | 1.5 | ||
Aggregate bin | PLD1200 | PLD1200 | PLD1600 | PLD2400 | ||
Weighing accuracy | Aggregate | ±2% | ±2% | ±2% | ±2% | |
Cement | ±1% | ±1% | ±1% | ±1% | ||
Total power | 56.5kw | 76 kw | 88 kw | 112 kw | ||
Max. trailing Speed | 40 km/h | 40 km/h | 40 km/h | 40 km/h | ||
Voltage | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz | ||
SALES AND SERVICE NETWORK
COMPANY PROFILE

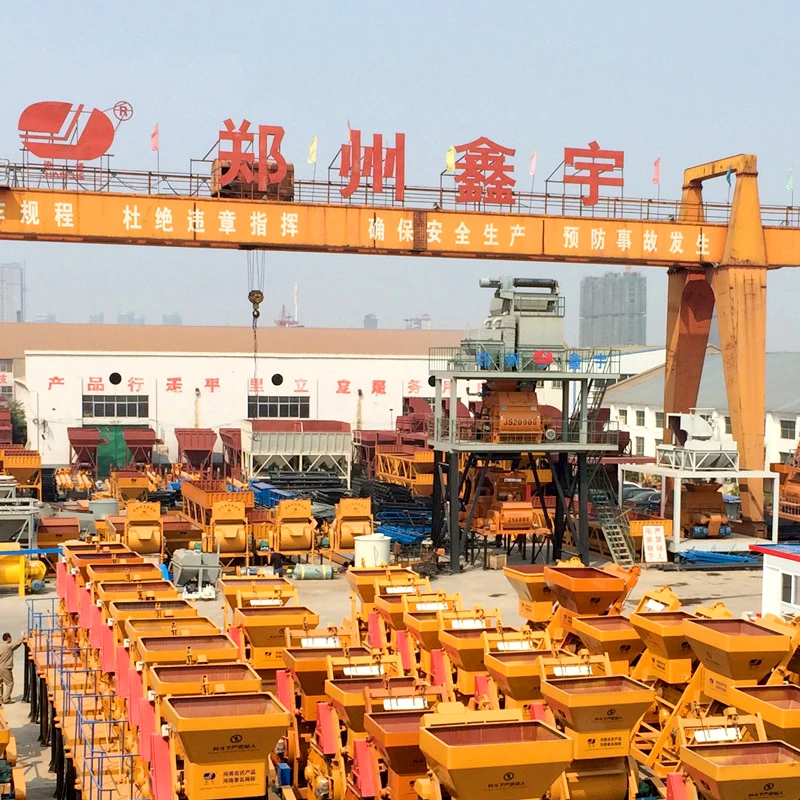

Welcome to visit our factory!
Zhengzhou Xinyu Machinery Manufacturing Co.,Ltd. is a professional mixing equipment manufacturer in China.As the leader of domestic mixing equipment, the company have become the specialized mixing equipment enterprises with full specifications and models in China. our products are exported to more than 30 countries and regions with excellent, such as Eastern Europe, Southeast Asia, South American, Africa and Oceania. Zhengzhou Xinyu MachineManufacturing Co.,Ltd. have been in this line of business formany years and enjoy high prestige at home and overseas markets.
Zhengzhou Xinyu Machinery Manufacturing Co.,Ltd. is a professional mixing equipment manufacturer in China.As the leader of domestic mixing equipment, the company have become the specialized mixing equipment enterprises with full specifications and models in China. our products are exported to more than 30 countries and regions with excellent, such as Eastern Europe, Southeast Asia, South American, Africa and Oceania. Zhengzhou Xinyu MachineManufacturing Co.,Ltd. have been in this line of business formany years and enjoy high prestige at home and overseas markets.

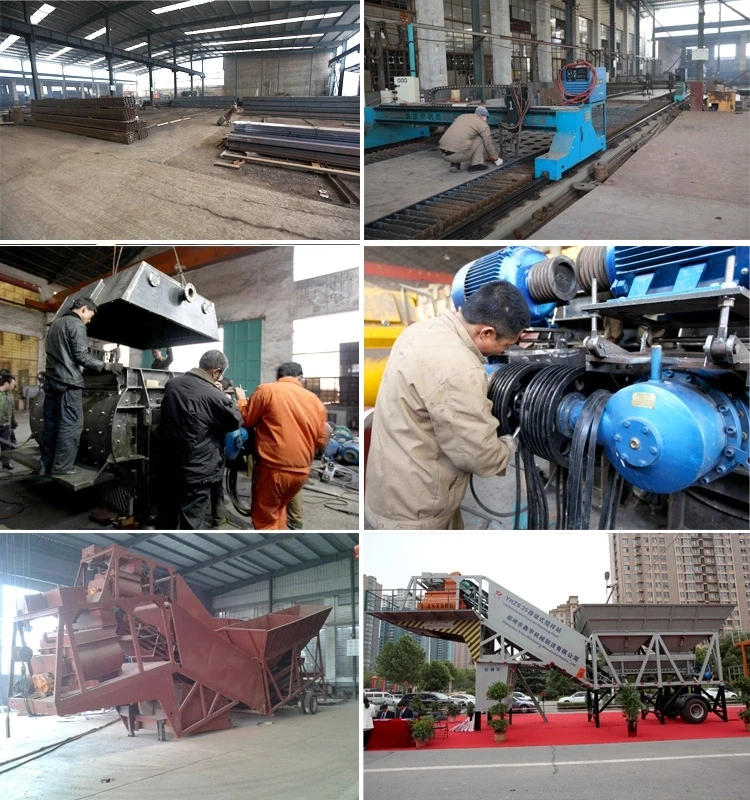

Our factory workshop

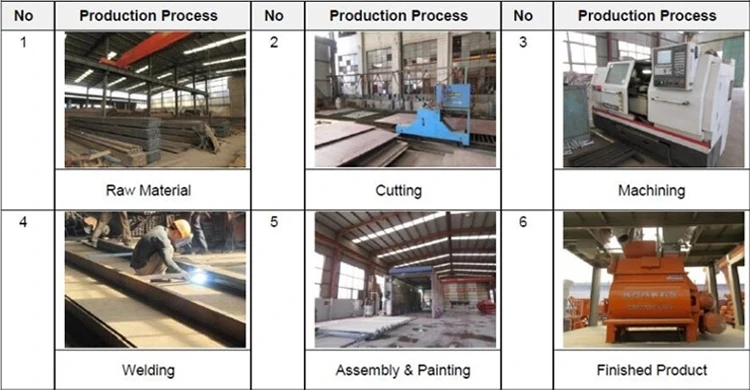

Production Flow
Customer Visit

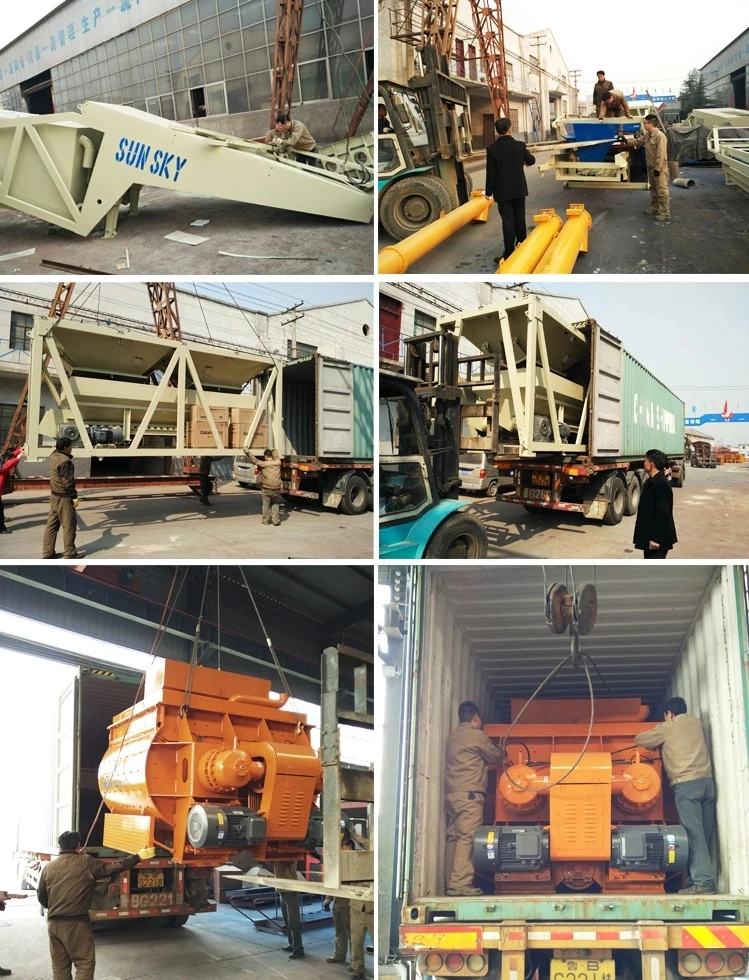

PACKAGING AND SHIPPING
Our Services
1.Technical support online service provided , According to your inquiry, We will reply to you in 24 hours.
2.Technical files service provided , Based on customer’s needs, making quotation, design drawing and so on.
3.Spare parts replacement and repair service provided.
4.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
5.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
2.Technical files service provided , Based on customer’s needs, making quotation, design drawing and so on.
3.Spare parts replacement and repair service provided.
4.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
5.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
FAQ
Q1: Are you trading company or manufacturer?
A: We are factory. We can design and manufacturer products with our patent.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also
support L/C, Western Union.
Q4: How many types of concrete batching plant you have?
A:Two types. We have stationary concrete batching plant and mobile concrete batching plant.
Q5: What’s the capacity of mobile concrete batching plant do you have?
A:The capacity of mobile concrete batching plants range from 25m3/h to 75m3/h.
Q6:Do you provide after-sale service?
A Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and
thoroughly solve your problems . It usually takes 1-3 days for training , 10-15 days for installation,1-2days for
commission,1-2days for pre-operation.
A: We are factory. We can design and manufacturer products with our patent.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to
quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also
support L/C, Western Union.
Q4: How many types of concrete batching plant you have?
A:Two types. We have stationary concrete batching plant and mobile concrete batching plant.
Q5: What’s the capacity of mobile concrete batching plant do you have?
A:The capacity of mobile concrete batching plants range from 25m3/h to 75m3/h.
Q6:Do you provide after-sale service?
A Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and
thoroughly solve your problems . It usually takes 1-3 days for training , 10-15 days for installation,1-2days for
commission,1-2days for pre-operation.
