Used Motor Oil Recycling Machines New Product Environmentally Friendly Hydraulic Oil Pump Provided Vacuum Filtration

Product Overview

Description

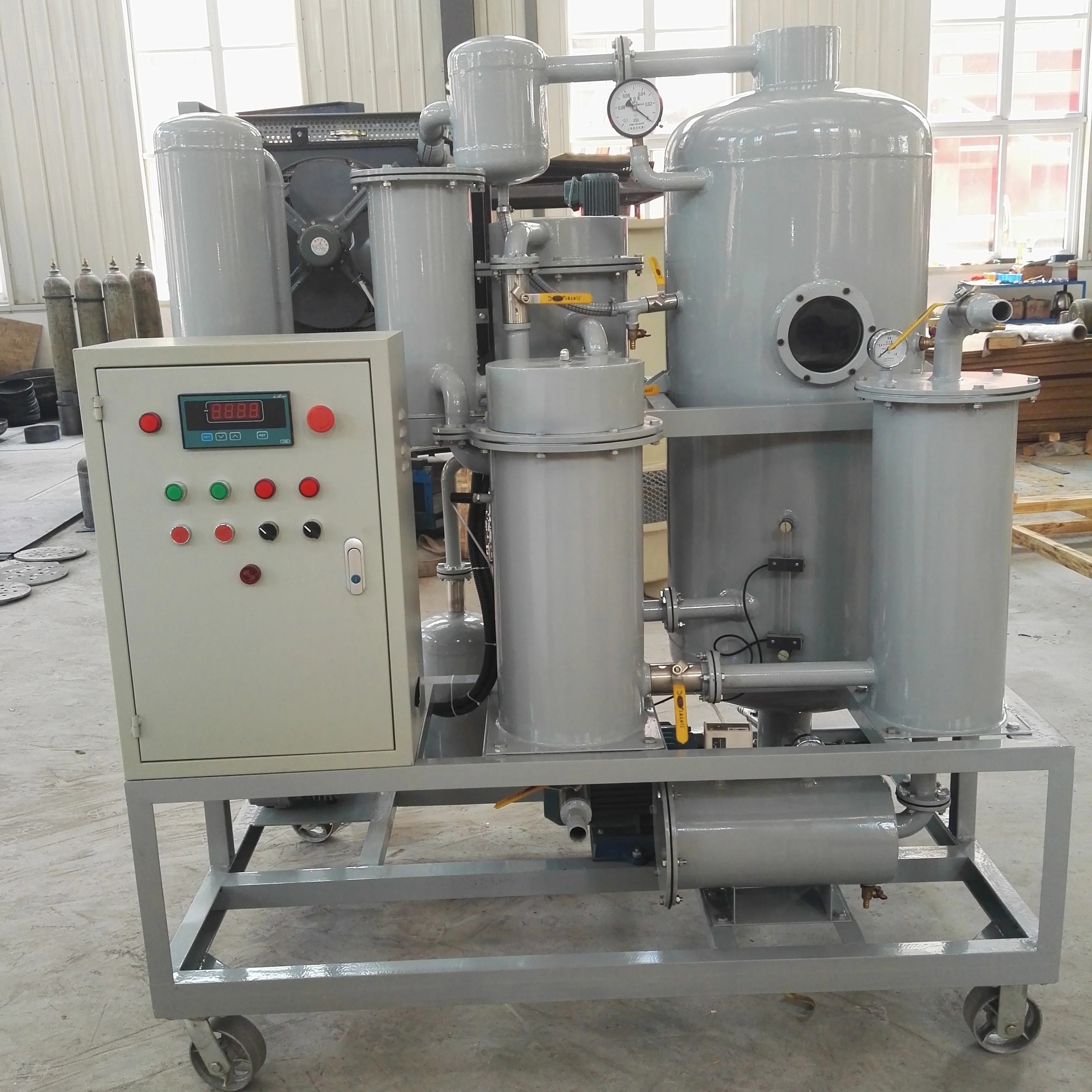

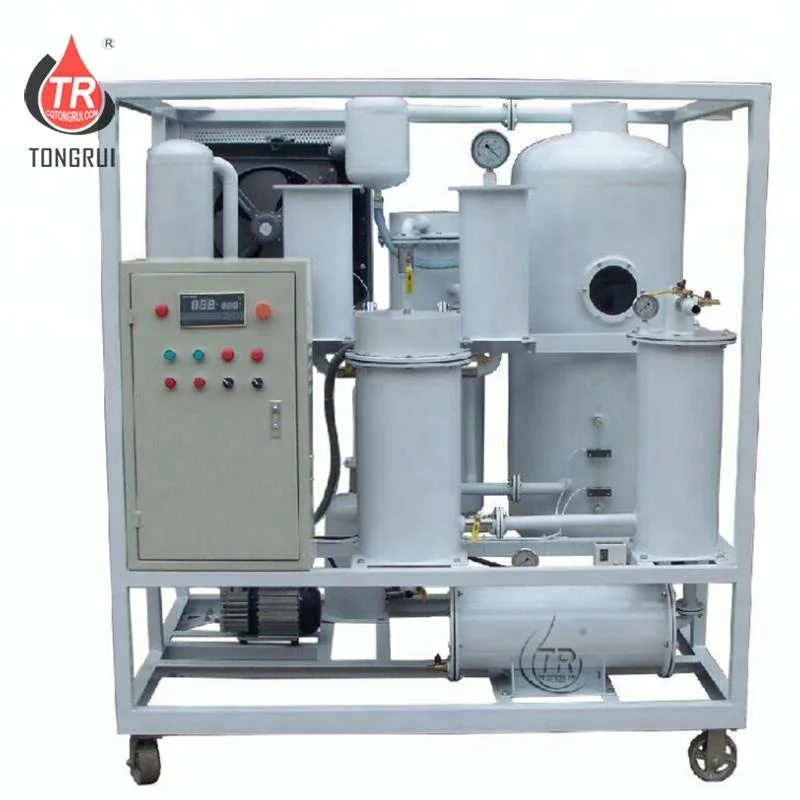

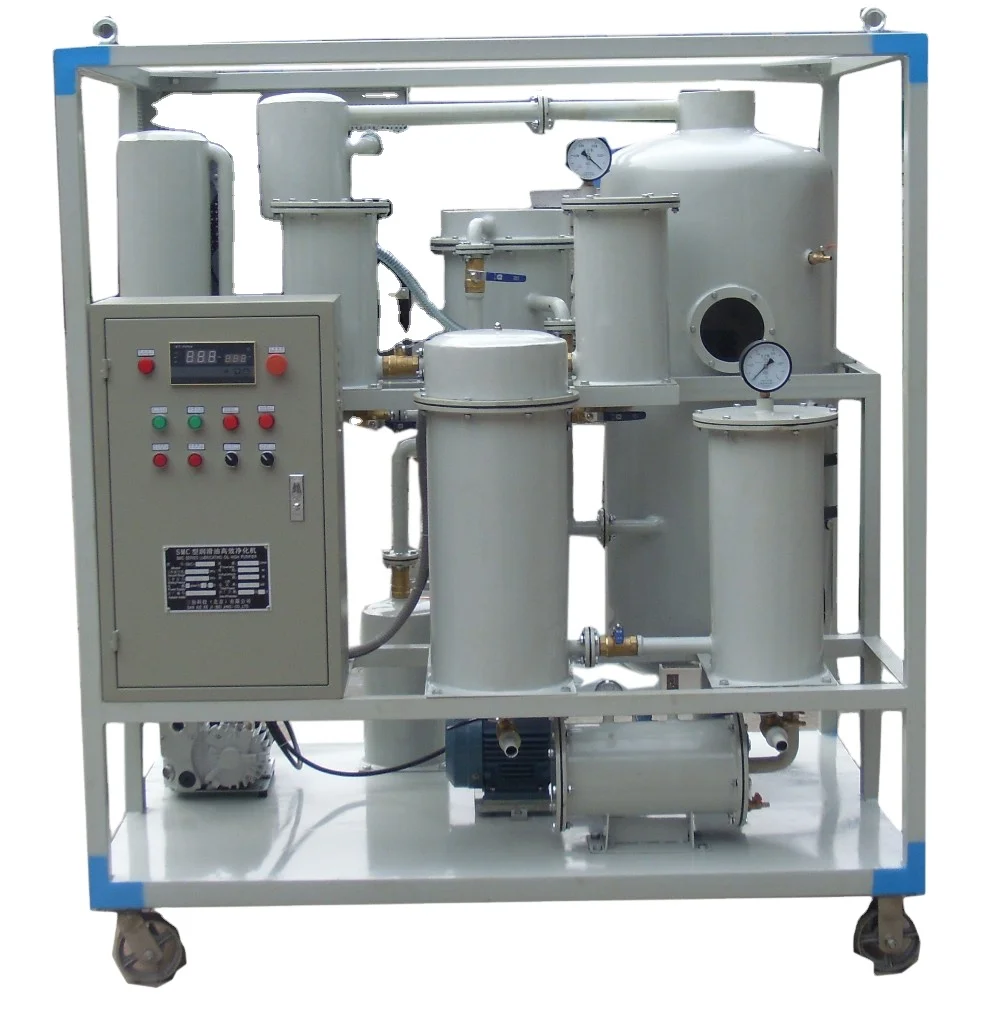

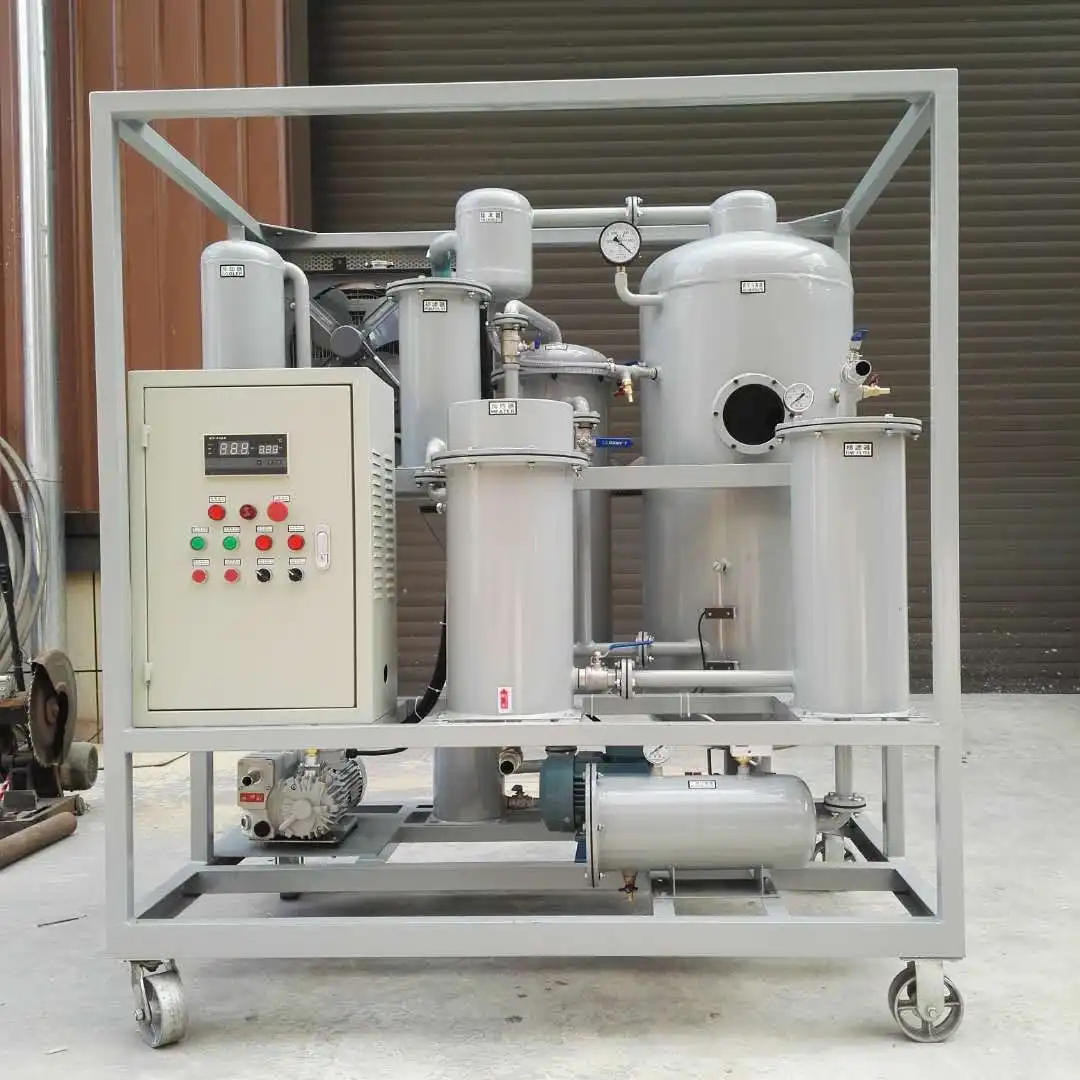

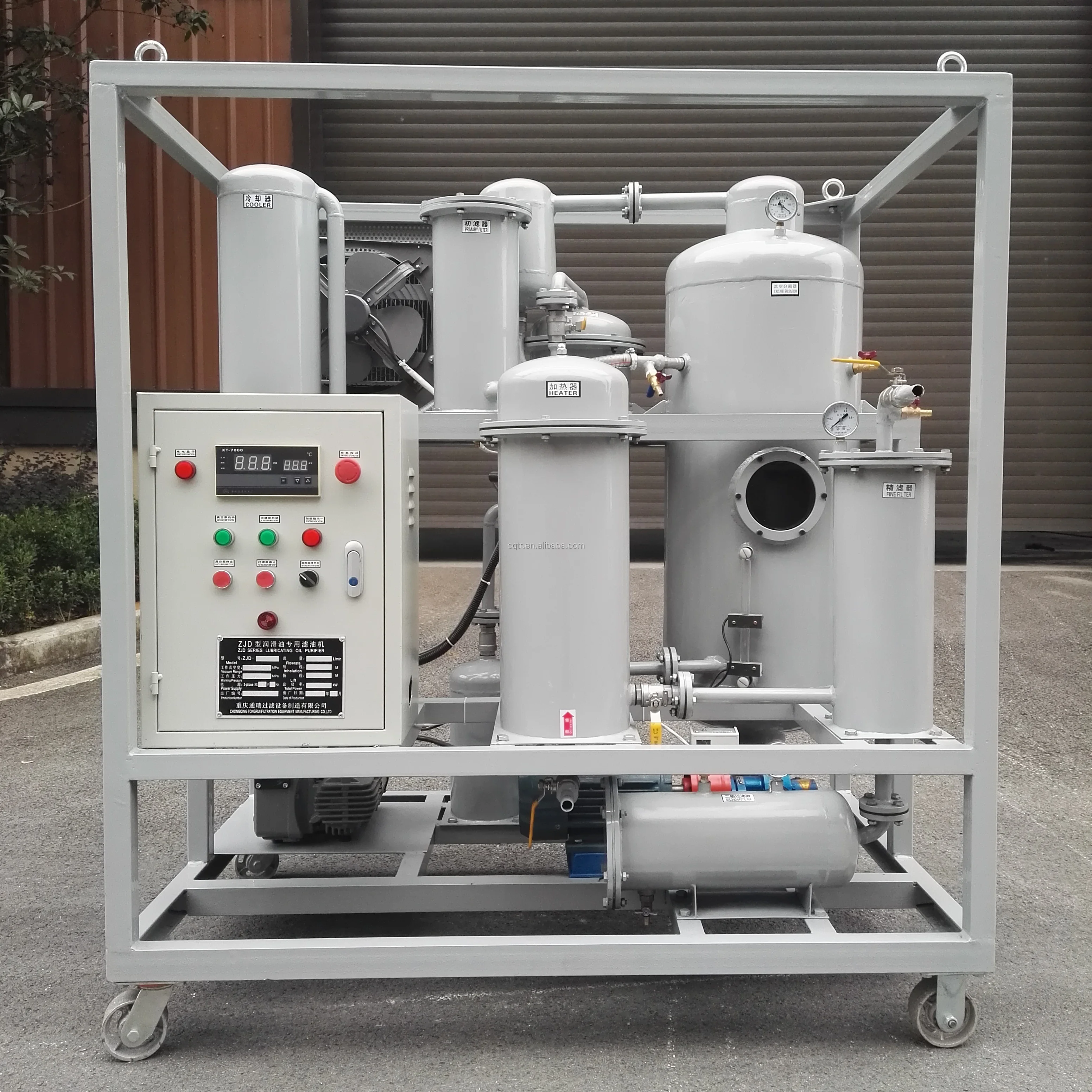

High vacuum Industrial oil hydraulic oil filtration machine



 It is widely used in the fields of electric power, metallurgy, mining, machinery, chemical industry, communications, manufacturing, food stuff for purification or regeneration of hydraulic oil, shafting oil, refrigerator oil, machine oil, die-casting oil, air compressor oil, gear oil, heat treating oil, anti-wear hydraulic oil, emulsified oil, high water content oil ect. waste oil or contaminated oil, as well as injection molding oil, cylinder oil, textile knitting oil, high speed machinery oil, high precision lube oil.



Product Details



Index name	Unit	ZJD-10	ZJD-20	ZJD-30	ZJD-50	ZJD-75	ZJD-100	ZJD-150
Flow rate	L/H	600	1200	1800	3000	4500	6000	9000
vacuum degree	Mpa	-0.06~0.095
working pressure	Mpa	≤0.4
temperature range	C	0-100
water content	PPM	≤80
cleaness	NAS	≤6(class)
gas content	%	≤0.1
impurities content		3-5micro
power supply		380V/220V
noise	dB(A)	≤70
demulsifying value	MIN	NEW OIL
heating power	KW	36	40	45	72	80	90	120
total power	KW	38	42	47	75	87	101	135
diameter	MM	25	25	25	32	42	50	50
weight	Kg	450	550	600	750	850	1000	1200

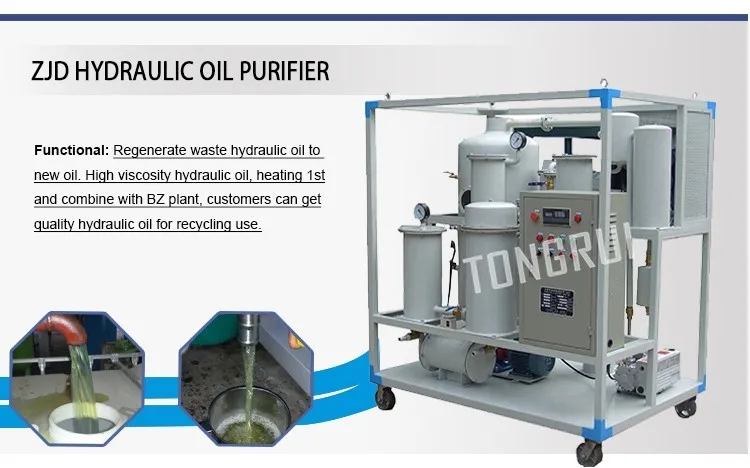

 The oil after handled by our ZJD  series oil purifier





Oil index after treatement
Demulsification	min	≤15min
Gas content	%	≤0.1%
water content	%	Trace(no)
cleanness	nas	≤6
precision	µm	≤µm(or customer advice)



Product Advantages:

1) Combined with coalescence separation and vacuum separation, water separation adopts world advanced coalescence separation technology, which is able to rapidly remove big quantity water and trace moisture from high water content lube oil.

2) High decontaminate ability, big area, deep levels, high precision FH rectangle filtration system is capable of remove metal particles, dust, impurities effectively.

3) H.P.M polymer adsorption material with Tongrui technology, utilizing high quality parts and sealing materials, meeting the requirement that high viscosity oil need high temperature in filtrating, extend ranges and types of oil to be filtrate-able.

4) Stainless steel filter elements with seats form nets are cleanable, economical, and reusable.

5) Heating system utilized optimized piping design, ensures averagely heating, no bypassed area, stable oil temperature.

6) Humanized design, dual infrared liquid level control system, relay protection, overload protection. Overload electric protection control system and oil temperature stabilizing system ensures easy operation and safety.

7) It is suitable for all sorts of lube oil purification and regeneration, to remove moisture, gas, mechanical impurities, acid ect. harmful substance, and ensure the cleanness of oil after treatment, make kinematic viscosity, flash point meet national standard.

8) After processing with this type of machine, the oil have low emulsification value, low water content, can be used in domestic or abroad high precision hydraulic lubricating equipment.
