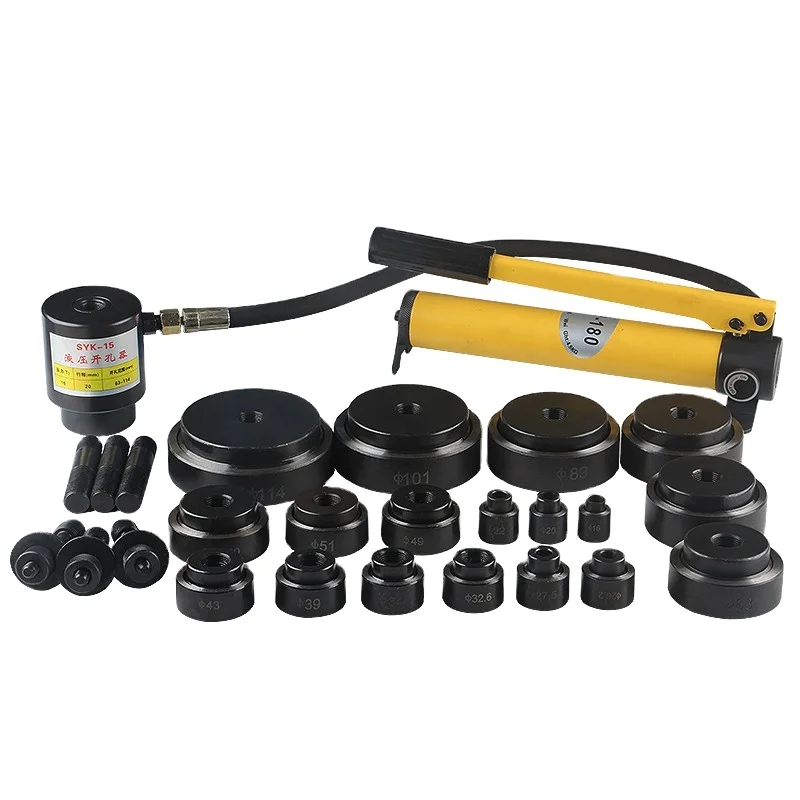

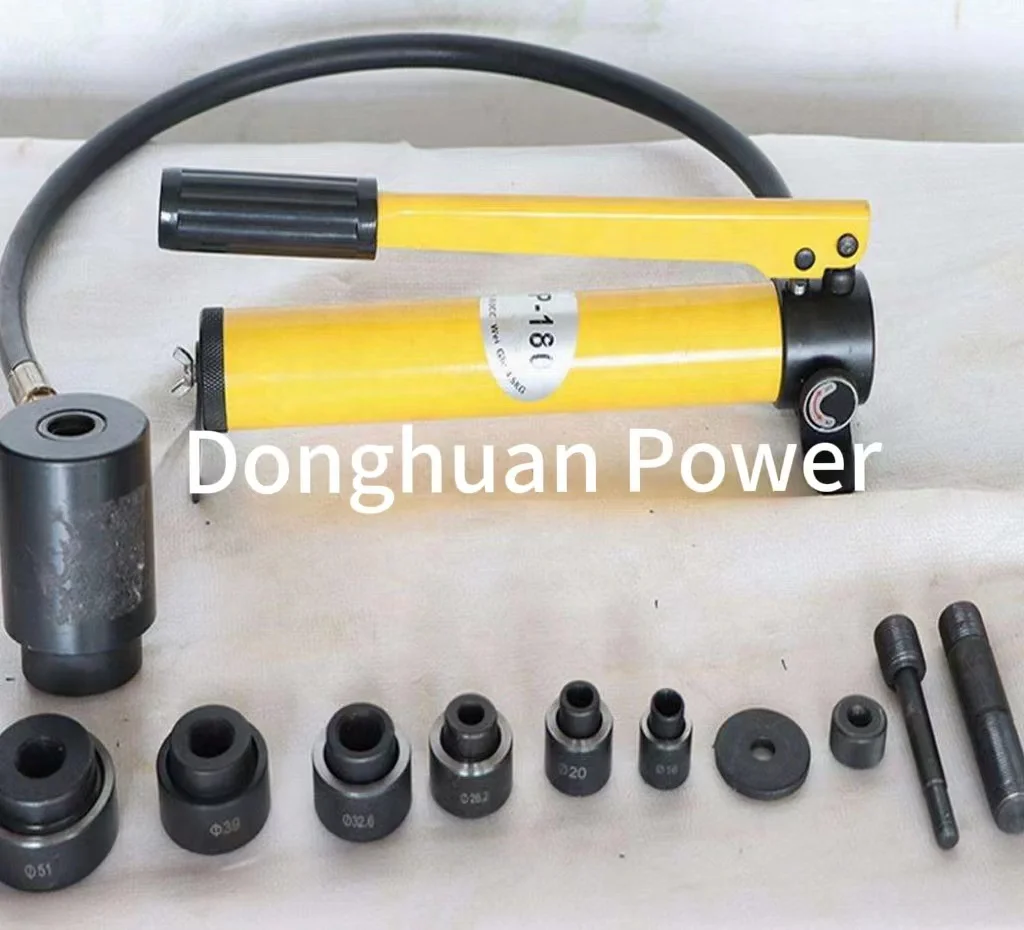

Hydraulic Perforator

Product Overview

Description

Item No.	06241A	06241	06241B
Model	SYK-8A	SYK-8B	SYK-15
Punching range	Φ16mm-Φ51mm	Φ22mm-Φ60mm	Φ63mm-Φ114mm
Max thickness of plate	3.5mm mild steel	3.5mm mild steel	3.5mm mild steel
punching force	100kn	100kn	150kn
stroke	25mm	25mm	25mm
weight	approx.N.W5.6KG            G.W9.25KG	approx.N.W5.6KG            G.W9.5KG	approx.N.W16KG            G.W20KG

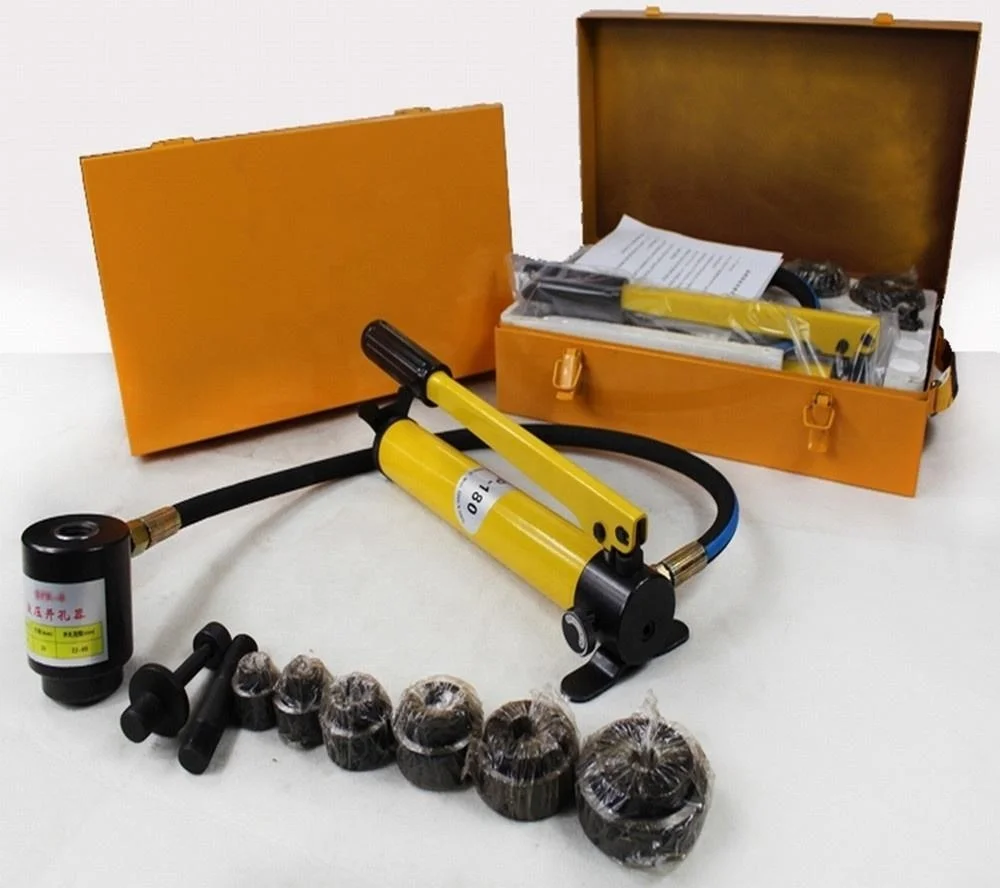

package	plastic box	plastic box	steel case
Round type dies	Φ16mm,Φ20mm,Φ26.2mm Φ35.2mm,Φ39mm,Φ51mm	Φ22mm,Φ27.5mm,Φ34mm Φ43mm,Φ49mm,Φ60mm	Φ63mm,Φ76mm,Φ90mm Φ101mm,Φ114mm



Uses:For the panel of the switch box and so on,the surface of the paint will not be damaged after the perforation.

Explain:The mold size can be customized according to the requirements of the user.
