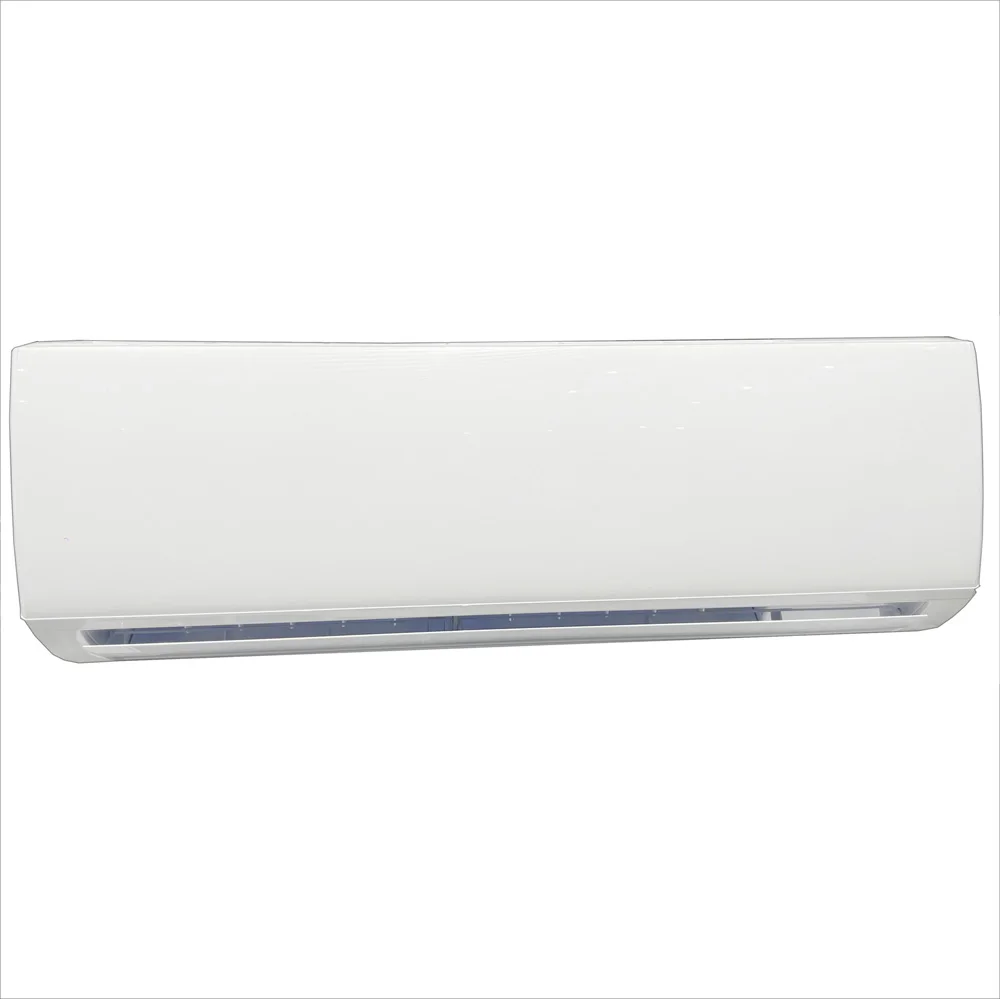

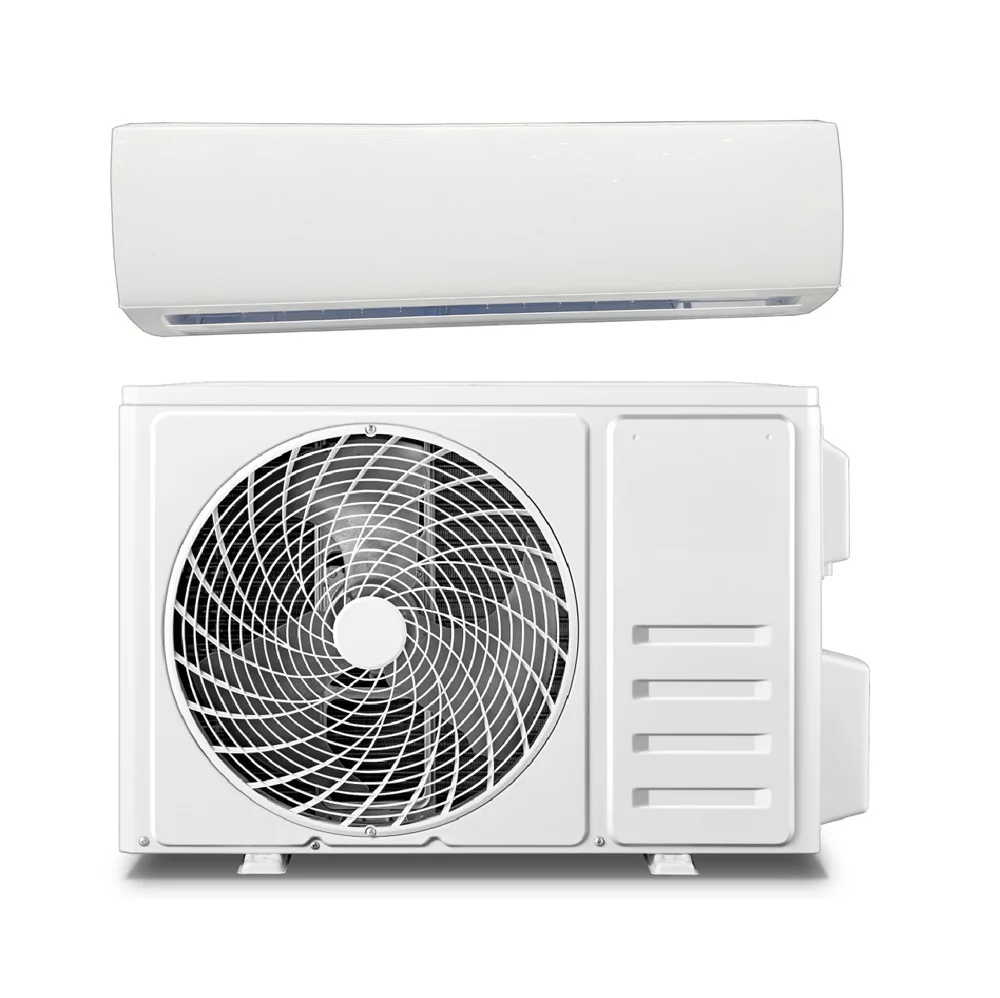

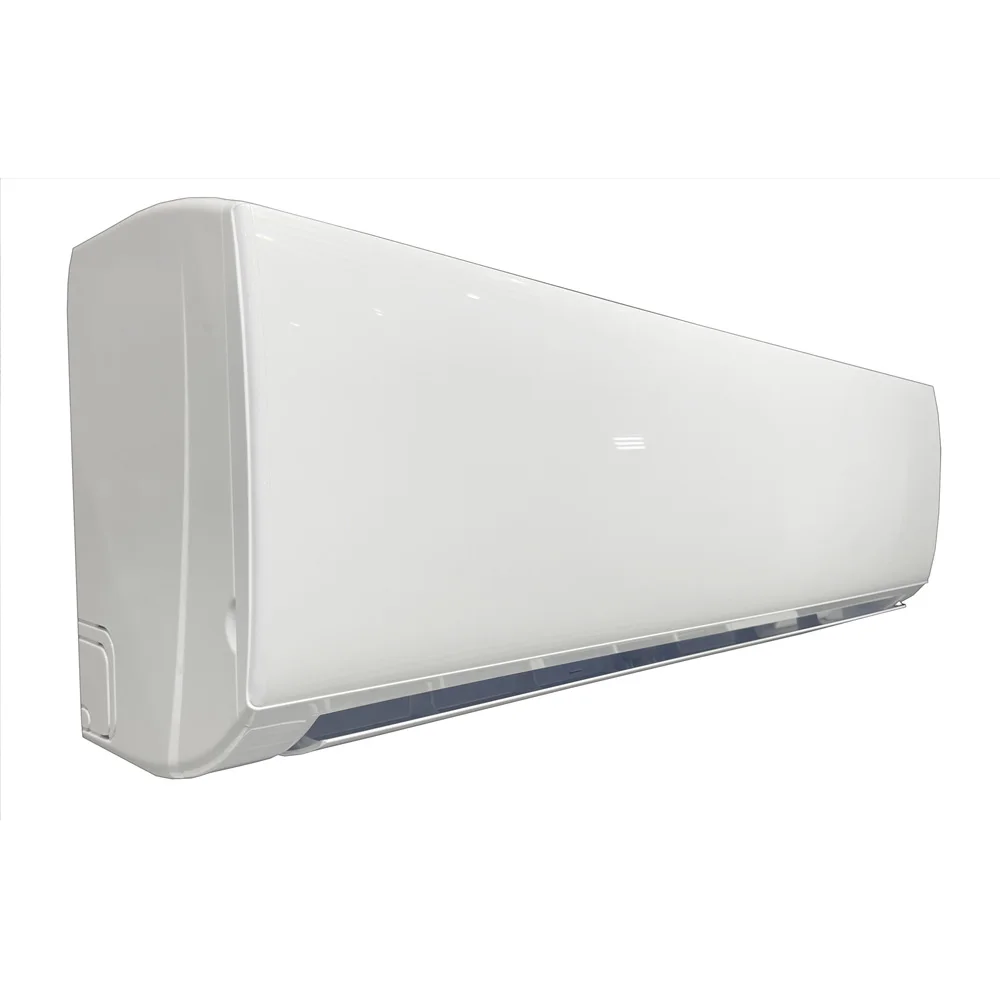

Household 18000 btu 220V 60Hz Fixed Frequency ON OFF R410 Cooling Heating Wall Mounted Split Air Conditioners for South America
- Category: >>>
- Supplier: Dongguan City Changping Saint J. Electrical Firm
Share on (1601193404552):
Product Overview
Description
Product Description
Product Parameter
| Iterm | Value |
| Place of Orgin | China |
| Power Type | AC |
| Voltage (V) | 220 60Hz |
| Cooling/Heating | Cooling Heating |
| Fixed Frequency/Variable Frequency | Fixed Frequency |
| Fixed speed (R410A) | JAUS-09H63RVA1-611(1B0) | JAUS-12H63RVB1-711(1B0) | JAUS-18H63RVC1-730(1B0) | JAUS-24H63RVE1-780(1B0) | ||
| Rated Power supply | 1Ph / 220-240V/60Hz | 1Ph / 220-240V/60Hz | 1Ph / 220-240V/60Hz | 1Ph / 220-240V/60Hz | ||
| Workable Power supply | 1Ph / 185-260V/60Hz | 1Ph / 185-260V/60Hz | 1Ph / 185-260V/60Hz | 1Ph / 185-260V/60Hz | ||
| Cooling | Capacity (btu/h) | 9000 | 12000 | 18000 | 24000 | |
| Capacity (W) | 2500 | 3200 | 4800 | 6500 | ||
| Input (W) | 900 | 1220 | 1800 | 2400 | ||
| Rated current (A) | 4.10 | 5.70 | 8.10 | 10.90 | ||
| EER | 2.78 | 2.62 | 2.67 | 2.71 | ||
| Heating | Capacity (btu/h) | 9000 | 12000 | 18000 | 24000 | |
| Capacity (W) | 2500 | 3200 | 4800 | 6500 | ||
| Input (W) | 900 | 1160 | 1800 | 2400 | ||
| Rated current (A) | 4.10 | 5.40 | 8.10 | 10.90 | ||
| COP | 2.78 | 2.76 | 2.67 | 2.71 | ||
| Max. input consumption (W) | 1300 | 1750/1650 | 2500 | 3000 | ||
| Max. current (A) | 5.8 | 7.9/7.2 | 11.6 | 13.9 | ||
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | |
| Brand | GREE,GMCC | GMCC | GMCC | GMCC | ||
| Indoor unit | Indoor Coil | Fin material | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic |
| Tube outside dia.and material | φ7mm, inner Grooved | φ7mm, inner Grooved | φ7mm, inner Grooved | φ7mm, inner Grooved | ||
| Indoor air flow (Hi/Mi/Lo) (M3/h) | 500/450/370/320 | 550/450/370/320 | 600/550/480/320 | 850/750/650/580 | ||
| Rated input Power(cooling/heating) (W) | 30 | 30 | 50 | 80 | ||
| Rated current (cooling/heating) (A) | 0.2 | 0.2 | 0.25 | 0.35 | ||
| Moisture Removal (KG/h) | 0.8 | 0.8 | 2 | 2.6 | ||
| Noise level(Hi/Mi/Lo) (dB) | 39/34/32/30 | 40/35/32/30 | 45/42/39/37 | 47/45/43/41 | ||
| Unit dimension (W*H*D) | 695×275×190 | 780×275×190 | 810×295×205 | 910×295×205 | ||
| Packing (W*H*D) | 765×325×245 | 850×325×245 | 880×350×250 | 980×350×250 | ||
| Net weight (KGs) | 6 | 6.5 | 8.5 | 9 | ||
| Gross weight (KGs) | 8 | 8.5 | 10.5 | 11 | ||
| Outdoor unit | Outdoor coil | Fin material | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic |
| Tube outside dia.and material | φ7mm, Inner Grooved | φ7mm, Inner Grooved | φ7mm, Inner Grooved | φ7mm, Inner Grooved | ||
| Noise level (dB) | 50 | 52 | 55 | 59 | ||
| Unit dimension (W*H*D) (mm) | 670(610)×295×495 | 780(710)×295×495 | 800(730)×305×550 | 850(780)×350×600 | ||
| Packing (W*H*D) (mm) | 715×330×530 | 830×335×530 | 855×355×580 | 895×390×625 | ||
| Net weight (KGs) | 19 | 23 | 30 | 34.5 | ||
| Gross weight (KGs) | 22 | 26 | 33 | 38.5 | ||
| Refrigerant type | R410A | R410A | R410A | R410A | ||
| Refrigerant pipe | Liquid side (mm) | Φ6 | Φ6 | Φ6 | Φ6 | |
| Gas side (mm) | Φ9 | Φ9 | Φ12 | Φ12 | ||
| Max. refrigerant pipe length (m) | 10 | 10 | 10 | 15 | ||
| Max. difference in level (m) | 5 | 5 | 5 | 10 | ||
| Operation temperature range | -7℃-43℃ | -7℃-43℃ | -7℃-43℃ | -7℃-43℃ | ||
| Ambient temperature range | -7℃-48℃ | -7℃-48℃ | -7℃-48℃ | -7℃-48℃ | ||
| Application area (MM2) | 10~17 | 13~27 | 20~40 | 30~55 | ||
| Sets per 40ft HQ/20ft | 382/164 | 334/140 | 286/124 | 230/99 | ||
