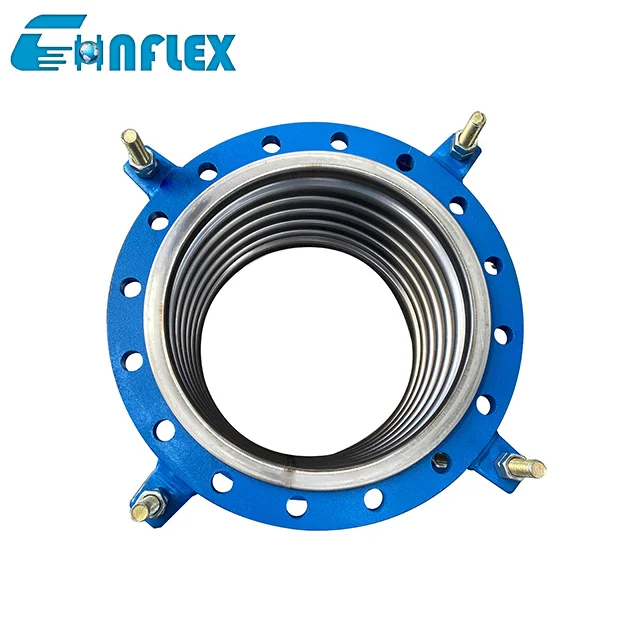

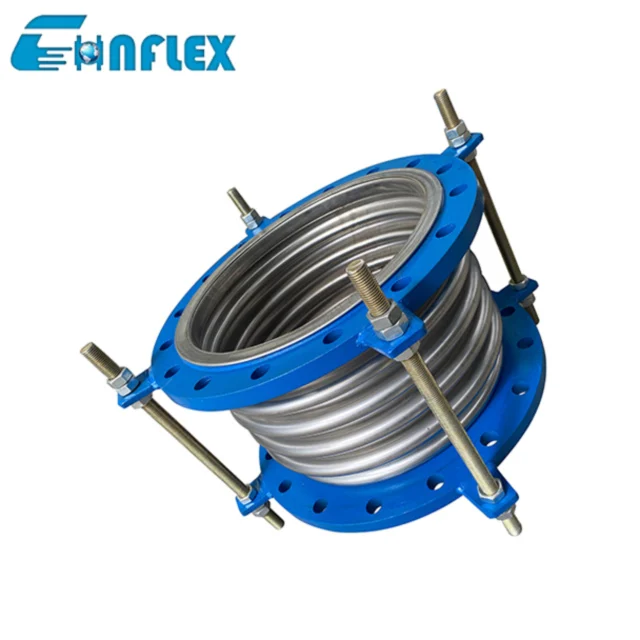

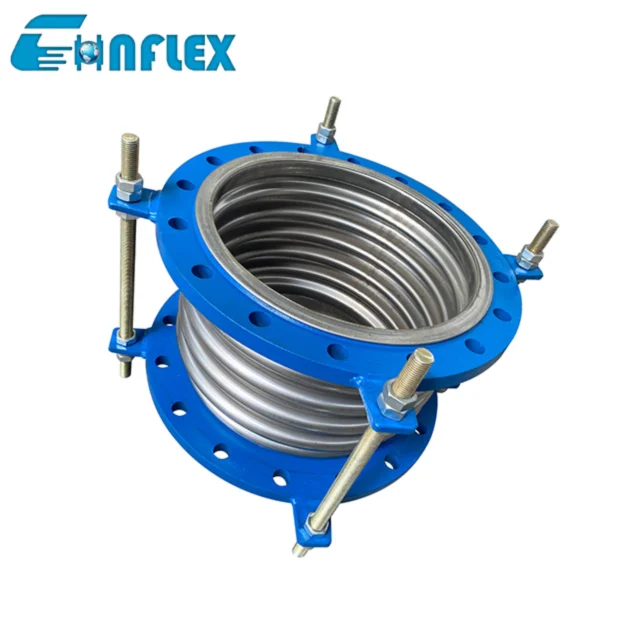

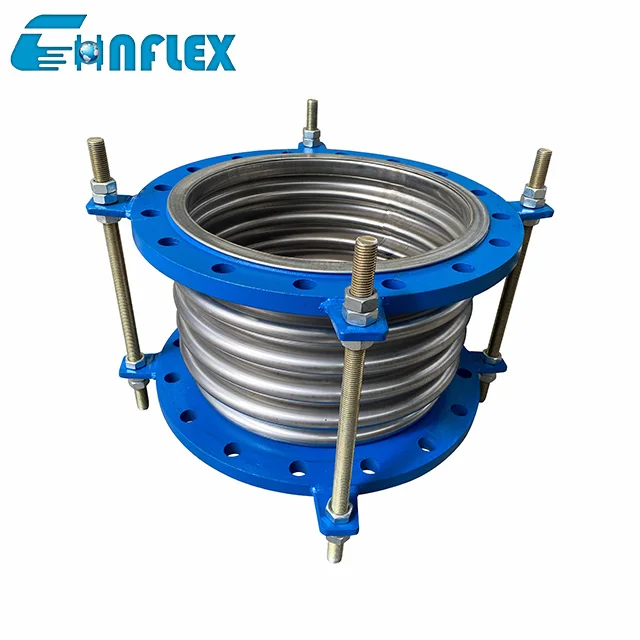

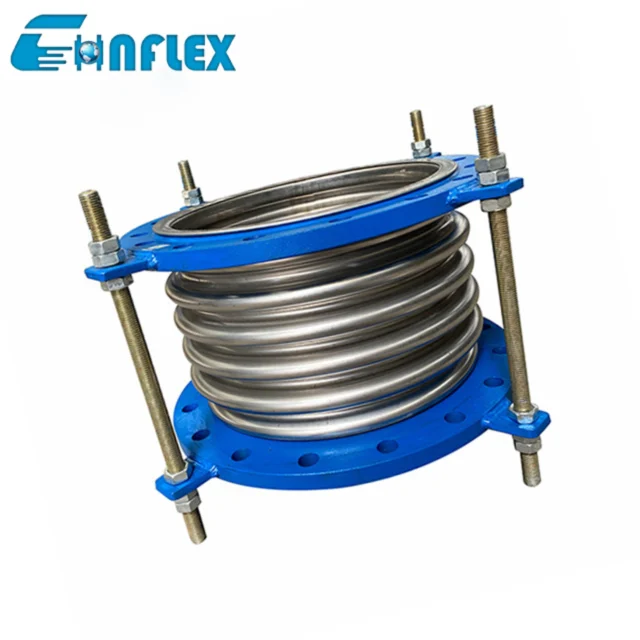

DN100 Metal Bellows Type ANSI,DIN, Carbon steel flange 6.0Mpa Steam Expansion Bellows
- Category: >>>
- Supplier: Henan Chnflex Industrial Co. Ltd.
Share on (1601193446121):
Product Overview
Description
| Main data of bellow joints | |||||
| Size | Length | Number of Waves | Axical Movement | Availabale area of bellows cm² | |
| Inch | mm | mm | |||
| 1.1/2 | 40 | 170 | 8 | -10 | 23 |
| 2 | 50 | 180 | 8 | -10 | 37 |
| 2.1/2 | 65 | 210 | 8 | -10 | 55 |
| 3 | 80 | 230 | 8 | -10 | 81 |
| 4 | 100 | 250 | 8 | -10 | 121 |
| 5 | 125 | 270 | 8 | -10 | 180 |
| 6 | 150 | 300 | 8 | -10 | 257 |
| 8 | 200 | 350 | 8 | -20 | 479 |
| 10 | 250 | 400 | 8 | -20 | 769 |
| 12 | 300 | 420 | 8 | -20 | 1105 |
| 14 | 350 | 450 | 8 | -25 | 1307 |
| 16 | 400 | 480 | 8 | -25 | 1611 |
| 18 | 450 | 500 | 8 | -25 | 1972 |
| 20 | 500 | 530 | 8 | -25 | 2445 |
| 24 | 600 | 550 | 8 | -25 | 3534 |
| Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO, etc.) can be selected for production. Rubber spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product should be installed with anti pull off device. |
Q1:Is the flange galvaized?
A1:Yes,we have electronic galvanized and hot dip galvanized flanges.We also have painted flanges.
Q2:What`s the rubber material?
A2:EPDM,CR,NBR,etc .It depends on the working enviroment and media.
Q3:What is the MOQ?
A3:1 Piece, You can also get it as a sample to test our product quality ,then you can purchase order to us .
Q4:What certificates can you provide?
A4:We could provide CE,ISO certificate.
