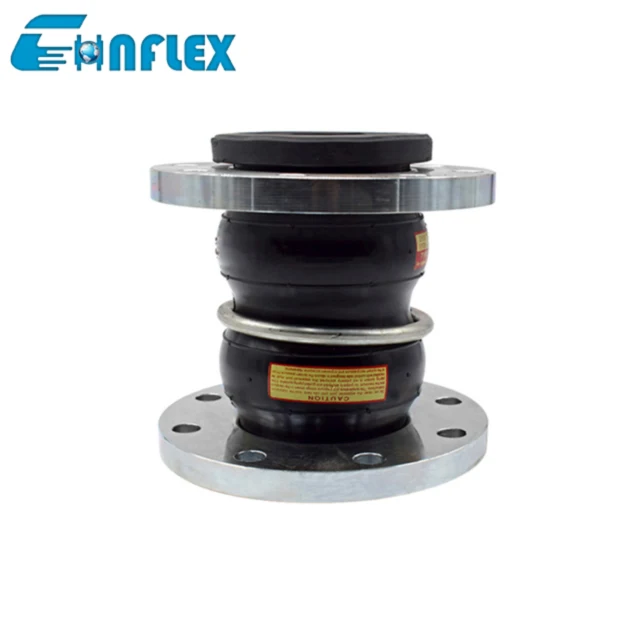

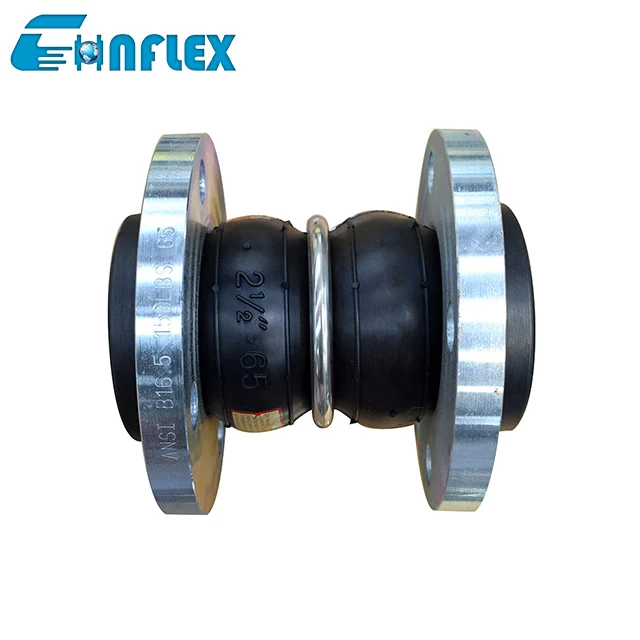

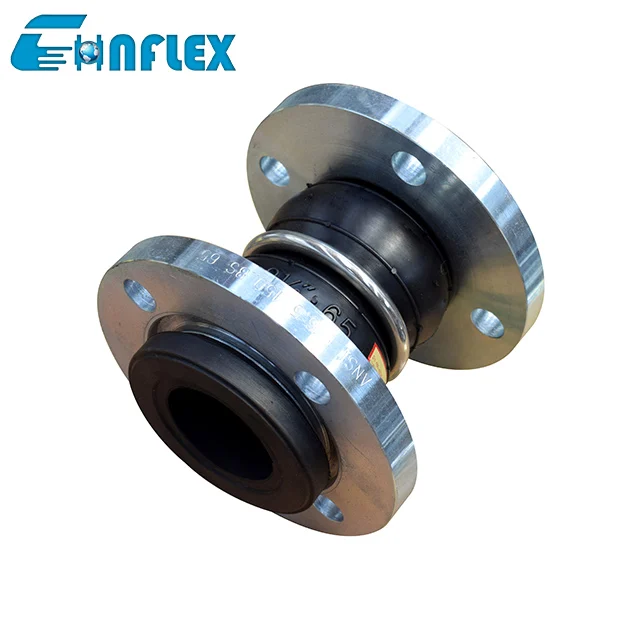

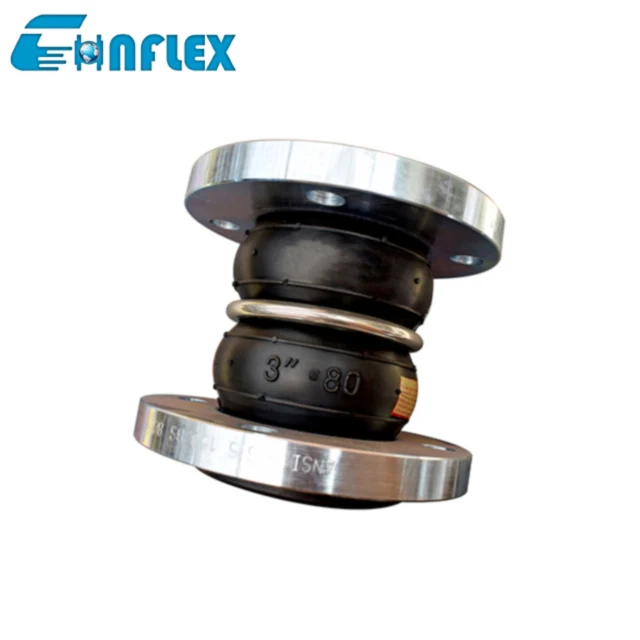

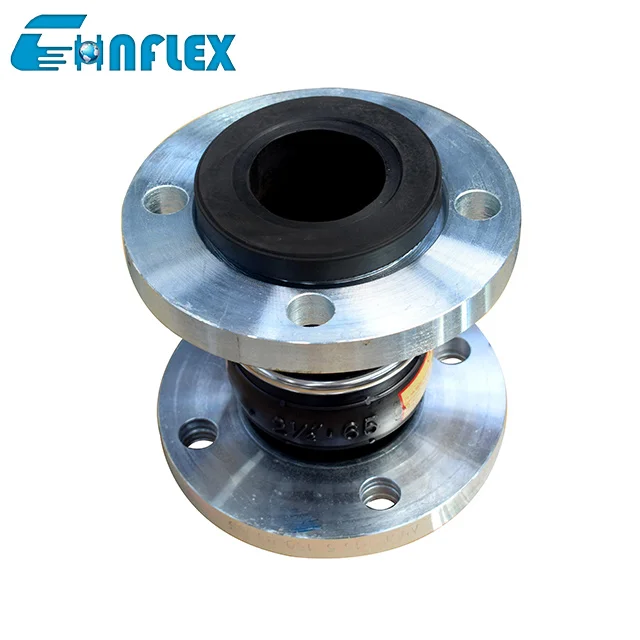

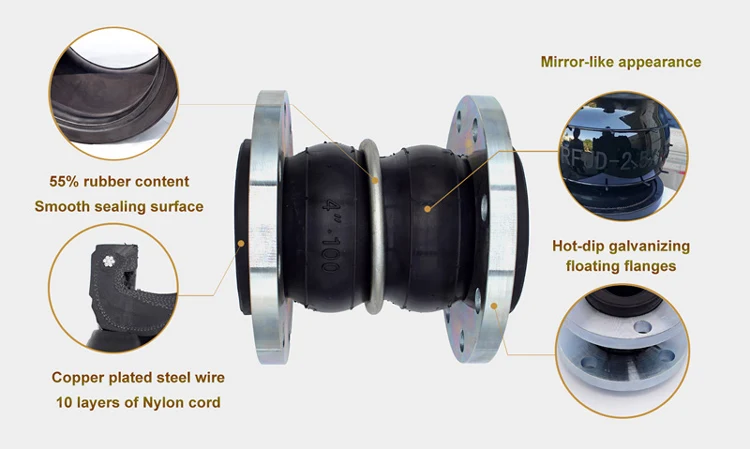

Double Sphere Rubber Expansion Joint Connection Type of Rubber Pipe Coupling Connector
- Category: >>>
- Supplier: Henan Chnflex Industrial Co. Ltd.
Share on (1601193637950):
Product Overview
Description

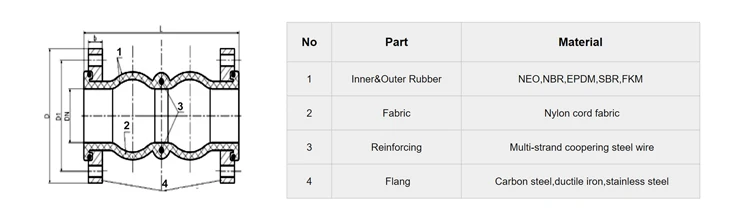

GENERAL CHARACTRISTICS | |
Nominal Diameter | DN25-DN1600 |
Working Pressure | PN6-PN25 |
Working Temperature | -20℃-130℃ |
Working Medium | Water,Oil,Acid,Alkali,Etc |
| Main data of double ball expansion joint | ||||||
| size | Length | Allowable Movements in Operation | ||||
Axial Extansion | Axial Extension | Transverse Movement | Angular Deflection
| |||
| Inch | mm | mm | mm | mm |
mm | |
| 1.1/2 | 40 | 178 | 30 | 50 | 45 | 40° |
| 2 | 50 | 178 | 30 | 50 | 45 | 40° |
| 2.1/2 | 65 | 178 | 30 | 50 | 45 | 40° |
| 3 | 80 | 178 | 30 | 50 | 45 | 40° |
| 4 | 100 | 229 | 35 | 50 | 40 | 35° |
| 5 | 125 | 229 | 35 | 50 | 40 | 35° |
| 6 | 150 | 229 | 35 | 50 | 40 | 35° |
| 8 | 200 | 330 | 35 | 60 | 35 | 30° |
| 10 | 250 | 330 | 35 | 60 | 35 | 30° |
| 12 | 300 | 330 | 35 | 60 | 35 | 30° |
| 14 | 350 | 340 | 35 | 60 | 35 | 30° |
| 16 | 400 | 340 | 35 | 60 | 35 | 30° |
| 18 | 450 | 340 | 35 | 60 | 35 | 30° |
| 20 | 500 | 340 | 35 | 60 | 35 | 30° |
| 24 | 600 | 340 | 35 | 60 | 35 | 30° |
Note: 1. Special requirements can be customized according to the user's drawings. The flange standard is GB / t9115.1-2000. A variety of flange standards (GB, JB, Hg, CB, ANSI, DIN, BSEN, NF, EN, JIS, ISO, etc.) can be selected for production. Rubber spheres can be used as natural rubber, EPDM, chloroprene rubber, butyl rubber, butadiene green rubber, fluororubber, etc.2. When the suspended water supply uses products above DN200, the pipeline must have fixed support or fixed bracket, otherwise the product should be installed with anti pull off device.
|
Q1:Can you provide drawings?
A1:Yes,we could provide drawings for you.Please contact us to get the drawings.
Q2:What certificates can you provide?
A2:We could provide CE,ISO certificate.
Q3:Can we get a sample?
A3:Yes,we could provide samples for you to test the quality.
Q4:What’s the working temperature?
A4:The working temperature is -20℃~100℃.
