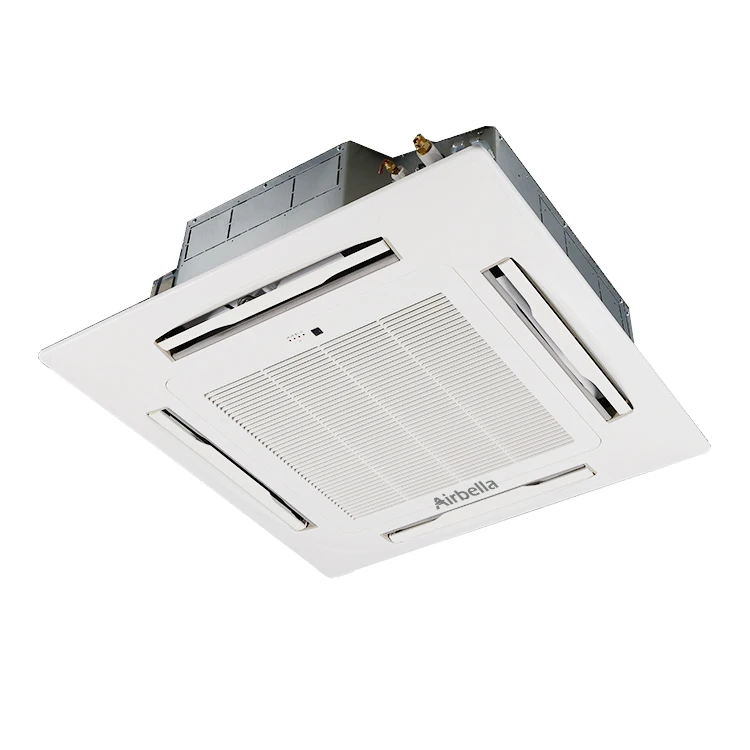

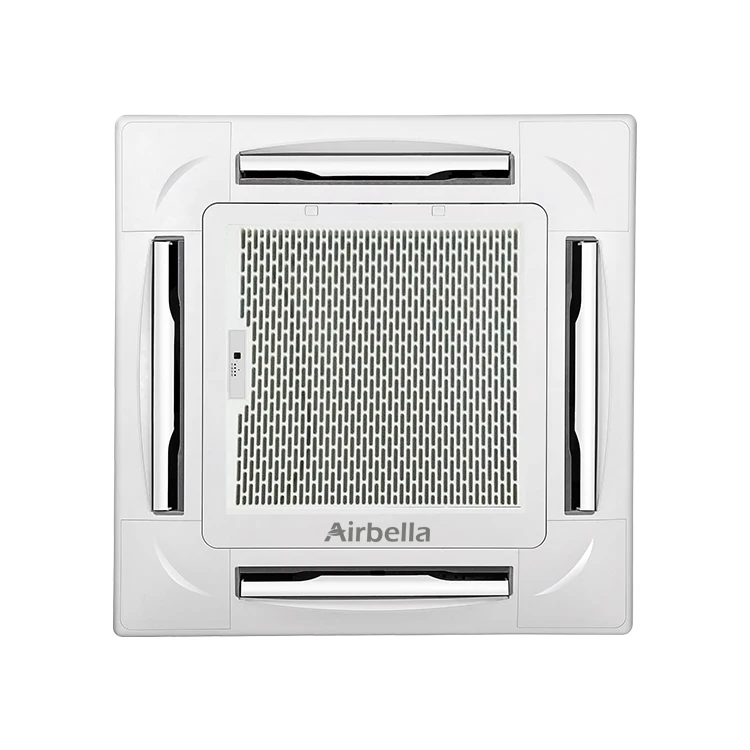

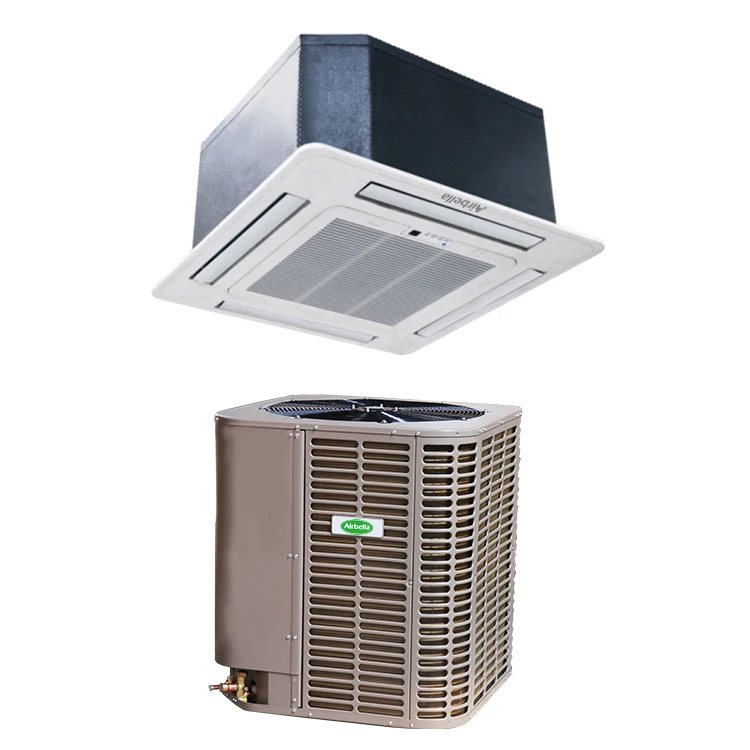

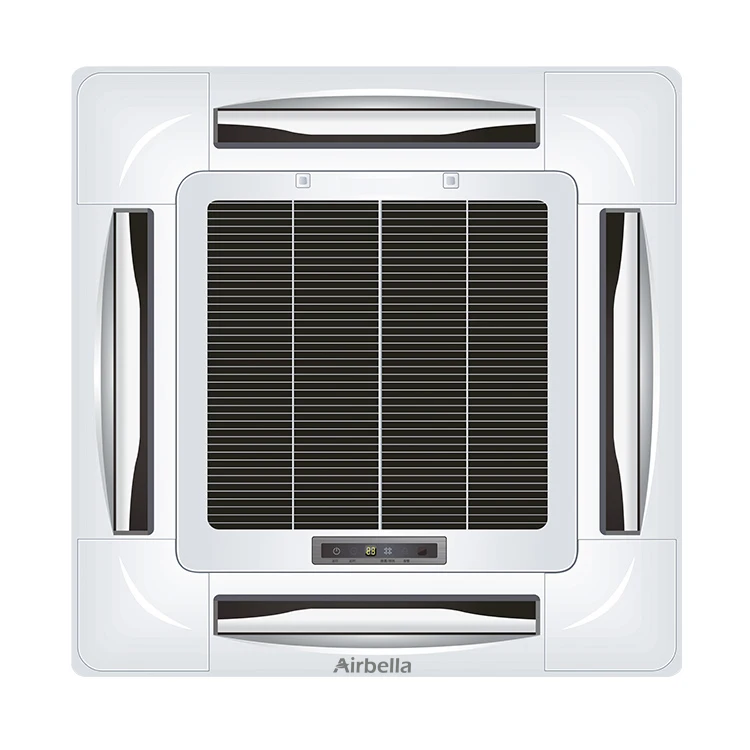

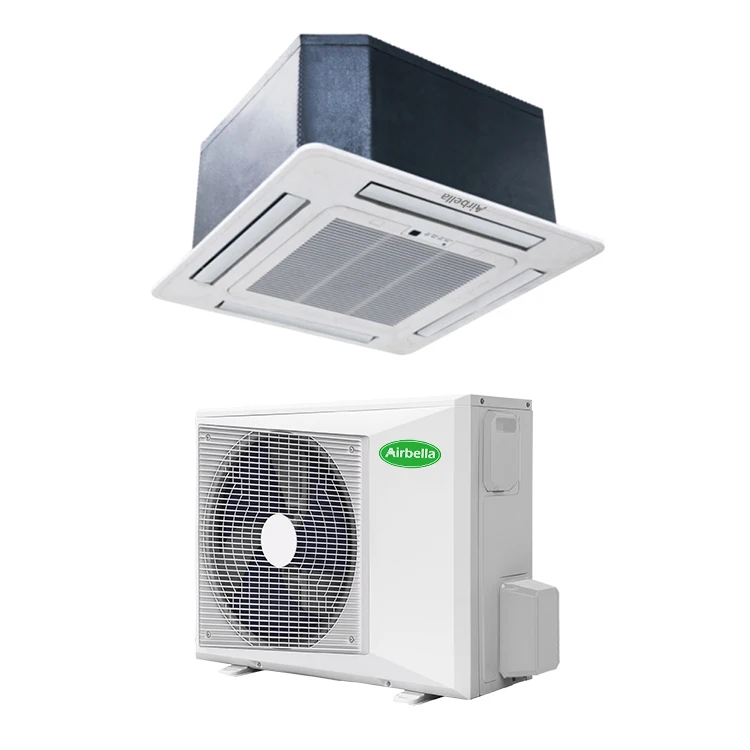

Airbella 60HZ 60000 BTU R410a Inverter Ceiling Mounted Air Conditioner Only Cooling Ductless Fan Coil Unit
- Category: >>>
- Supplier: Foshan Peile Engineering Technology Co. LtdFoshan Ltd
Share on (1601193683989):
Product Overview
Description
Model | AOSV-36CA1YG-16 | AOSV-60CA1YG-16 | |||
Code | Outdoor code | 821039000061 | 821039000060 | ||
Power supply | V/Ph/Hz | 208~230-1-60 | 208~230-1-60 | ||
Cooling | Capacity | Btu/h | 36000 | 55000 | |
Capacity | W | 10550 | 16100 | ||
Input | W | 4000 | 5500 | ||
Rated current | A | 19 | 30 | ||
EER | Btu/h.W | 9.00 | 10.00 | ||
EER | W/W | 2.64 | 2.93 | ||
Input consumption | W | 600-4000 | 600-5500 | ||
Current | A | 2.5-19 | 2.5-30 | ||
Outdoor coil | Number of row | 1 | 2 | ||
Fin spacing | mm | 1.4 | 1.4 | ||
Fin material | Unhydrophilic aluminum | Unhydrophilic aluminum | |||
Tube outside diameter | mm | φ7 | Ф7 | ||
Tube material | Inner grooved | Inner grooved | |||
Coil length x height x width | mm | 2148×588×13.37 | 2136×798×26.76 | ||
Number of circuit | 4 | 8 | |||
Compressor | Brand | GMCC | Mitsubishi | ||
Model | ATM240D57UFT | MNB40FEQMC | |||
Type | Twin-rotary | Twin-rotary | |||
Capacity | W/h | 7190 | 12900 | ||
Input | W | 1935 | 3960 | ||
Rated current(RLA) | A | 8.85 | 14.8 | ||
Refrigerant oil | ml | 670 | 1100 | ||
Outdoor fan motor | Brand | lvzhi | SINJUN | ||
Qty | 1 | 1 | |||
Model | YDK-110-8P2 | YDK-230-6P2 | |||
Output | W | 110.00 | 230.00 | ||
Running current | A | / | / | ||
Capacitor | μF | 6μF/450V | 12μF/450V | ||
Speed | r/min | 850 | 1100 | ||
Outdoor air flow | m3/h | 4500 | 6000 | ||
Outdoor noise level | dB(A) | 57 | 60 | ||
Outdoor dimension | Unit (WxHxD) | mm | 740×740×635 | 740×740×835 | |
Packing (WxHxD) | mm | 760×760×660 | 760×760×875 | ||
Net/Gross weight | kg | 66/70 | 80/85 | ||
Refrigerant | Type | R410A | R410A | ||
Charge | kg | 2.2 | 3.8 | ||
Refrigerant pipe | Liquid side/ Gas side | mm(inch) | 3/8 / 3/4 | 3/8 / 3/4 | |
Max. refrigerant pipe length | m | 25 | 30 | ||
Max. difference in level | m | 20 | 20 | ||
Operation temperature range | ℃ | 16～32 | 16～32 | ||
Ambient temperature range | ℃ | 16～50 | 16～50 | ||
Airbella is a professional and reliable air conditioner supplier in Guangdong China. Founded in 2012 in Hongkong, Airbella had actually served for off-line customers for over12years. Our business has covered North and Latin America, Asia pacific, Africa and Europe. Currently, we have more than 100 OEM customers, and just started to run our own brand Airbella since 2024.Our team is made up of different departments such as sales, R&D and after service, quality control and production.
