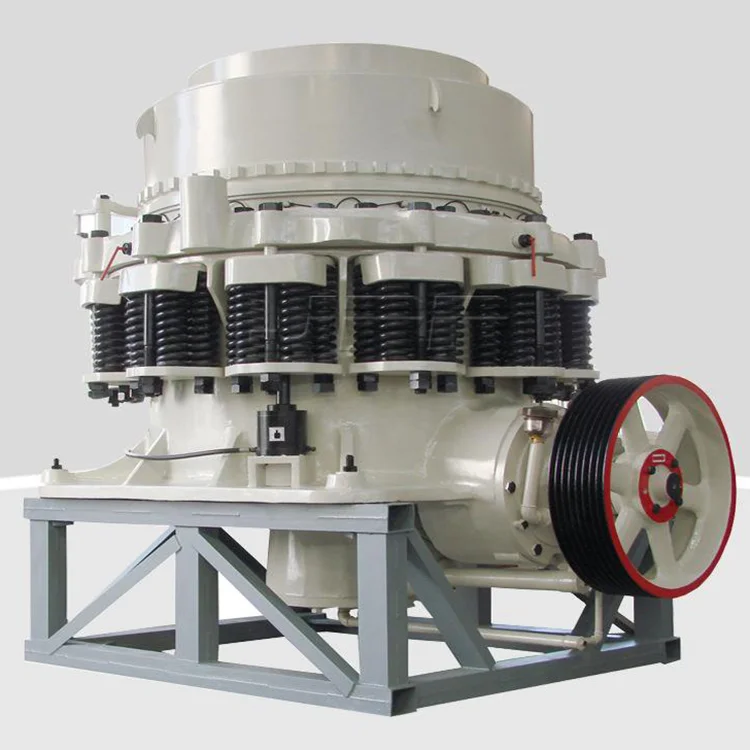

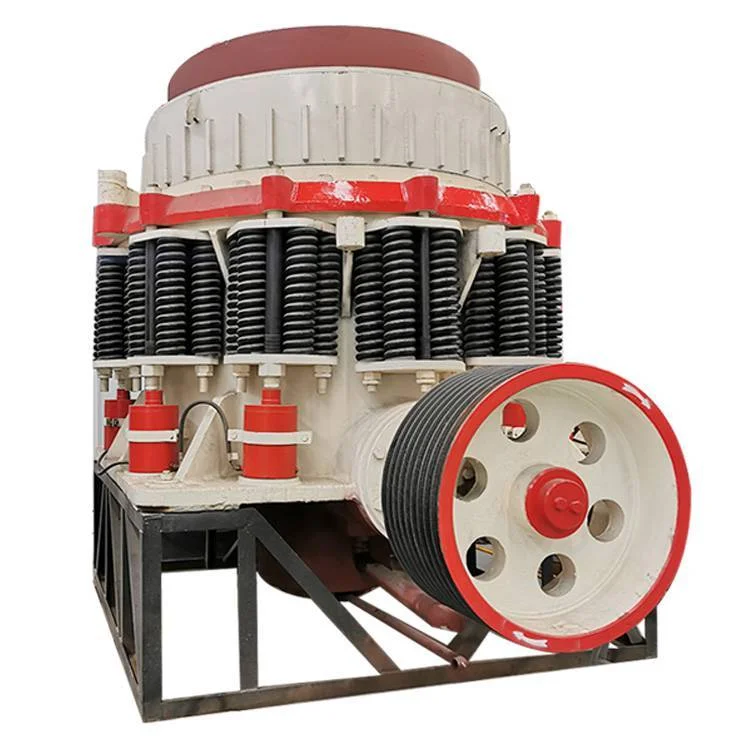

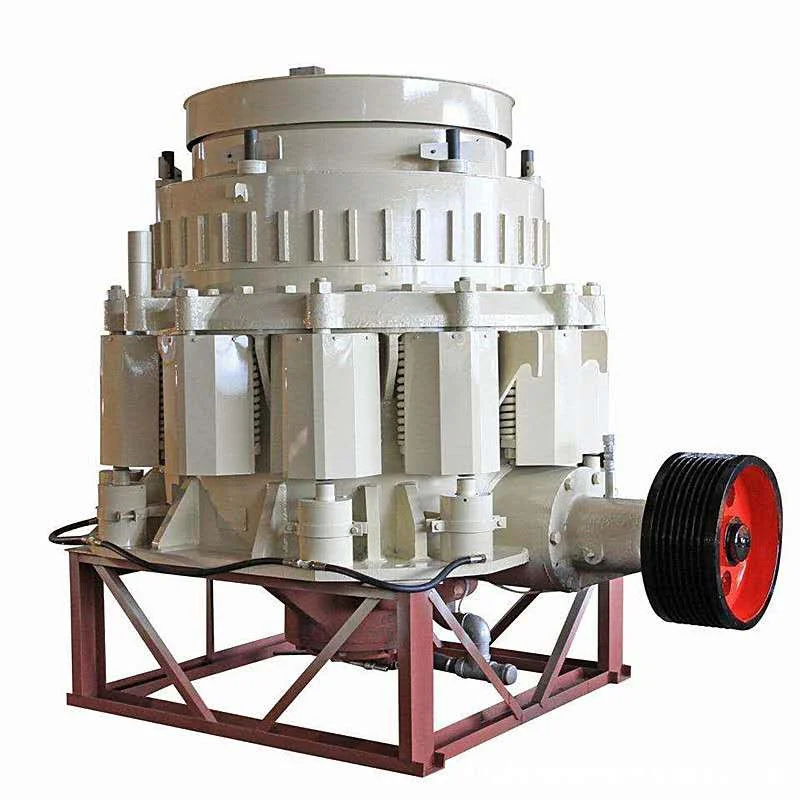

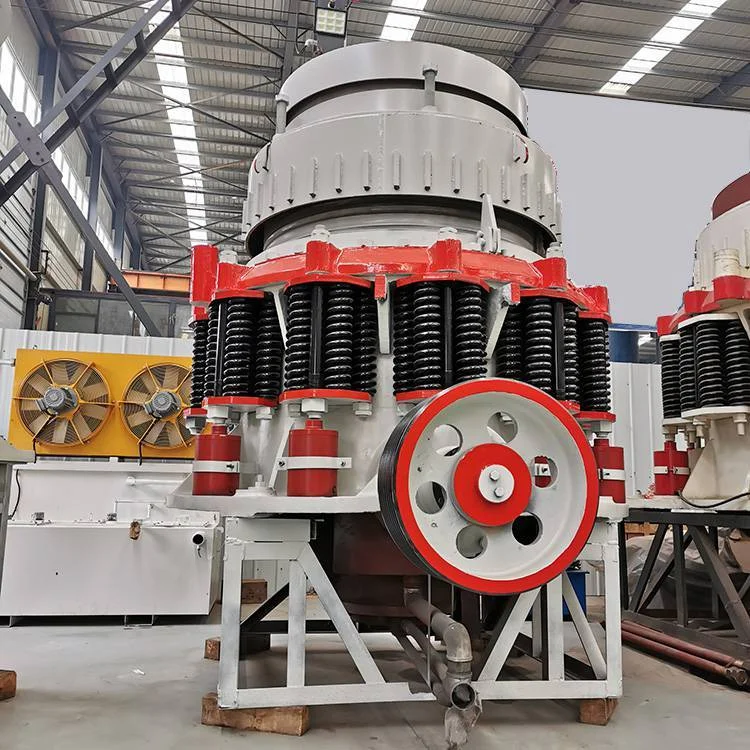

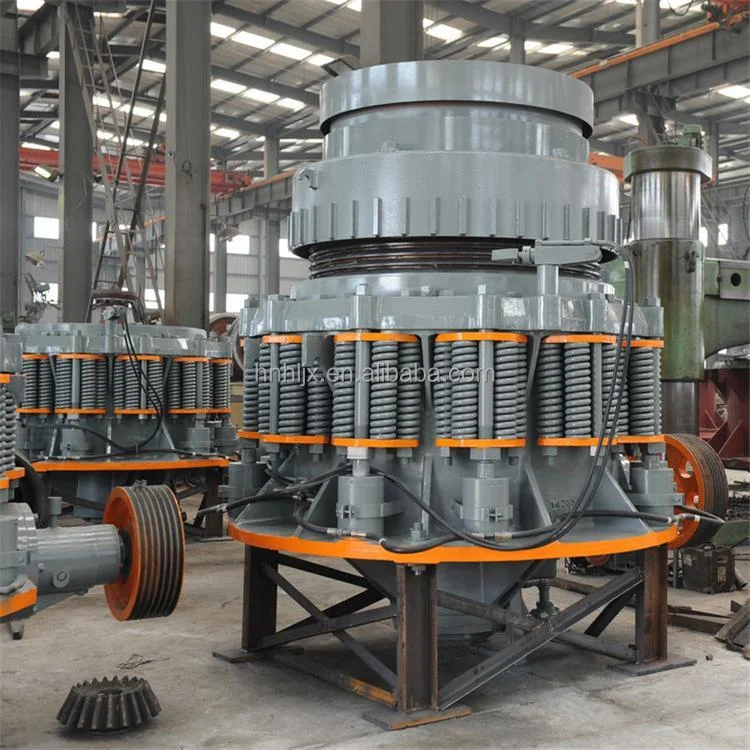

SYMONS type cone crusher coal HTP hydraulic moving cone crusher single cylinder hydraulic short head cone crusher for mining
- Category: >>>
- Supplier: Henan Haolu Machinery Equipment Co. Ltd.
Share on (1601194015490):
Product Overview
Description
Product Introduction
Cone crusher a crushing machine for raw materials in metallurgy, construction, road construction, chemical and silicate industries. According to the different crushing principle and the different particle size of the product, it is divided into many models. Crusher is widely used in mining, smelting, building materials, road, railway, water conservancy and chemical industry and many other sectors. Cone crusher crushing ratio is large, high efficiency, low energy consumption, uniform product particle size, suitable for crushing and fine crushing all kinds of ore, rock. The models are mainly divided into SMG series, spring type and HPC series, and their working principle and structure are introduced respectively. The development history, working principle, composition, influencing factors, technical advantages, operation matters, common faults and inspection and maintenance of cone crusher are also introduced in detail.
Advantages
1.Higher production capacity, better quality.
2.Due to the safety device, greatly reduce the downtime.
3.The body is cast steel structure, in the heavy parts of the reinforcement.
4.Including the regulator, can quickly adjust the size of the crushing discharge particle size.
5.Provide spring type protection device.
6.With a complete lubrication system, when the temperature is too high or the flow rate is too slow will automatically close.
7.The internal structure sealing performance is good,can effectively protect the equipment from dust and other small particles.
Main Features
Working Principle

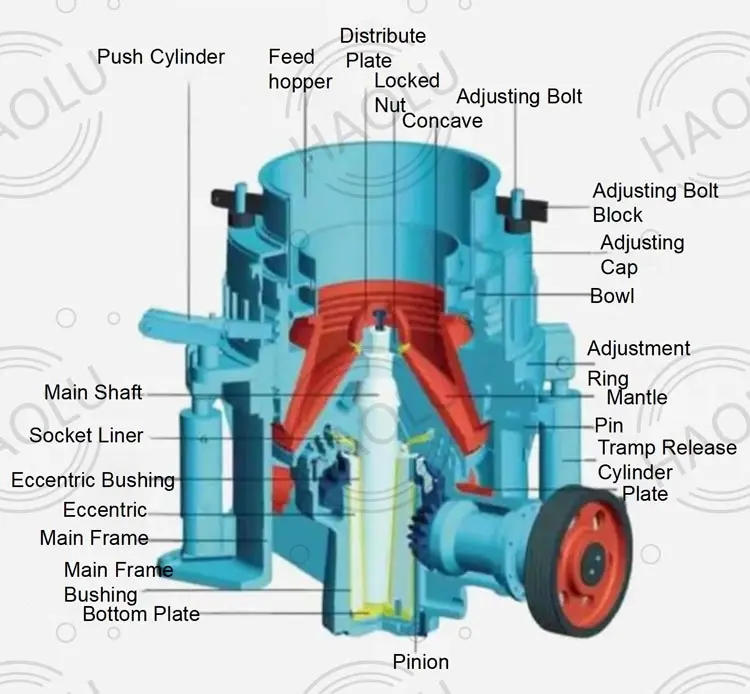

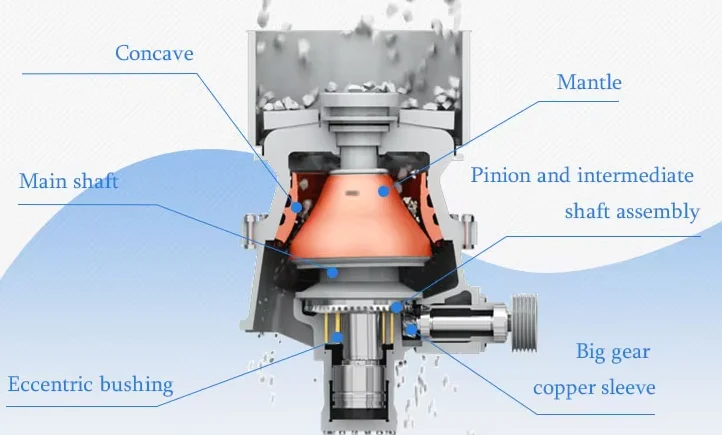

In the working process of the cone crusher, the motor drives the eccentric sleeve to rotate through the transmission device, the moving cone is forced to rotate under the eccentric shaft sleeve, and the section near the moving cone becomes the crushing chamber, and the material is crushed by the multiple extrusion and impact of the moving cone and the static cone. When the moving cone leaves the section, the material that has been broken to the required particle size falls under its own gravity and is discharged from the bottom of the cone
Application Materials

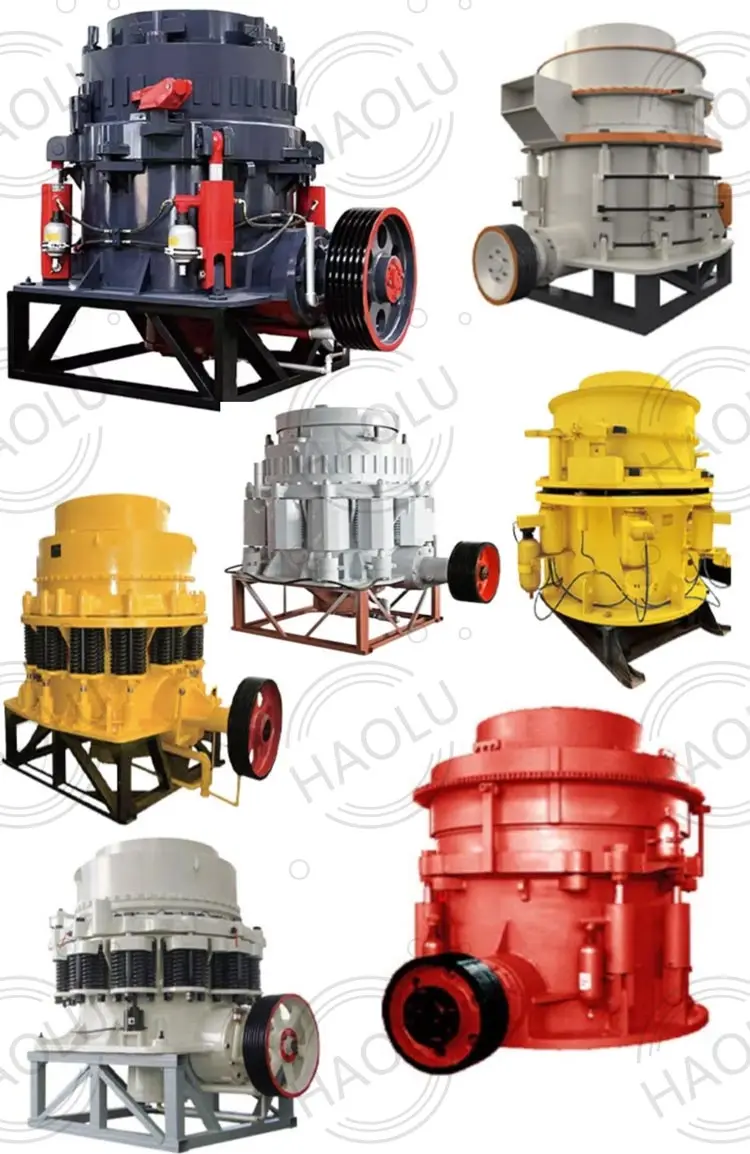

Specification
Specifications | Model | Cavity Type | Adjusting Range of Discharge Opening(mm) | Feed size(mm) | Capacity (T/H) | Power (KW) | Shape Size (mm) |
CS75 | CSC-75 | Fine | 13-38 | 175 | 59-163 | 75 | 2656*1636*2241 |
CSB-75 | Medium | 9-22 | 102 | 45-91 | |||
CSD-75 | Coarse | 3-13 | 41 | 27-90 | |||
CS110 | CSC-110 | Fine | 13-38 | 160 | 70-215 | 110 | 2290*1530*2036 |
CSB-110 | Medium | 10-25 | 115 | 55-135 | |||
CSD-110 | Coarse | 6-19 | 80 | 47-90 | |||
CS130 | CSC-130 | Fine | 13-38 | 180 | 105-220 | 130 | 2630*1760*2212 |
CSB-130 | Medium | 10-25 | 130 | 72-170 | |||
CSD-130 | Coarse | 10-19 | 90 | 70-125 | |||
CS160 | CSC-160 | Fine | 16-51 | 200 | 135-350 | 160 | 2860*2070*2623 |
CSB-160 | Medium | 13-25 | 150 | 105-180 | |||
CSD-160 | Coarse | 10-19 | 102 | 80-140 | |||
CS200 | CSC-200 | Fine | 19-51 | 215 | 200-440 | 200 | 2830*2200*2783 |
CSB-200 | Medium | 16-25 | 160 | 160-230 | |||
CSD-200 | Coarse | 13-22 | 115 | 150-240 | |||
CS220 | CSC-220 | Fine | 19-64 | 235 | 230-570 | 220 | 3360*2650*3050 |
CSB-220 | Medium | 19-38 | 175 | 215-330 | |||
CSD-220 | Coarse | 13-25 | 130 | 180-285 | |||
CS240 | CSC-240 | Fine | 22-64 | 267 | 330-725 | 240 | 3580*2860*3680 |
CSB-240 | Medium | 16-25 | 203 | 240-330 | |||
CSD-240 | Coarse | 10-19 | 140 | 190-330 | |||
CS360 | CSC-360 | Fine | 25-76 | 303 | 608-998 | 360 | 5110*4270*4350 |
CSB-360 | Medium | 31-89 | 334 | 789-1270 | |||
CSD-360 | Coarse | 10-29 | 150 | 352-617 |
Packing&Delivery
Company Profile
Henan Haolu machinery equipment company is established in 2002 located in Henan province ,China. We can provide a complete set of equipment including crushing, screening, minerals separation, etc. The products have been exported to market of Southeast Asia,Middle East, Africa and the Americas. Agents have also been developed in Egypt, Pakistan, Vietnam and other countries. We supply with decent quality product, as well as best solutions, professional technical support and excellent after-sales service.Since its establishment,adhering to the scientific management method of modern enterprises, seiko manufacturing,
continuous innovation,rapid development and growth of local star enterprises. The company is a large joint-stock company of industry and trade, with sales all over the world. The enterprise has first-class processing equipment, perfect testing means,high-quality scientific and technological personnel,quality service. The enterprise has been awarded provincial excellent enterprise for many times. Products are sold at home and abroad. The company can provide one-stop services of factory planning, design, construction, equipment installation, operation,after-sales etc. The products of our company are exported to dozens of
countries and regions of Africa, South Asia, Southeast Asia, South America etc.
continuous innovation,rapid development and growth of local star enterprises. The company is a large joint-stock company of industry and trade, with sales all over the world. The enterprise has first-class processing equipment, perfect testing means,high-quality scientific and technological personnel,quality service. The enterprise has been awarded provincial excellent enterprise for many times. Products are sold at home and abroad. The company can provide one-stop services of factory planning, design, construction, equipment installation, operation,after-sales etc. The products of our company are exported to dozens of
countries and regions of Africa, South Asia, Southeast Asia, South America etc.
FAQ
Q1: Are you factory or trade company?
A1: We are factory . We have factory in China.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A1: We are factory . We have factory in China.
Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.
Q3: How will you help the customer to install the equipment?
A3:Our senior engineer will supply installation and training service on-line or on-site .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 2 hours .
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price .
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 2 hours .
