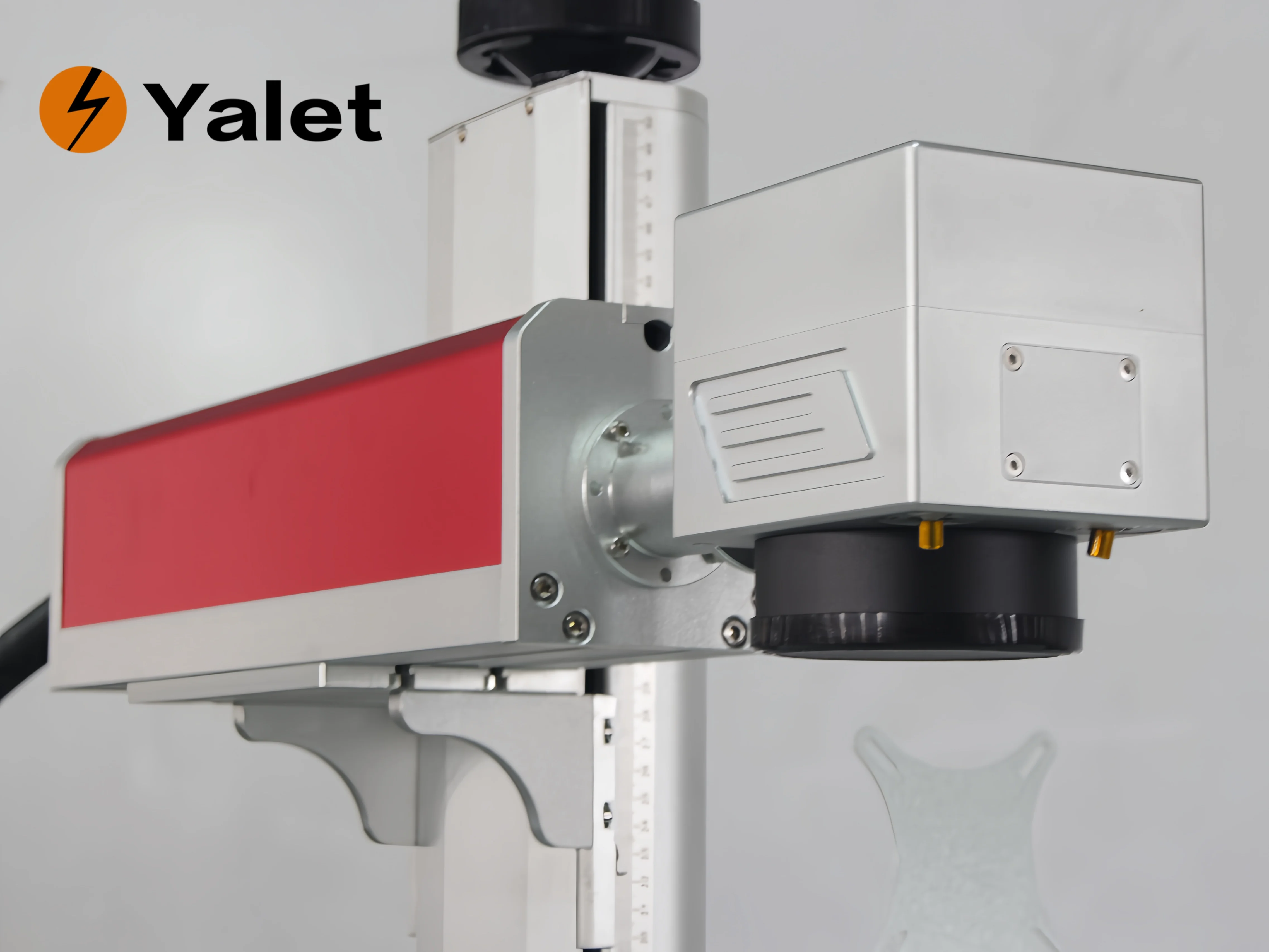

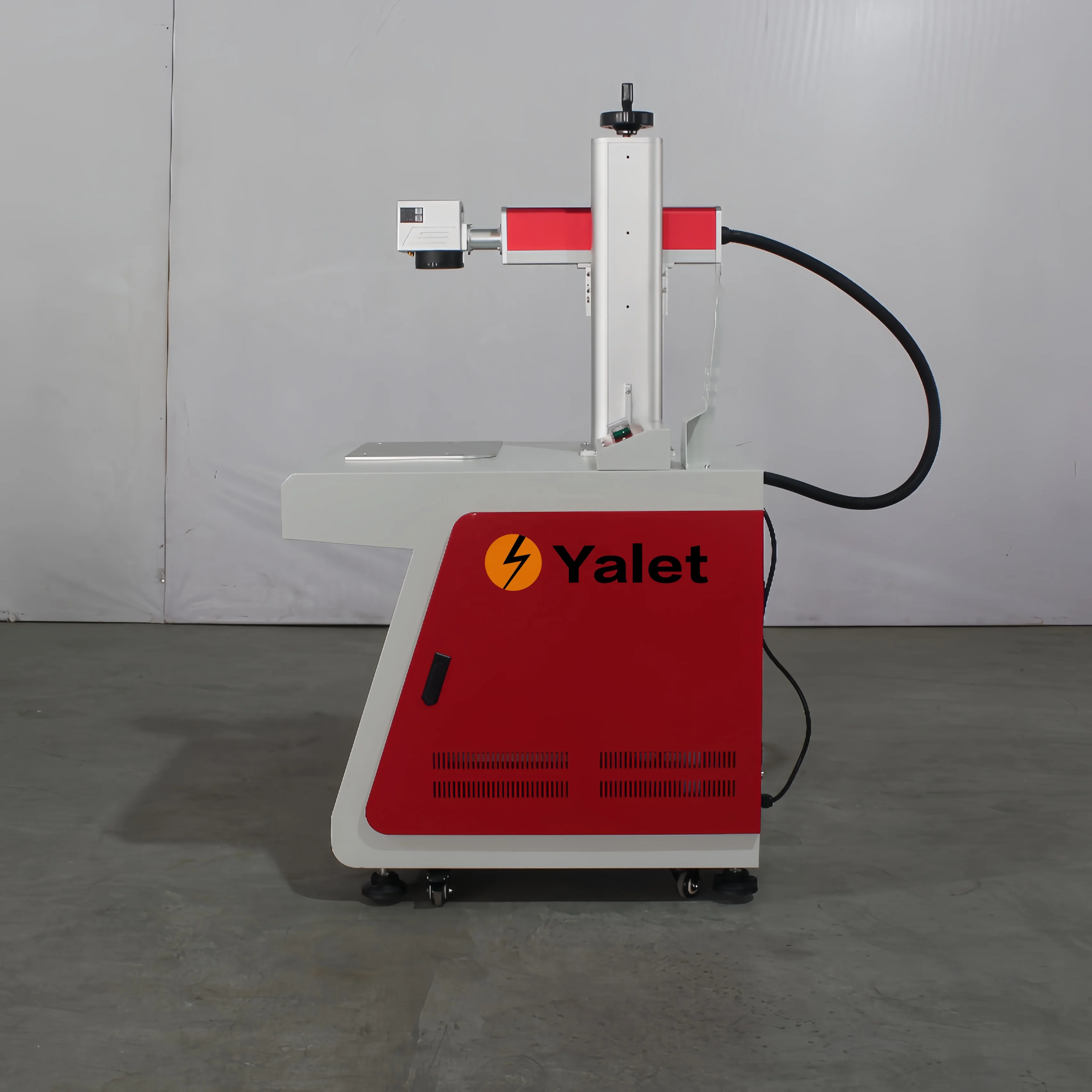

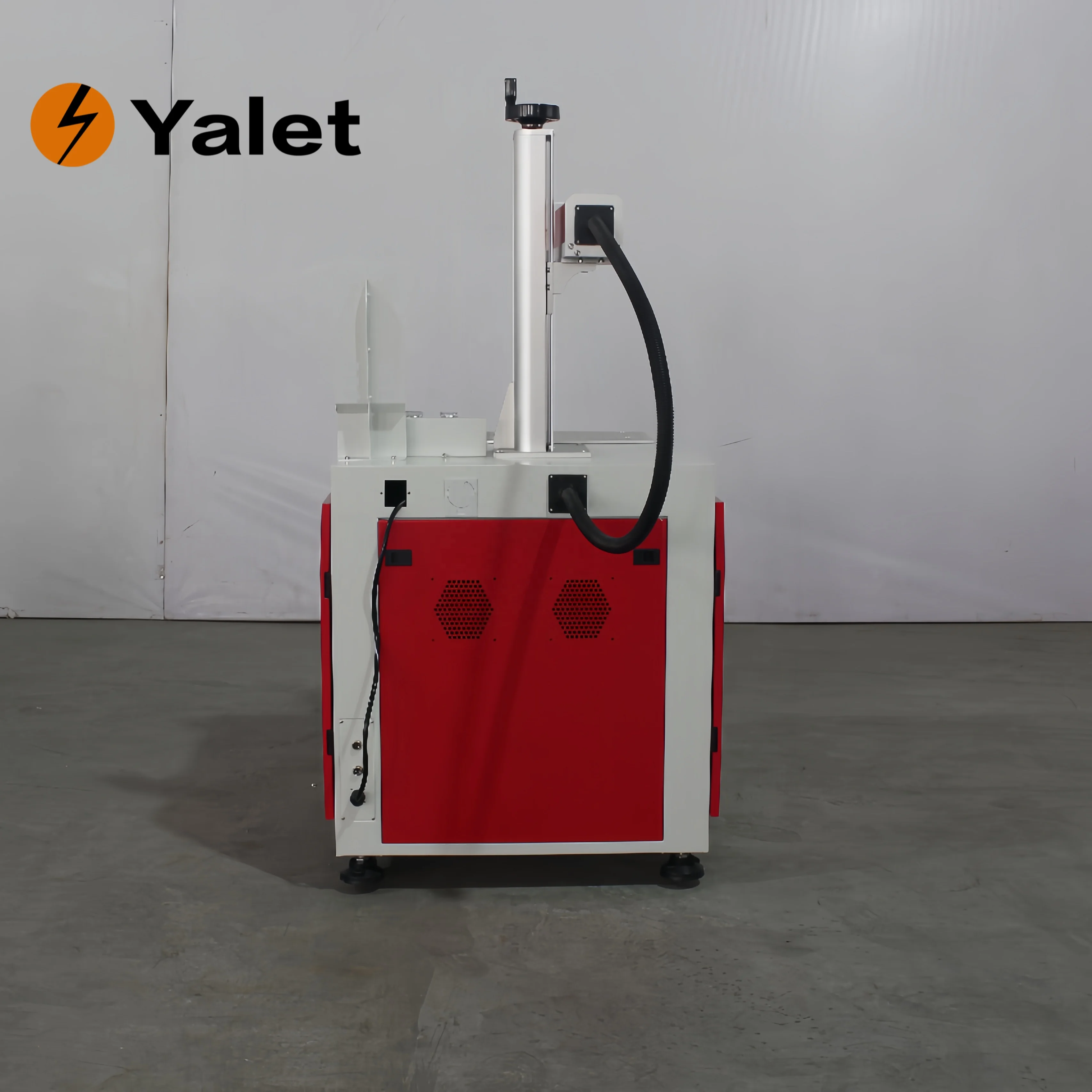

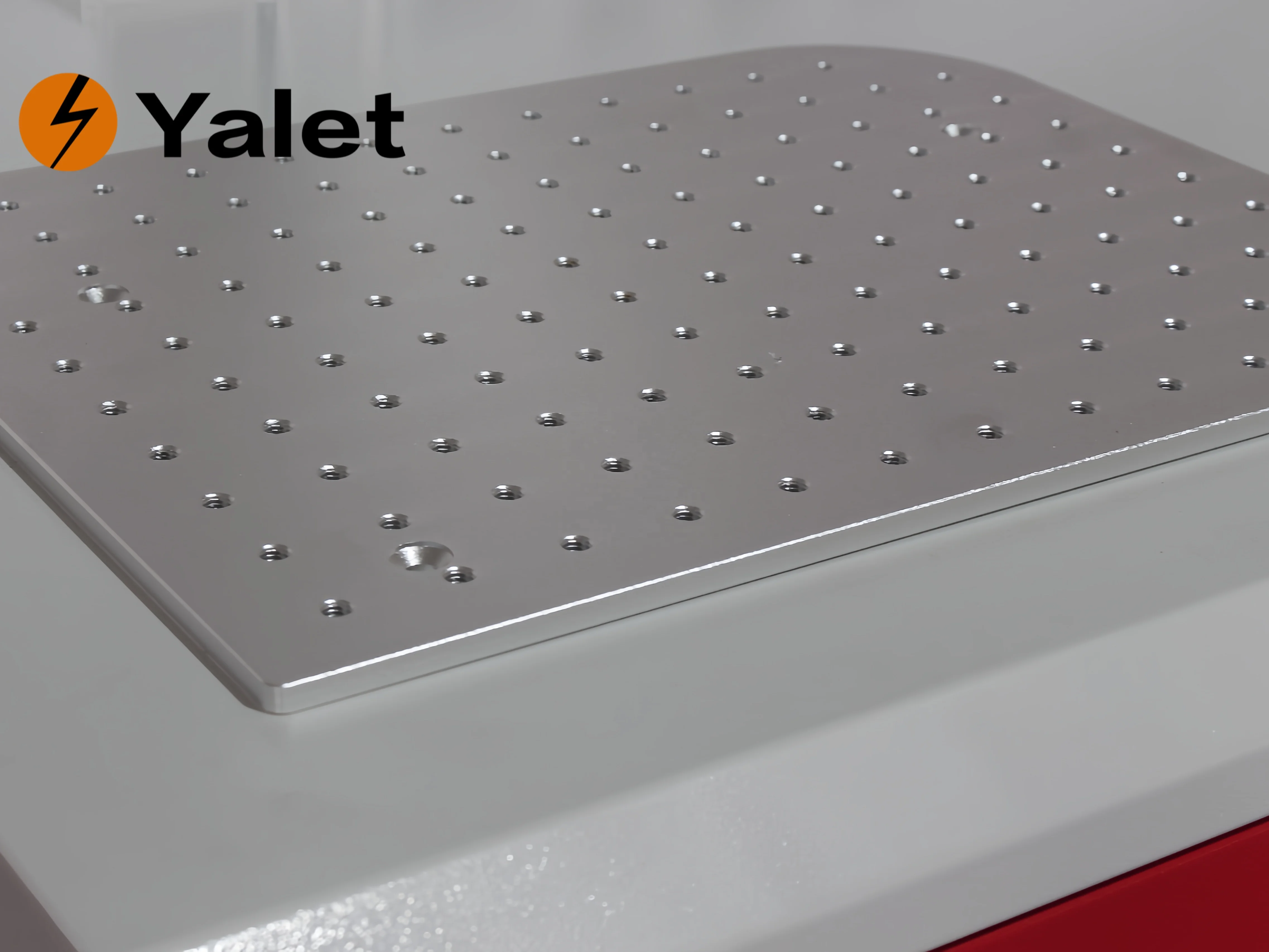

Best selling price 20W 30W 50W desktop cabinet steel metal non metal 3D fiber laser marking machine
- Category: >>>
- Supplier: Wuhan Yilaite Electromechanical Equipment Co. Ltd.
Share on (1601194093014):
Product Overview
Description
Laser marking machine
more from laser
Composition and Parameters
Leading laser technology
Power options | 20W 30W 50W | ||
Laser parameters | Laser | RAYCUS MAX | |
laser wavelength | 1064nm | ||
Average output power | Full power output | ||
With or without optical isolator | Self-contained | ||
Modulation frequency range | 20KHz ~ 100KHz continuously adjustable | ||
Power Stability | (8h)＜ +2%rms | ||
Parameters of the galvanometer | Maximum linear speed | 7000mm/s | |
resolution (of a photo) | 0.001mm | ||
Repeat Positioning Accuracy | 0.003mm | ||
Optical output characteristics | Marking range (Optional) | 100×100mm、145×145mm、 175×175mm、200×200mm、 300×300mm(Range optionally customisable) | |
System Properties | Minimum Line Width | 0.012mm | |
Print Depth | 3nm-0.1mm Depends on material, power, efficiency | ||
Minimum Character Height | 0.15mm | ||
cooling system | Cooling method | air coooling/water cooling | |
System Properties | Laser power supply | 0.5KW/AC220V/50Hz | |
Marking software | GoldenOrange Engraving Software | ||
red light positioning | marking instructions | red light indicator | |
control system | computers | XP/Win7/Win10 less than | |
Compatible file formats | PLT/DXF/AI/BMP etc. vector files | ||
weights | 100kg | ||
sizes | 77*87*113cm | ||
Integrity · transparency
serial number | configuration name | brand name | quantities | note |
1 | lasers | RAYCUS MAX | 1 | 20W 30W 50W |
2 | oscilloscope | Jin Hai Chuang | 1 | |
3 | Scene Mirror | Han Shuang | 1 | 20W 30W 50W |
4 | Infrared laser pointer | Rays Optoelectronics | 1 | |
5 | Control power | Hengfu Electronics | 3 | |
6 | Marking software | kumquat | 1 | |
7 | Marking control card | jin cheng zi | 1 | |
8 | Enclosures | Xinde | 1 | |
9 | Lifting Stroke | Upper and lower lifting stroke | 1 | 500/800 optional |
Integrity · transparency
serial number | name (of a thing) | quantities | note |
1 | foot switch | 1 | |
2 | Hexagon | 1 | |
3 | straight ruler | 1 | |
4 | USB flash drive | 1 | stochastic |
5 | External auxiliary red light | 1 | |
6 | locator bar | 2 | |
7 | Nameplate logo | 1 |
Scope of application
Wide · Varied

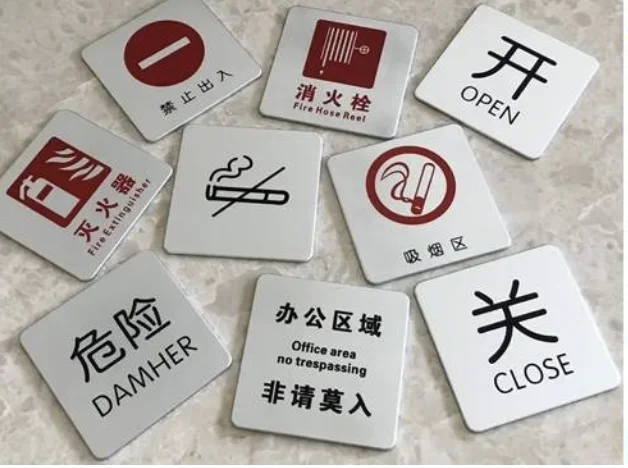

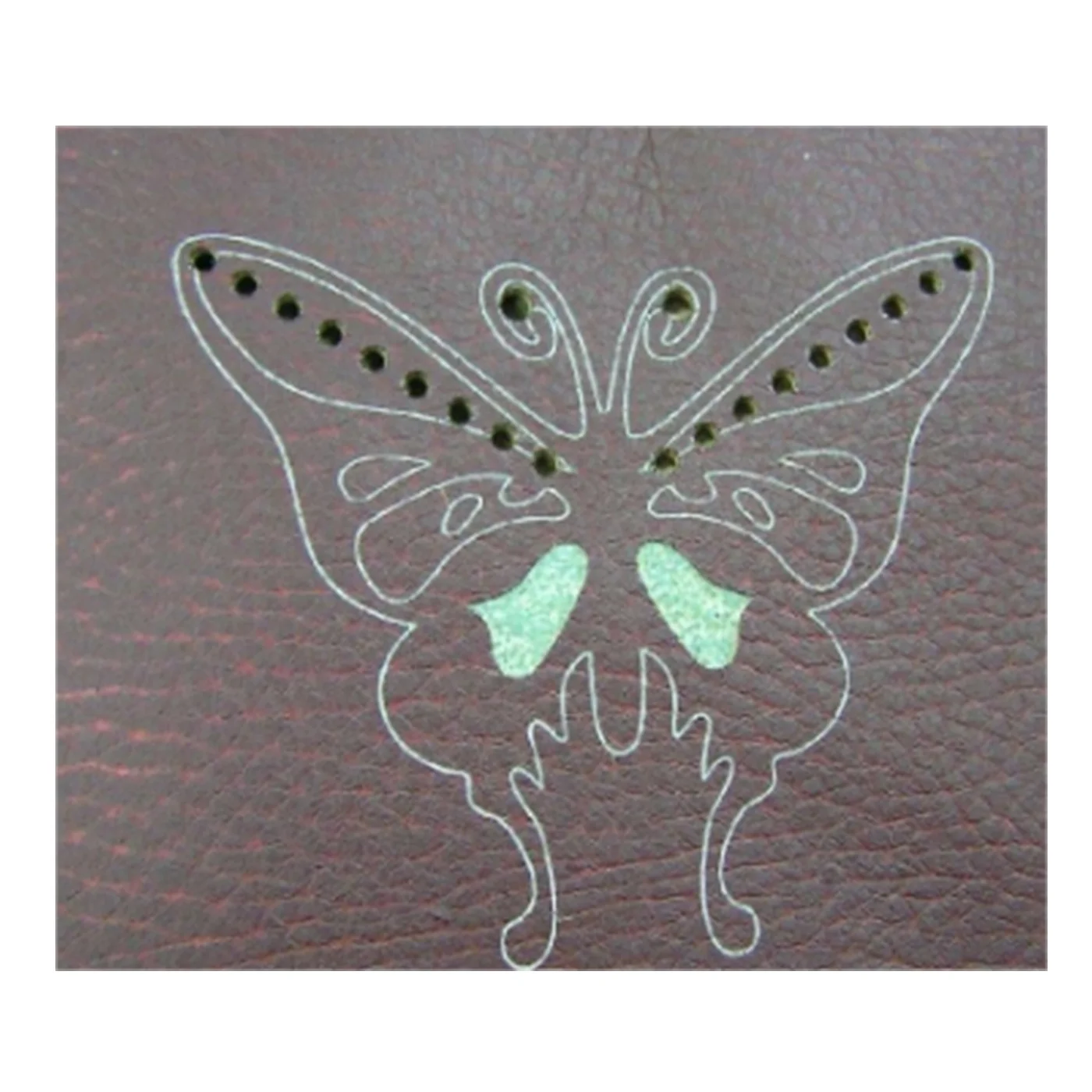

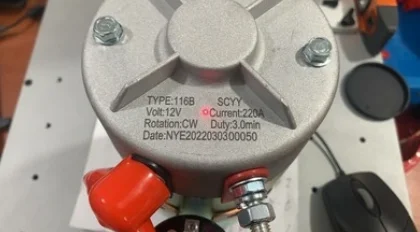

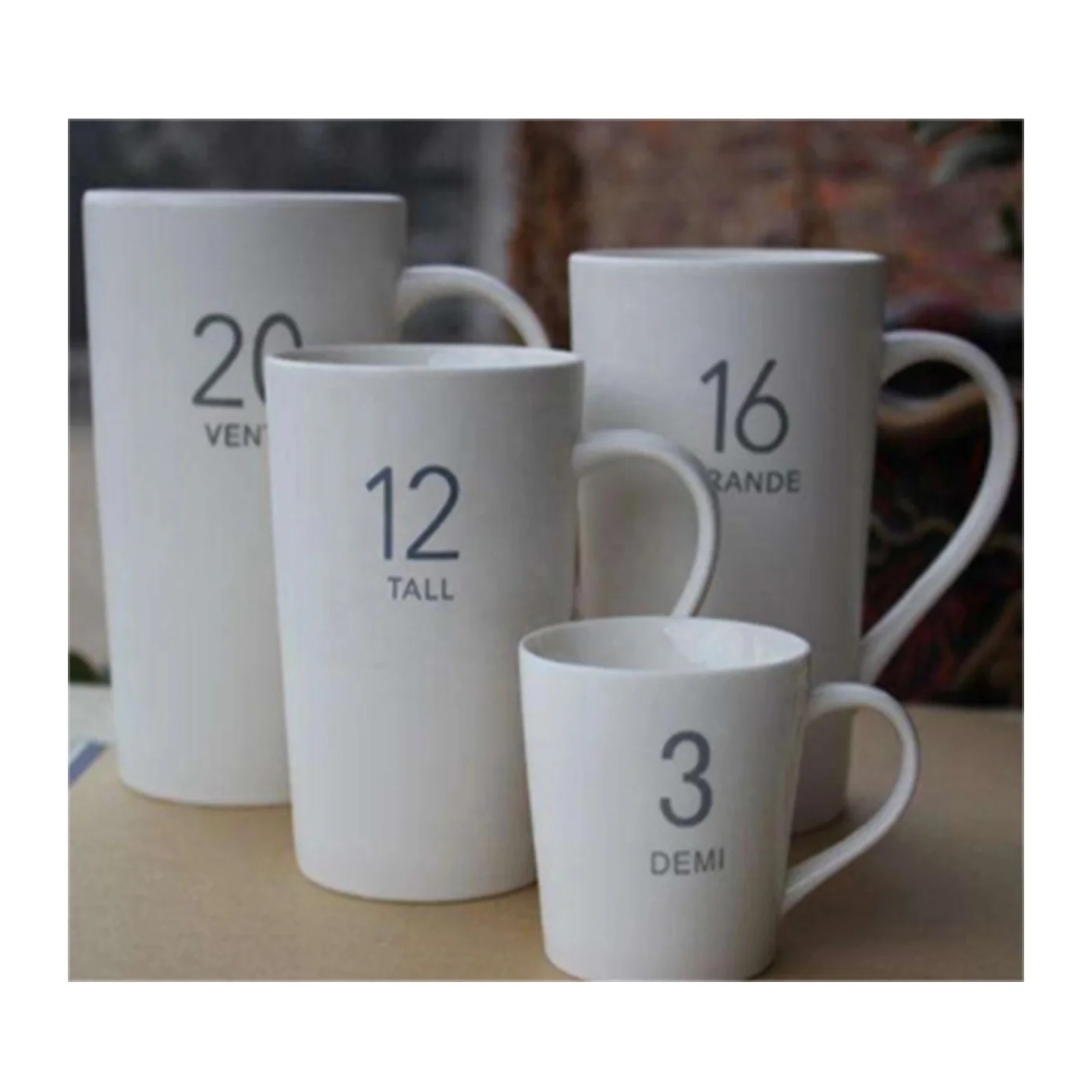

Auto Parts/ IC chip/headgear /Mobile phone/shellscale marking/Stainless steel sign/Product Packaging/wire and cable
Why Yilait ?
infinite possibilities
WHAT WE DO
—founded in 2008 WuHan,HuBei
—mainly production：Laser products and accessories
—Teams：Pre sales/In sales/After sales and engineers
—mission：Make customers worry free.
Service Process
professionalism · Confidence
Packaging & Logistics
Complete packaging · Quick delivery
Self-pick-up or door-to-door, according to the address you provide to provide you with the most suitable packaging logistics solutions.
