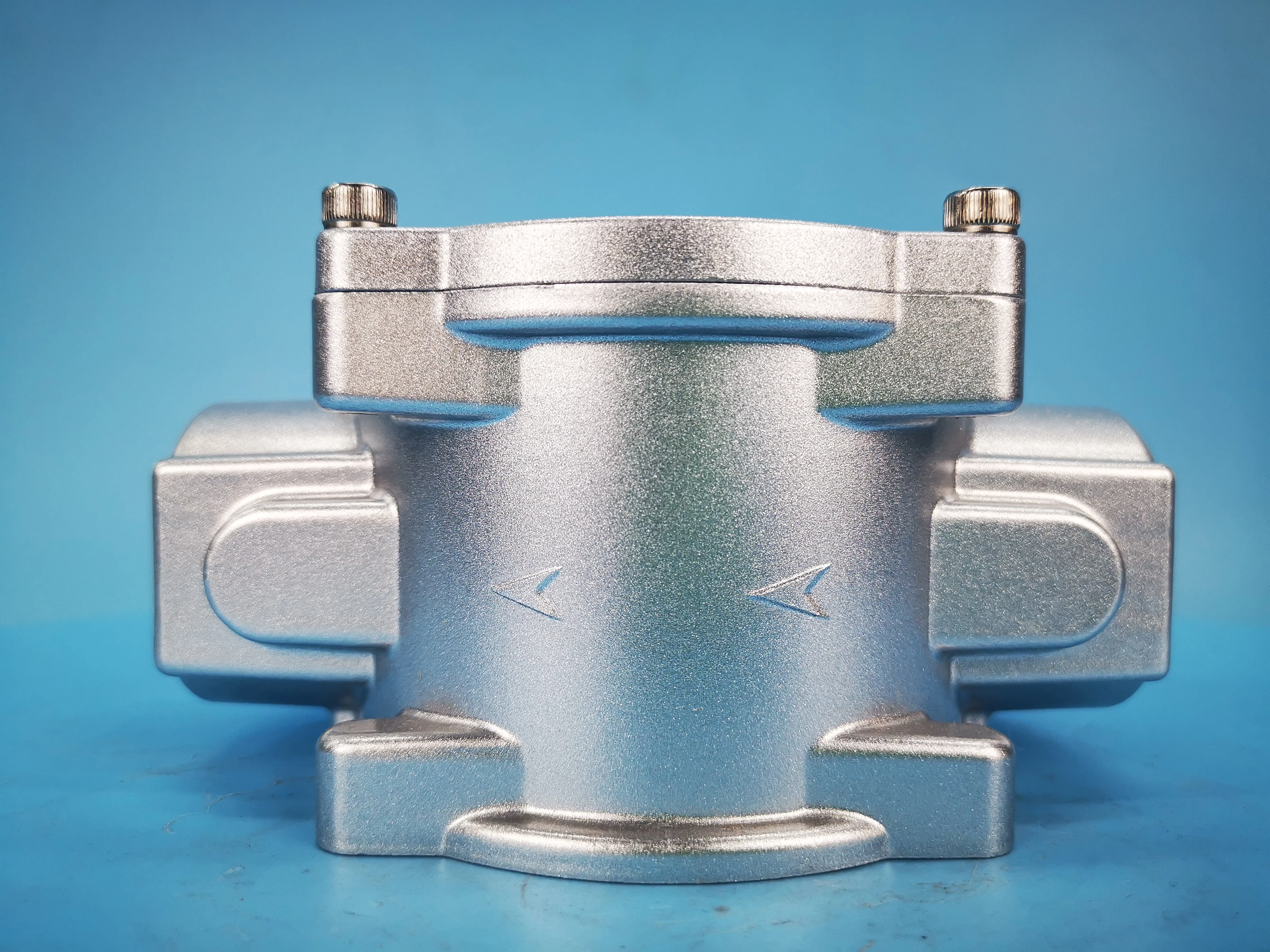

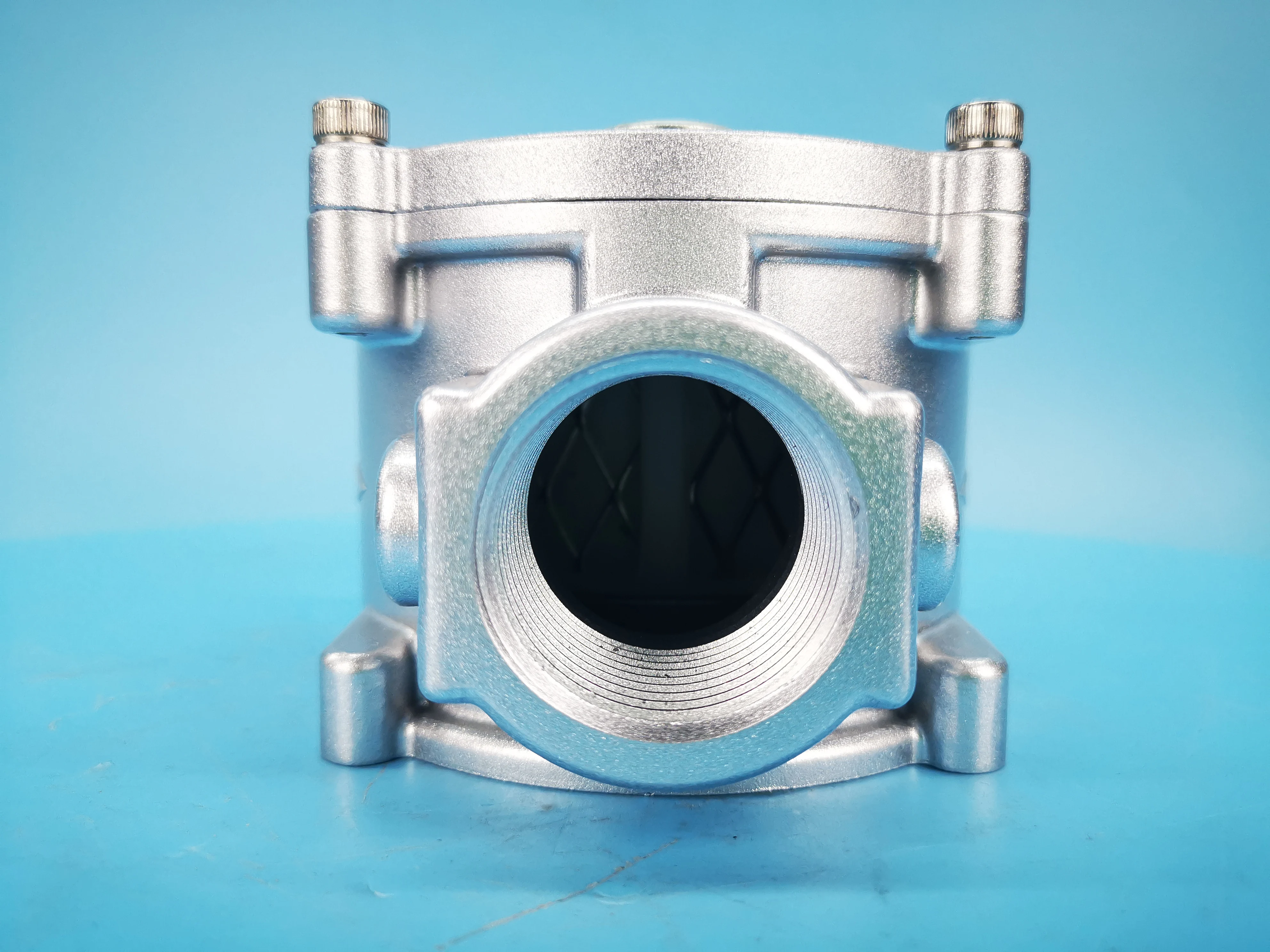

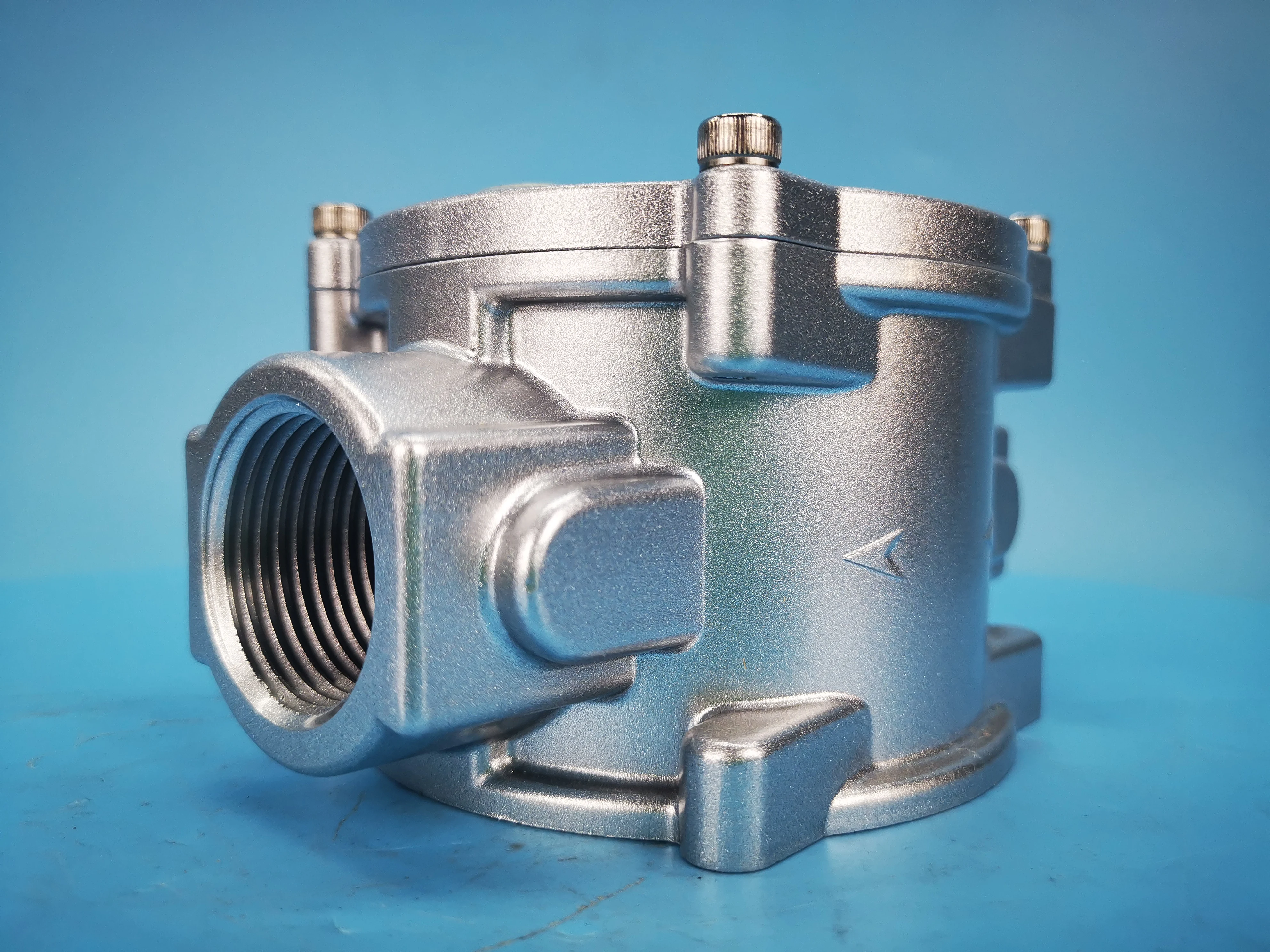

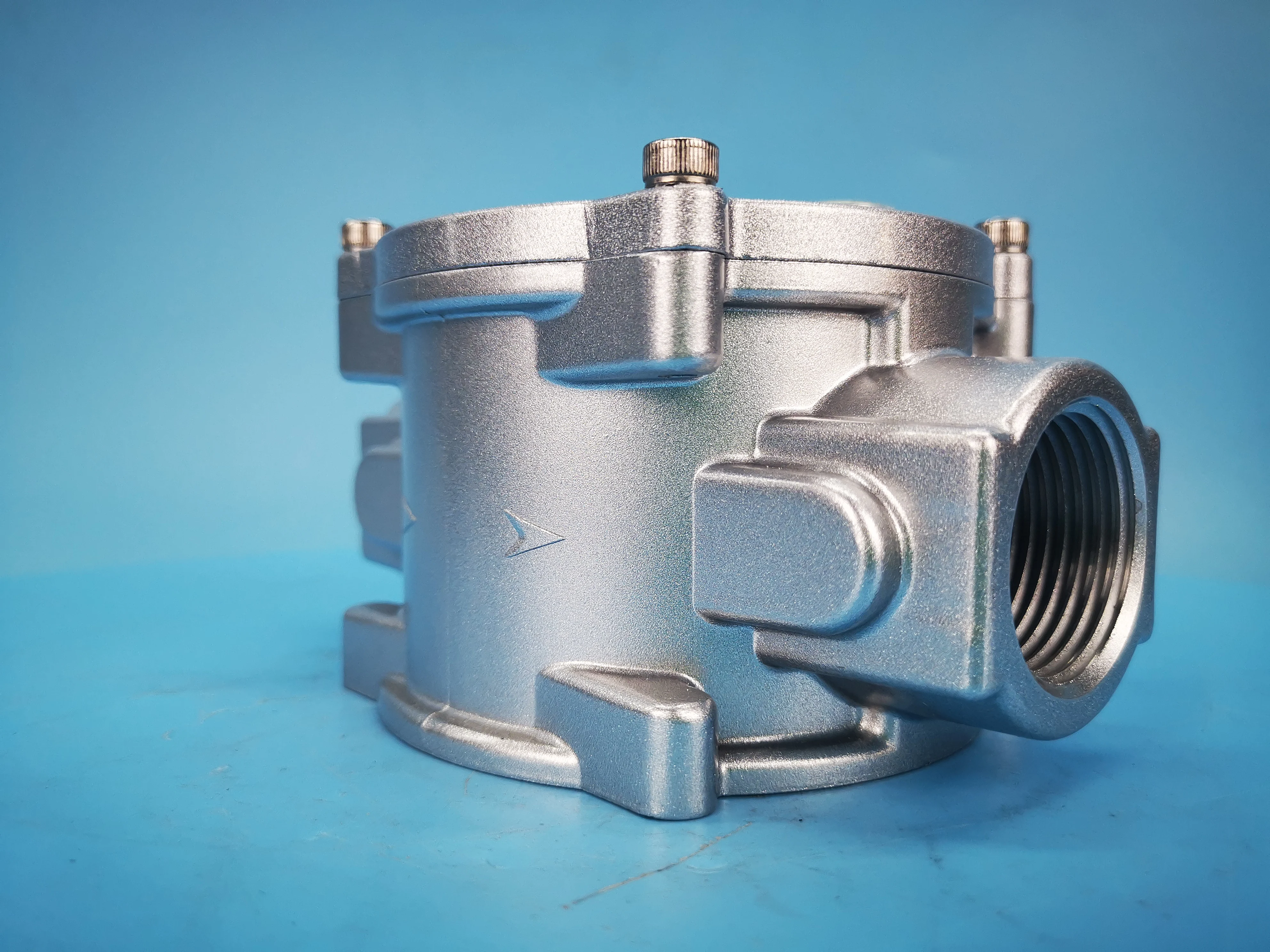

Hot Sale Original Gas Filter High Performance Filter for Industrial Burners Boiler
- Category: >>>
- Supplier: Foshan Jingran Electromechanical Equipment Co. Ltd.
Share on (1601194169074):
Product Overview
Description
| 1 | Max. inlet pressure | 6bar |
| 2 | Sealing Type | 3 layers sealing crafts |
| 3 | Applicable temperature | -20℃~70℃ |
| 4 | Filtering accuracy | ≤ 50 μ m |
| 5 | Connection mode | threaded/Flange connection |
| 6 | Material | cast aluminum alloy valve body, galvanized steel accessories, nitrile rubber ring |
| 7 | Applicable medium | non-corrosive gases such as city gas, natural gas and LPG |
| 8 | capability | High efficiency filtration |
| Model | Size | Connection | Filtering accuracy | Filter mesh area(mm2) | Maximum working pressure |
| JFR15 | DN15 | Thread | ≤50 μm | 8000 | 6bar |
| JFR20 | DN20 | Thread | ≤50 μm | 8000 | 6bar |

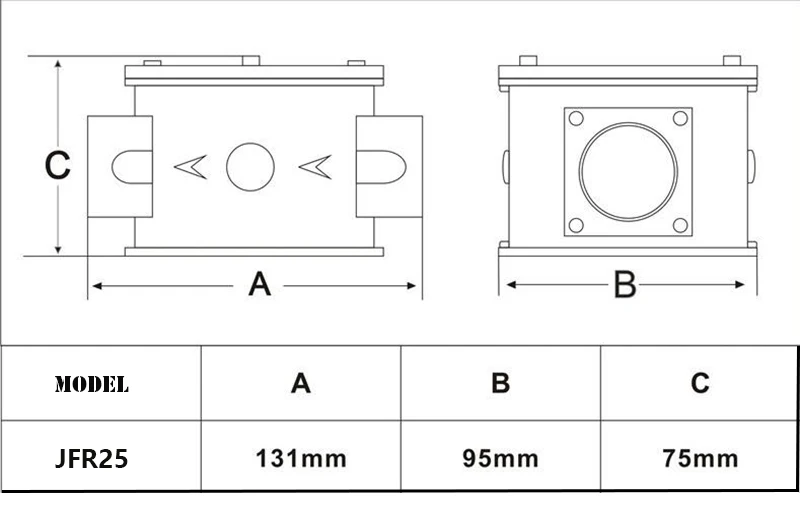

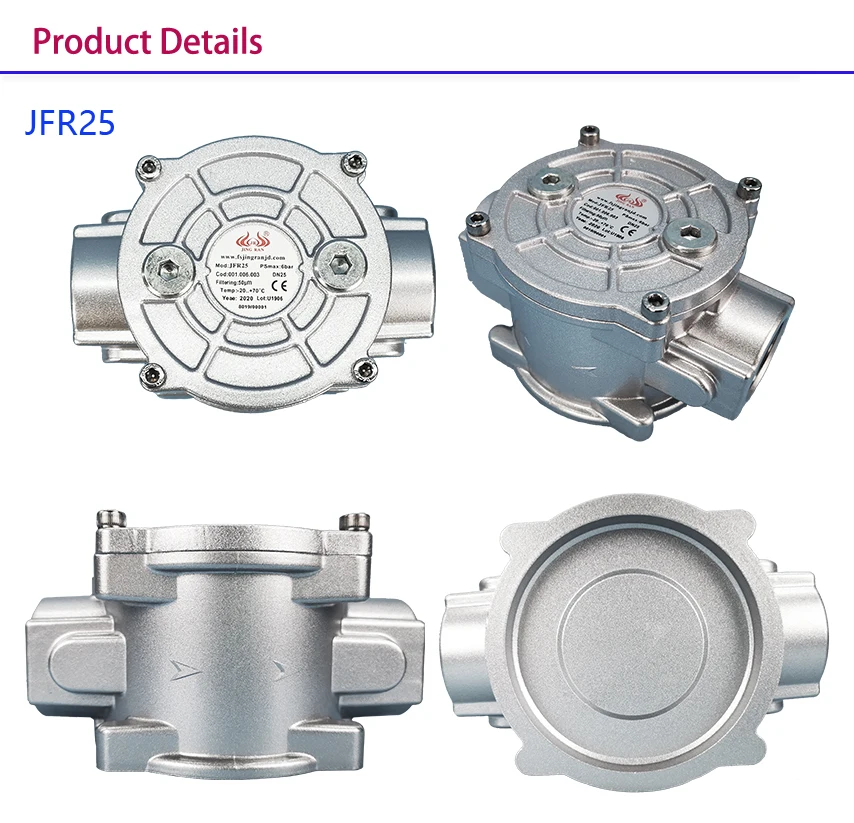

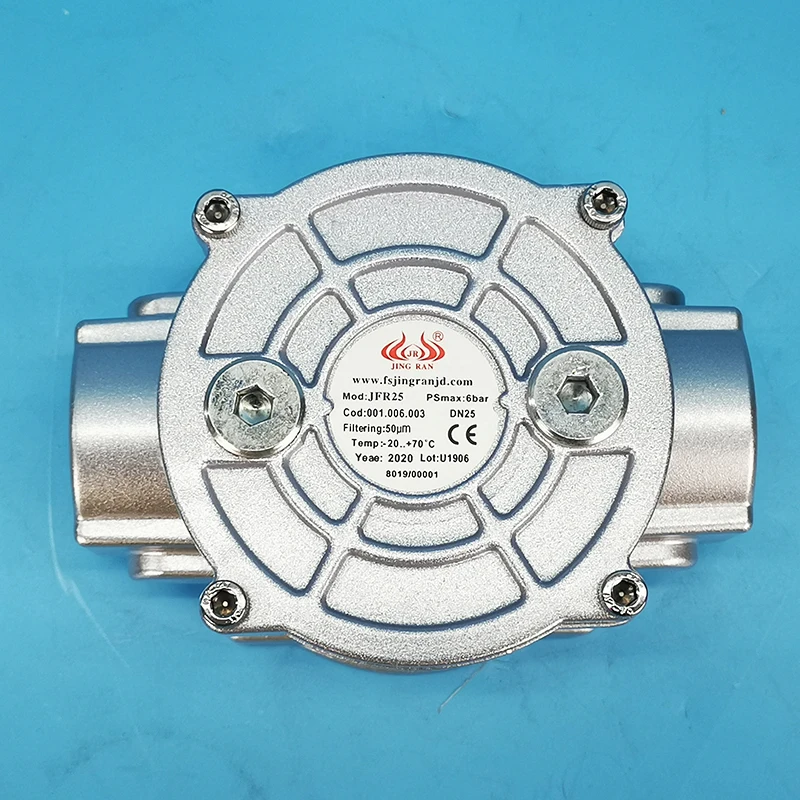

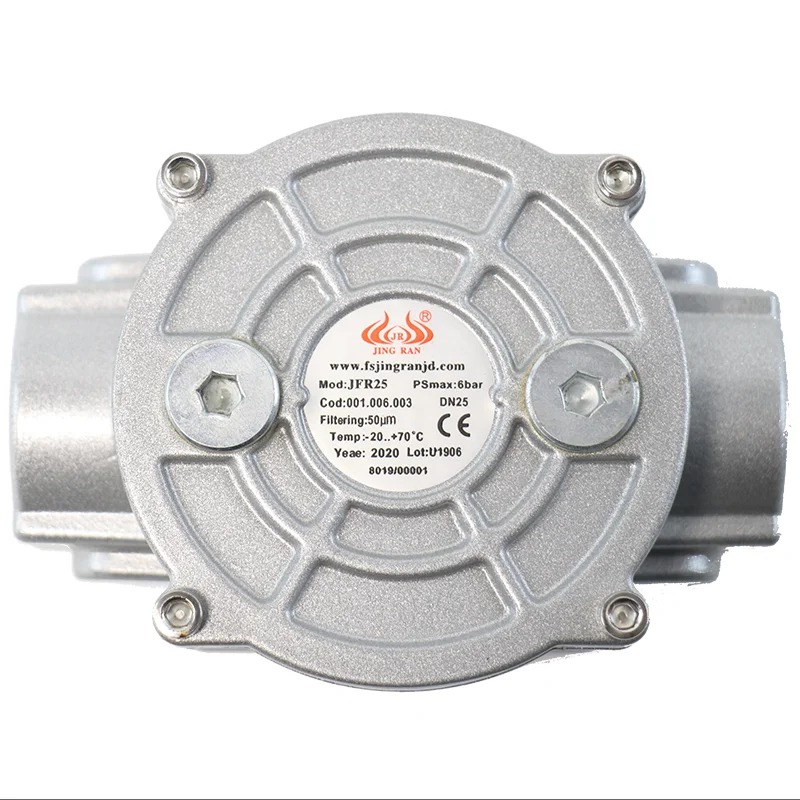

| JFR25 | DN25 | Thread | ≤50 μm | 8000 | 6bar |
| JFR40 | DN40 | Thread | ≤50 μm | 14700 | 6bar |
| JFR50 | DN50 | Thread | ≤50 μm | 23000 | 6bar |
| JFR80 | DN80 | Flanged | ≤50 μm | 45000 | 6bar |
| JFR100 | DN100 | Flanged | ≤50 μm | 66500 | 6bar |
| JFR125 | DN125 | Flanged | ≤50 μm | 15660 | 6bar |
| JFR150 | DN150 | Flanged | ≤50 μm | 15660 | 6bar |
