Biaxial Polyester Geogrid Plastic fence net anti bird netting fruit tree protection net
- Category: >>>
- Supplier: Anhui Zhonglu Engineering Materials Co. Ltd.Anhui Ltd.
Share on (1601194217061):
Product Overview
Description

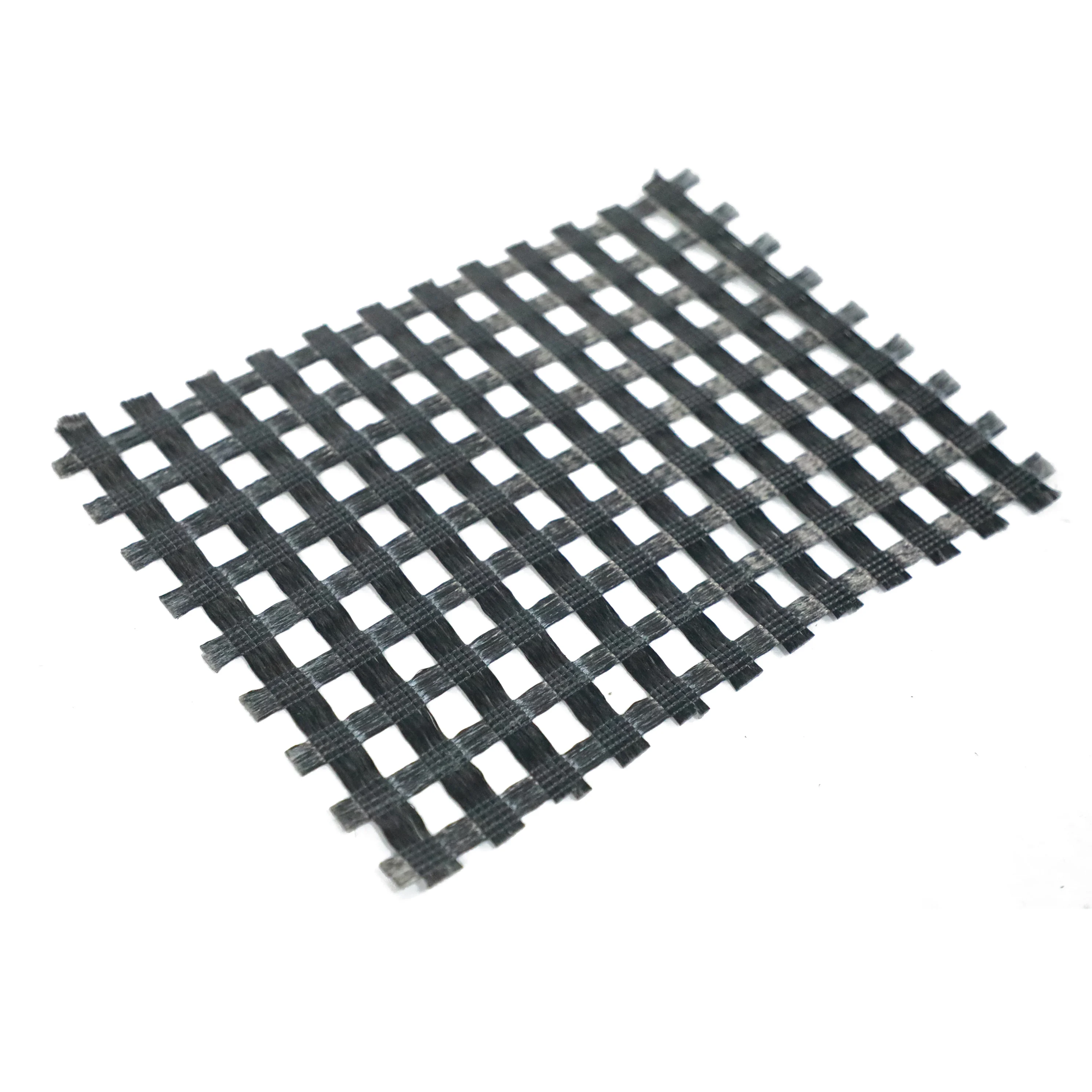

Product Description

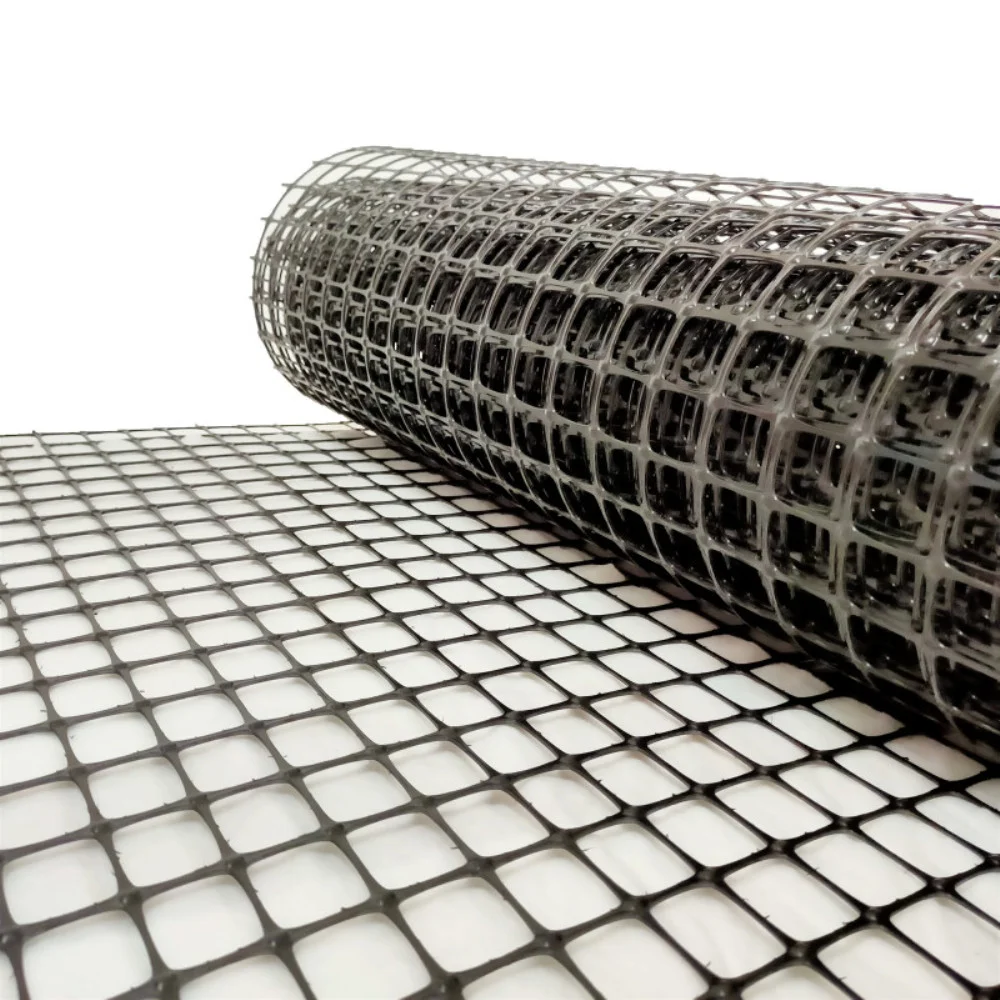

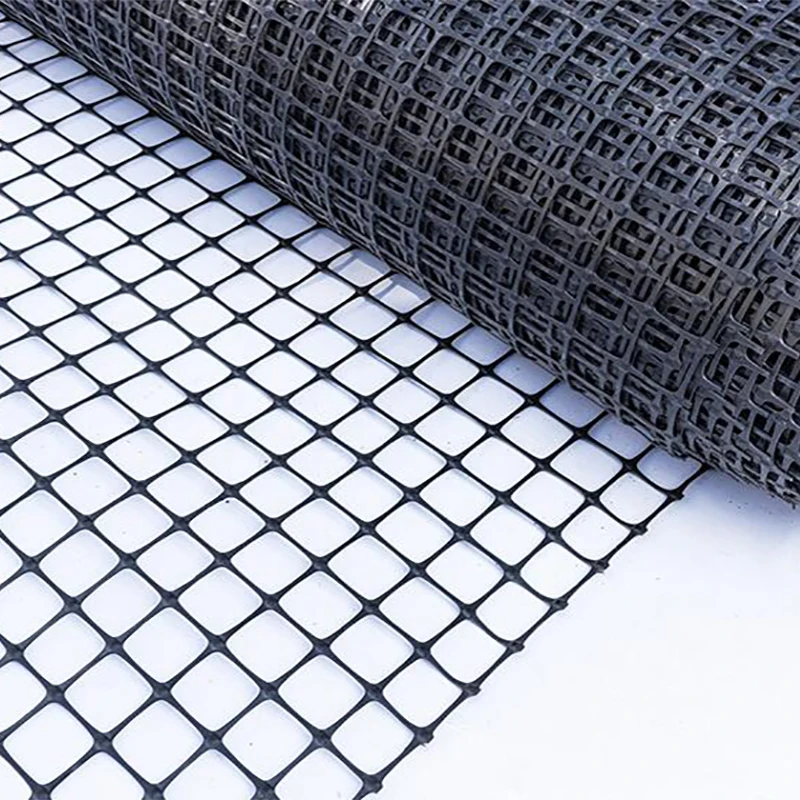

1. PP Biaxial Plastic Geogrid is made from PP resin as its raw material, produced through extruding, punching, heating,
longitudinal stretching, transverse stretching.
2. Performance: High tensile strength at both longitudinal & transverse dire.
3. Main type: 15-15, 20-20, 25-25, 30-30, 40-40, 50-50
Specification
Index for PPBG30-30 | Test method | Units | MD values | TD values |
Polymer | - | - | PP | - |
Minimum carbon black | ASTM D4218 | % | 2 | - |
Tensile strength @ 2% Strain | ASTM D6637 | kN/m | 10.5 | 10.5 |
Tensile strength @ 5% Strain | ASTM D6637 | kN/m | 21 | 21 |
Ultimate Tensile Strength | ASTM D6637 | kN/m | 30 | 30 |
Strain @ Ultimate Strength | ASTM D6637 | % | 13 | 13 |
Structural Integrity | ||||
Junction Efficiency | GRI GG2 | % | 90 | 90 |
Overall Flexural Rigidity | ASTM D1388 | mg-cm | 3,930,000 | |
Aperture Stability | COE Method | mm-N/deg | 1432 | |
Dimension | ||||
Aperture Dimensions | - | mm | 36 | 34 |
Minimum Rib Thickness | ASTM D1777 | mm | 2.1 | 1.8 |
Roll width | m | 3.95 | ||
Roll length | m | 50 |

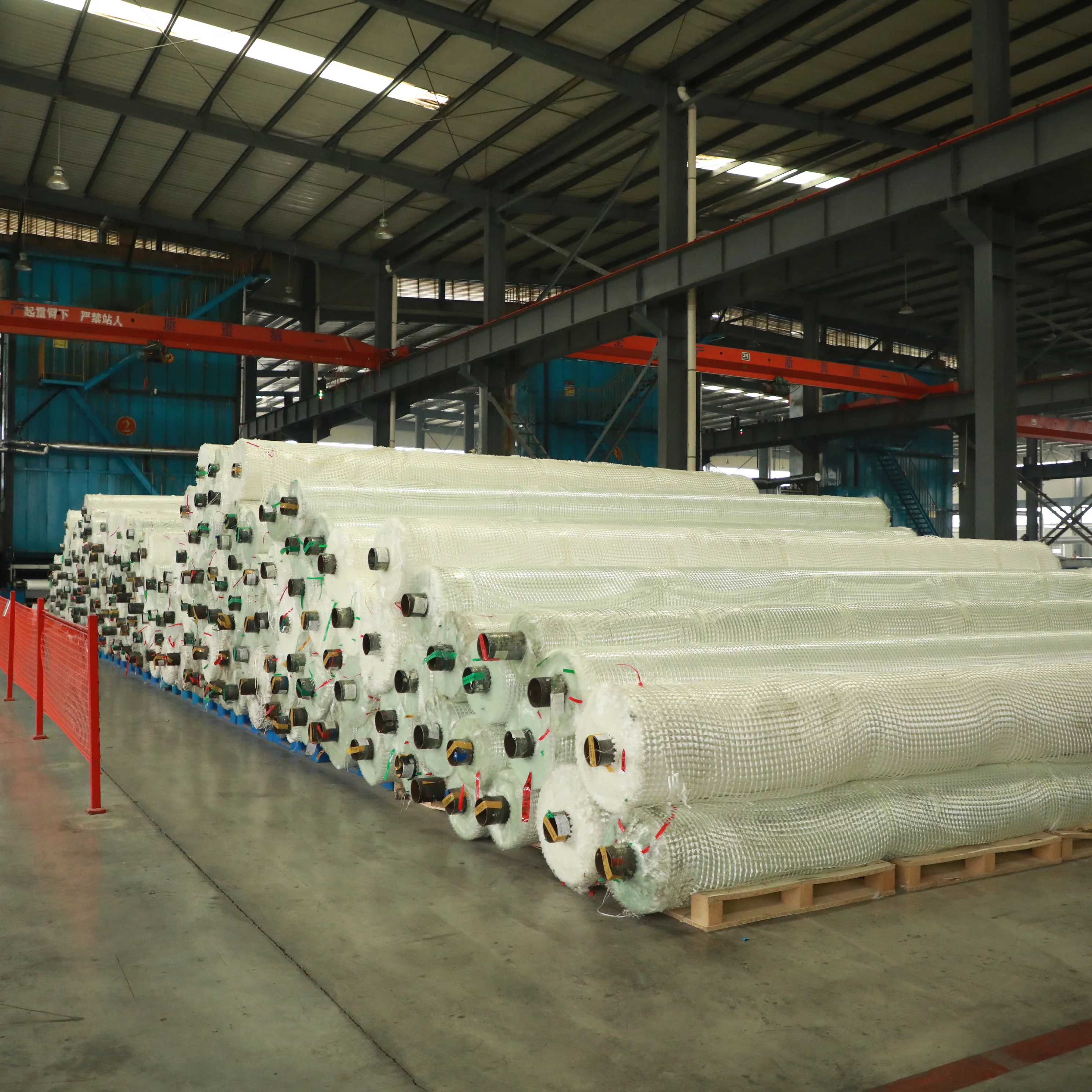

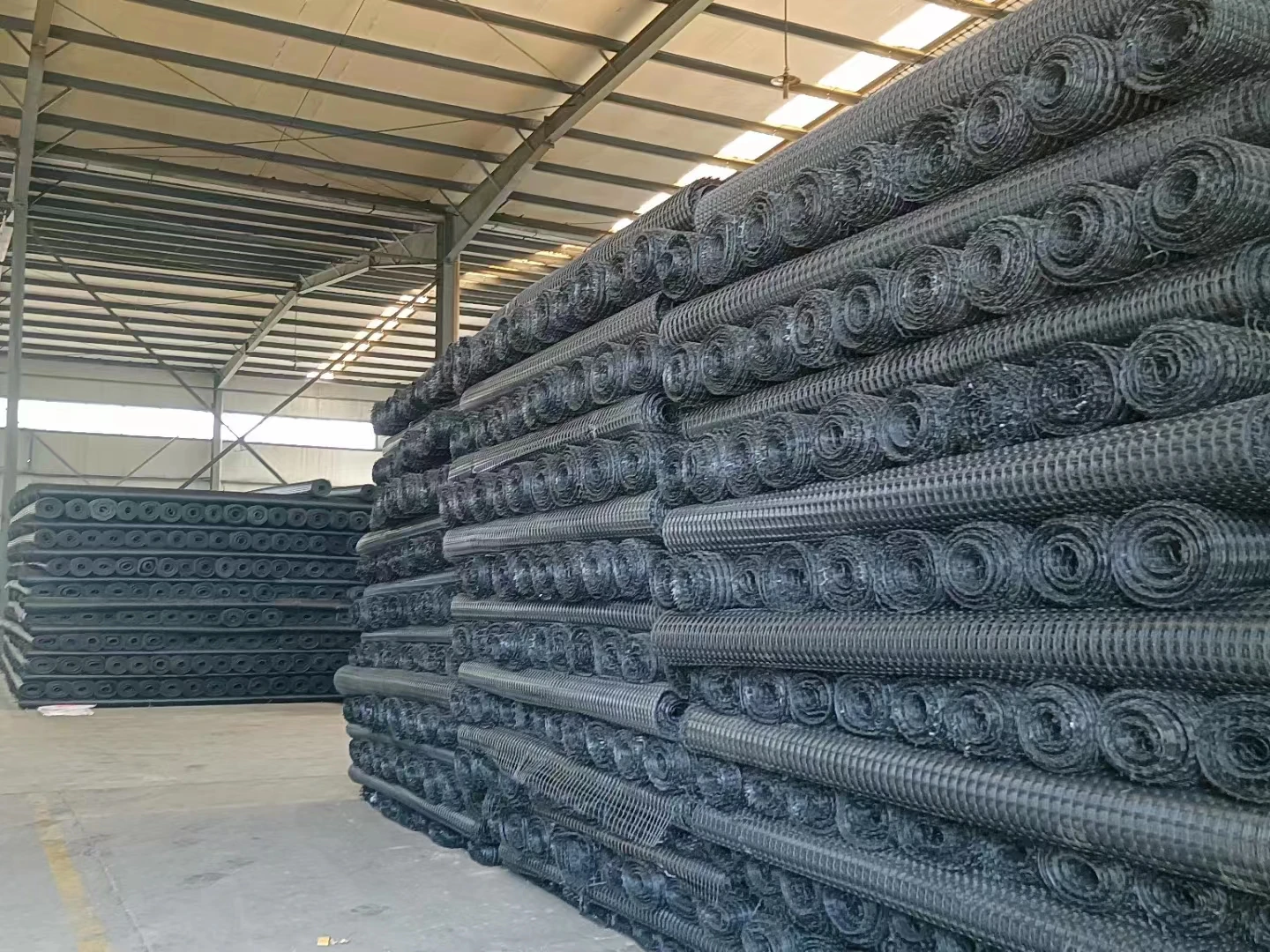

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

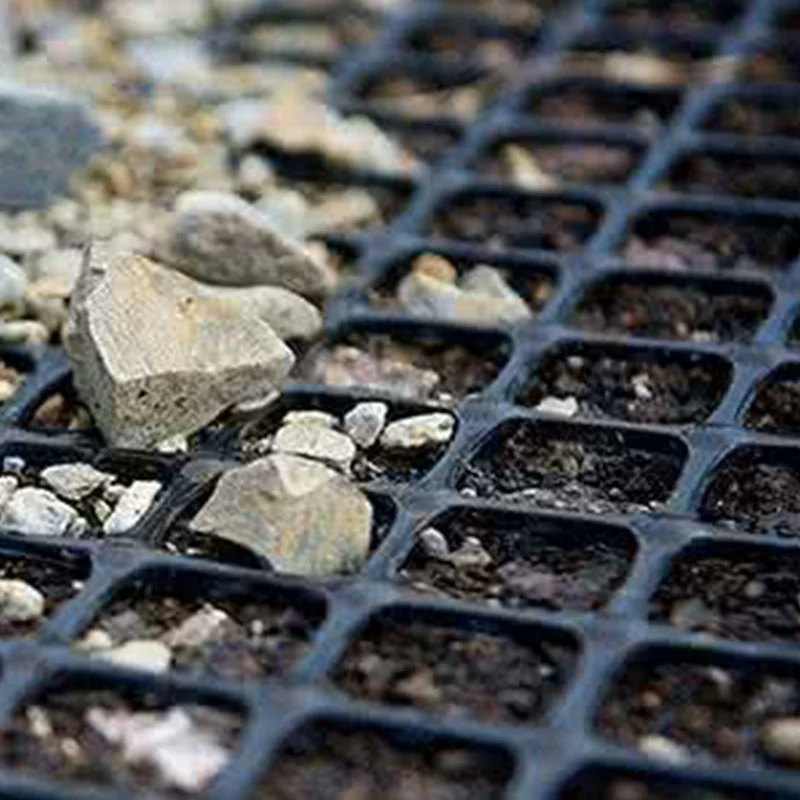

Application
Soft foundation reinforcing for highway, railway, Slop protecting projects, landfill side
Function:1. Improve the bearing capacity of foundation;
2. Preventing cracking and subsiding;
3. Convenient to construct, reducing cost and maintaining expense
