Price:$1,750.00-1,900.00

Quantity:


Product Overview

Description







Model
Number of filter cartridgesAir volume
(m³/h)
Number of filter cartridges（branch）
Fan power（KW）
Dimensions(mm)(L×W×H)
QLLT-2
2000
2
2.2
800*600*1700
QLLT-2.5
3000
2
3
800*600*1700
QLLT-4
3000
4
3
800*800*1700
QLLT-4.5
4000
4
4
800*800*1700
QLLT-4.8
5000
4
5.5
1000*1000*1900
QLLT-4.9
6000
4
5.5
1000*1000*2100
QLLT-5
6000
6
5.5
1200*1000*2100
QLLT-6
8000
6
7.5
1200*1000*2150
QLLT-7.8
8000
9
7.5
1200*1200*2150
QLLT-9
10000
9
11
1200*1200*2300




product description。

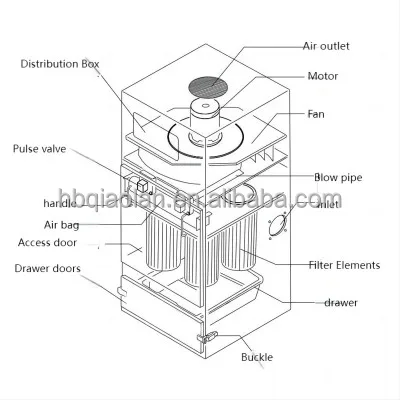

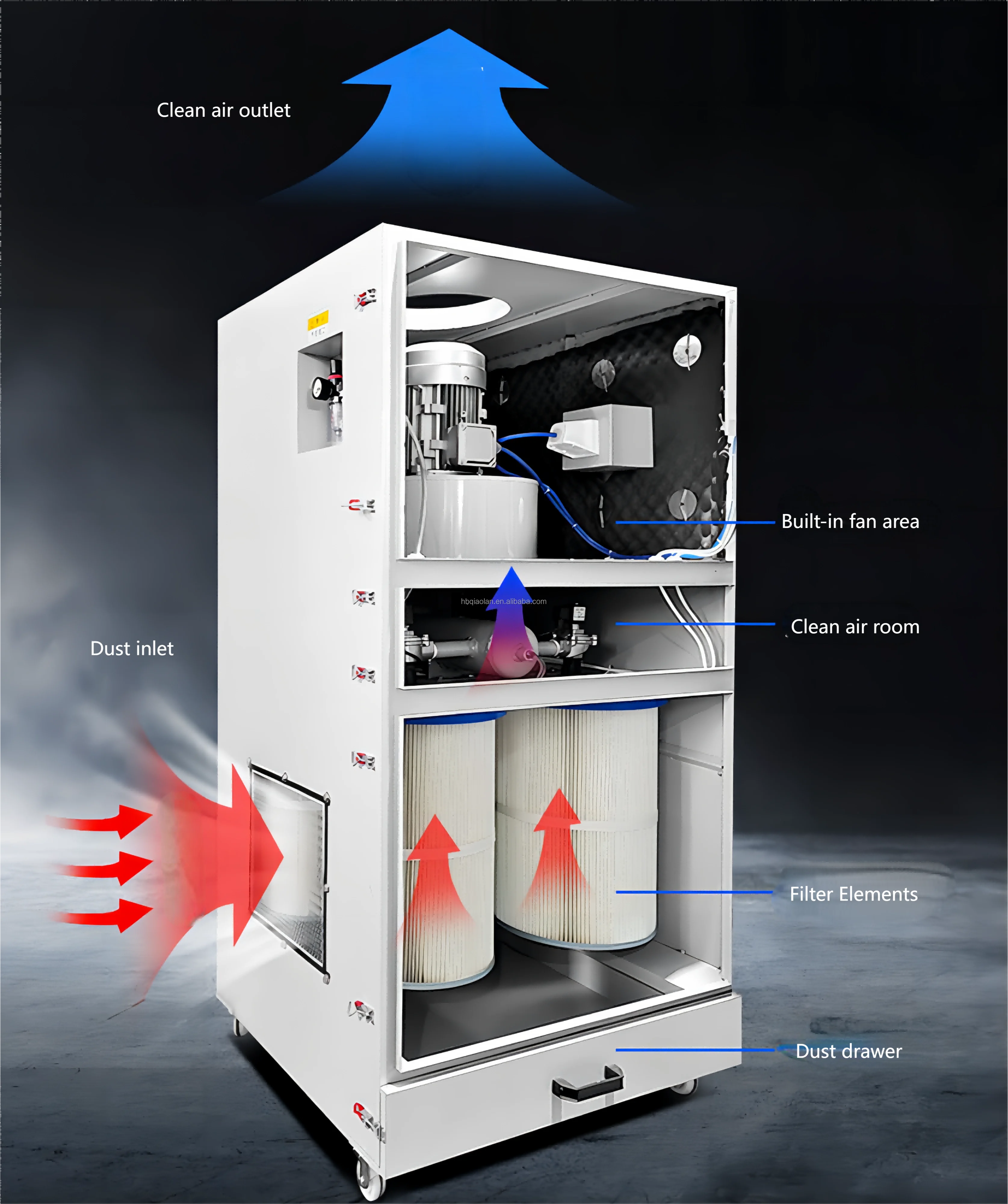

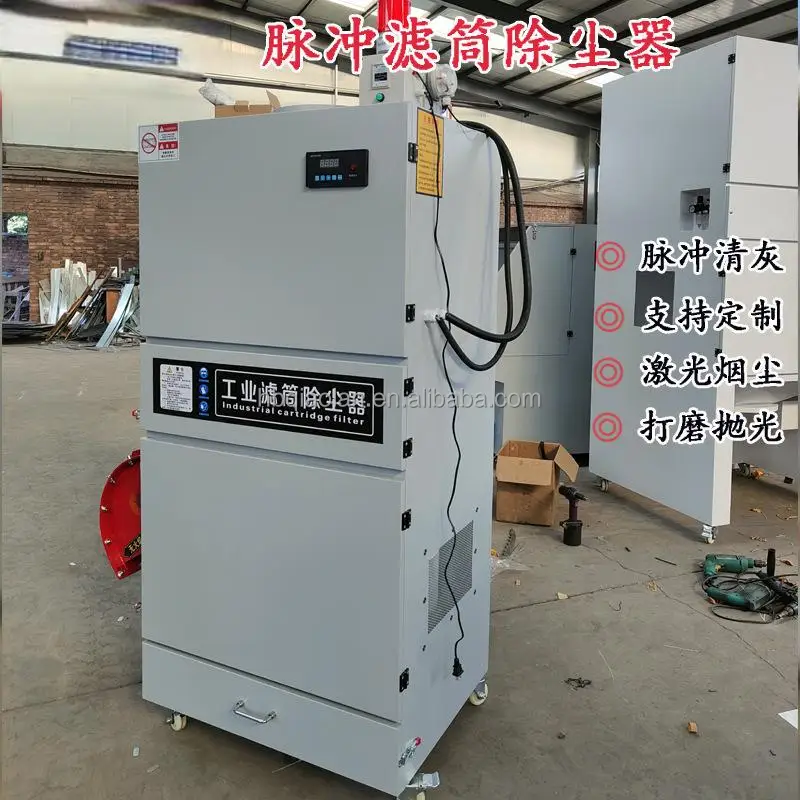

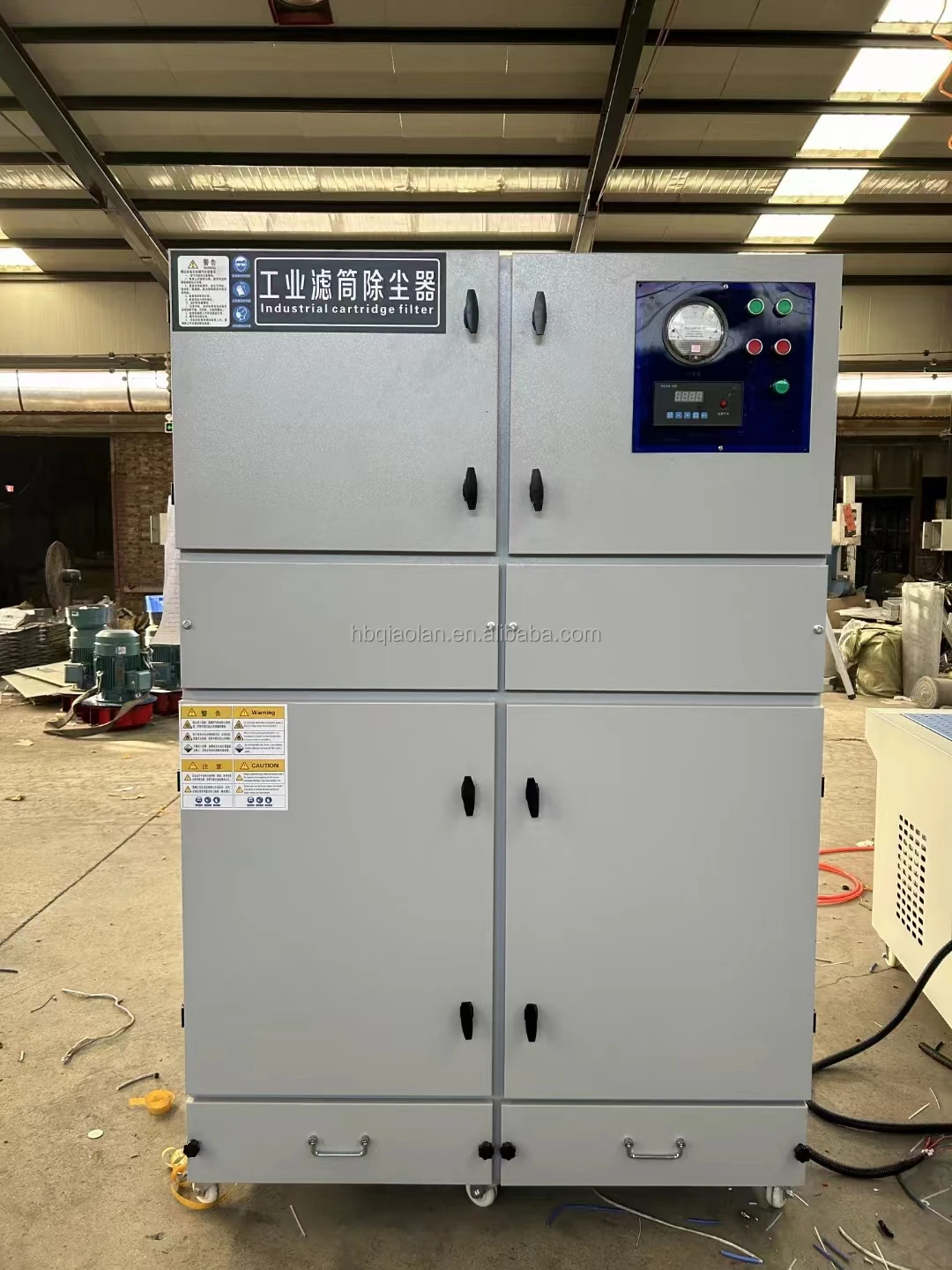

The smoke and dust pass through the negative pressure generated by the filter cartridge dust collector and enter the cavity through the pipeline. The flow rate slows down and the dust with large particle diameter falls down. The airflow containing fine dust enters the purification room. The filtration and separation of dust is completed in the purification room through the separation effect of the filter cartridge. The smoke and dust are blocked on the surface of the filter element. The purified air is discharged through the fan. When the blocked smoke and dust continue to deposit on the surface of the filter element, the pulse ash system is regularly turned on to clean the filter element.

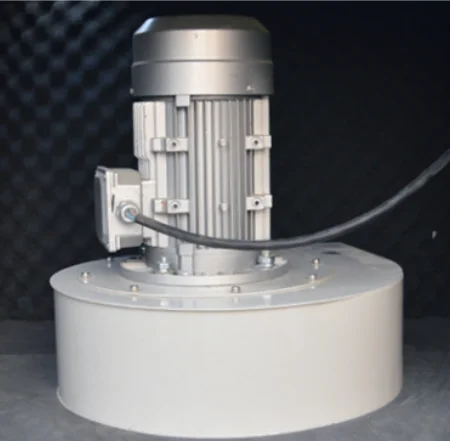

01.Copper core motor
Pure copper motor, reliable quality, stable output, strong power, good dust collection effect and long life

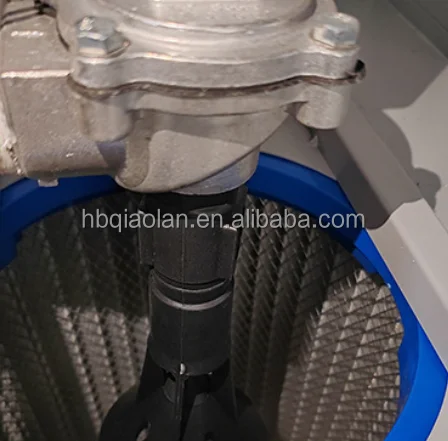

02.Built-in pulse cleaning system
24V pulse system, pulse back-blowing filter element, can realize automatic cleaning

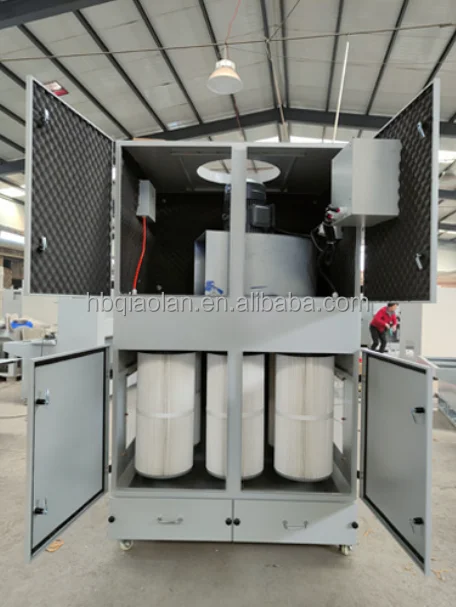

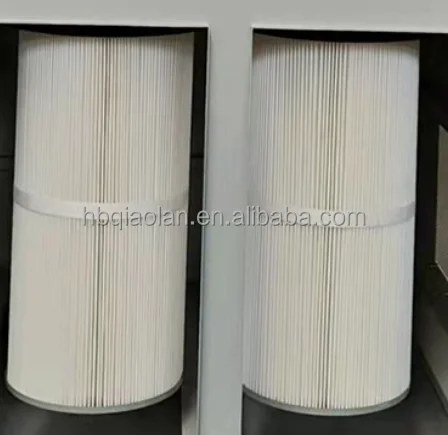

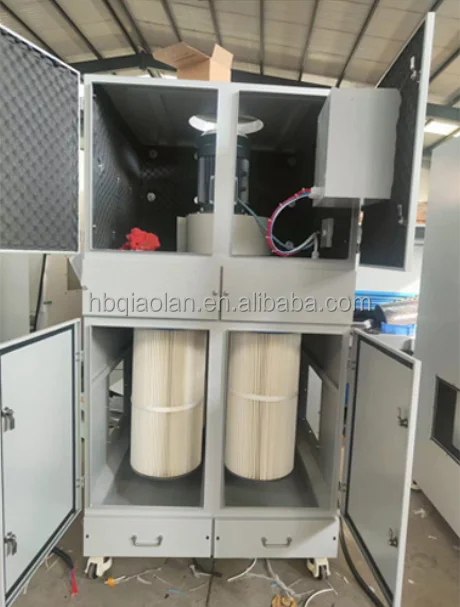

03.Large size filter cartridge
The filtration accuracy of ordinary filter cartridge is above 5 microns; anti-static filter material effectively reduces static electricity generated by dust friction

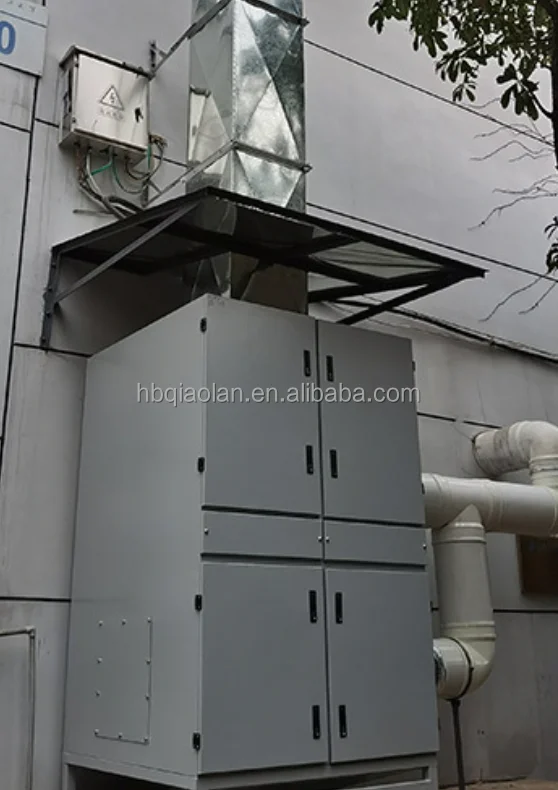

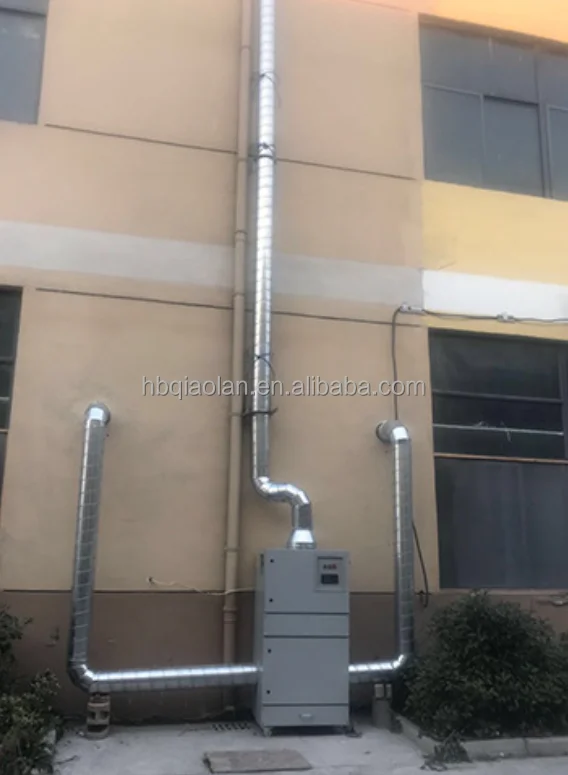

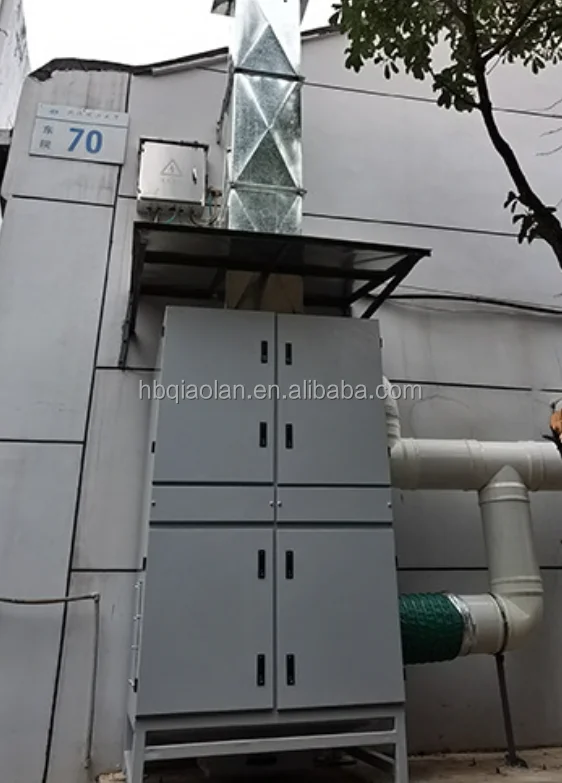

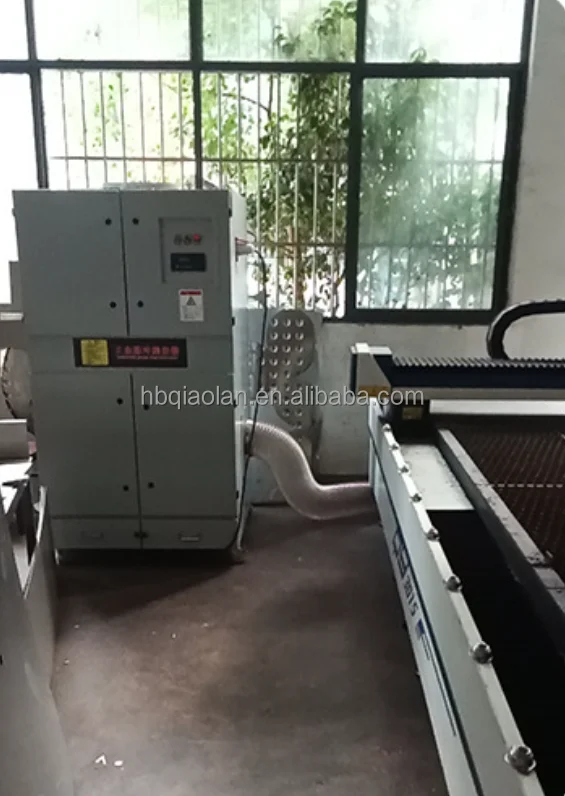

Practical application cases

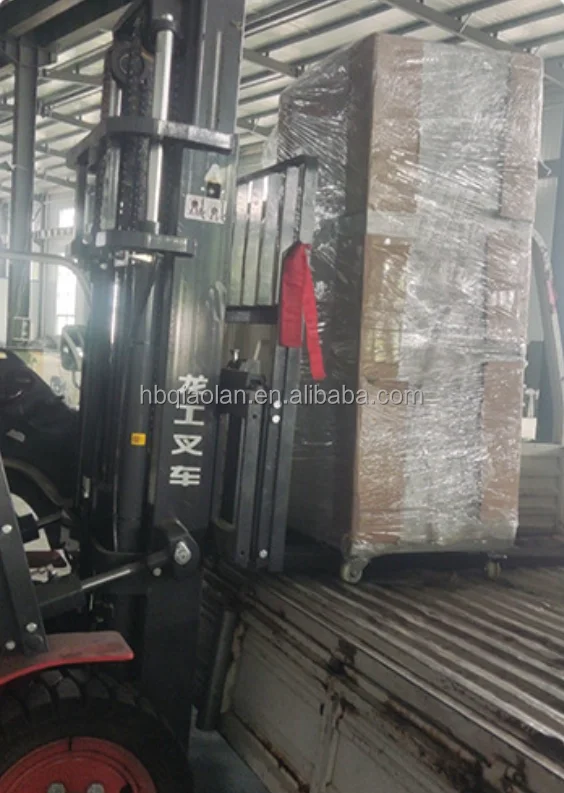

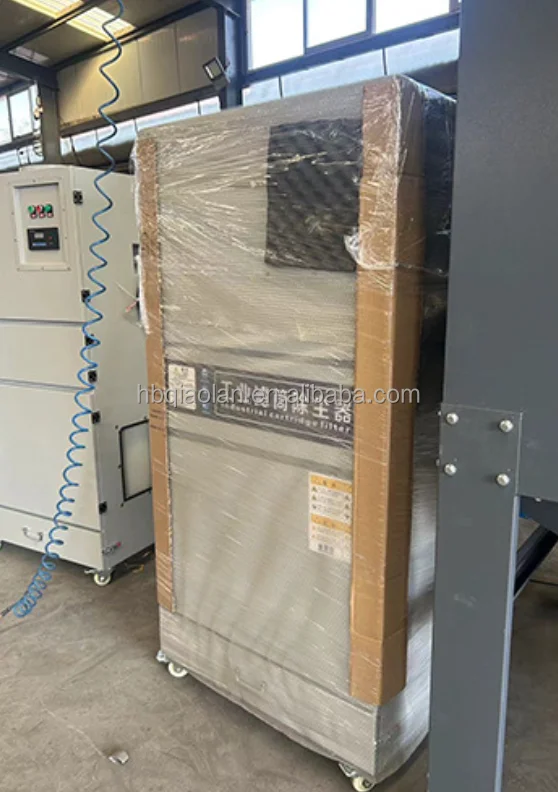

Shipping and logistics packaging



























Q1:Are you a factory or trading company?
A1:We are a professional manufacturer of industrial vacuum cleaners and dust collectors in China with a history of more than 30 years.

Q2:How about the quality of your machines?
A2：We have our own research and development team, experienced technicians and professional staff, and we pay attention to every detail in manufacturing to ensure the high quality of the machine.

Q3:Can you make customized products?
A3:Yes, we can produce according to your sample or detailed drawings.

Q4:What are your terms of payment?
A4:Telegraphic transfer/Western Union/cash, 70% deposit, 30% balance paid before delivery, sight letter of credit is acceptable.

Q5 :Where is your factory located? How can I visit there?
A5:Our factory is located in Botou City, Hebei Province, China, near to the Beijing.There are two ways to get to our company.
1,Fly to Beijing airport, take the high-speed train from Beijing south to Cangzhou West (1 hour), then we can pick you up.
2, Fly to Shanghai Airport, take the high-speed train from Shanghai Hongqiao to Cangzhou West (4.5 hours), then we can pick you up.

Q6: Where is the nearest port to you?
A6: Our nearest port is Tianjin Port, other ports can also deliver goods.

Q7 :How can I contact you?
A7: Please look at my business card and feel free to talk to me. Or send an email and I will reply you within 24 hours with the best solution and price to you.
