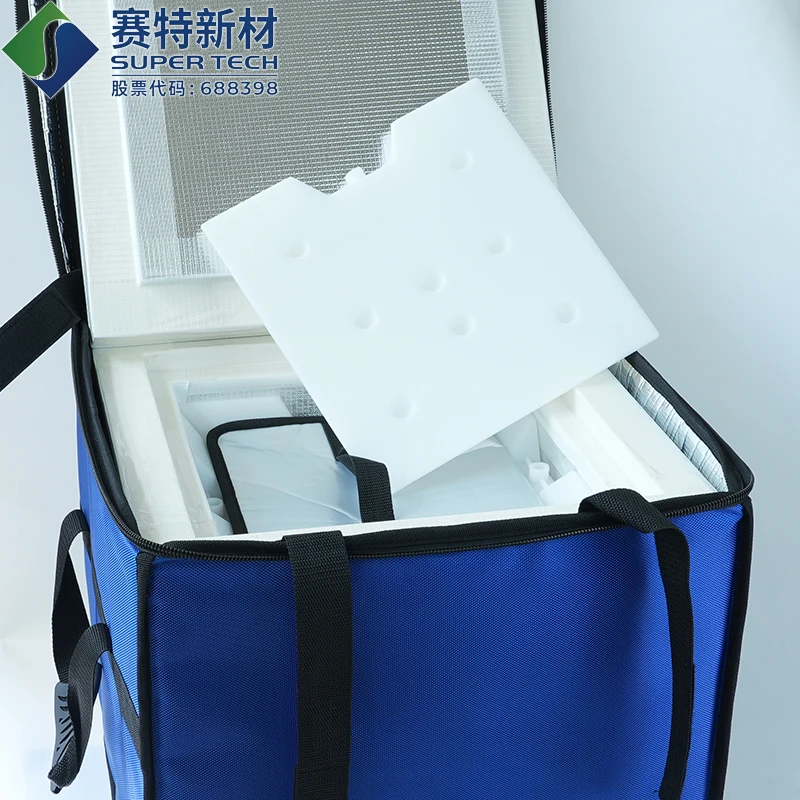

Insulated Cold Box for 72 Hour Duration for Vaccine Food Medicine and Cold Chain Transport Cooler Bags Product for Beach Use
- Category: >>>
- Supplier: Fujian Supertech Cold Chain Technology Co. Ltd.
Share on (1601194366325):
Product Overview
Description
Production Introduction

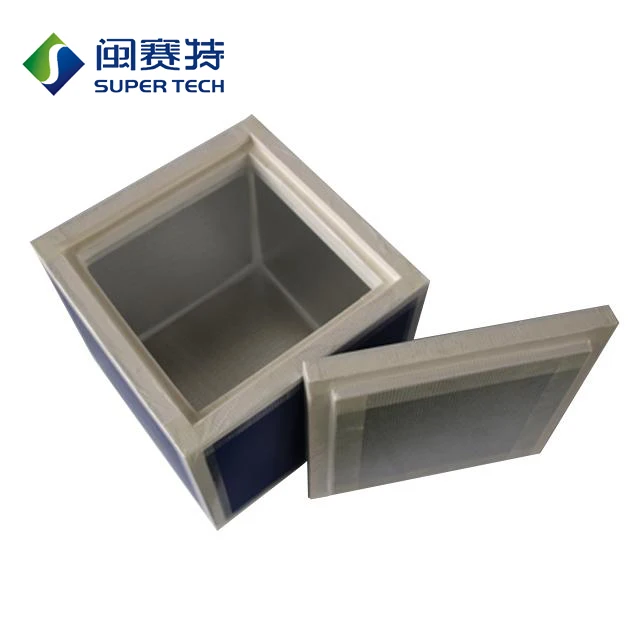

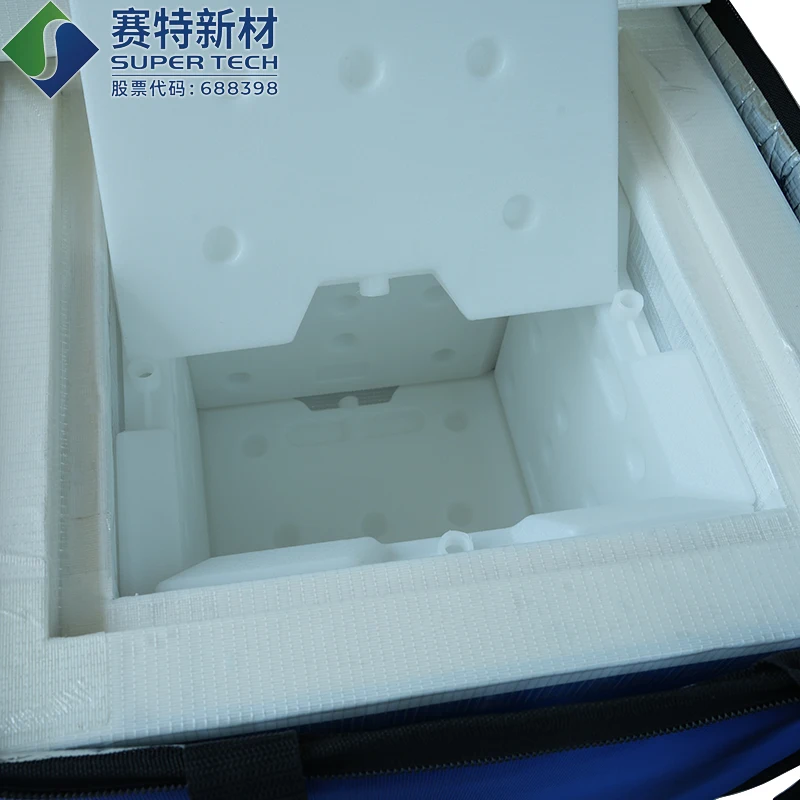

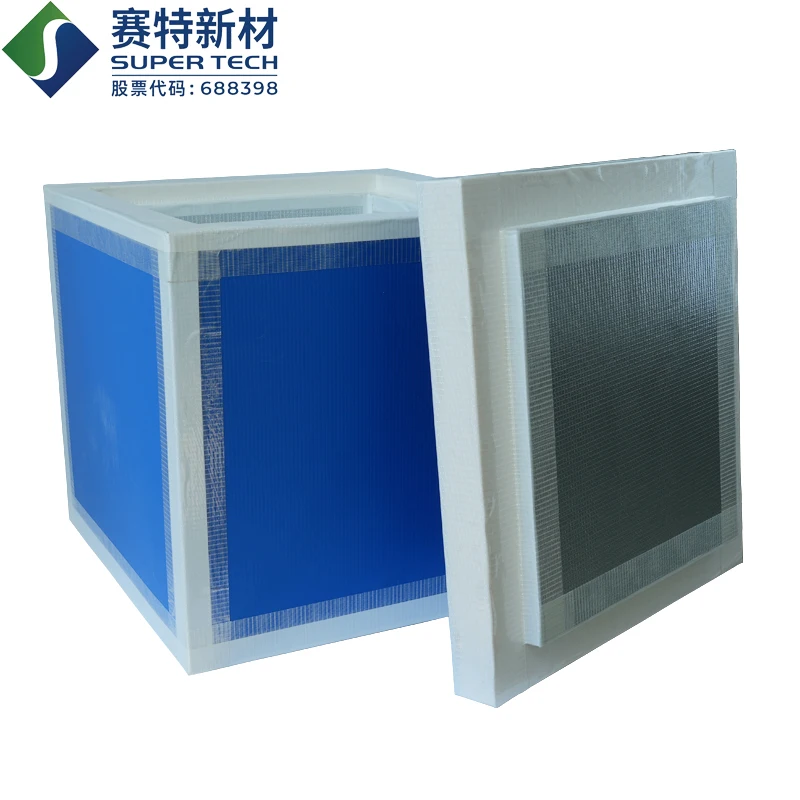

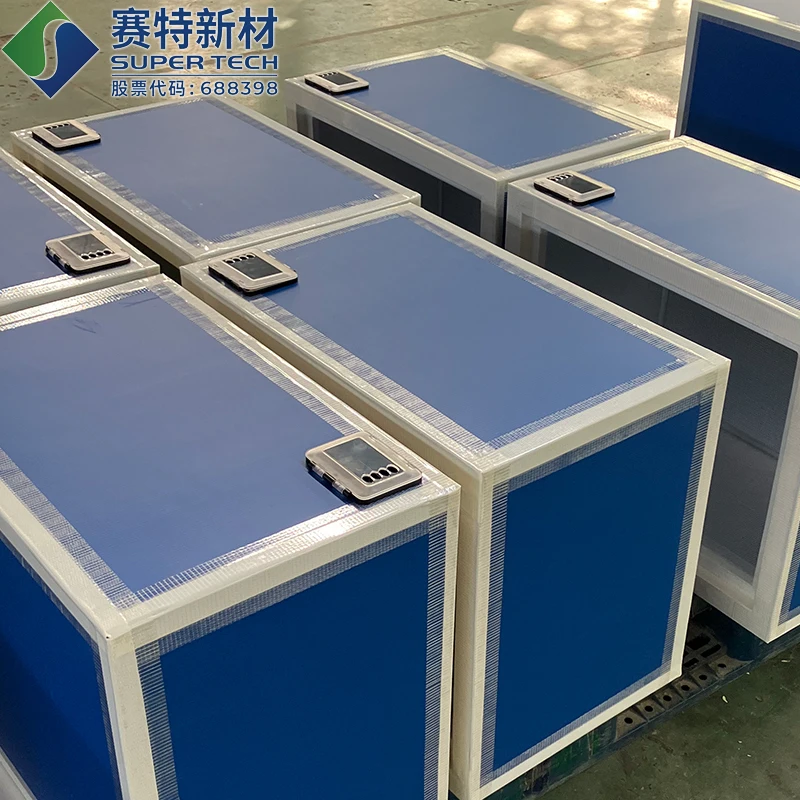

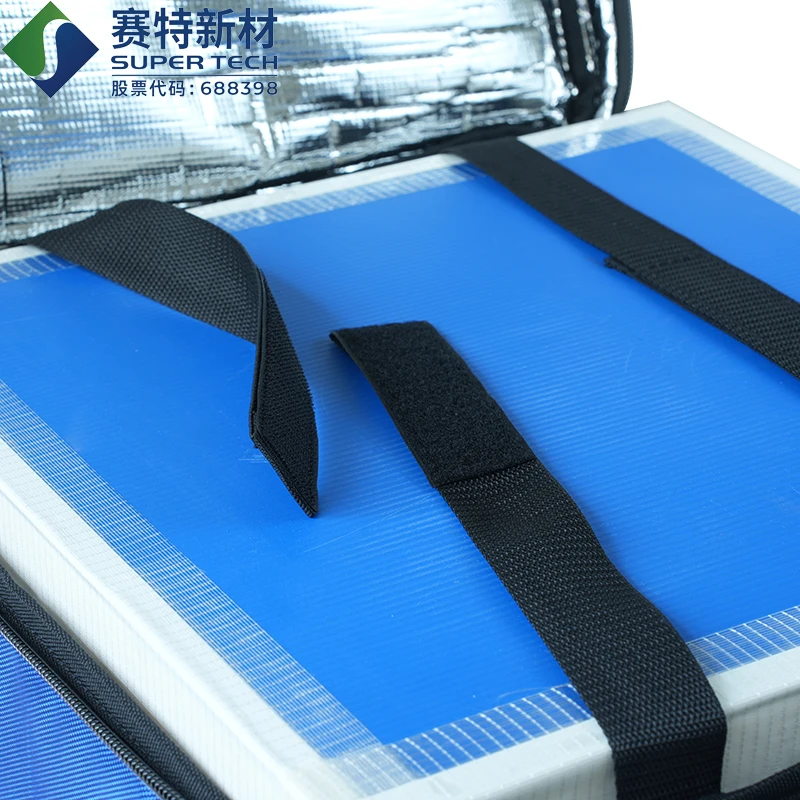

Combined PU-VIP Cooler Box
[Key Features]
Material Structure: Comb Honey Sheet + PUV + Aluminium coating woven roving
Comply with GSP regulation
Good insulation performance: more than 120h duration time
Cost effective: under the same insulation requirements, the amount of coolant is less
Good insulation stability: based on high efficiency vacuum insulation panel, the attenuation is slow
Energy saving and environment protection: Repairable and recyclable, environmental protection and pollution free
Operating Environment: [-30~60℃]
Customized size
Optional Component: Surface Material, PCM coolant, Temperature display system, Bluetooth printer, cloth bag
Comply with GSP regulation
Good insulation performance: more than 120h duration time
Cost effective: under the same insulation requirements, the amount of coolant is less
Good insulation stability: based on high efficiency vacuum insulation panel, the attenuation is slow
Energy saving and environment protection: Repairable and recyclable, environmental protection and pollution free
Operating Environment: [-30~60℃]
Customized size
Optional Component: Surface Material, PCM coolant, Temperature display system, Bluetooth printer, cloth bag
[Application]
Cold chain transportation for pharmaceuticals, vaccines, fresh, food etc.
[Products Parameters]
Box Type | Internal Size (mm) | External Size (mm) | Internal Volume (L) | Box Weight (kg) | Insulation Interval （℃) | Insulation Time | Remark |
STZH-V13 | 222*295*200 | 332*405*310 | 13.1 | 5.85 | 15~25 ↓ 10~20 ↓ 2~8 ↓ -1~3 ↓ -15~-25 | ＞24h ↓ ＞48h ↓ ＞72h ↓ ＞96h ↓ ＞120h | Size is customized |
STZH-V30 | 345*345*256 | 425*425*336 | 30 | 6 | |||
STZH-V49 | 365*365*365 | 445*445*455 | 46 | 7.7 | |||
STZH-V66 | 492*376*358 | 572*456*438 | 66 | 9.3 | |||
STZH-V91 | 450*450*450 | 550*550*550 | 91 | 12.5 | |||
STZH-V100 | 540*490*375 | 630*580*465 | 100 | 12.9 | |||
STZH-V137 | 515*515*515 | 615*615*615 | 137 | 14.15 |
Products Details
[Core Materials]

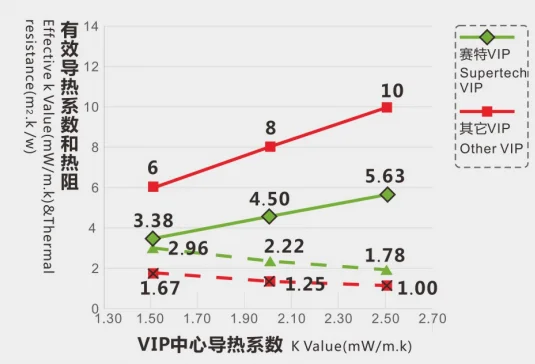

[Vacuum Insulated Panel]
As a technologically advanced product that provides extremely low thermal conductivity, VIP consists of core
materials(fiberglass), Barrier/film (envelope) and getter.
Leading in the domestic VIP production, Supertech VIP's thermal conductivity can reach as low as 1.5mW/m.k in bulk.
materials(fiberglass), Barrier/film (envelope) and getter.
Leading in the domestic VIP production, Supertech VIP's thermal conductivity can reach as low as 1.5mW/m.k in bulk.

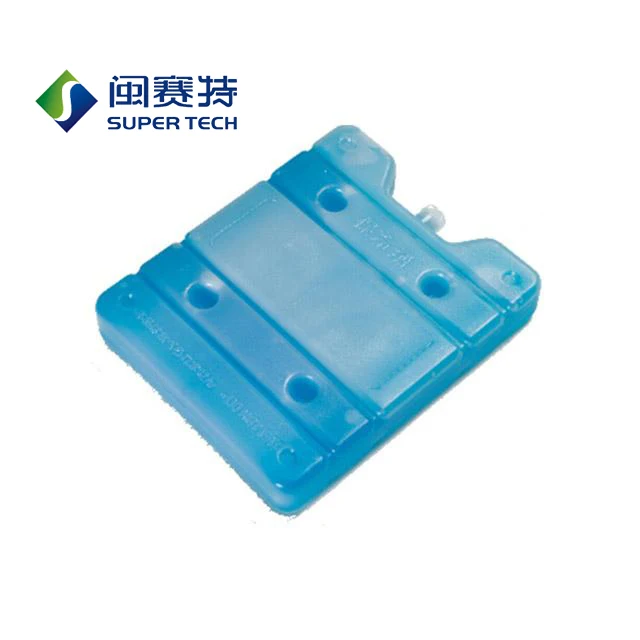

[Phase Change Material]
Our efficient coolant has great latent heat, sufficient cold storage energy, no salting out and supercooling phenomenon, good
thermal stability, smooth phase transition temperature, ow coefficient of thermal expansion; no corrosive and toxic. Cost
effective and can be used repeatedly.
thermal stability, smooth phase transition temperature, ow coefficient of thermal expansion; no corrosive and toxic. Cost
effective and can be used repeatedly.

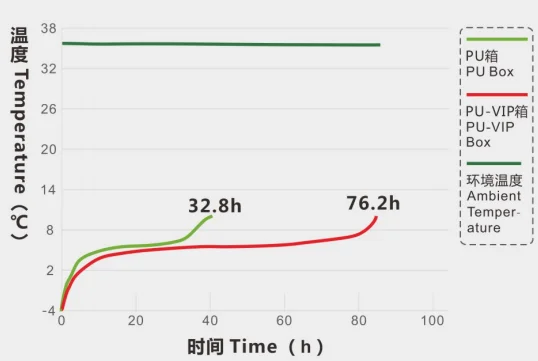

[Insulation Test]
On the condition of 48L interior volume, 40mm thickness of insulation layer, the same weight of coolant and harsh environment of 35℃, test for 2~8℃ heat preservation time is shown below.

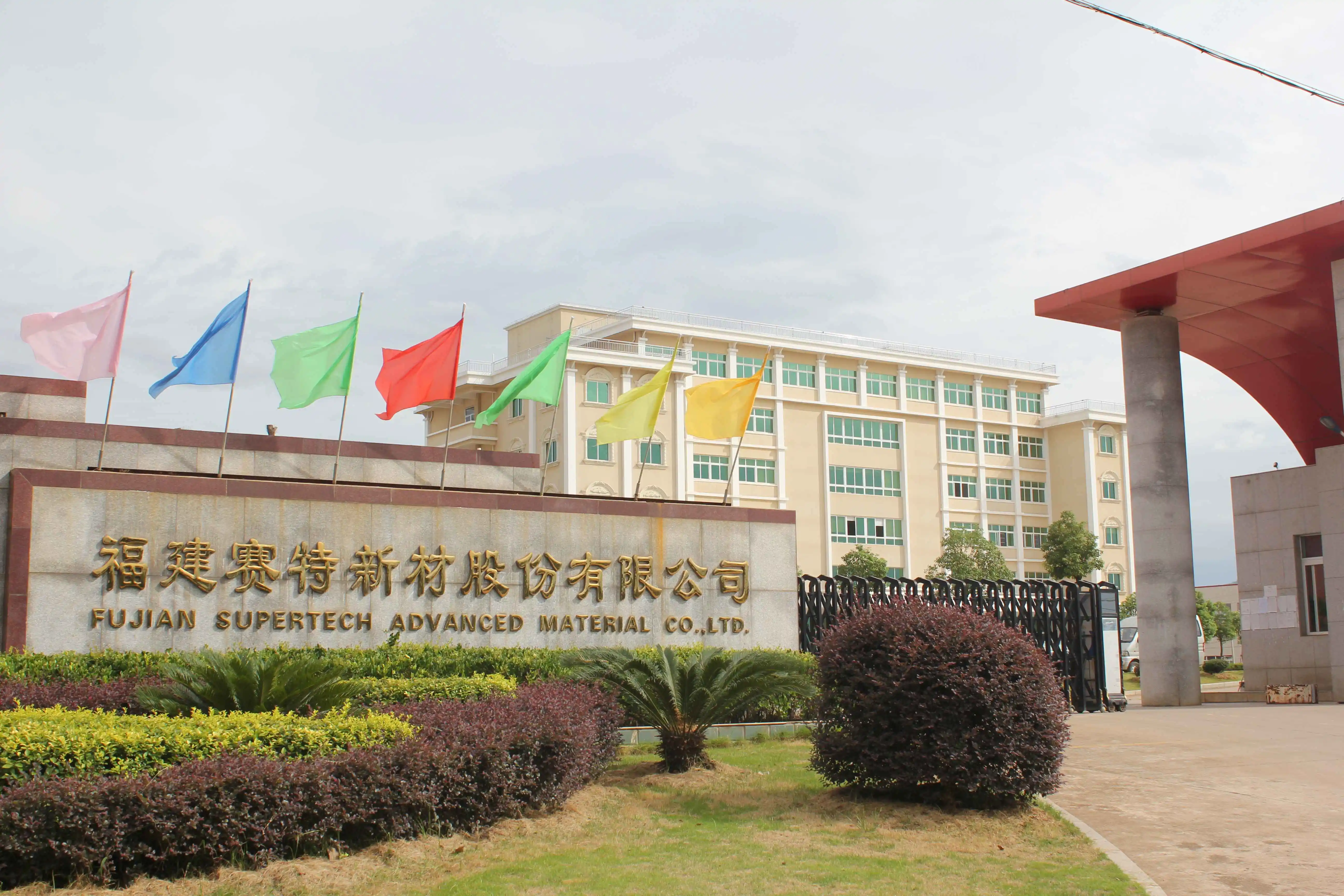

Company Profile
Company Profile
[Company Introduction]
Supertech Cold Chain provides a leading and efficient transportation solutions. Including High performance vacuum insulated box, refrigerator car, PU-VIP Thermal insulation layer for container, wireless GPRS temperature record service technology, PCM phase change material technology, they not only control temperature accurately, but also reduce energy consumption and extend the heat preservation time. Make sure your samples transport in a reliable and safe environment.
[Our Partners]
Why Choose Us
[About Us]
We are the largest VIP panel manufacturer in China, with more than 10 years experience and almost 80 acre factory land
[Equipment & Technology]
We have professional R&D team, A-Z production line, test and QC equipment, etc.
[Service]
We have professional after sale service team, who have more than ten years experience

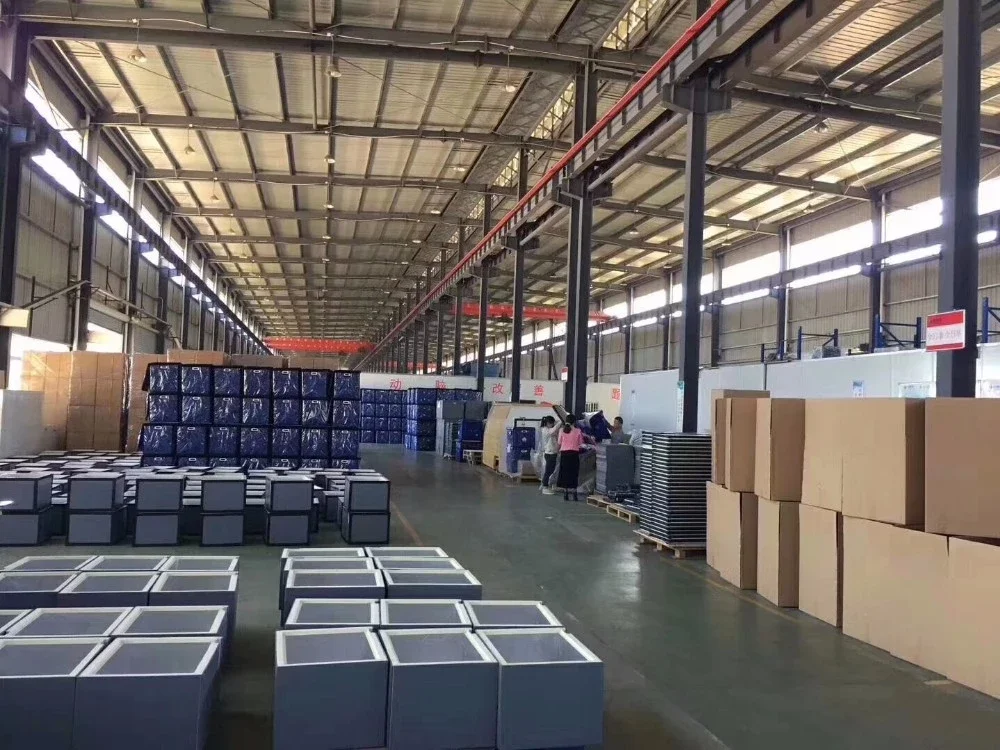

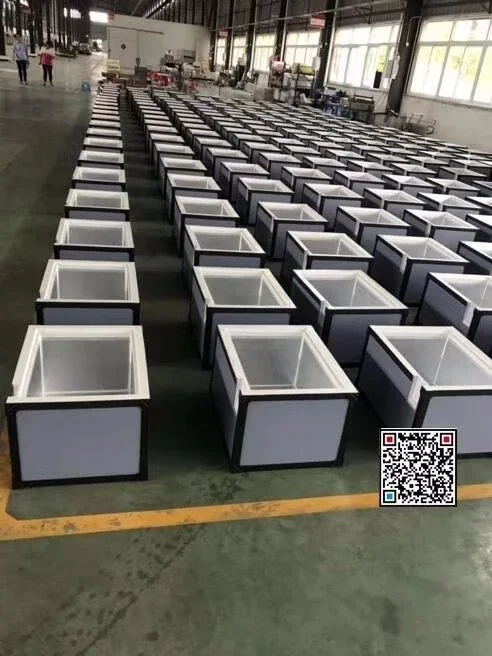

Product Processing
Product Packing
FAQ
1. How long can I get feedback when we send enquiry?
-We will reply you in 24 hours in working days.
2. Are you a factory or trading company?
-We will reply you in 24 hours in working days.
2. Are you a factory or trading company?
-We are a factory.
3. Can I get some samples?
-Yes! We are pleased to offer u sample.
-Yes! We are pleased to offer u sample.
4. Can I have customized products?
-Of course. We provide customized service.
-Of course. We provide customized service.
Main Products
Rigid PU foam insulation box
Rigid PU foam series, inside use PU foam with VIP panel, surface use rigid material, such as PP, etc.
Flexible PU foam insulation box
Flexible PU foam series, PU foam with VIP panel, surface use flexible material
Large size cooler system
Cooler series, such as refrigerator container, refrigerator truck, refrigerator car.
