High Quality 2.5HP 5.4HP Price Wholesale 220V 380V Variable Speed Induction Asynchronous Single Phase Electric Motor
- Category: >>>
- Supplier: Hangzhou Ang Drive Co. Ltd.
Share on (1601194415083):
Product Overview
Description
Product Features
High Quality 2.5HP 5.4HP Price Wholesale 220V 380V Variable Speed Induction Asynchronous Single Phase Electric Motor
1. 100% copper winding wires, high quality cold roll silicon steel.
2. Dynamically balanced, original structure and attractive appearance.
3. High efficiency and power factor, energy-saving.
4. Grade of power and mounting measurement are subject to the IEC standard.
5. Standardization of mounting dimensions for interchangeability and case of maintenance.
6. High starting torque, low noise, easy maintenance, etc.
2. Dynamically balanced, original structure and attractive appearance.
3. High efficiency and power factor, energy-saving.
4. Grade of power and mounting measurement are subject to the IEC standard.
5. Standardization of mounting dimensions for interchangeability and case of maintenance.
6. High starting torque, low noise, easy maintenance, etc.
Product Photos

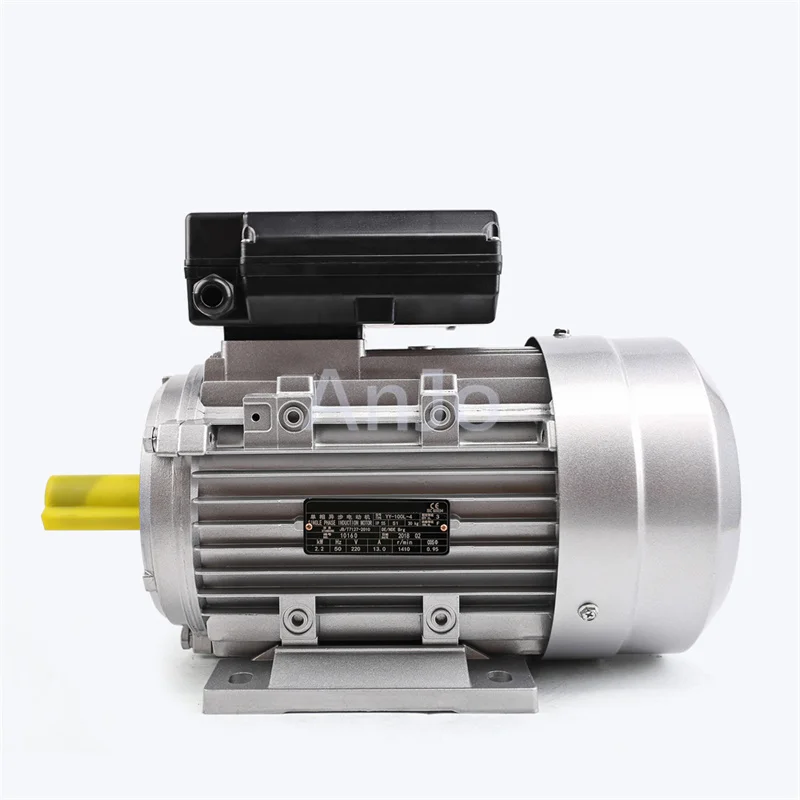

Single phase electric motor

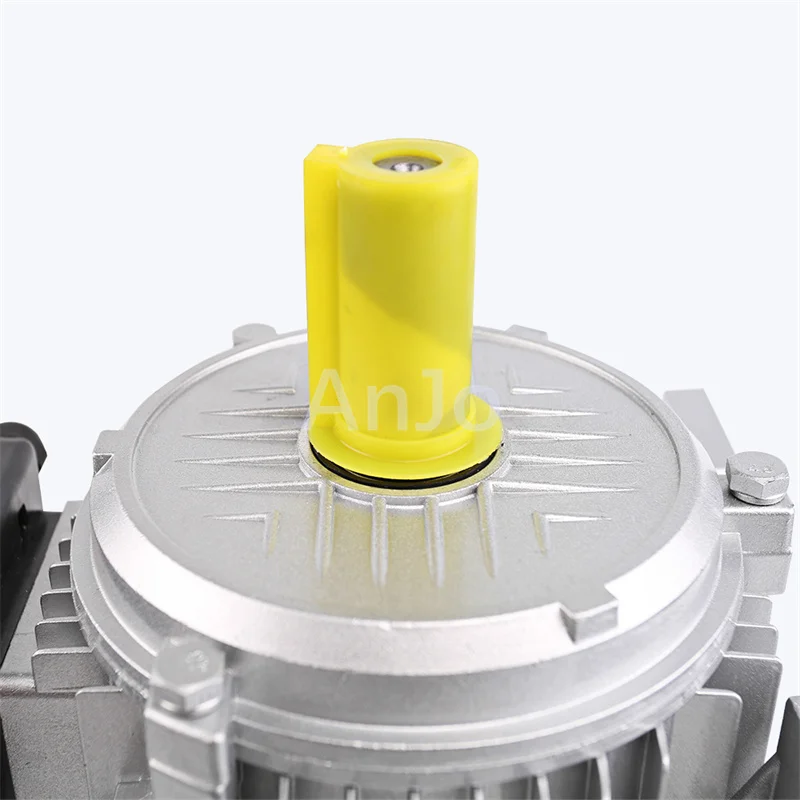

Motor output shaft

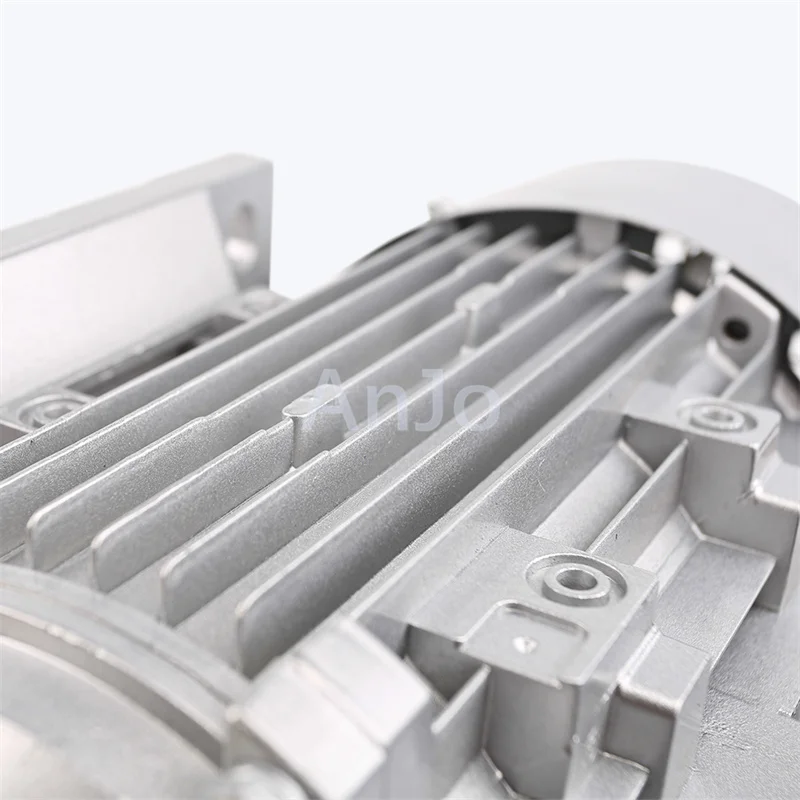

Radiating rib
Motor housing

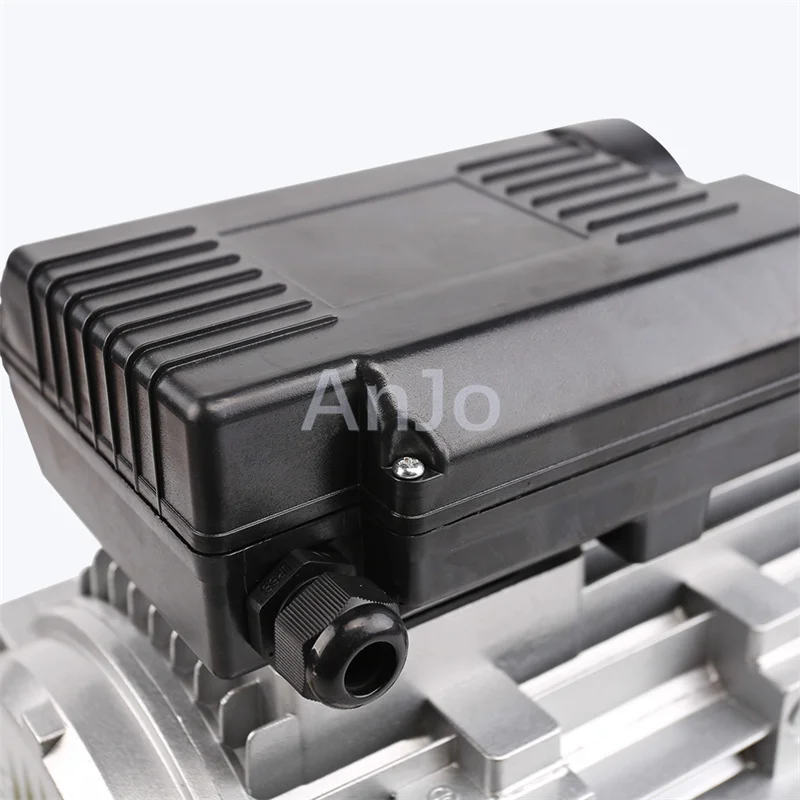

Motor terminal box

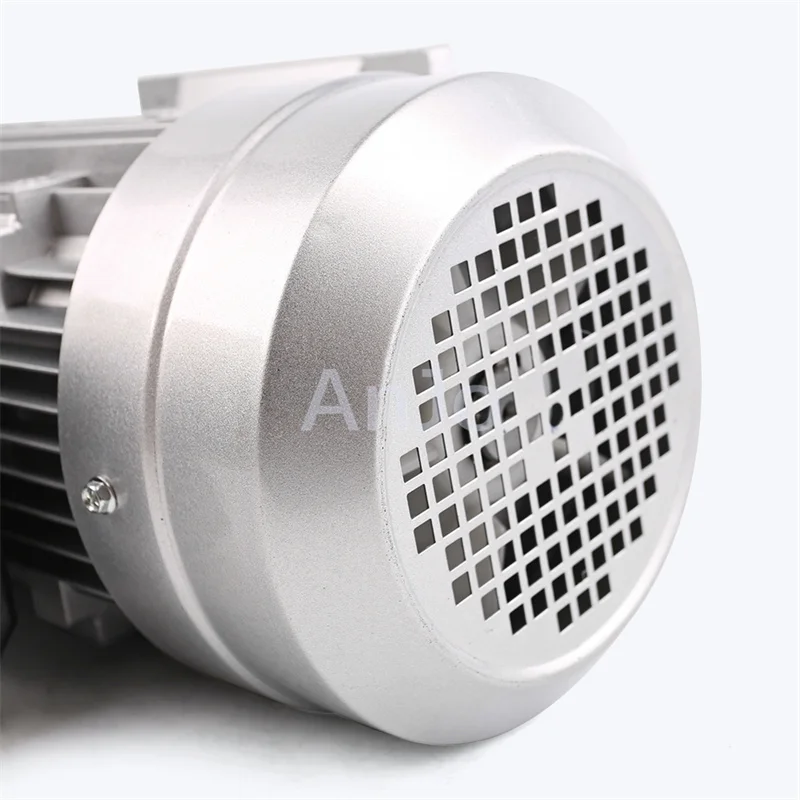

Motor fan cover

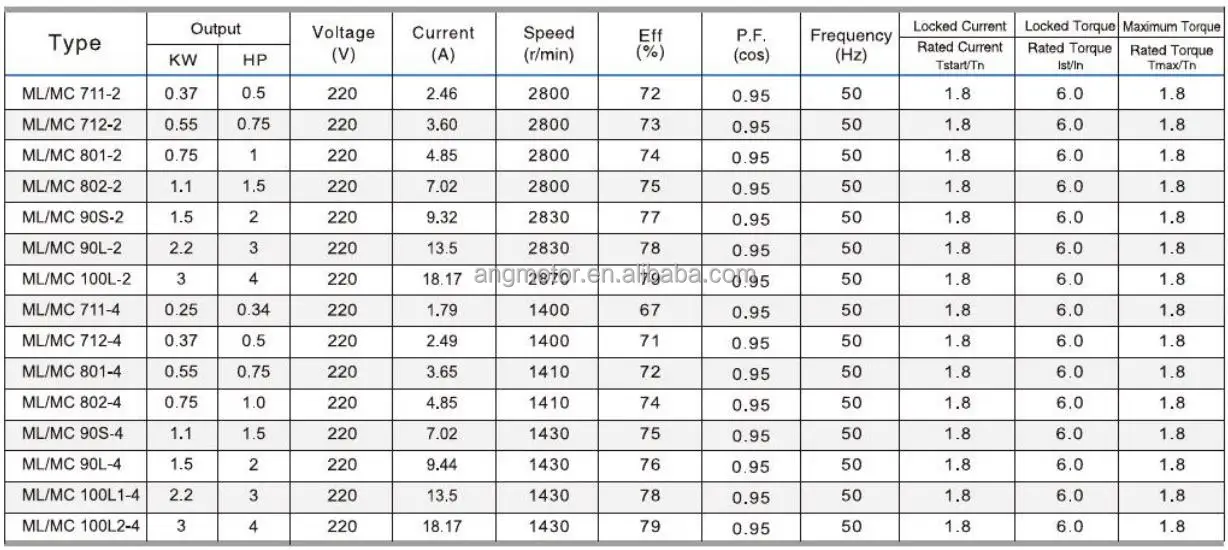

Product Specification
Power | 0.09 ~ 7.5kw |
Frame Size | 56 ~ 132 |
Phase | Single Phase (Three Phase is also available) |
Efficiency Class | IE1 ~ IE4 |
Poles | 2, 4 poles |
Protection Class | IP44, IP54, IP55, IP69K |
Insulation Class | B, F, H |

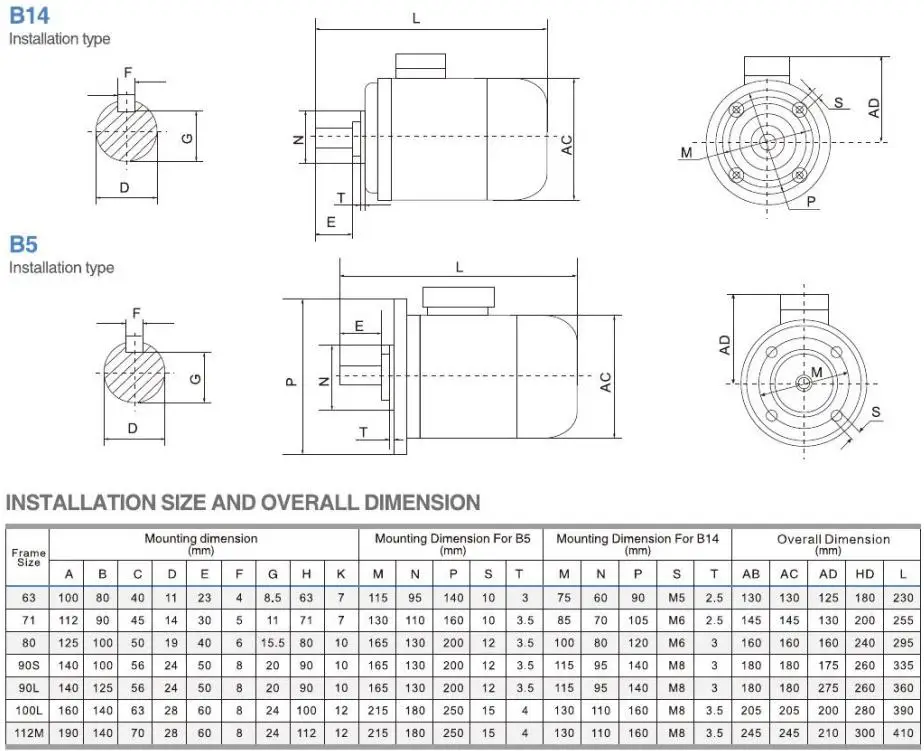

Mounting Type | B14, B3, B5, B35, B34 |
Ambient Temperature | -15 ~ +40 °C (can be customized) |
Altitude | ≤1000M (can be customized) |
Material | Aluminum or Cast Iron or Stainless Steel |
Accessories | Brake / Flange / Foot / Thermal protector … |
