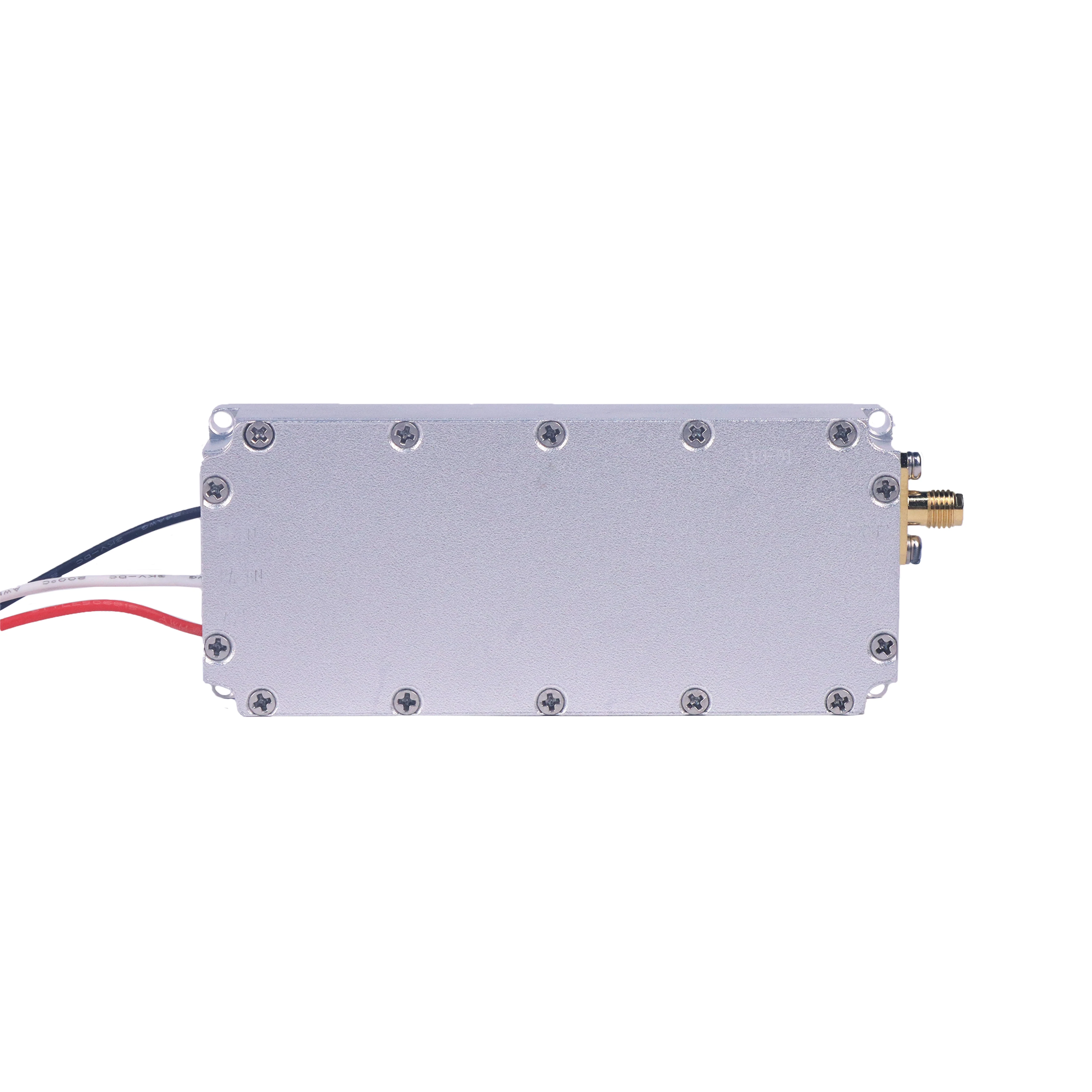

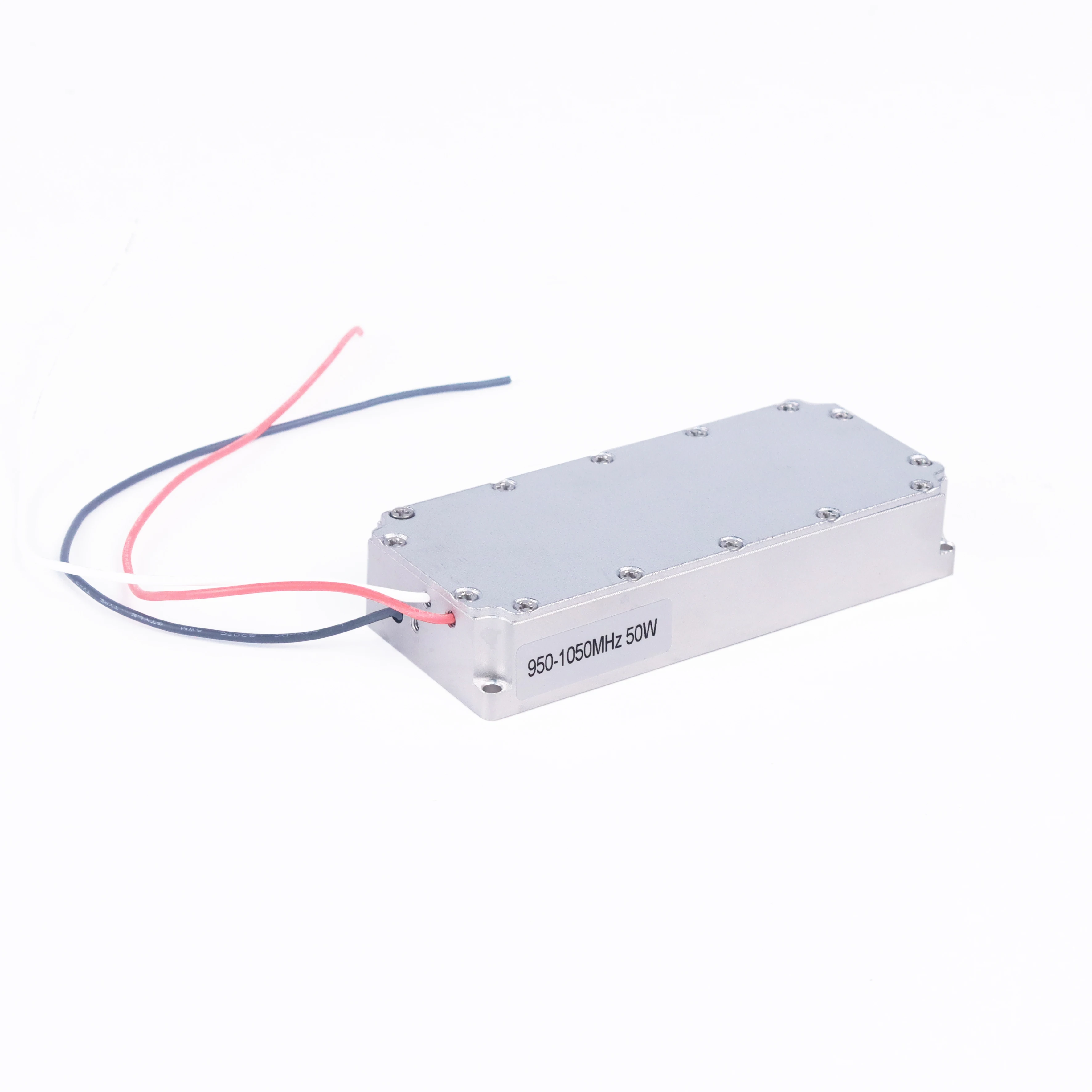

100W RF Shields 900MHz 1000MHz Security and Protection Product RF Shields Frequency anti drone jammer gun
- Category: >>>
- Supplier: Shenzhen Inhansen Technology Co. Ltd.
Share on (1601194418477):
Product Overview
Description
100W

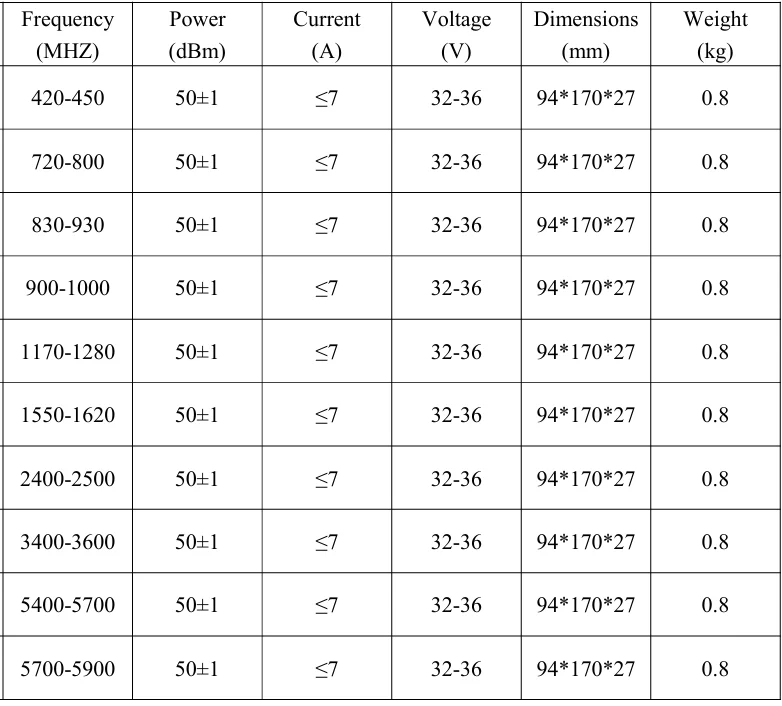

| 100W Interference Power Amplifier Technical Data Sheet | |||||||
| Radio Frequency Index | |||||||
| Test item | Technical parameters | Unit | Remark | ||||
| Frequency Range | 420-5850 | MHz | Customized Frequency | ||||
| Operating Voltage | 28 | V | 28-32V | ||||
| Maximum Power Output | 50±0.5 | dBm | 100W@≤7A | ||||
| Gain | 45±1 | dB | peak-to-peak value | ||||
| In-band fluctuation | dB | peak-to-peak value | |||||
| Spurious Emission | Operating In-band | ≤-15dBm/1MHz | dBm | Center Frequency add CW Signal to Maximum Power Output Test | |||
| Operating Out-of-ba nd | 9KHz~1GHz | No noise wave above normal base | dBm | ||||
1G~12.75GHz | dBm | ||||||
| Output VSWR | ≤1.30 | No power up:Standard Grid Output -10dBm | |||||
| ≤1.30 | Power up:Dual Directional Coupler Tes1 | ||||||
| high-low temperature test | Operating Temperature | Ambient | -10~+55 | ℃ | Cold Start | ||
| Gain Stability | ±1.5 @-40°℃~+55℃ | dB | |||||
| Power Stability | ±1 @-40℃~+55℃ | dB | |||||
| Power Supply Requirement | ≥8Aa+28Vdc; | Continuous Wave Output 100W | |||||
| Power Supply Port | Power Cable·Red positive Black negative | Red positive Black negative | |||||
| RF Output Connector | SMA | SMA External Screw Base | |||||
