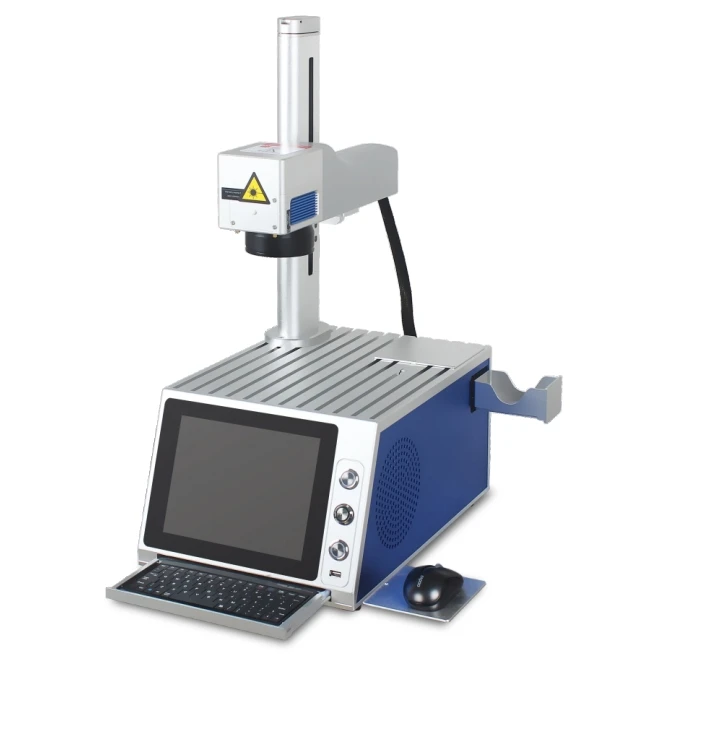

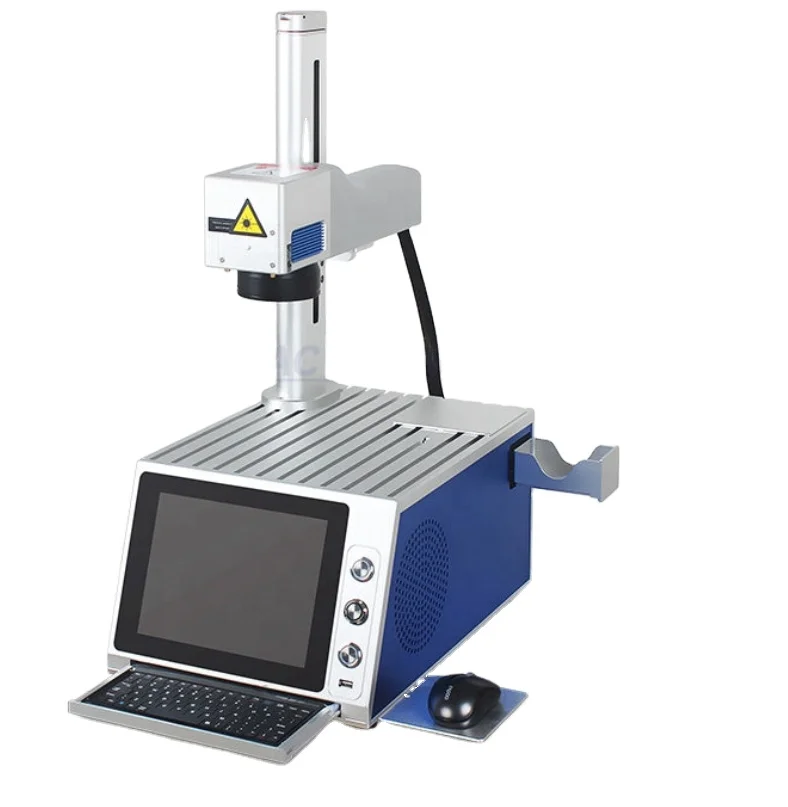

Desktop 20W 30W 50W Fiber Laser Marking Machine Rotary Laser Engraver For Ring and Bottle fibre laser engraving machine
- Category: >>>
- Supplier: Suzhou Fang Shiheng Precision Machinery Co. Ltd.Suzhou Ltd.
Share on (1601194596044):
Product Overview
Description
Product Overview

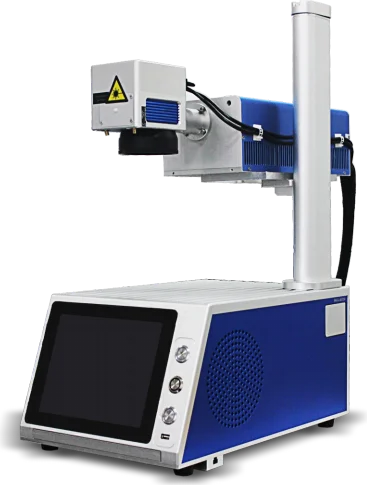

FSH series
Intelligent fiber laser marking machine.
The FSH series intelligent laser marking machine belongs to the desktop fifiber laser marking equipment. It is a special model specially developed by Mac Laser for the needs of simple, compact, flflexible and convenient equipment. The equipment is extremely cost-effective, It adopts high-quality fifiber laser source, high-stability galvanometer system, hidden keyboard and mouse design, it can easily meet most common laser marking applications.
The FSH series products use a 1064nm wavelength fifiber laser source, which is suitable for various metal materials such as iron, copper and aluminum, gold, silver, and some non-metal materials such as PC, ABS, PVC, and PC+ABS.
The FSH series products use a 1064nm wavelength fifiber laser source, which is suitable for various metal materials such as iron, copper and aluminum, gold, silver, and some non-metal materials such as PC, ABS, PVC, and PC+ABS.

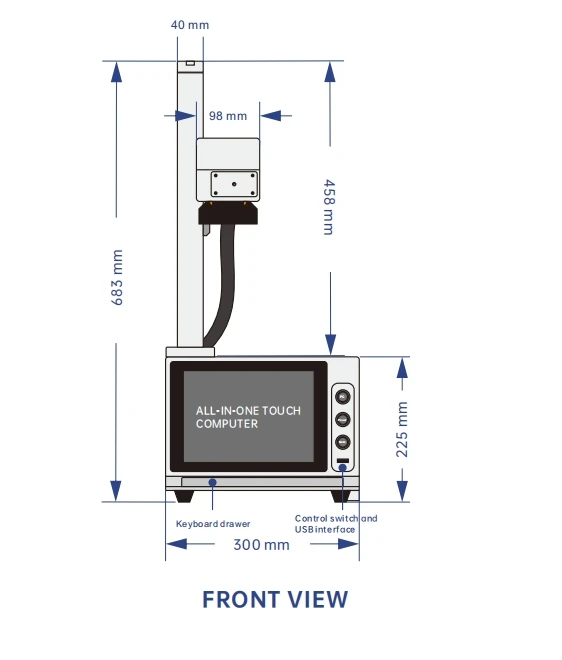

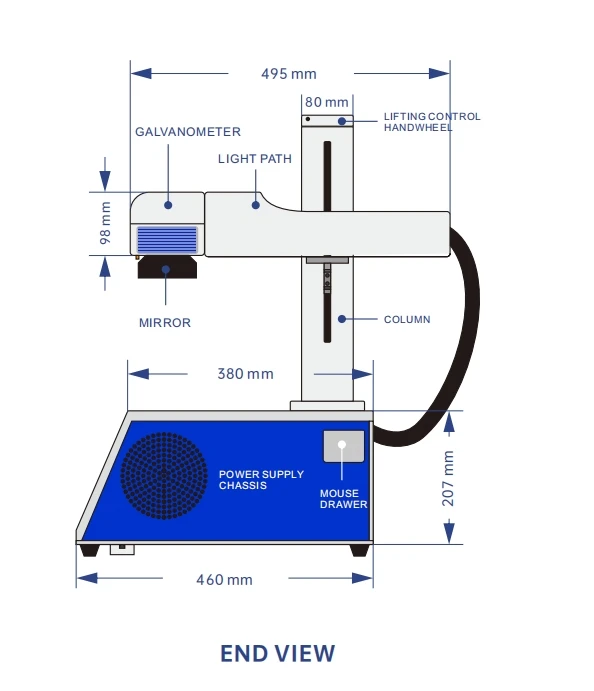

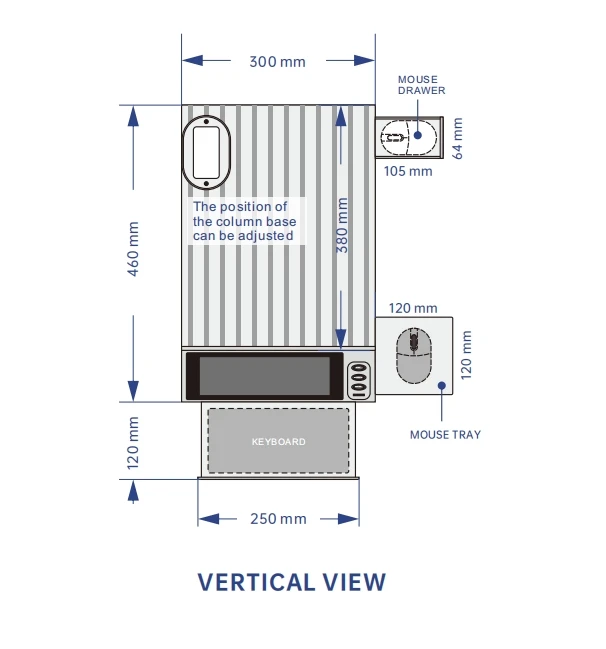

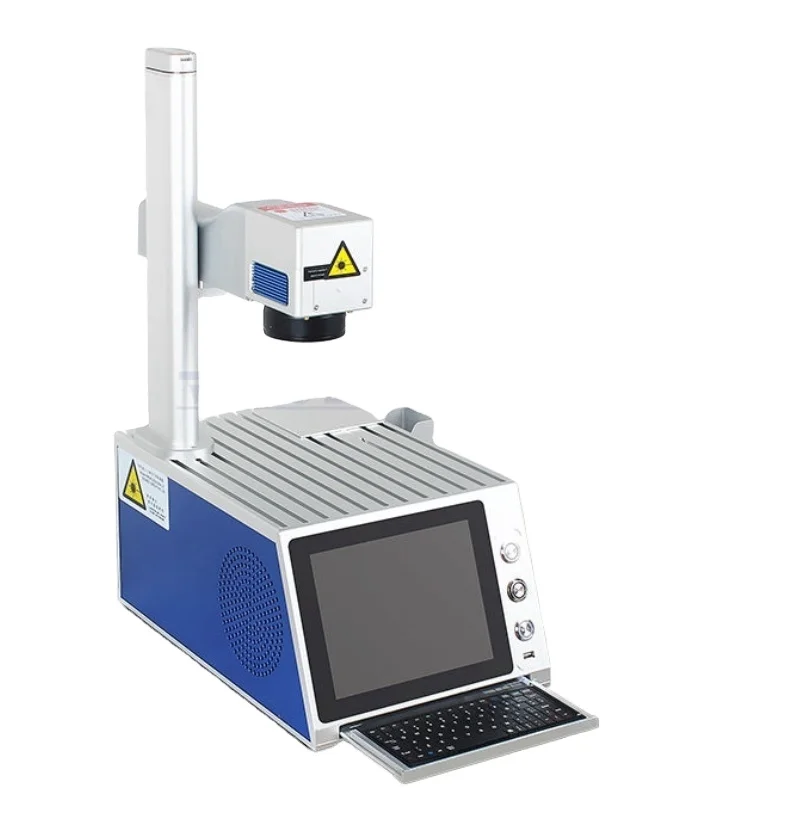

PRODUCT SIZE
PRODUCT SPECIFICATIONS
Model series | Intelligent mini laser marking machine | ||||
Model | FSH-20W | FSH-30W | |||
Laser parameters | Laser source model | MFP-20X/20QS | MFP-30X/30QS | ||
Output Power | 18.5 | 30W | |||
Beam quality M2 | ≤1.4 | ≤1.4 | |||
Pulse repetition frequency | 27-60 kHz | 30-60 kHz | |||
Laser wavelength | 1064±5 nm | ||||
Output power stability | ＜3% | ||||
Working life | About 100,000 working hours (non-lifetime) | ||||
Optical properties | Marking range | 100~150mm (range optional) | |||
Engraving depth | ≤1mm (depending on power and time) | ||||
Engraving speed | ≤10000mm/s | ||||
Repeat accuracy | ±0.002 | ||||
Minimum marking line width | 0. 1mm | ||||
Minimum character height | 0.15mm | ||||
Use environment | Cooling way | Built-in air cooling | |||
System power supply | 500W / 220V / 50Hz (110V can be connected) | ||||
Temperature humidity | 0~40°, 30% RH 85%, air conditioner should be installed when used outside the range | ||||
Oil mist, condensation | Not allowed | ||||
Other parameters | Support system | Windows operating system | |||
Dimensions | 460X300X683mm | ||||
Packing size | 550X440X690 mm | ||||
Total Weight | About 25kg | ||||

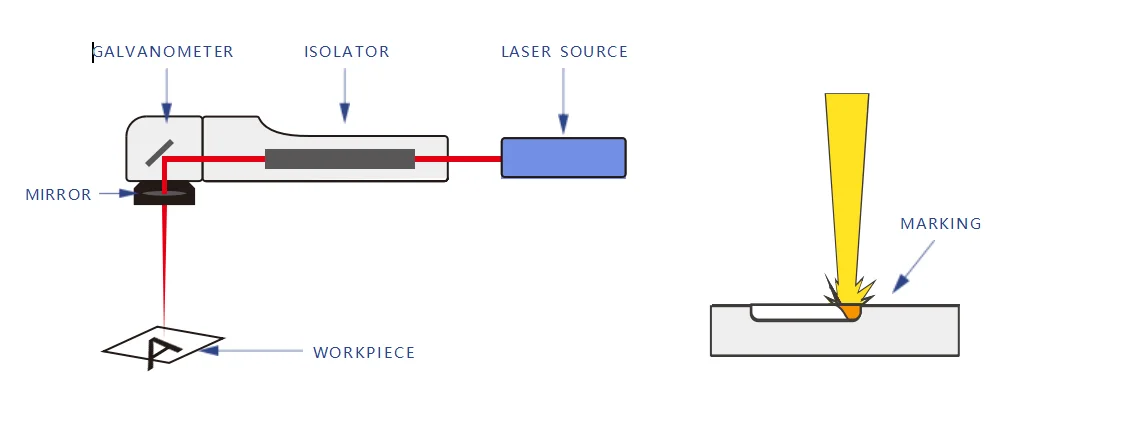

The marking is directly hit on the surface with the help of a strong pulsed laser beam to produce extremely deep, high
contrast markings on the surface, achieving permanent markings with uniform viewing angles, and corrosion resistance
contrast markings on the surface, achieving permanent markings with uniform viewing angles, and corrosion resistance
MARKING EFFECT

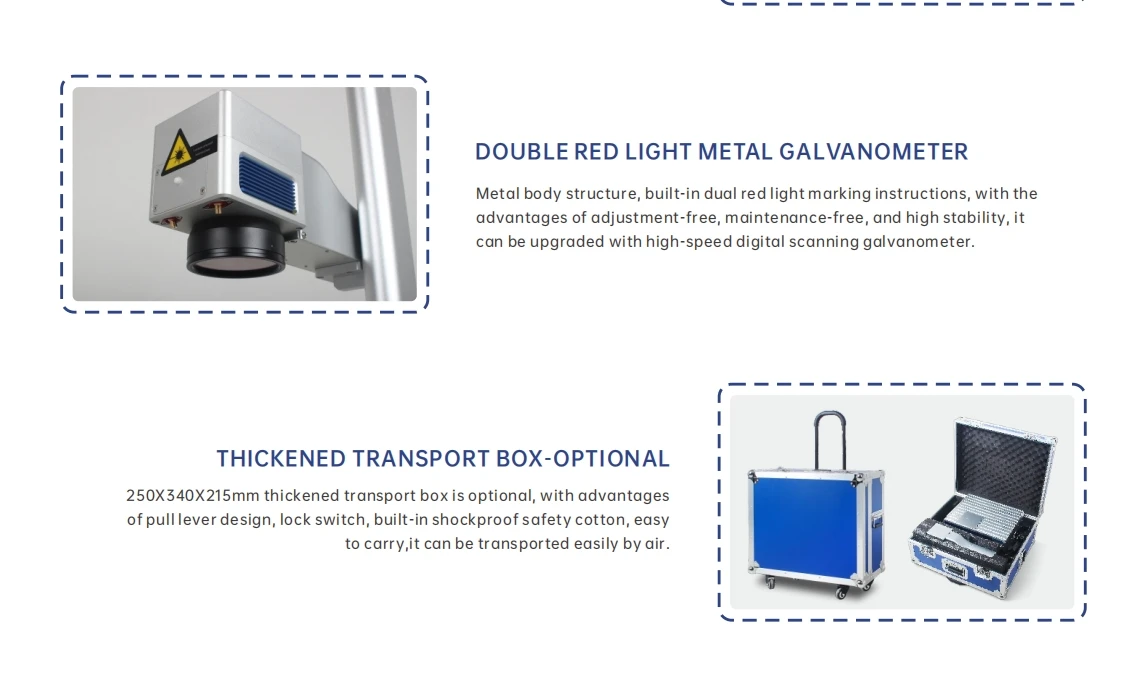

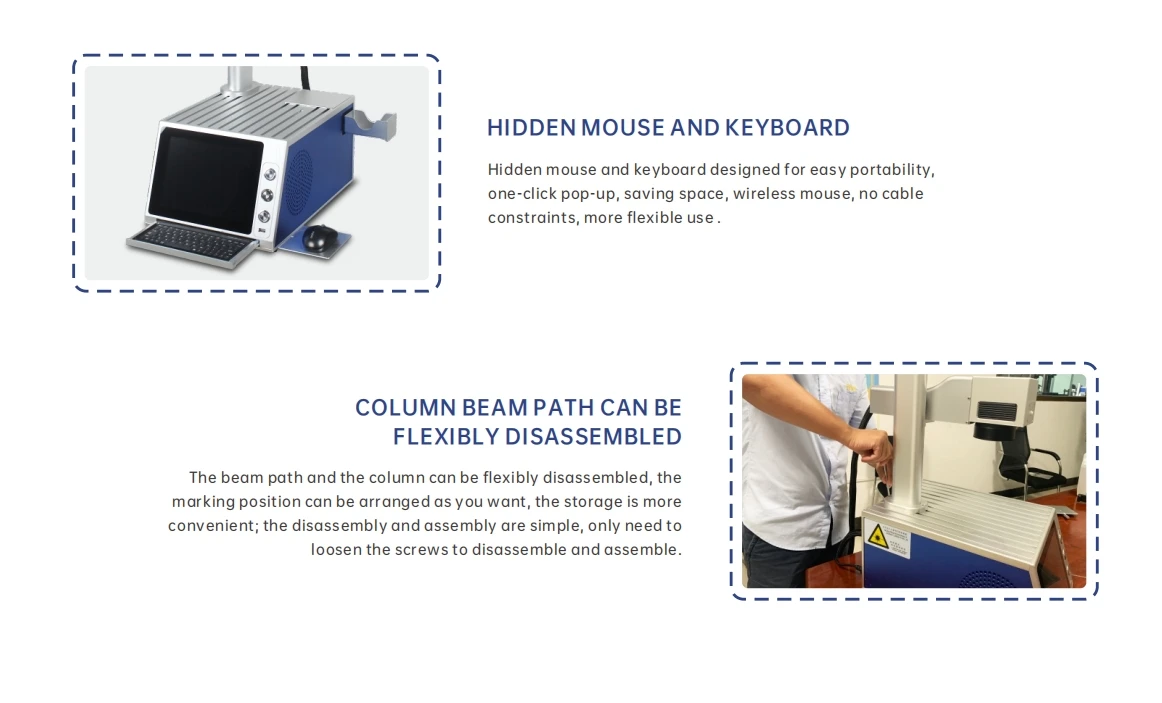

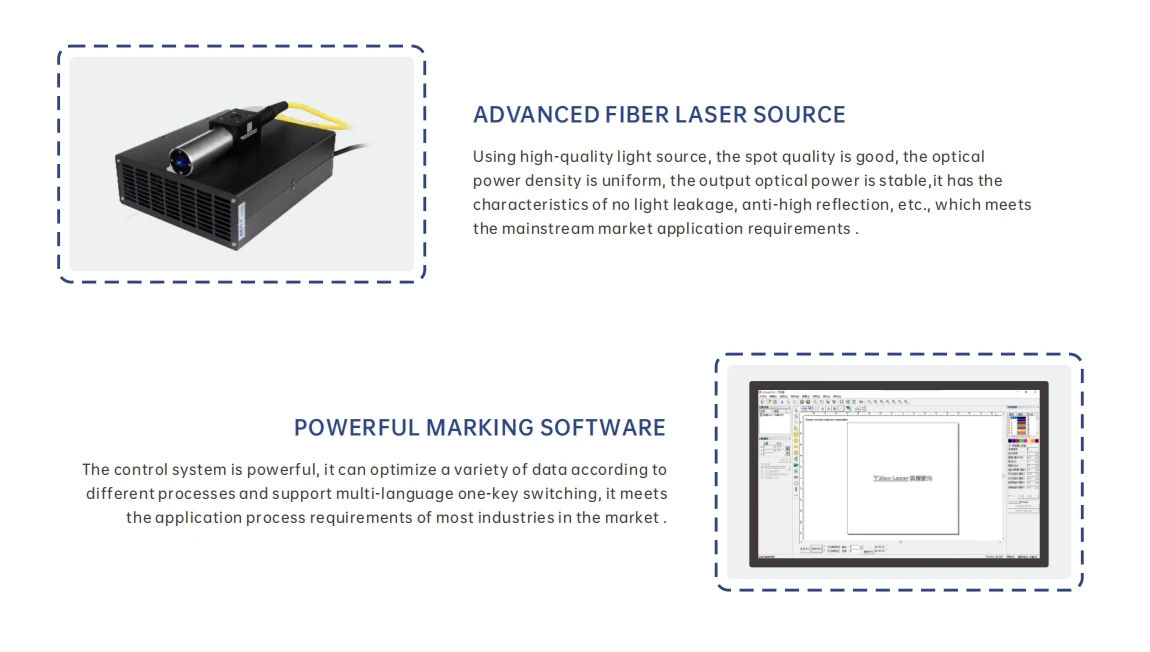

MODEL CHARACTERISTICS
Company Profile
Company Advantage
1.A professional team with rich experience more than 20 years in the laser industry.
2.Customized technical solution and after-sales support.
3.ODM/OEM service avaliable.
2.Customized technical solution and after-sales support.
3.ODM/OEM service avaliable.

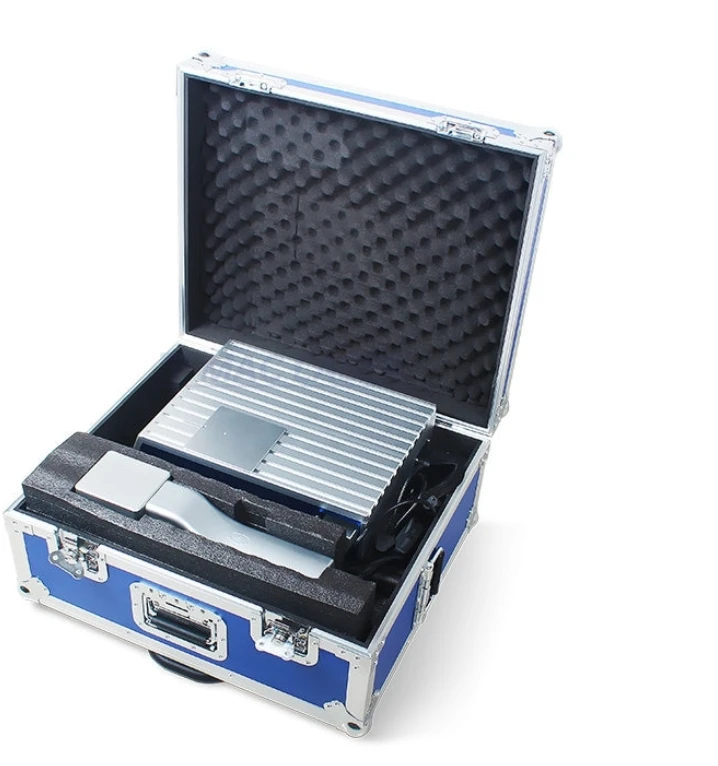

Packing &Delivery
