SWINDON filter water systems home or commercial swimming pool equipment top mount combo pool sand filter for pool

Product Overview

Description

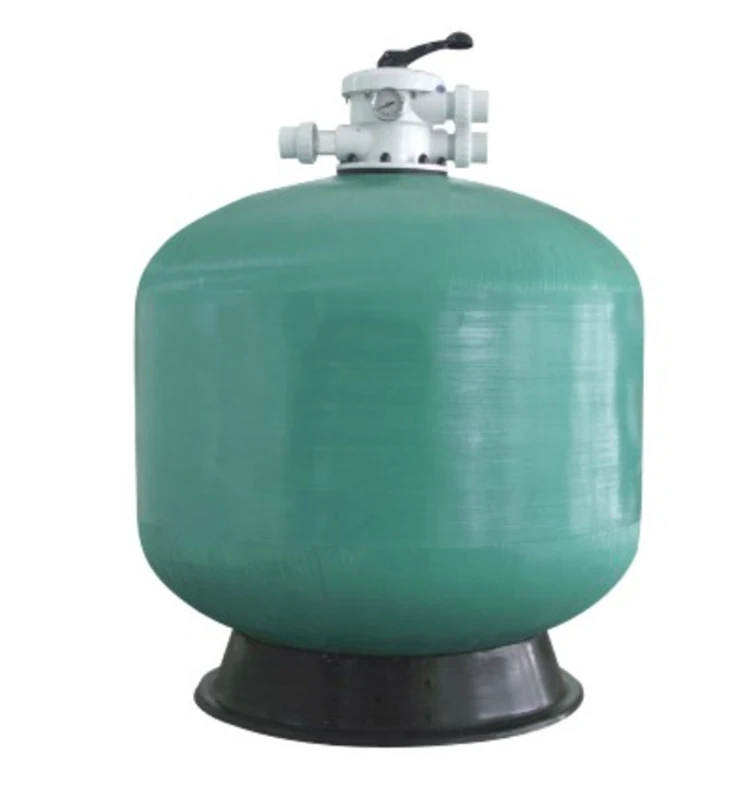

SWINDON filter water systems home or commercial swimming pool equipment top mount combo pool sand filter for pool





SWINDON swimming pool filters made of fiberglass and resin of hign quality has good chemical resistance and the performance of anti-UV.Its surface is not easy to crack and be broken by the impact because swimming pool water sand filter itself has a certain degree of flexibility .The water distribution designed uniquely can stabilize current uniformly and to improve drainage system .Pool sand filter is easy to install , repair and convenient for maintenance.After filtration , turbidity of water is less than 2 degree. Sand filter water systems brings cleanliness and sanitation for your swimming pool and it is preferred filtration equipment for swimming pool, spa pool , waterscape and water park.

There are many mnay pool filter types :Top-mount pool filtration system ,Side-mount pool filter system,Integrated pool pump and filter and stainless steel pool filter .



PRODUCT PARAMETERS



Model	Size(D)	Inlet/outlet (inch)	Flow(m3/h)	Filtration Area (m2)	Sand Weight (kg)	Packing size (mm)
SW400	16"/Dia400	1.5”	6.3	0.13	35	410*410*490
SW500	20"/Dia500	1.5”	10	0.2	80	510*510*670
SW600	24"/Dia600	1.5”	15	0.3	160	630*630*670
SW700	28"/ Dia700	1.5”	18.5	0.37	220	710*710*670
SW800	32"/Dia800	2”	25	0.5	370	830*830*930
SW900	36"/ Dia 900	2”	30	0.64	447	900*900*990
SW1000	40"/Dia1000	2”	35	0.79	700	1030*1030*1200
SW1200	48"/Dia1200	2”	50	1.13	1200	1230*1230*1380
SW1400	56"/Dia 1400	2”	68	1.53	1700	1410*1410*1550

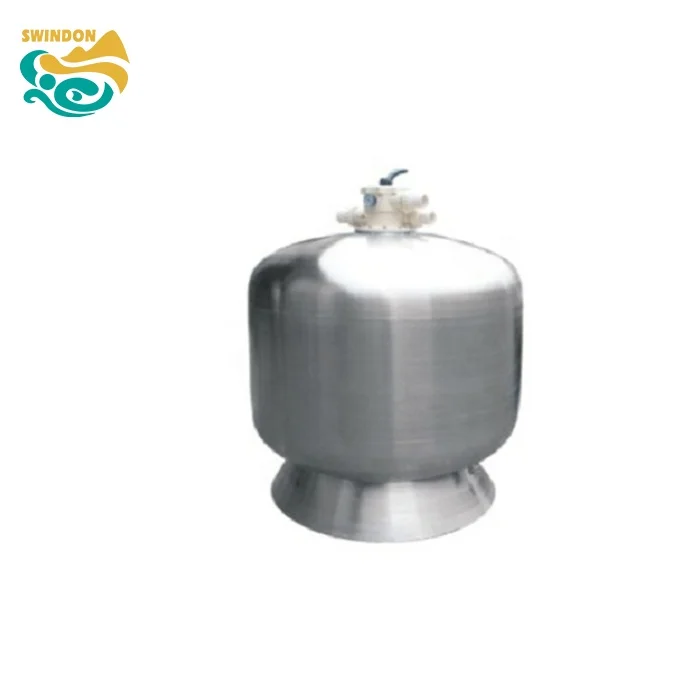

Material	Fiberglass /304# stainless steel/316#stainless steel

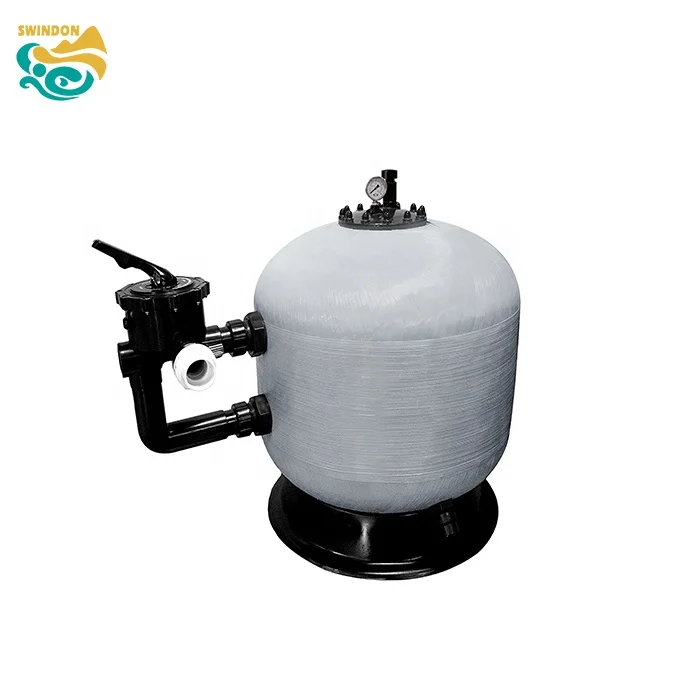

Pool Filter Types	Top mount filter /side mount filter /Deep sand filter/Commercial sand filter
Color	Blue/Grey/Green/Silver, Customized available
Application	As filter water systems , it can filter  swimming pool , aquariums,aquatic parks,and industrial wastewater treatment equipment

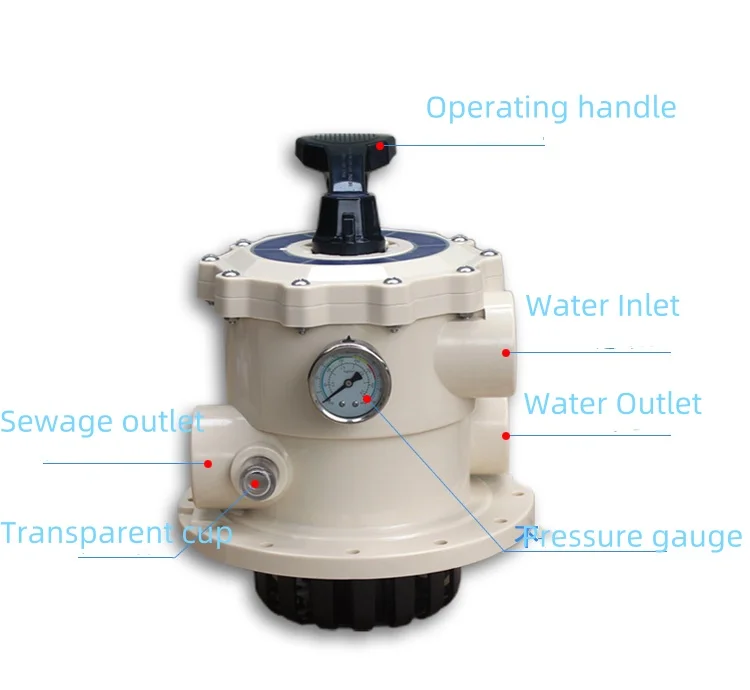

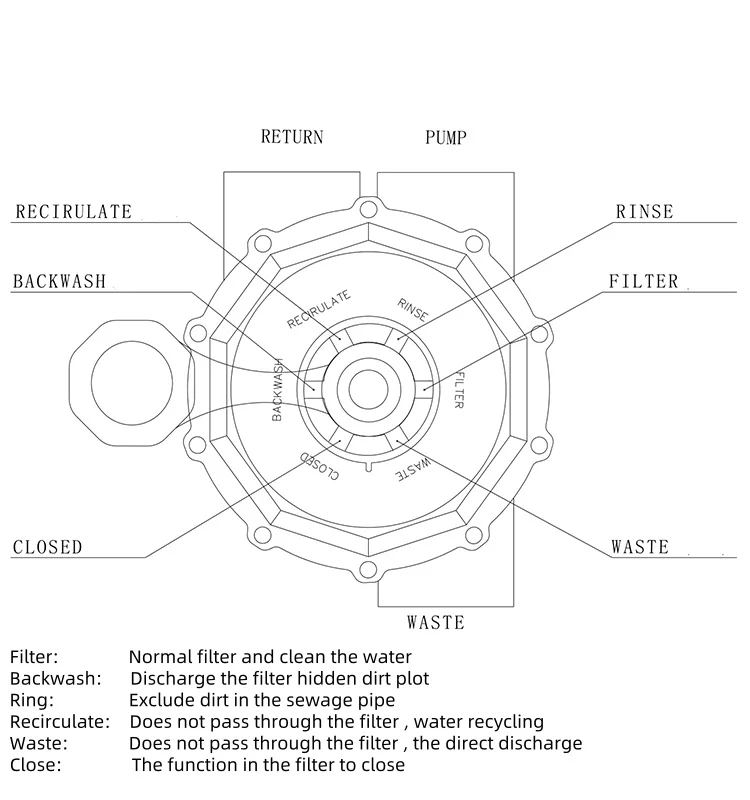

PRODUCT DETAILS

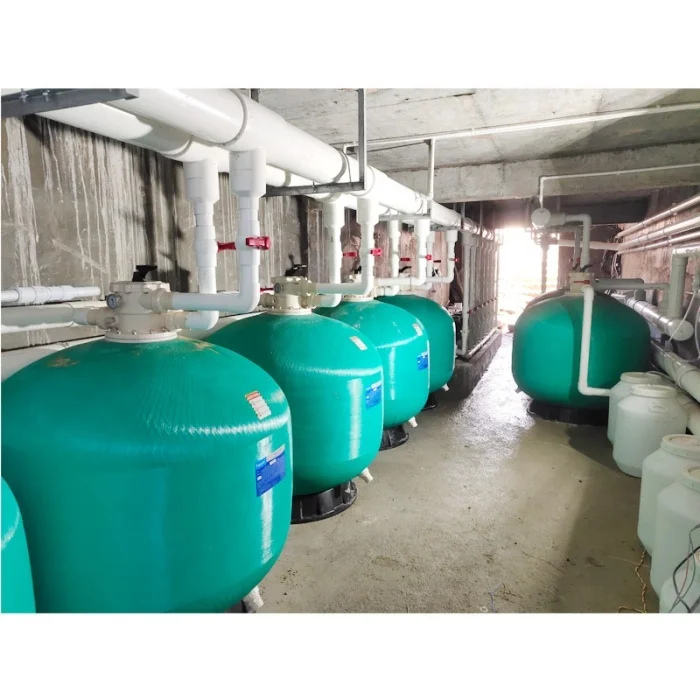

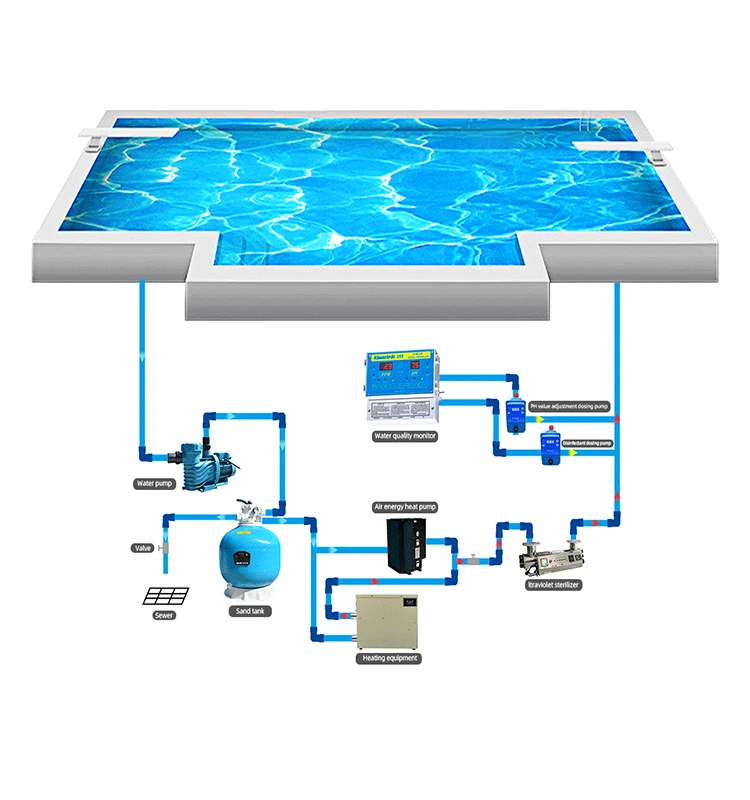

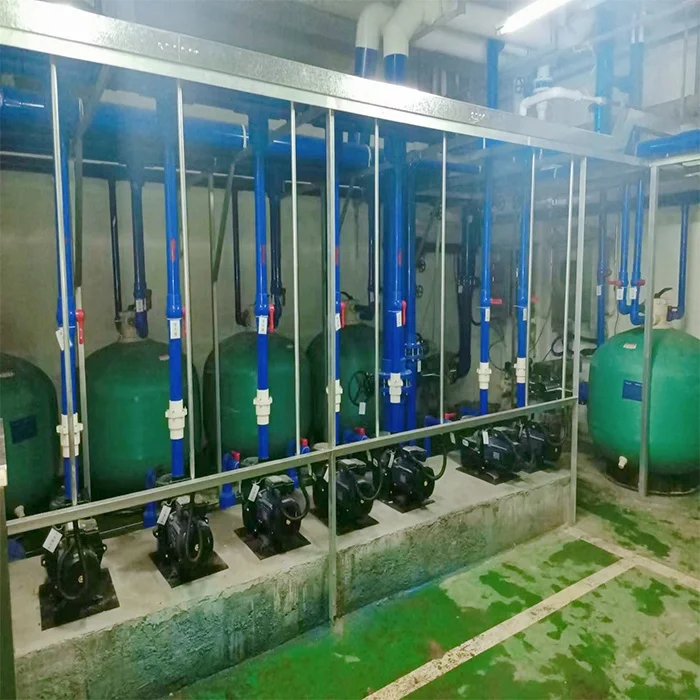

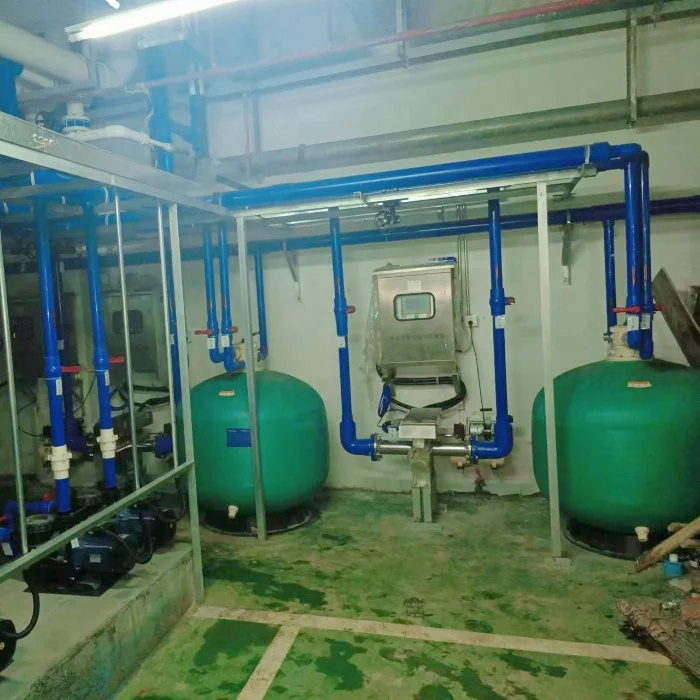

APPLICATION

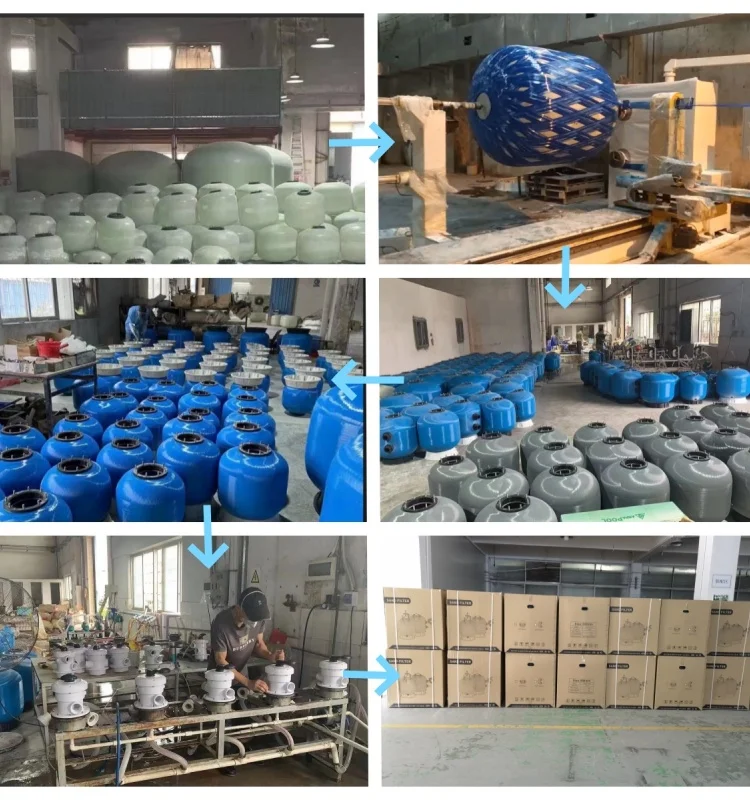

PRODUCTION   PROCESS
