  • MIRAN MRG 5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery
MIRAN MRG 5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery
MIRAN MRG-5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery
MIRAN MRG-5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery
MIRAN MRG-5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery
MIRAN MRG-5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery
MIRAN MRG-5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery
MIRAN MRG-5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery

MIRAN MRG 5202(5L) Oil Pump Central Grease Oil Lubrication System Injection Molding Machine Pump for CNC Machinery

Share on (1601194718922):


Price:$102.00 - $108.00

Quantity:


Product Overview

Description



Product Description

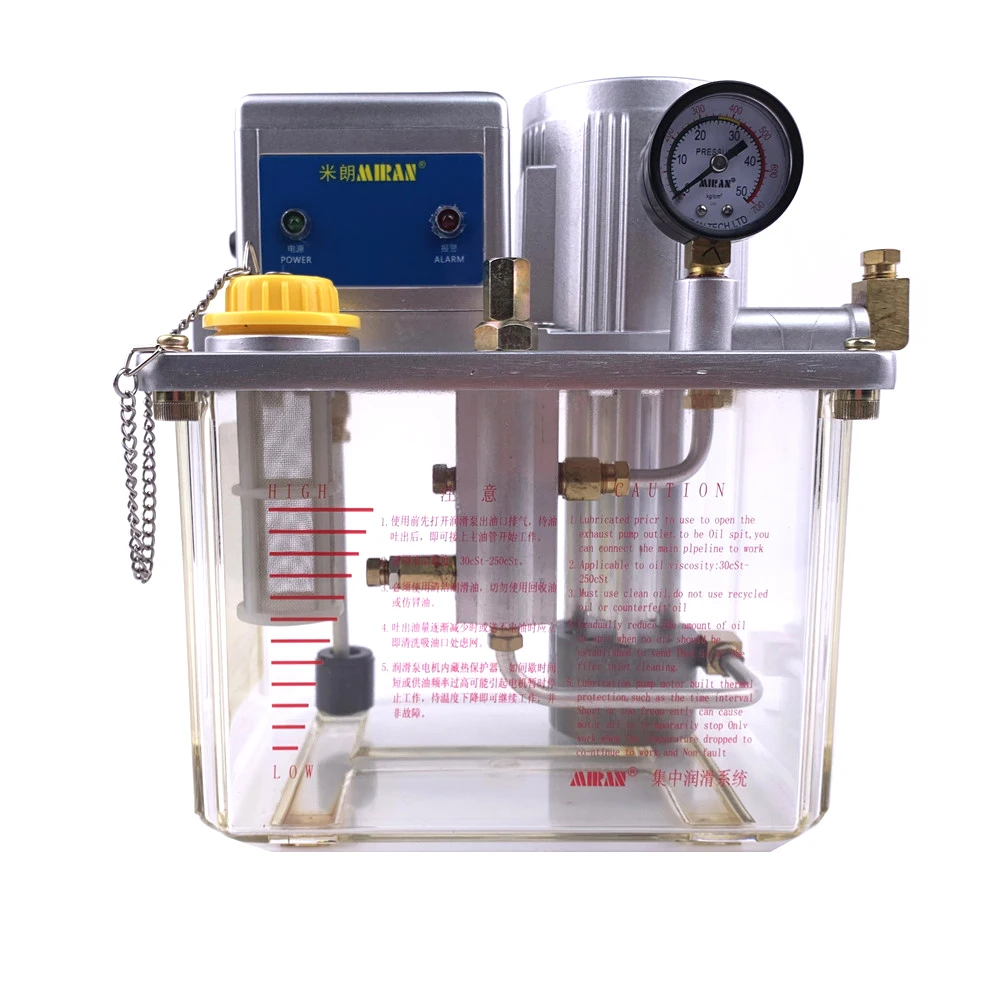

MIRAN MRG-5202-5L Lubrication Grease and Thin Oil Pump

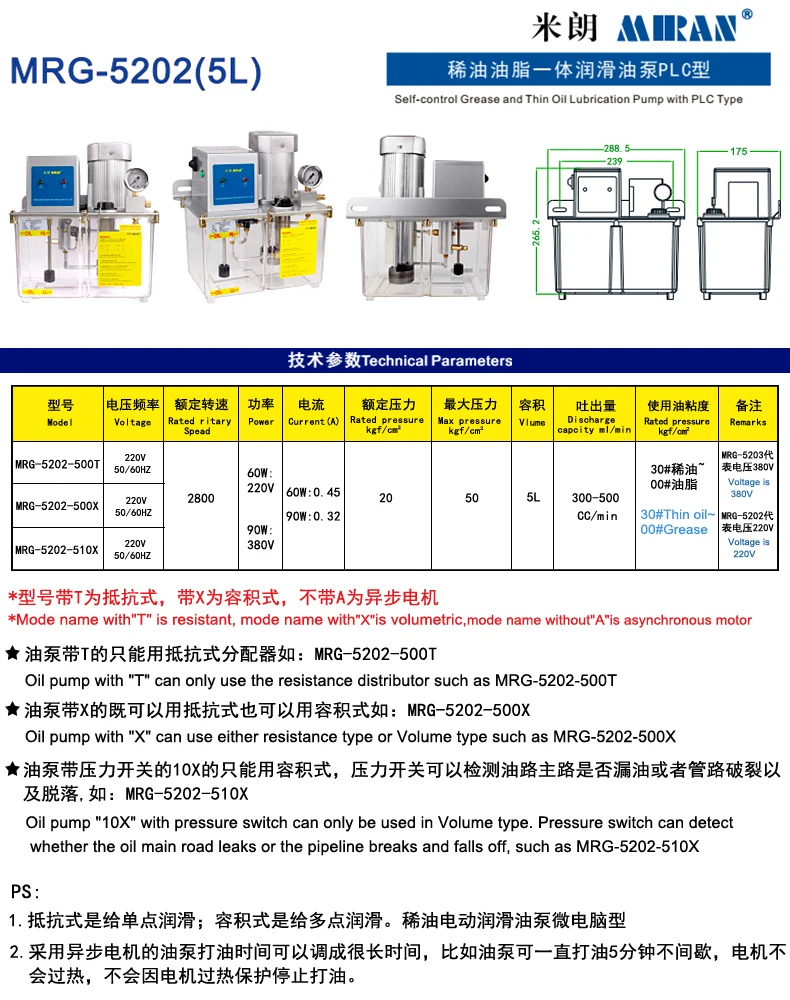

Technical Parameter


MRG-5202-5L
Operation
Host Control / External Controller
Oil Injection Cycle
intermittent; ajustable by a PC contoller
Oil Pressure
20 kgf/cm2
Oil Flow
thin oil 300ml/min;grease oil 50ml/min
Working Voltage
220/380 VAC
Power
 60W,90W
Oil Viscosity
30#-00# kgf/cm2
Tank Capacity
5000ml
Oil Pipe Size
Φ6mm
Applicable System
Damper Type SLR / Volumetric PDI
More Details: MRG-5202-5L the oil injection is controlled by Host or a special controller, with a Liquid Level Alarm, NC / COM /
NO outputs, water outlet at the bottom, damper type or volumetric type perferrable, suitable for various lubricating systems.
1. What is the difference between:5202 and 5232 ?
5202 type is half-controlled,it needs your machine to control the oil offering time and resting time.
5232 type is self-controlled,there is the controller inside,it can control the oil offering time (0-200 seconds) and resting
time(0-999 mins).
2. How long can be the hose?
You can buy our plastic hose,it is from 1 meter to 100 meters,200 meters or 300 meters.
3. How many lubrication points can be used for each pump?
You can buy our lubricating points from 2 points to 14 points.
4. What is the main application for lubricating pump?
Normally our pumps are suitable for plastic machinery,engineering machinery,and machinery for
textile,printing,woodworking,chemical,etc. ,ensuring lubrication performance of various kinds of machinery products, for longer
service life and accuracy.


Item Selection

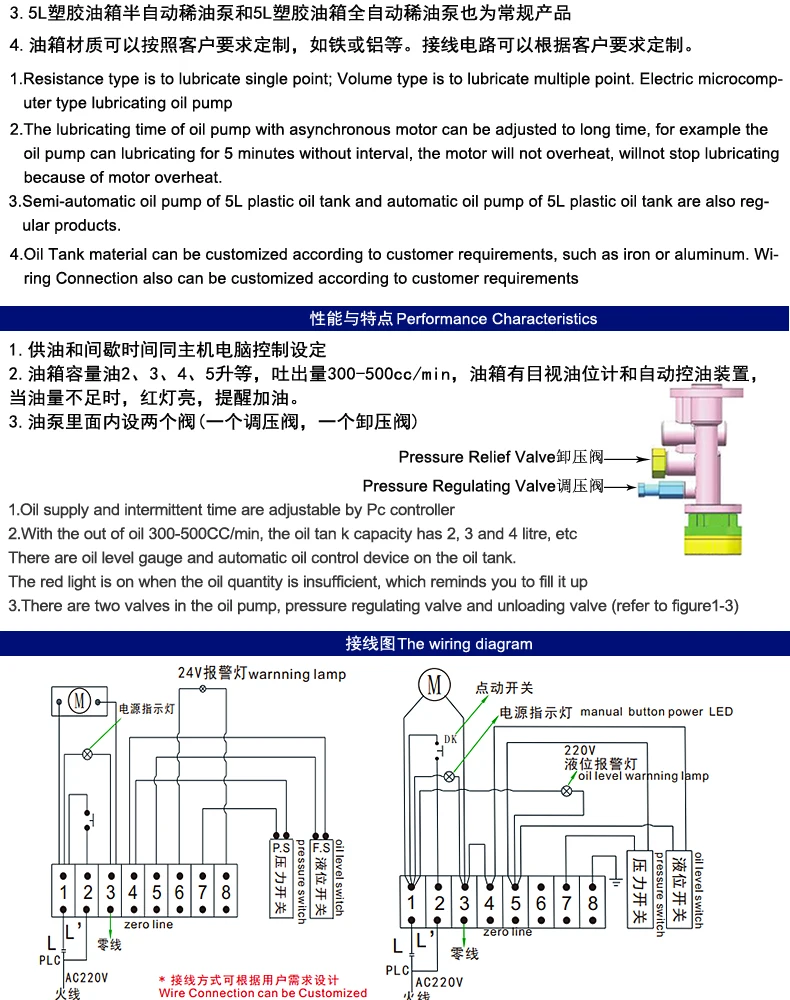

Performance Characteristics

1) Using new thin oil or 00# grease, prohibit to use 0# and concentrated grease.


2) It is forbidden to use old oil, otherwise it will cause oil rad blockage, mechanical parts wear and affect the operation of the oil pump.

3) Suitable for resistive, pressurized or progressiive butter dispensers.

4) Do not start without oil so as not to damage the motor.

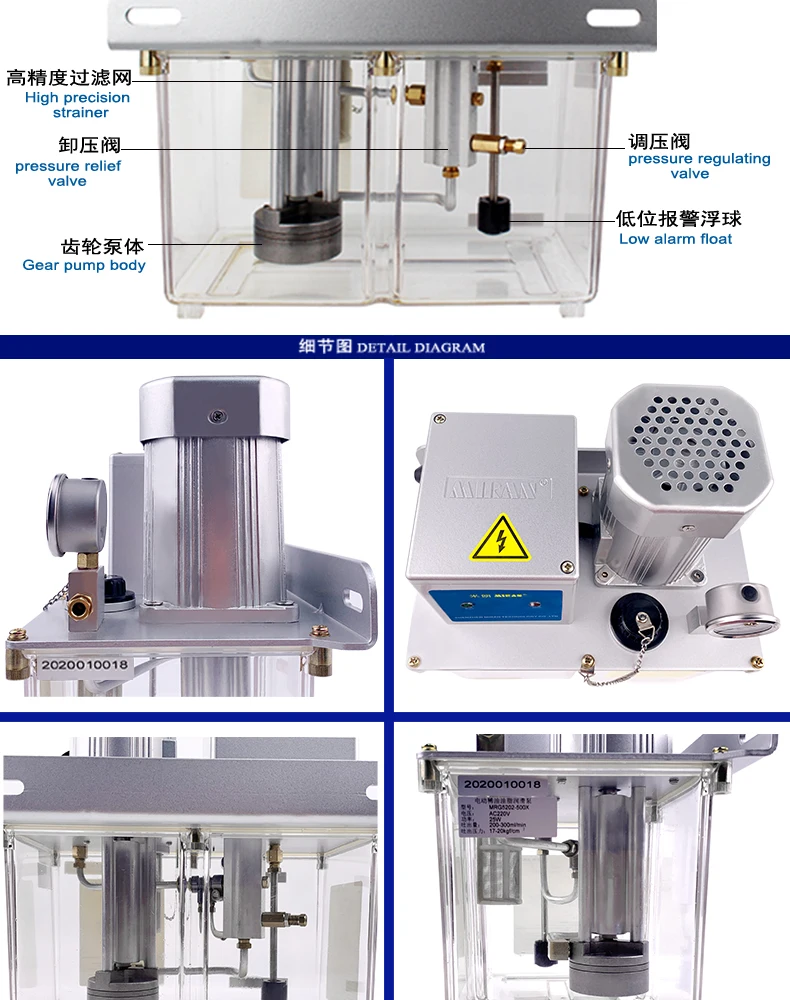

5)The suspension seat on the gear pump has a pressure regulator body to adjust the pressure.

6) Metal tanks can be customized according to customer needs.

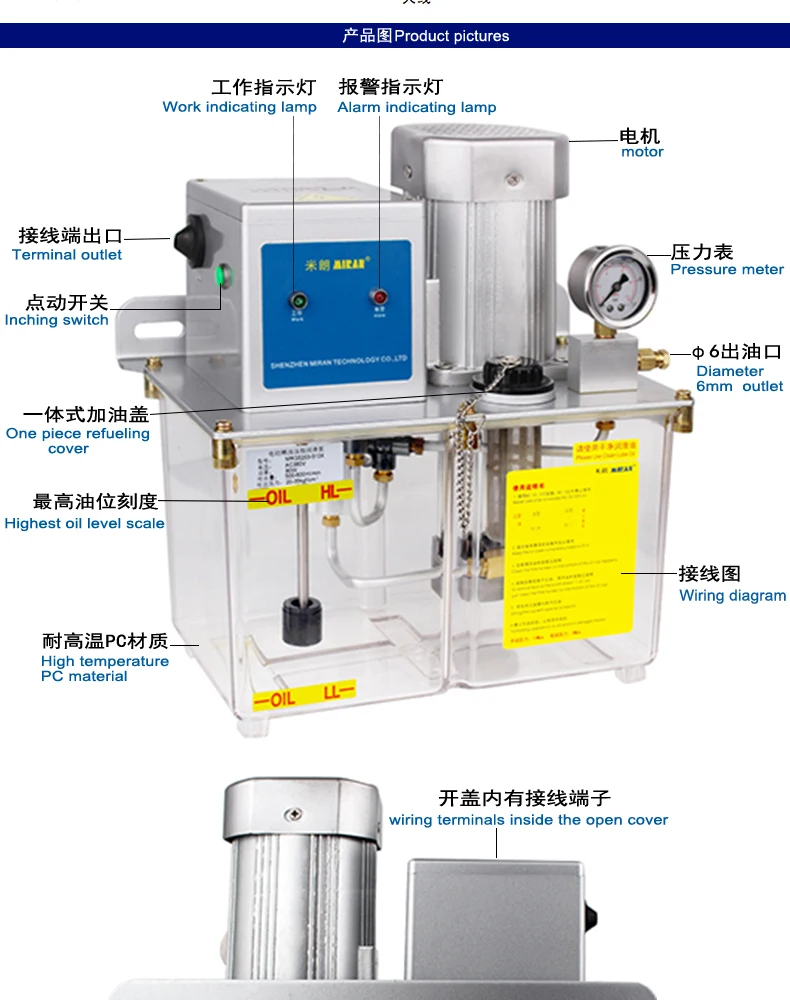

Detailed Images










Our Service


Pre-sale servie:

* Inquiry and consulting support.
* Sample testing support.
* Factory visit

After-Sales Service.

* Training to instal and use.

* Quick response to technical problems;




Packing




Related Products




Certifications




Our Company




Dear Friends:

Shenzhen Miran Technology Co., Ltd. is the largest supplier of Linear Position Sensors in China .The company was founded in 2003, which is also the first sensor manufacturer in China. Miran specialized in Linear Positon Sensors.

Miran now develops and manufactures a wide range of Linear Position Sensor (brand:MIRAN,LinecSKI,WANSUNG), Wire Rope Potentiometer,Magnetostrictive Liquid Level Sensor,Angular Sensor,Lubricating Pumps(Oil/Grease/Butter),LVDT,Eddy Current Sensor, and many other motion control products to support many different industrial applications.

Miran Products are widely used in injection molding machines,die casting machines,rubber machines,footwear machines,EVA injection machines,bottle blowing machines,woodworker machines, hydraulic machinery,level control, suspension stroke control,construction machinery,seaport machinery,industrial robots,etc.

As a leading manufacturer in China, Miran has the faith to keep our customers in the lead.Miran is approved by ISO9001:2008, CE, CCC, Rohs certifications. Also we are very proud of the following
1. Being among the leading manufacturer we contribute in R&D of related industry, We spend millions every year for developing new tech and new products.
2.We Promise high quality with strict QC. We performed vibration test, low and high temperature test,electromagnetic interference regulatory test,endurance test, and explosion proof test for each product before shipping.
3. Lean Production is intruduced to factory.
4. Excellent performance in on time delivery.
5. Excellent sales & after-sales service.

Miran now provide the service to customize product logo .

If you have any suggestion or question Please let us know.
