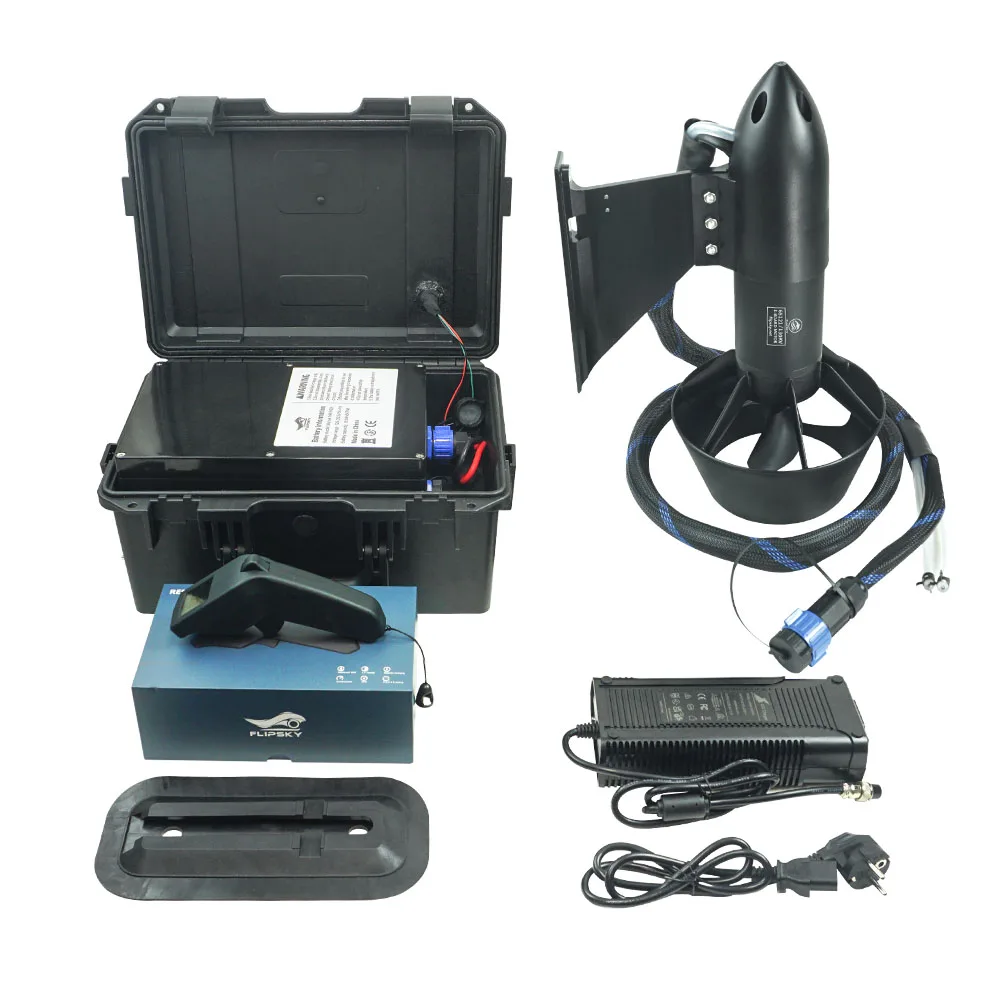

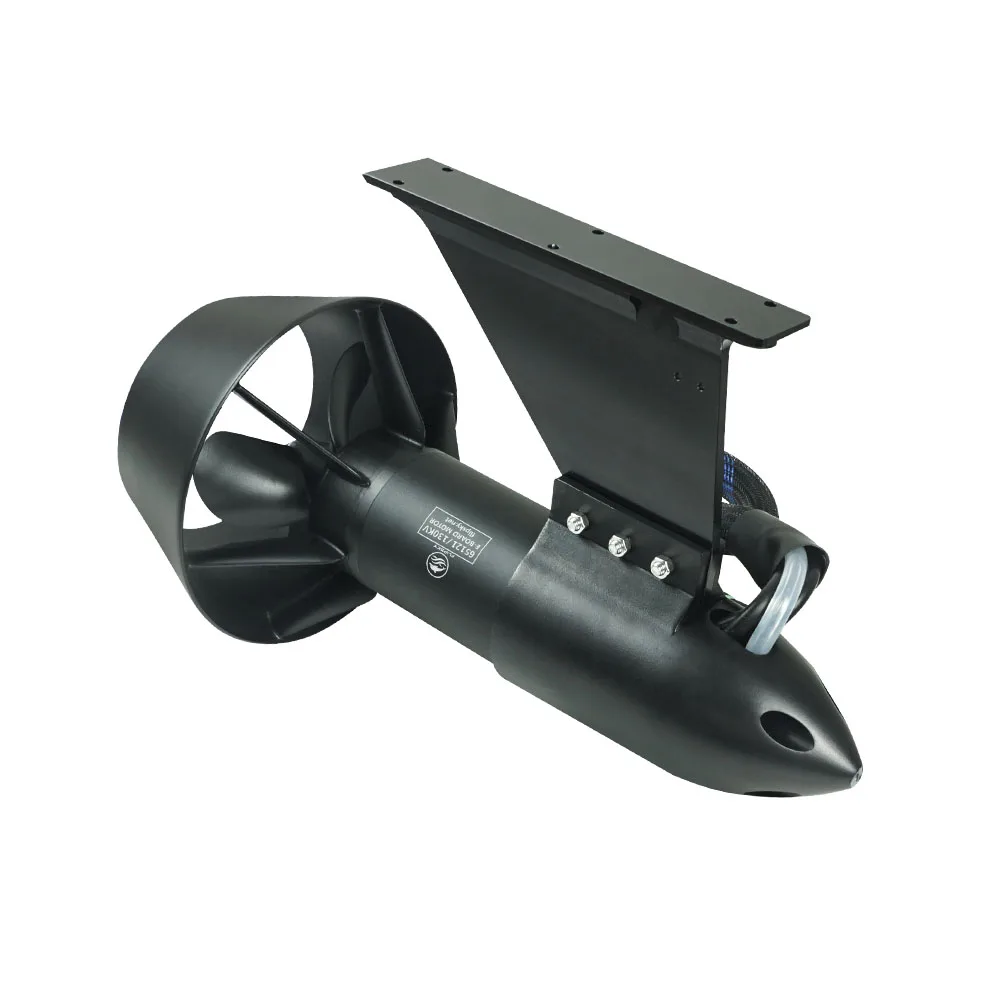

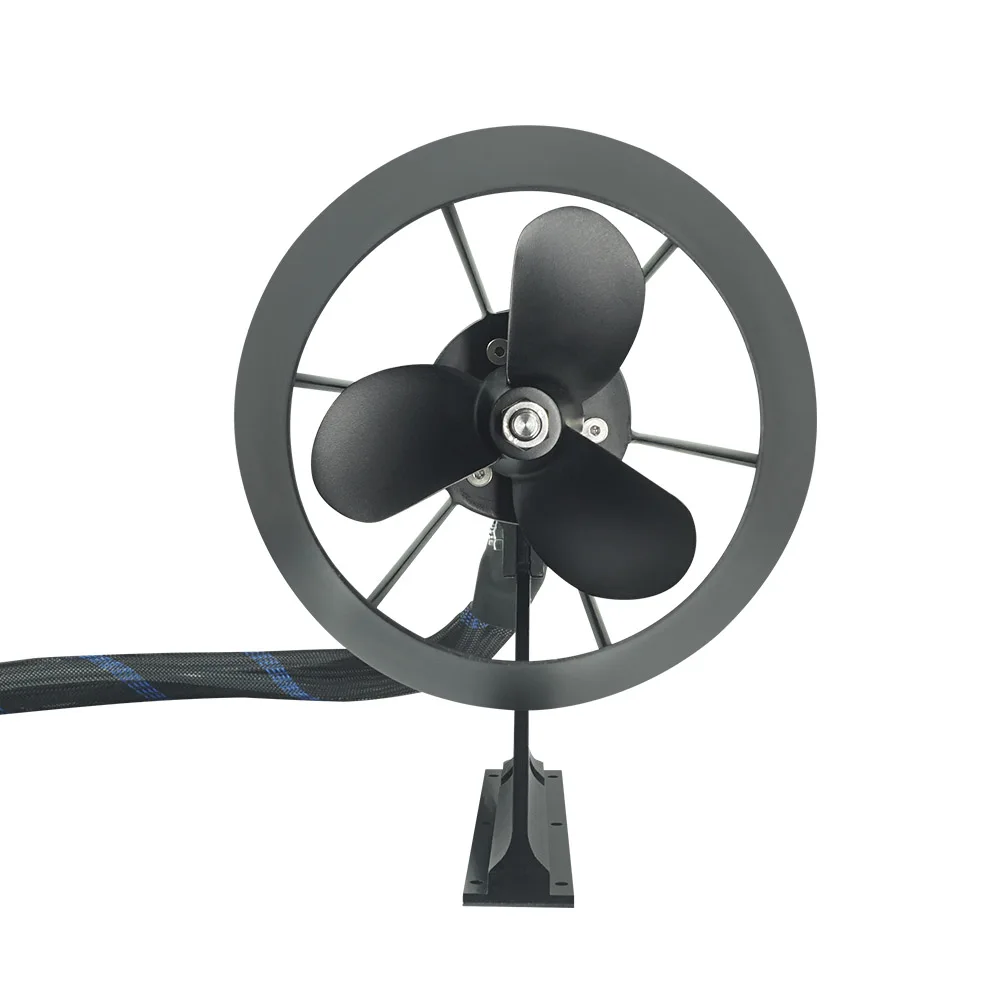

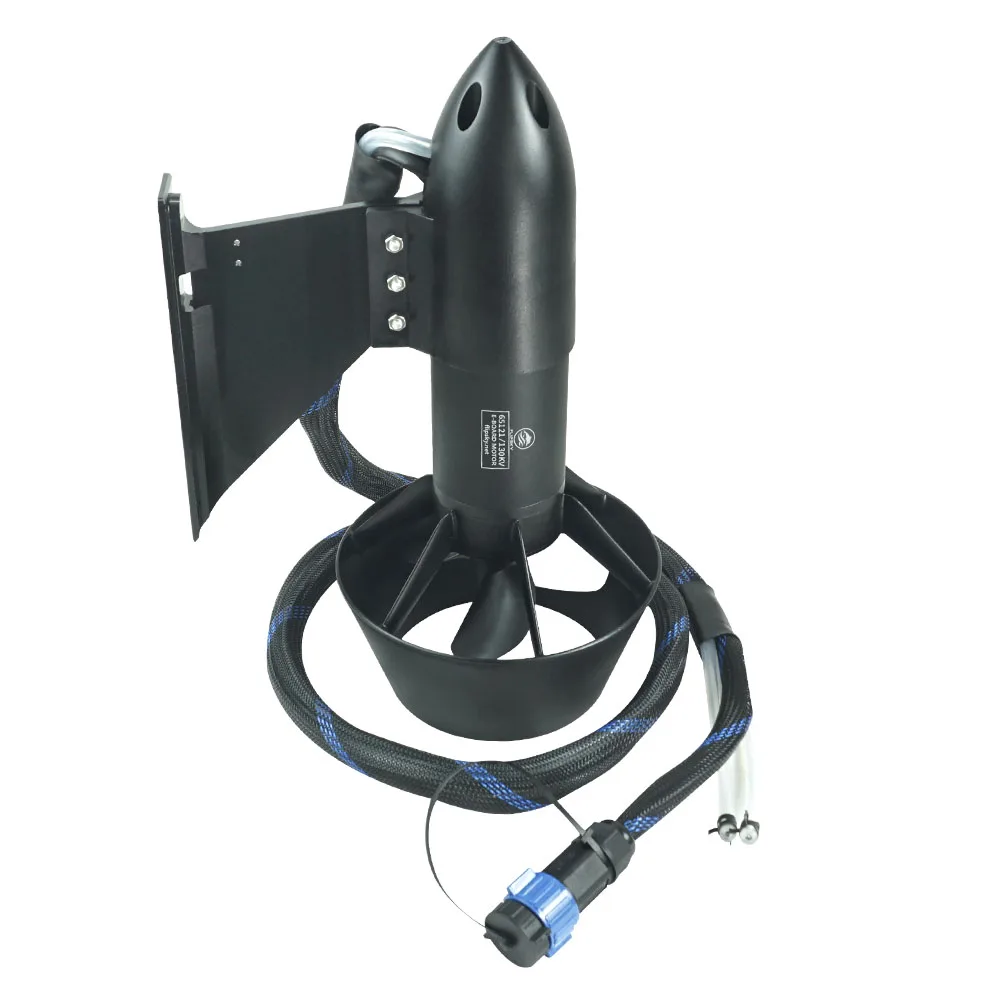

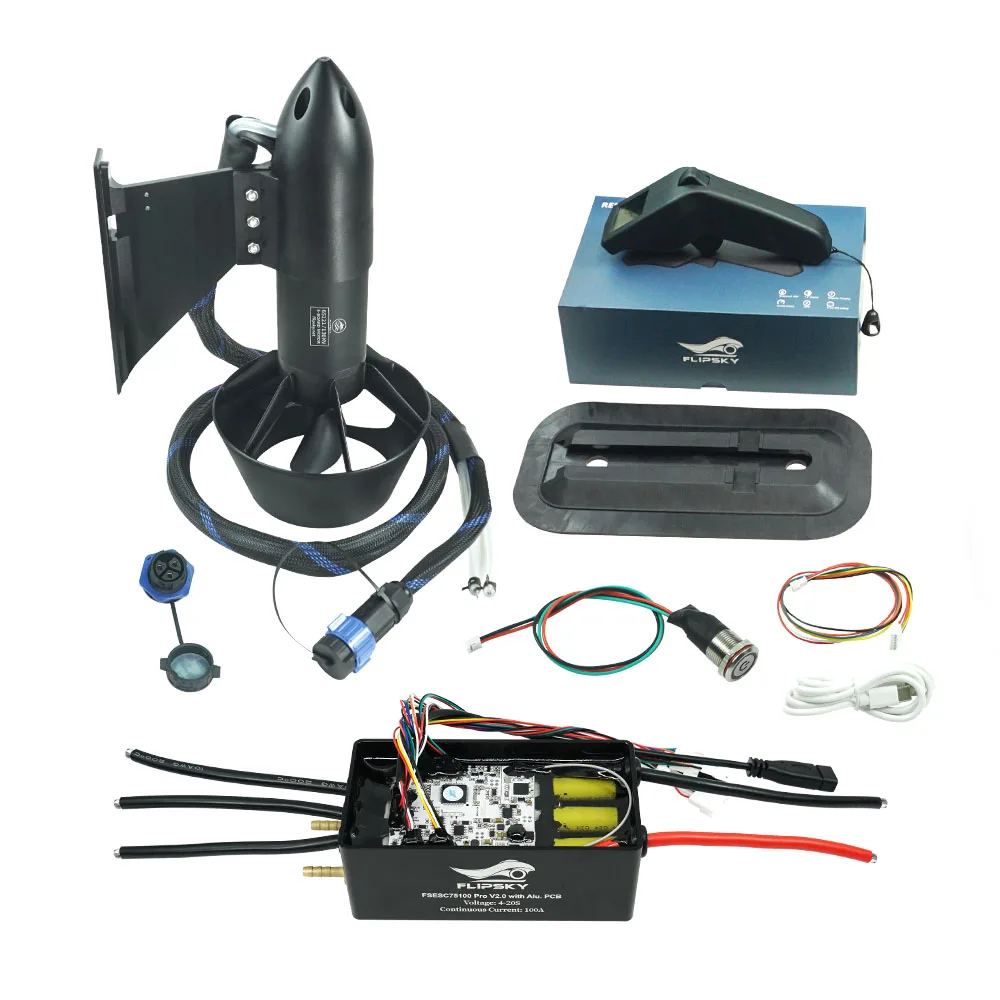

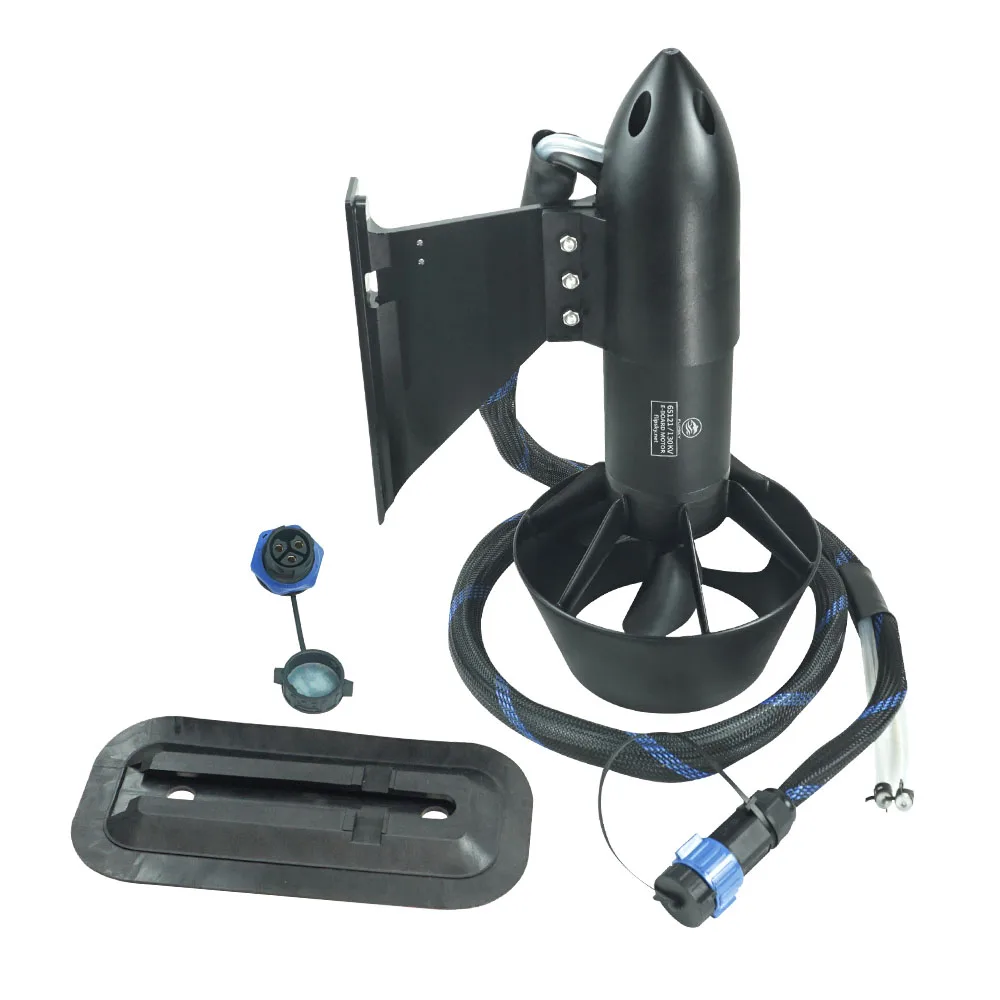

Flipsky BLDC Motor 65121 3700W Waterproof Underwater Thruster electric boat thruster for ROV RC Boat Jet boards Outboard motor

Product Overview

Description

Flipsky Brushless Motor 65121 2000W Waterproof Underwater Thruster electric boat thruster for ROV RC Boat /Jet boards

65121 Motor Spec:

• Voltage range: 6-20S (25.2-84V)


• Max power: 3700W; Continuous power: 2000W


• Peak current: 100A;


• Motor KV: 130KV


• Size: OD65*L121mm


• Max output torque:5.5N*M


• Waterproof rate: IP68


• Connectors:8mm plug


• Weight:1.62KG


• Structure:18N/P


• Lead wires extension: 8AWGx1400mm

Battery box parameters

• Battery outer box size: 371*269*186mm


• Waterproof grade: IP67


• Battery box material: ABS


• Voltage:50.4V


• Cell specifications: Molicel P42A 27100


• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.


• Environment: (-20 degrees Celsius + 50 degrees Celsius)


• Charger: 50.4V 5.5A


• Charging time: about 2.6 hours

ESC

• ESC model:75100 prov2.0


• Maximum discharge current: Maximum continuous 100A


• Voltage Range: 6-20s (25.2*84v)


• Heat dissipation method: water cooling (water pipe outer diameter 8MM, inner diameter 3MM)


• Support control protocols ppm, uart, adc, nrf, pas

Remote control

• remote control:VX3 Pro


• Control mode :UART


• Remote control distance: no interference, 25 meters in a straight line


• Waterproof grade:IP67


• There are 3 adjustable gears (L/M/H)


• Functions: Cruise control, GPS speed display, infinite throttle
