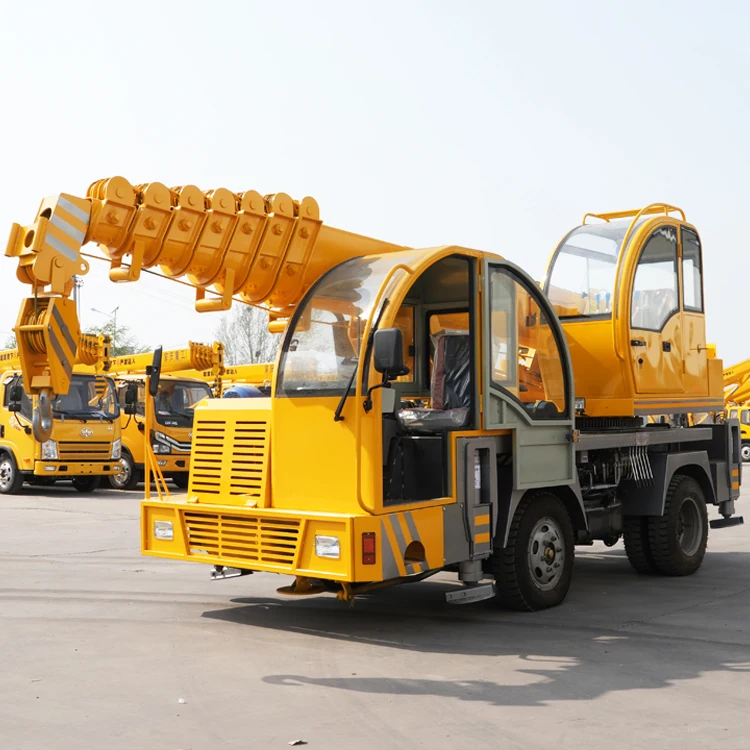

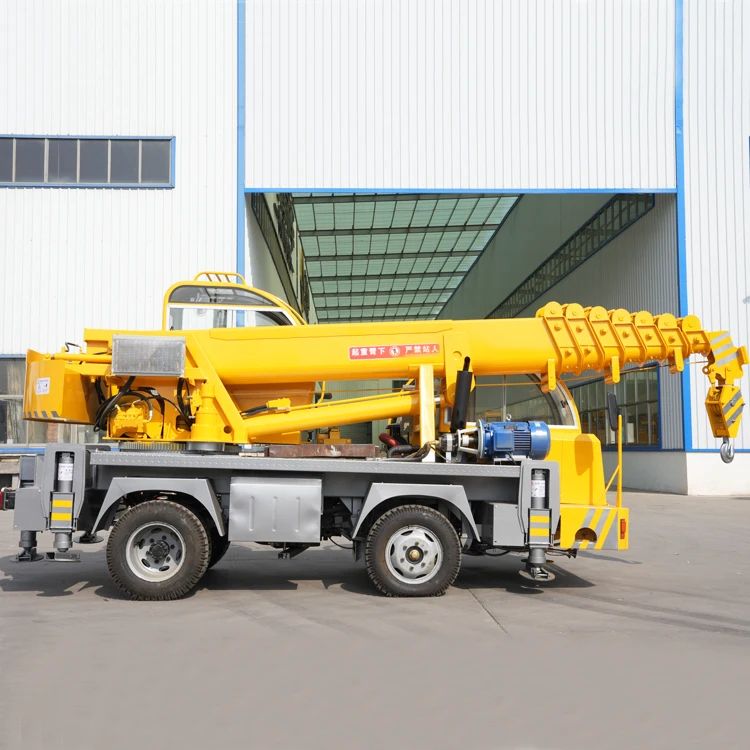

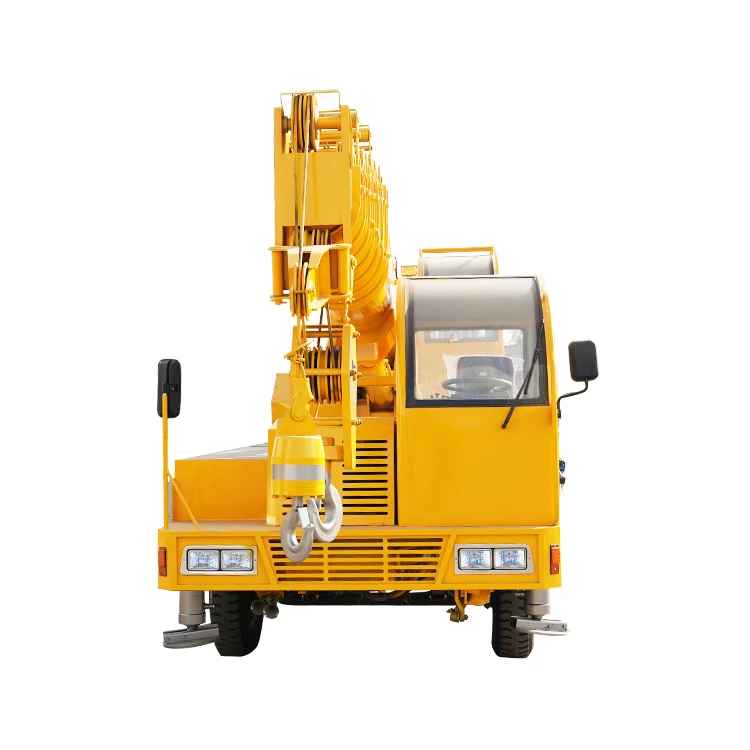

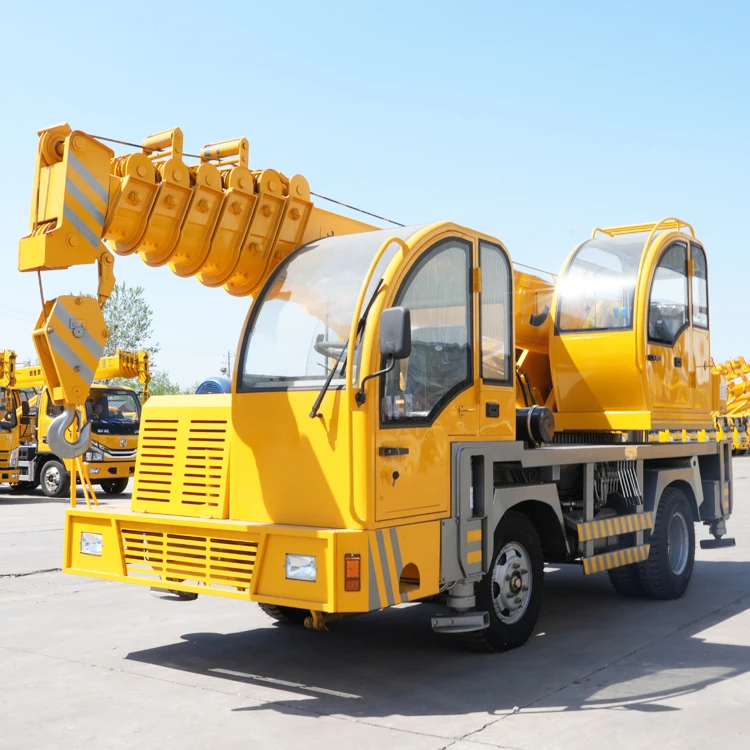

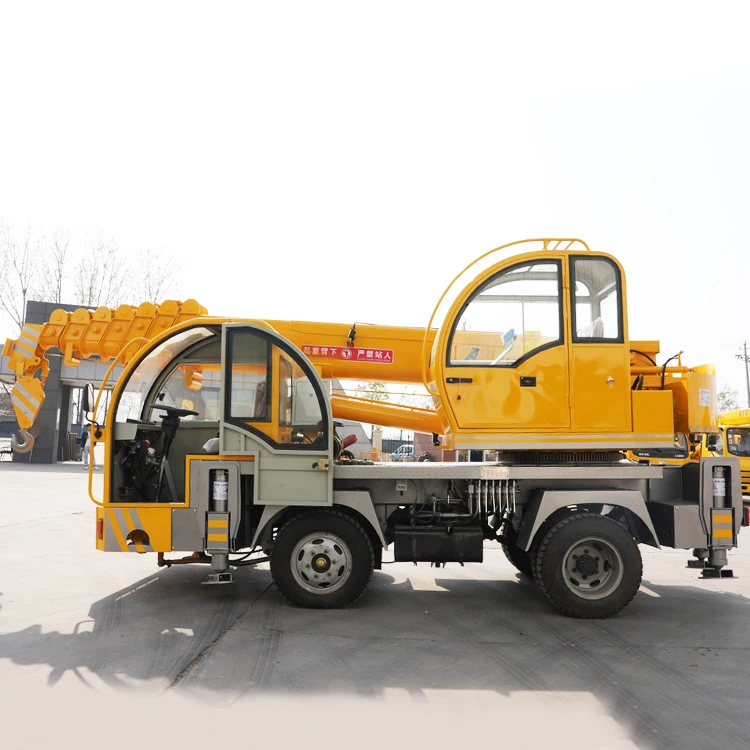

Well known homemade crane professional crane chassis good price for construction telescopic boom crane
Well known homemade crane professional crane chassis good price for construction telescopic boom crane
Well known homemade crane professional crane chassis good price for construction telescopic boom crane
Well known homemade crane professional crane chassis good price for construction telescopic boom crane
Well known homemade crane professional crane chassis good price for construction telescopic boom crane
Well known homemade crane professional crane chassis good price for construction telescopic boom crane
Well known homemade crane professional crane chassis good price for construction telescopic boom crane

Well known homemade crane professional crane chassis good price for construction telescopic boom crane

Share on (1601194837807):


Price:$19,000.00

Quantity:


Product Overview

Description



Product Paramenters


Brand
JQDC
Rotary mechanism
Secondary planetary
steering
Chassis Model
Made by the manufacturer
Outrigger
5 fully hydraulic
outriggers
total mass
7100KG
Outrigger span (transverse)
4950mm
Full crane size
6100*1950*2600mm
Outrigger span (longitudinal)
3800mm
wheelbase
2100mm
Protective devices
two-way hydraulic lock
Maximum rated lifting
capacity
6000kg
Work lights
two
maximum lifting height
21m
hydraulic pump
single pump
engine model
4102motor
Dual use of oil and electricity
11KW-6 pole copper core motor
power
64KW
Rotation radius
1.7m
horsepower
90 horsepower
Frame size
300mm*150mm
gearbox model
Wanliyang gearbox (high
and low speed)
top of posterior displacement
standard configuration
tire
750-16
Lifting operation mode
Pushrod operation
brake system
Air brake（ABS）
Rod output form
Synchronous scaling
Steering mechanism
Hydraulic directional
assistance
Type of boom structure
4m * 7 section arm
Main lifting mechanism
8 ton winch
Big arm size
500mm*300mm
Boom structure type
4m*7-section boom
Slewing bearing
1.05 meter turntable


Product features: Equipped with a central rotator, the turntable can rotate 360 ​​degrees at will; equipped with a planetary reduction mechanism, which rotates faster and more smoothly; equipped with a hydraulic cooling system to reduce oil temperature and improve efficiency; equipped with high and low speed, steering wheel power assistance, and air brakes, making driving the vehicle easier and more flexible.




Flexible performance
Simple structure, smooth transmission, labor-saving operation, strong water resistance of the whole vehicle,and wide range of applications
Efficient and stable
360° fully rotating strong steel boom, efficient and stable rotation, high speed and high efficiency, fully automatic hydraulic outriggers, stable and convenient operation


Wide range of uses
The new H-shaped outriggers can adapt to broken roads and irregular sites
Wide field of vision
The wide field of vision during construction operations can be observed in multiple directions to avoid mistakes


Hydraulic system operation The full hydraulic system operation is simple and clear to operate, with high safety performance.
What needs are met
1ton/8ton/10ton/12ton/16ton different lifting weights are available, which can be used for a variety of operations


Customer visit








Company Profile




Jining Jiaqing Special Vehicle (Group) Co., Ltd, a modern corporate enterprise, established in 2012,registered capital 22,000,000 RMB, professionally producing truck crane series , self-made crane series, truck mounted crane series,located in Changgou Industrial Park, Jining City, Shandong Province, covering 80232 square meters. Now our company owns fixed assets 23000000 RMB,196 employees, 40 professional engineers , 8 senior engineers , 16 senior technicians. Acquired ISO 9001:2015 national quality management system certification and the ISO13485:2016 national quality management system certification, passed the European Community CE quality certification.11 years experience and nearly 1000 sets annual sale of cranes make us one of the biggest crane manufacturer in China. Our company has many years of production experience and can produce according to customer needs, support customized orders and process according to drawings.Welcome to visit our factory when come to China,more information and pictures will be sent after getting your reply.
