Product Overview
Description
Hydroelectric Water Wheel Hydro Electric Power Generation Hydro Power Electric Generator Governor
Our main products included:
1.Kaplan hydro turbine generators series.
2.Turgo hydro turbine generators series,e.g. vertical type horizontal type.
3.Tubular hydro turbine generators series ,e.g. Bulb type and shaft extension type.
4.Francis hydro turbine generators series.
5.Pelton hydro turbine generators series and double turbine generators series and so on.

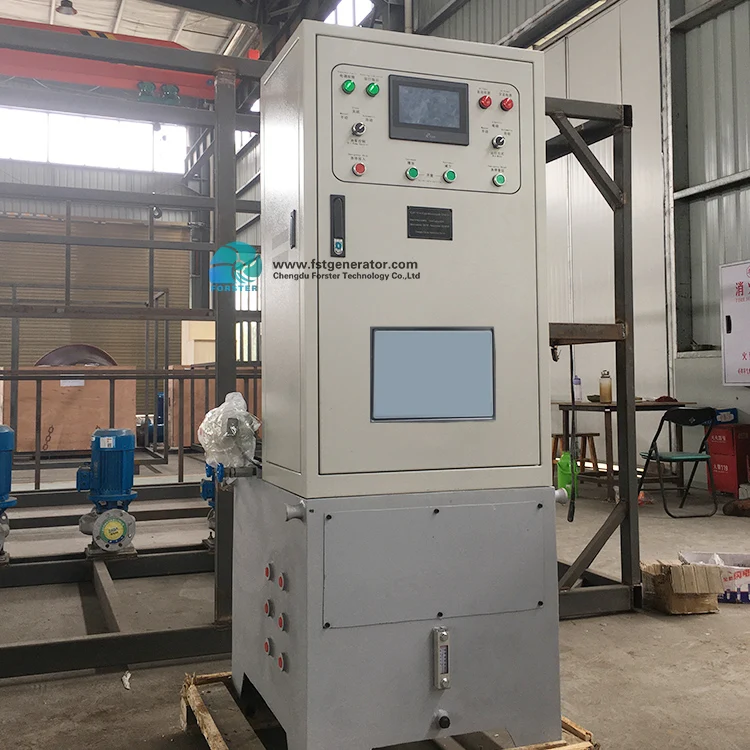

6.Other auxiliary equipment for hydropower station, such as generator, control panel, governor, hydroturbine control valve, transformer, automatic electrical equipment, electricity meter, pressure tube, etc
Product features :
1.Francis Water turbines have the advantages of compact structure and high efficiency, and can adapt to various types of turbine heads. It is a turbine widely used in the world;
2.Francis Water Turbine water flows into the radial and axial flow through the turbine impeller, so it is also called radial axial flow turbine;
3.Francis Water turbines are also known as Francis turbines. The water flows out from the surrounding radial inflow channel, and then approximates the axial channel, the channel is under the crown, ring and blade;
Parameters:
Product name:150kw Francis Turbine Generator Unit | |||
Technical Parameters | |||
Net Head | Hr | 25 | m |
Design Flow Rate | Qr | 0.77 | m³/s |
Maximum Flow | Qmax | 0.85 | m³/s |
Capacity Power | P | 1×150 | kw |
Model | HLA575C-WJ-56 | Model | / |
Unit Flow Q11 | 0.488m3/s | Rated Efficiency of Generator ηf | 93.5% |
Unit Rotating Speed n11 | 67.2 r/min | Frequency of the generator f | 50Hz |
Max Hydraulic Thrust Pt | 0.88t | Rated voltage of generator V | 400V |
Rated rotating speed r | 600r/min | Rated current of the generator I | 270.64A |
Efficiency of turbine ηm | 93% | Excitation | Brushless Excitation |
Max Runway speed nfmax | 1080r/min | Connection way | Direct Connection |
Rated Output Nt | 1762kW | Max runaway speed nfmax‘ | / |
Rated Discharge Qr | 0.77m3/s | Rated rotating speed nr | 600rpm/min |
Turbine real machine efficiency ηr | 89% | Unit support form | Horizontal |

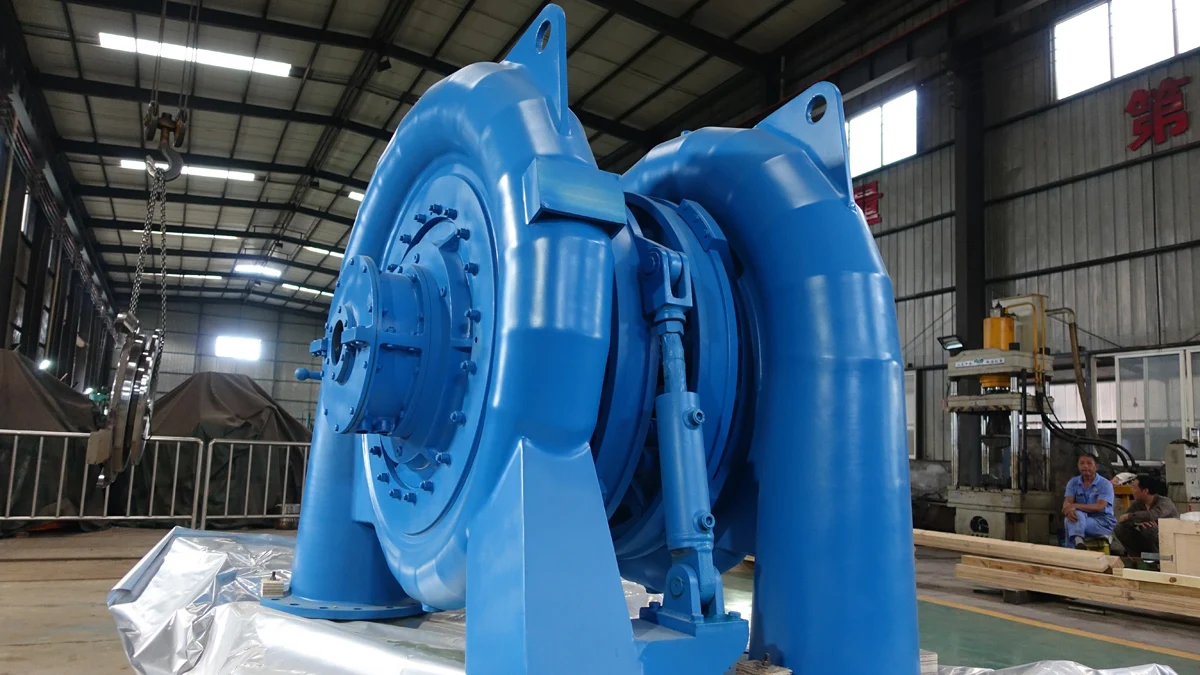

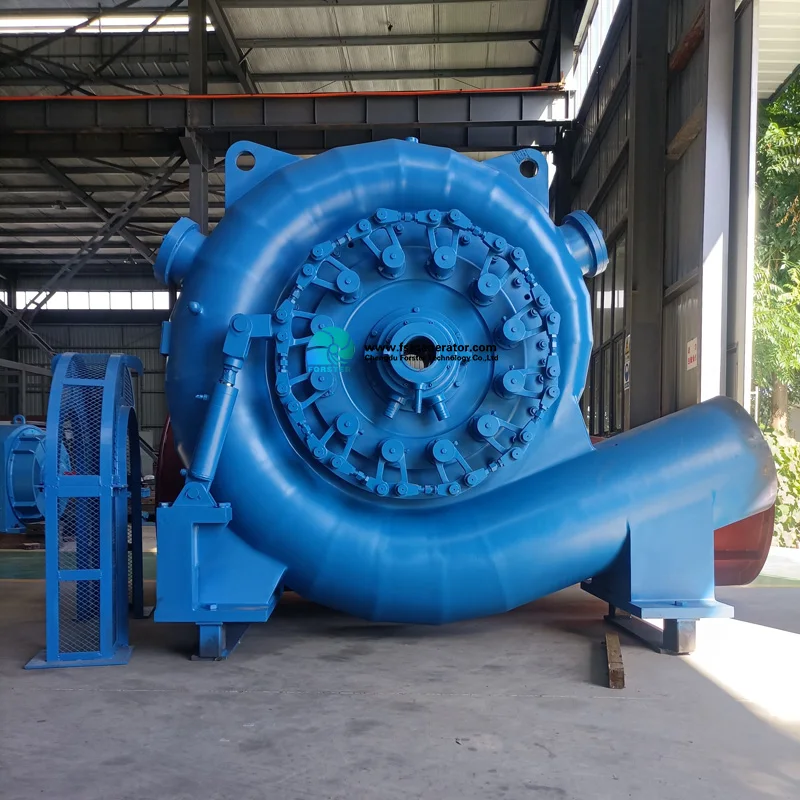

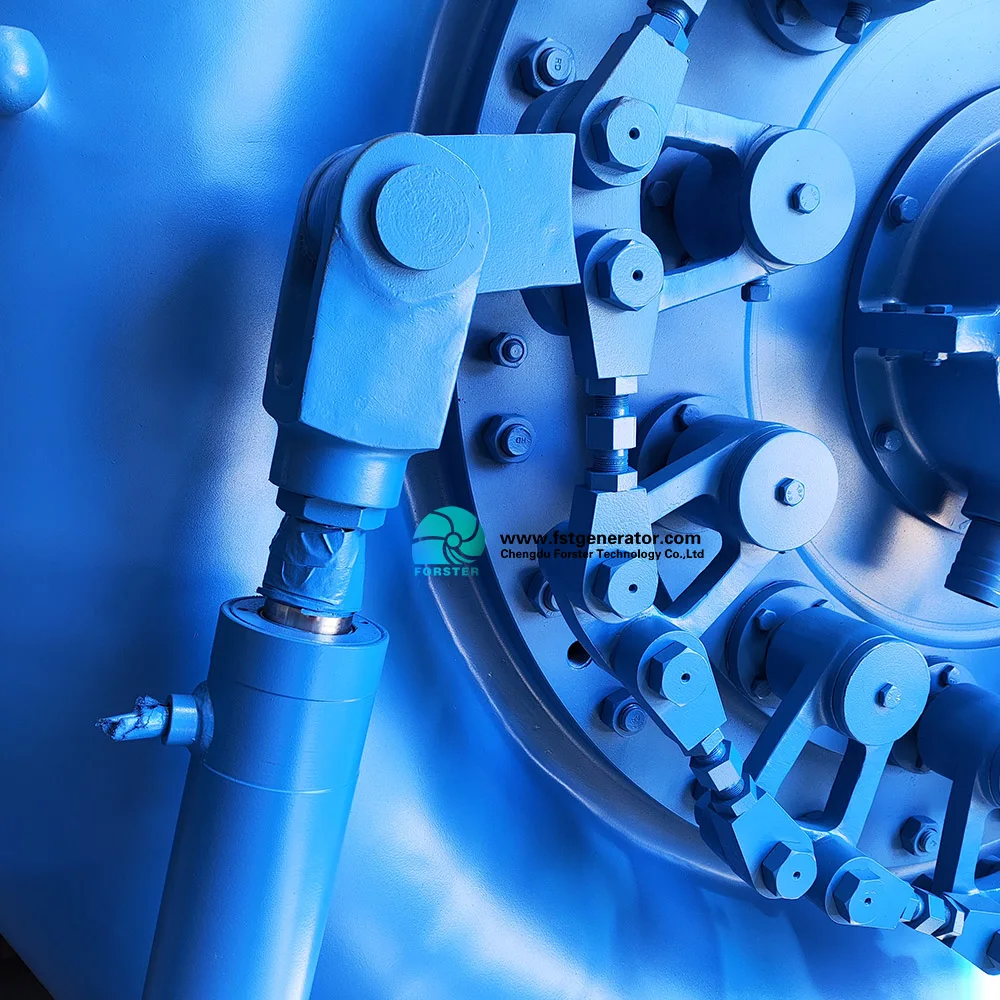

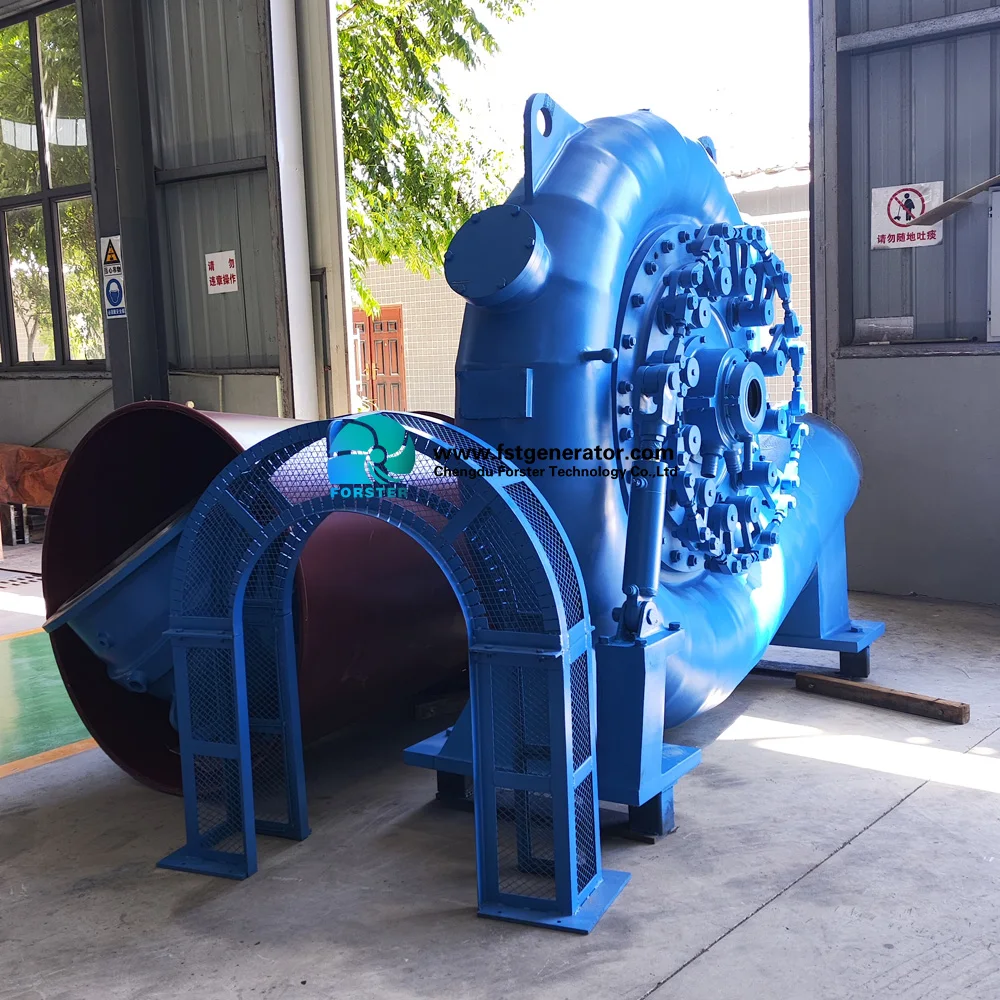

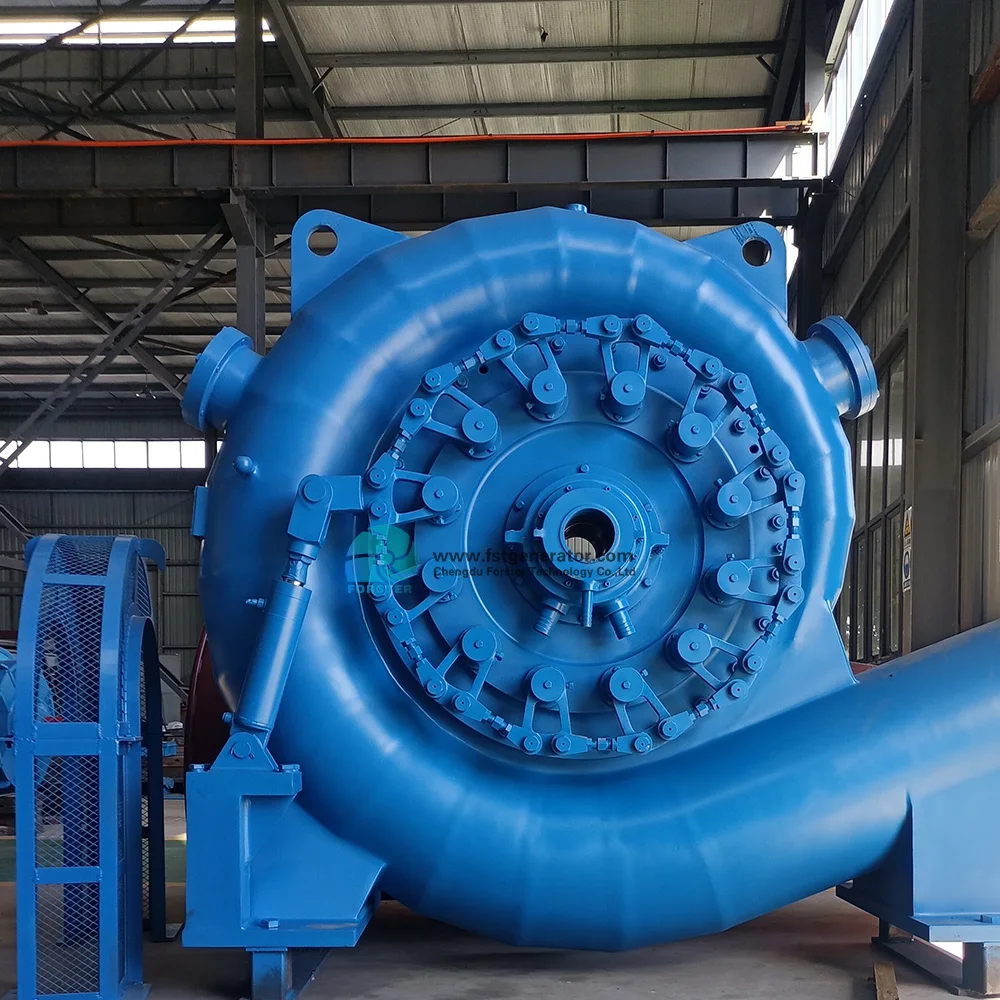

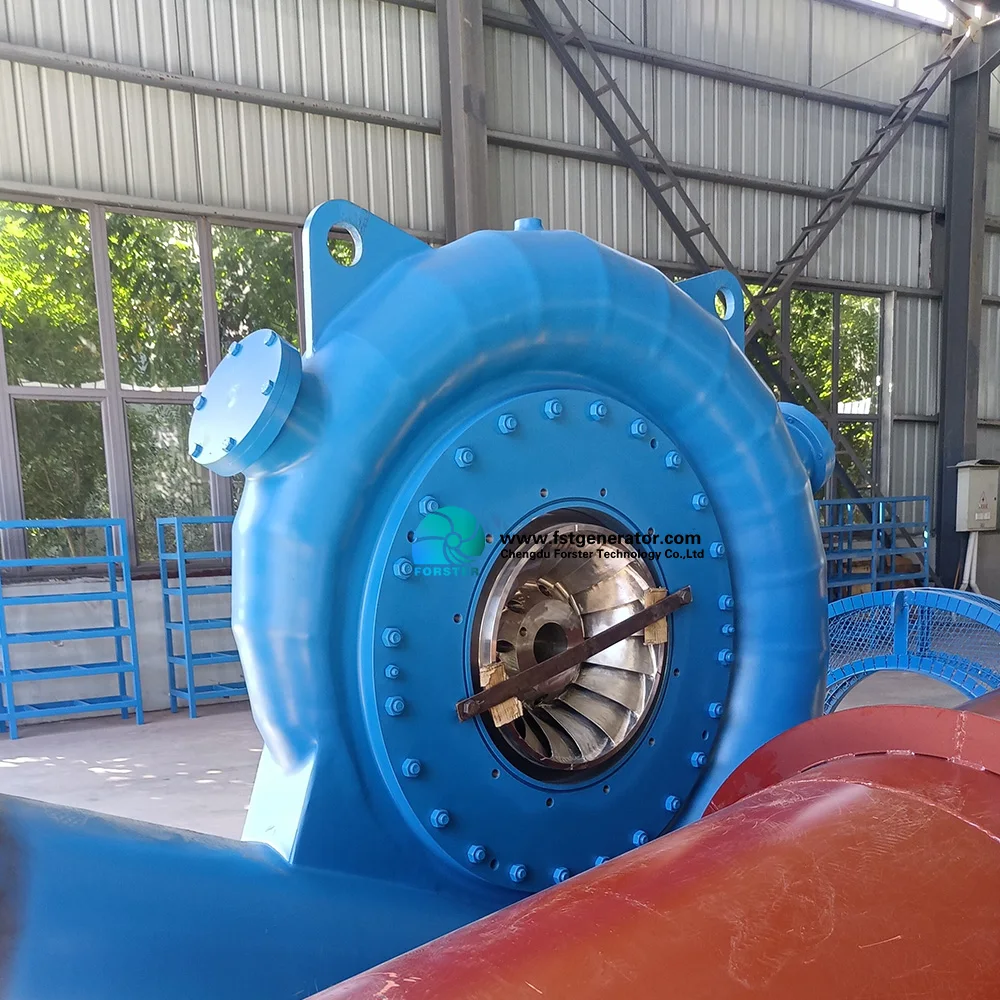

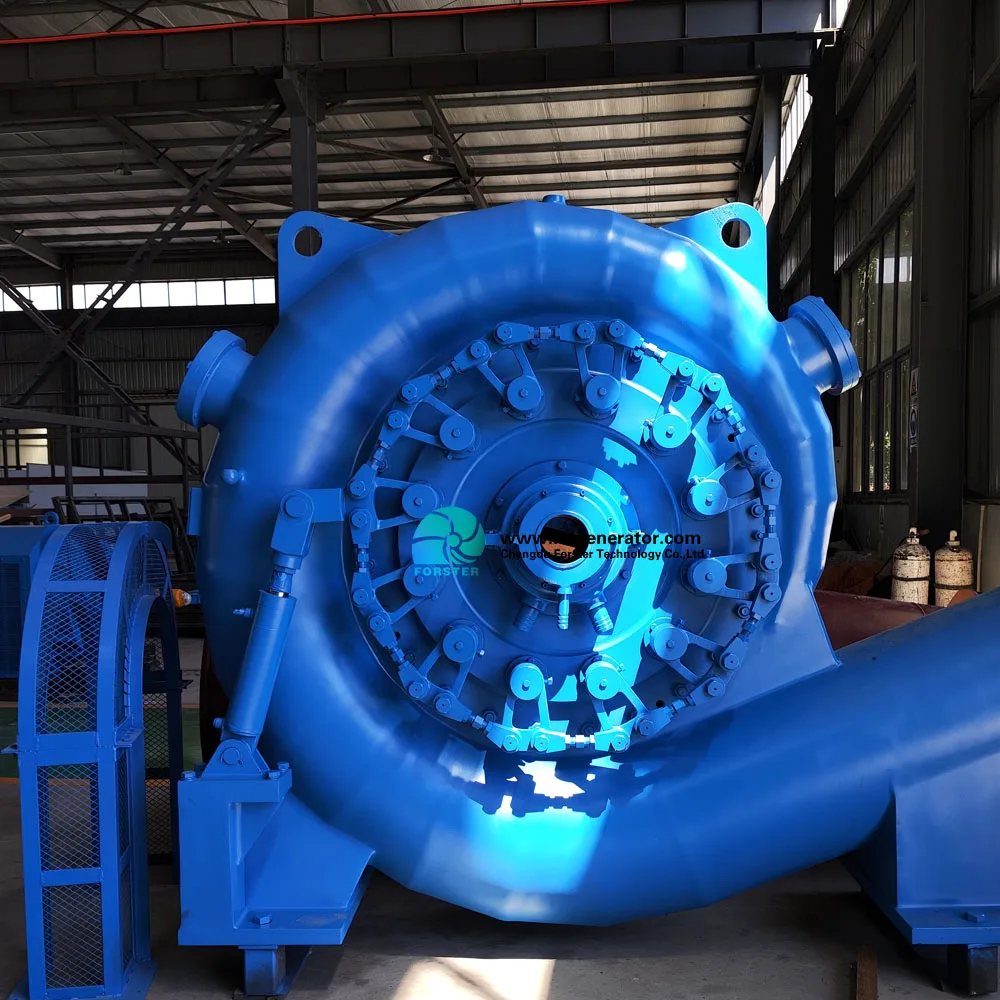

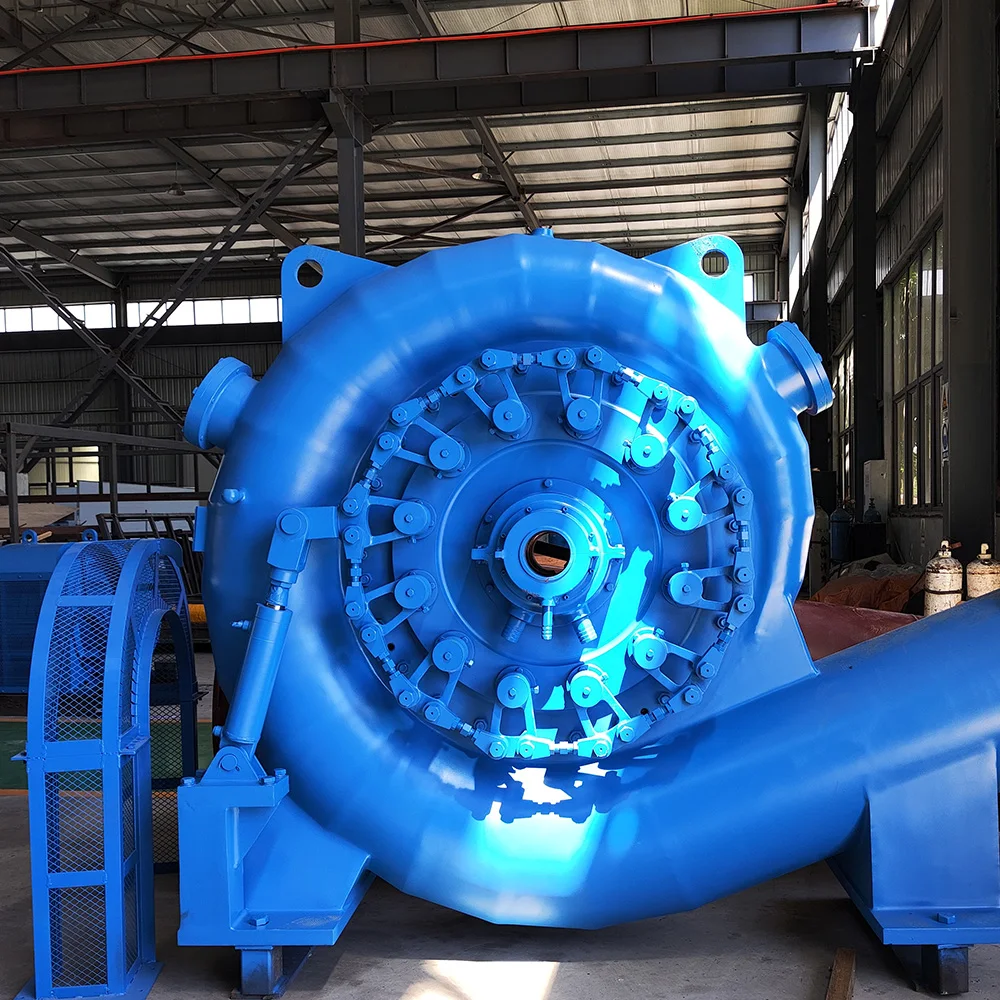

Product pictuers:
Installation Diagram
Other Product
 |  |

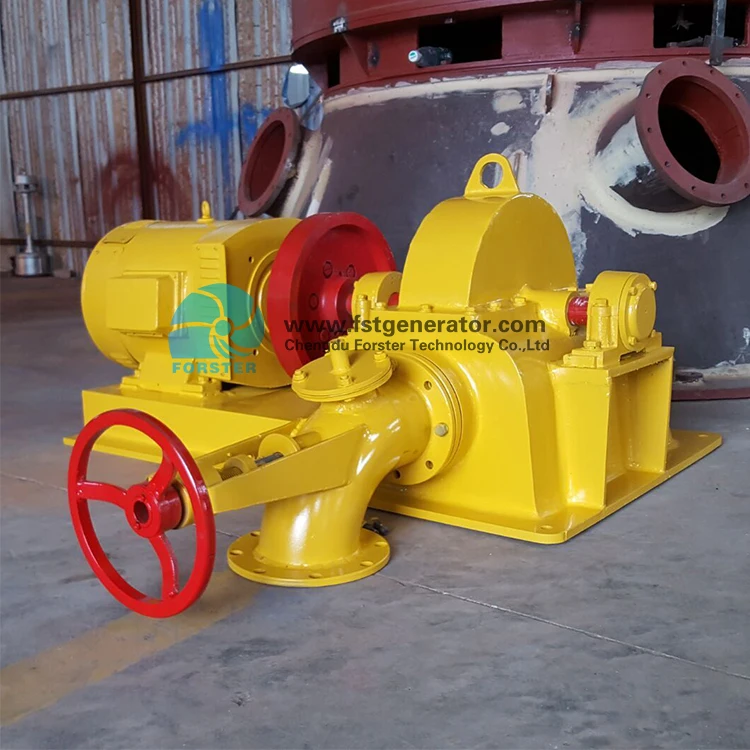

| High Head 10kw-120kw Hydro Pelton Turbine | Low Head 20kw-100kw Hydro Tubular turbine |
Company Information
Our Workshop
Advantages
Our hydroelectric generators use direct or indirect connection methods to drive turbines and generators to rotate to generate electricity. There are two ways of vertical and horizontal installation. Low speed is adopted. The excitation method adopts brushless excitation and static thyristor excitation to give full play to the characteristics of the turbine and achieve high efficiency and low energy consumption. The voltage is from 110V to 35KV, the frequency is from 50Hz to 60Hz, and the output power is from 0.6Kw to 30MW. And has ISO, CE, TUV, SGS international certification, production and testing follow the international IEC standards.
Engineering Case
Packaging & Shipping
FAQ:
Q1, Which Water turbine should I choose?
Please tell me the water head, flow rate, frequency, Total power you need
, voltage, on grid or off grid operation, we will propose a solution.
Q2, Can your factory provide all the equipment for hydropower generation?
Yes, we can provide you with turbines, hydro-generators, pressure regulators, turbine wheels, control panels, transformers, monitoring systems and more.
Q3, Can you do EPC for a hydroelectric power plant?
Yes, we can provide TURN-KEY and EPC services including measurement, design, manufacturing, construction, manufacturing, commissioning, inspection, maintenance runner replacement and refurbishment/upgrade/improvement/repair/refurbishment of turbines/generators including bearings, seals For parts and key parts, we will send technicians and workers to install equipment.
Q4,Is your company a trading company or a manufacturer?
We are a manufacturer of hydro turbine generators and started to promote the international market in 2013. Our factory is located in Sichuan, where China's water conservancy and hydropower is most developed. Welcome to visit our factory in China.
Q5, What is an acceptable MOQ?
For this product, our acceptable MOQ is 1 set.
Q6,How long is the delivery time?
Delivery times range from 15 days to 6 months depending on the model you are purchasing.
