10Kg lpg gas cylinder composite lpg gas cylinder lpg tank
- Category: >>>
- Supplier: Anhui Clean Energy Co. Ltd.
Share on (1601194847874):
Product Overview
Description
Products Description

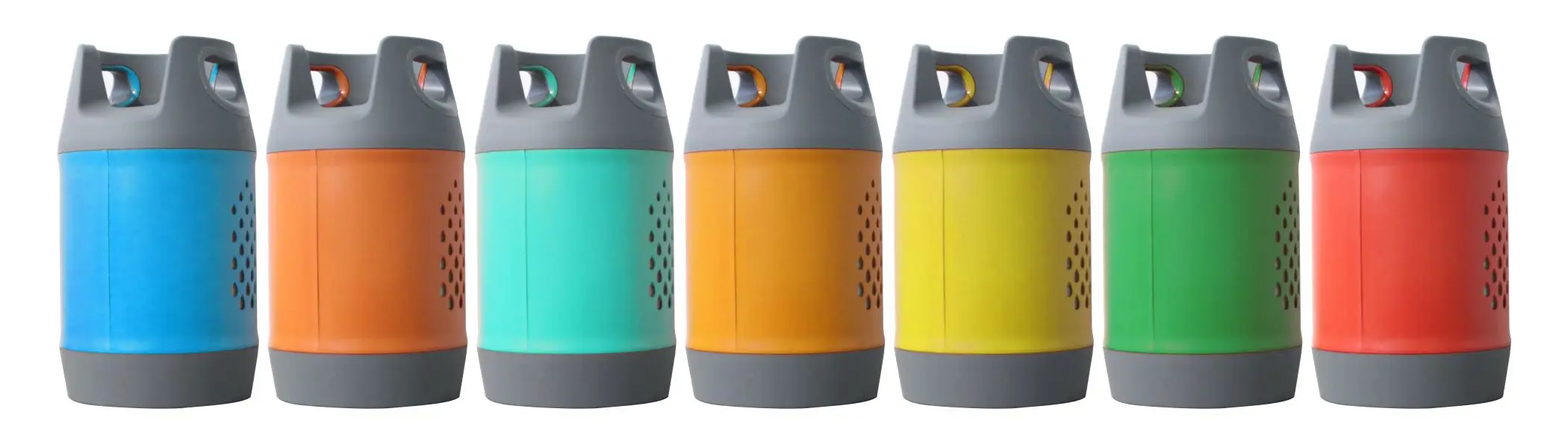

LPG Composite Cylinder
DESCRIPTION | PARAMETERS |
Filling Weight(LPG/KG) | 12.5KG |
Cylinder Empty Tare Weight(KG) | 7.5KG |
Water Capacity(L) | 30.5L |
Height(mm) | 650mm |
Diameter(mm) | 307mm |
Working Pressure(bar) | 20bar |
Test Pressure(bar) | 30bar |
Hydraulic Burst Pressure(bar) | 150bar |
-Appearance and retentivity
The Composite LPG cylinders are produced by high anti-corrosion material, which will not loose due to rust. The appearance color will always maintain fresh
-Visible liquid level
Due to the cylinder body is semitransparent, the users can easily supervise the LPG content inside from the visible liquid level
-Light and portable
The weight of composite LPG cylinder is only 40% of the traditional metal cylinder, and the ergonomically designed soft handle makes it portable for both adults and children
-High level safety
The cylinder liner is made of HDPE, which has high corrosion resistance to LPG, atmosphere and aqueous solution containing sulfur. It will not explose due to the corrosion
-Long life and easy inspection
The first and second periodical inspection of the composite LPG cylinder is 5 years, and the third periodical inspection is 10 years, which greatly extends the service life of the product
The Composite LPG cylinders are produced by high anti-corrosion material, which will not loose due to rust. The appearance color will always maintain fresh
-Visible liquid level
Due to the cylinder body is semitransparent, the users can easily supervise the LPG content inside from the visible liquid level
-Light and portable
The weight of composite LPG cylinder is only 40% of the traditional metal cylinder, and the ergonomically designed soft handle makes it portable for both adults and children
-High level safety
The cylinder liner is made of HDPE, which has high corrosion resistance to LPG, atmosphere and aqueous solution containing sulfur. It will not explose due to the corrosion
-Long life and easy inspection
The first and second periodical inspection of the composite LPG cylinder is 5 years, and the third periodical inspection is 10 years, which greatly extends the service life of the product
-Glass fiber
We choose a kind of special wrapping fiber with good invasion, high gelatinization and no balling-up
-Epoxy resin
The epoxy resin we choose has advantages of lower curing temperature, quicker curing speed, longer service life and lower price
-HDPE
High-density Polyethylene, has the advantage of wide range of sources and cheap. It can be used as liner material to revent the gas leakage, also can be used as external wear-resistant material
We choose a kind of special wrapping fiber with good invasion, high gelatinization and no balling-up
-Epoxy resin
The epoxy resin we choose has advantages of lower curing temperature, quicker curing speed, longer service life and lower price
-HDPE
High-density Polyethylene, has the advantage of wide range of sources and cheap. It can be used as liner material to revent the gas leakage, also can be used as external wear-resistant material
Cylinder Model and Standard | Norminal Working Pressure (bar) | Hyd.test Pressure (bar) | Design Wall Thickness (mm) | Material | Outer Diameter (mm) | Water Capacity (L) | Length (mm) | Weight (kg) |
FSYP-G-V EN 12245 ISO11119-3 | 20 | 30 | 1.0 | HDPE | 321 | 12.5 | 400 | 6.95 |
20 | 30 | 1.0 | HDPE | 321 | 18.2 | 500 | 7.15 | |
20 | 30 | 1.0 | HDPE | 321 | 24.5 | 570 | 7.35 | |
20 | 30 | 1.0 | HDPE | 321 | 26.2 | 624 | 7.40 | |
20 | 30 | 1.0 | HDPE | 321 | 27.4 | 645 | 7.45 | |
20 | 30 | 1.0 | HDPE | 321 | 30.5 | 680 | 7.50 | |
20 | 30 | 1.0 | HDPE | 321 | 34.5 | 764 | 7.67 |
Click here! Detailed communication!!
Company Profile
Welcome to Anhui Clean Energy Co. Ltd.
Anhui Clean Energy Co., Ltd. is an enterprise that produces and sells various seamless steel cylinders and composite liner gas cylinders such as compressed natural gas cylinders for vehicles, industrial gas cylinders, and fire-fighting cylinders.The company is committed to providing automotive green energy solutions and related environmental protection supporting services.

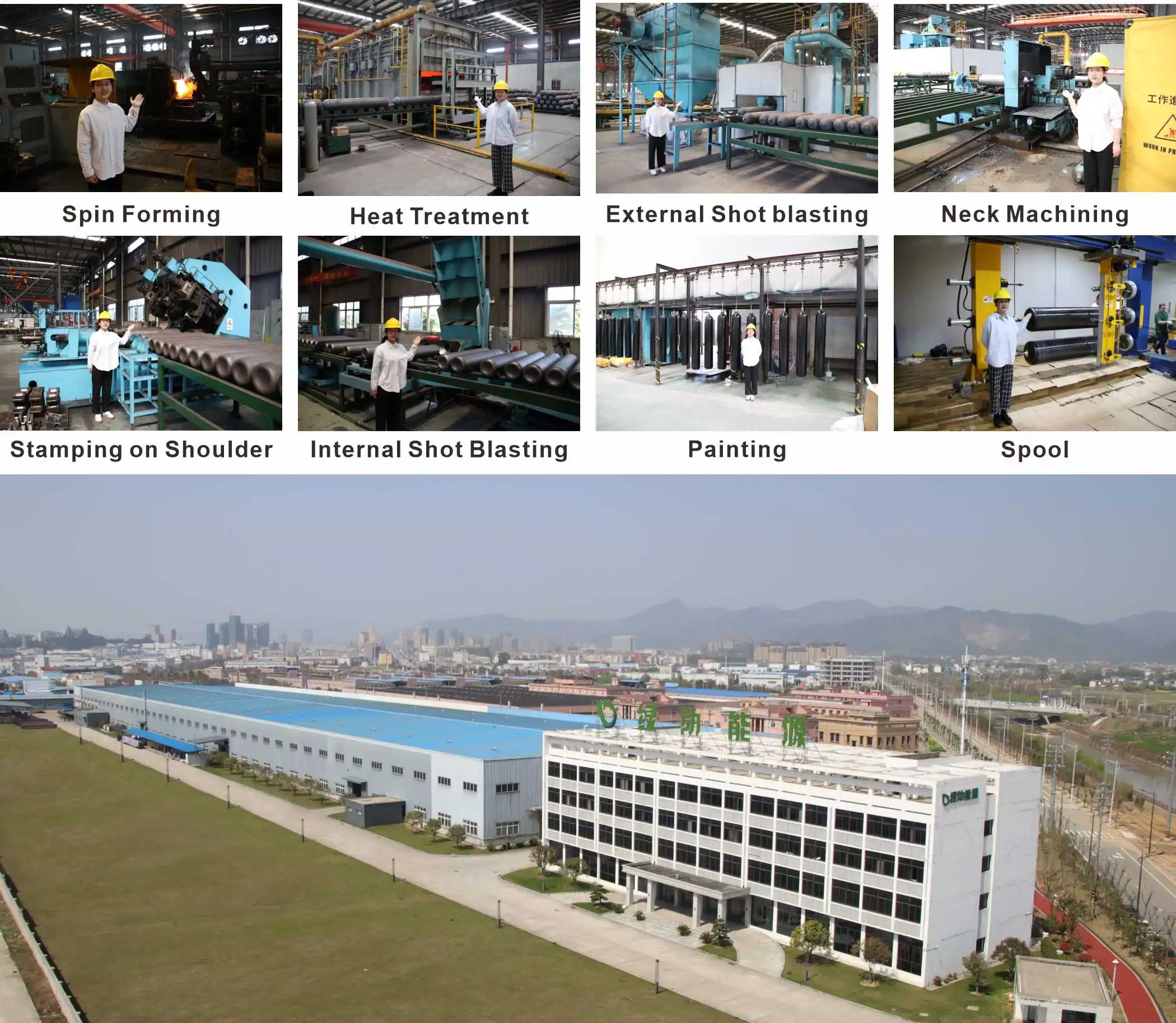

Our factory
The company was established in 2009 and entered the Taihu County Economic Development Zone in Anhui in 2014. It has built a standardized factory covering an area of 46,000 square meters.The company has focused on R&D and production for more than 10 years, and its global sales volume has reached 2 million.The company has 6 gas cylinder spinning production lines, 2 heat treatment and tempering lines, as well as machining, spraying and winding production lines. It has an annual production capacity of 360,000 gas cylinders, and can produce industrial steel seamless bottles,CNG vehicles, CNG glass fiber hoop wound gas cylinders for CNG vehicles, carbon fiber wound gas cylinders for CNG vehicles, composite material wound gas cylinders for CNG vehicles, steel seamless cylinders for CNG stations, fire-fighting steel cylinders, and LPG Cylinders, respirators and other products.
After years of business development, the "Clean" gas cylinder brand has gained a high reputation and reputation in the market. Its sales network covers Asia, Europe, and the Americas. The products are exported to more than 50 countries and regions including Italy, Brazil, Thailand, India, Uzbekistan and so on.Beginning in 2018, Green Gas Cylinders have successively become qualified suppliers for Foton, Dongfeng, Chery, Shaanxi Automobile and other auto plants.

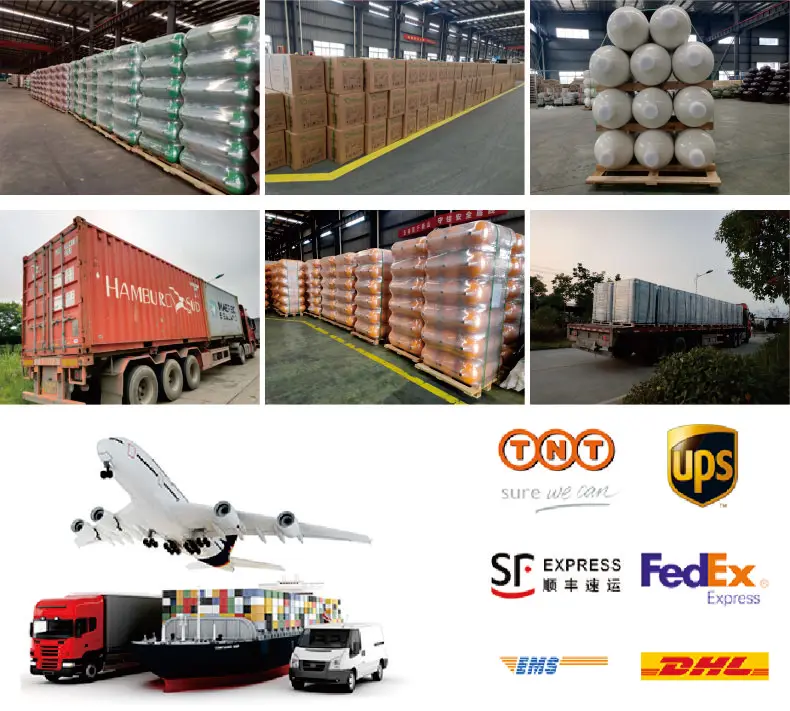

Package&Logistics
We can provide a series of package and logistics solutions according to the customer’s requirements, to ensure our goods reach our customers on time and safely
Tel: 0086-556-5129993
Fax: 0086-556-5129994Add: No. 318,Guanyin Rd. of Economic Development Zone of Taihu County, Anqing, Anhui Province, China.
Http: www.cpte.cn

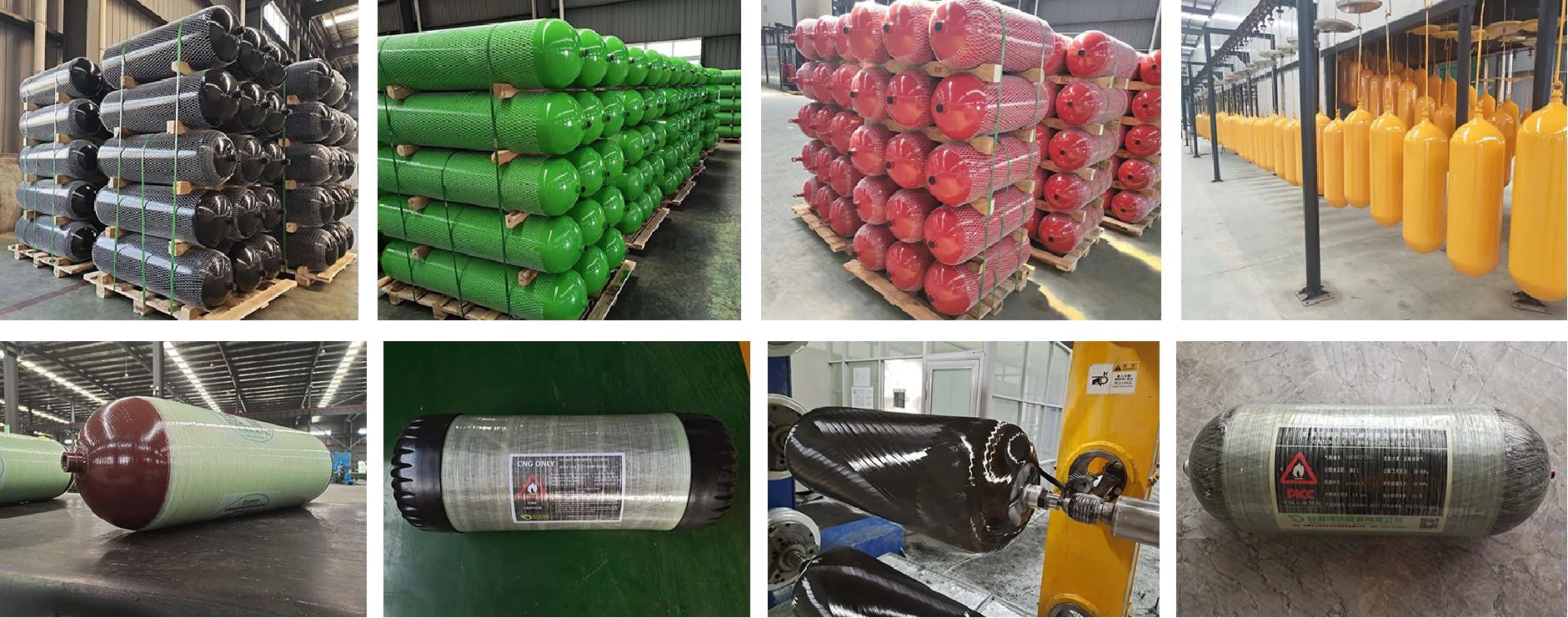

Our Products
CNG CYLINDER
CNG-1 is a steel or aluminum alloy metal bottle;
CNG-2 is a composite gas cylinder with steel or aluminum lining and a barrel reinforced with long fibers impregnated with "hoop winding" resin;
CNG-3 is a composite gas cylinder reinforced with steel or aluminum lining and "wrapped" resin impregnated long fibers;
CNG-4 is a composite gas cylinder reinforced with plastic lining and "wrapped" resin impregnated long fibers

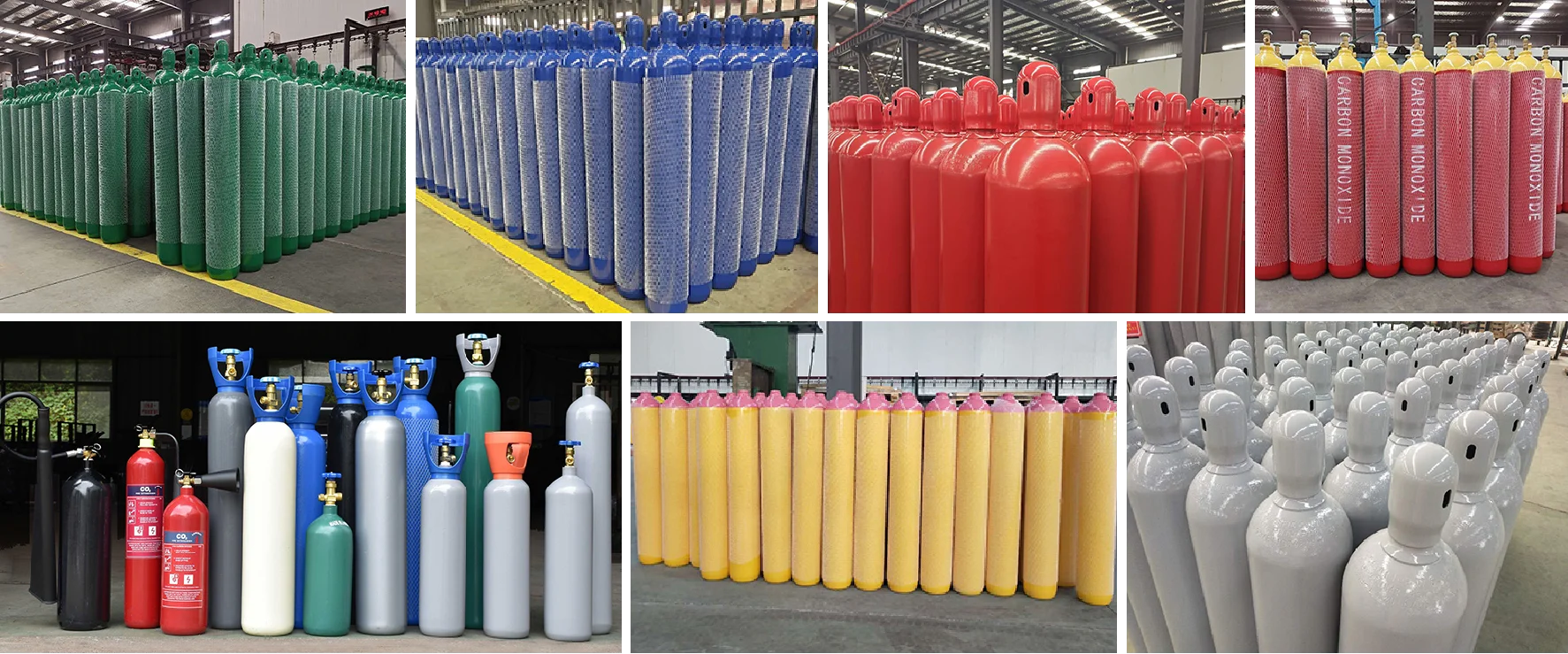

Seamless Steel Cylinder
Industrial gas cylinder medical gas cylinder CO2 GAS CYLINDER Fire extinguisher

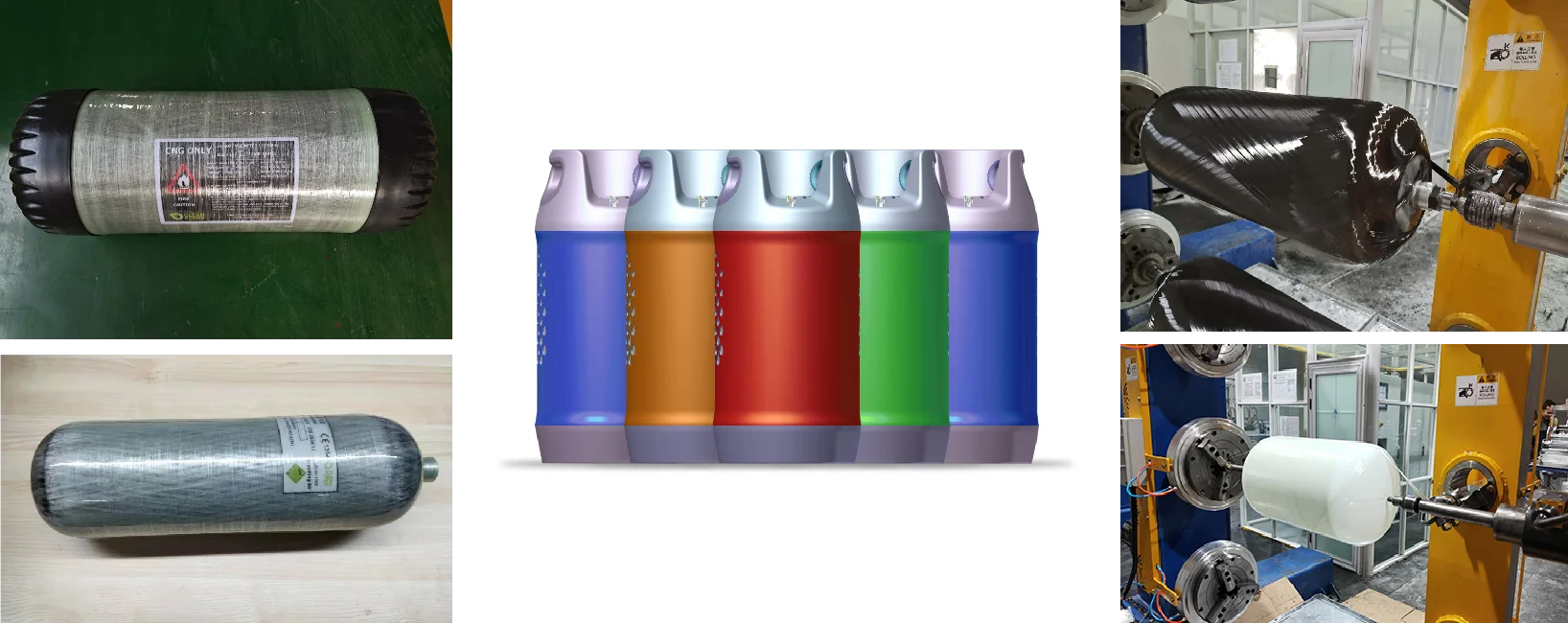

New Products
We have been committed to researching composite products, and in 2019 we became the first company to successfully launch CNG4 composite gas cylinders in China.
FAQ
* Q1: Are you manufacturer or trade company?
* A1: We are a Chinese manufacturer, and have been specializing in manufacturing gas cylinders for more than 10 years. Our company brand is “LD”.
* Q2: What is your daily production capacity?
* A2: Our production capacity everyday is 800~1000 units.
* Q3: What is your delivery time?
* A3: Usually our delivery time is 25-45 days against the advance payment. Mainly it depends on when we get the production materials.
* Q4: What certificates do you have?
* A4: We have ISO9001 and IATF16949 for management system, and ISO9809, ISO11439 and ECE R110 for production approval.
* Q5: Do you accept OEM production?
* A5: Of course, we have served several famous motor OEMs, such as TOYOTA(Thailand)-Thailand, IKCO-Iran, GAZ-Russia, DF-China, and FOTON-China, etc. We would like to serve more customers with our superior quality.
* Q6: Can you provide samples to us?
* A6: Yes, we can provide 1-2 samples for your testing freely, but you need to undertake the logistic cost firstly.
* Q7: Can you customize the products?
* A7: Yes, we can provide you with various customized products. For example, your company brand/logo, different accessories and your favorite colors.
