High Quality Wholesale Cheap Turbine Vertical Generator Home Portable Vawt Manufacturer 5kw 10kw 220v Wind Turbines For House
- Category: >>>
- Supplier: Qingdao Greef New Energy Equipment Co. Ltd.
Share on (1601194932469):
Product Overview
Description
Why choose GV-2KW 3KW wind turbine?
Vertical axis wind turbine funding (VAWTs) are a type of wind generator where the main rotor shaft is set vertically and the main components are located at the base of the turbine. VAWTs offer a number of advantages over traditional horizontal-axis wind turbines (HAWTs). They can be packed closer together in wind farms, allowing more in a given space. they are smaller, but rather due to the slowing effect on the air that HAWTs have, forcing designers to separate them by ten times their width.
GreeF vertical axis wind turbine funding are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.
GreeF vertical axis wind turbine funding are rugged, quiet, light, Omni-directional, and they do not create as much stress on the support structure. They do not require as much wind to generate power, thus allowing them to be closer to the ground. By being closer to the ground they are easily maintained and can be installed on rooftop and similar tall structures.
●Simple structure ,1hour installation
●Especial Generator ---- coreless disc generator
Technical specification
Model | GV-2KW | GV-3KW | |
Rated Power | 2kW | 3kW | |
Max Power | 2.5kW | 4kW | |
Start Wind Speed | 2.8m/s (6.27mph) | 2.8m/s (6.27mph) | |
Rated Wind Speed | 11m/s(24.64mph) | 12m/s(26.88mph) | |
Working Wind Speed | 3-25m/s (6.72-56 mph) | 3-25m/s (6.72-56 mph) | |
Safety Wind Speed | 50m/s(112mph) | 50m/s(112mph) | |
Blades Length | 3.65M(11.97ft) | 3.65M(11.97ft) | |
Blades Rotor Diameter | 2.3M(7.54ft) | 2.3M(7.5ft) | |
Blades Material &Quantity | FRP /3PCS | FRP /3PCS | |
Mill Weight | 285kg | 300kg | |
Swept Area | 8.395㎡ | 8.1㎡ | |
Tower Height | 6m(19.68ft.) | 8m(26.24ft.) | |
Generator Type | Axial Flux Coreless outer rotor disc permanent magnet direct drive generator | Axial Flux Coreless outer rotor disc permanent magnet direct drive generator | |
Rated Speed | 160RPM | 160RPM | |
Start Torque | <0.3N.M | <1N.M | |
Option Voltage | 24-380V | 48-380V | |
Protection Method | Electromagnetic Brake +PWM | Electromagnetic Brake +PWM | |
Protection Grade | IP54 | IP54 | |
Working Temperature | -40-50℃ | -40-50℃ | |
Life time | 20 Years | 20 Years | |

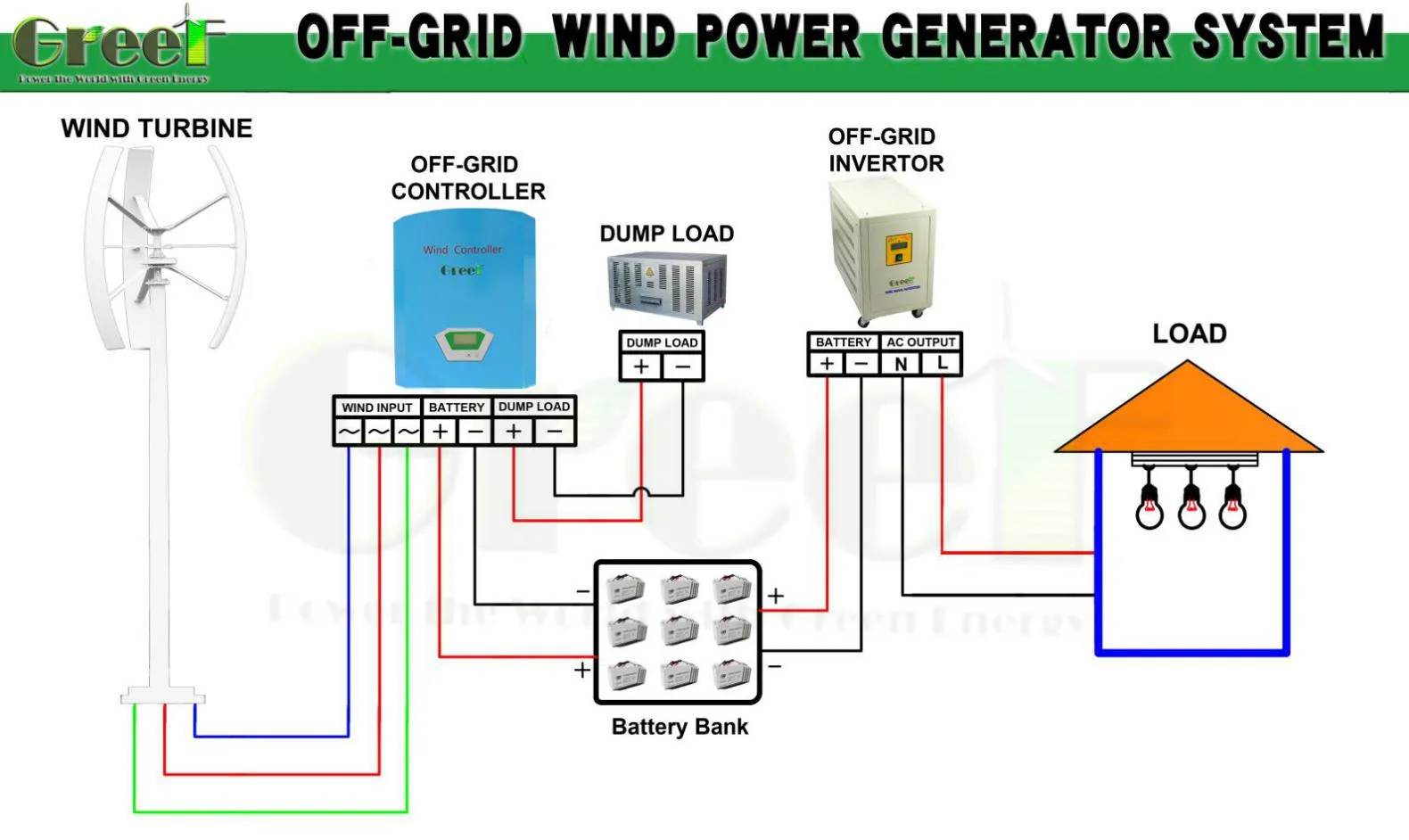

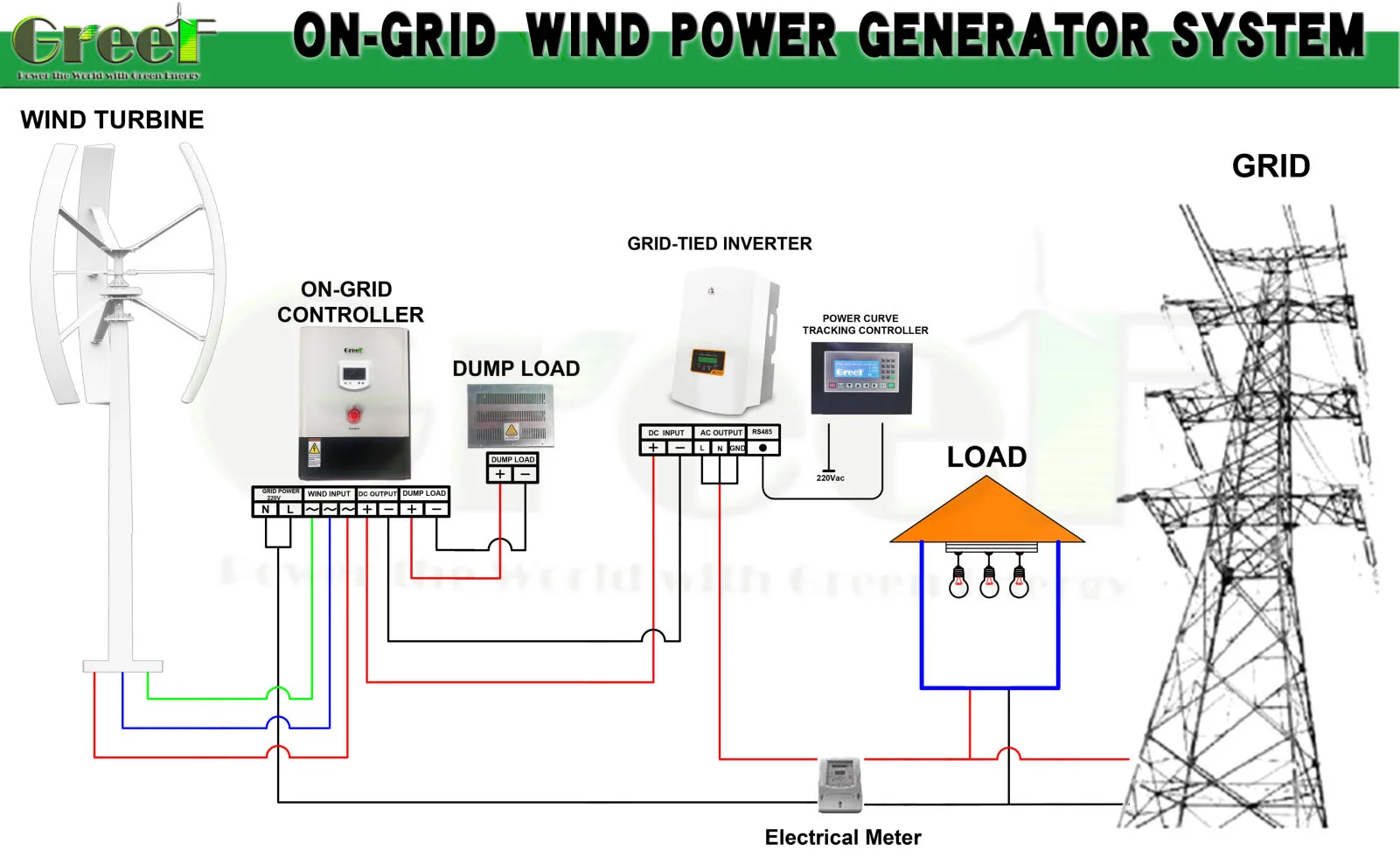

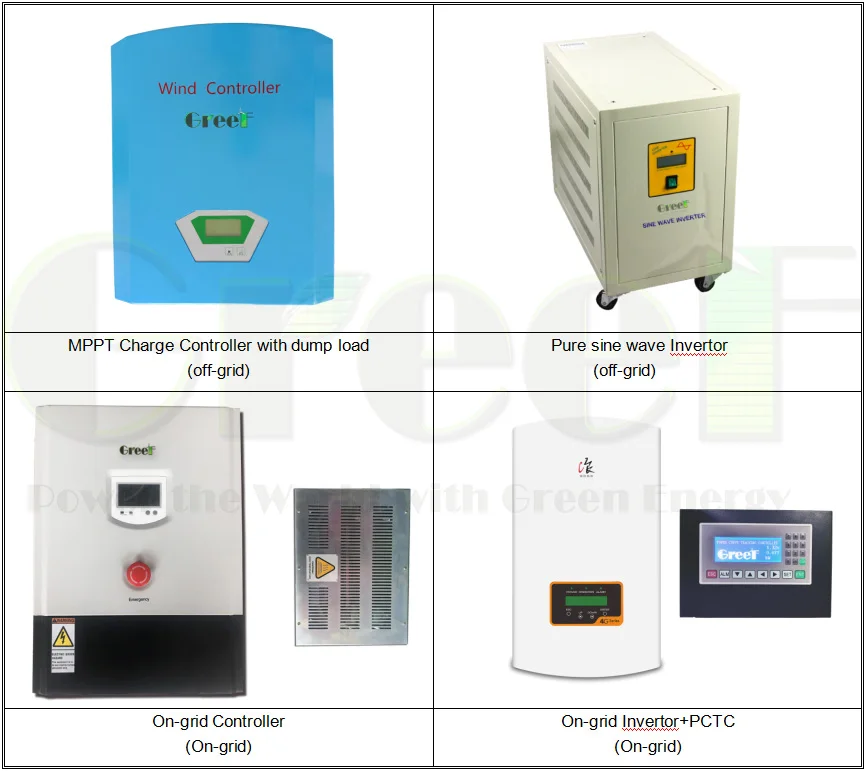

System Solution
Buyer Feedback

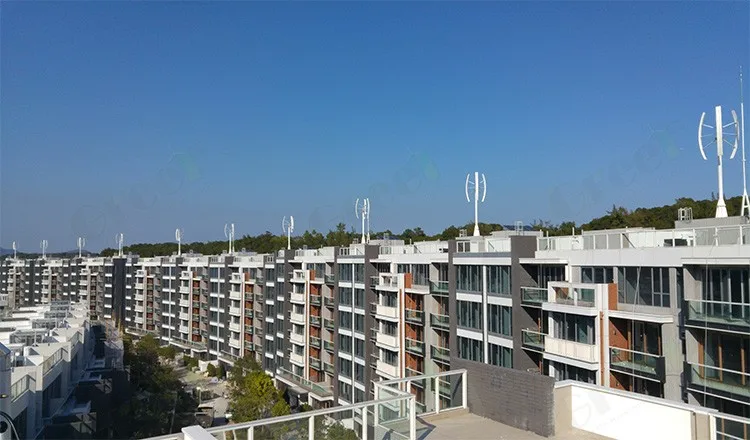

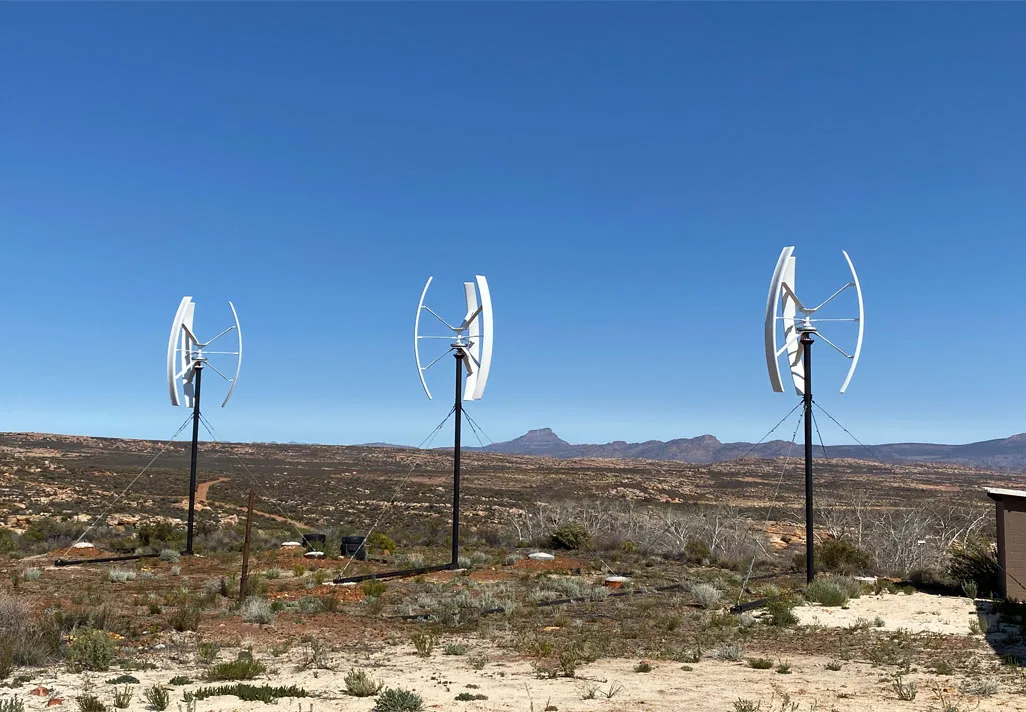

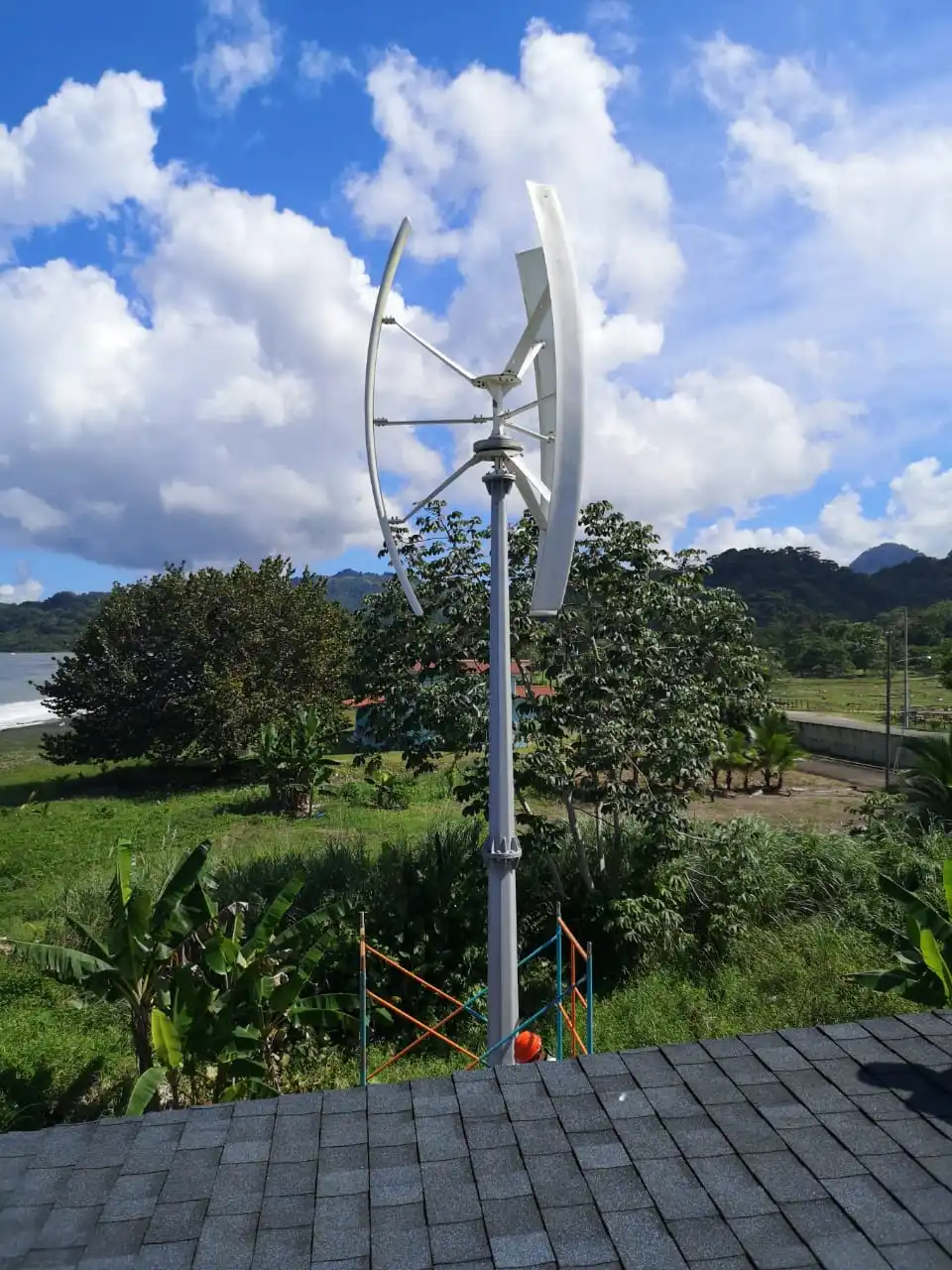

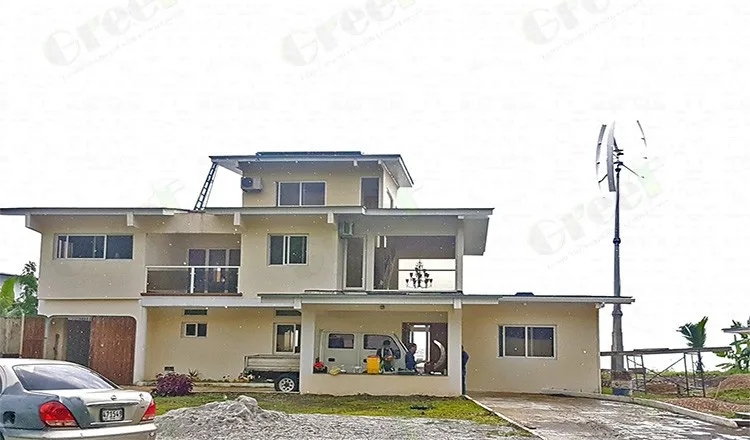

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
Why Choose Us
Our vertical wind generator and battery are free 3 years warranty, controller and invertor are 1 years warranty.
All lifelong technical support and part cost supply.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
(1) The warranty period is start from the date of shipment which show on the bill of loading or air waybill.
(2) Free maintenance services during the warranty period the cost involved be borne by the company, do not charge a fee to customers, free warranty if any damage outside the warranty period, the company will charge a fee for labor costs and materials.
(3) The warranty period, company's quality problems caused by the maintenance of the freight borne by the company, if not under warranty or man-made damage, the freight charges by the customer.
