Earthingmoving Machinery Bulldozer DH16K 160HP mini Bulldozer with Best Price
- Category: >>>
- Supplier: Richmchn Machinery Engineering (Shanghai) Co. Ltd.Richmchn Ltd.
Share on (1601194942213):
Product Overview
Description
Products Description
1.Power System
Strong power, high efficiency and energy-saving, and low maintenance cost. The rated power, featuring high torque reserve
coefficient. The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.
2.Working adaptability
Stable and reliable chassis system is applicable to diversified severe working conditions. The product features long ground length, high ground clearance, stable driving, and good traffic ability.
3.Drive system
The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency. Self-made drive system features stable performance and reliable quality and has been long proved by the market.
Strong power, high efficiency and energy-saving, and low maintenance cost. The rated power, featuring high torque reserve
coefficient. The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.
2.Working adaptability
Stable and reliable chassis system is applicable to diversified severe working conditions. The product features long ground length, high ground clearance, stable driving, and good traffic ability.
3.Drive system
The curves of drive system and engine are perfectly matched to achieve more extensive high-efficiency zone and higher transmission efficiency. Self-made drive system features stable performance and reliable quality and has been long proved by the market.

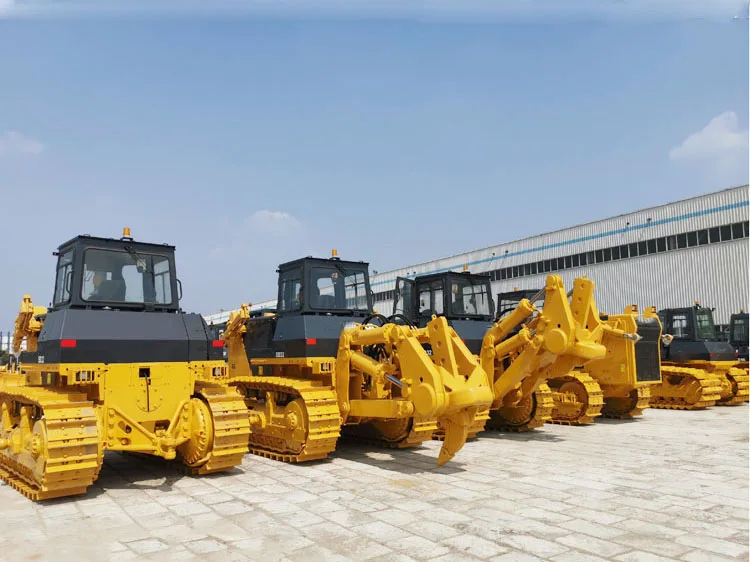

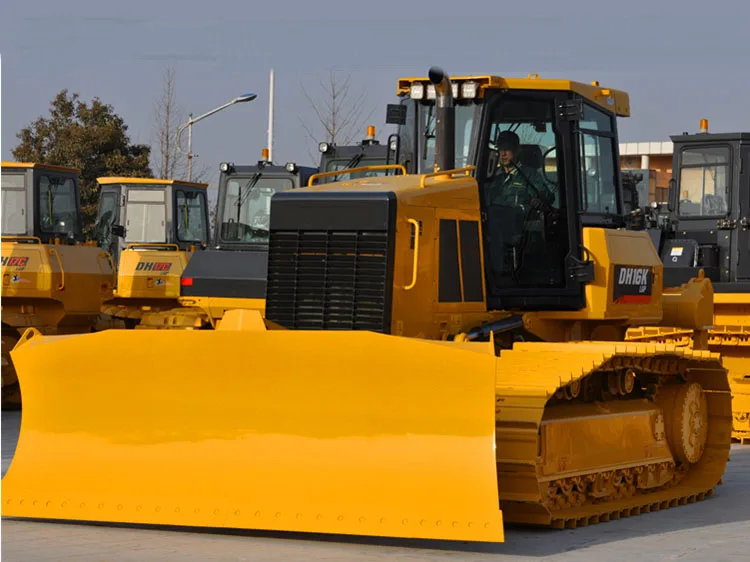

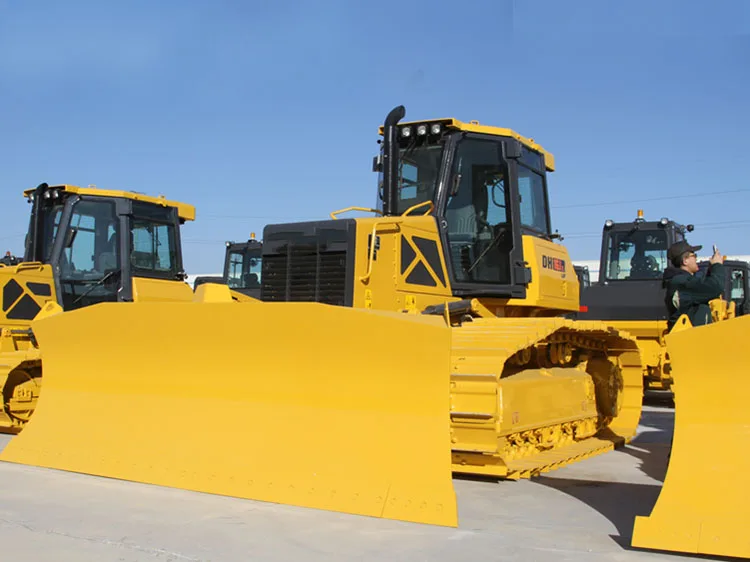

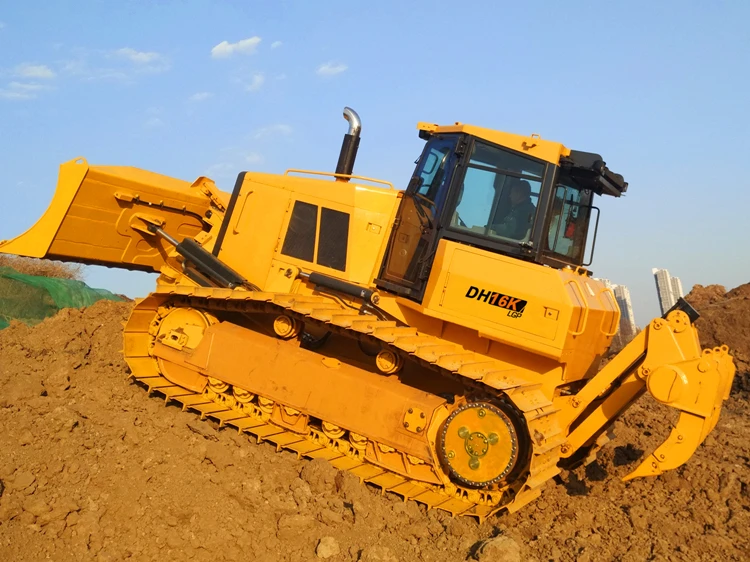

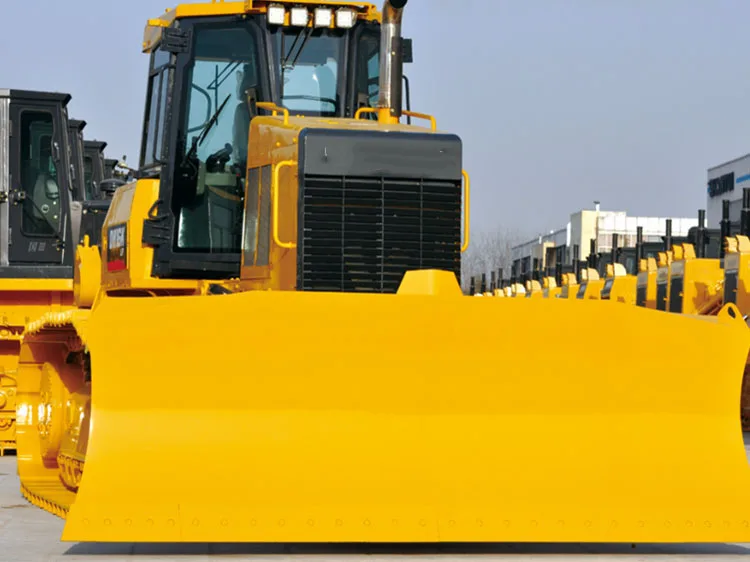

Details Images
Product Parameters
MODEL | DH16K | ||
ENGINE | QSB 6.7 // FPT N67 | ||
EMISSION STANDARD | Tier4 final/ Euro Stage IV | ||
RATED SPEED | 2000rpm // 2100rpm | ||
GROSS POWER | 142kW(190hp) | ||
NET POWER | 138kW(185hp) | ||
NUMBER OF CYLINDERS | 6-107mm-124mm // 6-104mm-132mm | ||
PISTON DISPLACEMENT | 6.7L | ||
MAXIMUM TORQUE | 809Nm/1500rpm // 850Nm/1400rpm | ||
POWER TRANSMISSION SYSTEM | Double loop electro static pressure drive, intelligent matching load change | ||
SYSTEM OVERFLOW PRESSURE | 42500KPa | ||
TRAVEL SPEED FORWARD | 0~10km/h | ||
TRAVEL SPEED REVERSE | 0~10km/h | ||
TRACTIVE FORCE | 230kN | ||
