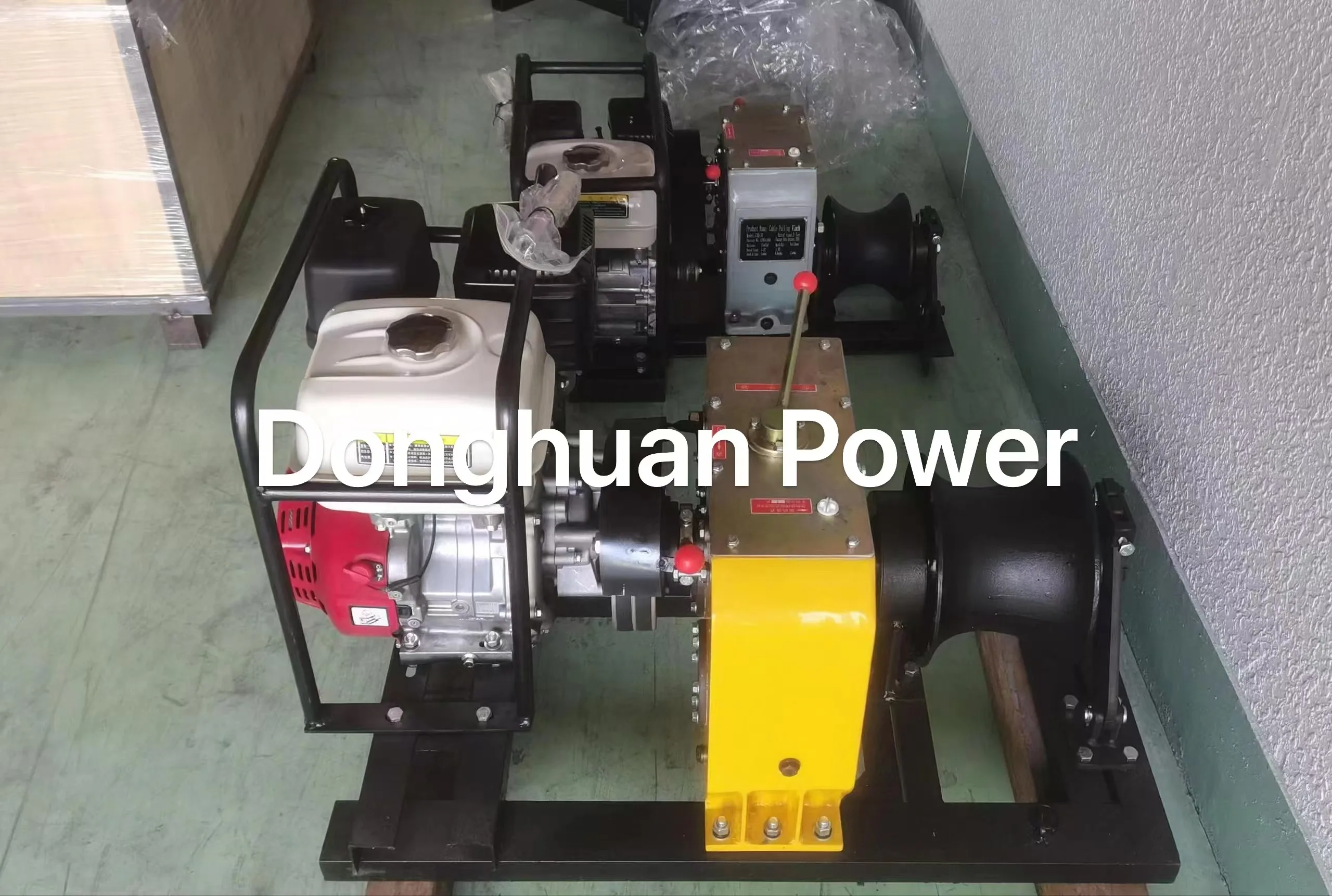

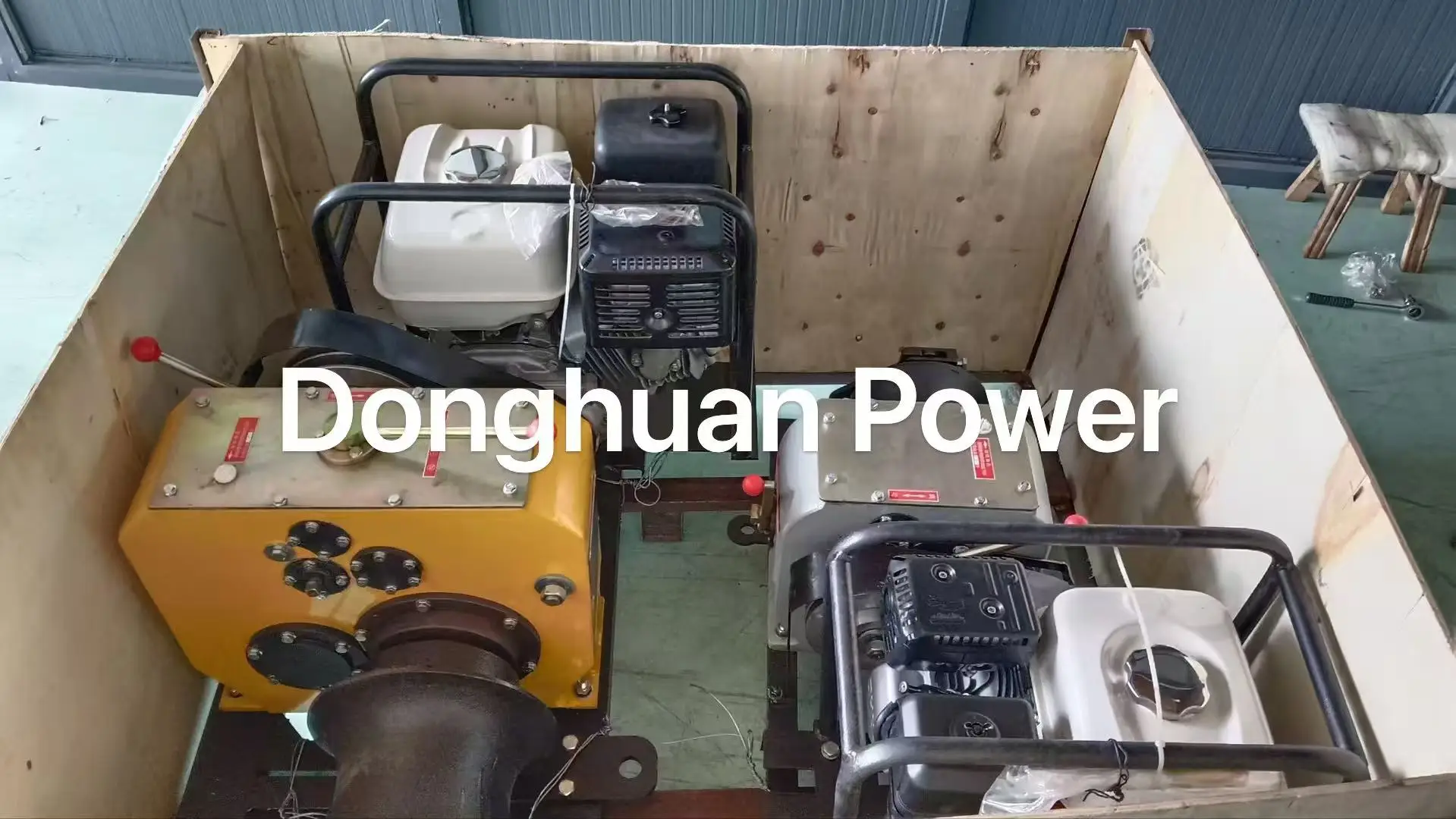

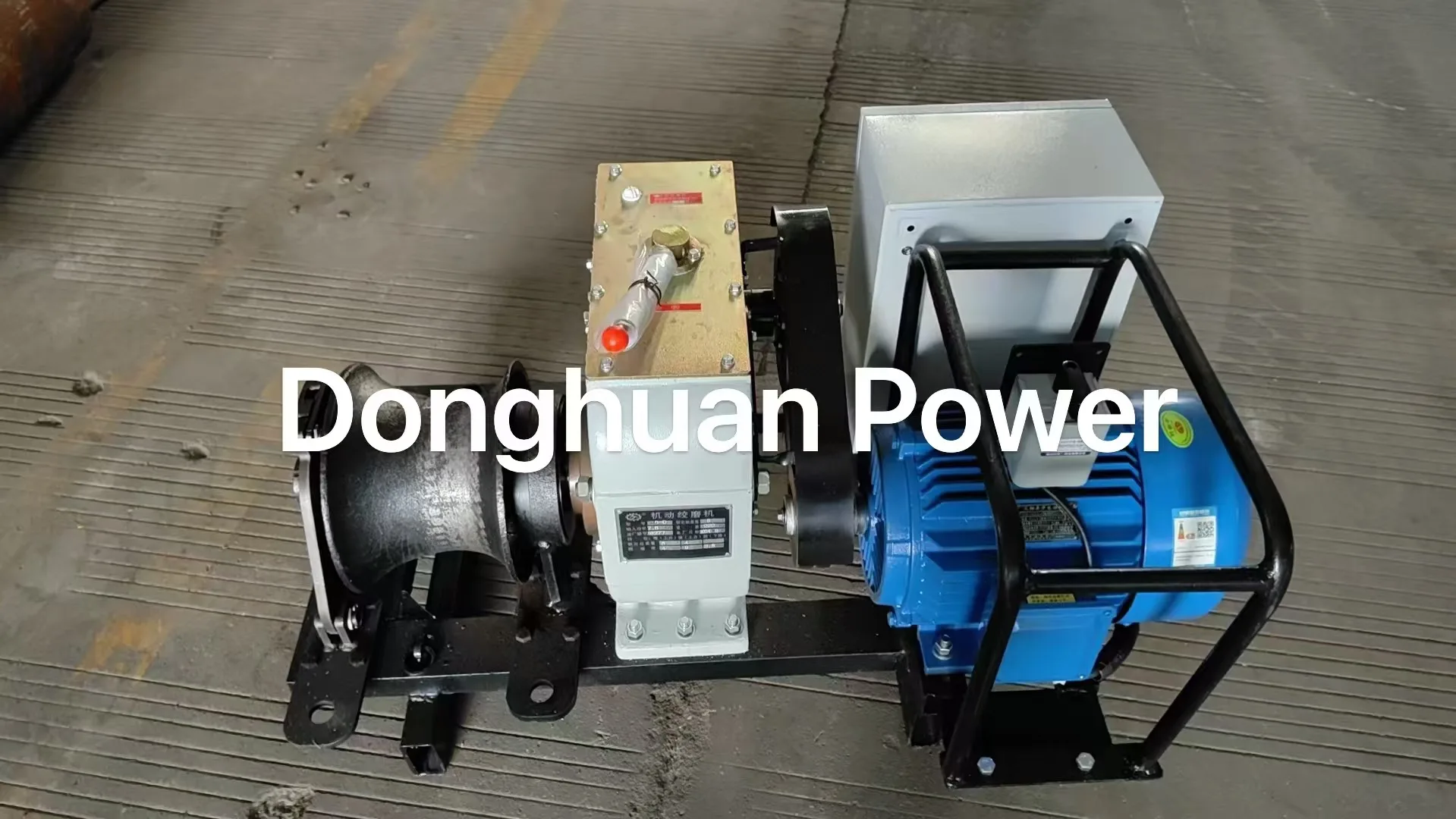

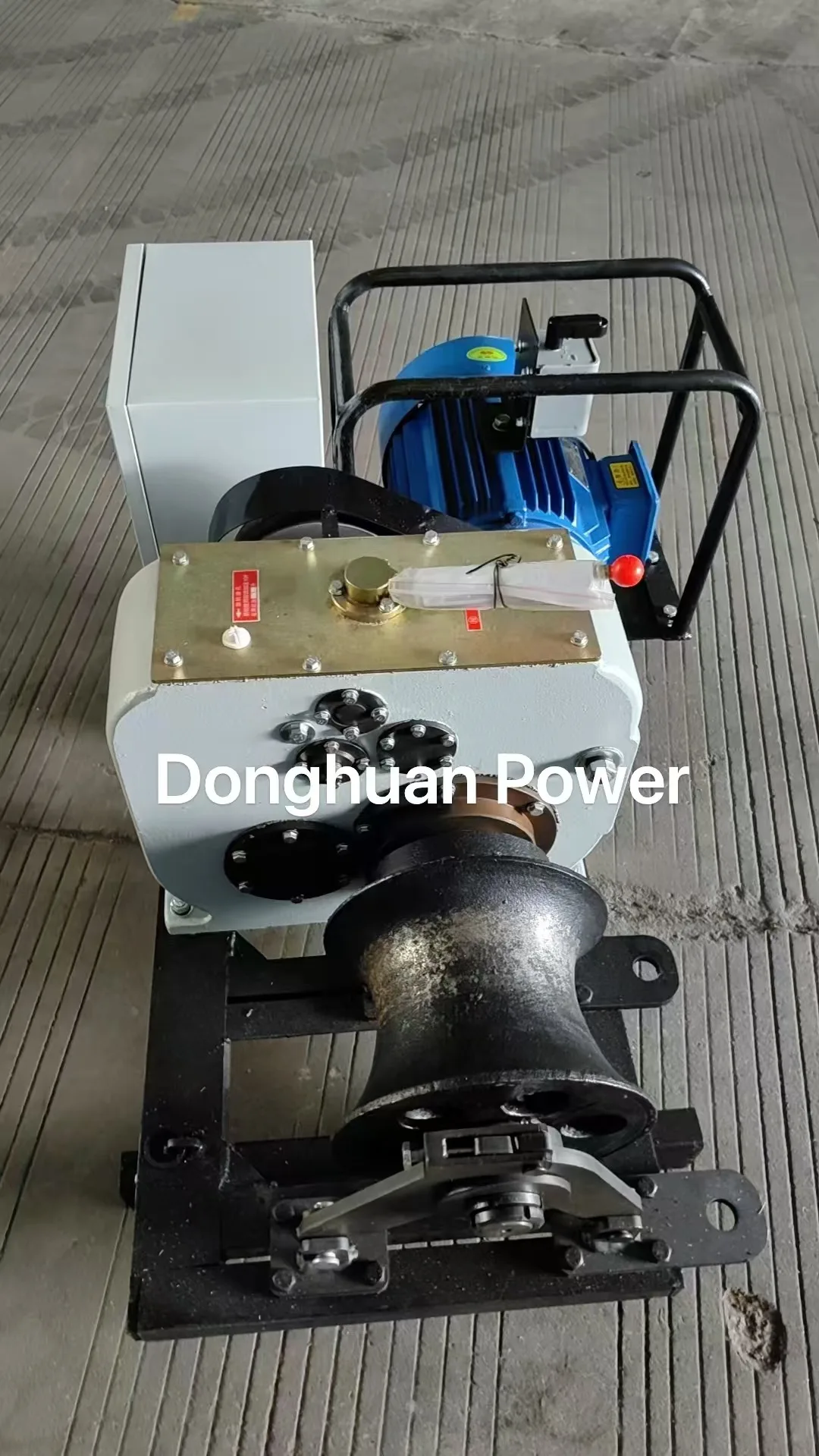

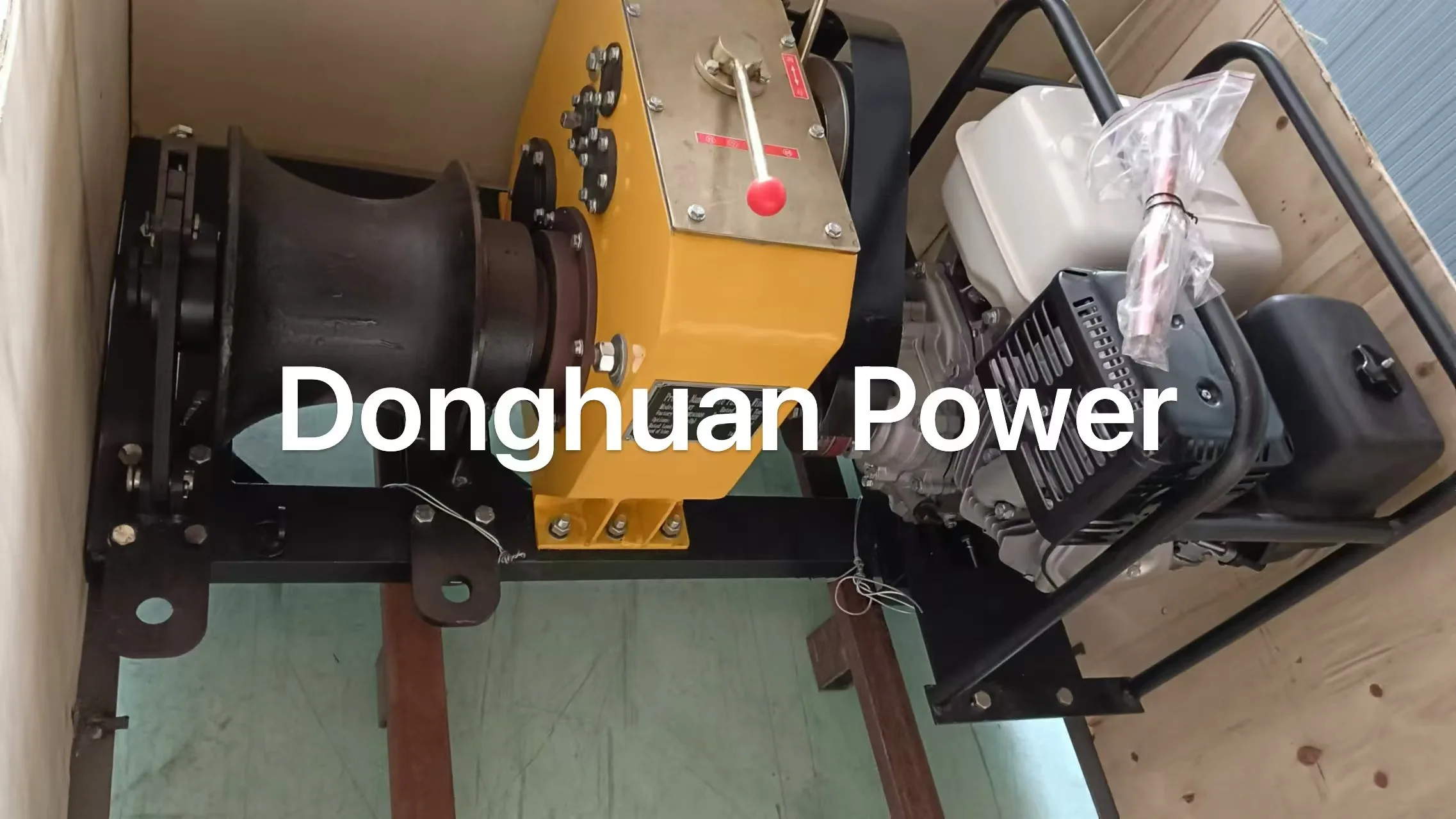

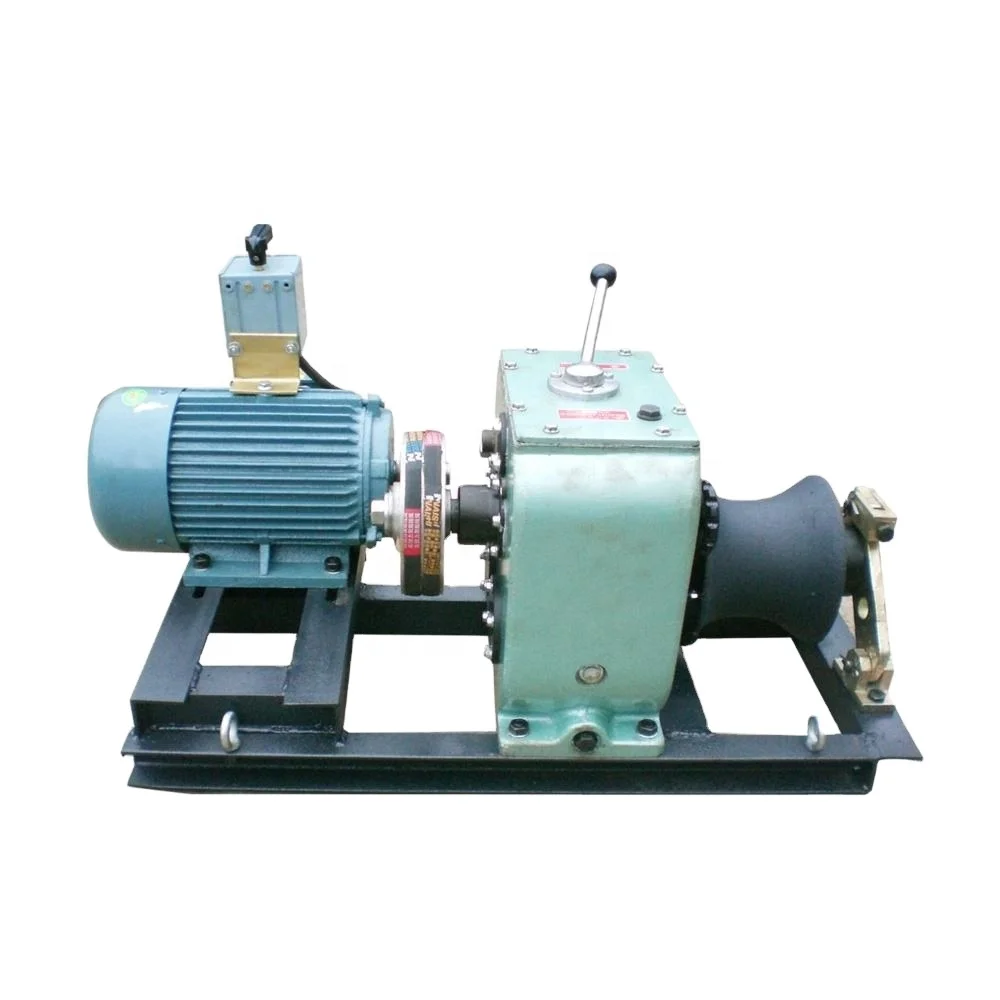

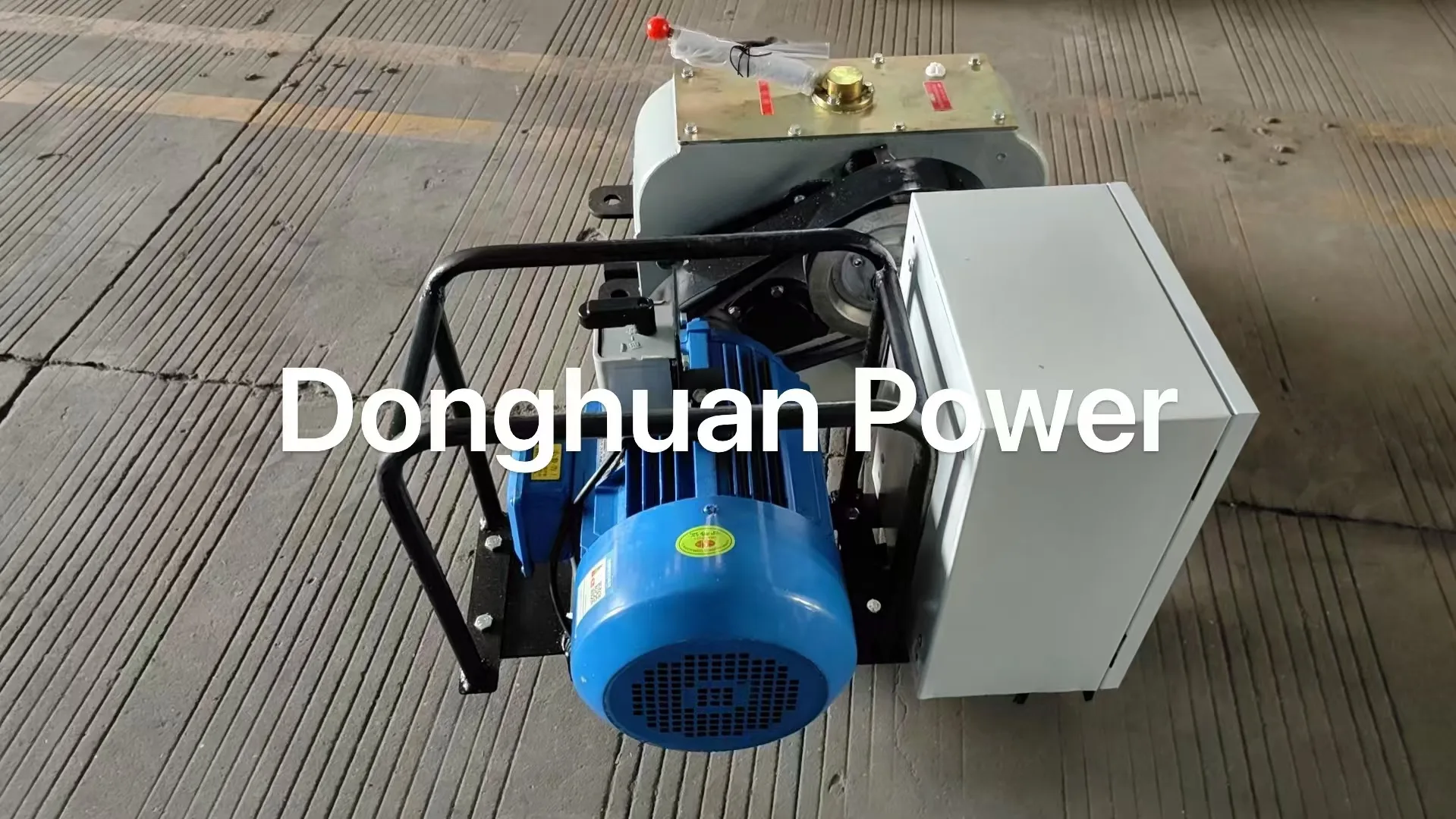

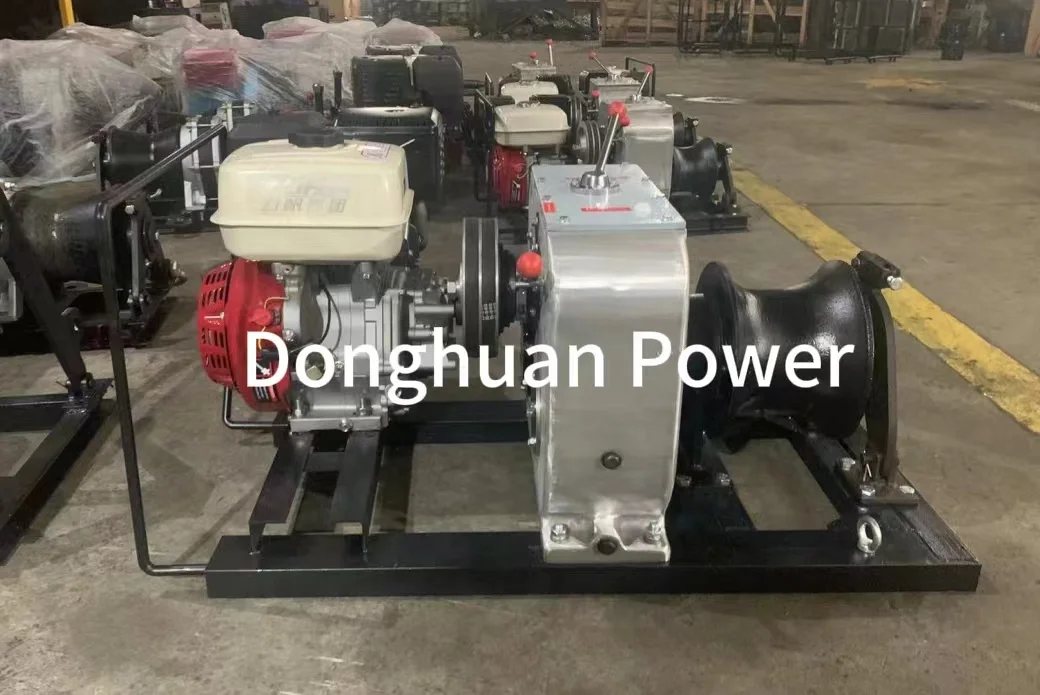

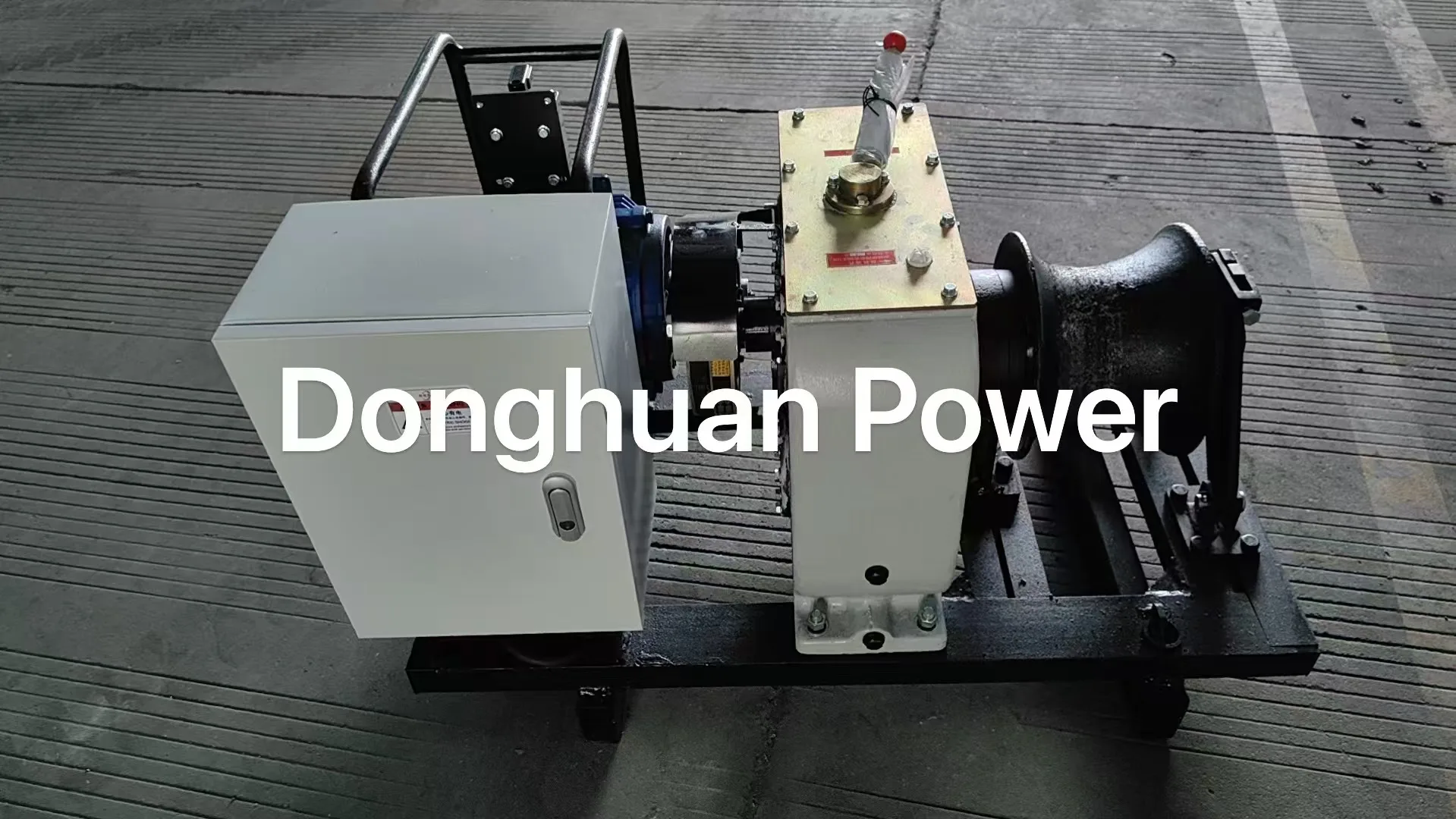

Powered Winch(Belt drive)
- Category: >>>
- Supplier: Ningbo Donghuan Power Technology Co. Ltd.Ningbo Ltd.
Share on (1601195010506):
Product Overview
Description
Uses:Suitable for the construction of the tower line,traction line,tight line operation,laying cable.
Explain:Power can be configured according to used requirements.
| Item No. | Model | Rotation direction | Gear | rotational speed(BPM) | Traction speed(M/MIN) | Tractive force(T) | Power(KW) | Outline size(MM) | Weight(KG) |
| 09121 | JJQ-30 6HP Gasoline engine | corotation | I slow | 9.0 | 4.0 | 3.0 | 4.04 | 840*450*500 | 82 |
| Ⅱ fast | 16.0 | 6.6 | 1.8 | 780*450*500 | 85 | ||||
| reversal | reverse | 7.5 | 3.3 | No lifting | |||||
| 09121A | JJC-30 170F Diesel engine | corotation | I slow | 11.5 | 5.0 | 3.0 | 2.94 | 840*600*500 | 108 |
| Ⅱ fast | 21.0 | 9.0 | 1.8 | ||||||
| reversal | reverse | 10.0 | 4.5 | No lifting | |||||
| 09121B | JJD-30 3KW Electromotor | corotation | I slow | 8.5 | 4.0 | 3.0 | 3.00 | 770*600*460 | 108 |
| Ⅱ fast | 10.5 | 6.5 | 1.8 | ||||||
| reversal | reverse | 7.0 | 3.0 | No lifting | |||||
| 09123 | JJQ-50 9HP Gasoline engine | corotation | I slow | 6.5 | 4.0 | 5.0 | 6.61 | 1000*550*520 | 135 |
| Ⅱ fast | 16.0 | 9.0 | 2.2 | ||||||
| reversal | reverse | 7.0 | 4.0 | No lifting | |||||
| 09123A | JJC-50 186F Diesel engine | corotation | I slow | 8.0 | 4.5 | 5.0 | 6.63 | 1000*750*600 | 168 |
| Ⅱ fast | 19.0 | 11.0 | 2.3 | ||||||
| reversal | reverse | 10.0 | 5.5 | No lifting | |||||
| 09123B | JJD-50 4KW Electromotor | corotation | I slow | 5.5 | 3.5 | 5.0 | 4.00 | 1000*850*520 | 160 |
| Ⅱ fast | 14.0 | 8.0 | 3.0 | ||||||
| reversal | reverse | 7.0 | 4.0 | No lifting | |||||
| 09125 | JJQ-80 13HP Gasoline engine | corotation | I slow | 5 | 3 | 8 | 9.60 | 1050*550*520 | 168 |
| Ⅱ fast | 9 | 5 | 4.5 | ||||||
| reversal | reverse | 5 | 3 | No lifting | |||||
| 09125A | JJC-80 13HP Diesel engine | corotation | I slow | 7 | 4 | 8 | 9.60 | 1050*750*630 | 230 |
| Ⅱ fast | 13 | 7.5 | 4 | ||||||
| reversal | reverse | 6.5 | 3.7 | No lifting |
