Factory Complete 5KW 6KW 8KW 15KW Vertical Wind Turbine Generators Kits For On Off Grid Hybrid Solar System
- Category: >>>
- Supplier: Nantong R&x Energy Technology Co. Ltd.Nantong Ltd.
Share on (1601195146664):
Product Overview
Description
Products Description
1. Rich colors: white, orange, yellow, blue, green, mixed, customizable.
2. One-piece Blade design ensures higher rotational stability.
3. Coreless PMG provides lower start torque/wind speed and longer service life.
4. Maximum RPM protection. No higher than 300RPM, regardless of the wind speed.
5. Easy installation, Screw & Play.
6. 48V could be customized .
7. Design service life 10~15 years.
2. One-piece Blade design ensures higher rotational stability.
3. Coreless PMG provides lower start torque/wind speed and longer service life.
4. Maximum RPM protection. No higher than 300RPM, regardless of the wind speed.
5. Easy installation, Screw & Play.
6. 48V could be customized .
7. Design service life 10~15 years.
Technical Datasheet
Model | RX-SV600 | RX-SV1000 | RX-SV1500 | RX-SV2000 | RX-SV2500 | ||||
Rated Power | 600W | 1KW | 1500W | 2000W | 2500W | ||||
Max Power | 650W | 1100W | 1600W | 2100W | 2600W | ||||
Blades Length | 1.05M | 1.3M | 1.5M | 1.5M | 1.7M | ||||
Wheel Diameter | 0.52M | 0.52M | 0.6M | 0.67M | 0.6M | ||||
Rated Voltage | 12V~24V | 12V~48V | 12V~48V | 12V~96V | 48V~220V | ||||
Start Up Speed | 1.2m/s | 1.5m/s | 2.0m/s | 2.0m/s | 2.0m/s | ||||
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | ||||
Cut-in Speed | 3.5m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | ||||
Survival Speed | 40m/s | 45m/s | 45m/s | 45m/s | 45m/s | ||||
Blades Quantity | 10 | 2 | 2 | 2 | 2 | ||||
Blades Material | Fiber glass | ||||||||
Generator Type | Coreless Disc Type Maglev Levitation Permanent Magnet Generator | ||||||||
Working Temperature | -40℃~+40℃ | ||||||||
Protection Level | IP54 | ||||||||
Working environment humidness | ≤90% | ||||||||
Altitude | ≤4500m | ||||||||
Install Height | 6~12m | ||||||||
Overload Protection | Electromagnetic Brake | ||||||||
Model | RX-SV3000 | RX-SV5000 | RX-SV6000 | RX-SV8000 | RX-SV10K | RX-SV15K | |||||
Rated Power | 3KW | 5KW | 6KW | 8KW | 10KW | 15KW | |||||
Max Power | 3500W | 5500W | 6500W | 8500W | 11W | 16KW | |||||
Blades Length | 2.0M | 3.0M | 3.5M | 3.5M | 4.0M | 4.0M | |||||
Wheel Diameter | 0.8M | 1.2M | 1.2M | 1.2M | 1.2M | 1.2M | |||||
Rated Voltage | 48V~220V | ||||||||||
Start Up Speed | 1.2m/s | 1.5m/s | 2.0m/s | 2.0m/s | 2.5m/s | 2.5m/s | |||||
Rated Speed | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | 12m/s | |||||
Cut-in Speed | 3.5m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | 4.0m/s | |||||
Survival Speed | 40m/s | 45m/s | 45m/s | 45m/s | 45m/s | 45m/s | |||||
Blades Quantity | 2 Pieces | ||||||||||
Blades Material | Fiber glass | ||||||||||
Generator Type | Maglev coreless permanent magnet generator | Iron-Core permanent magnet Generator | Iron-Core permanent magnet Generator | Maglev coreless permanent magnet generator | Iron-Core permanent magnet Generator | Maglev coreless permanent magnet generator | |||||
Working Temperature | -40℃~+40℃ | ||||||||||
Protection Level | IP54 | ||||||||||
Working environment humidness | ≤90% | ||||||||||
Altitude | ≤4500m | ||||||||||
Install Height | 6~12m | ||||||||||
Overload Protection | Electromagnetic Brake | ||||||||||
Drawing

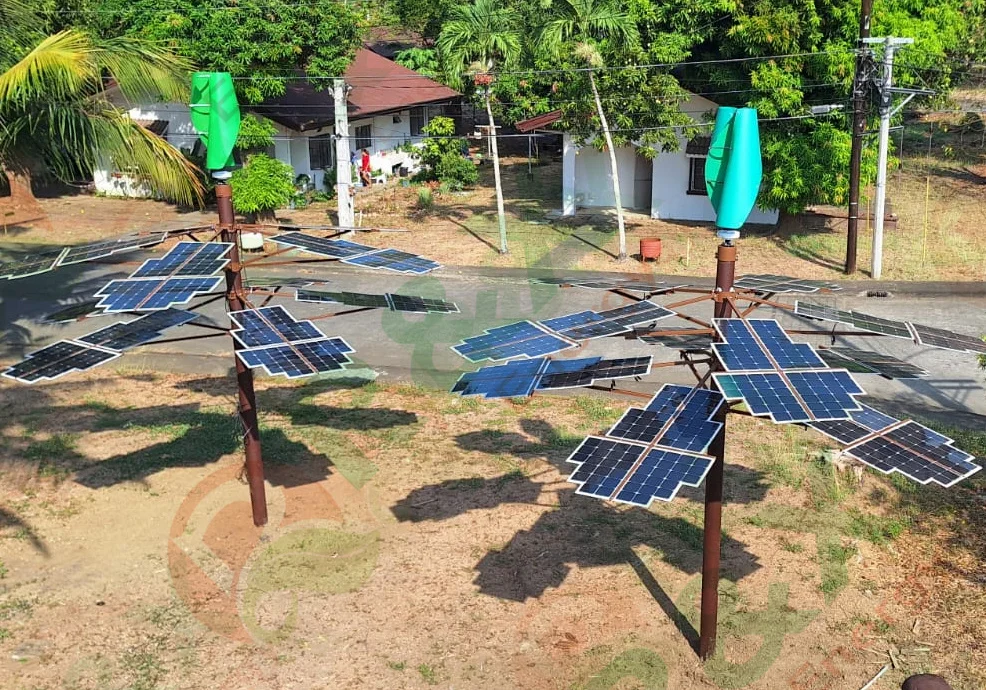

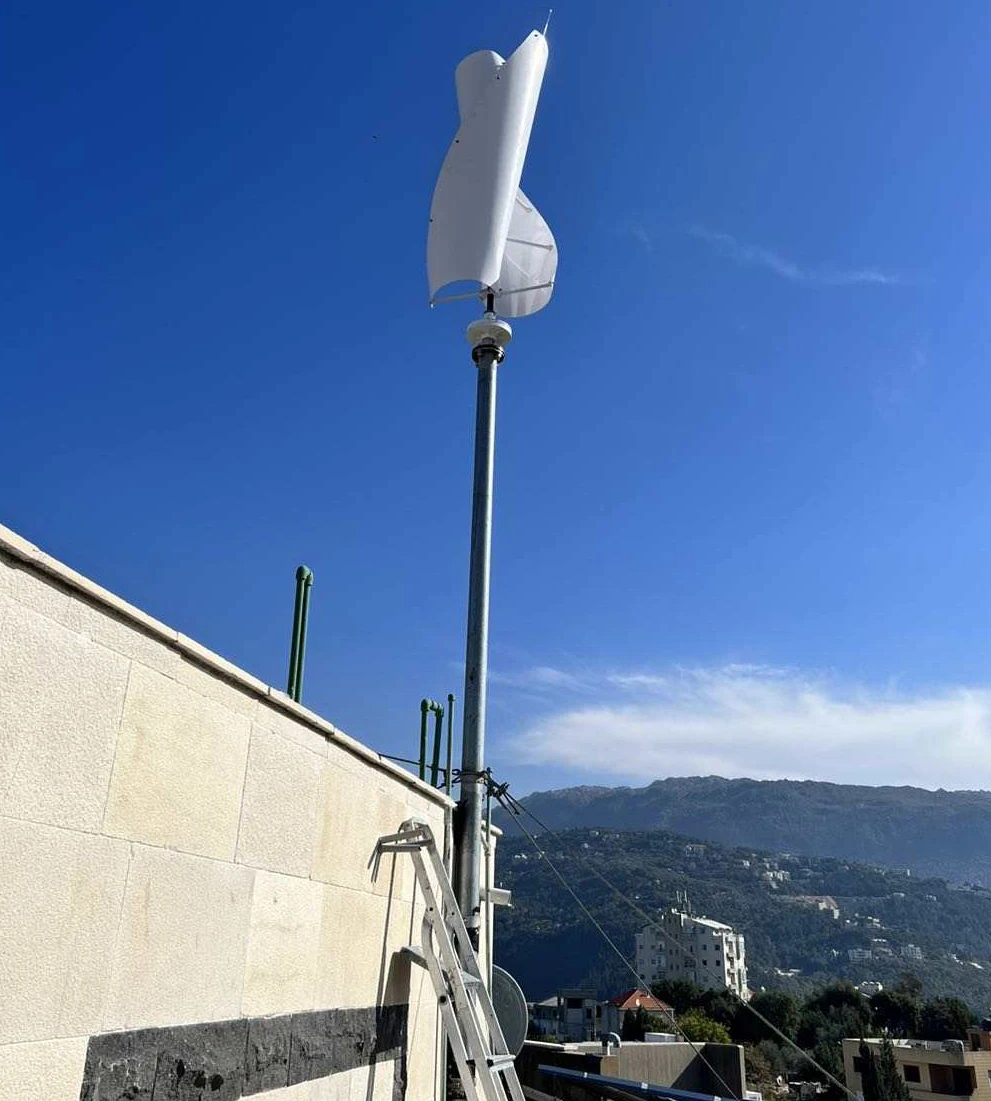

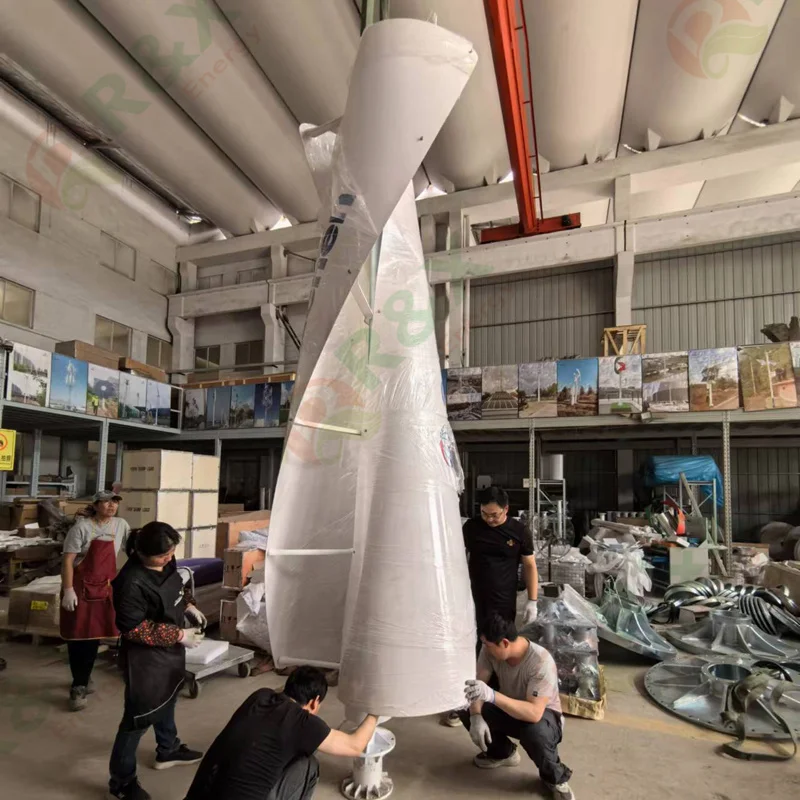

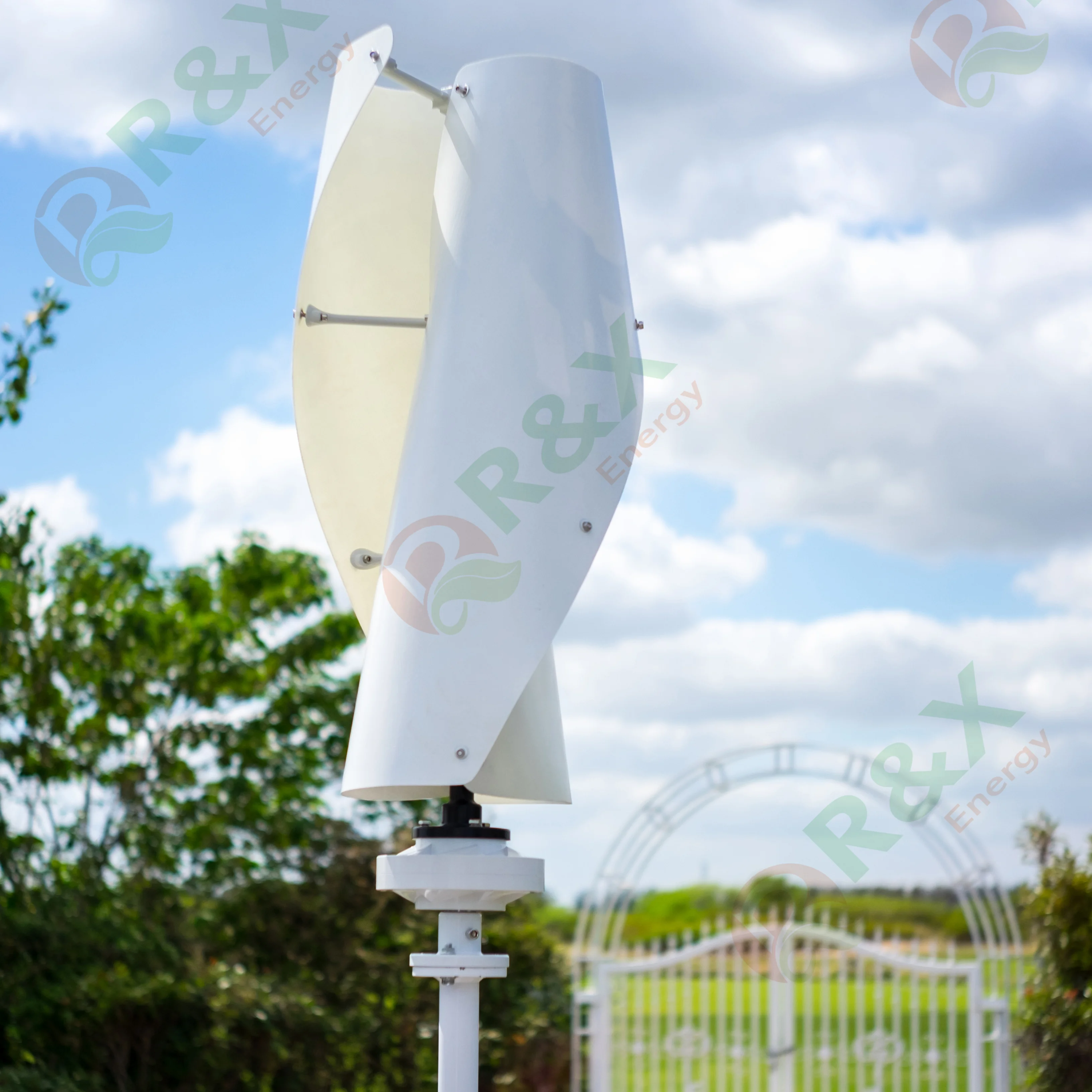

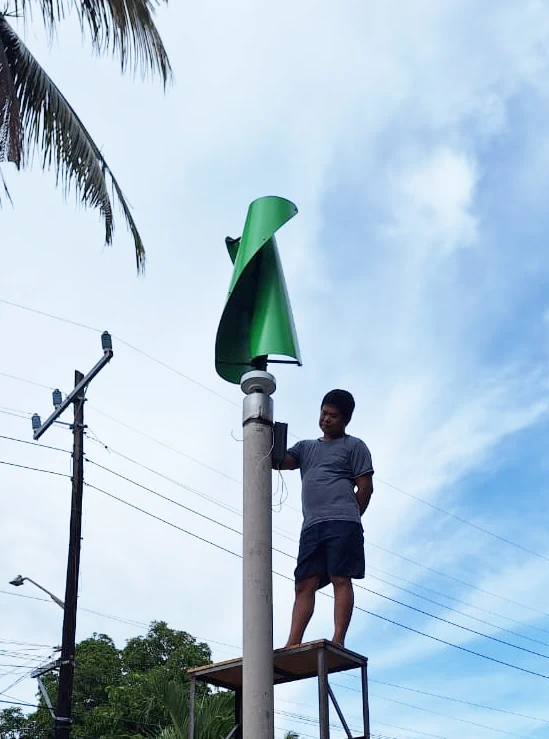

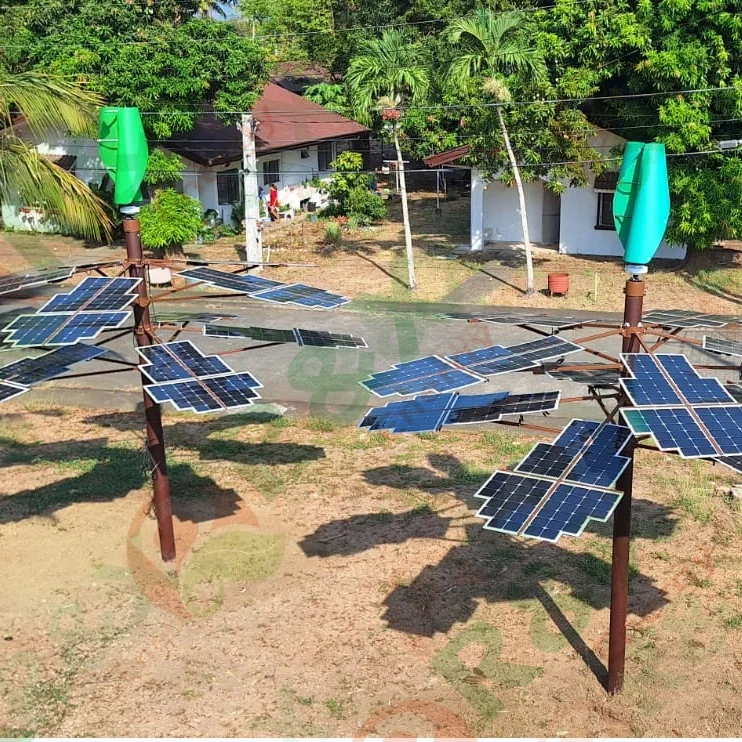

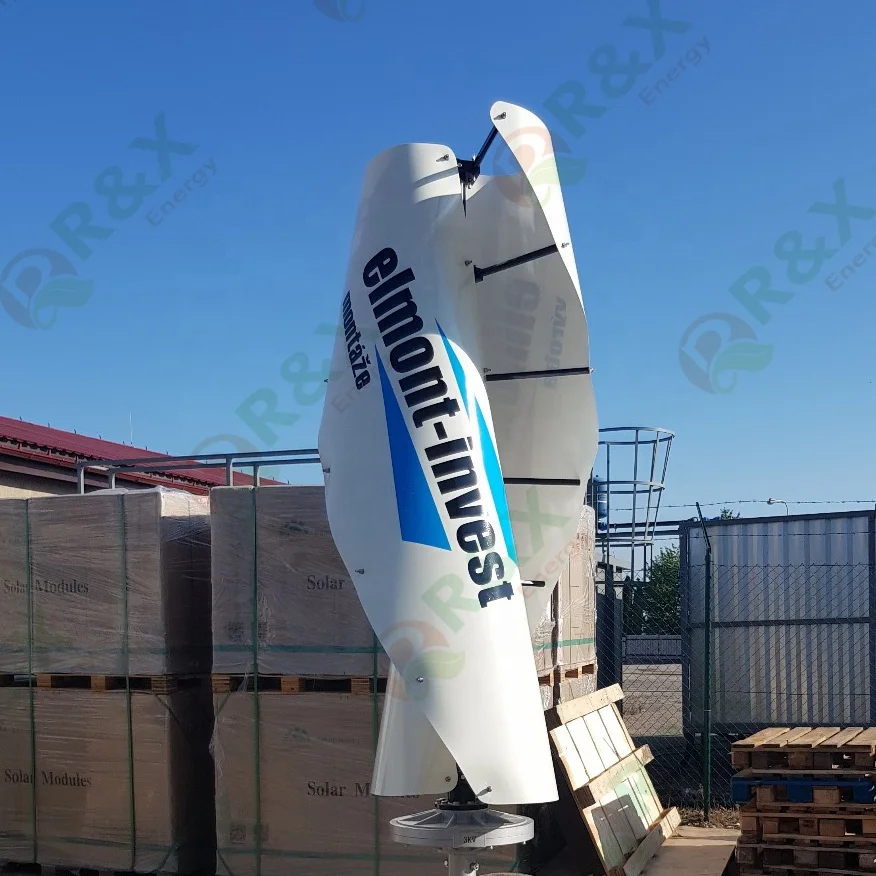

Real Pictures Show

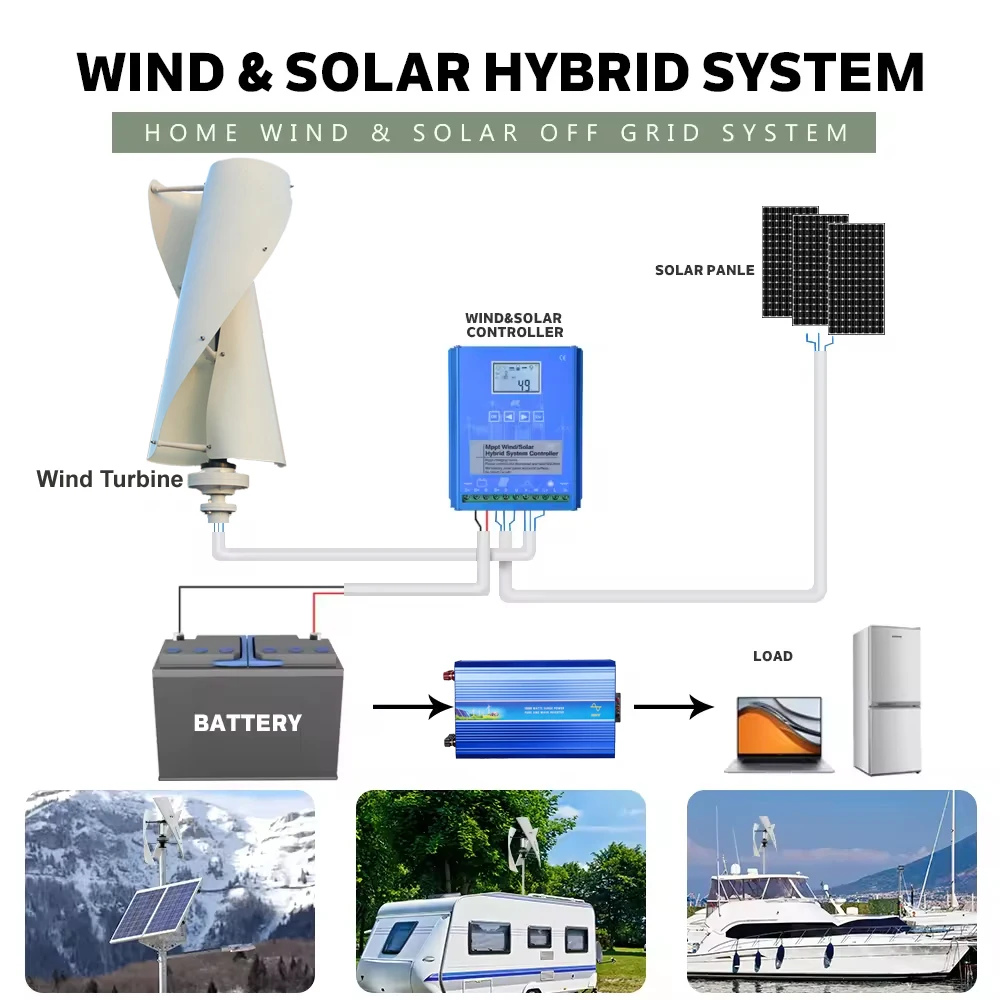

Application
