high reliability electric Operating Table For various surgical operations and orthopedic operations with traction frame
- Category: >>>
- Supplier: Jiangsu Yigao Medical Equipment Technology Co. Ltd.
Share on (1601195289899):
Product Overview
Description
Product Overview
YGD02

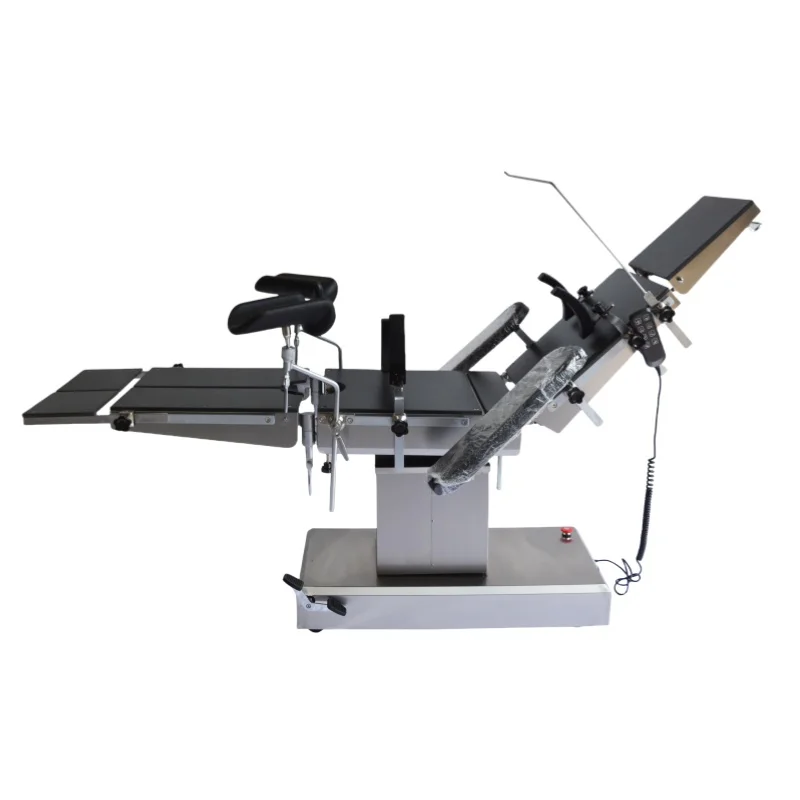

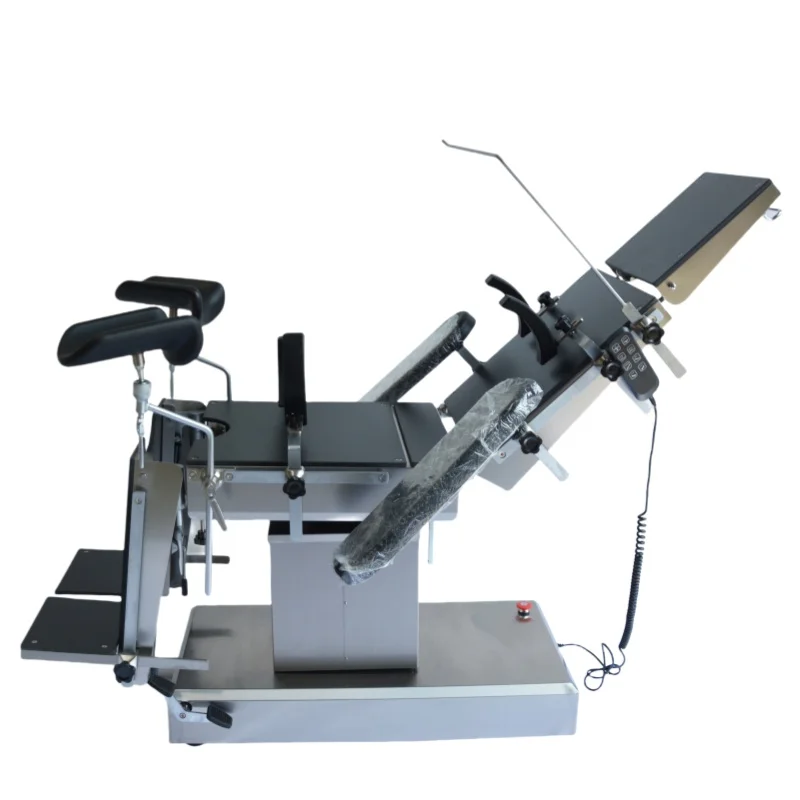

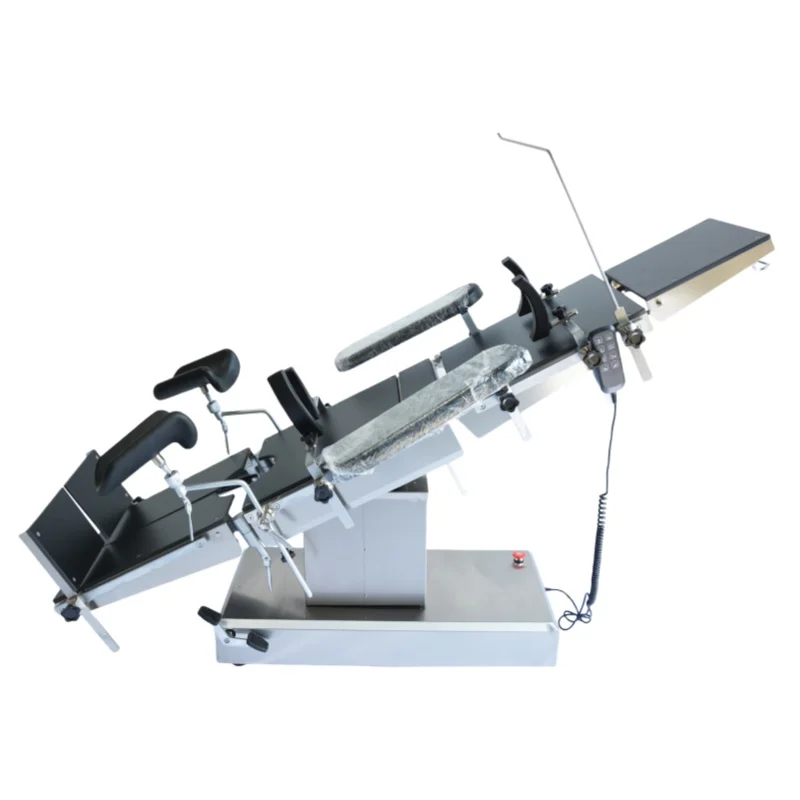

Electric operation table
Electric operation table
Engineered for increasingly complex surgical scenes,It comes with intelligent automatic control system satisfying various
demands of general surgeries.
Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C-arm.
demands of general surgeries.
Extra wide tabletop,extreme loading system,long horizontal sliding that can be suitable for both X-ray and C-arm.
Main features
- Accommodates virtually all patients with generous height ranges.
- Wire controller for different movements and Column control panel with locking function for movements.
- Table top height and backrest adjustment, lateral tilts, Trendelenburg and reverse Trendelenburg tilts are performed thanks to
wire hand controller.
- The head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs.
- Contours to virtually all patient postures with a five-section tabletop.
- Accommodates virtually all patients with generous height ranges.
- Wire controller for different movements and Column control panel with locking function for movements.
- Table top height and backrest adjustment, lateral tilts, Trendelenburg and reverse Trendelenburg tilts are performed thanks to
wire hand controller.
- The head rest segment and one-piece leg rest segment adjustment is manually performed by locking gas springs.
Trendelenburg
backrest adjustment
Front elevation
PRODUCT SPECIFICATIONS
Overall size | 2150*500*750-1000mm |
HI-LOW | 750mm-1000mm |
Head board fold upward and fold downward | ≥30°/≥90 |
Back board fold upwardand fold downward | ≥45°/≥15° |
Leg board fold downward and fold outward | ≥90°/≥90° |
Trendelenburg and reverse-trendelenburg | ≥25° |
Left and right tilting angle | ≥15° |
Loading capacity | 200kgs |
Waist board lifting | ≥110mm |
Power | AC220V 50HZ Input power:300VA |
Packing | 148*76*95cm=1.1M3 G.W.:280kgs |
