99.99% purity PEM hydrogen production electrolysis cell pure water electrolysis hydrogen generator
- Category: >>>
- Supplier: BriHyNergy (Shenzhen) Co. LtdBriHyNergy Ltd
Share on (1601195303502):
Product Overview
Description
Product Description

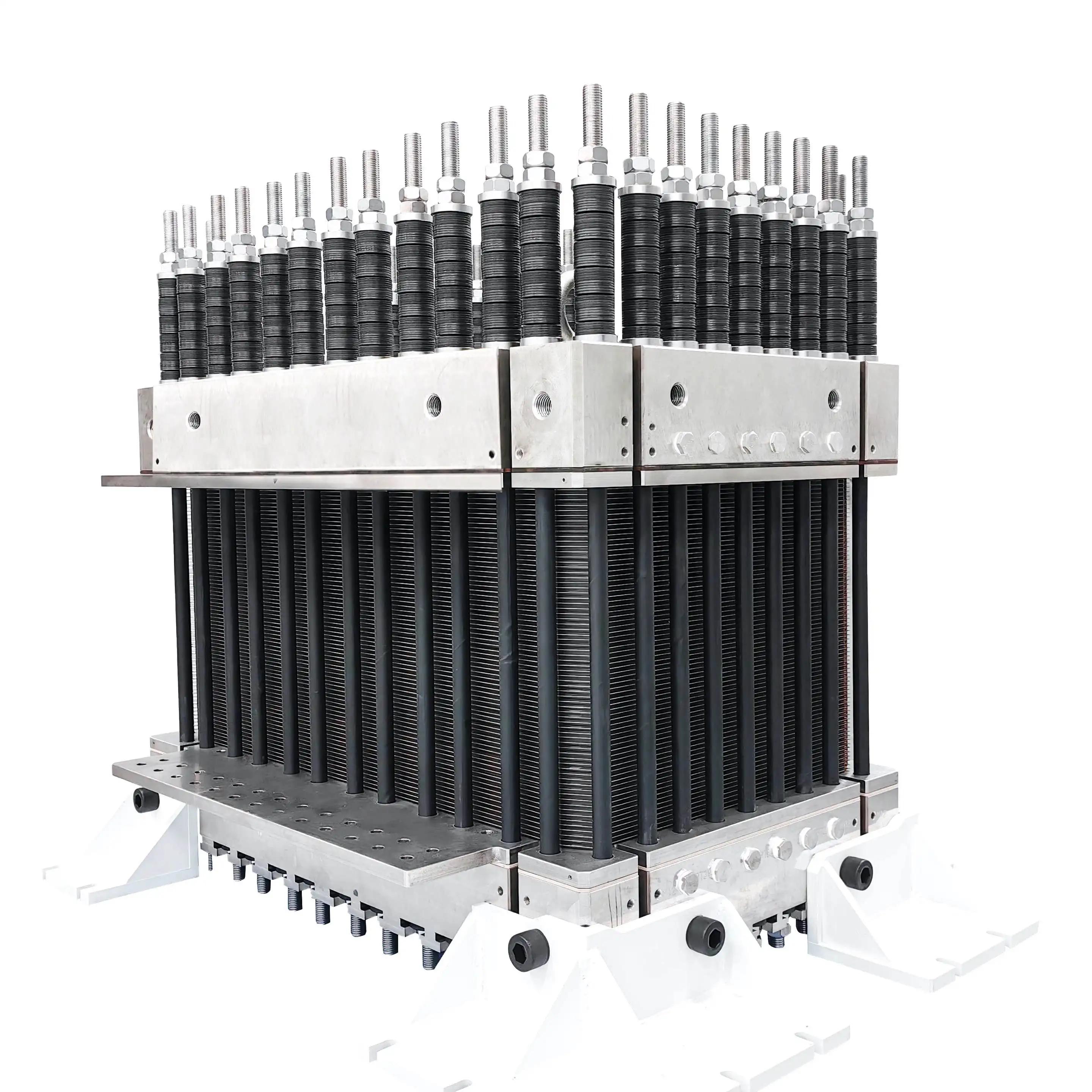

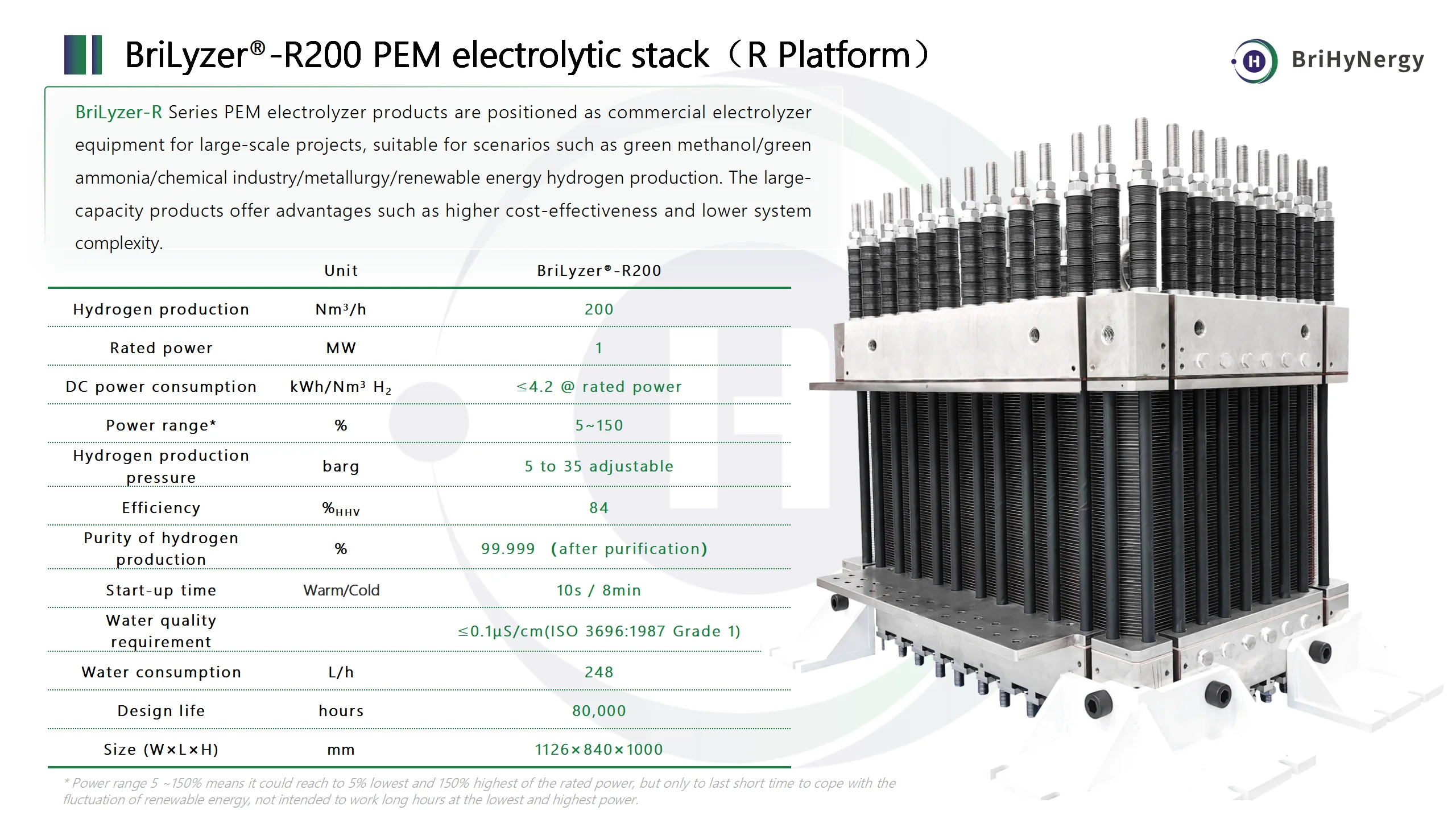

200Nm³/h BriLyzer PEM Electrolytic Stack Specifications
Specifications | Unit | R200 |
Input | ||
Stack Power Consumption | kW | 840 |
DC Power Consumption | kWh/Nm3 H2 | 4.2(rated Power) |
Feed Water Quality | μS/cm (ISO 3696:1987 Grade 1) | ≤0.1 |
Water Flow rate | m³/h | 50 |
Current density | A/cm² | 2 |
Cells | pcs | 80 |
Rated Current | A | 6000 |
Rated Voltage | V | 140 |
Rated Temperature | ℃ | 60±5 |
Ambient Temperature | ℃ | 10-40 |
Output(H2) | ||
Volume | Nm3/h | 200 |
Mass | kg H2/day | 432 |
Hydrogen Output Pressure | Barg | 5 to 35adjustable |
Oxygen Side Pressure | Barg | 5 to 35adjustable |
O2 in H2 | % | ≤0.1(dry basis) |
H2 in O2 | % | ≤ 0.6(dry basis) |
Purity | % | 99.999 (After purification) |
Performance Parameters | ||
DC efficiency | %HHV | 84 |
Start Up Time | Warm/Cold | 10s/8min |
Response time | s | seconds |
Water Consumption | L/h | 270 |
Power Range | % | 5~150 |
Design life | hours | 80,000 |
Mechanical Parameters | ||
Quantity | 1 | 1 |
Size (W×L×H) | mm | 1126*840*1000 |
Weight | kg | 3500 |
Compliance | ISO 9001:2015,ISO 14001:2015,ISO 45001:2018,CE,ASME | |
Note: The power load range of 5%-150% refers to the minimum 5% and maximum 150% of the rated load power in a short time or instantaneous under the condition of wind and photovoltaic fluctuation
Company Information
BriHyNergy (Shenzhen) Co., Ltd., established in November 2021, is an
enterprise dedicated to the localization and industrialization of key
materials and components for Proton Exchange Membrane (PEM) water
electrolysis, as well as the R&D, production, sales, and technical services of
related testing equipment.
Since its establishment, the company has successfully achieved batch
production of several core components, with many technologies and
products being domestically pioneering and internationally leading. This

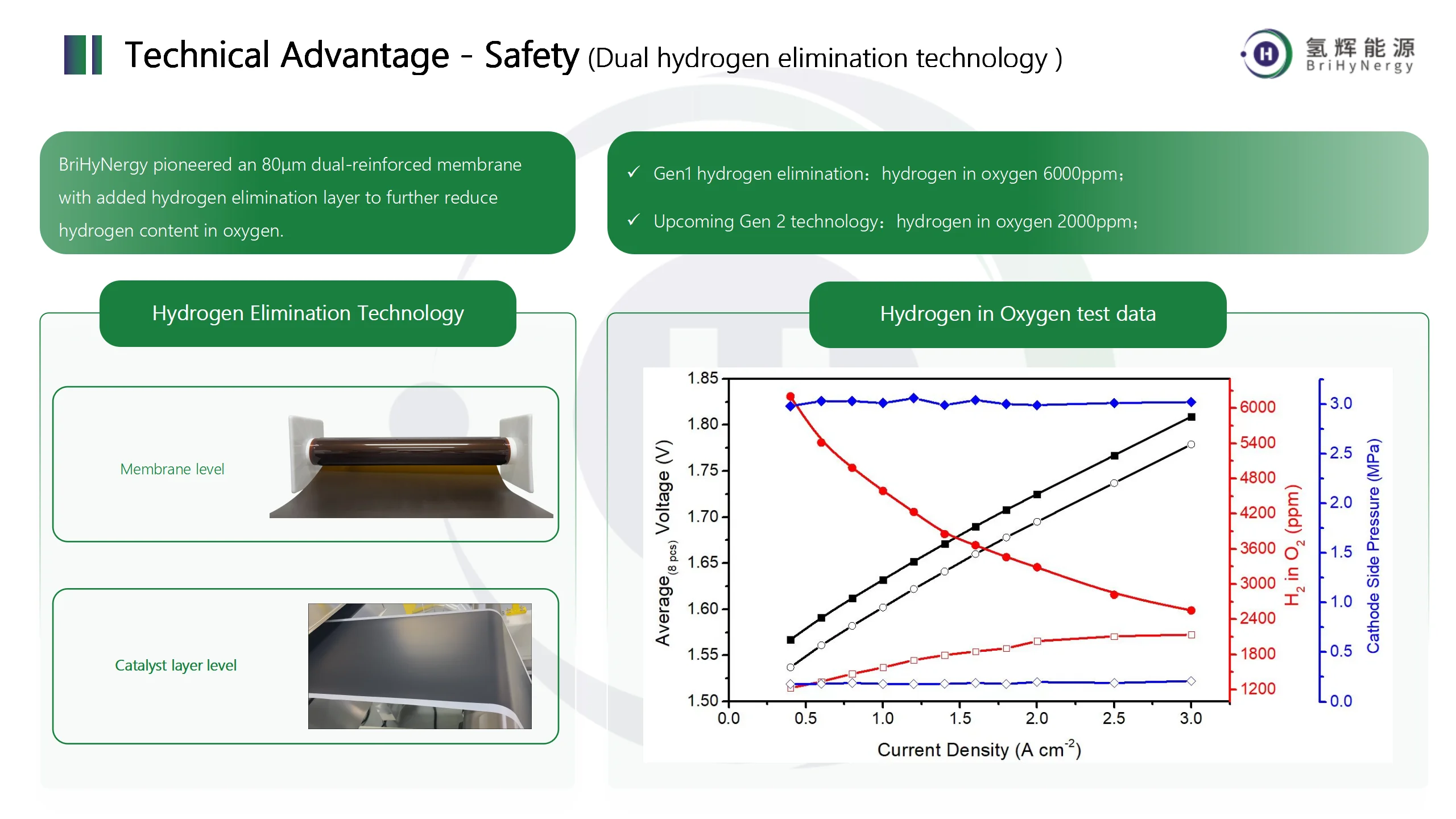

includes the development of 80 μm thick double-strength proton exchange
membranes and low-iridium precious metal-loaded membrane electrode
assemblies (MEA); and the development of high-performance, long-life
small and medium-sized PEM electrolyzers suitable for various application
scenarios, as well as megawatt-scale PEM electrolyzers.

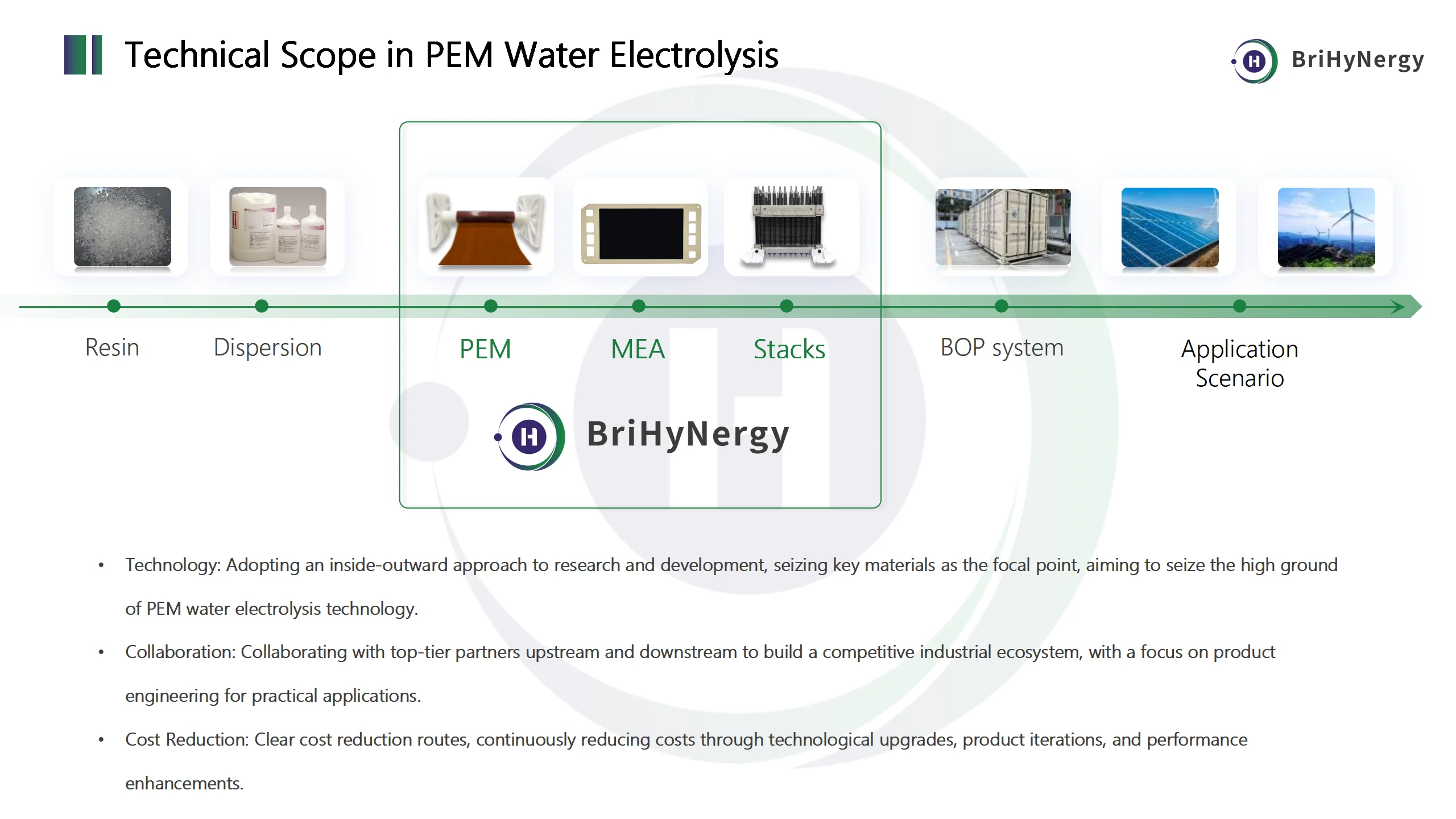

BriHyNergy starts from product research and development, testing,
diagnosis, mass production, and quality inspection, insisting on forward
looking R&D from the inside out, with key materials as the focus, to seize
the high ground of PEM water electrolysis technology.
