Product Overview

Description





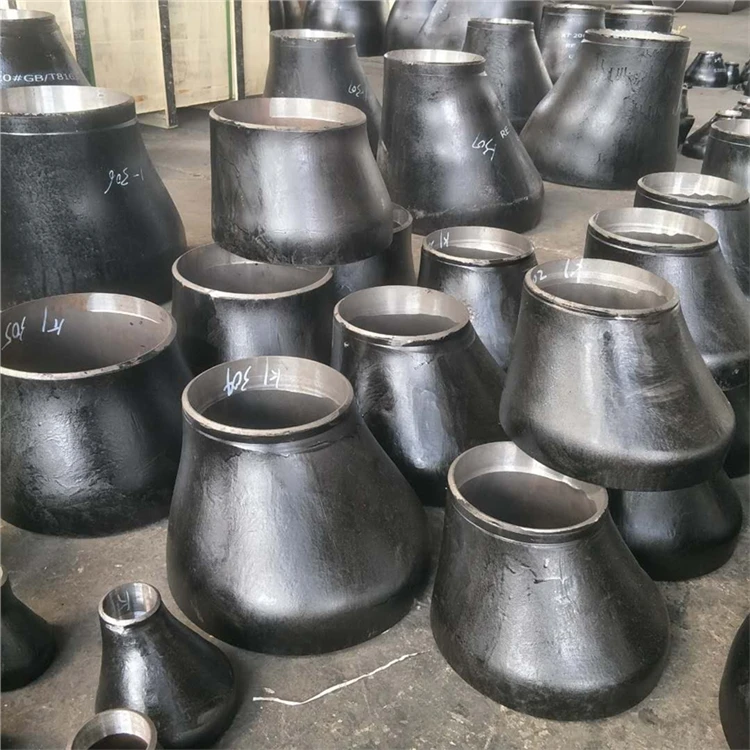

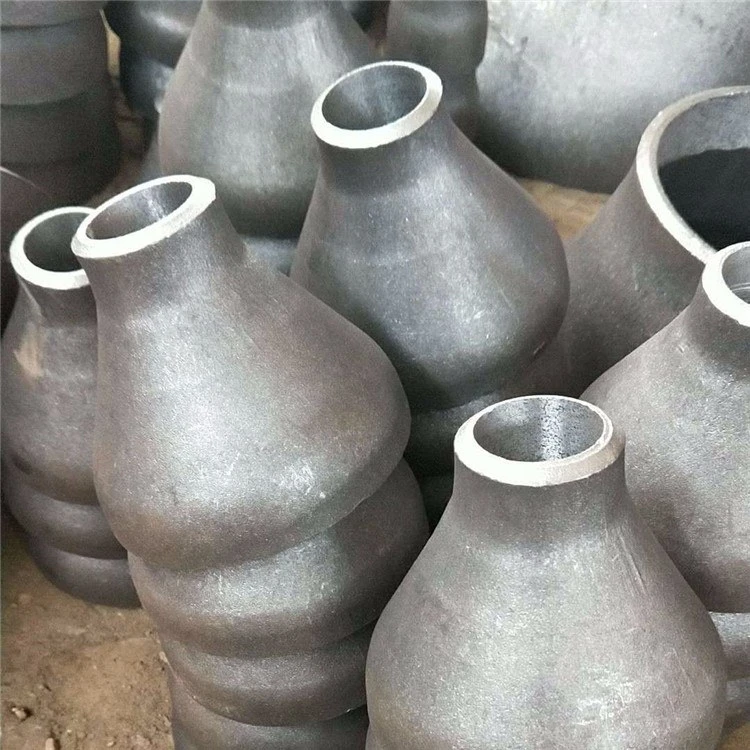

Product Description

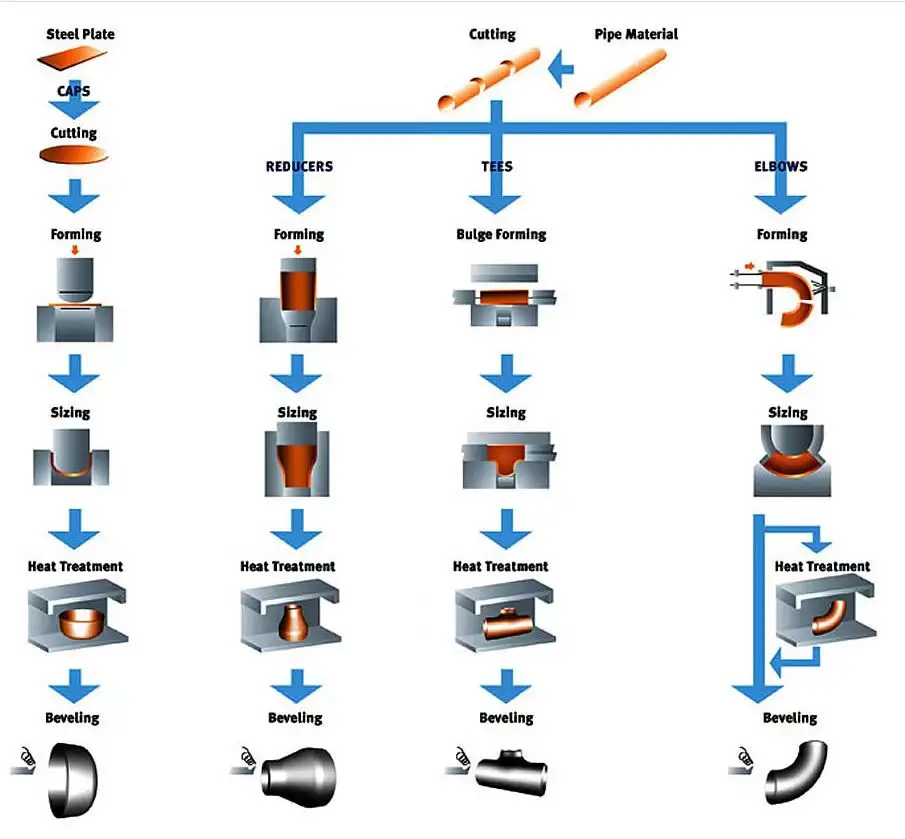

Butt Weld pipe fittings production process
Buttweld Fittings manufacturing process includes a series of steps like Annealing, Straightening, Pickling & Passivation and Polishing.

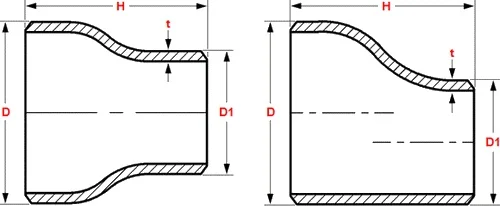

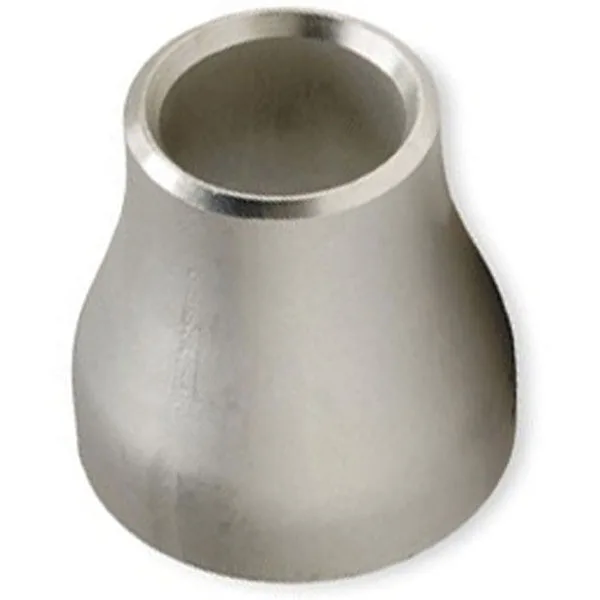

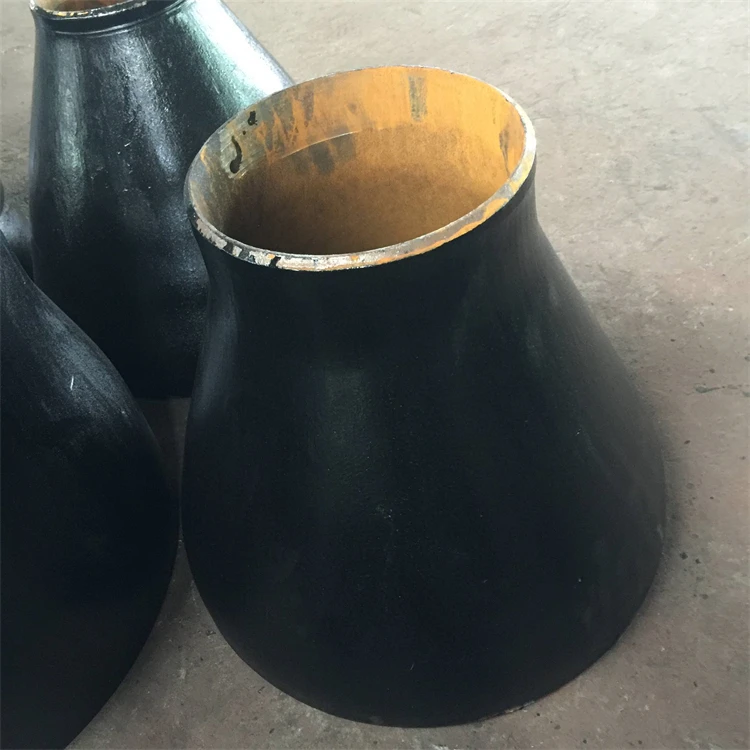

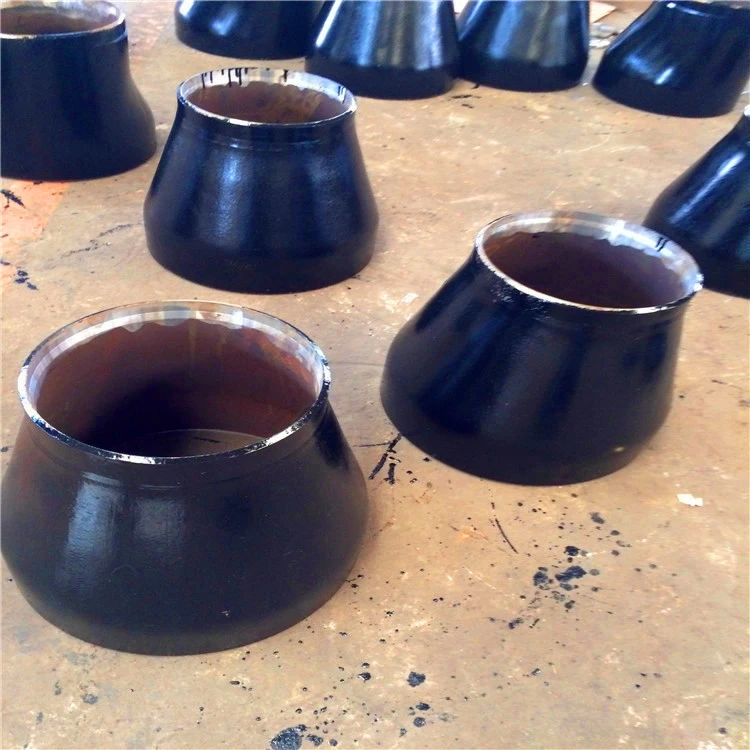

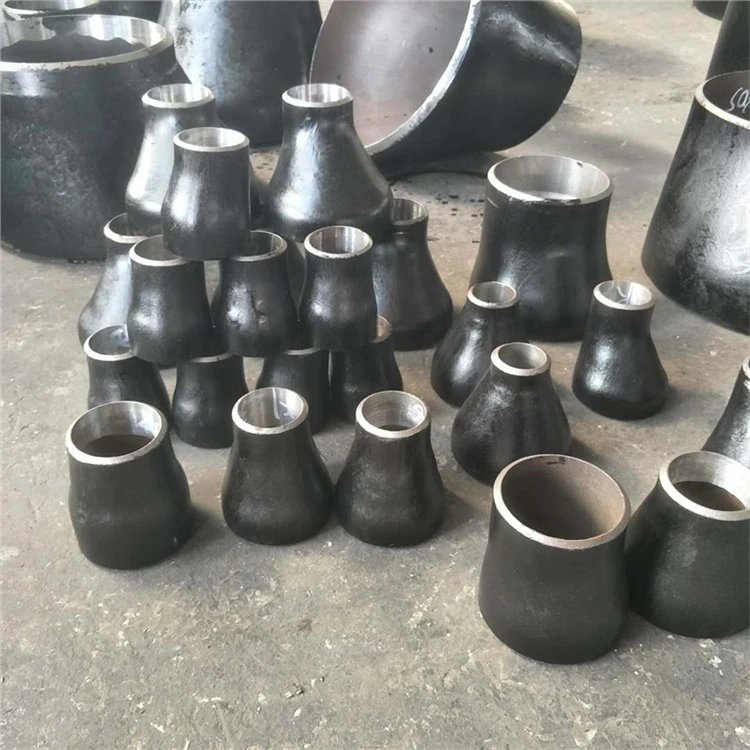

Butt Weld Reducers
Concentric and Eccentric ASME B16.9





NPS
O.D.D
O.D.D1
Length:H
3/4 - 1/2
26.7
21.3
38
1 - 1/2
33.4
21.3
51
1 - 3/4
33.4
26.7
51
1.1/4 - 1/2
42.2
21.3
51
1.1/4 - 3/4
42.2
26.7
51
1.1/4 - 1
42.2
33.4
51
1.1/2 - 1/2
48.3
21.3
64
1.1/2 - 3/4
48.3
26.7
64
1.1/2 - 1
48.3
33.4
64
1.1/2 - 1.1/4
48.3
42.2
64
2 - 3/4
60.3
26.7
76
2 - 1
60.3
33.4
76
2 - 1.1/4
60.3
42.2
76
2 - 1.1/2
60.3
48.3
76
2.1/2 - 1
73
33.4
89
2.1/2 - 1.1/4
73
42.2
89
2.1/2 - 1.1/2
73
48.3
89
2.1/2 - 2
73
60.3
89
3 - 1.1/4
88.9
42.2
89
3 - 1.1/2
88.9
48.3
89
3 - 2
88.9
60.3
89
3 - 2.1/2
88.9
73
89
3.1/2 - 1.1/4
101.6
42.2
102
3.1/2 - 1.1/2
101.6
48.3
102
3.1/2 - 2
101.6
60.3
102
3.1/2 - 2.1/2
101.6
73
102
3.1/2 - 3
101.6
88.9
102
4 - 1.1/2
114.3
48.3
102
4 - 2
114.3
60.3
102
4 - 2.1/2
114.3
73
102
4 - 3
114.3
88.9
102
4 - 3.1/2
114.3
101.6
102
5 - 2
141.3
60.3
127
5 - 2.1/2
141.3
73
127
5 - 3
141.3
88.9
127
5 - 3.1/2
141.3
101.6
127
5 - 4
141.3
114.3
127
6 - 2.1/2
168.3
73
140
6 - 3
168.3
88.9
140
6 - 3.1/2
168.3
101.6
140
6 - 4
168.3
114.3
140
6 - 5
168.3
141.3
140
8 - 3.1/2
219.1
101.6
152
8 - 4
219.1
114.3
152
8 - 5
219.1
141.3
152
8 - 6
219.1
168.3
152
10 - 4
273
114.3
178
10 - 5
273
141.3
178
10 - 6
273
168.3
178
10 - 8
273
219.1
178


Dimensions are in millimeters unless otherwise indicated. Wall thickness (t) must be specified by customer.


Dimensional Tolerances of Concentric and Eccentric Reducers ASME B16.9


Nominal Pipe Size
1/2 to 2.1/2
3 to 3.1/2
4
5 to 8
Outside Diameter at Bevel (D)
+ 1.6
- 0.8
1.6
1.6
+ 2.4
- 1.6
Inside Diameter at End
0.8
1.6
1.6
1.6
Overall Length (H)
2
2
2
2
Nominal Pipe Size
10 to 18
20 to 24
26 to 30
32 to 48
Outside Diameter at Bevel (D)
+ 4
- 3.2
+ 6.4
- 4.8
+ 6.4
- 4.8
+ 6.4
- 4.8
Inside Diameter at End
3.2
4.8
+ 6.4
- 4.8
+ 6.4
- 4.8
Overall Length (H)
2
2
5
5
Wall Thickness (t)
Not less than 87.5% of Nominal Wall Thickness


Dimensional tolerances are in millimeters unless otherwise indicated and are equal ± except as noted.


Butt welding Fittings Reducer Manufacturing Standards


ASME B16.9
ASME B16.28
ASME B16.49
MSS SP43
Mss SP75


Note..
MSS SP-43 only covers stainless steel buttweld fittings made for use with Schedule 5S and 10S pipe and Stub Ends suitable for use with Schedule 40S pipe, as defined in ASME B36.19. The dimensions and dimensional tolerances defined in MSS SP-43 are substantially the same as those in ASME B16.9 specifications from NPS 1/2 - NPS 24. Except with regard to the outside diameter at the bevel.


Butt welding Fittings Reducer Material Grades






Nickel Alloy
ASTM/ASME SB366 Alloy 200/UNS N02200, Alloy 800HT/Incoloy 800HT/UNS N08811, Alloy 400/Monel 400/UNS N04400, F904L/UNS N08904,
Alloy 800/Incoloy 800/UNS N08800, Alloy C-2000/UNS N06200, Alloy 925/Incoloy 925/UNS N09925, Alloy C-22/UNS N06022, Alloy 201/UNS
N02201, Alloy C-276/Hastelloy C-276/UNS N10276, Alloy 625/UNS N06625, Nimonic 80A/Nickel Alloy 80A/UNS N07080, Alloy K-500/Monel
K-500, Alloy 20/UNS N08020, Alloy 800H/Incoloy 800H/UNS N08810,Alloy 600/Inconel 600/UNS N06600, Alloy 31/UNS N08031,Hastelloy
C-276/UNS N10276, Alloy 825/Incoloy 825/UNS N08825,Alloy 20/N08020
Duplex and Super Duplex Steel
ASTM/ASME SA 815 WPS31803, WPS32205, WPS32750, WPS32760, WPS32550


Stainless Steel
ASTM/ASME SA403 WP 304, WP 304L, WP 304H, WP 304LN, WP 304N, ASTM/ASME A403 WP 316, WP 316L, WP 316H, WP 316LN, WP 316N, WP 316Ti,
ASTM/ASME A403 WP 321, WP 321H ASTM/ASME A403 WP 347, WP 347H
Carbon Steel
ASTM/ASME SA234 WPB
Low Temp Carbon Steel
ASTM/ASME SA420 WPL3-WPL6
Low Alloy Steel
ASTM/ASME SA 234 WP9, WP91, WP11, WP22
