Customized Fixed SMD P2 P3 P4 P10 Waterproof Giant Display Outdoor LED Advertising Screen 3D Digital Billboard

Share on (1601195683318):


Price:$300.00 - $580.00

Quantity:


Product Overview

Description











Customized Fixed SMD P2 P3 P4 P10 Waterproof Giant Display Outdoor LED Advertising Screen 3D Digital Billboard

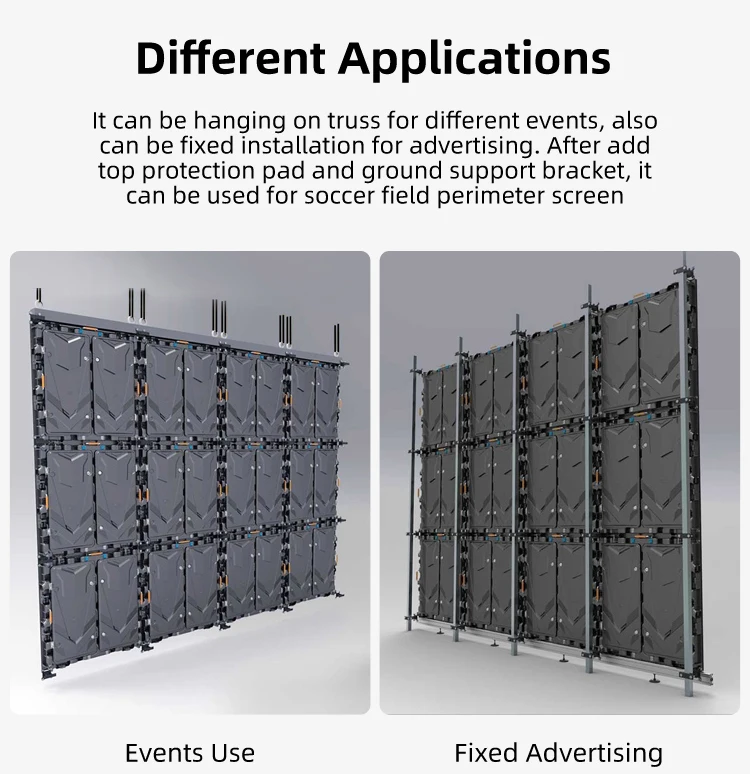

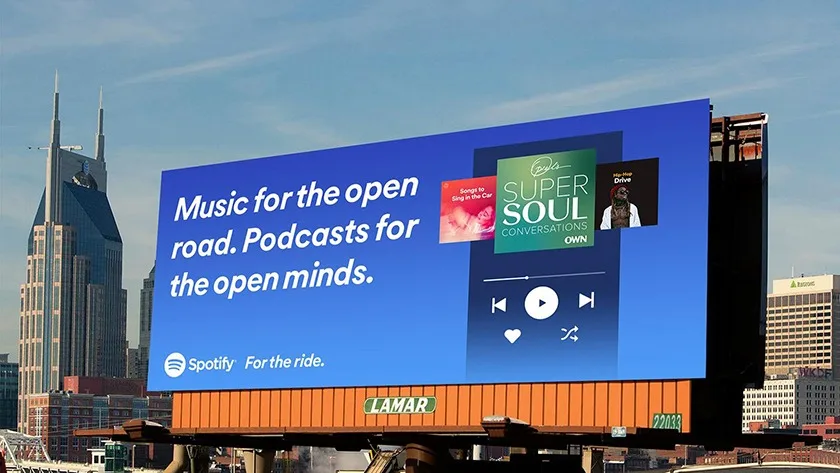

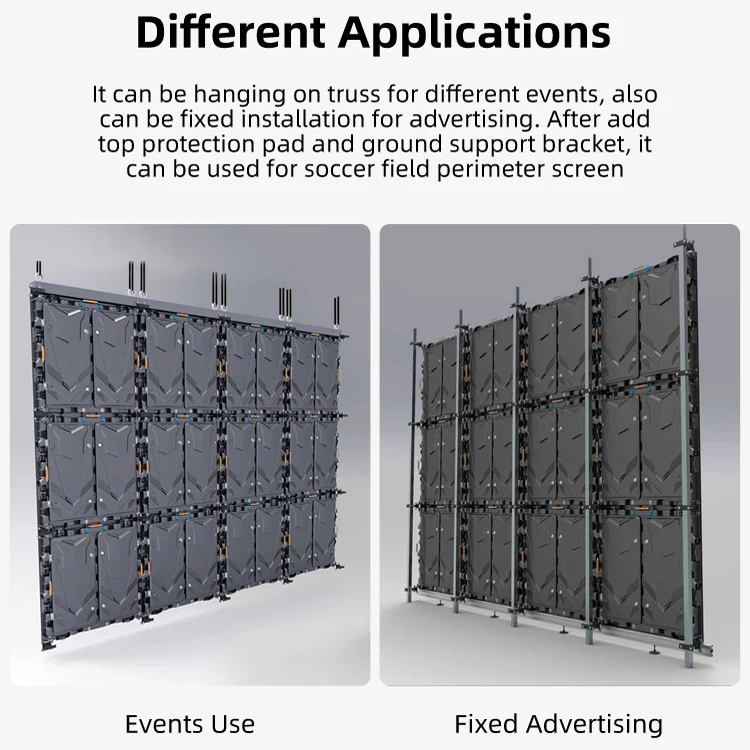

Application



























Product Description

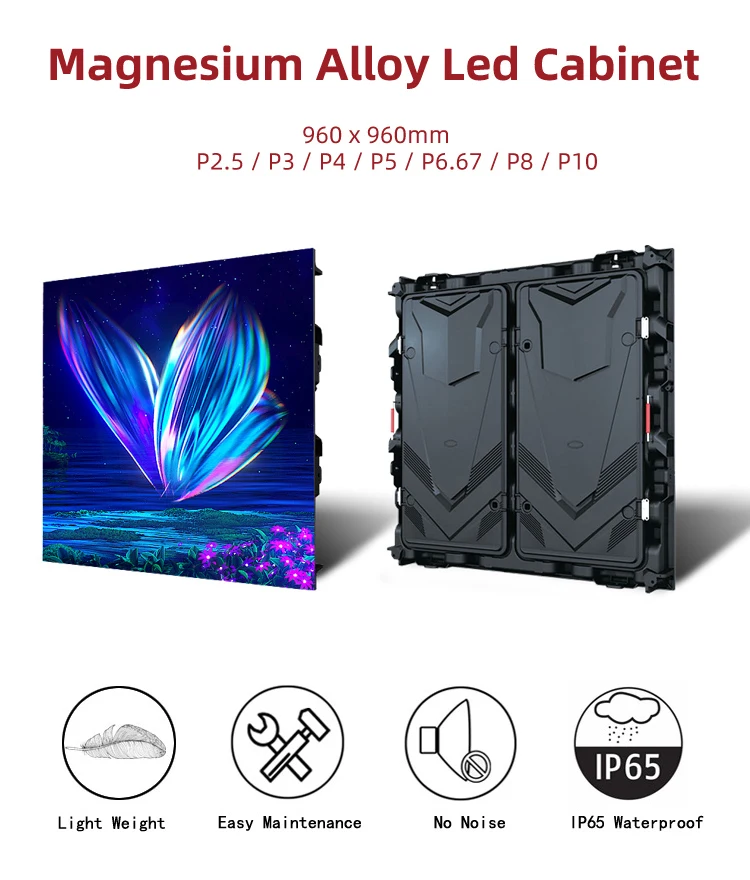

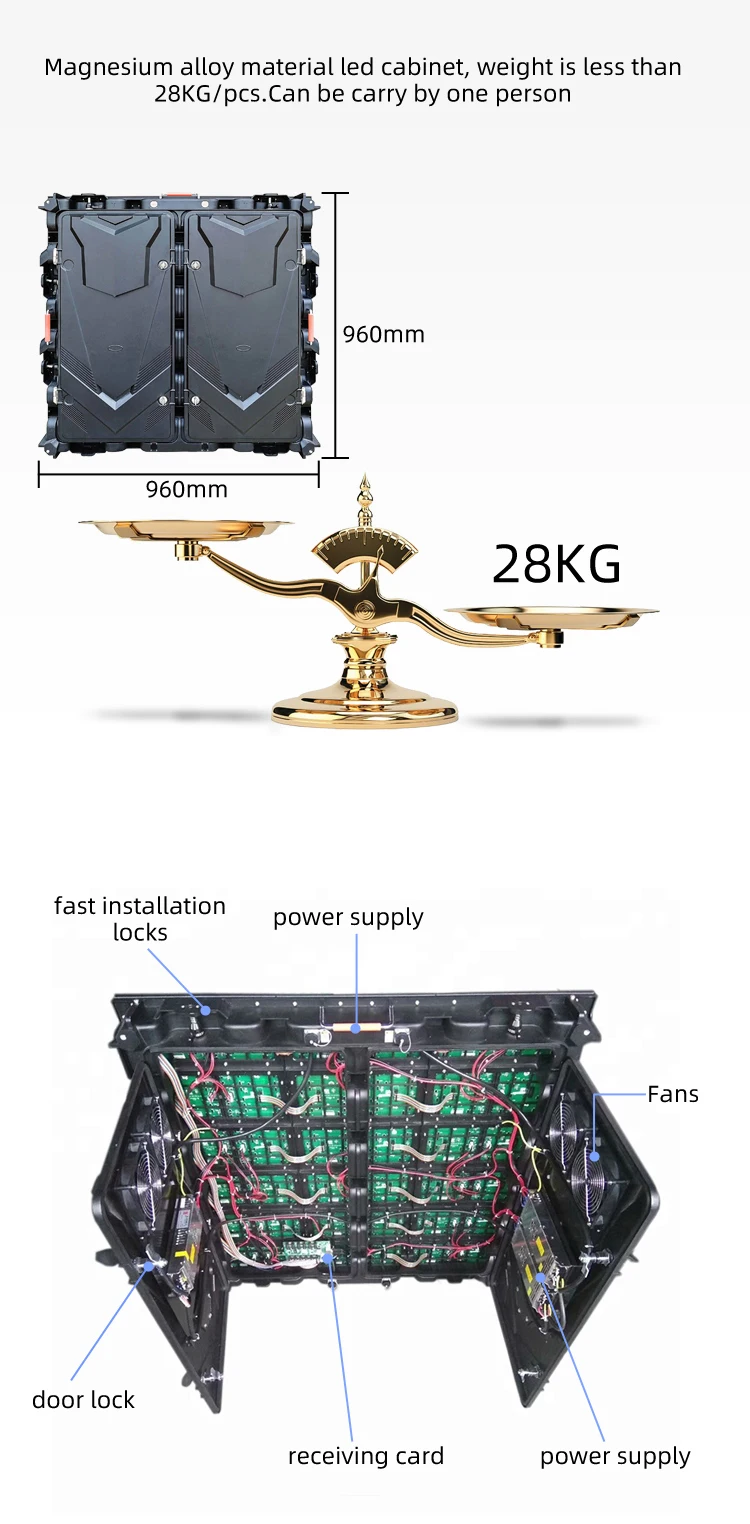

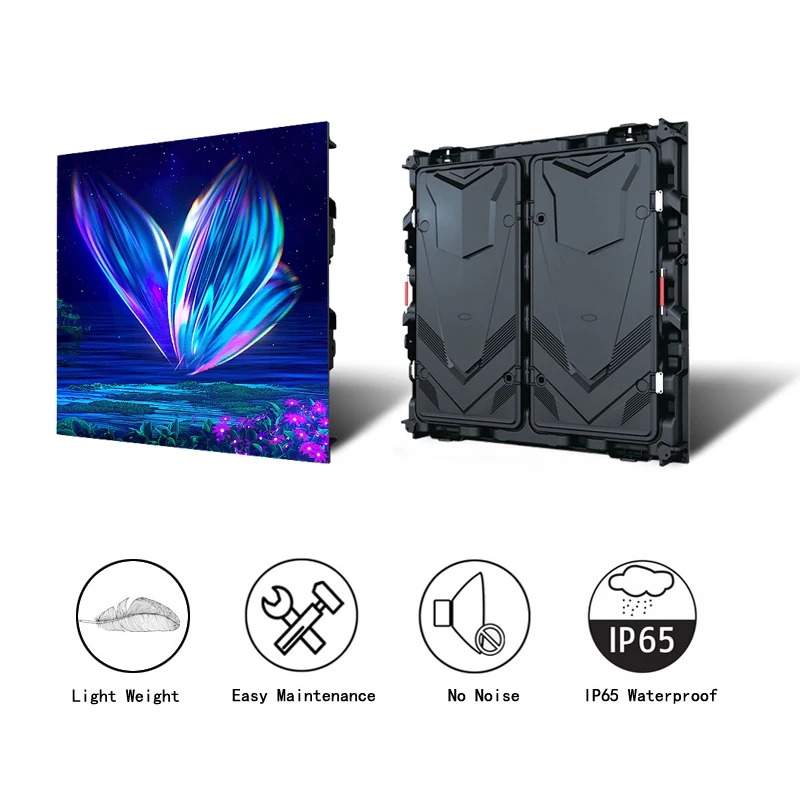

1, Light weight, each cabinet only 28KG.

2, Cabinets with Protection grade IP65 front and IP54 rear, suitable for all outdoor working environment.

3, Fast locks at the four sides of the cabinet, easy assemble and be piled up and be hoisted.

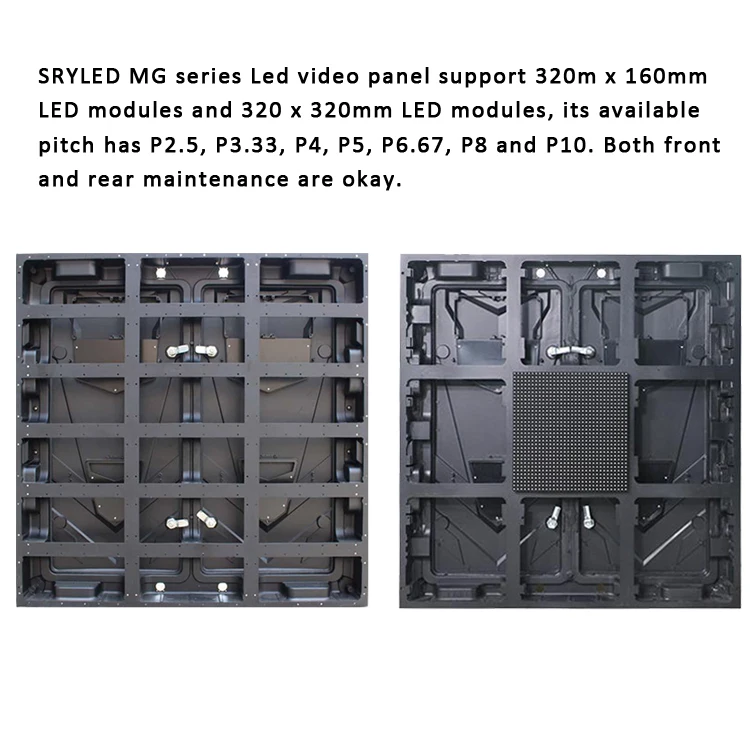

4, Front or back side maintenance, you can choose by different requirement.















Specification
























































































































Item


P5


P6.67


P8


P10


Pixel Pitch


5mm


6.67mm


8mm


10mm


Module Size


320x160mm


320x160mm


320x160mm


320x160mm


Pixel Density


40000dots/sqm


22477dots/sqm


15625dots/sqm


10000dots/sqm


Panel Size


960x960mm


960x960mm


960x960mm


960x960mm


Panel Material


Die casting magnesium


Die casting magnesium


Die casting magnesium


Die casting magnesium


Panel Weight


28KG/pc


28KG/pc


28KG/pc


28KG/pc


Drive Method


1/8 scan


1/8 scan


1/4 scan


1/2 scan


Best Viewing Distance


5-50m


6-70m


8-80m


10-100m


Vieweing Angle


H160° V140°


H160° V140°


H160° V140°


H160° V140°


Refresh Rate


1920Hz


1920Hz


1920Hz


1920Hz


Brightness


5500nits


5500nits


6000nits


7000nits


Max Power Consumption


900W/sqm


800W/sqm


700W/sqm


600W/sqm


Average Power Consumption


400W/sqm


350W/sqm


300W/sqm


280W/sqm


Waterproof Level


Front IP65, Rear IP54


Front IP65, Rear IP54


Front IP65, Rear IP54


Front IP65, Rear IP54


Life Span


100000hours


100000hours


100000hours


100000hours





Packing & Delivery

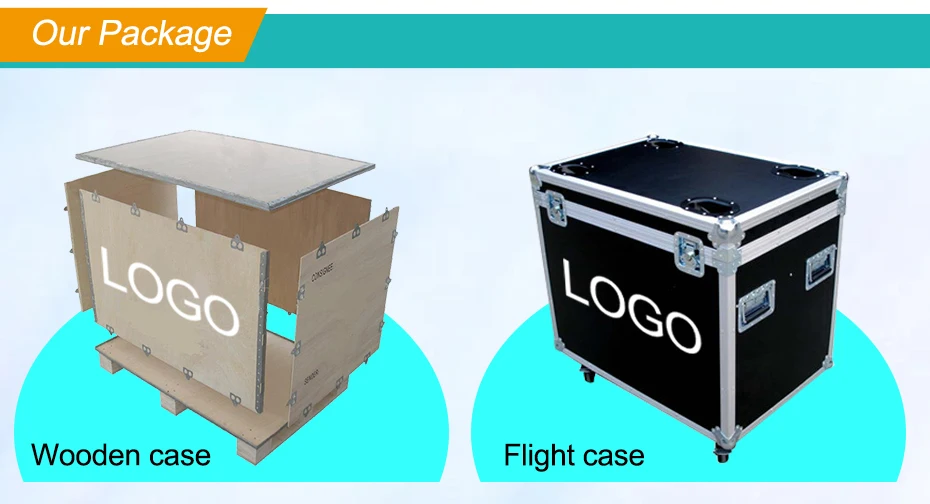

We use anti-shock wooden box or flight case to protect LED screen well.

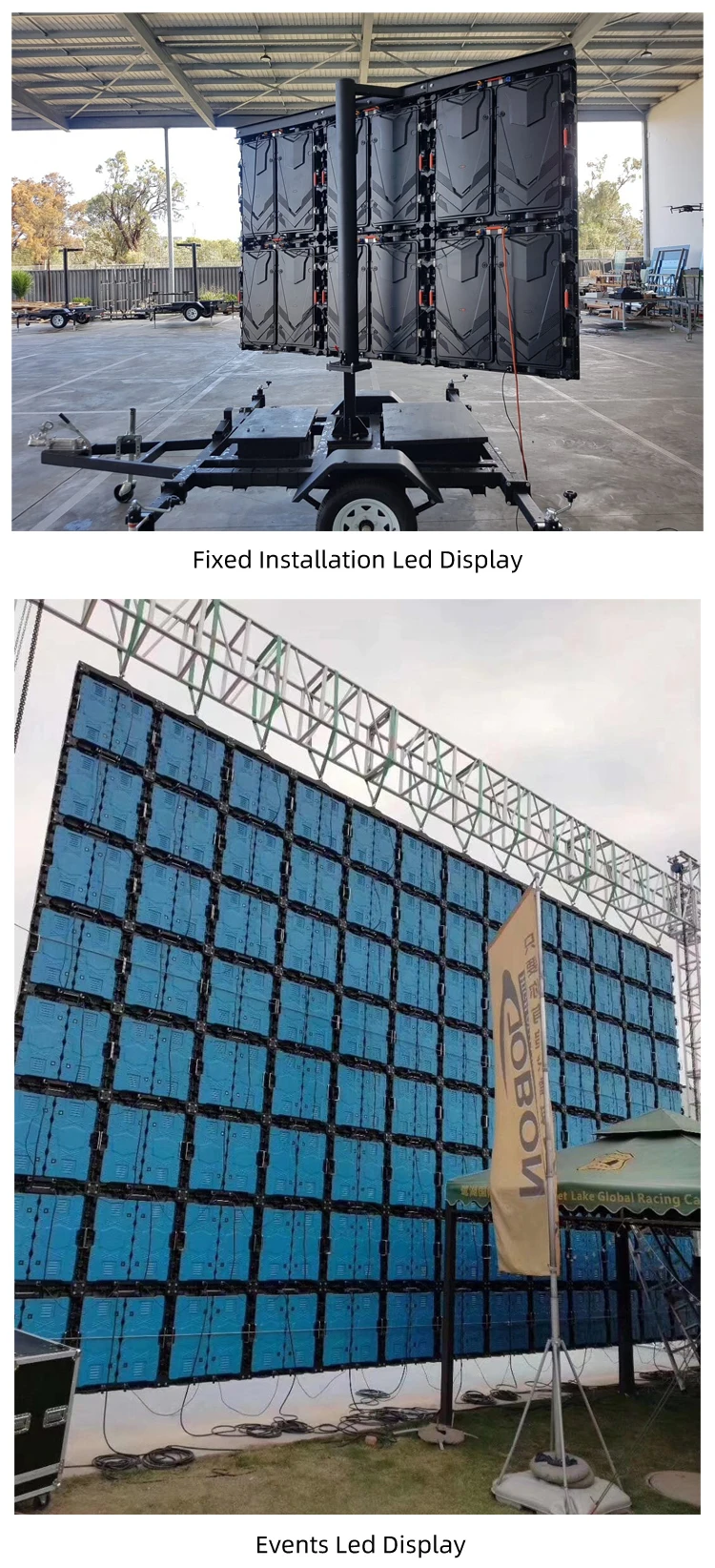

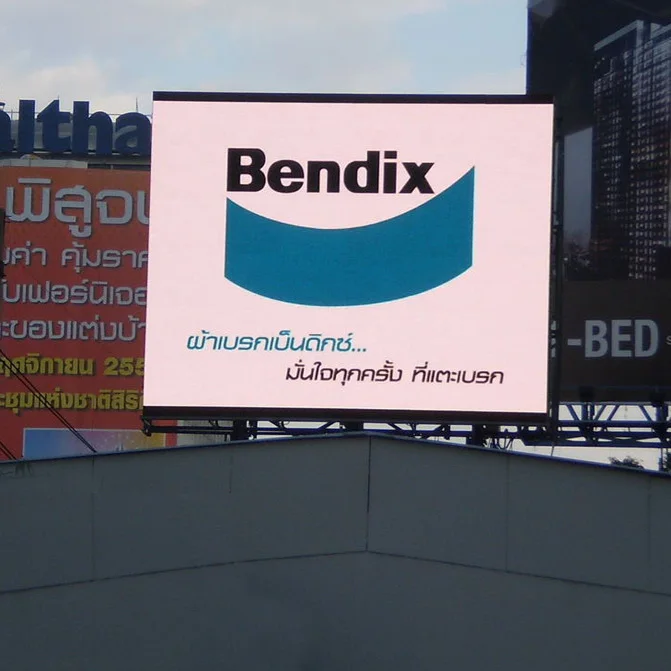

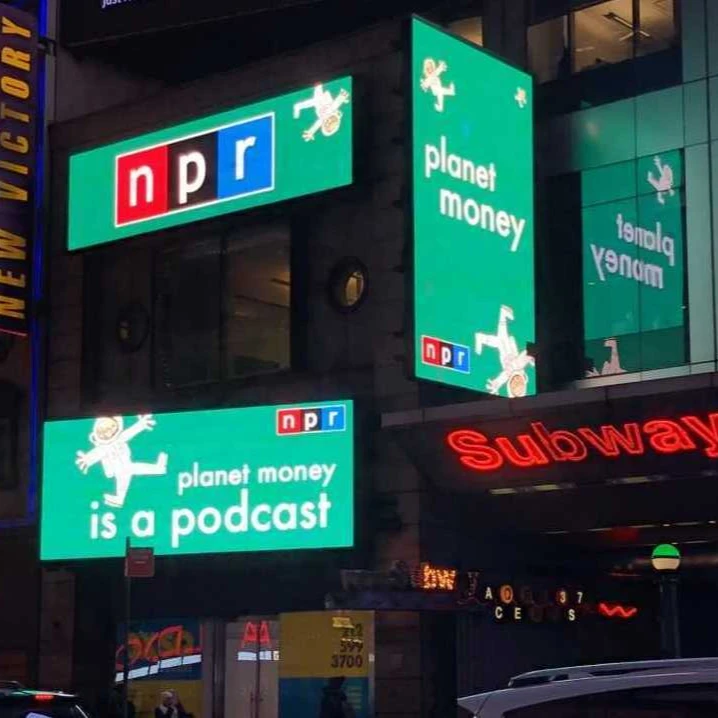

Our Projects

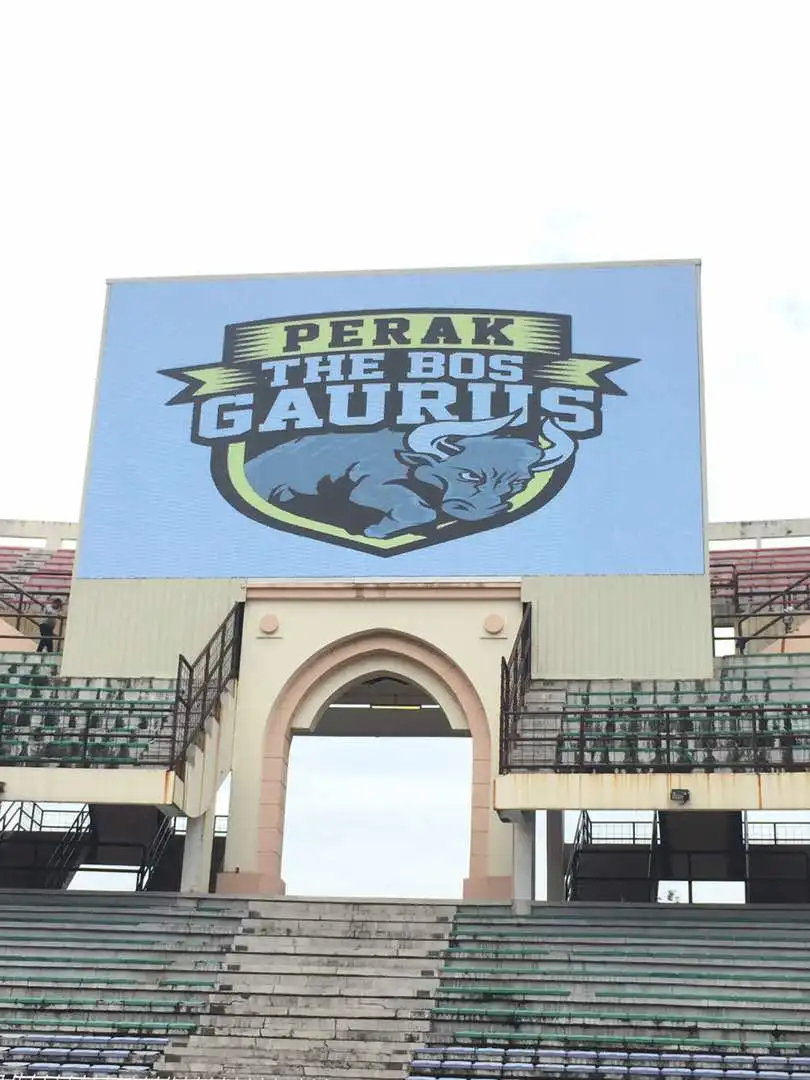

Stadium LED Screen in Malaysia

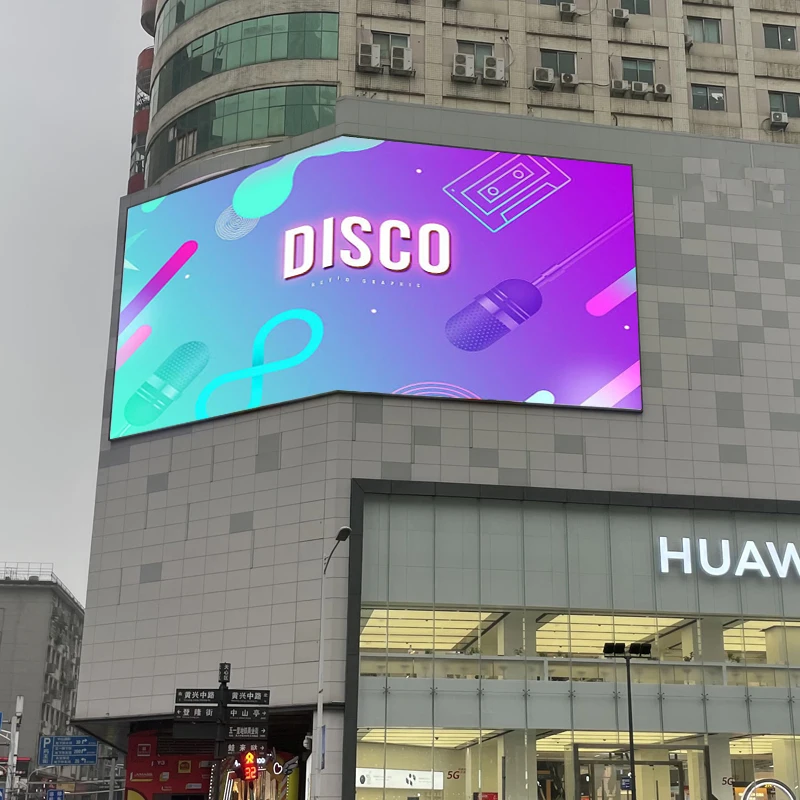

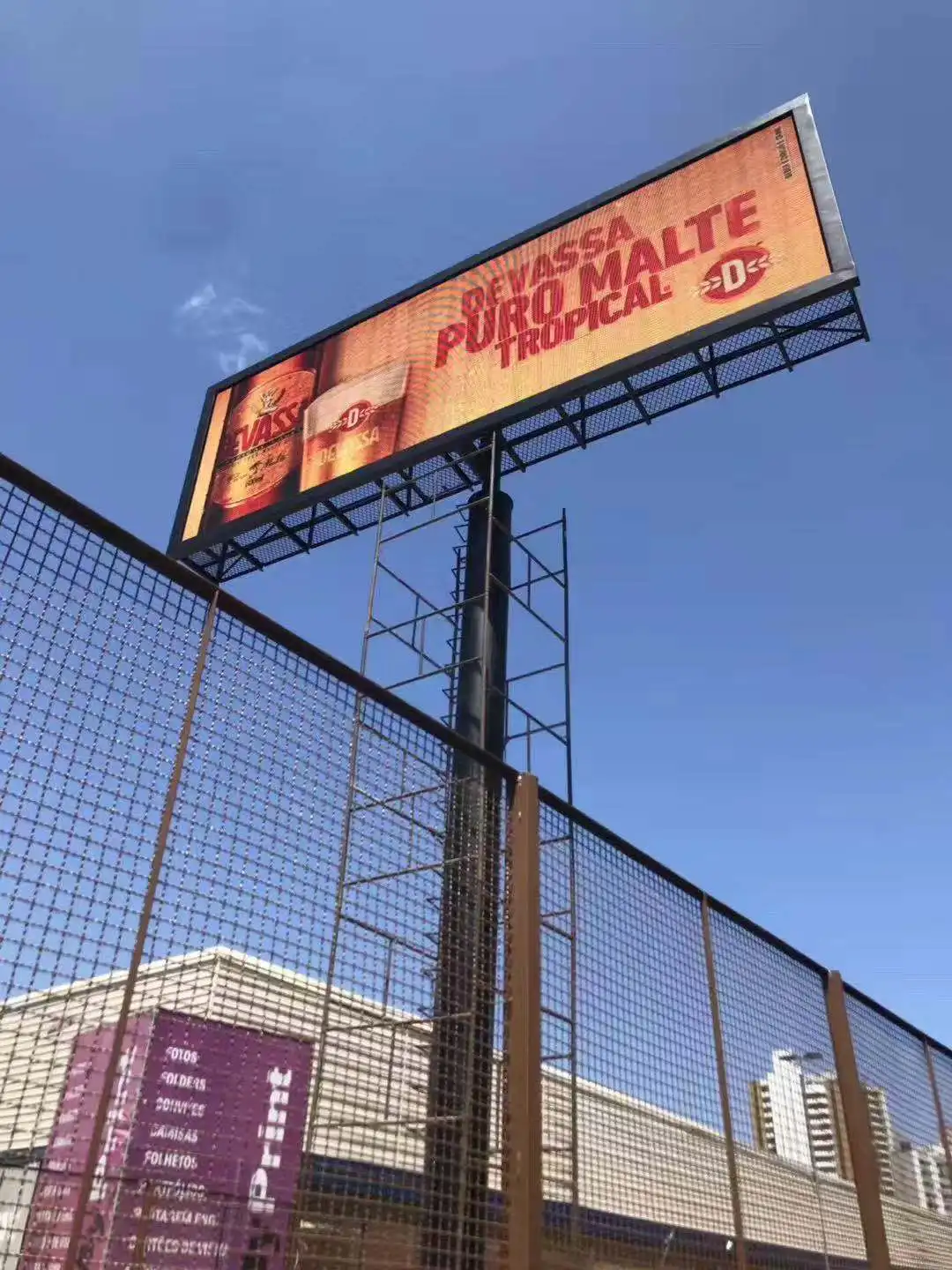

LED Advertising Screen in Brazil

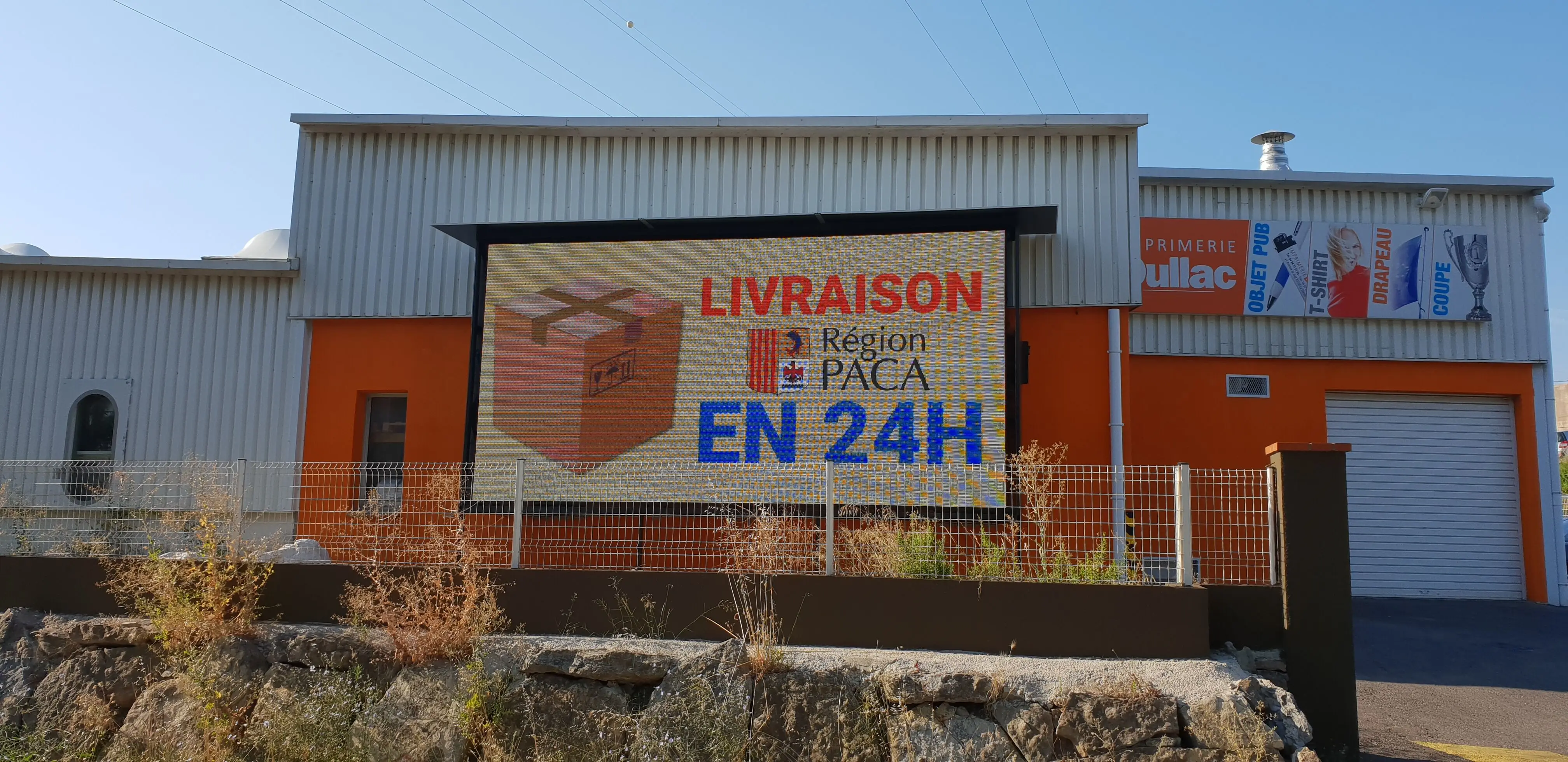

P8 LED Billboard Display in France

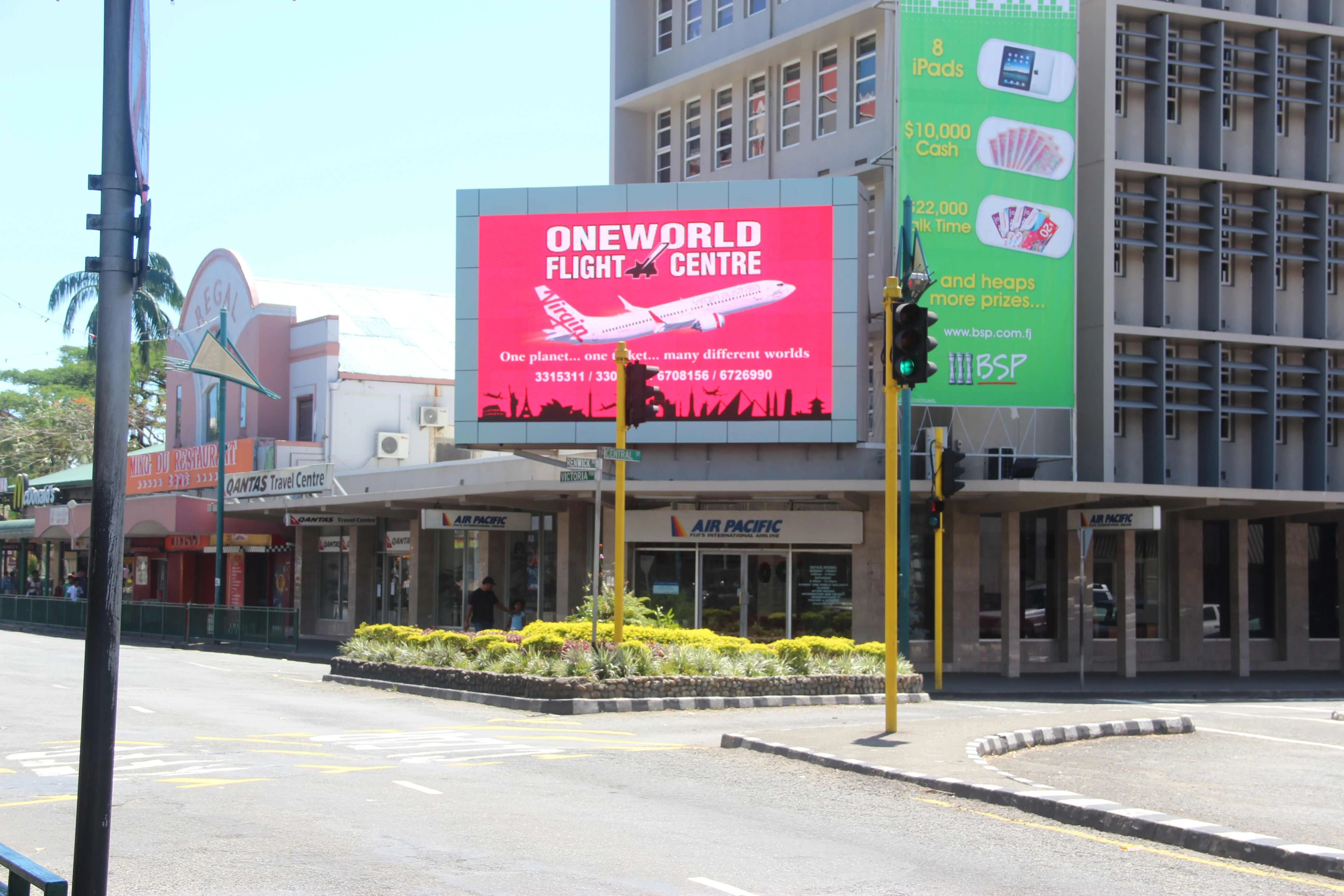

Giant LED Screen in Fiji











Company Profile








Company Information


Guangxi Honghai Optoelectronic Technology Co., Ltd. is located in the Nanning area of China (Guangxi) Pilot Free Trade Zone and is invested by Shenzhen Huaerwei Optoelectronic Technology Co., Ltd. We are an optoelectronic high-tech enterprise with over 20 years of LED technology accumulation, specializing in the research and development, production, sales, and service of semiconductor LED series products.





Our main products include: CoB (MiniMicro) LED display screens, various specifications of dot matrix modules, digital tubes, indoor and outdoor unit boards and modules (single, dual color, full color) various specifications of SMD light-emitting diodes, indoor and outdoor various (single, dual color, full color) display screens, various LED guardrail lights used in urban lighting projects, educational eye protection lights, smart street lights, color lights, and background walls; Light strips, lighting fixtures, etc.





Our product is widely used in the fields of display and human-machine dialogue, including military, aviation, aerospace, communication, enterprises, government agencies, docks, airports, stations, (high/ground) railway stations and carriages, mines, securities, squares, schools, conference rooms, exhibition halls, hotels, security, cinemas, hospitals, automobiles, advertising, home appliance displays, transportation, instruments, instruments, urban cultural dance halls, smart city command halls, monitoring halls, lighting, eye protection lights, television studios, etc.











Why Choose Us?














FAQ







Q1: Where is your nearst port?
A : Our nearst port is shenzhen port.

Q2: How about your warranty?
A:We provide 3 years' warranty.

Q3: How can I select your product?

A: Firstly you need to tell us your requirement such as the viewing distance, size, installation height, and some other details for the LED screen that you want. And then we will give you a recommendation.

Q4: How long will it take me to get the product?

A: Our production is 3-15 working days, we have indoor and oudoor LED display stock in USA and Mexico, can be shipped within 3 days.
