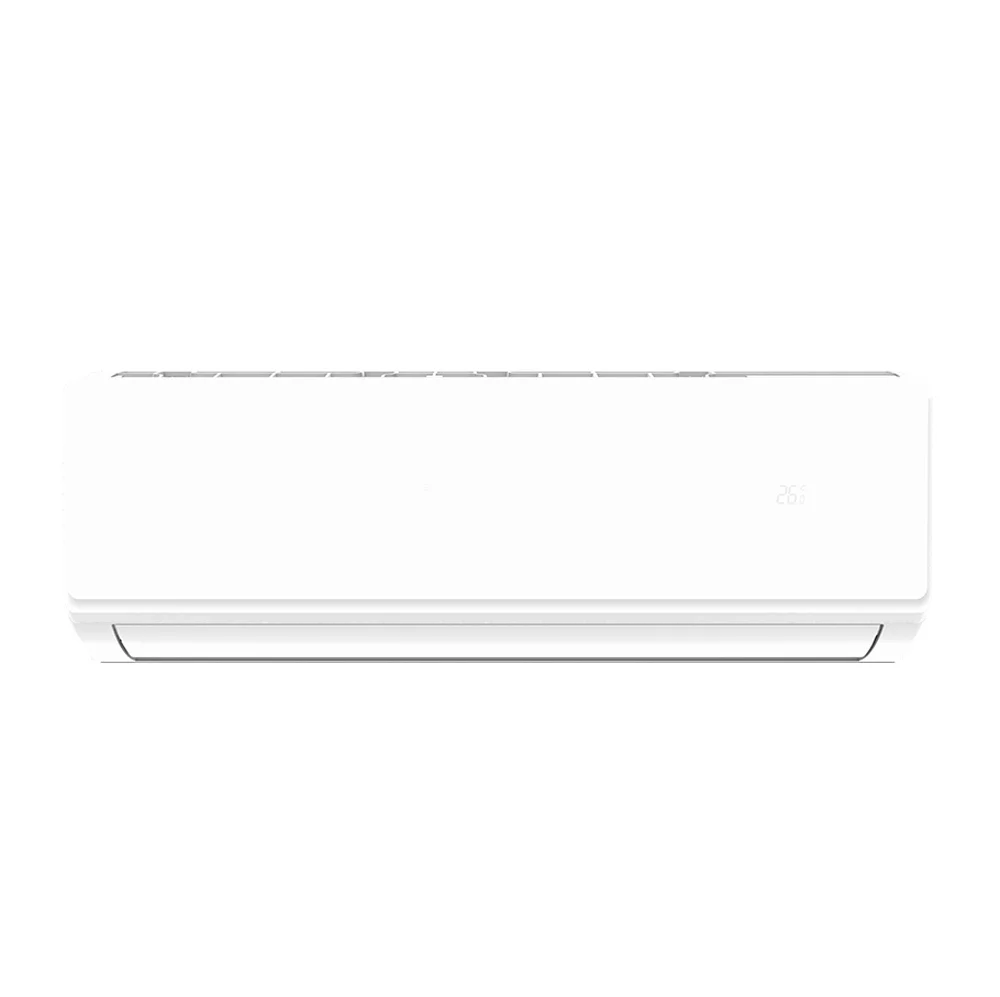

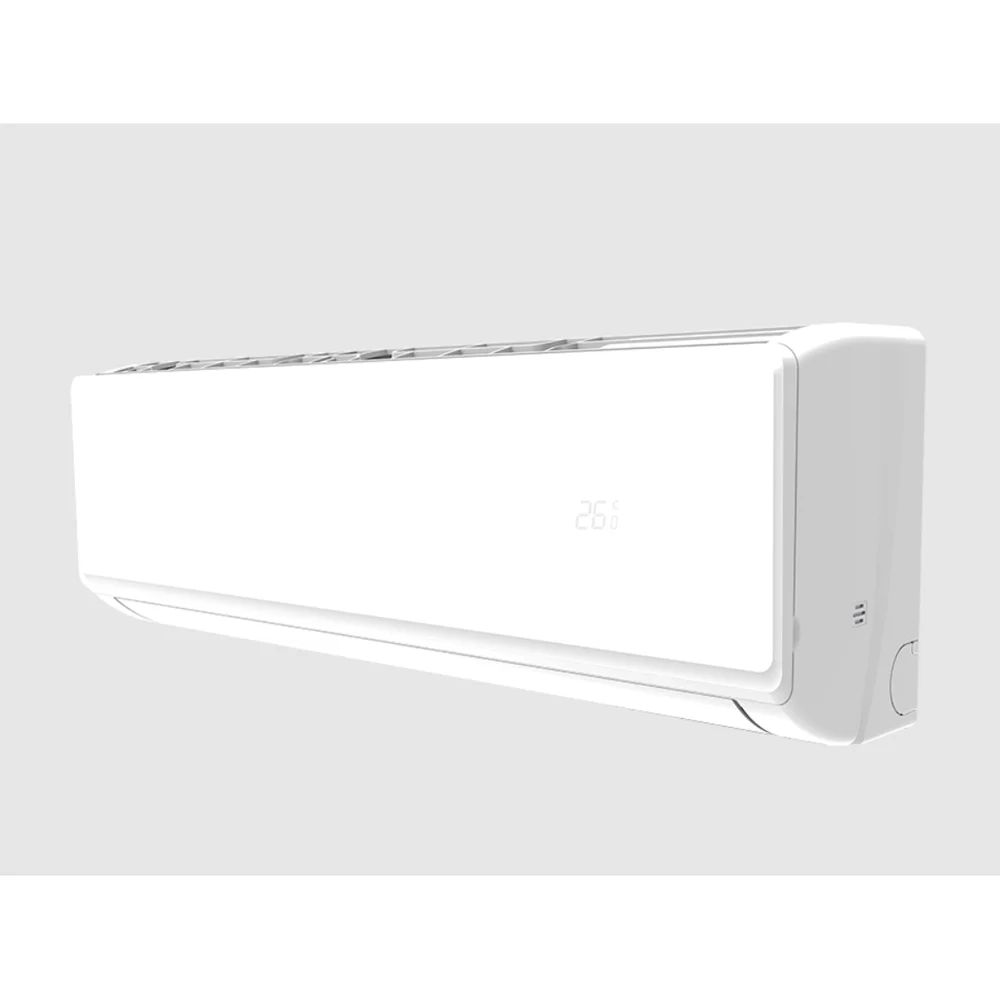

Household 18000 btu 220V 60Hz Inverter Frequency R32 Cooling Heating Wall Mounted Split Air Conditioners for South America
- Category: >>>
- Supplier: Dongguan City Changping Saint J. Electrical Firm
Share on (1601195713419):
Product Overview
Description
Product Description
Product Parameter
| Iterm | Value |
| Place of Orgin | China |
| Power Type | AC |
| Voltage (V) | 220 60Hz |
| Cooling/Heating | Cooling Heating |
| Fixed Frequency/Variable Frequency | Inverter Frequency |
| DC INVERTER (R32) | JAUS-09H63GVA1-711(Bp) | JAUS-12H63GVB1-711(Bp3B4) JAUS-12H63GVB1-711(Bp2B2) | JAUS-18H63GVE1-760A(BP3B6) | JAUS-24H63GVF1-781(Bp1B7) | ||
| Rated Power supply | 1Ph / 220-240V/60Hz | 1Ph / 220-240V/60Hz | 1Ph / 220-240V/60Hz | 1Ph / 220-240V/60Hz | ||
| Workable Power supply | 1Ph / 150-260V/60Hz | 1Ph / 150-260V/60Hz | 1Ph / 150-260V/60Hz | 1Ph / 150-260V/60Hz | ||
| Cooling | Capacity (btu/h) | 9000 | 12000 | 18000 | 24000 | |
| Capacity (W) | 2500(150~3000)W | 3200(150~3600)W | 5000(1250-5800) | 6300(1830~7000) | ||
| Input (W) | 900(100~1200)W | 1180(75~1560)W | 1780(330-2340) | 2250(410~2800) | ||
| Rated current (A) | 4.0 (0.8~5.3)A | 5.3(0.5~6.9)A | 7.9(1.7~12.0) | 10.0(2.3~12.3) | ||
| EER | 2.78 | 2.71 | 2.81 | 2.80 | ||
| Heating | Capacity (btu/h) | 9000 | 12000 | 18000 | 24000 | |
| Capacity (W) | 2800(150~3300)W | 3400(150~3800)W | 5000(1250-5800) | 6300(1850~7000) | ||
| Input (W) | 960(75~1260)W | 1160(75~1580)W | 1670(340-2520) | 2150(420~2600) | ||
| Rated current (A) | 4.3(0.5~5.6) | 5.2(0.5~7.0)A | 7.5(1.7~13.0) | 10.0(2.3~11.6) | ||
| COP | 2.92 | 2.93 | 2.99 | 2.93 | ||
| Max. input consumption (W) | 1600 | 1720 | 2500 | 3000 | ||
| Max. current (A) | 9.00 | 9.00 | 12.00 | 13.60 | ||
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | |
| Brand | GMCC | HIGHLY,GMCC | GMCC | GMCC | ||
| Indoor unit | Indoor Coil | Fin material | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic |
| Tube outside dia.and material | φ7mm, inner Grooved | φ7mm, inner Grooved | φ7mm, inner Grooved | φ7mm, inner Grooved | ||
| Indoor air flow (Hi/Mi/Lo) (M3/h) | 500/450/370/320 | 550/500/450/370 | 850/750/650/580 | 1050/950/800/680 | ||
| Rated input Power(cooling/heating) (W) | 30 | 30 | 35 | 45 | ||
| Rated current (cooling/heating) (A) | 0.2 | 0.2 | 0.35 | 0.4 | ||
| Moisture Removal (KG/h) | 0.8 | 0.8 | 2 | 2.6 | ||
| Noise level(Hi/Mi/Lo) (dB) | 39/34/32/30 | 42/39/36/33 | 45/42/39/37 | 49/47/45/42 | ||
| Unit dimension (W*H*D) | 695×275×190 | 780×275×190 | 910×295×205 | 1075×330×240 | ||
| Packing (W*H*D) | 765×325×245 | 850×325×245 | 980×350×250 | 1150×415×330 | ||
| Net weight (KGs) | 6 | 7 | 11 | 15 | ||
| Gross weight (KGs) | 8 | 9 | 13 | 18 | ||

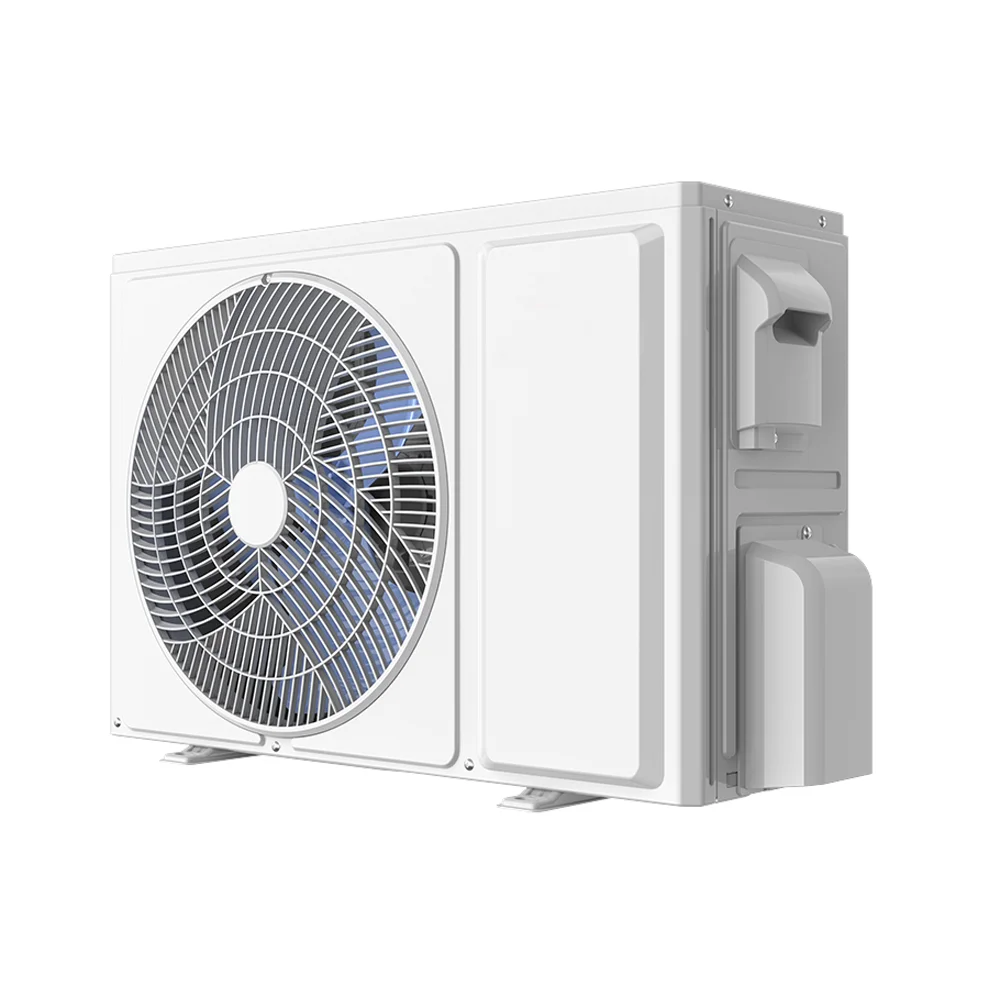

| Outdoor unit | Outdoor coil | Fin material | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic |
| Tube outside dia.and material | φ7mm, Inner Grooved | φ7mm, Inner Grooved | φ7mm, Inner Grooved | φ7mm, Inner Grooved | ||
| Noise level (dB) | 50 | 52 | 55 | 59 | ||
| Unit dimension (W*H*D) (mm) | 710×295×495 | 710×295×495 | 760×305×550 | 780×350×600 | ||
| Packing (W*H*D) (mm) | 830×335×530 | 830×335×530 | 869×339×593 | 895×390×625 | ||
| Net weight (KGs) | 21 | 21 | 24 | 31 | ||
| Gross weight (KGs) | 24 | 24 | 28 | 35 | ||
| Refrigerant type | R32 / ---g | R32 / 450g | R32 / 650g | R32 / 970g | ||
| Refrigerant pipe | Liquid side (mm) | Φ6 | Φ6 | Φ6 | Φ6 | |
| Gas side (mm) | Φ9 | Φ9 | Φ12 | Φ12 | ||
| Max. refrigerant pipe length (m) | 10 | 10 | 10 | 15 | ||
| Max. difference in level (m) | 5 | 5 | 5 | 10 | ||
| Operation temperature range | -7℃-43℃ | -7℃-43℃ | -7℃-43℃ | 16℃-43℃ | ||
| Ambient temperature range | -7℃-48℃ | -7℃-48℃ | -7℃-48℃ | 16℃-48℃ | ||
| Application area (MM2) | 10~17 | 13~27 | 20~40 | 30~55 | ||
| Sets per 40ft HQ/20ft | 340/- | 334/143 | 267/- | 186/81 | ||
