Self Cleaning screen Filter for irrigation system Automatic Backflush Self Cleaning Water Filter
- Category: >>>
- Supplier: Shandong Green Sen Water Saving Irrigation Equipment Co. Ltd.Shandong Ltd.
Share on (1601195842769):
Product Overview
Description
Product Description
Filter type | 2" Mini Sigma | 3" Mini Sigma | 4" Mini Sigma | ||
Maximum flow rate of ordinary water quality | 5025m³/h | 25m³/h | 80m³/h. | ||
Minimum backwash pressure | 1.5bar | ||||
Maximum working pressure | 8bar | ||||
filter area | 1200cm² | 1600cm² | 2400cm² | ||
inlet/outlet size | 2"(50mm) | 3"(80mm) | 4"(100mm) | ||
Product Characteristics
Automatic Backwash Screen Filter FEATURES & BENEFITS
Durable industrial grade valve design and construction uses glass-filled Nylon material to meet rough service conditions.
2.Ultra-high flow capacity with minimal pressure loss.
3.Designed for service on a wide range of pressure and flow conditions, from dripping to maximum flow.
4.Simple design with few parts guarantees easy in-line inspection and service.
5.No chattering or slamming closed.
6.Accurate and stable regulation with smooth motion.
7.Low operating pressure requirements.
8.No diaphragm erosion and distortion.
9.Diaphragm and spring fully meet the valve's operating pressure range requirements.
10.No UV and frozen effect.
11.Chemical resistant.
2.Ultra-high flow capacity with minimal pressure loss.
3.Designed for service on a wide range of pressure and flow conditions, from dripping to maximum flow.
4.Simple design with few parts guarantees easy in-line inspection and service.
5.No chattering or slamming closed.
6.Accurate and stable regulation with smooth motion.
7.Low operating pressure requirements.
8.No diaphragm erosion and distortion.
9.Diaphragm and spring fully meet the valve's operating pressure range requirements.
10.No UV and frozen effect.
11.Chemical resistant.
Application
Specification
item | value |
Type | Other Watering & Irrigation |
Place of Origin | China |
Shandong | |
Brand Name | Greensen |
Model Number | 3inch |
Material | Plastic |
Product name | Automatic Backflush Self Cleaning Water Filter |
size | 3inch |
MOQ | 1pcs |
Flow rate | 25m³/h. |
Working pressure | 8bar |
Backflush Self Cleaning pressure | 1.5bar |
connect type | flange/Snap |
Electromagnetic head | 9-12V DC |
Backflush Self Cleaning time | 10s |
weight | 20kg |

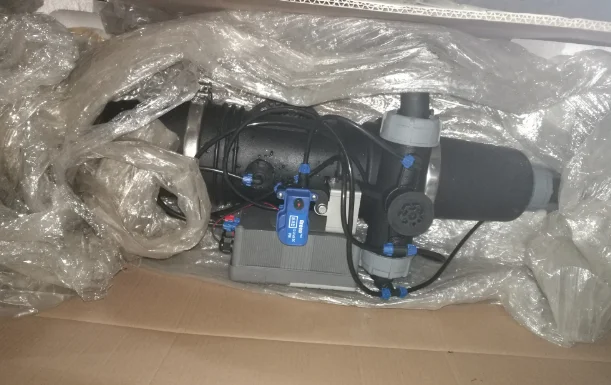

Packing & Delivery
Export standard carton box
Company Profile
Why choose us
●One -stop shopping service for whole agriculture irrigation system
● One to one irrigation system design service
● 100% shipping order on time
● Do customizatin according customer need
● 24 hours online reply
● One to one irrigation system design service
● 100% shipping order on time
● Do customizatin according customer need
● 24 hours online reply
