CTS lifepo battery cell 380ah prismatic lifepo battery cell 3.2v 125ah lifepo battery cells
- Category: >>>
- Supplier: Hunan Cts Technology Co. Ltd.Hunan Ltd.
Share on (1601195873091):
Product Overview
Description
CTS Prismatic lifepo4 battery 3.2v 100Ah 200Ah 300ah lifepo4 cell 3.2v 280ah lithium lifepo4 battery cell
Welcome to CTS

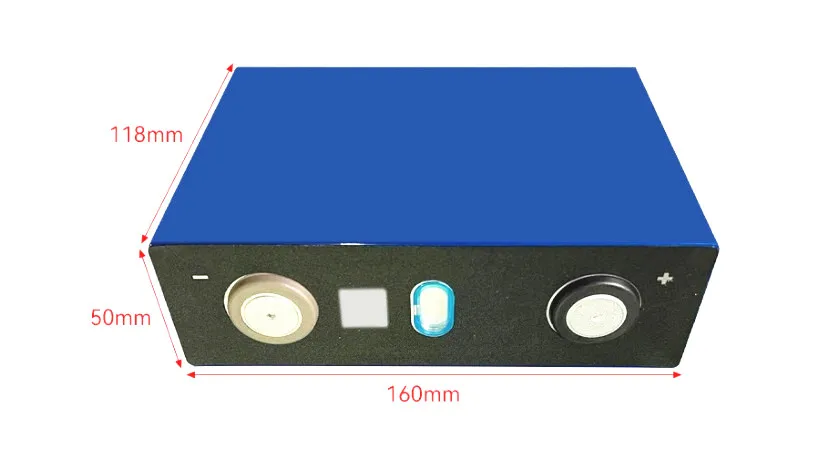

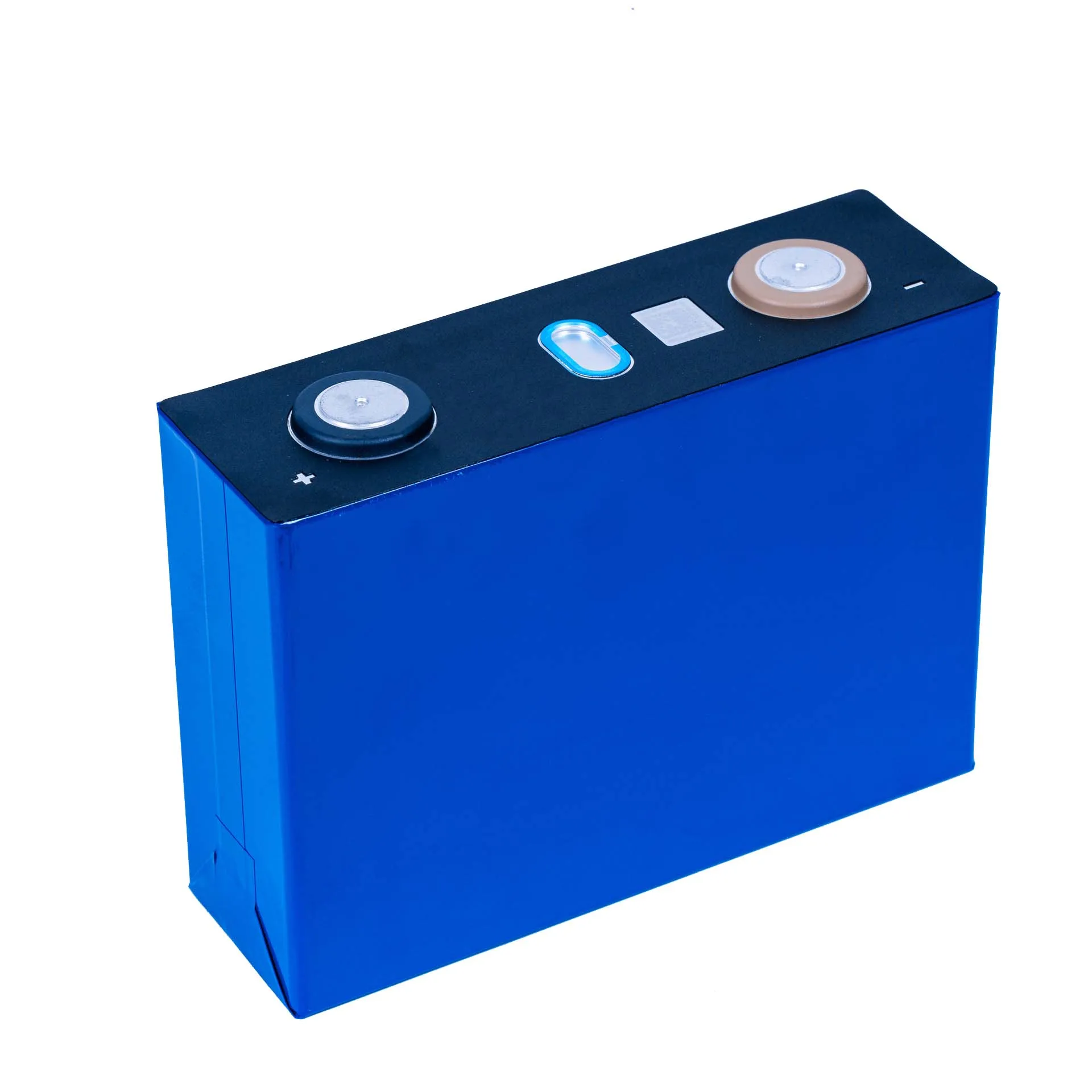

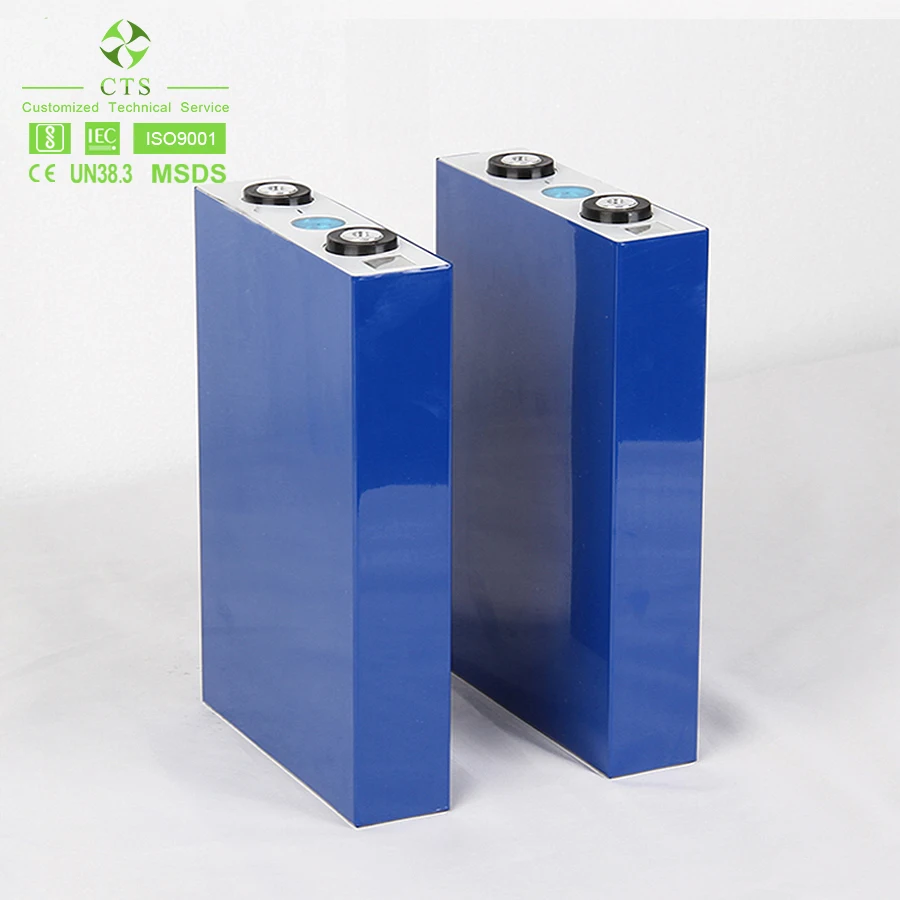

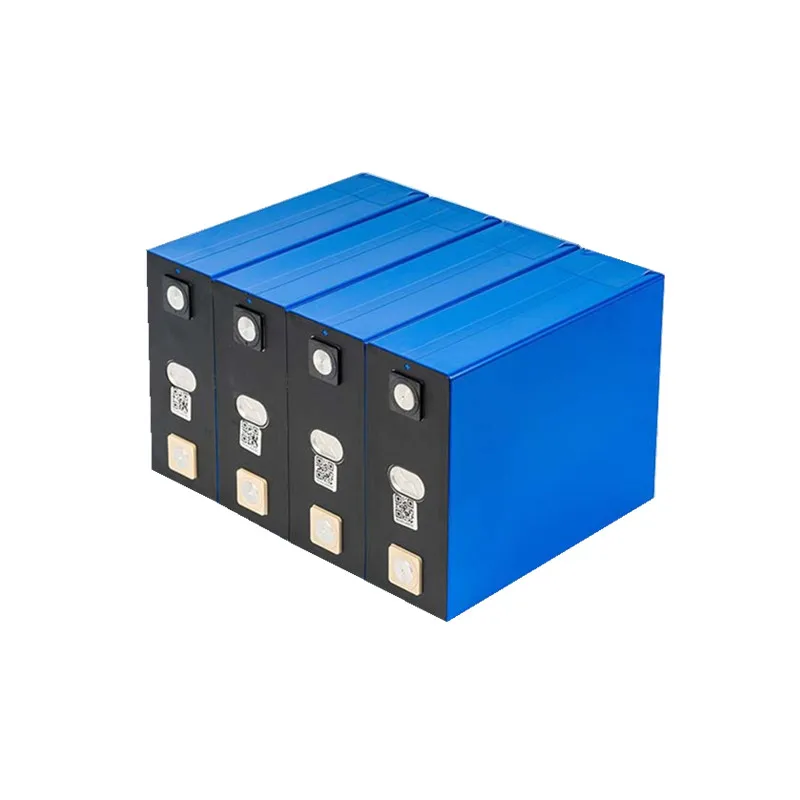

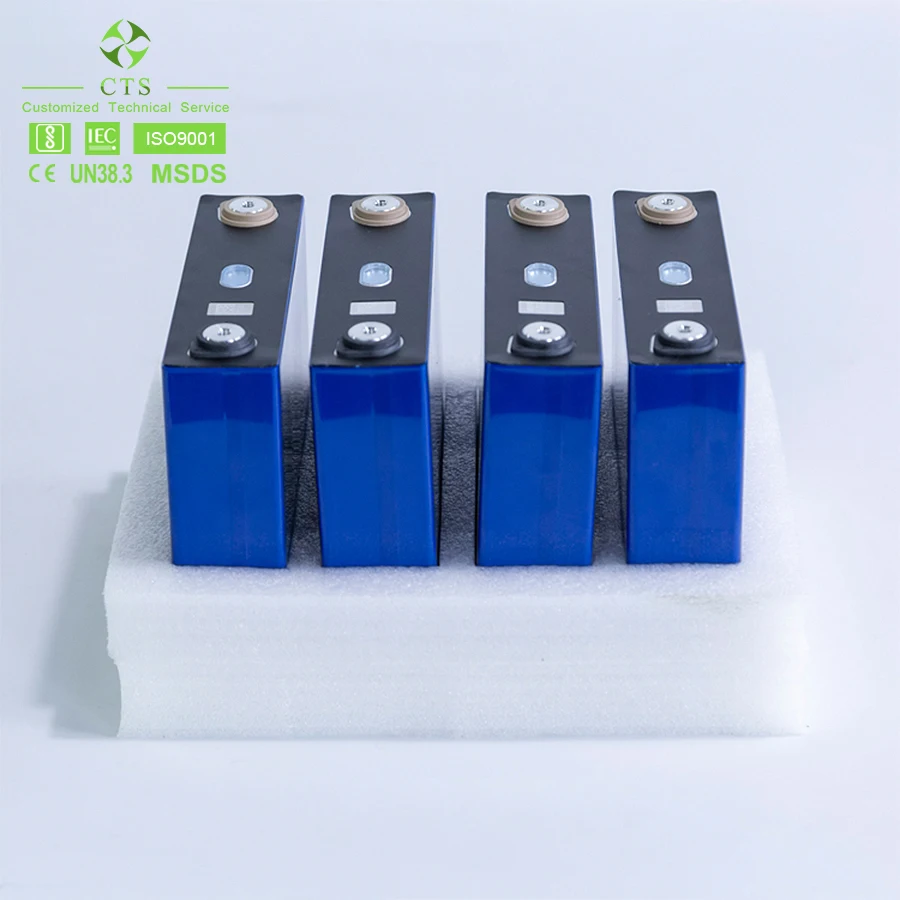

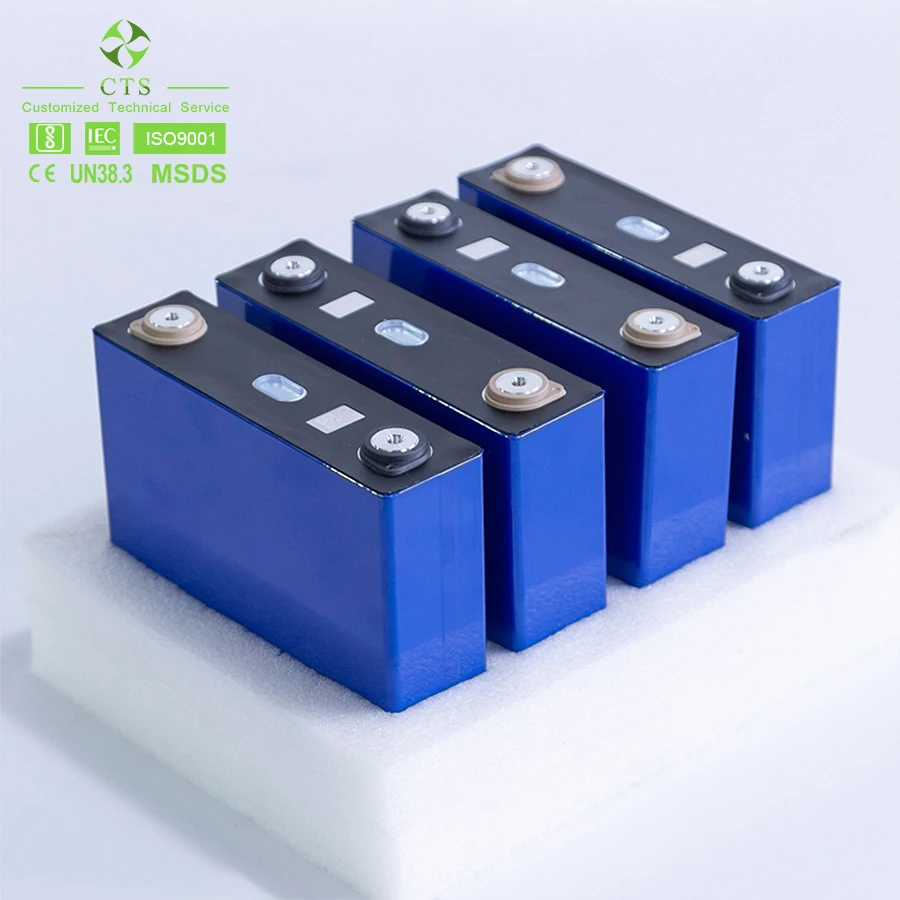

3.2v lifepo4 prismatic battery cell
CTS is a professional manufacturer engaging in research, development, production, marketing and service of lithium ion pouch battery cell, battery pack and battery management system.With 20+ people R&D team who has rich experience, CTS focuses on power battery customization for middle and high end markets. We always followed Strict quality control ensures the higher quality of products. With the concept of "customers the first, quality the life", we strictly follow ISO9001 & IATF16949 management system through the production of every detail, each battery must be strictly tested before delivery. CTS batteries selling well in China, also exported to many countries, such as, America,Australia, Canada, Italy, UK, Germany, South Korea, Thailand etc.
Specification
Features:
1.Grade A New battery cell with real capacity.
2.Light weight, small size and high performance.
3.Small internal resistance.
4.Outstanding Discharge performance. .
5. long life >6000 cycles.
6.Existing stock for short delivery time.
Datesheet of 3.2V 100Ah/280Ah/310Ah battery cells:
Item | Specification | Specification | |||
Cell model | F50160116 | F72174204 | F72174204 | ||
Minimum Capacity | 100Ah | 280Ah | 310Ah | ||
Nominal Voltage | 3.2V | 3.2V | 3.2V | ||
Operating Voltage Range | 2.50~3.65V | 2.50~3.65V | 2.50~3.65V | ||
Charging Voltage | 3.65V | 3.65V | 3.65V | ||
Standard Charging Method | CCCV and CC is 0.5C | CCCV and CC is 0.5C | CCCV and CC is 0.5C | ||
Max.Charge Current | 1C/40min | 1C/40min | 1C/40min | ||
Standard Discharging Method | 1C/1h | 1C/1h | 1C/1h | ||
Max.Discharge Current | 2C/120s 3C/30s | 2C/120s 3C/30s | 2C/120s 3C/30s | ||
Initial Inner Resistance(1KHz) | 0.28±0.05mΩ | 0.28±0.05mΩ | 0.28±0.05mΩ | ||
Cell Weight | 1.985Kg±15g | 5.31Kg±15g | 5.5Kg±15g | ||
Self-discharge | ≤3% per month | ≤3% per month | ≤3% per month | ||
Cycle life | >6000 cycles | >6000 cycles | >6000 cycles | ||
Operating Temperature | 0℃～60℃ | 0℃～60℃ | 0℃～60℃ | ||
-20℃～60℃ | -20℃～60℃ | -20℃～60℃ | |||

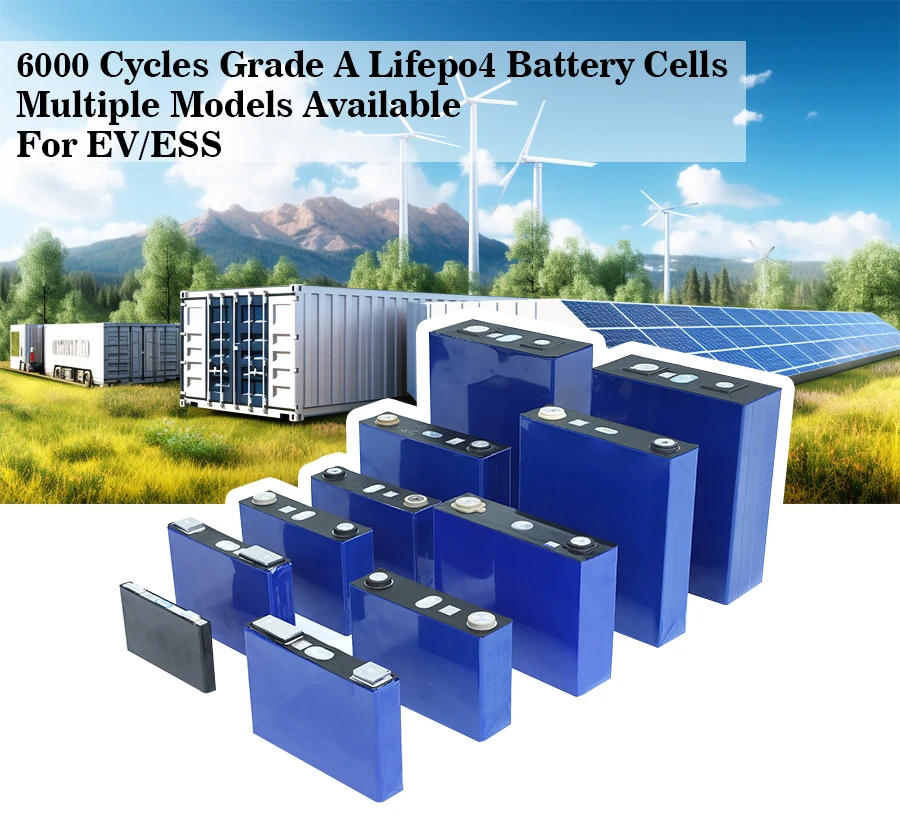

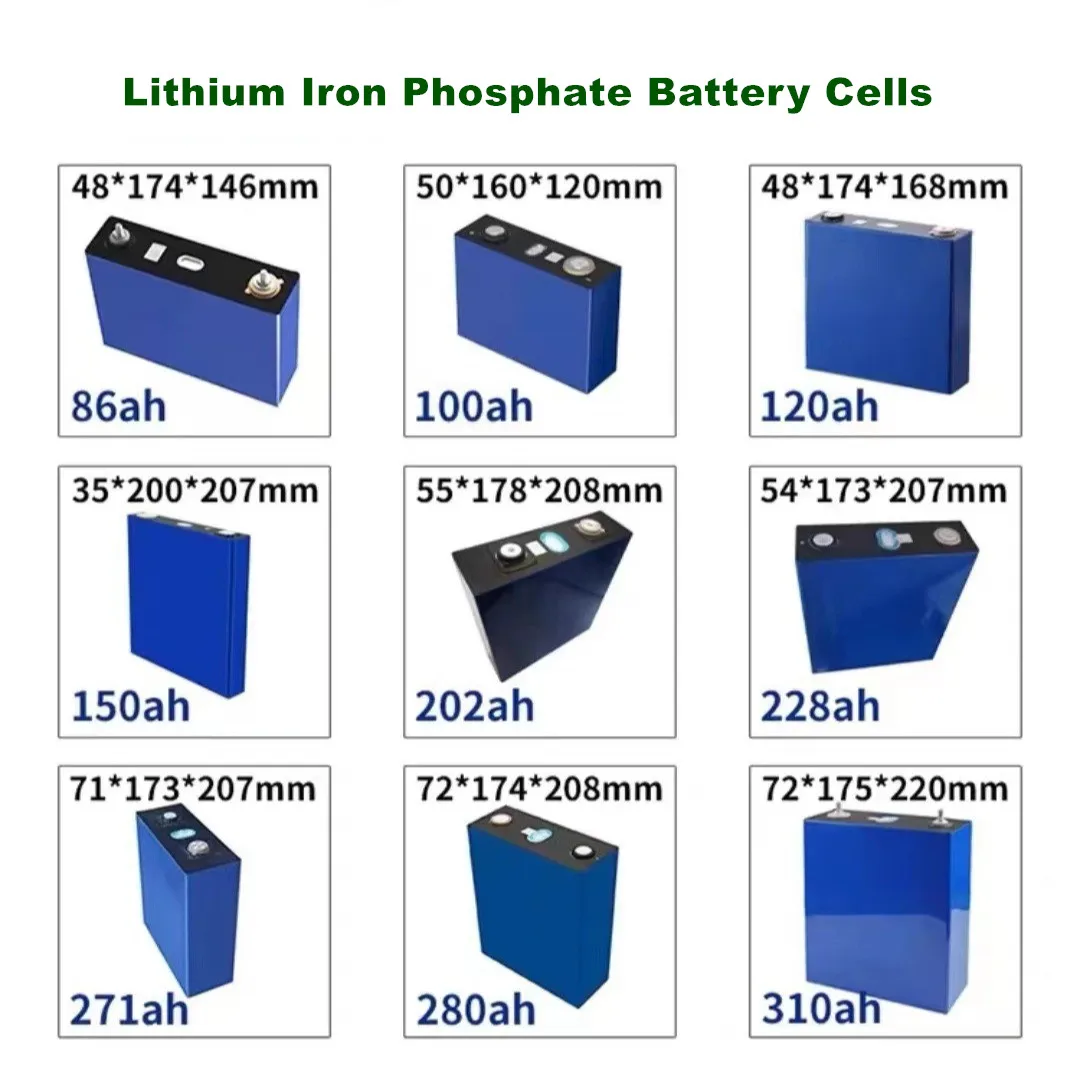

More models available
Voltage | Capacity | Size | Weight(g) | Discharge rate Contious/Max |
3.2V Lifepo4 Prismatic Battery Cells | 25AH | 27*70*180 | 650 | 1C/2C |
50AH | 36*130*165 | 1370 | 2C/8C | |
50AH | 36*130*170 | 1500 | 1C/3C | |
60AH | 36*130*190 | 1700 | 1C/3C | |
100AH | 36*130*215 | 2070 | 1C/1C | |
100AH | 27*135*250 | 2000 | 1C/1C | |
40AH | 27*148*134 | 1050 | 6C/6C | |
40AH | 20*150*145 | 855 | 1C/1C | |
50AH | 27*148*134 | 1110 | 1.5C/4C | |
50AH | 20*150*145 | 980 | 1C/1C | |
50AH | 36*130*130 | 1370 | 1C/1C | |
50AH | 26*148*134 | 1370 | 1C/1C | |
50AH | 30*136*185 | 1400 | 3C/3C | |
86AH | 48*174*128 | 1980 | 1C/3C | |
100AH | 40*220*111 | 2000 | 1.5C/2C | |
100AH | 50*161*118 | 2000 | 1C/1C | |
100AH | 47*173*132 | 2214 | 1C/1C | |
105AH | 27*175*207 | 2000 | 2C/2C | |
150AH | 60*220*111 | 2980 | 1.5C/2C | |
150AH | 47*173*170 | 3300 | 1C/1C | |
150AH | 54*173*145 | 2816 | 1C/1C | |
206AH | 54*174*207 | 4180 | 1C/1C | |
230AH | 54*174*207 | 4180 | 1C/1C | |
280AH | 72*174*207 | 5100 | 0.5C/1C | |
304AH | 72*174*207 | 5500 | 0.5C/0.5C |
Correlation graph:
Application
A WIDE RANGE OF APPLICATIONS
Powerful compatibility, widely used Electric vehicles , Energy storgae system, Back-up power, Golf cart,golf cart, fork lift....
Powerful compatibility, widely used Electric vehicles , Energy storgae system, Back-up power, Golf cart,golf cart, fork lift....

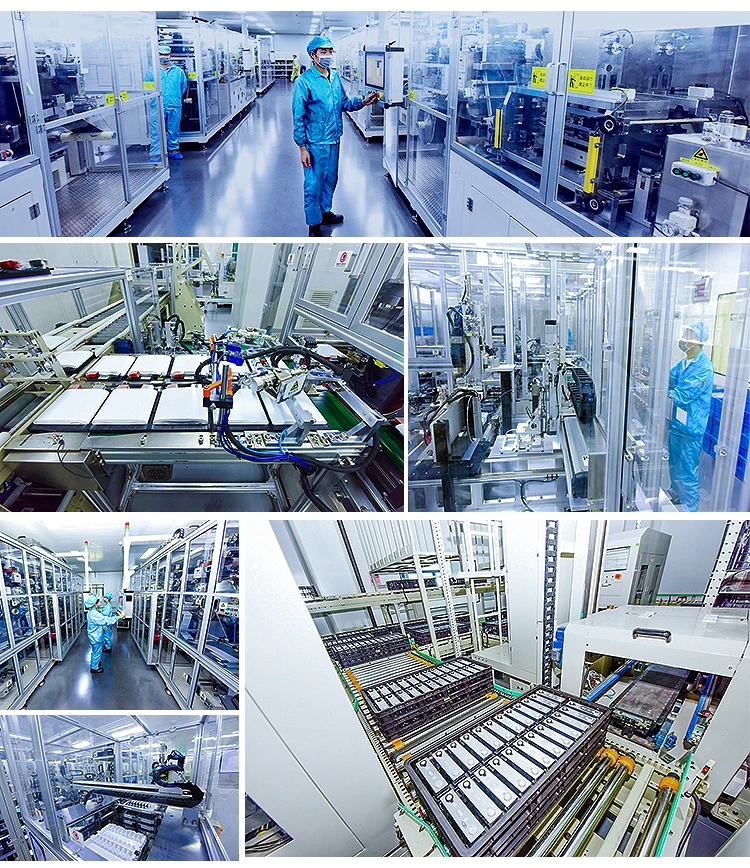

Company Profile
10+design and production experience
◆30+R&D team
◆150 employees
◆20000 square meter factory building
◆20000 square meter factory building
◆Focusing on high volt power systems
◆Certified by ISO9001 and IATF16949 systems
◆Certified by R100, IEC62619,CE, BIS, MSDS, UN38.3
Customer feedback
Order information
Sample is avaliable and welcome.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 10 working days for sample order, 35 working days for mass order.
Welcome you to visit our production base and to check our production lines!
If any requirements on this 3.2V 100ah lifepo4 batteries, please feel free to contact me without hesitate.
Trade term: FOB Shenzhen or Guangzhou; EXW, CIF,DDU and DDP are available.
Delivery time: 10 working days for sample order, 35 working days for mass order.
Welcome you to visit our production base and to check our production lines!
If any requirements on this 3.2V 100ah lifepo4 batteries, please feel free to contact me without hesitate.
