Price:$16,800.00

Quantity:


Product Overview

Description



HVAC Flexible Aluminum and PVC PE Ventilation Duct Forming Machine from DDM




DMSR-600 Aluminum flexible duct making machine
No.
Item
Technical data
1
Diameter range
80-600mm
2
Length of aluminum tube
1-10m or customzied
3
Raw material
alu foil, 0.02-0.0mm, width 30-40mm, Steel wire 0.8-1.2mm dia.
4
Dimension (L x W x H)
2000*1500*1800mm
5
Weight
About 680 kg
6
Main motor power
7kW
9
Working speed
65m/min


Detail images

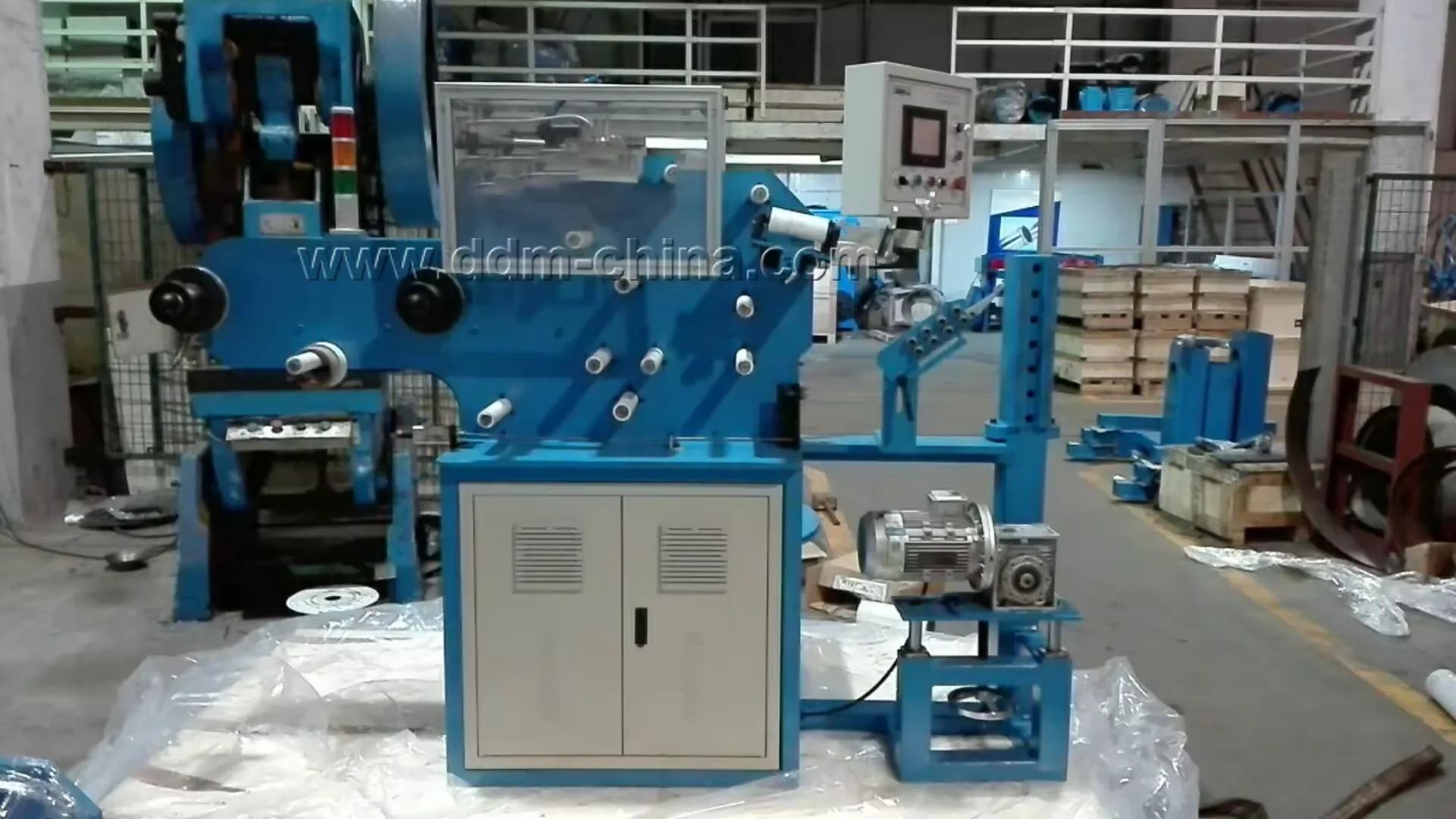

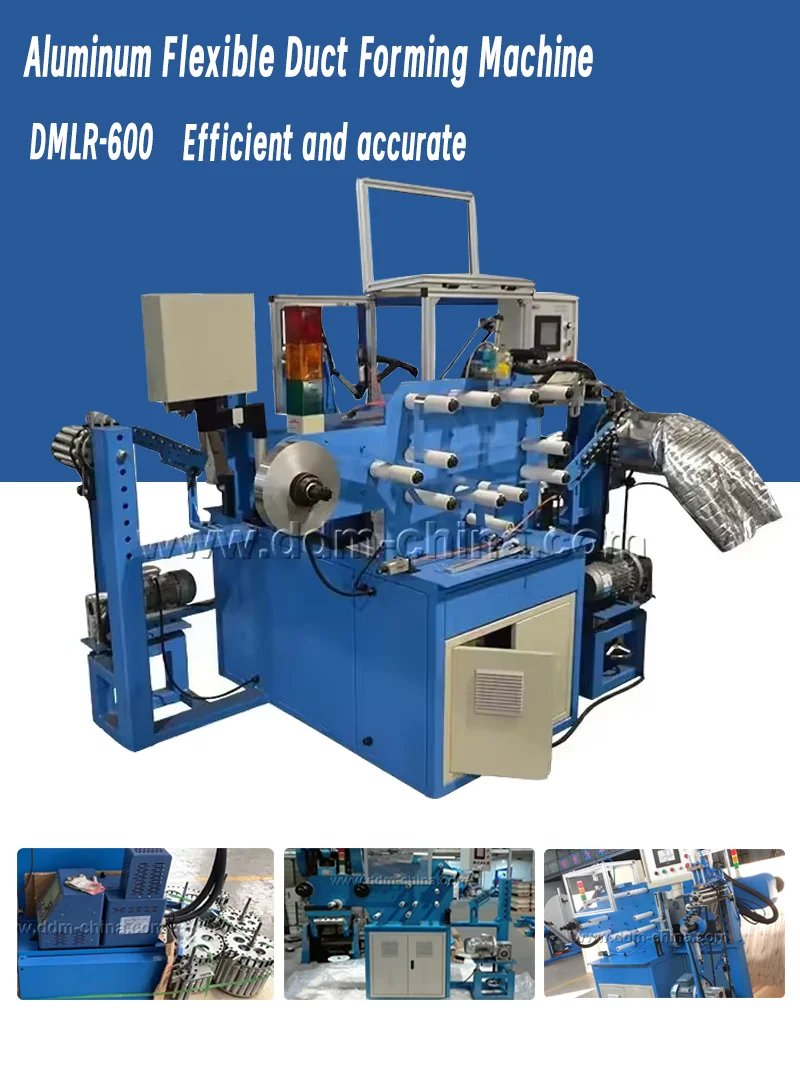

The overview of DMSR-600 Aluminum flexible duct making machine

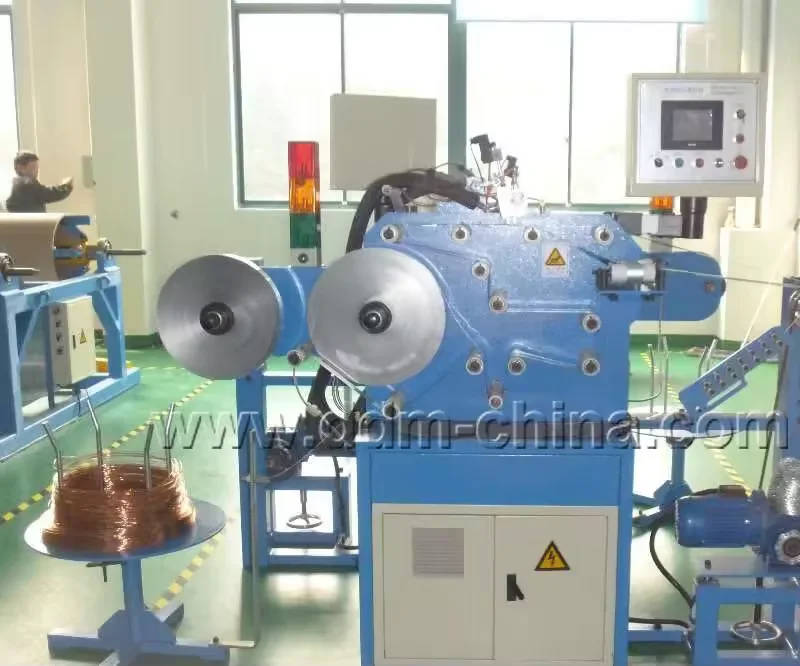

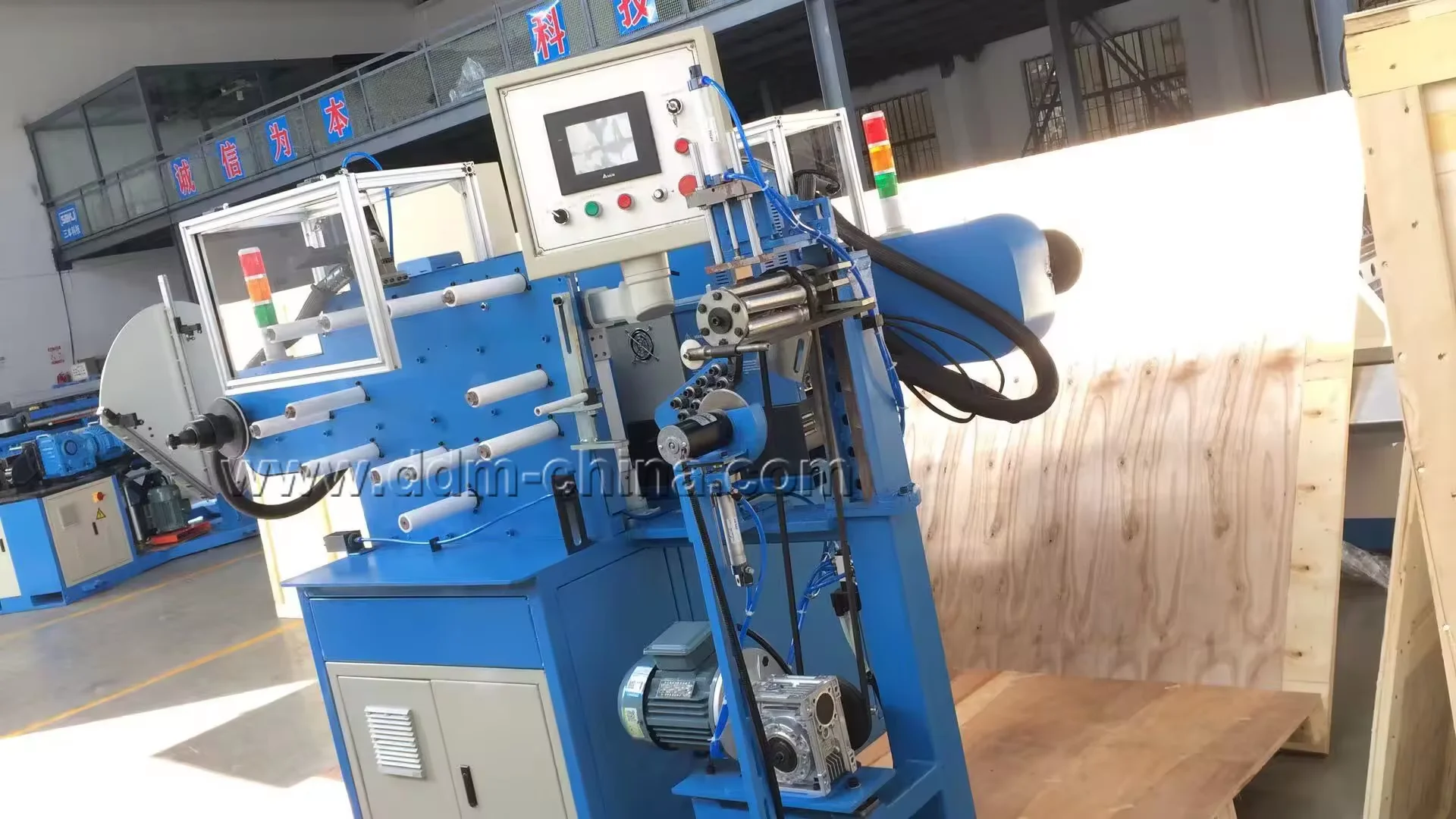

The main machine of DMSR-600 Aluminum flexible duct making machine


The wire decoiler with manual brake of DMSR-600 Aluminum flexible duct making machine
High quality standard Alu forming head customzed based on pipe diameter

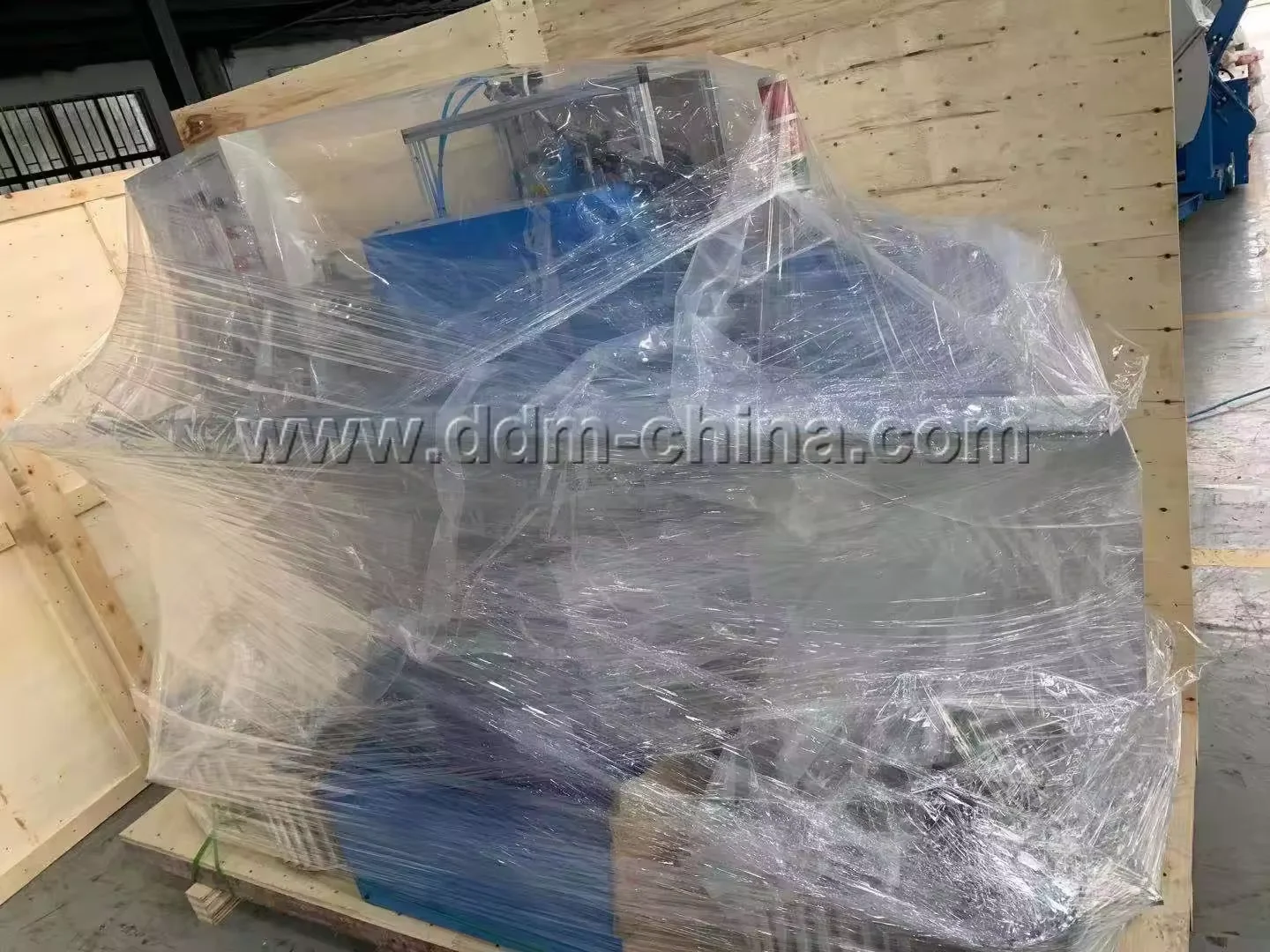

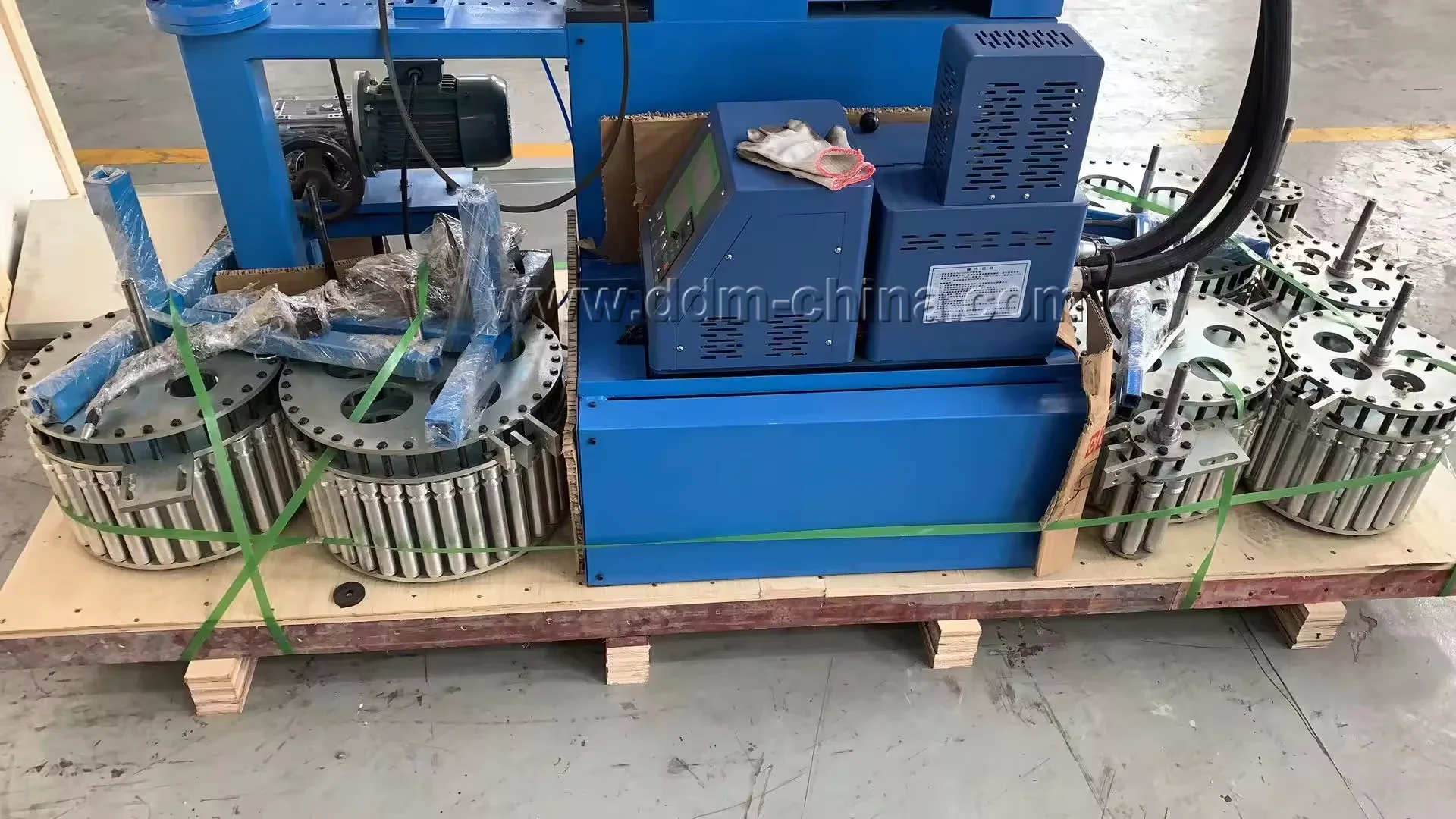

Machine will be well packed with export wooden case to guarantee the machine safety
Finished aluminum foil hose




Certifications










FAQ
