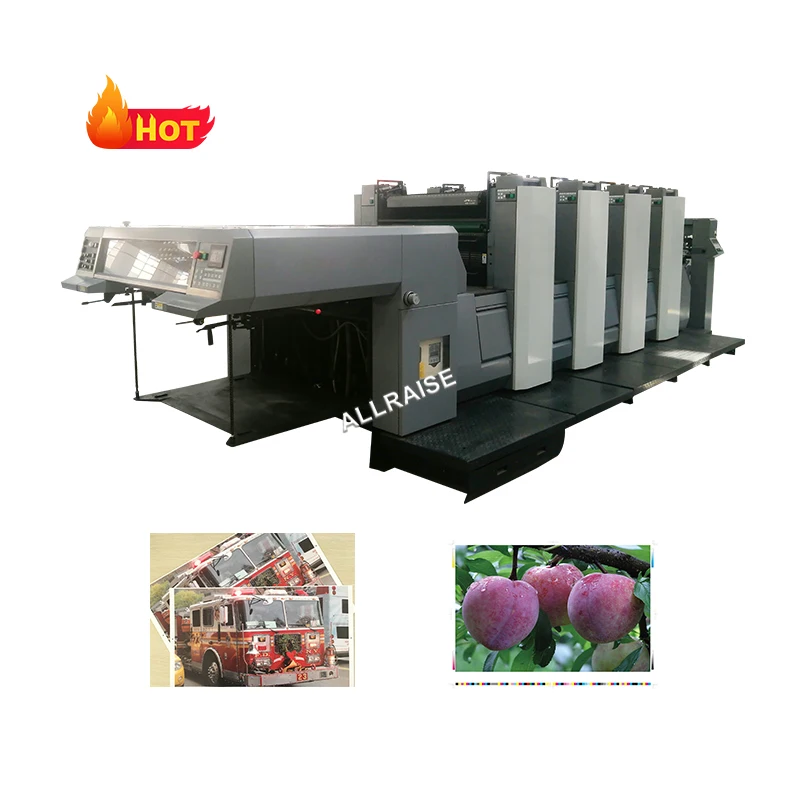

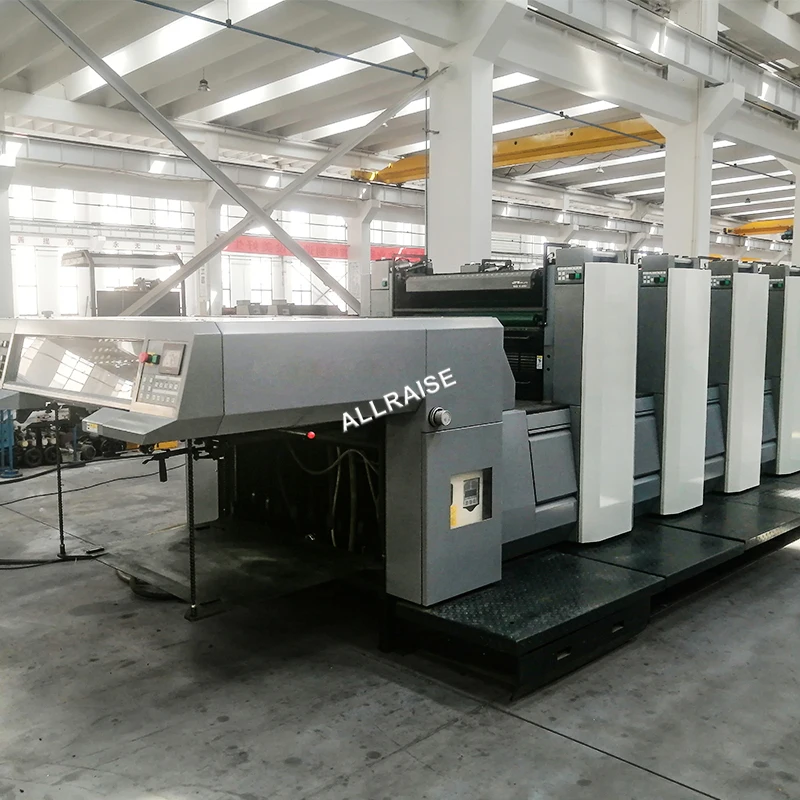

920 Model 4 Colour Offset Printing Machine Price Offset Printer Paper Printer Shops Multi Color Automatic 0.04~0.4mm
- Category: >>>
- Supplier: Zhengzhou Allraise Company Ltd.
Share on (1601196029650):
Product Overview
Description
Products Description
China A1 Big Size Heavy Offset Press Automatic Feed Sheet Offset Printing Machine Use Alcohol Plate
The maximum paper size of this machine is 920mmx625mm, and the maximum printing area is 900mmx615mm, which can meet the production requirements of most products. High production efficiency. The maximum printing speed is 13,000 sheets/hour, which is the highest for similar domestic products, whether it is a large batch or a small batch printing, it is very suitable. Significantly reduce production costs. The paper size and printing area of the machine determine its consumable cost, which can save a lot of money every year compared with other pairs.
Model | WIN 920 |
Max. Paper size | 910x625 nn |
Min. Paper size | 540x360mm |
Paper thickness | 0.04x0.6mm |
Max. printing size | 900x615 mm |
Printing speed | 3000-13000 pcs/min |
Plate size | 910x666 mm |
Plate thickness | 0.44 mm |
Blanket size | 940x681x1.95 mm |
Under blanket size | 905x630x0.5 mm |
Feeding system | Rotary continuous paper feed Feida |
Feed paper pile capacity | Height 800mm |
Paper feed table system | Pre-stack paper system |
Paper receiving pile capacity | Height 900mm |

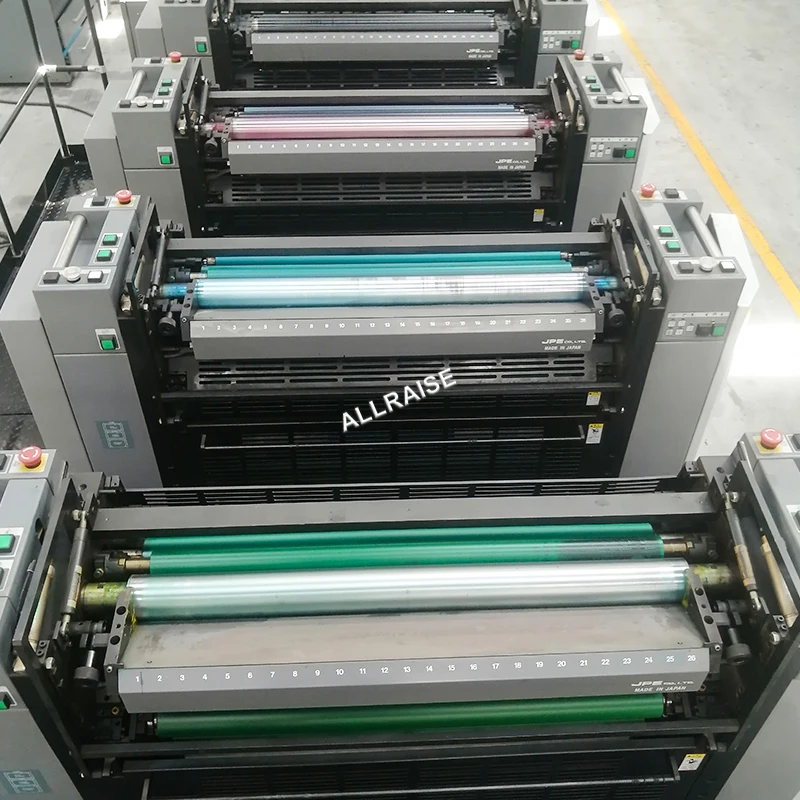

Number of rolls | 19 ink roller +4 water roller |
Gripper margin | 10 ±1 mm |
Overprinting system | Side pull gauge, down swing front stop gauge |
Graphic vertical adjustment range | ±20 mm plate cylinder |
Picture and text vertical fine-tuning range | ±1 mm plate cylinder ±1 mm Front lay |
Graphic horizontal fine tuning range | ±2 mm plate cylinder ±2.5 mm Pull side guide |
Diagonal direction fine-tuning range | ±0.2 mm |
Lubrication system | Centralized lubrication |
Voltage | 380V 3phase 50Hz |
Power | 45 kw |
Motor power | 22 KW |
Dimension | 7800x3010x1870 mm |
Net Weight | 26 ton |
Product Features
1. Vacuum suction belt paper feed. Simply adjust the brush and roller, saving time when changing the paper size, and the suction belt makes the paper safer and smoother.
2. The ink roller and water roller are driven by the motor and controlled by the program, and the printing speed is maintained
Step to ensure a stable ink volume and supply of moistening solution.
3. Pneumatic clutch pressure system, more effective use of machine space, improve stability, reduce vibration and noise.
4. Semi-automatic plate loading device, convenient for the operator to quickly and accurately plate, reduce the auxiliary time of printing and plate loading.
5. Plate registration remote control device, automatically fine tune the horizontal, vertical and diagonal position of the plate, quickly and easily achieve accurate image registration.
6. Microcomputer control, human-machine dialogue interface, the machine for comprehensive control, monitoring and diagnosis of the printing process.
7. Alcohol wetting system, significantly improve the color reproduction ability, to ensure the stable quality of printed products.
8. Unit type independent wall panel base, can facilitate users to flexibly configure the unit, general interchangeability is good, energy saving and consumption reduction.
Ink remote control device to ensure faster response time when color correction.
9. Automatic rubber blanket cleaning and automatic ink roller cleaning device reduce the time of cleaning machine and color change, improve efficiency and reduce the labor intensity of the operator.
10. Heavy machinery structure, cast iron base, wall panels, rollers and other strength and toughness, wear-resistant shock, to ensure the stable operation of the machine at high speed and stamping power.
11. High-precision imported bearings ensure the printing quality of the machine at high speed.
12. Advanced structure and function, the machine adopts the design of 7 o 'clock drum arrangement, double diameter embossing drum and paper transfer drum, which can better meet the printing of thick paper.
2. The ink roller and water roller are driven by the motor and controlled by the program, and the printing speed is maintained
Step to ensure a stable ink volume and supply of moistening solution.
3. Pneumatic clutch pressure system, more effective use of machine space, improve stability, reduce vibration and noise.
4. Semi-automatic plate loading device, convenient for the operator to quickly and accurately plate, reduce the auxiliary time of printing and plate loading.
5. Plate registration remote control device, automatically fine tune the horizontal, vertical and diagonal position of the plate, quickly and easily achieve accurate image registration.
6. Microcomputer control, human-machine dialogue interface, the machine for comprehensive control, monitoring and diagnosis of the printing process.
7. Alcohol wetting system, significantly improve the color reproduction ability, to ensure the stable quality of printed products.
8. Unit type independent wall panel base, can facilitate users to flexibly configure the unit, general interchangeability is good, energy saving and consumption reduction.
Ink remote control device to ensure faster response time when color correction.
9. Automatic rubber blanket cleaning and automatic ink roller cleaning device reduce the time of cleaning machine and color change, improve efficiency and reduce the labor intensity of the operator.
10. Heavy machinery structure, cast iron base, wall panels, rollers and other strength and toughness, wear-resistant shock, to ensure the stable operation of the machine at high speed and stamping power.
11. High-precision imported bearings ensure the printing quality of the machine at high speed.
12. Advanced structure and function, the machine adopts the design of 7 o 'clock drum arrangement, double diameter embossing drum and paper transfer drum, which can better meet the printing of thick paper.
