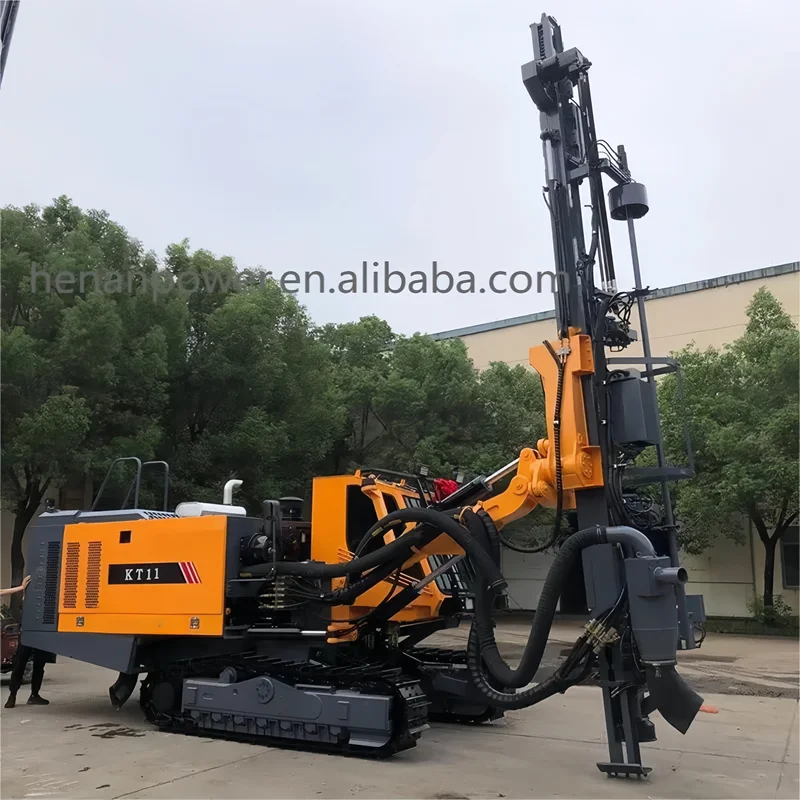

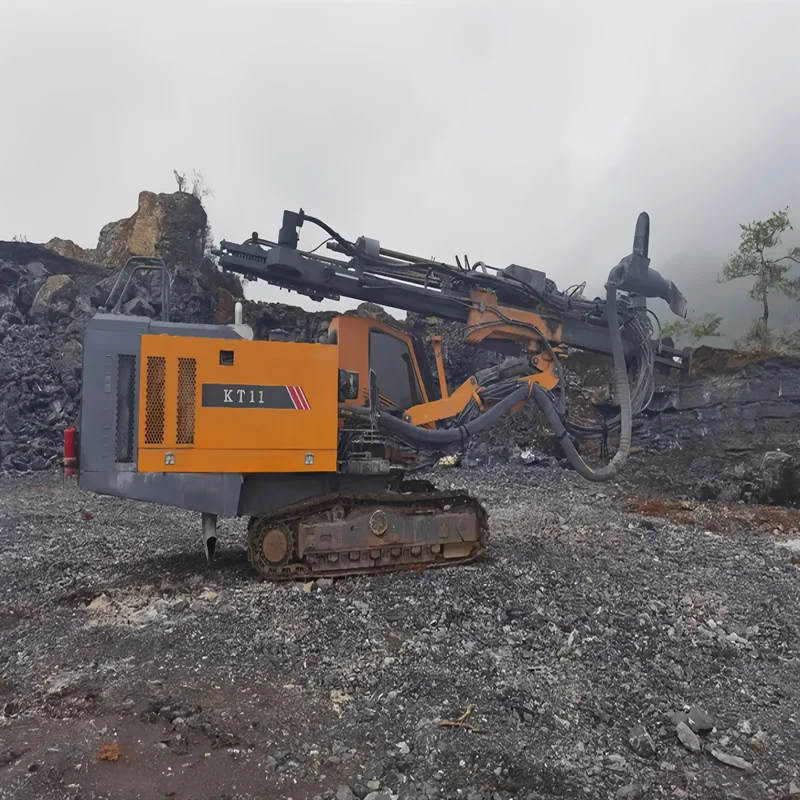

KT11 China Famous Brand Kaishan Mine Drilling Rig Integrated Hydraulic Drilling Rig with Air Compressor for Mining
- Category: >>>
- Supplier: Henan Power Machinery Equipment Co. Ltd.Henan Ltd.
Share on (1601196062018):
Product Overview
Description

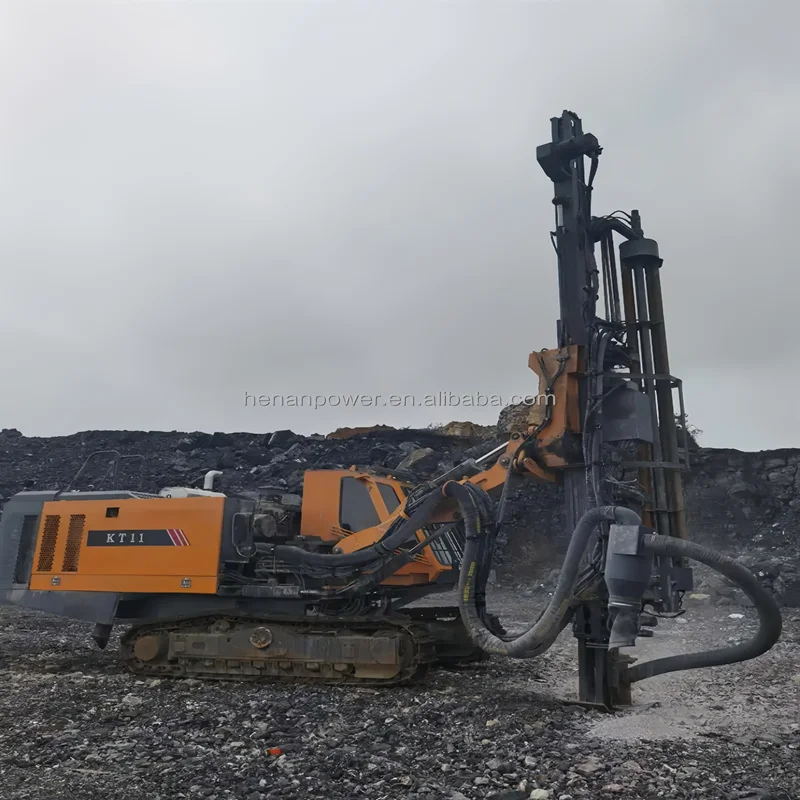

KT11 China famous Brand Kaishan Mine Drilling Rig Integrated Hydraulic Drilling Rig with Air Compressor for Mining
Model | KT11 |
Transport dimensions (L×W×H) | 9100*2520*3600 mm |
Rock hardness | f=6-20 |
Drilling diameter | 100-140mm |
Ground clearance | 420mm |
Leveling angle of track | 10°up, 10°down |
Travelling speed | 0-4Km/h |
Climbing capacity | 25° |
Traction | 120KN |
Torque | 2800Nm |
Rotation speed | 0-120rpm |
Lifting angle of drill boom | Up 47°, down 20° |
Swing angle of drill boom | Right 50°, left 21° |
Swing angle of carriage | Right 95°, left 35° |
Tilt angle of beam | 114° |
Compensation stroke | 1353mm |
Feed stroke | 4490mm |
Maximum propelling force | 25KN |
Method of propulsion | Roller chain |
Depth of economical drilling | 32m |
Number of rods | 7+1 |
Specifications of drilling rod | Φ76x4000 mm |
DTH hammer | K40 |
Engine | Cummins QSL8.9-C325-30 |
Number of cylinders | 6 |
Output power | 242KW/2200rpm |
Hydraulic pump | 5× gear pump |
Screw air compressor | Zhejiang Kaishan |
Displacement of screw compressor | 18 m3/min |
Discharge pressure of screw compressor | 20 bar |
Traveling control system | Hydraulic pilot |
Drilling control system | Hydraulic pilot |
Anti-Jamming | Automatic electro-hydraulic anti-jamming |
Voltage | 24V, DC |
Safe cab | Meet the requirements of FOPS & ROPS |
Indoor noise | Below 85dB (A) |
Seat | Adjustable |
Air-conditioning | Standard temperature |
Entertainment | Radio +Mp3 |
KT11 China famous Brand Kaishan Mine Drilling Rig Integrated Hydraulic Drilling Rig with Air Compressor for Mining
1. Already fitted with air compressor.
2. Large displacement of the hydraulic pump directly installed on the engine after force mouth, concise structure reduces the fault source.
3. Automatically rod load and unload system.
4. Highly integrated hydraulic control system, and arrange centralized operation platform, a workstation can freely control the whole machine.
5. The rotary drill rig configuration to promote fast switching valve, according to the different characteristics and different working conditions, drilling and rock can be adjusted, drilling speed, a high porosity.
6. The machine is equipped with real time monitoring system and the stability of the ego to protect system, exceeds the scope and failure can be automatically stop.

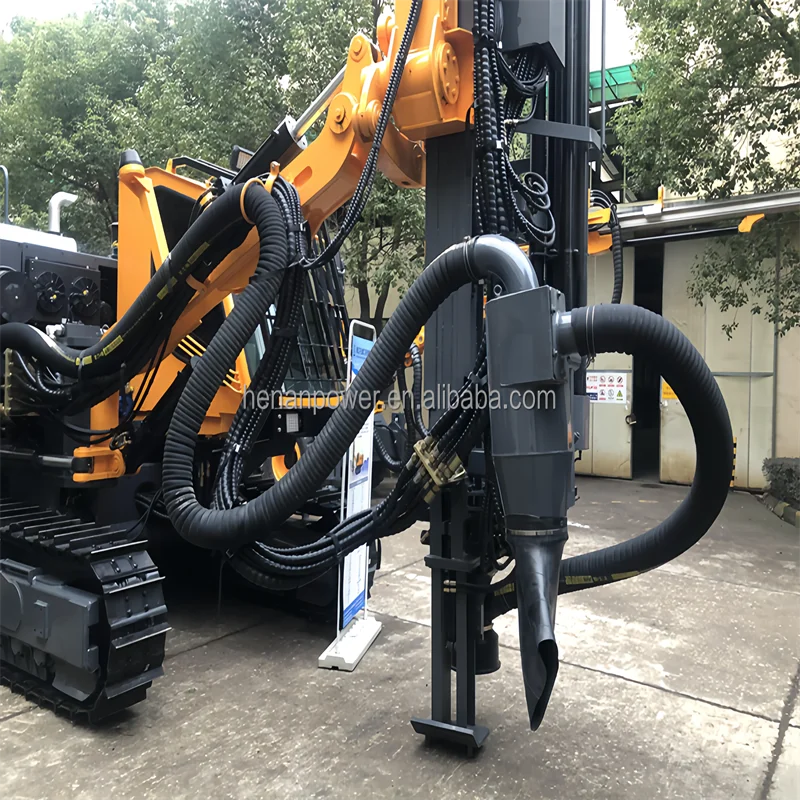

7. Efficient two-stage dry dust collection system, greatly improve the working environment, accord with energy conservation and environmental protection concept.
8. Spacious cab, high powered air conditioner and quality stereo system.
2. Large displacement of the hydraulic pump directly installed on the engine after force mouth, concise structure reduces the fault source.
3. Automatically rod load and unload system.
4. Highly integrated hydraulic control system, and arrange centralized operation platform, a workstation can freely control the whole machine.
5. The rotary drill rig configuration to promote fast switching valve, according to the different characteristics and different working conditions, drilling and rock can be adjusted, drilling speed, a high porosity.
6. The machine is equipped with real time monitoring system and the stability of the ego to protect system, exceeds the scope and failure can be automatically stop.
7. Efficient two-stage dry dust collection system, greatly improve the working environment, accord with energy conservation and environmental protection concept.
8. Spacious cab, high powered air conditioner and quality stereo system.
KT11 China famous Brand Kaishan Mine Drilling Rig Integrated Hydraulic Drilling Rig with Air Compressor for Mining
Model | Dimensions（L*W*H） | Weight | Drilling diameter | Drilling depth |
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
