Product Overview
Description

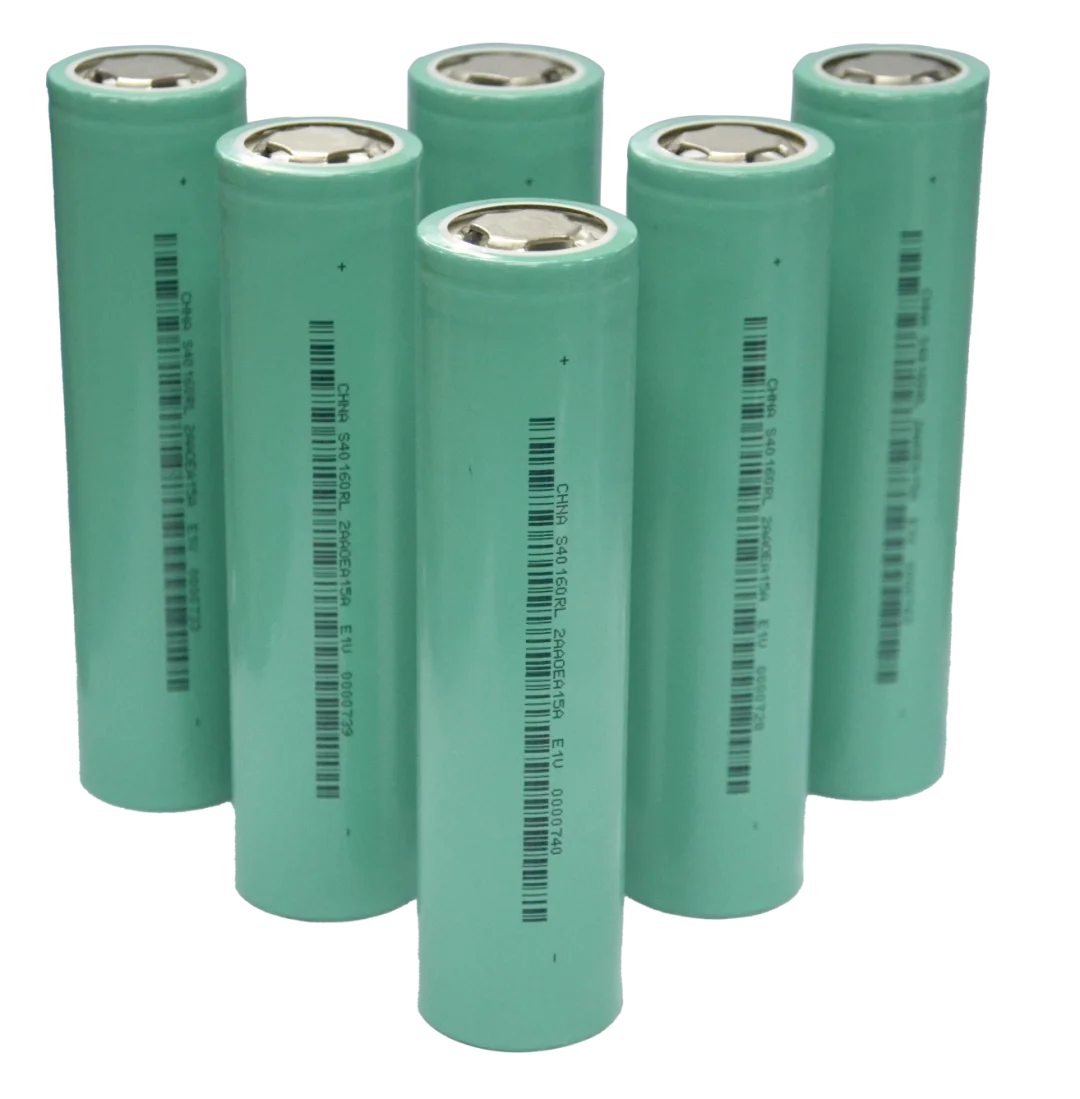

40160 sodium ion cell 3.0V 17.5Ah 20AH
The 40140 sodium ion cell provided by Asiar technology adopts the layered oxide sodium ion battery technology, Using safe, long life, pollution-free, cost-effective sodium ion battery design, high life, more than 5000 cycles, DOD > 80%, suitable for electric tools, household energy storage, base stations, two-wheeled vehicles, low-speed vehicles, etc. This 40160 sodium ion cell internal resistance ≤2mΩ, high energy conversion efficiency and fast charging and discharging.
Basic parameters
project | Specification | condition | ||
Nominal capacity | 17.5Ah 20AH |
25±2℃,0.5C/0.5C, the new battery state | ||
Minimum capacity | 17Ah | |||
Operating Voltage | 1.5~3.95V | / | ||
Q | 3.0V | / | ||
AC internal resistance | 1.5±0.3mΩ | AC 1kHz,50% SOC,25±2℃ | ||
battery weight | 390±10g | Include outer packaging | ||
Energy Density | 115Wh/kg 255Wh/L | / | ||
Operating temperat ure | charging temperature | - 10~60℃ | No matter what charging and discharging mode the battery is in, once the battery surface temperature is found to exceed this range, the charging and discharging will stop | |
discharge temperature | -40~65℃ | |||
storage temperature | -40 ~35°C | 3month | ||
- 10~25°C | 6month | |||
cycle life | ≥5000cycles | 25±2℃,0.5C/0.5C,80% SOH | ||
Exterior | No cracks, scratches, deformation, stains, electrolyte leakage, etc. | |||
