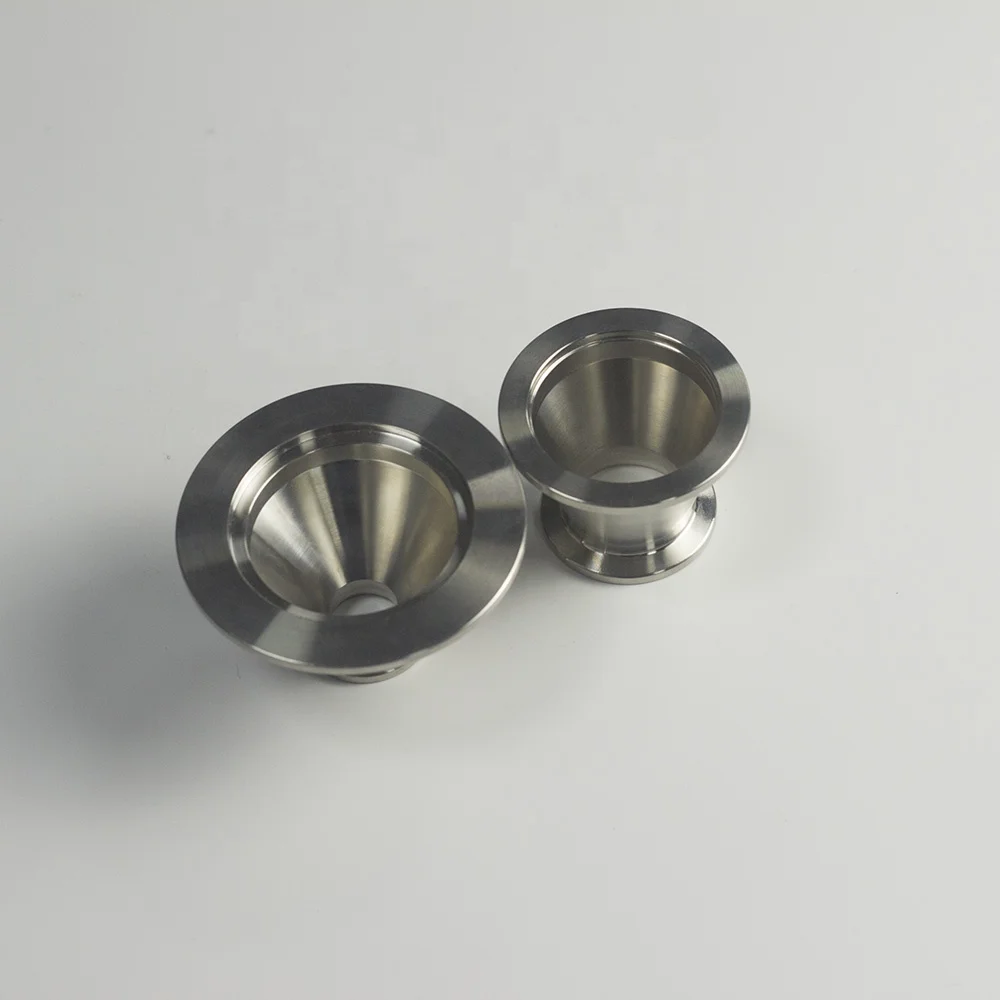

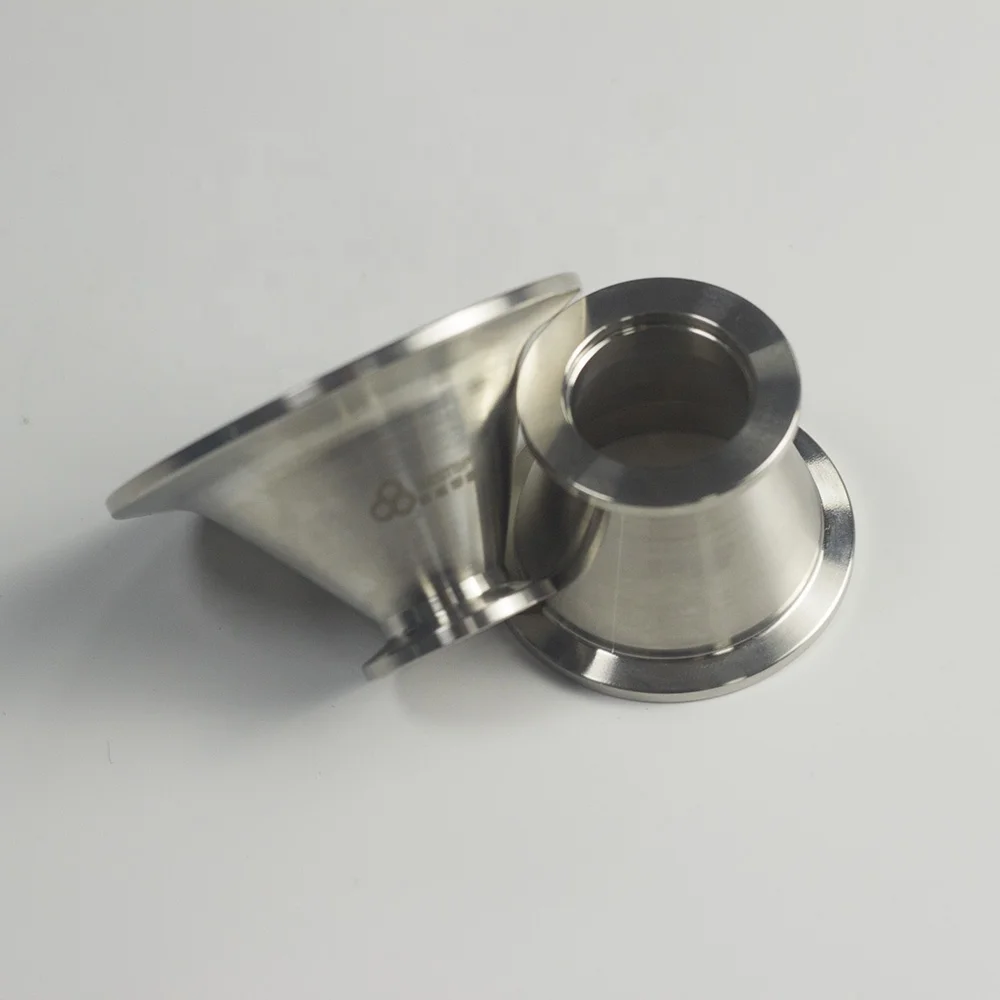

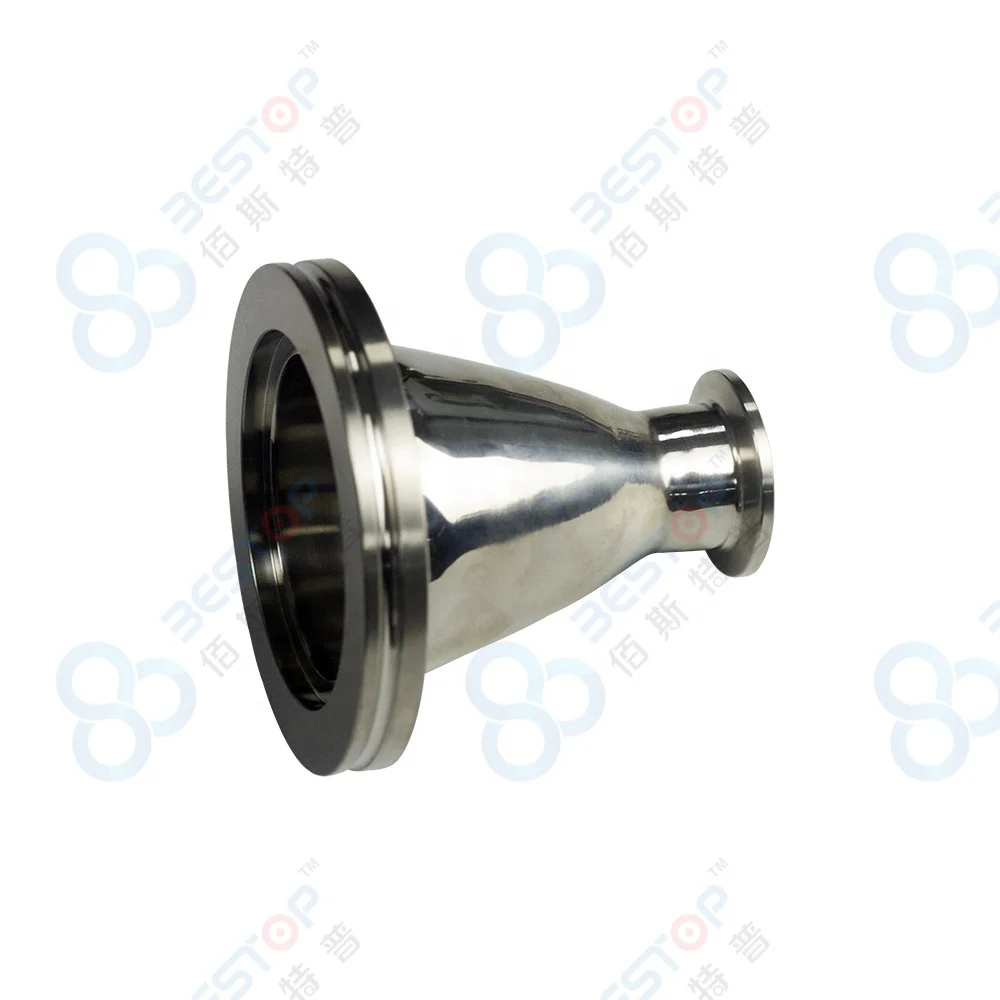

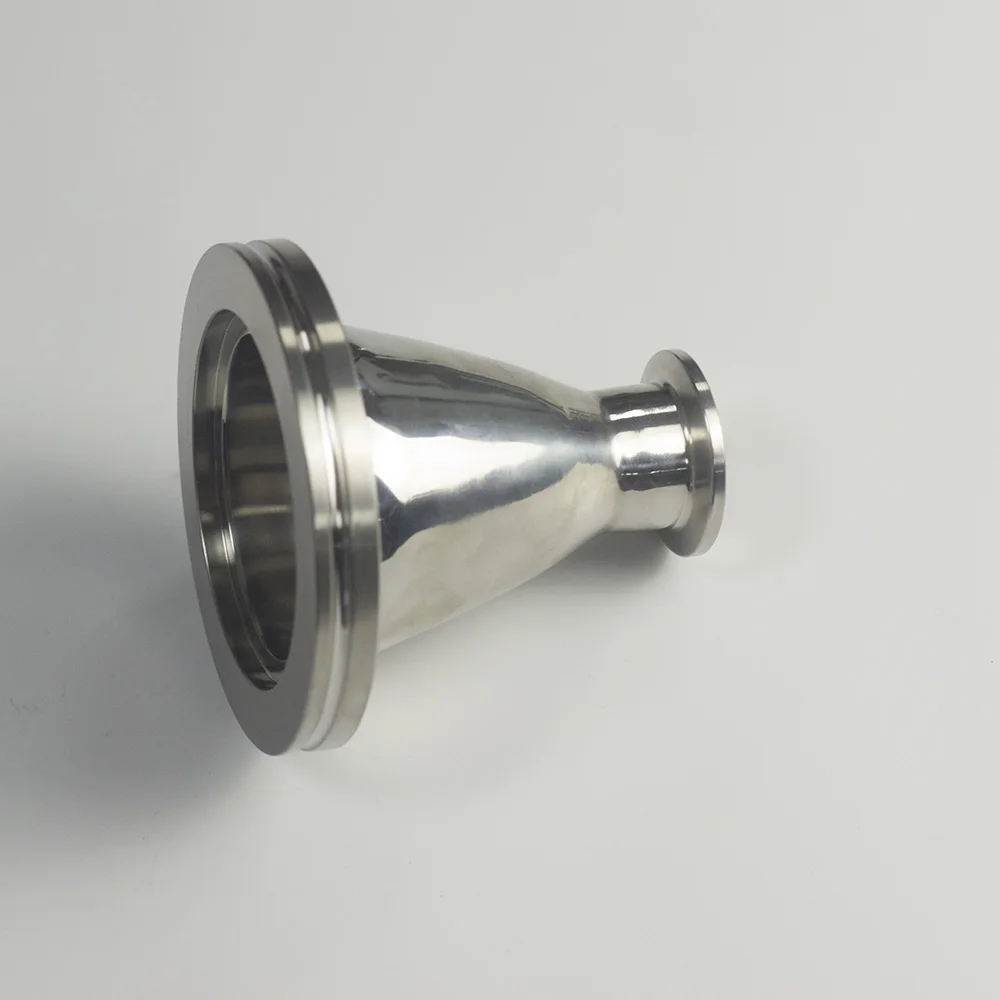

Stainless Steel KF Conical Reducer
- Category: >>>
- Supplier: Wenzhou Bestop Steel Co. Ltd.Wenzhou Ltd.
Share on (1601196269319):
Product Overview
Description
Product Description

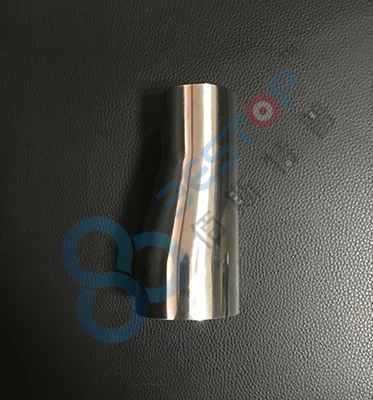

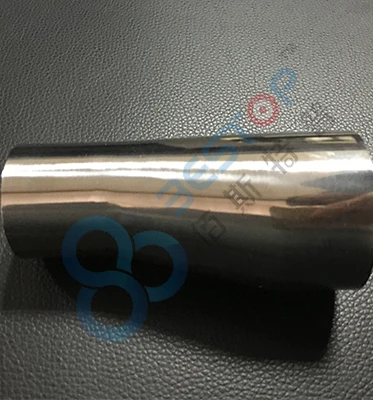

Product Name: DIN Stainless Steel 304 Welded Reducer
Size Range: DN20/15- DN100/80
Wall Thickness: 1.5-2mm
Material: Stainless Steel 304
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection
Size Range: DN20/15- DN100/80
Wall Thickness: 1.5-2mm
Material: Stainless Steel 304
End Bevel: According to the standard or the customer's requirements
Surface Treatment: Shot blasted, rust-proof black oil
Non-destructive testing: penetration test, ultrasonic test, radiographic test, any third parties inspection
SIZE | A | D3 | D2 |
DN20/15 | 60.0 | 22.0 | 18.0 |
DN25/20 | 60.0 | 28.0 | 22.0 |
DN32/20 | 80.0 | 34.0 | 22.0 |
DN32/25 | 80.0 | 34.0 | 28.0 |
DN40/20 | 102.0 | 40.0 | 22.0 |
DN40/25 | 102.0 | 40.0 | 28.0 |
DN40/32 | 102.0 | 40.0 | 34.0 |
DN50/25 | 115.0 | 52.0 | 28.0 |
DN50/32 | 115.0 | 52.0 | 34.0 |

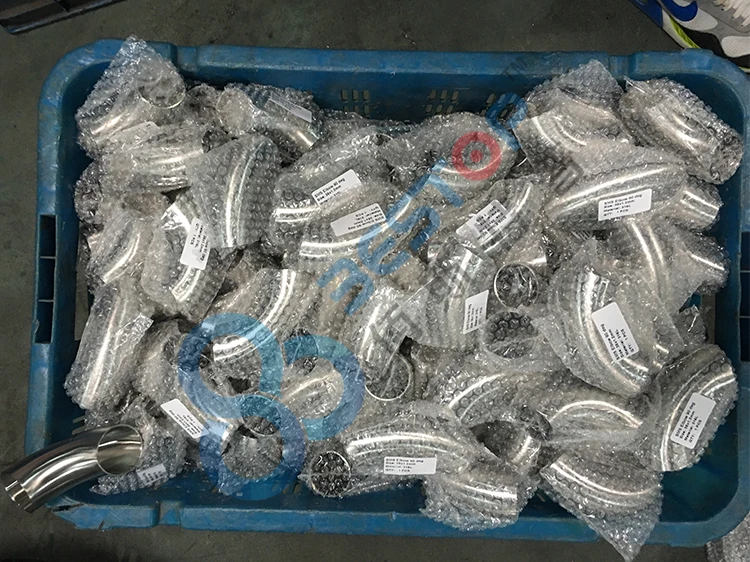

Packing&Shipping
Plywood or Wooden Case Packing/ Pallet Packing/ other packing suitably protected for sea-worthly delivery or as requested.
