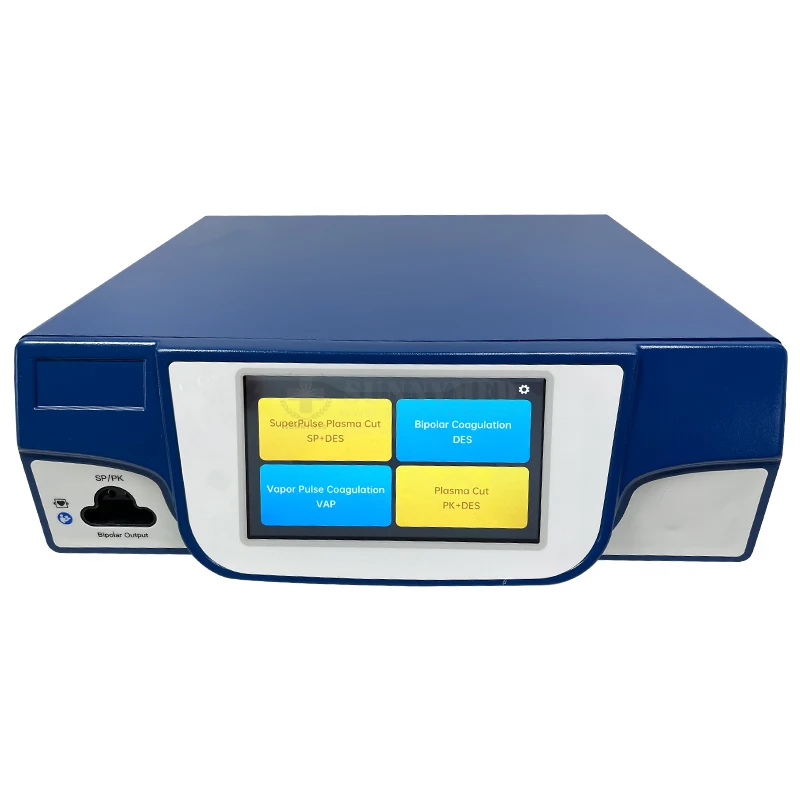

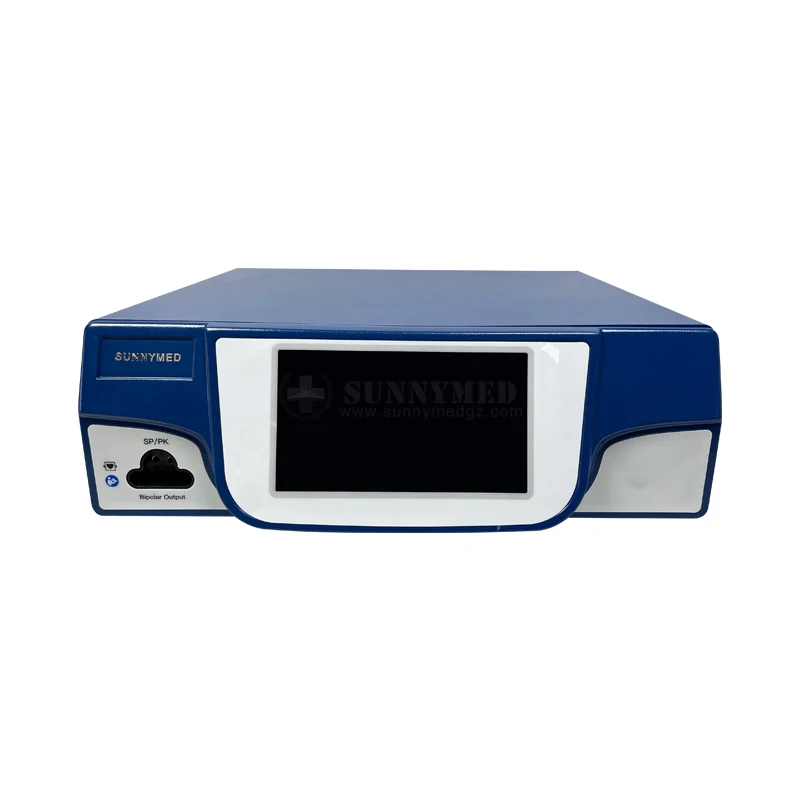

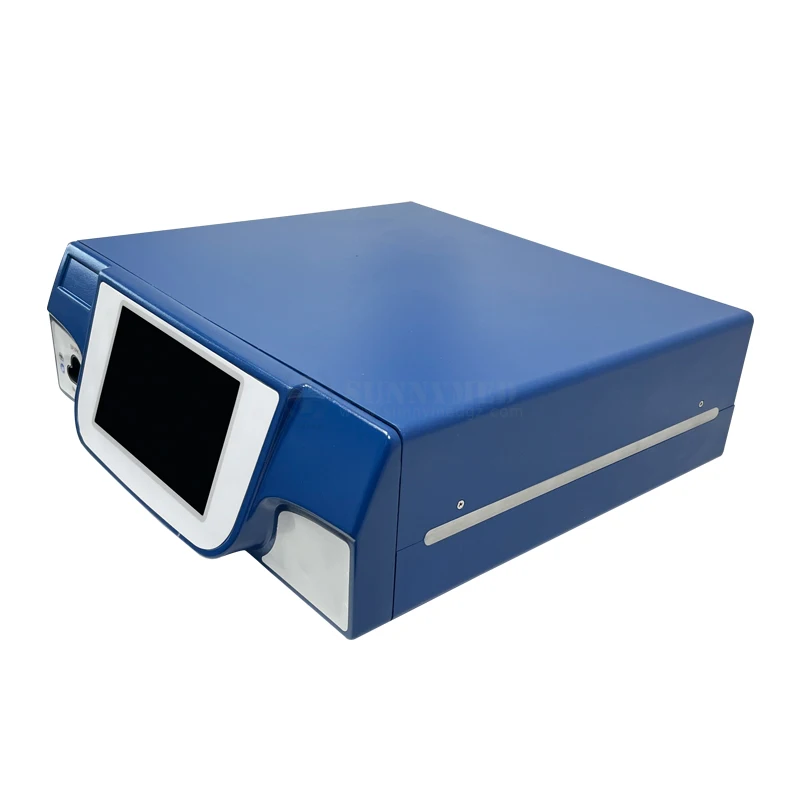

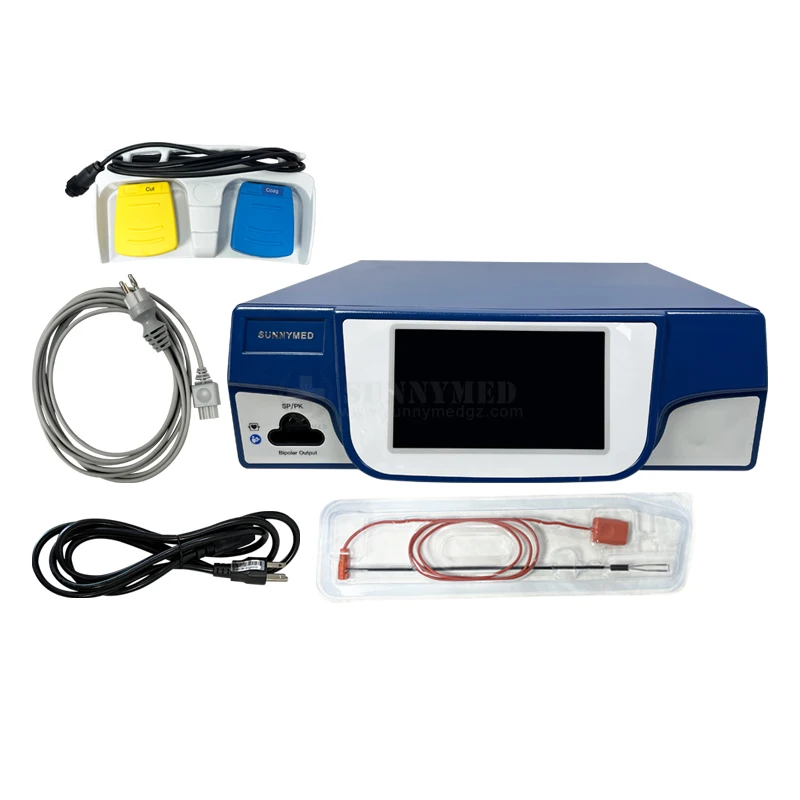

SY IPLA 3000 Spine RF Plasma Ablation Device Spine Radio Frequency Plasma Electrosurgical Unit Orthopaedic surgery System
- Category: >>>
- Supplier: Sunny Medical Equipment Limited
Share on (1601196400436):
Product Overview
Description
SUNNYMED Reliable Quality Affordable Price

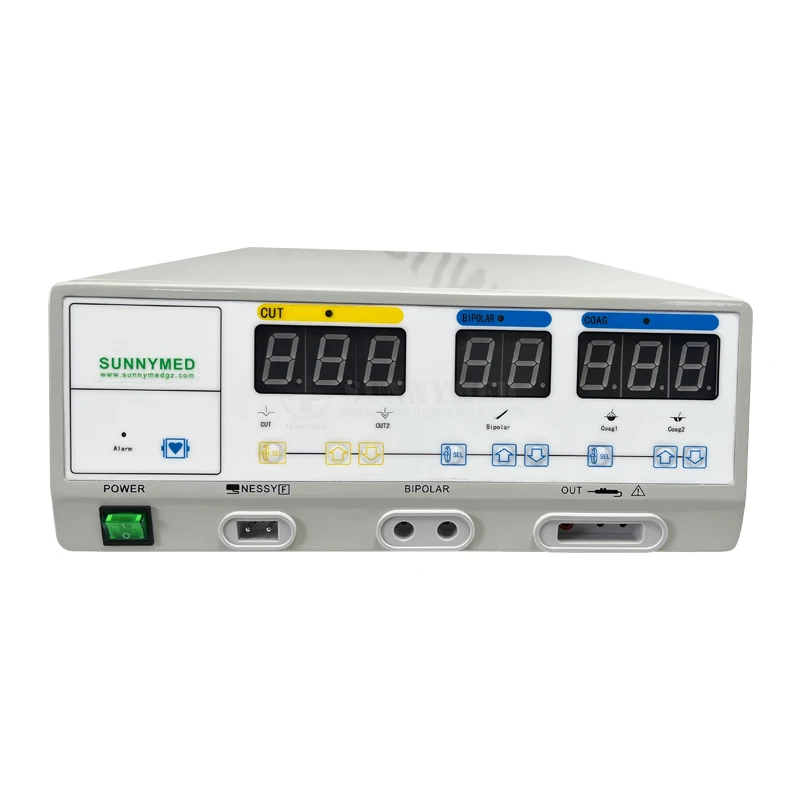

SY-I081V_Leep 200W Surgery System Bipolar Leep diathermy machine High Frequency Electrosurgical Unit for Gynecology
Scope of Application:
It is suitable for various gynecological surgeries on cutting, coagulation, condylomata acuminate, columnar
ectopy, and LEEP. It is also used with laparoscope, hysteroscope, etc.
ectopy, and LEEP. It is also used with laparoscope, hysteroscope, etc.
Functional Features:
1. Cutting: that is pure cutting, the effect is fine cutting, tissue surface is fresh and no scab;
2. Blend: The effect is to provide good coagulation while cutting. It is suitable for superficial coagulation of tissue in surgeryand can be used with endoscopy.
3. Coag 1: It can be called soft electrocoagulation or point coagulation. It is suitable for deeper coagulation of tissue in
surgery and can be used with endoscopy. Because a smaller area of action can reduce adhesion between electrodes and tissue, it is
better for the rehabilitation of patients.
4. Coag 2: It can be called strong electrocoagulation or surface coagulation. It has faster coagulation and a larger area of
action.
5. Bipolar Coag: It can be called rapid bipolar electrocoagulation. It can achieve the effect of coagulation at the moment of
start-up and reduce the rate of misoperation during surgery.
1. Cutting: that is pure cutting, the effect is fine cutting, tissue surface is fresh and no scab;
2. Blend: The effect is to provide good coagulation while cutting. It is suitable for superficial coagulation of tissue in surgeryand can be used with endoscopy.
3. Coag 1: It can be called soft electrocoagulation or point coagulation. It is suitable for deeper coagulation of tissue in
surgery and can be used with endoscopy. Because a smaller area of action can reduce adhesion between electrodes and tissue, it is
better for the rehabilitation of patients.
4. Coag 2: It can be called strong electrocoagulation or surface coagulation. It has faster coagulation and a larger area of
action.
5. Bipolar Coag: It can be called rapid bipolar electrocoagulation. It can achieve the effect of coagulation at the moment of
start-up and reduce the rate of misoperation during surgery.
Advantages of High-Frequency Electrotome:
1. Independent output port of endoscope and intelligent conversion key, which can enter endoscopic mode automatically after start-up.
2. Microcomputer control system, power-off protection, and memory function of keeping last usage data after restart.
3. Automatic adjustment on output power. It can be adjusted automatically according to the change of density of tissue. Stable output power to keep the minimum wastage.
4. Automatic conversion on monopolar and bipolar.
5. Automatic monitoring of on-off, automatic detection, and error prompts in work.
6. The monitoring circuit system on contact quality of neutral electrodes can test and evaluate the safety and effectiveness of the contact area between the electrode plate and skin. The system can cut off output automatically and give an alarm, in case of finds that the contact area is at a dangerous level. It can test and use
1. Independent output port of endoscope and intelligent conversion key, which can enter endoscopic mode automatically after start-up.
2. Microcomputer control system, power-off protection, and memory function of keeping last usage data after restart.
3. Automatic adjustment on output power. It can be adjusted automatically according to the change of density of tissue. Stable output power to keep the minimum wastage.
4. Automatic conversion on monopolar and bipolar.
5. Automatic monitoring of on-off, automatic detection, and error prompts in work.
6. The monitoring circuit system on contact quality of neutral electrodes can test and evaluate the safety and effectiveness of the contact area between the electrode plate and skin. The system can cut off output automatically and give an alarm, in case of finds that the contact area is at a dangerous level. It can test and use
Advantages of LEEP:
1. The use of Loop Electrosurgical Excision Procedure (LEEP) for gynecologic uterine lesions has improved the accuracy,
controllability, and security of surgeries.
2. It can be applied to the treatment of various gynecological diseases (including cutting, coagulation, condylomata acuminate, columnar ectopy, and LEEP, it can be also used with laparoscope, hysteroscope), so it reduces the procedure and the cost ofsurgeries.

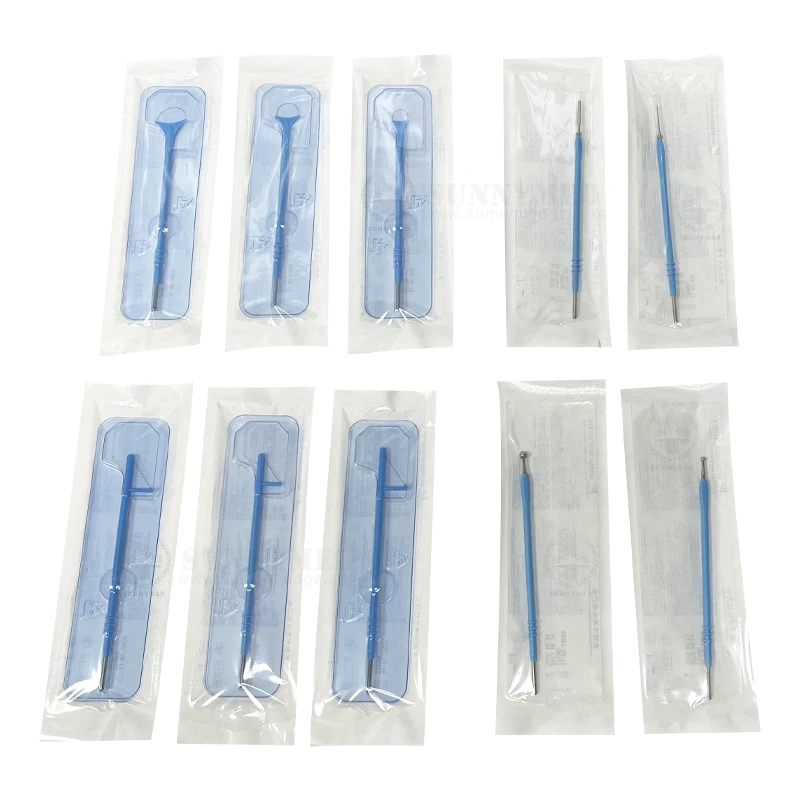

3. Electrodes with various shapes are suitable for cervical conization and vulvar surgery, without carbonization and any influence on pathological tissue.
4. Spherical electrodes can be used for hemostasis. They do not burn blood vessels, do not damage nearby tissues, and make patients recover faster after surgeries.

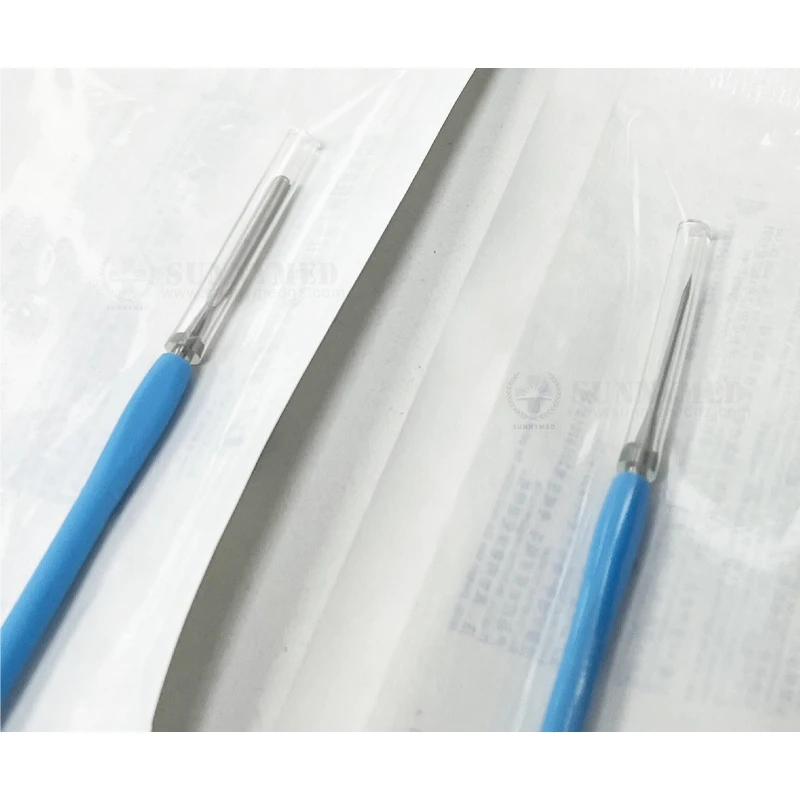

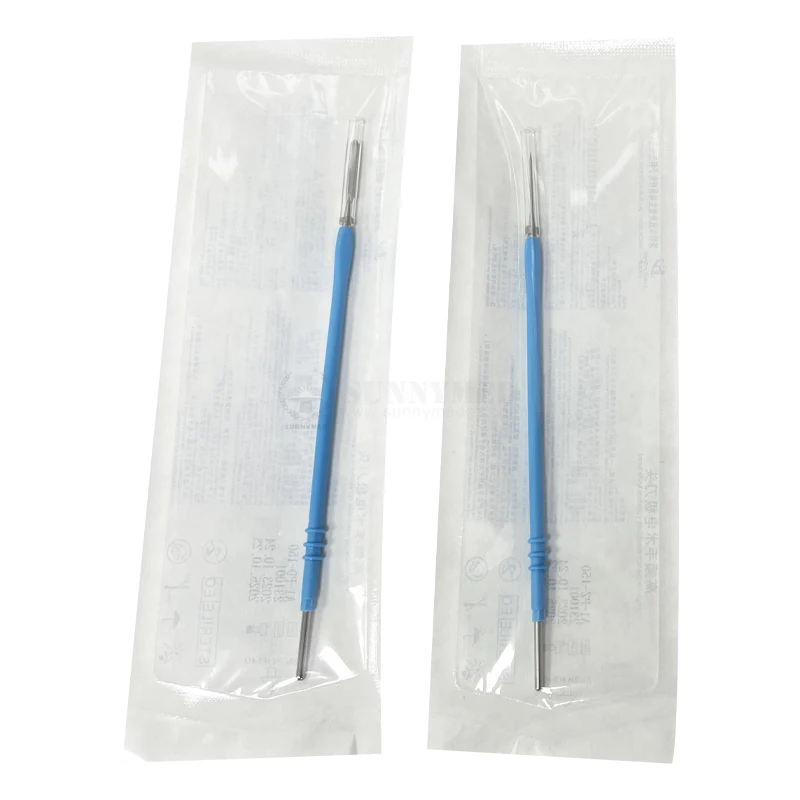

5. Electrodes of needle shape can be used for fine cutting. 6. Electrodes with different sizes have different hemostatic effects.
1. The use of Loop Electrosurgical Excision Procedure (LEEP) for gynecologic uterine lesions has improved the accuracy,
controllability, and security of surgeries.
2. It can be applied to the treatment of various gynecological diseases (including cutting, coagulation, condylomata acuminate, columnar ectopy, and LEEP, it can be also used with laparoscope, hysteroscope), so it reduces the procedure and the cost ofsurgeries.
3. Electrodes with various shapes are suitable for cervical conization and vulvar surgery, without carbonization and any influence on pathological tissue.
4. Spherical electrodes can be used for hemostasis. They do not burn blood vessels, do not damage nearby tissues, and make patients recover faster after surgeries.
5. Electrodes of needle shape can be used for fine cutting. 6. Electrodes with different sizes have different hemostatic effects.

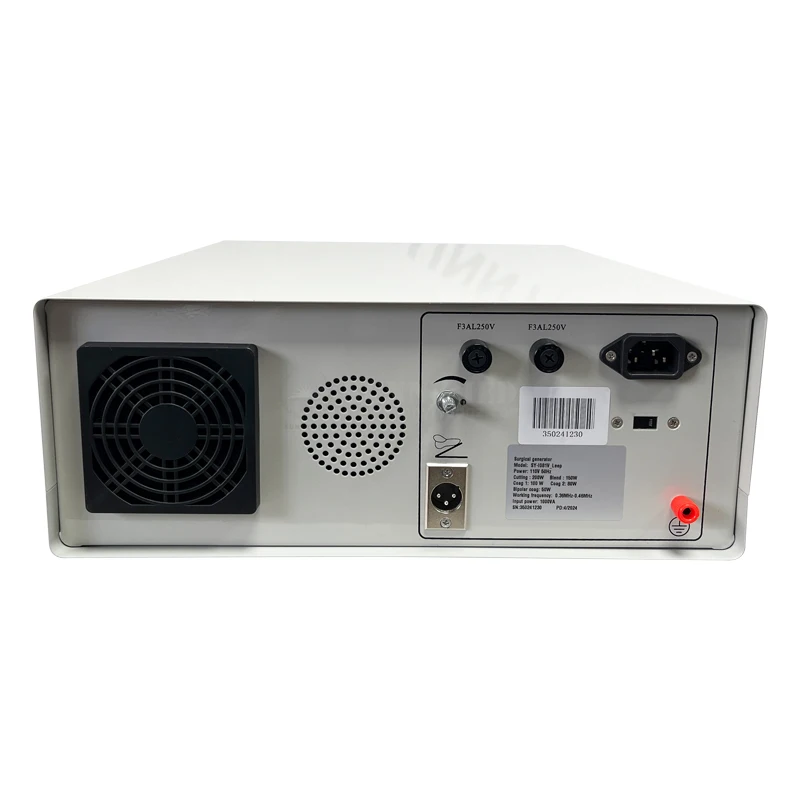

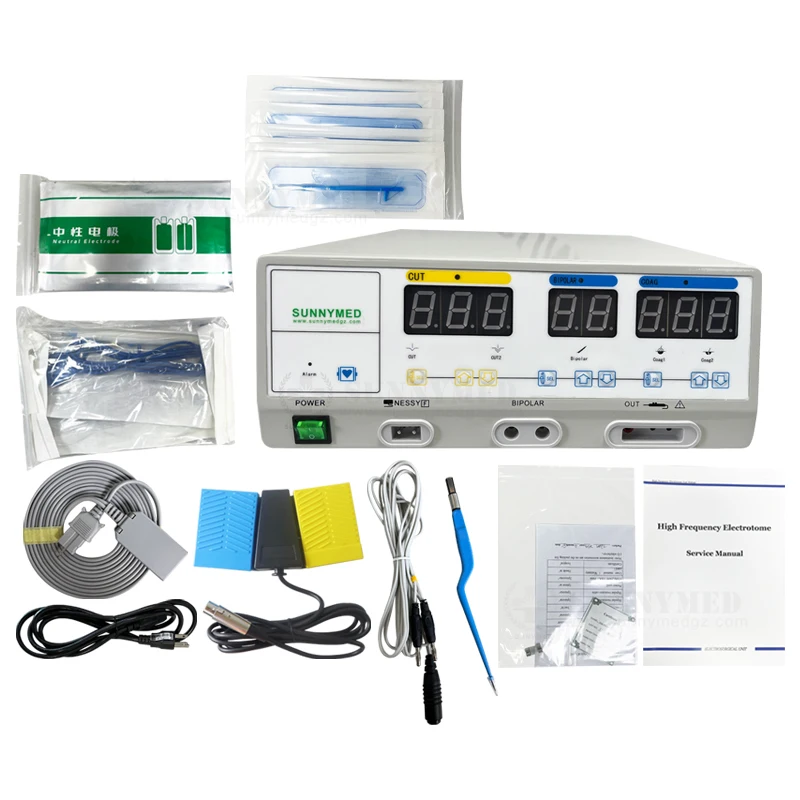

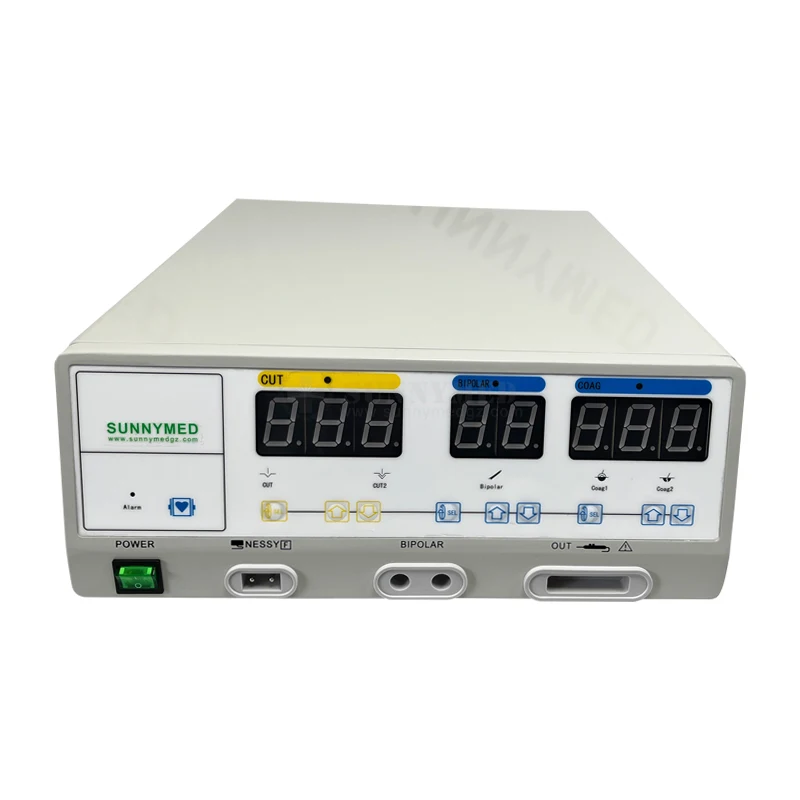

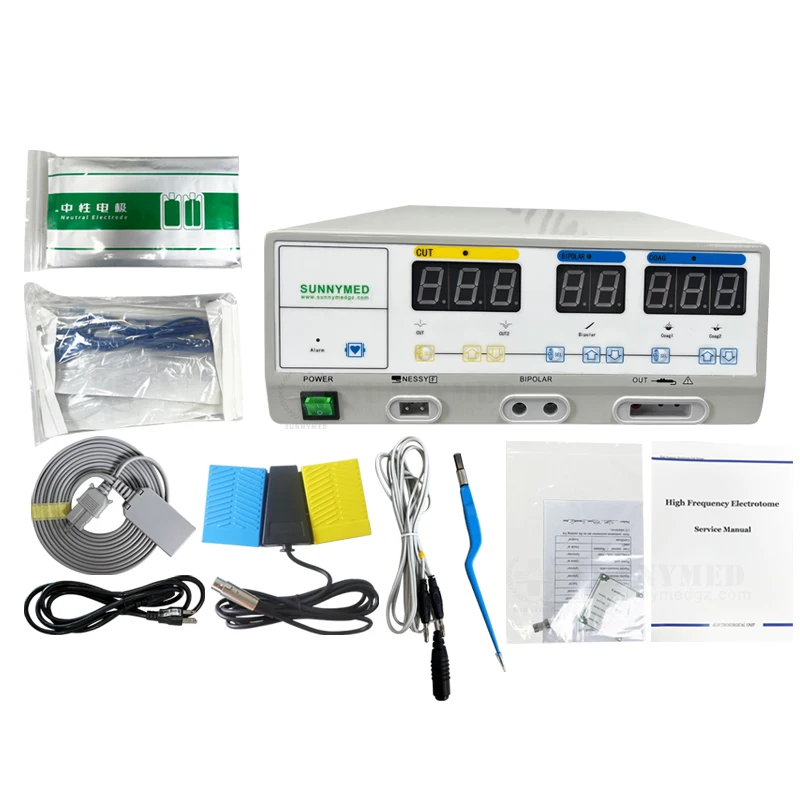

Detail Photos
Why this mode?
According to the needs of customers,we OEM products and product accessories for them, reduce the production cost of customers, and improve the brand added value.
Ambient temperature range: 10ºC~40ºC; | Relative humidity range: 30%~75%; | |
Atmospheric pressure range: 700hpa~1060hpa; | Power supply: 220V (±22V), 50Hz (±1Hz); | |
Working frequency: 360kHz~460 kHz; | Type of equipment: CF; | |
The power consumption of the whole device is less than 1000VA. (Cutting function: 200W) | ||
Mono cut | Cutting: 200W (load 500) | Mono Coag | Soft Coag: 100W (load 500) | ||
Blend: 150W (load 500) | Strong Coag: 80W (load 500) | ||||
Bipolar | Bipolar Coag: 50W (load 200) | ||||

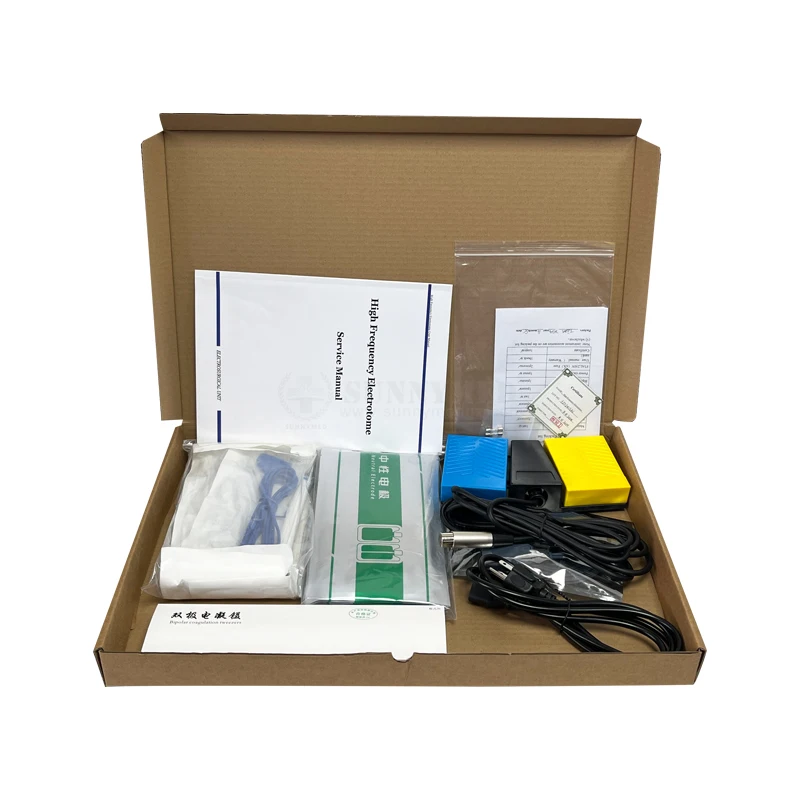

Packing&Delivery
