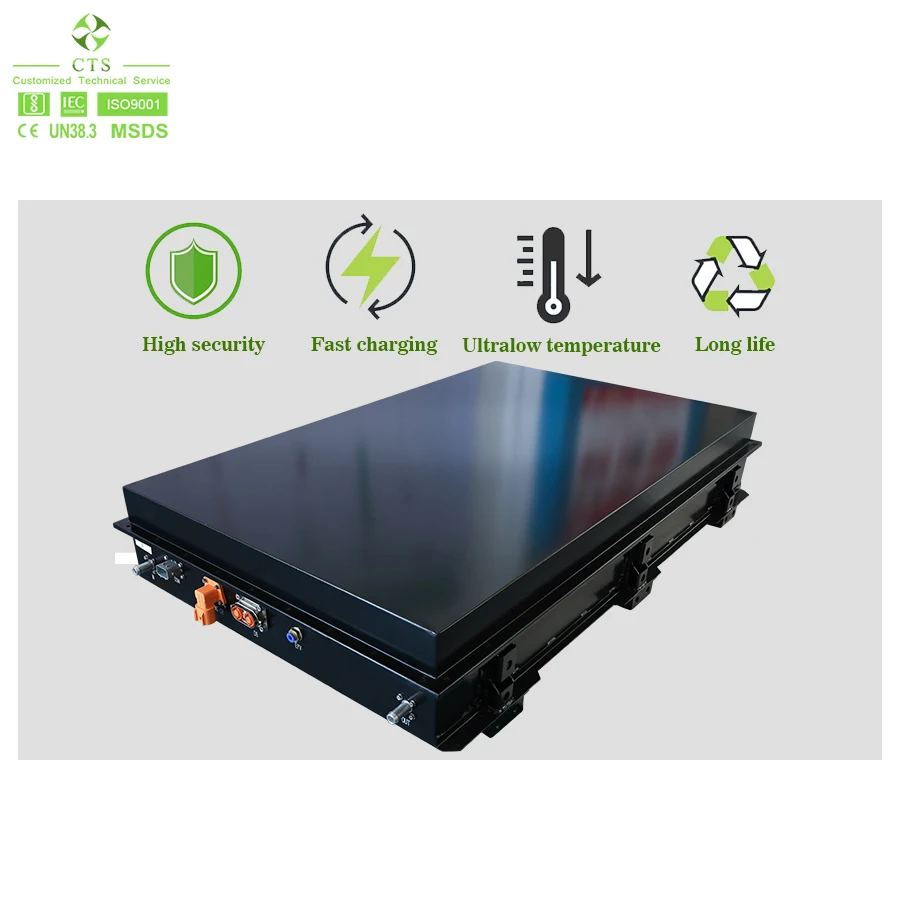

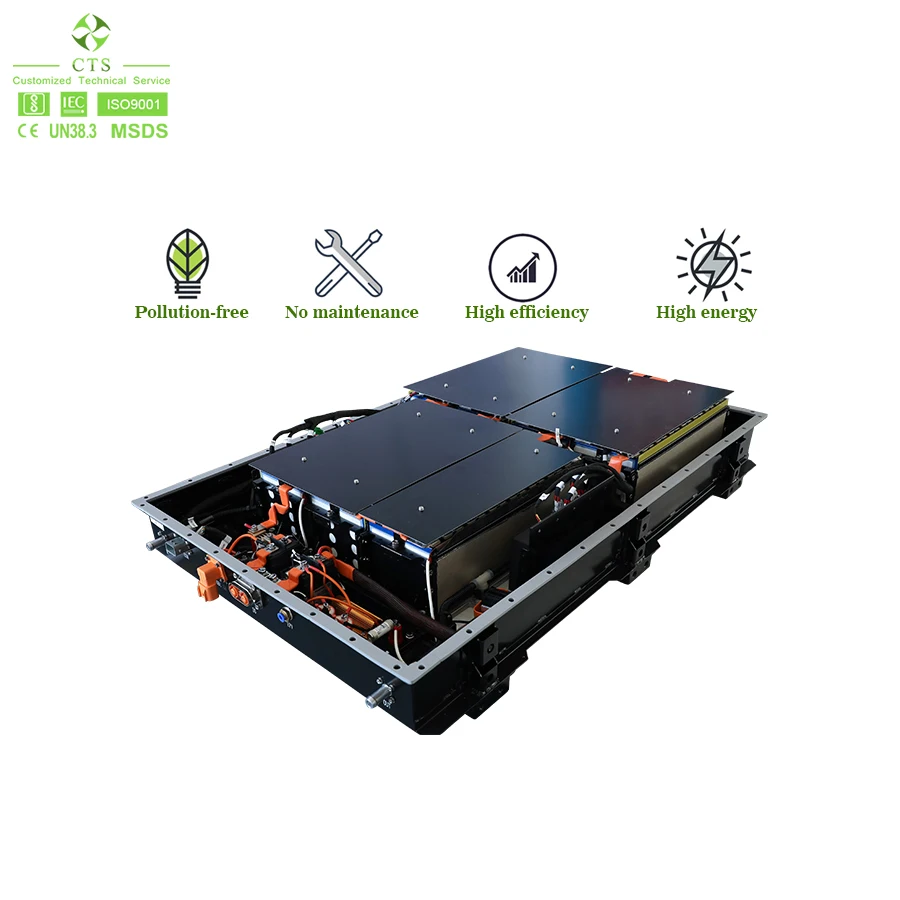

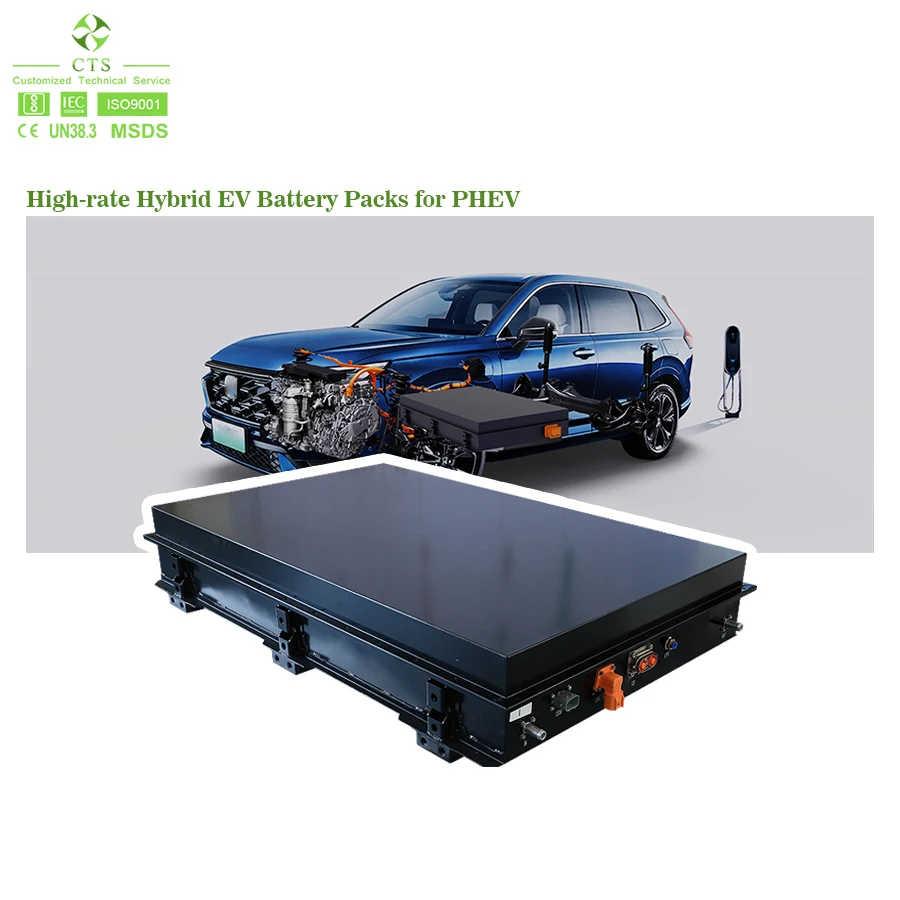

OME lithium car battery 100ah 200ah hybrid electric car lithium battery 300v 400v electric vehicle ev lifepo4 battery
- Category: >>>
- Supplier: Hunan CTS Technology Co. LTD
Share on (1601196429316):
Product Overview
Description
OME lithium car battery 100ah 200ah hybrid electric car lithium battery 300v 400v electric vehicle ev lifepo4 battery

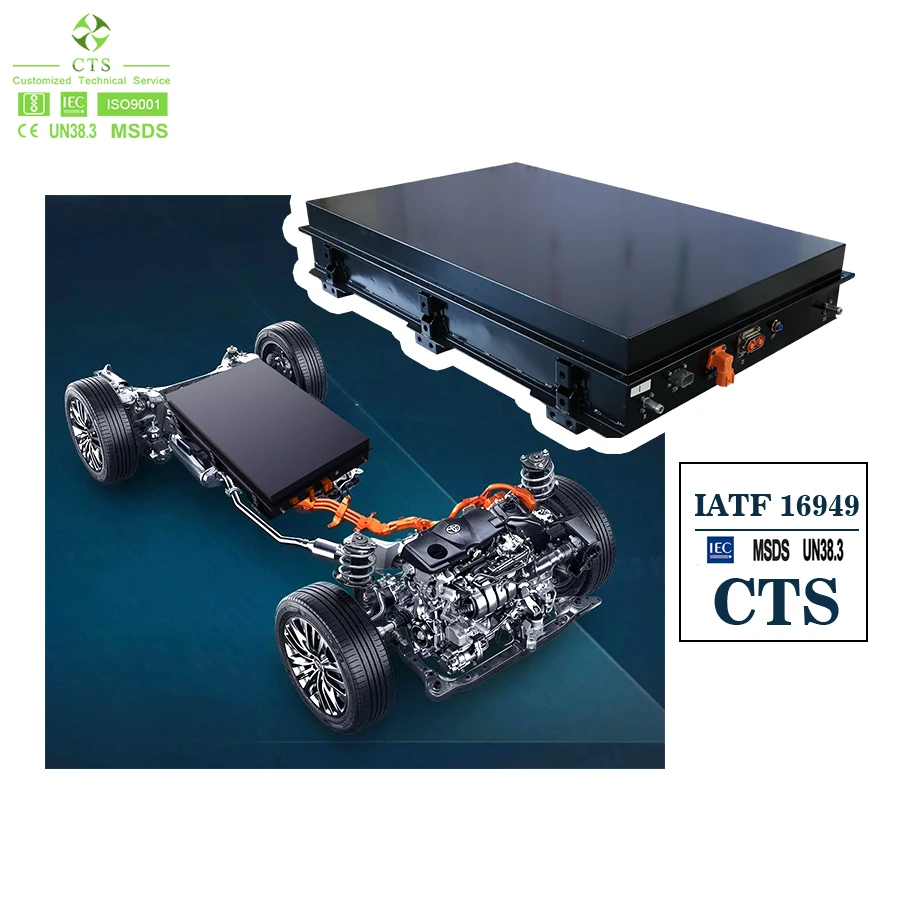

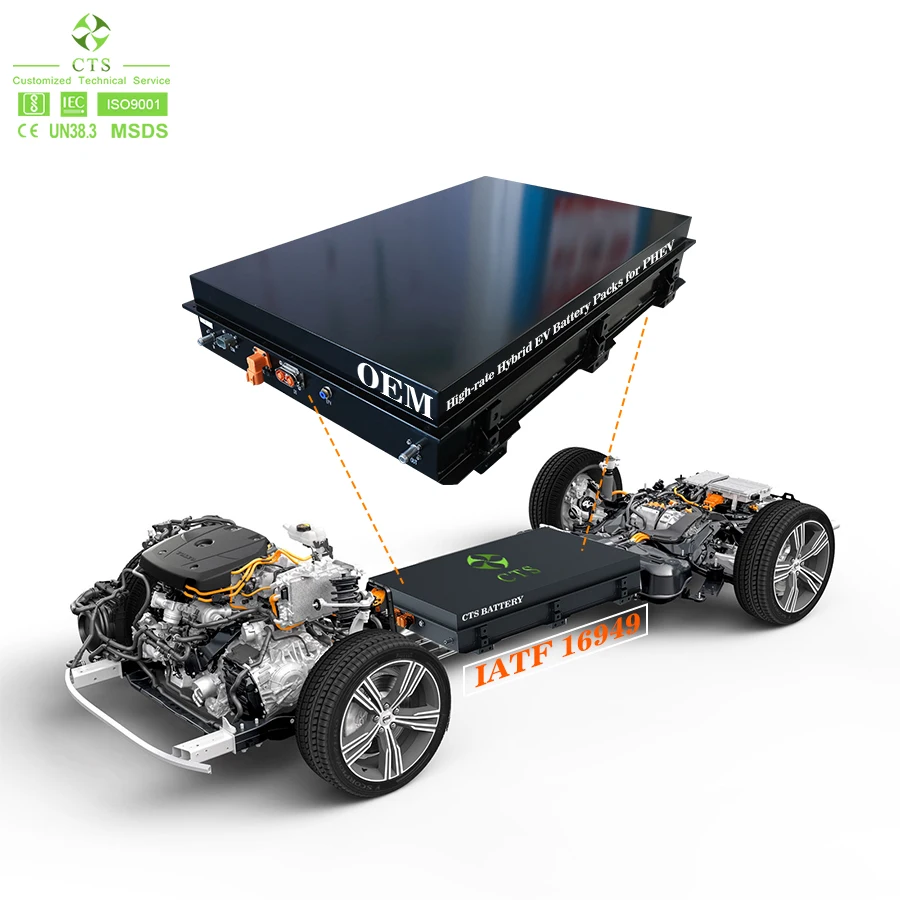

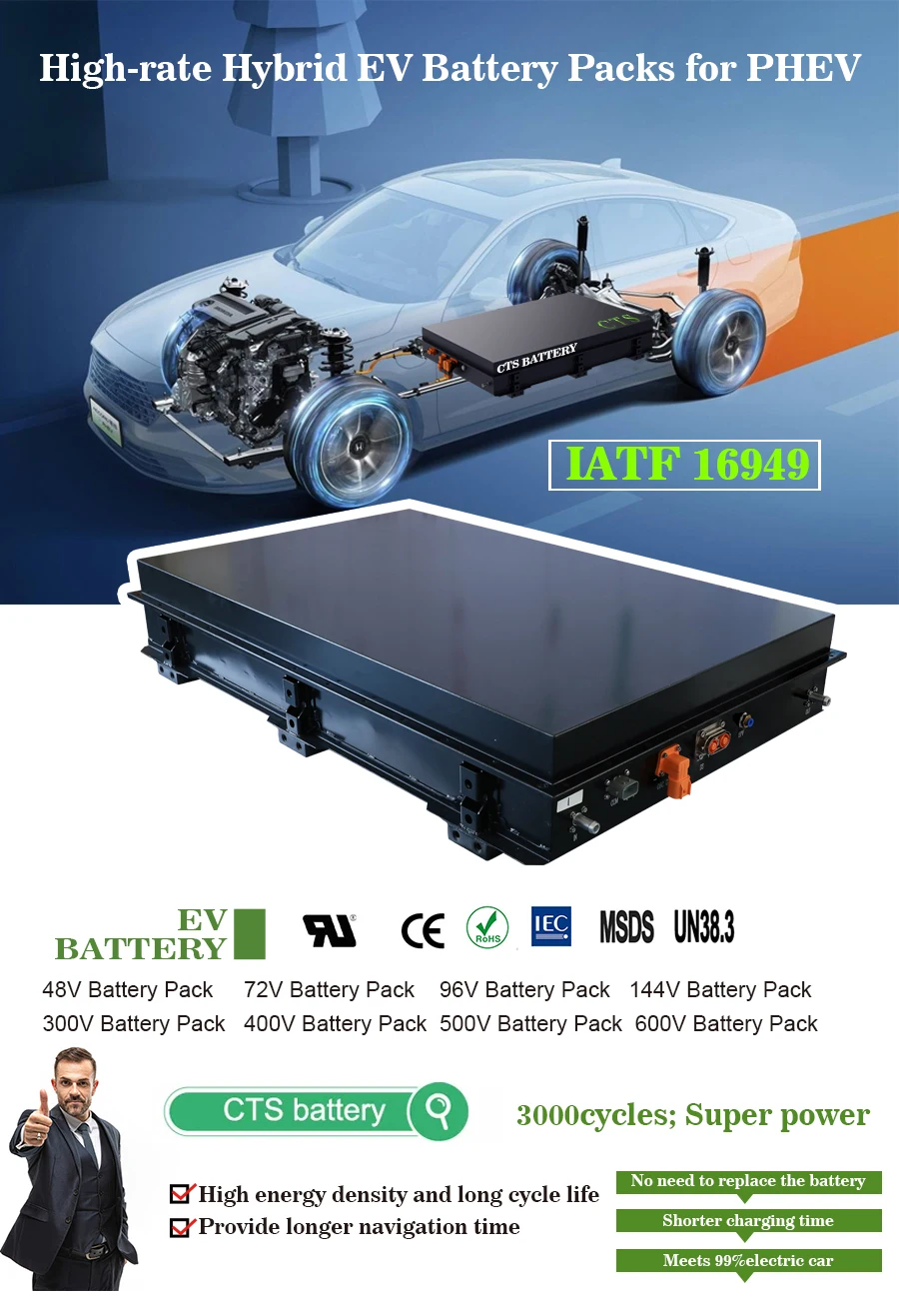

The battery used in a PHEV Plug-in Hybrid Electric Vehicle ) is specifically designed to provide a balance between electric driving range and overall vehicle weight. PHEV batteries are typically larger and have higher capacity compared to batteries used in conventional hybrid vehicles.
Key Characteristics of PHEV Batteries
Battery Type:
PHEVs commonly use lithium-ion (Li-ion) batteries as their primary energy storage system. Li-ion batteries offer a good balance between energy density, power output, and weight, making them suitable for PHEV.
Capacity:
The battery capacity of a PHEV determines the electric driving range. PHEVs usually have a smaller battery capacity compared to fully electricvehicles, The capacity normally ranges from 10 to 20 kWh.
Regenerative Braking:
PHEV like other hybrid vehicles, utilize regenerative braking technology, when the driver applies the brakes or decelerates, the electric motor functions as a generator, converting kinetic energy into electrical energy and storing it in the battery pack .
Weight and Packaging:
PHEV batteries are designed to be lightweight and compact to minimize the impact on the overall vehicle weight and space. This allows PHEVs to maintain good fuel efficiency and practicality while still providing an electric driving option
PHEV batteries are designed to be lightweight and compact to minimize the impact on the overall vehicle weight and space. This allows PHEVs to maintain good fuel efficiency and practicality while still providing an electric driving option
Rechargeable:
PHEV batteries are rechargeable and can be charged by plugging the vehicle into an external power source.
Testing standard:
CTS battery can pass the anti vibration test and thermal runaway test, meeting the requirements of IEC62619, R100 and other related testing standards
╣Battery Parameters
Items | CTS-33640 | CTS-52540 | |
Voltage | 336V | 525.6V | |
Capacity | 40Ah | 40Ah | |
Energy | 13.44kWh | 21.02kWh | |
Battery cells | 3.2V 40Ah-105S1P | 3.2V 40Ah-144S1P | |
Working voltage | 265V~383V | 360.0~604.8V | |
Continuous/peak discharge power | 40kW/70KW | 55kW/85KW | |
Continuous/peak charge power | 30kW/60KW | 40kW/80KW | |
Size/weight | 1200*750*184mm,150kg | 1320*450*270mm | |
Enclosure Protection | IP68 | IP68 | |
Working Temperature Range | -35~55℃ With Liquid cooling and liquid heating | ||
Recommended Operating Temperature | 15~35℃ | ||
Life cycles | >3000 | ||
More Models Available :
Models | CTSH25C01JC | CTSH25C07Y | CTSH25C08Y | CTSH25C09Y | |||
Capacity （25℃，1C） | 25Ah | ||||||
Cell Configuration | 1P148S | 2P72S | 1P162S | 2P88S | |||
Energy | 13.61kWh | 13.24kWh | 14.90kWh | 16.19kWh | |||
Normal voltage Voltage ranges | 544.6V 407.0~621.6V | 264.96V 198.0~302.4V | 596.16V 445.5~680.4V | 323.84V 242.0~369.6V | |||
Peak charge/discharge power （25℃、30s、50%soc） | 98kW/104kW | 96kw/101kw | 108kw/114kw | 117kw/124kw | |||
Continuous charge/discharge power （25℃、50%soc） | 55kW/69kW | 53kw/67kw | 60kw/75kw | 65kw/81kw | |||
Size（mm） | （1060±10）*（630±10）*（235±5）mm | ||||||
Thermal management | Liquid cooling/electric heating | ||||||
Working Temperature Range | -35~55℃ | ||||||
Models | CTS48C07Y | CTS48F04Y | CTS48F05Y | CTS48F05Y | |||
Capacity （25℃，1C） | 48Ah | ||||||
Cell Configuration | 2P72S（C） | 3P42S（C） | 1P172S（F） | 2P86S（F） | |||
Energy | 25.22kWh | 22.07kWh | 30.13kWh | 30.13kWh | |||
Normal voltage Voltage ranges | 262.8V 180.0~302.4V | 153.3V 105.0~176.4V | 627.8V 430.0~722.4V | 313.9V 215.0~361.2V | |||
Peak charge/discharge power （25℃、30s，50%soc） | 83kW/83kW | 73kW/73kW | 99kW/99kW | 99kW/99kW | |||
Continuous charge/discharge power （25℃、50%soc） | 53kW/55kW | 47kW/48kW | 63kW/66kW | 63kW/66kW | |||
Size（mm） | 1060*630*235mm | 1360*630*235mm | |||||
Thermal management | Liquid cooling/electric heating | Liquid cooling/electric heating | |||||
Working Temperature Range | -35~55℃ | ||||||
Advancements in battery technology continue to improve the energy density and efficiency of PHEV batteries, resulting in increased electric driving range and overall performance.
╣Battery Application
CTS Battery can widely used in different EV/PHEV vehicles , if you have similar project , feel free to contact us , we will provide you the best battery solution.
╣Related Products

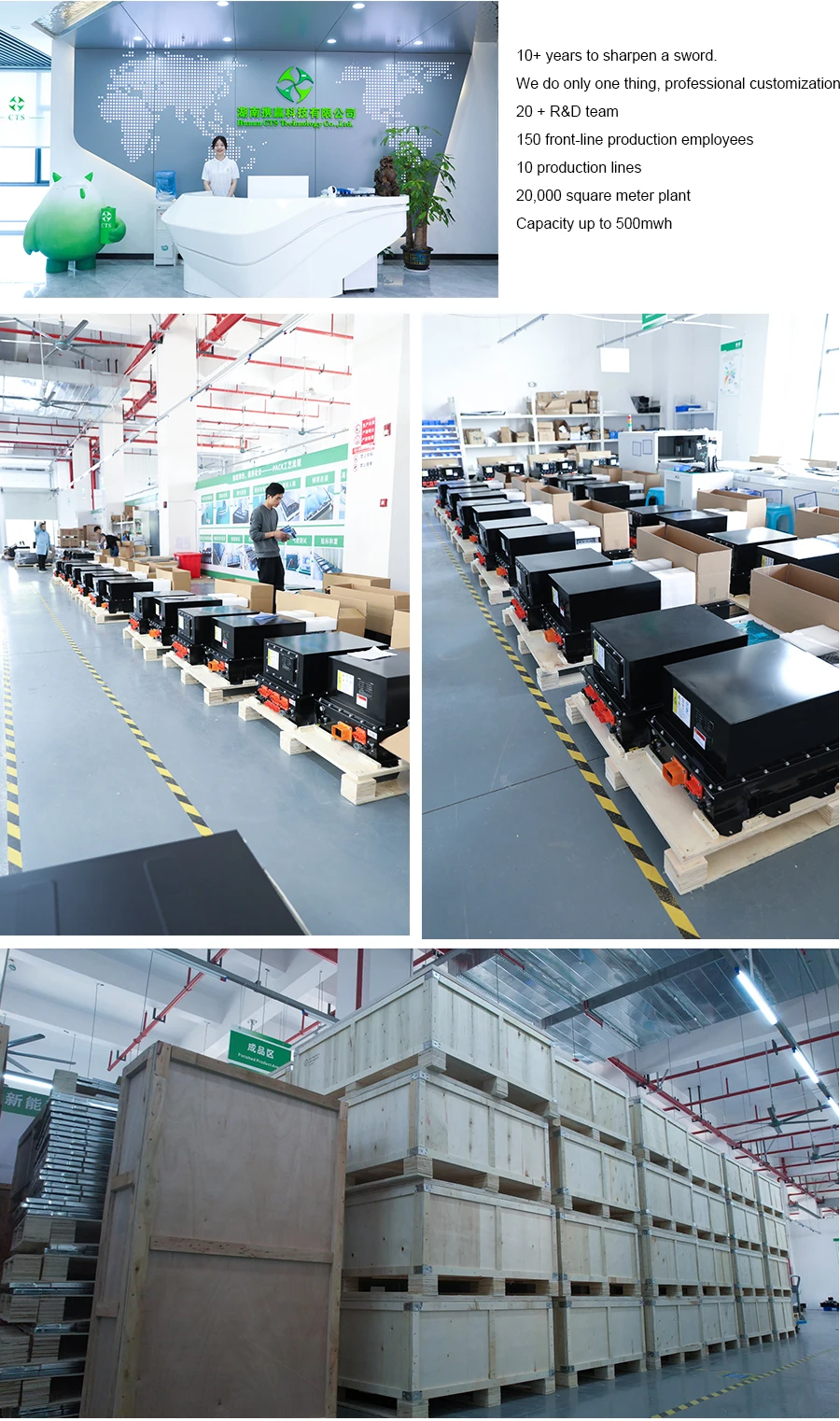

╣OUR FACTORY
Hunan CTS established in 2011, which is a manufacturer specializing in the R & D, production, sales and service of lithium battery cells and lithium battery packs, focusing on one-stop customized lithium battery products, such as electric vehicle batteries,electric motorcycle batteries, energy storage battery system, Mobile charging station and battery accessories etc...
CTS battery factory has obtained the IATF16949, ISO9001 for automotive quality management systems, demonstrating our qualification and experience in manufacturing automotive-grade products
