Product Overview
Description
Products Description
MATERIAL SELECTION
The first challenge for shearing rebars is avoiding knife crack which means the knife should be good enough for its toughness and ductility. Good toughness and ductility are not enough. The knife should also be good for wear resistance. Thus the knife has long work life. In addition, the blade must also have good high temperature resistance. The knife edge cannot be annealed due to high temperature, otherwise the life will be drastically reduced.
The first challenge for shearing rebars is avoiding knife crack which means the knife should be good enough for its toughness and ductility. Good toughness and ductility are not enough. The knife should also be good for wear resistance. Thus the knife has long work life. In addition, the blade must also have good high temperature resistance. The knife edge cannot be annealed due to high temperature, otherwise the life will be drastically reduced.

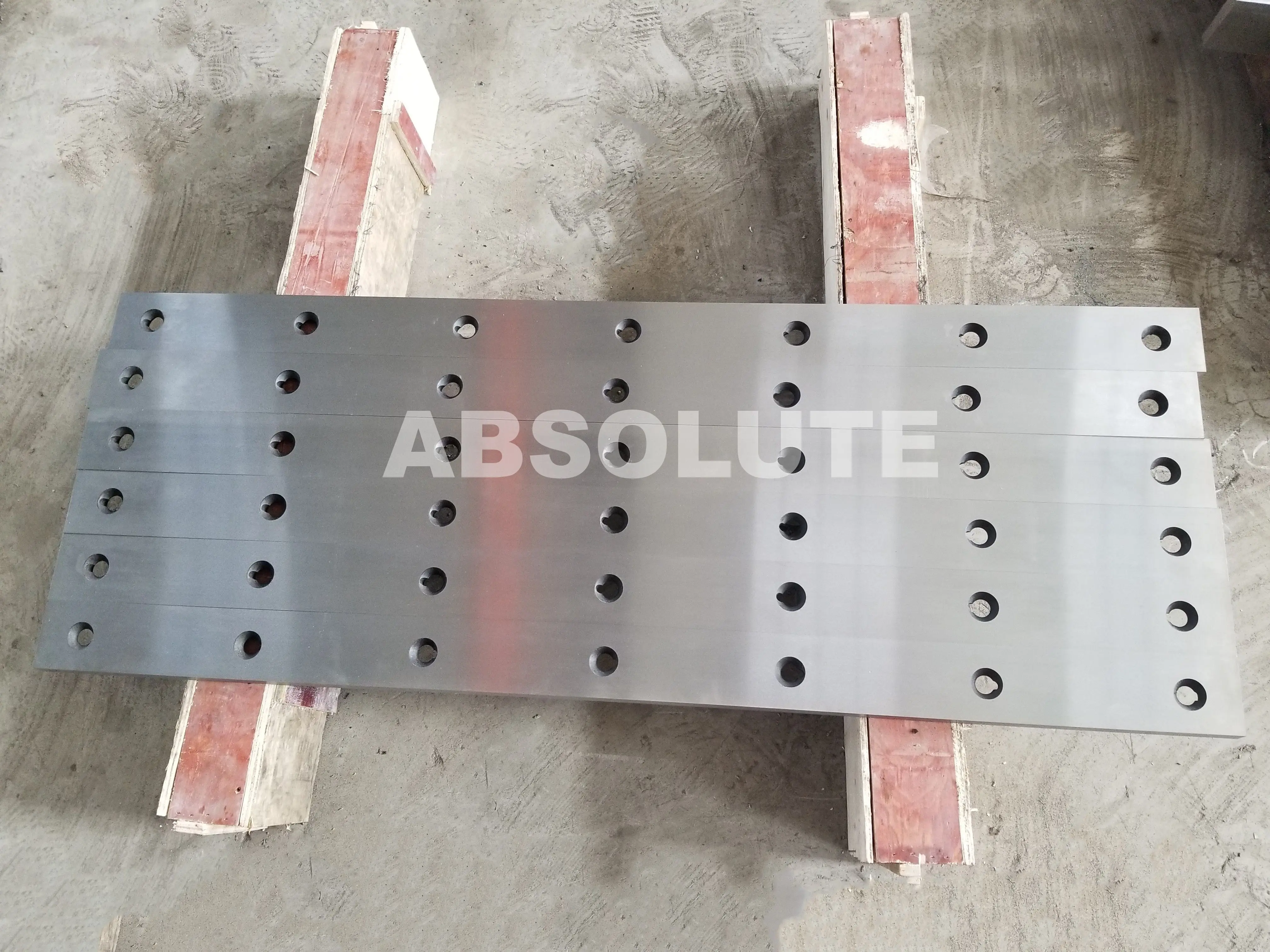

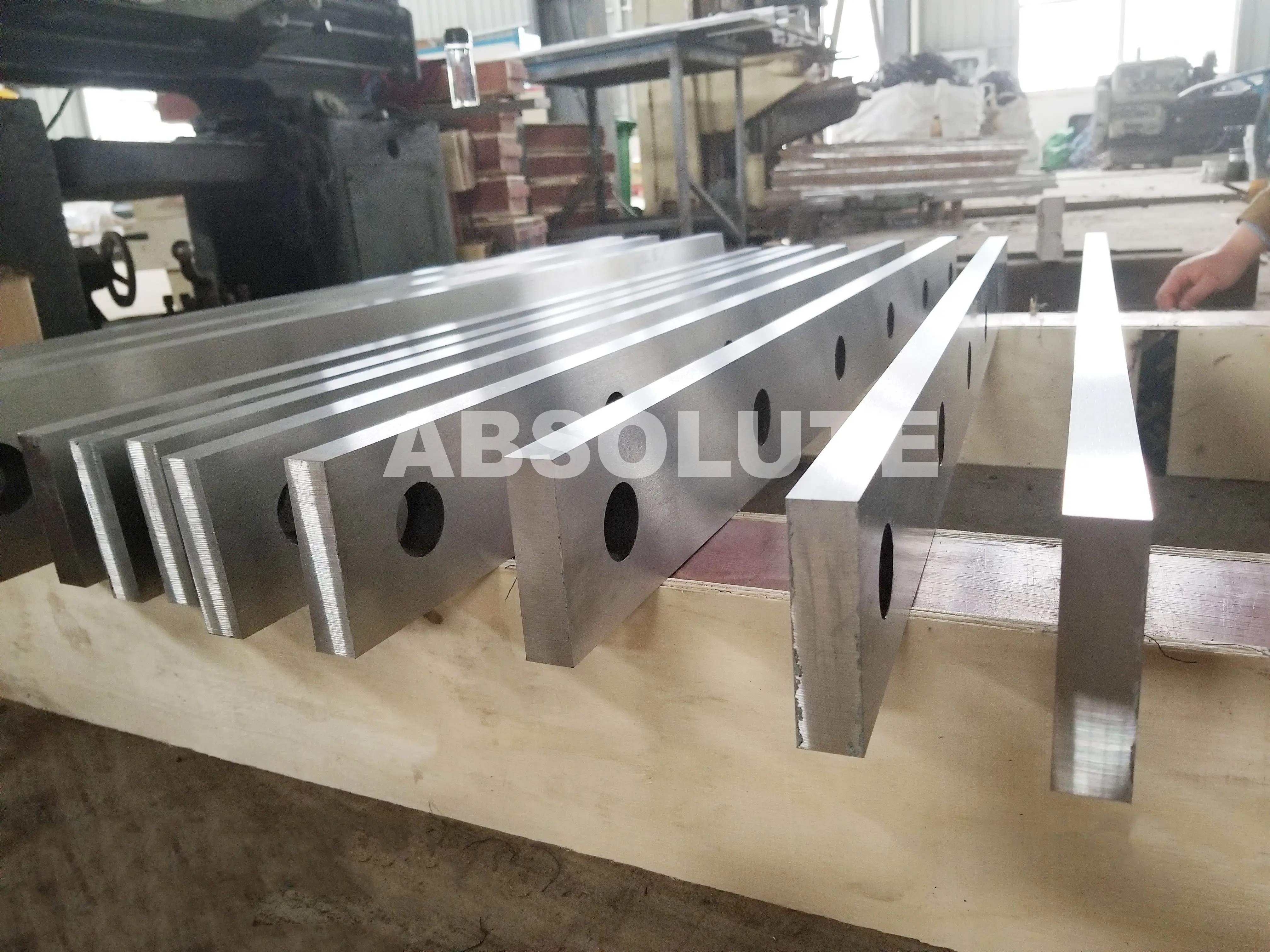

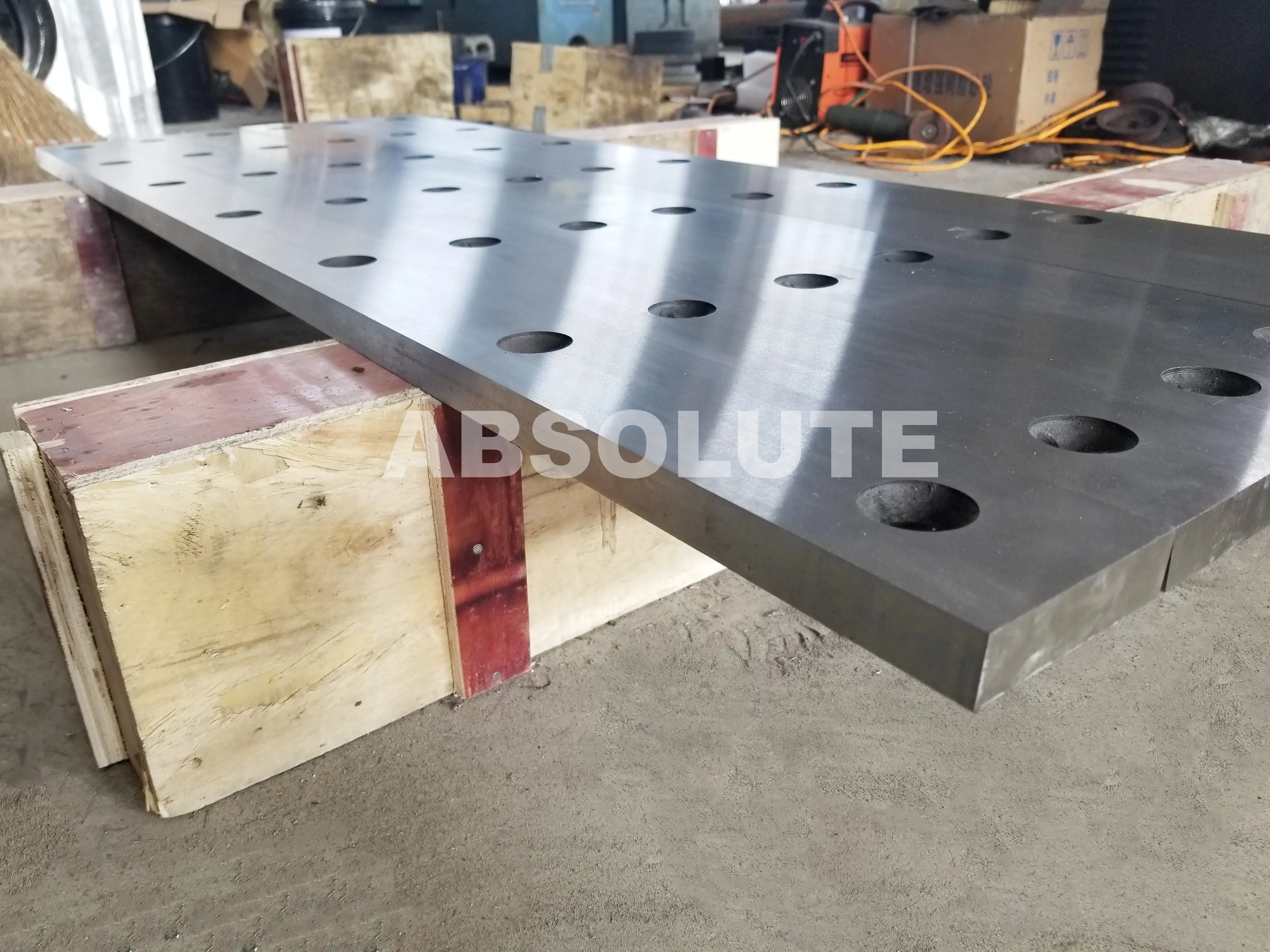

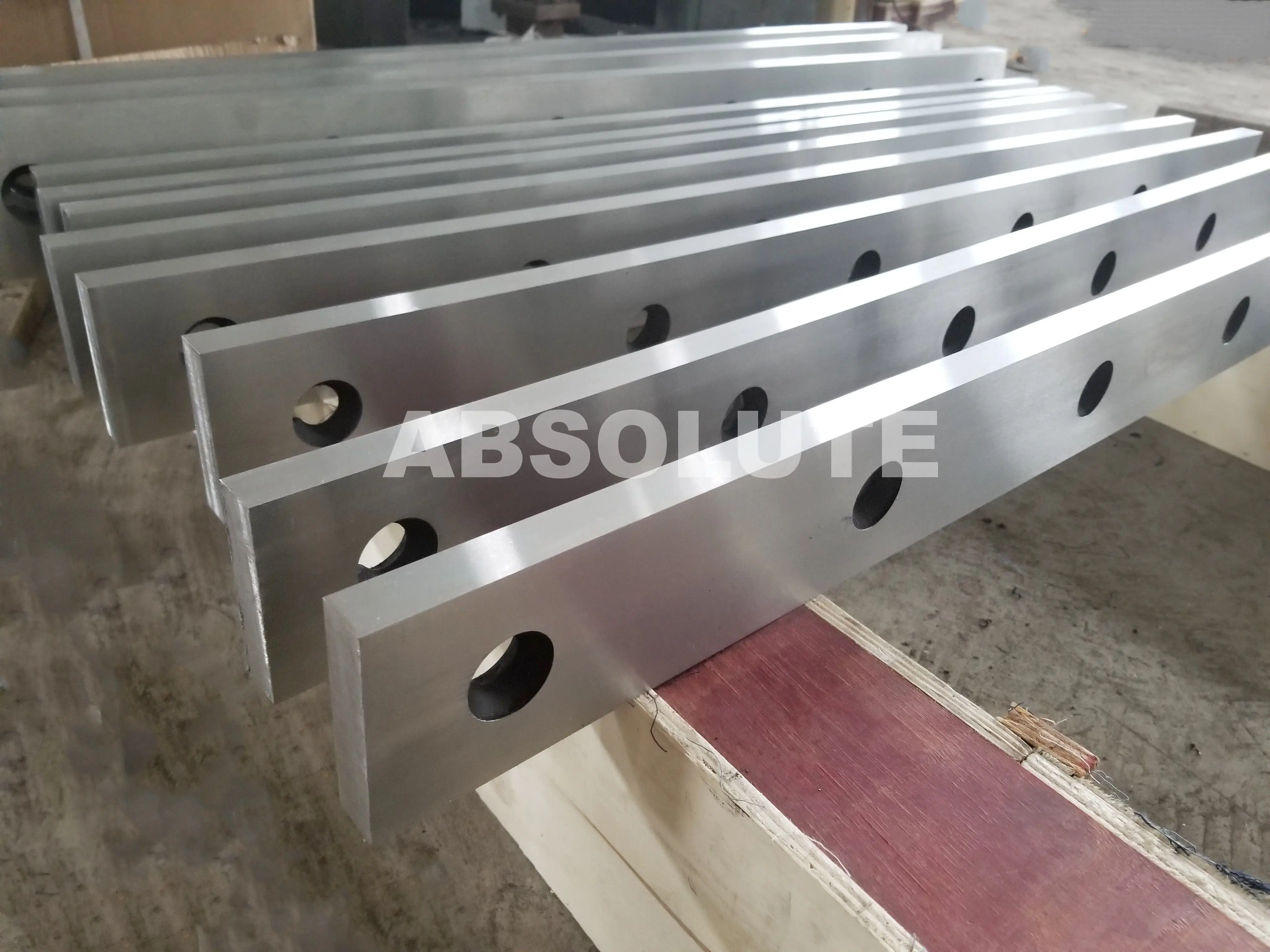

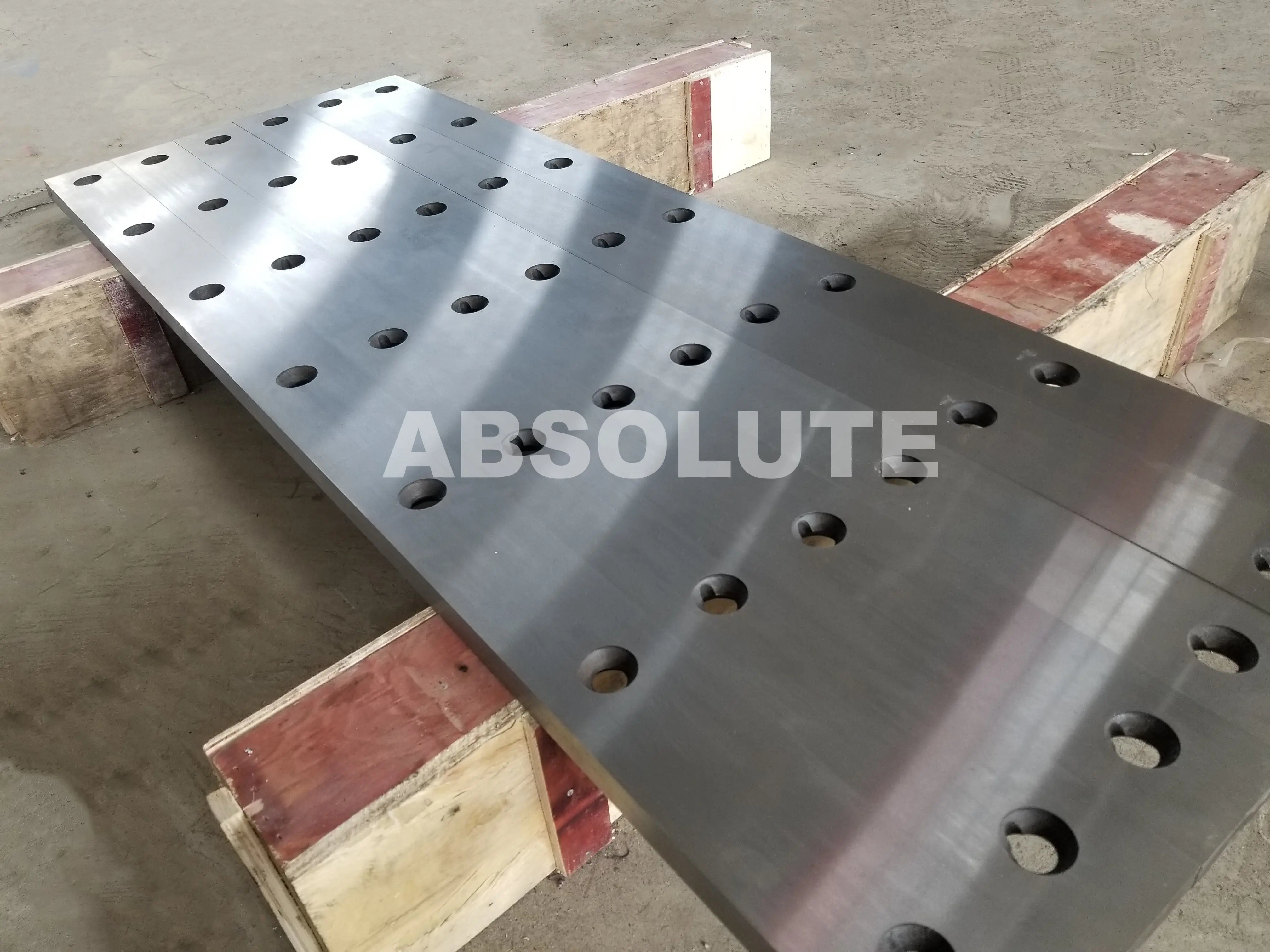

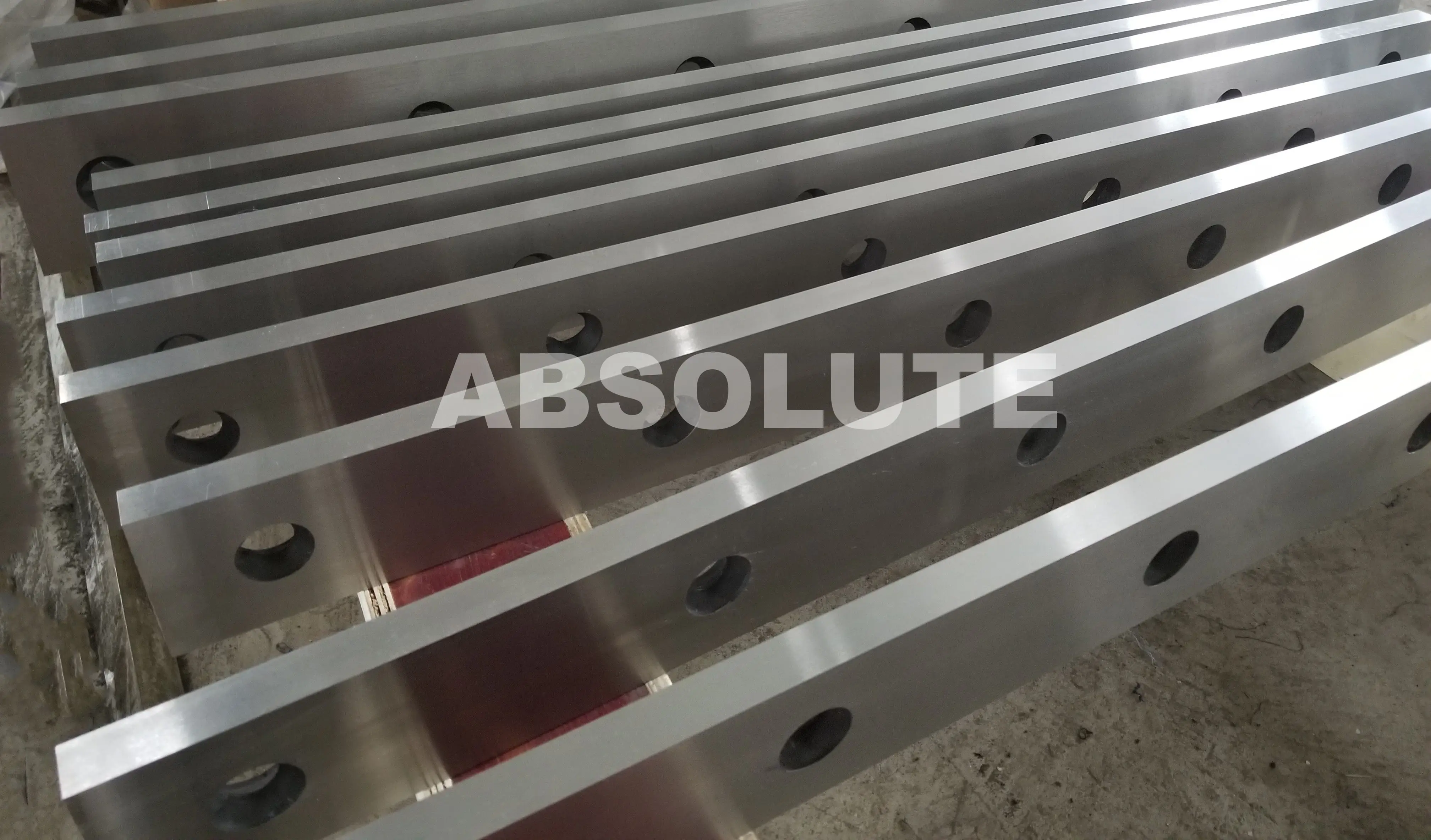

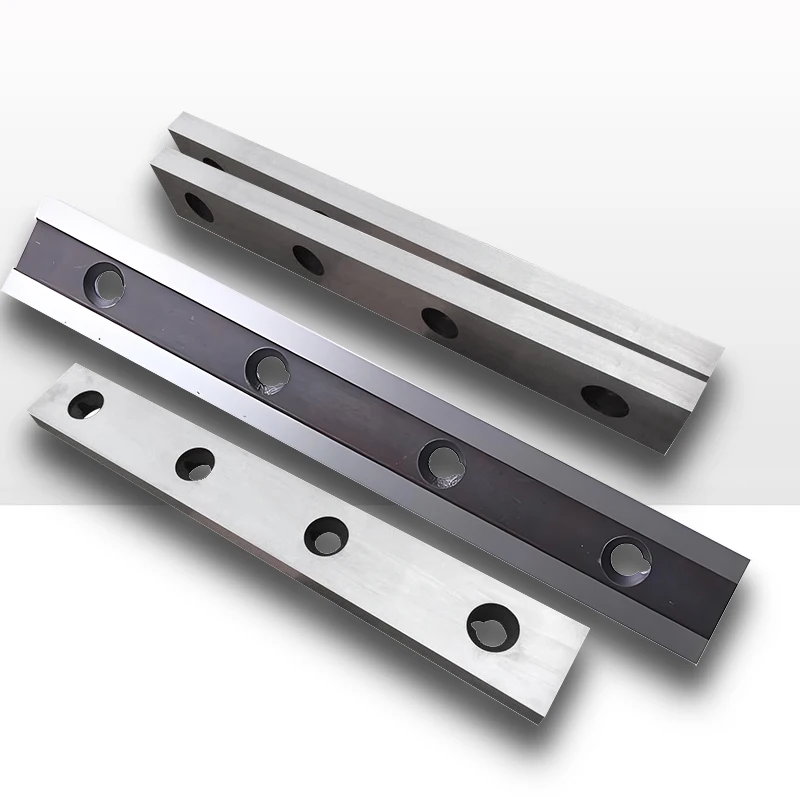

we a professional manufacturer of Industry machine kniveswe. can make customized blades as per customers' requirements and drawings. Welcome to inquire with your drawings or samples.Straight Guillotine Bladeinclude hot rolling and cold rolling straight blade. For hot rolling applications, Straight blade are usually made of high quality steels, like nickel alloy. However, for cold rolling applications, medium quality and high quality alloy tool steel and heavy-duty powder metallurgy steel are usually adopted for making straight blade for cold rolling applications. Shear blade for plate shearing machines with different sizes and specifications are all available to satisfy customers' different cutting needs.
Machine model | Blade size | Piece/set | Machine model | Blade size | Piece/set | |||||
Q11-4X2000 | 500*70*22 | 8 | QC12K-4X3200 | 1100*80*20 | 6 | |||||
Q11-6X2000 | 508*70*22 | 8 | QC12Y-8X3200 | 1100*80*20 | 6 | |||||
Q11-6X2500 | 508*70*22 | 10 | QC12Y-16X3000 | 1100*100*25 | 6 | |||||
Q11-13X2500 | 508*80*25 | 10 | QC12Y-16X3200 | 1100*100*25 | 6 | |||||
Q11-13X2500 | 510*80*25 | 10 | QC12Y-20X3200 | 1100*100*30 | 6 | |||||
QC12Y-6X4000 | 1025*80*20 | 8 | QC12Y-4X2500 | 1300*80*20 | 4 | |||||
QC12Y-8X4000 | 1025*80*20 | 8 | QC12Y-16X2500 | 1300*80*20 | 4 | |||||
QC12Y-20X2000 | 1025*100*25 | 4 | QC12Y-12X2500 | 1300*100*25 | 4 | |||||
QC12Y-12X4000 | 1025*100*25 | 8 | QC12Y-25X2500 | 1300*100*30 | 4 | |||||
QC12Y-16X2000 | 1025*100*25 | 4 | QC12Y-12X6000 | 1300*100*125 | 8 | |||||
QC12Y-20X4000 | 1025*100*20 | 8 | QC12Y-25X2500 | 1300*125*32 | 4 | |||||
Because there are too many sizes, only some sizes are listed, and other sizes can also be customized | ||||||||||

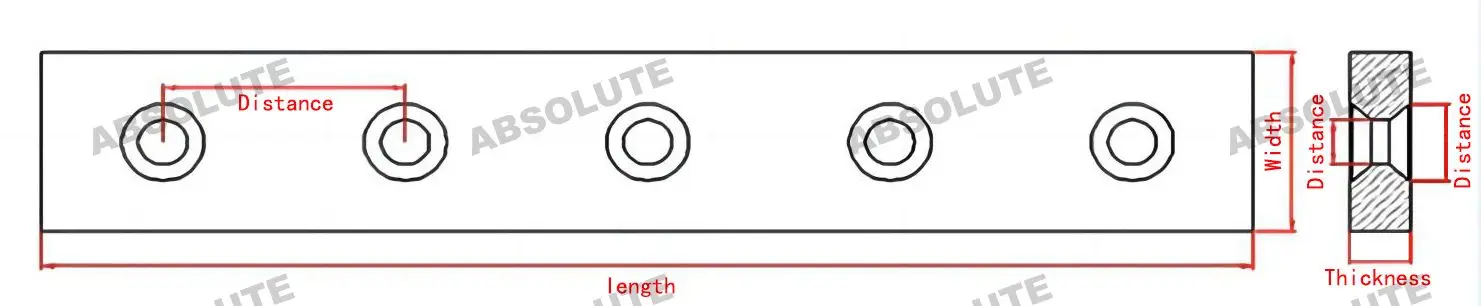

Special sizes, we need to know these data.

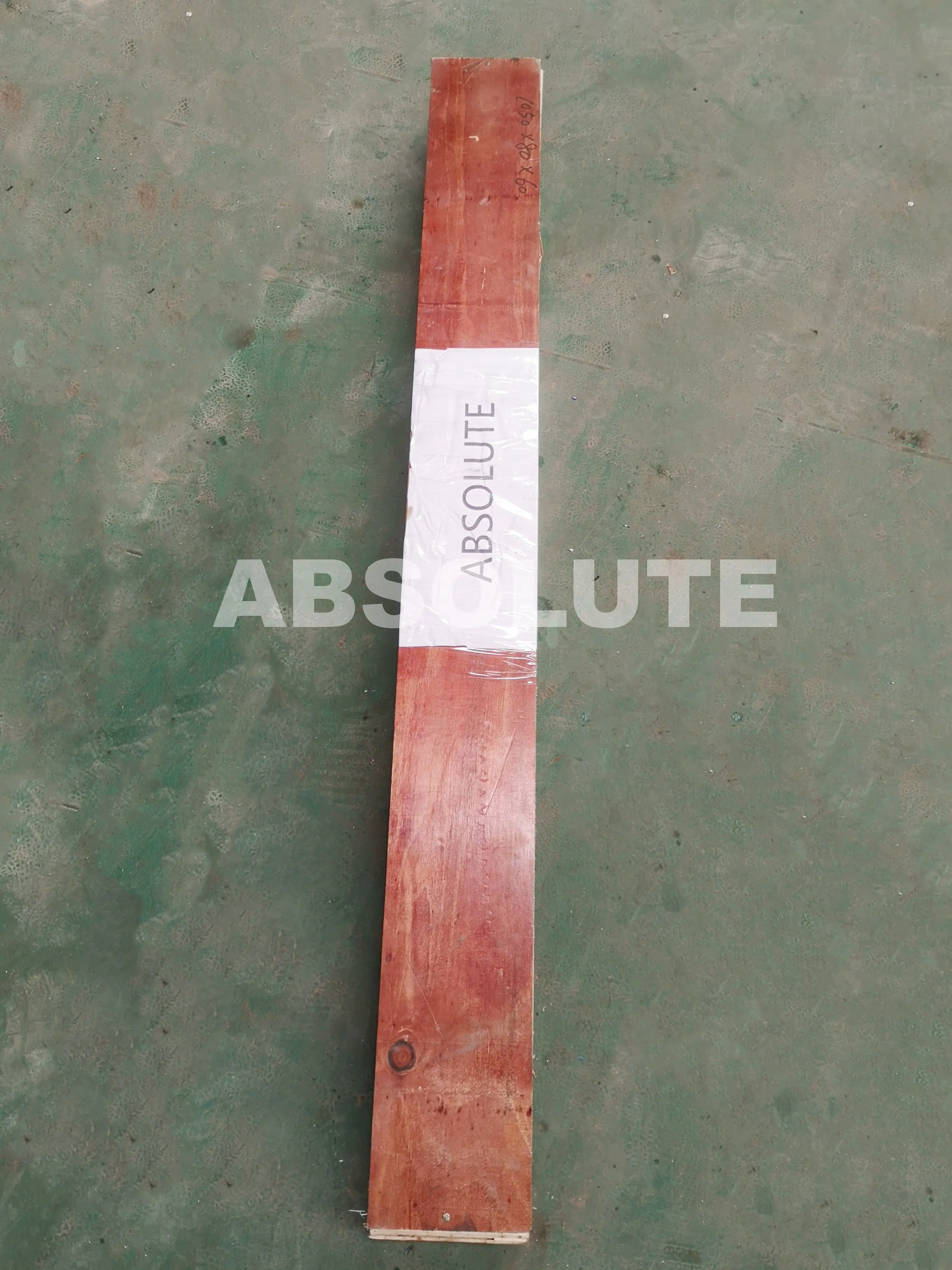

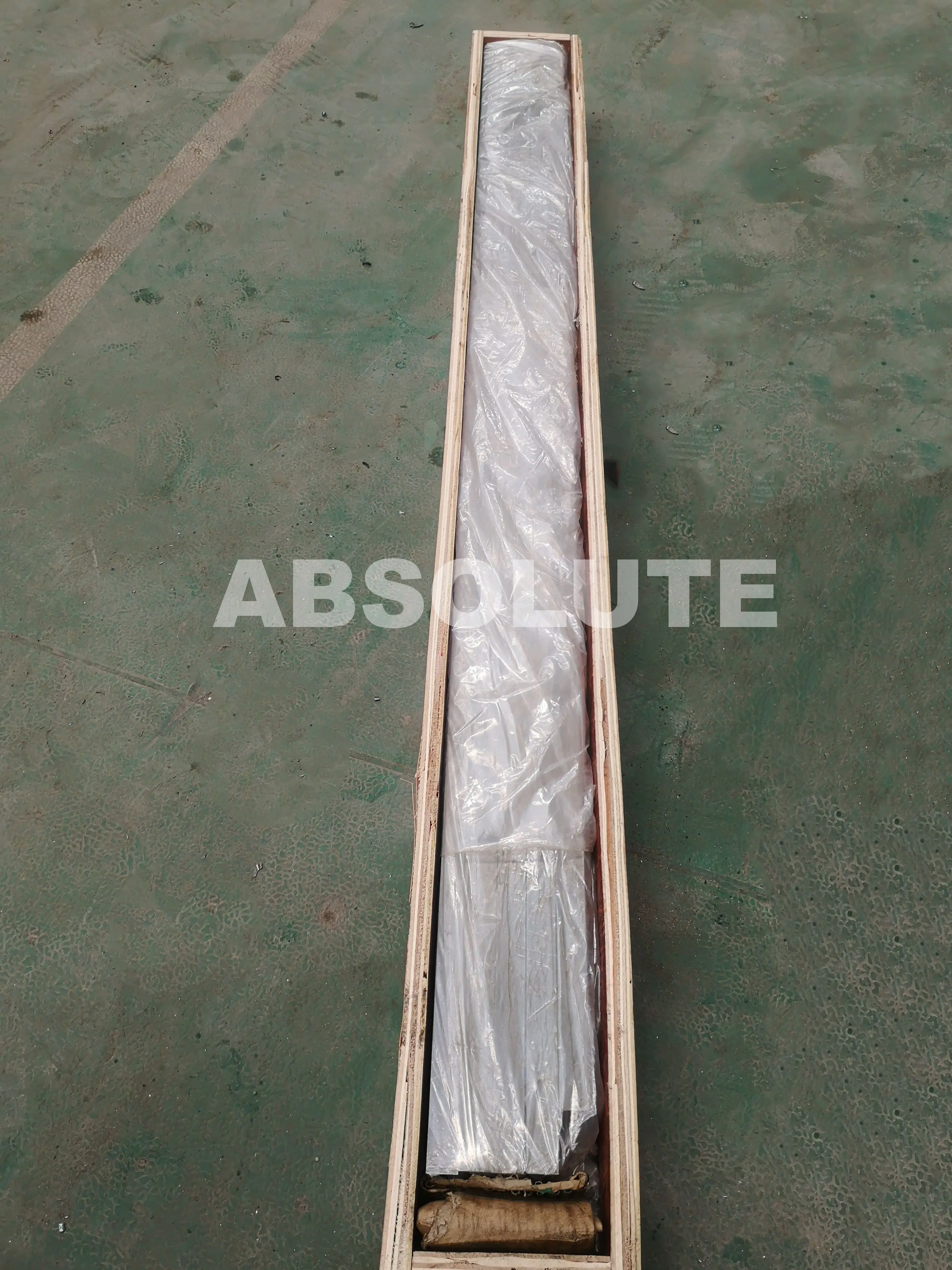

Shipping packaging diagram:
